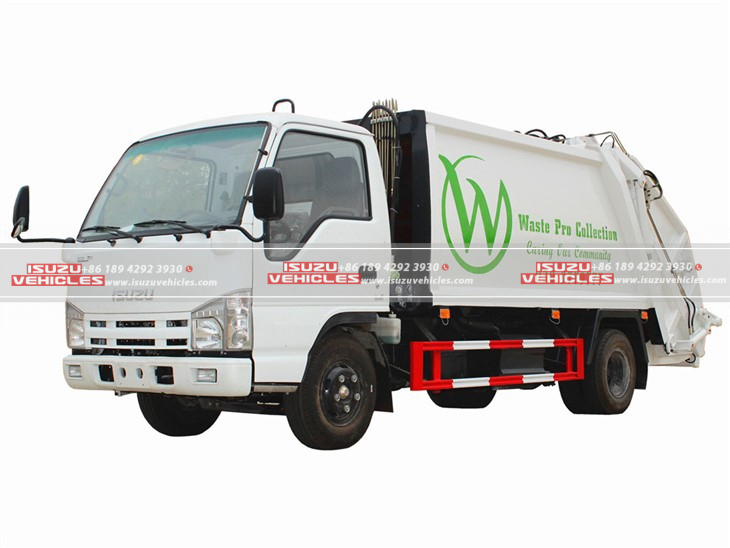

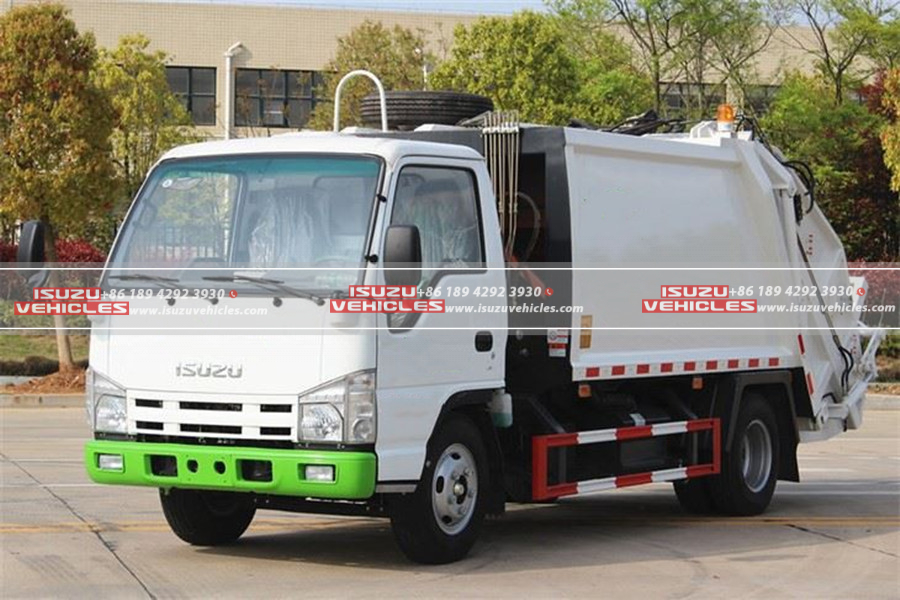

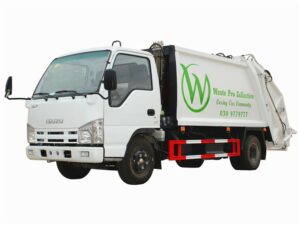

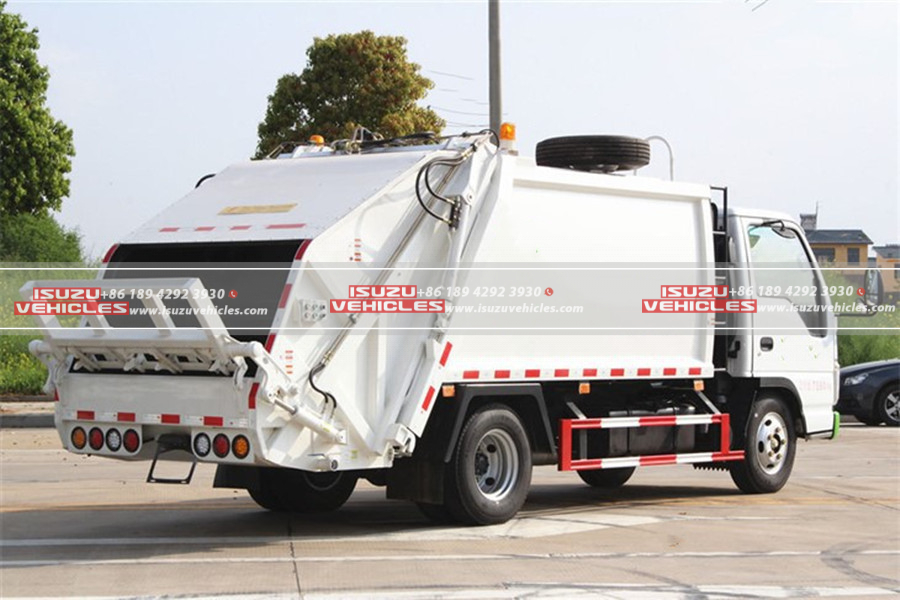

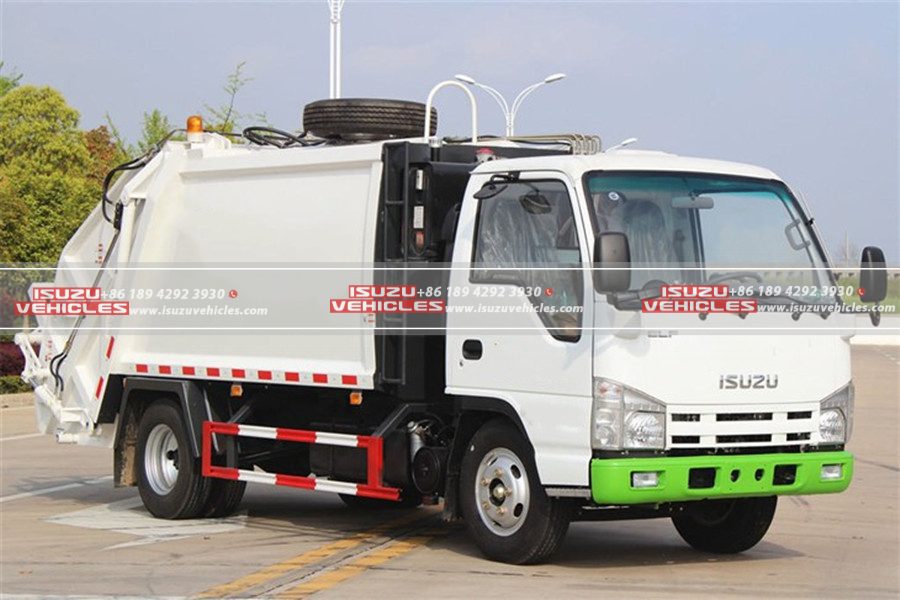

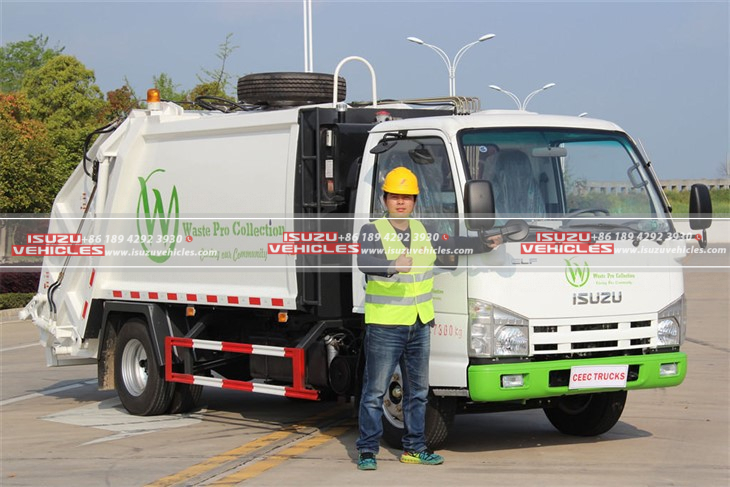

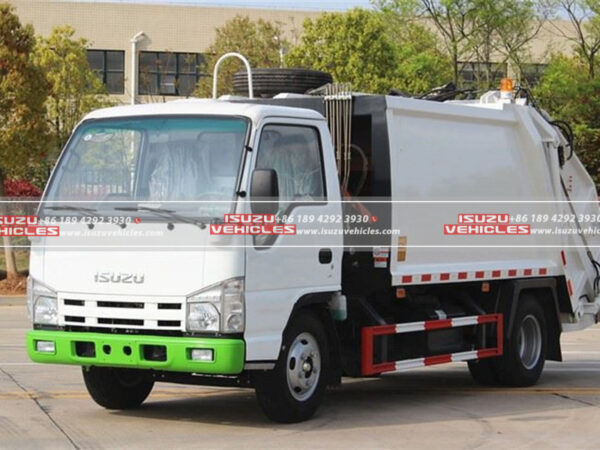

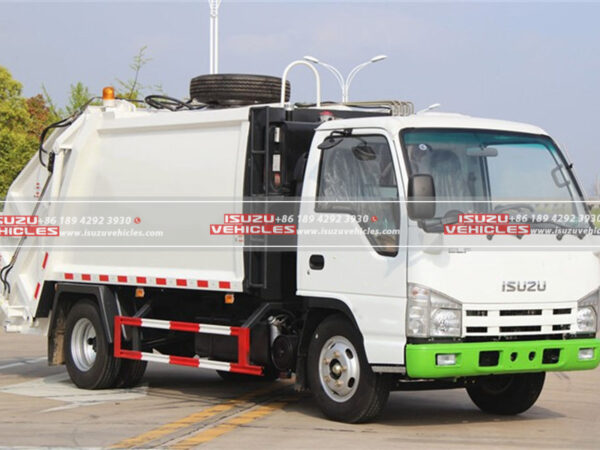

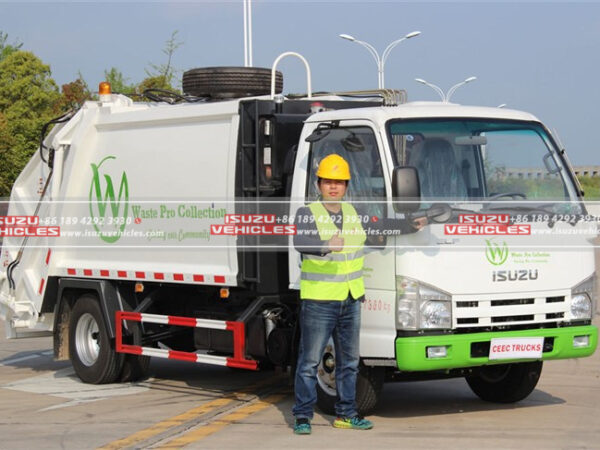

ISUZU 5 CBM Garbage Compactor Truck
100P Chassis Compact Efficiency
Built on the ISUZU 100P chassis, this garbage compactor truck is engineered for urban waste collection with a gross vehicle weight of 7,300kg and curb weight of 4,710kg. Its compact dimensions of 5,735×1,980×2,570mm and 3,360mm wheelbase ensure agility in narrow streets, while the 7.00R16 tire configuration (6+1 tires) guarantees stability under heavy loads.
Euro 5-Compliant Powertrain
Powered by the ISUZU 4KH1CN5LS engine, the ISUZU 5 CBM Garbage Compactor Truck delivers 98HP with Euro 5 emission compliance, balancing fuel efficiency and environmental responsibility. The ISUZU/MSB manual transmission (5F+1R) ensures reliable power delivery for repetitive waste-handling tasks.

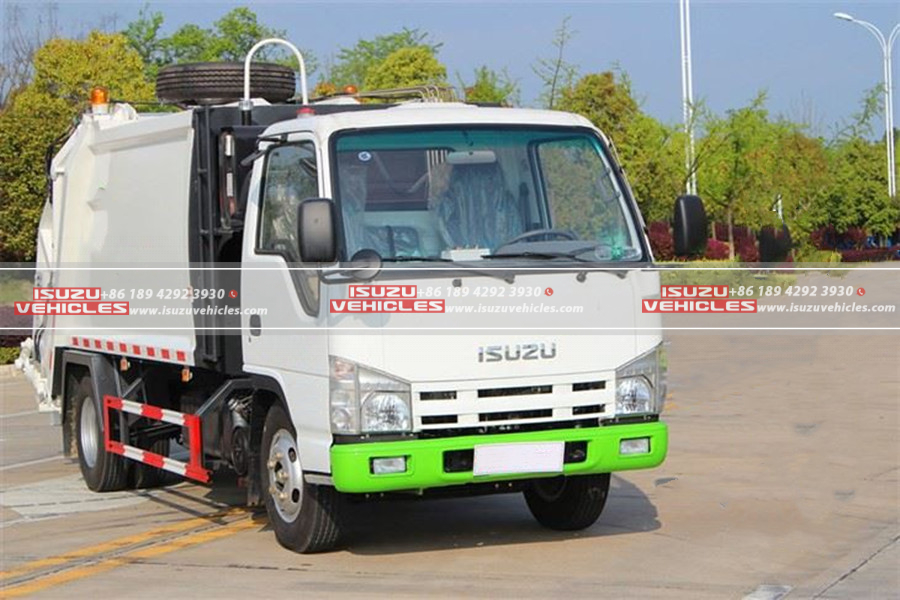

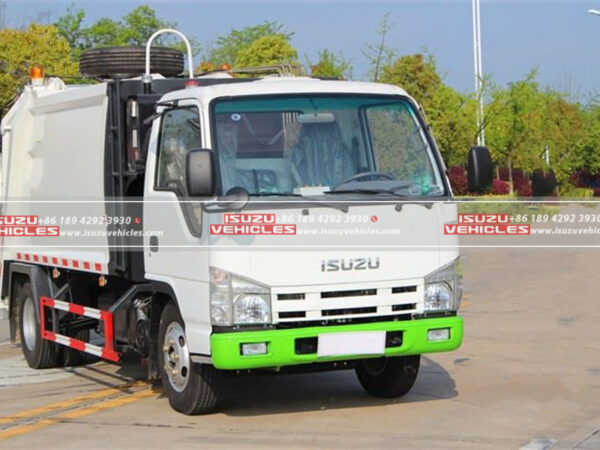

Ergonomic Operator Cabin
The steel-construction single-row cabin accommodates 3 passengers, featuring left-hand drive controls and multi-functional interfaces for seamless operation.
Features

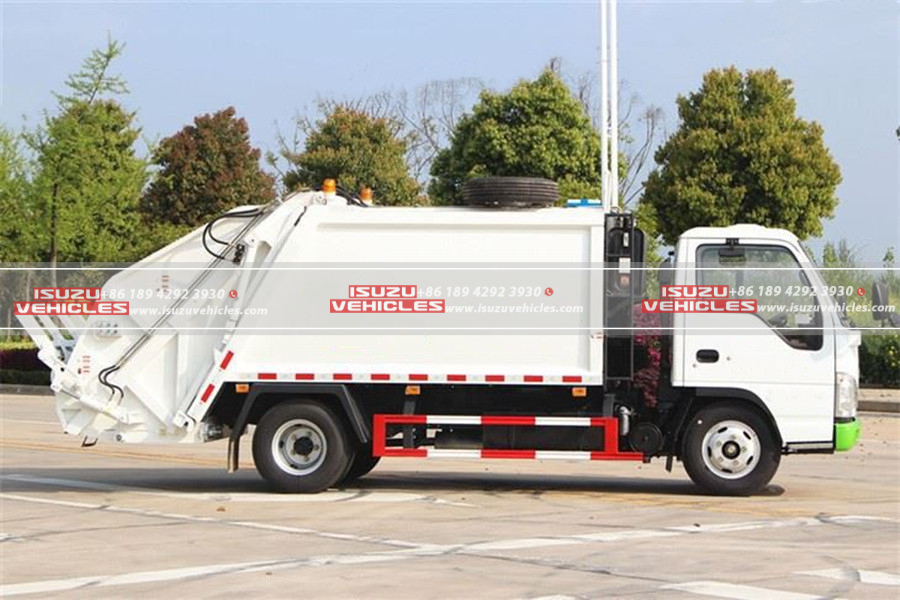

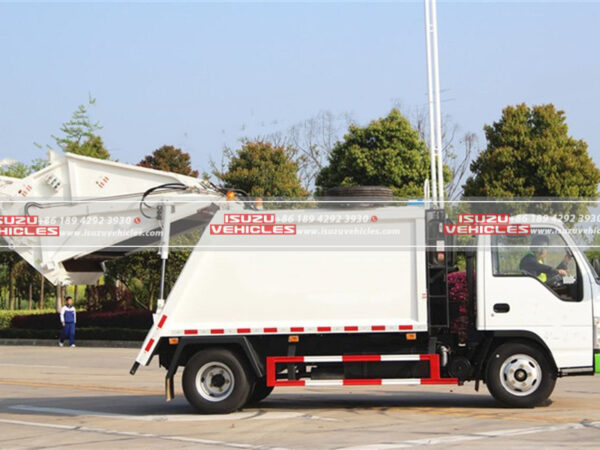

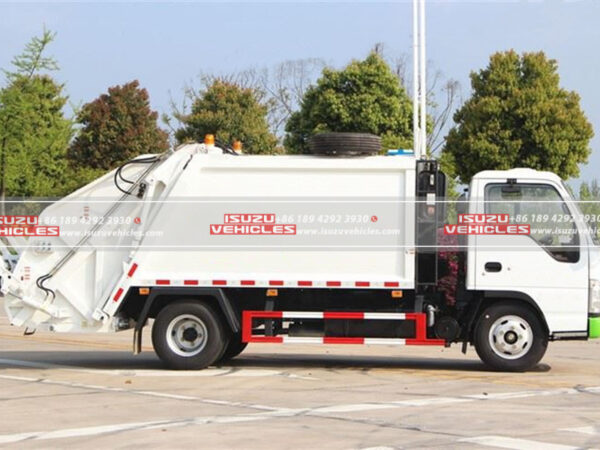

Durable Garbage Compactor Body

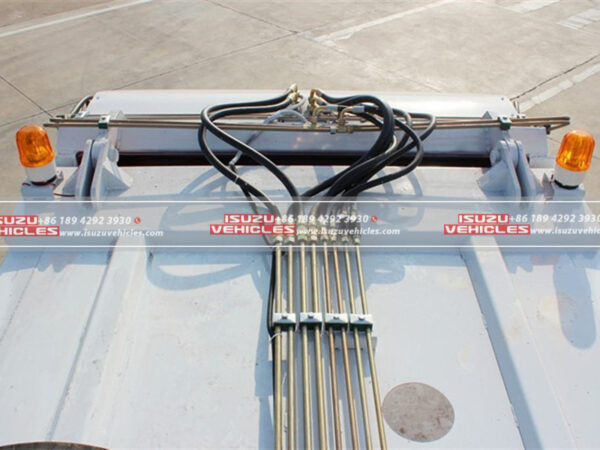

Fabricated from Q235 steel sheets, the body includes a 5mm-thick floor and 4mm corrugated sidewalls for structural integrity. The U-shaped cross members and anti-rust treatment ensure longevity in harsh environments. A telescopic hydraulic cylinder drives the profile steel-guided ejector for efficient waste compaction.

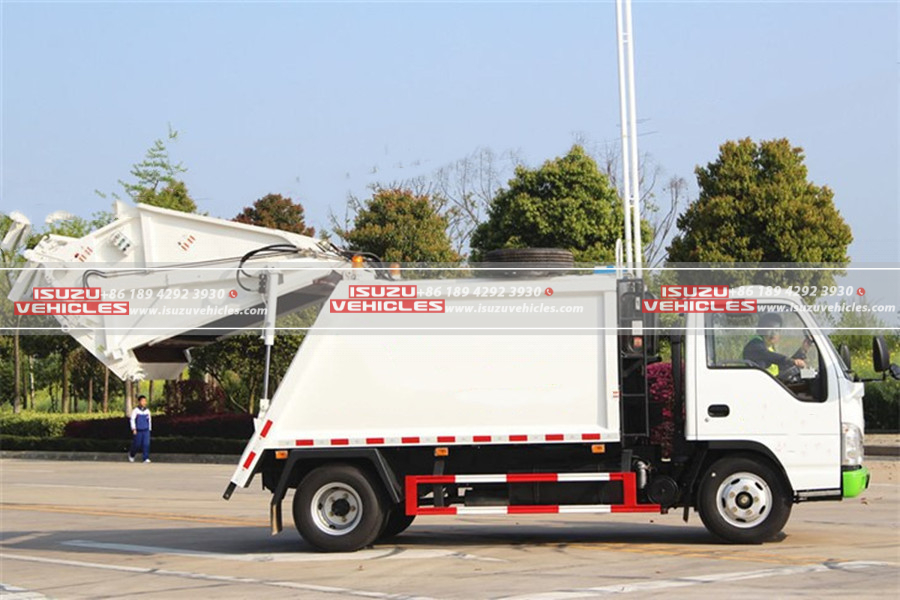

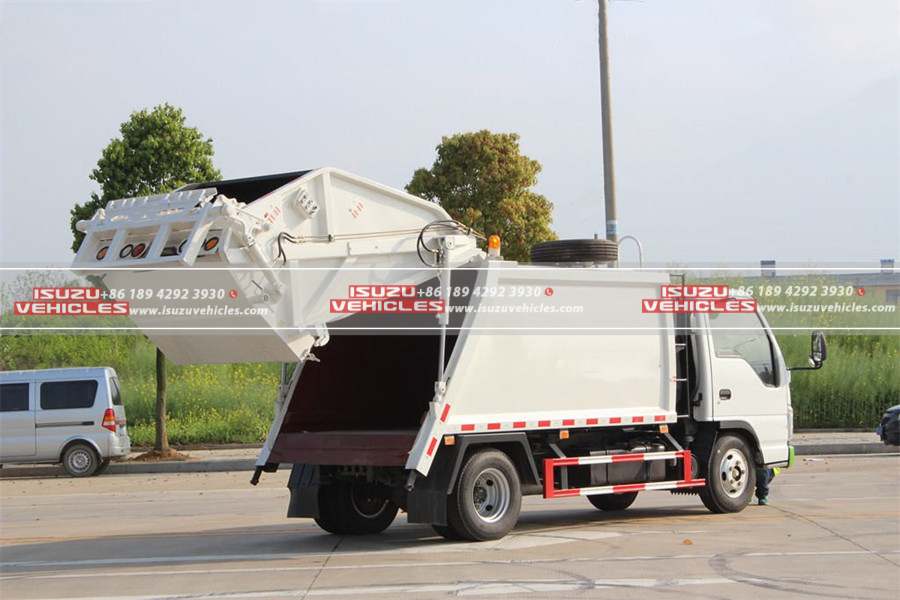

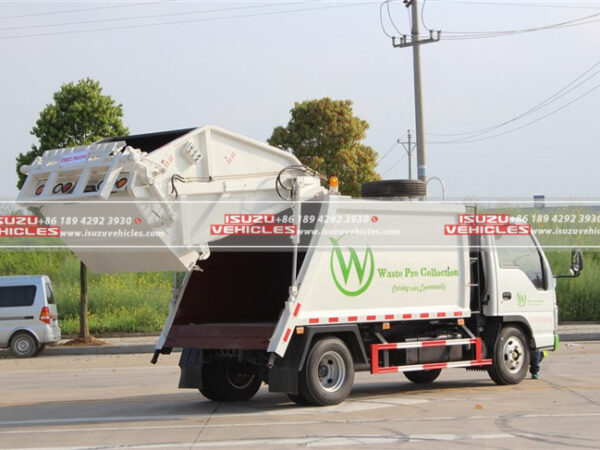

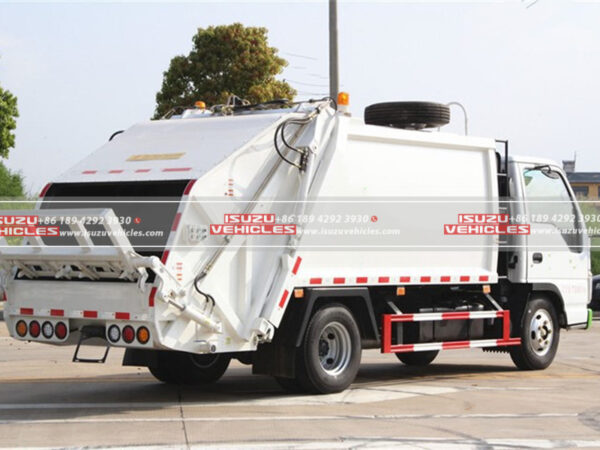

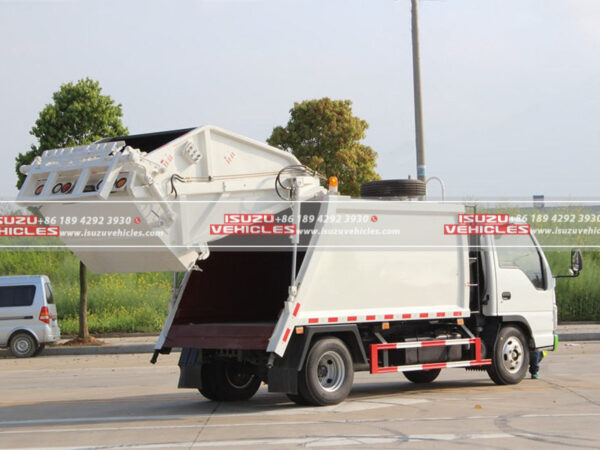

Hydraulic Tailgate Safety

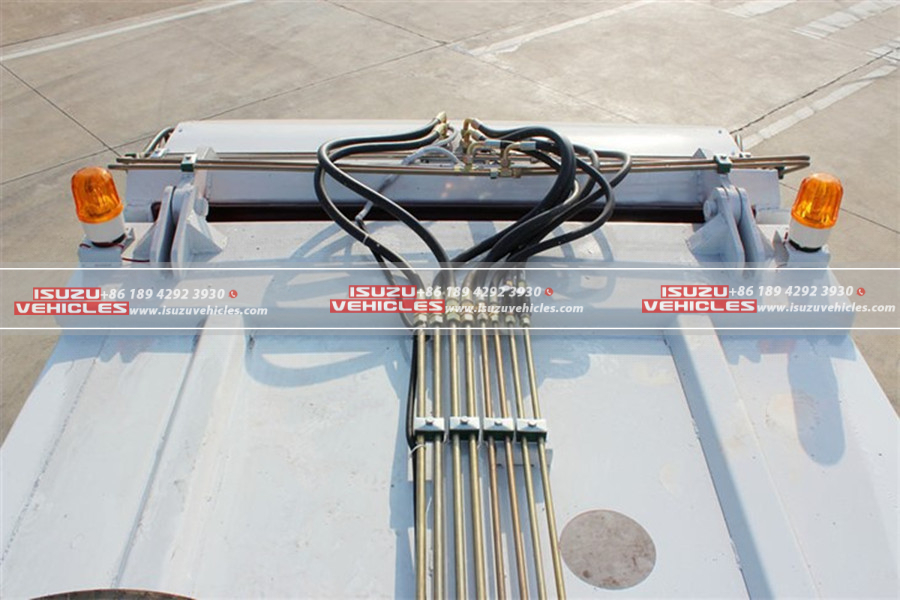

The wear-resistant steel hopper (1.5m³ capacity) features self-cleaning discharge and double-acting hydraulic cylinders for tailgate operation. Safety relief valves and anti-drop mechanisms prevent accidents during hydraulic failures, while the 3:1 to 6:1 compaction ratio optimizes waste density.
Intelligent Control Systems

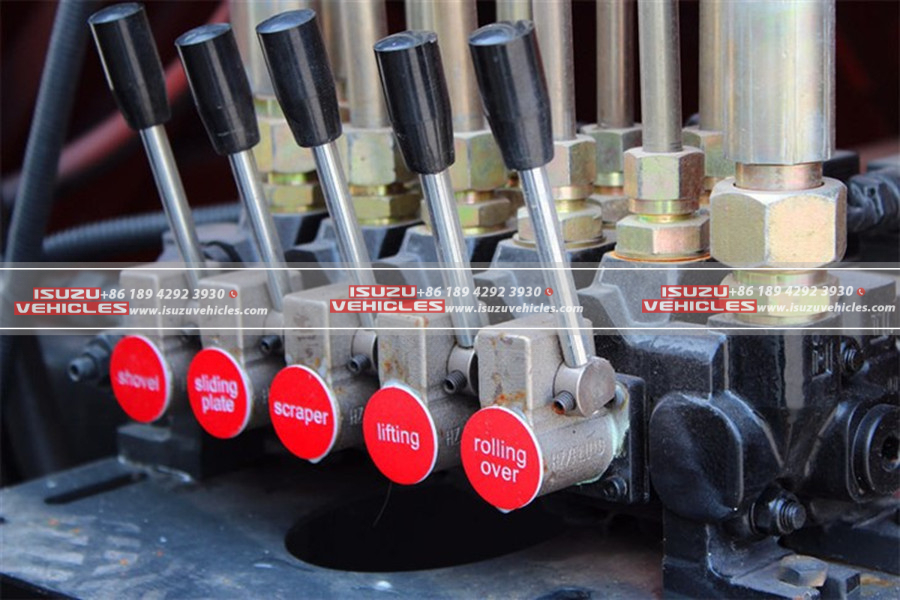

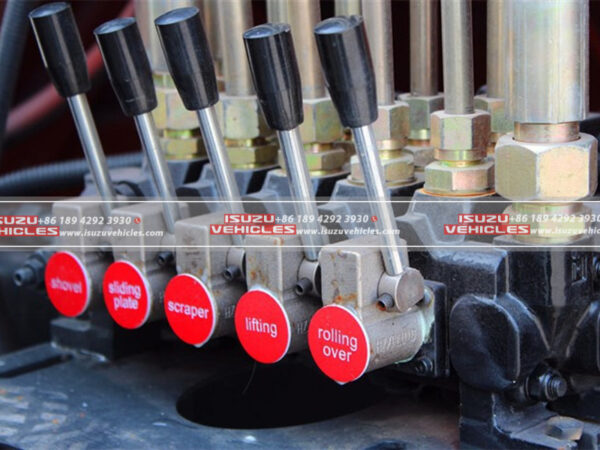

CAN BUS and PLC technology enable multi-mode operation: continuous cycles, semi-automatic single cycles, or manual control via rear push-button, in-cab interfaces, or multi-way valves. The ≤45s unloading time and ≤40s loading cycle maximize productivity.
Versatile Loading & Discharge
Supports 120L–1,100L bins with an 8–10s loading time and rear discharge design. The sealed leakage-proof container and weather-resistant steel construction prevent environmental contamination.
Operational Precision
Front, rear, and manual controls offer flexibility, while the 2.58T front axle and 4.72T rear axle ensure balanced weight distribution during compaction and transport.
SPECIFICATIONS
| Category | Specifications |
|---|---|
| Chassis | Size: 5,735×1,980×2,570 mm GVW/Curb Weight: 7,300kg / 4,710kg Wheelbase: 3,360mm Front/Rear Axle: 2.58T / 4.72T Tire: 7.00R16, 6+1 tires |
| Engine | Type: Diesel Make/Model: ISZUU/4KH1CN5LS/98hp/Euro 5 |
| Transmission | Model: ISUZU/MSB Gears: 5F+1R Operation: Manual |
| Cabin | Driving: ISUZU 100P 4X2, Left Hand Drive Type: Steel construction, Single Row, Flat Passenger No.: 3 |
| Garbage Container | Capacity: 5 CBM Material: Weather-resistant steel Design: Sealed leakage proof Compaction Ratio: 1:3–1:4 Hopper Volume: 1.5m³ Bin Lifter: 120L/240L/770L/1100L Loading Time: 8–10s Loading Cycle Time: ≤40s Unloading Time: ≤45s Discharge Type: Rear discharging Control System: Front control (cab), rear button control, manual control |
