BRIEF
Our focus is on delivering a broad selection of tilt flatbed recovery trucks, all of which are equipped with high-quality second-class chassis. These trucks are specifically designed to meet the requirements of public security and transportation agencies, as well as professional rescue and car maintenance companies. With ISUZU flatbed recovery truck, we can efficiently and securely remove accidents, breakdowns, and illegally parked vehicles, ensuring the seamless flow of traffic on the roads.

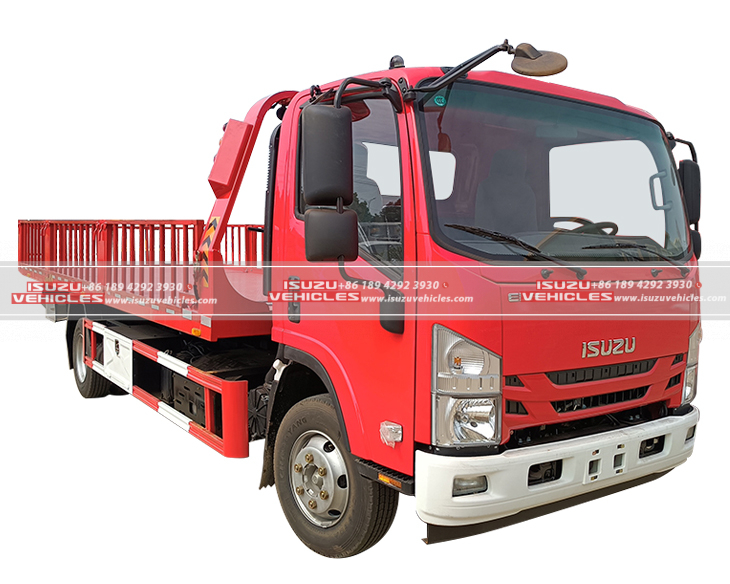

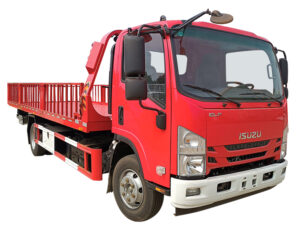

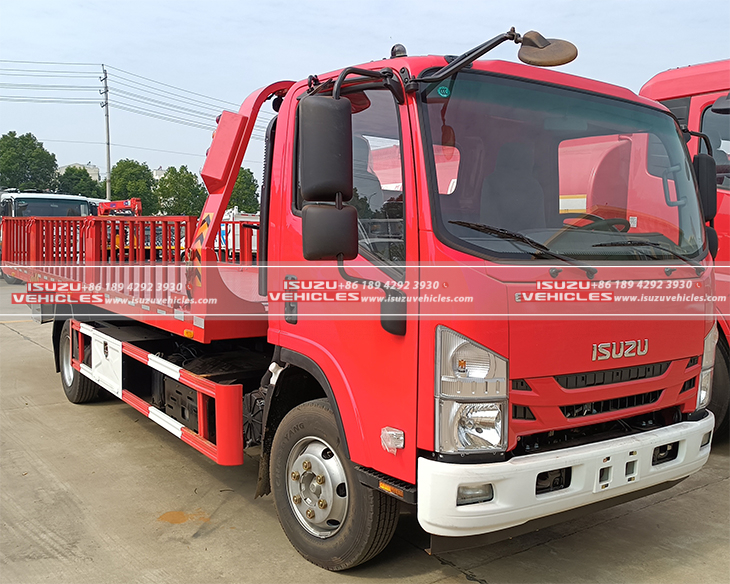

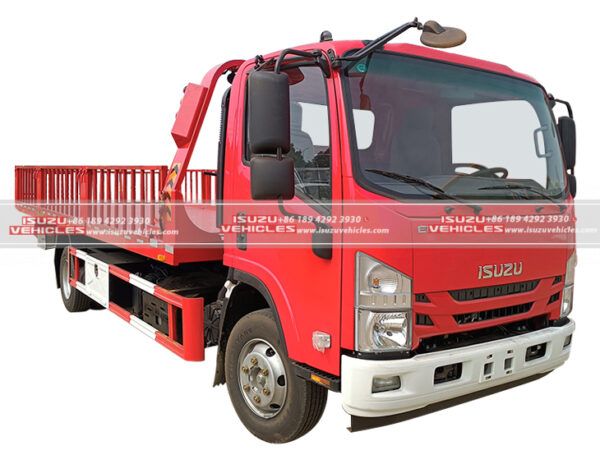

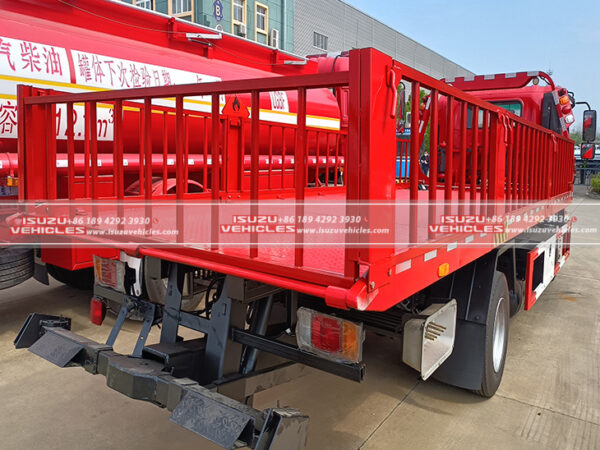

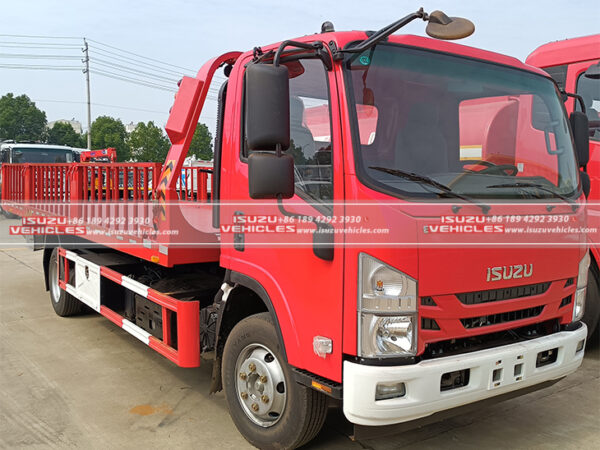

The QL1080BUKAY model is an ISUZU M600 4×2 drive, left-hand drive truck with an ISUZU 4KH1CN6LB diesel engine and an ISUZU MSB-6 manual transmission. It has a day cab that is 1880mm wide and can accommodate two passengers. The overall size of the truck is 7410mm x 2300mm x 2520mm (L x W x H) with a wheelbase of 3815mm, front/rear wheel tread of 1690mm/1655mm, and front/rear overhang of 1120mm/2475mm. It has a gross vehicle weight of 8280kg, a tare weight of 4500kg, and a front/rear axle rating of 3000kg/5280kg. The truck is equipped with a sheet metal forming deck, capable of towing two cars, and has a max load rating of 3000kg. The hydraulic system components are from well-known international brands, and the truck comes with a winch and towing accessories.
FEATURES
Standard Features:
- Two cars towing type
- Carbon steel sheet metal forming deck
- 4-ton hydraulic winch with 25 meters long cable
- International famous brands for main components of the recovery hydraulic system (Italy/Turkey Hyde hydraulic valve, Italy multi-way valves and balance valves)
- Chinese branded hydraulic cylinder with imported cylinder seals
- Domestic well-known brand hydraulic oil pipes with imported oil pipe joints
- Hefei Wany hydraulic pump
- Suizhou power take-off
- Double-sided linkage operating devices
Optional Features:
- Opening deck and counterweight
- Tread deck with a thickness of 4mm
- Hard fifth wheel plate and hard drawbar
- Suizhou Liancheng oil cylinder and Hebei Weiguo oil pump
- Worm gear winch
- Zhejiang Jiashan power take-off
- A long row of engineering warning lights
Additional points:
- The carbon steel sheet metal forming deck is designed for durability and can withstand heavy loads.
- The 4-ton hydraulic winch has a long cable of 25 meters, allowing for greater flexibility in recovery operations.
- The internationally famous brands for the main components of the recovery hydraulic system ensure reliability and efficiency.
- The Chinese-branded hydraulic cylinder with imported cylinder seals provides excellent sealing and resistance to wear and tear.
- The domestic well-known brand hydraulic oil pipes with imported oil pipe joints ensure high-pressure resistance and oil leakage prevention.
- The Hefei Wany hydraulic pump provides stable power for the recovery hydraulic system.
- The Suizhou power take-off is designed for easy and efficient operation.
- The optional features provide additional functionality and customization options for the recovery vehicle.
- A long row of engineering warning lights
SPECIFICATION
Model | QL1080BUKAY |

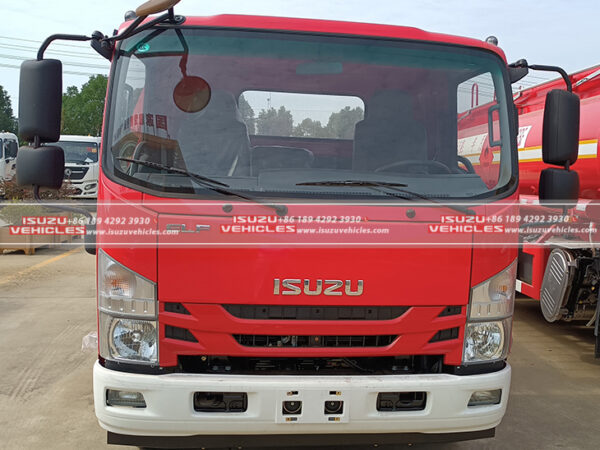

Chassis | ISUZU M600 4X2Drive LHD; ISUZU 4KH1CN6LB Diesel Engine; ISUZU MSB-6 Manual Transmission |

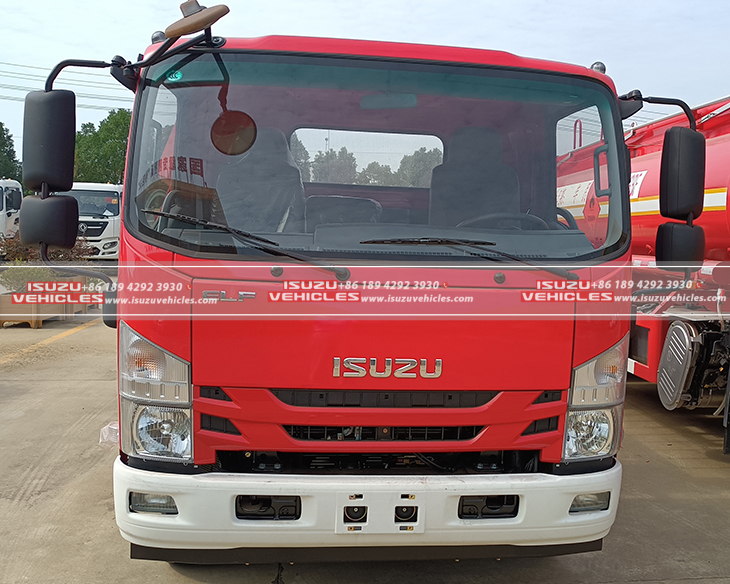

Cabin | Day Cab; 1880mm in Width; Rated Nr. of Passengers: 2 |
Overall Size | 7410mm×2300mm×2520mm (L×W×H) |
Wheelbase | 3815 mm |
Front/Rear Wheel Tread | 1690mm/1655mm |
Front/Rear Overhang | 1120mm/2475mm |
Gross Vehicle Weight | 8280kg |
Tare Weight | 4500kg |
Front/Rear Axle Rating | 3000kg/5280kg |
Approach/Departure Angle | 23°/10° |
Engine | ISUZU/4KH1CN6LB, Diesel Engine; 4 Cylinders In-line, 2.999L; China Class Level VI Emission |
Engine Output Power/Speed | 132hp/3400rpm |
Engine Output Torque/Speed | 290N·m/1700rpm |
Max Speed | 105km/Hour |
Transmission | ISUZU MSB-6 MT; Forward, 6 Speed/Reverse, 1 Speed |
Tires | 7.50R16LT 14PR; 4+1 Spare Tire |
Truck Accessories | 1nos of Toolbox |
Deck: | |

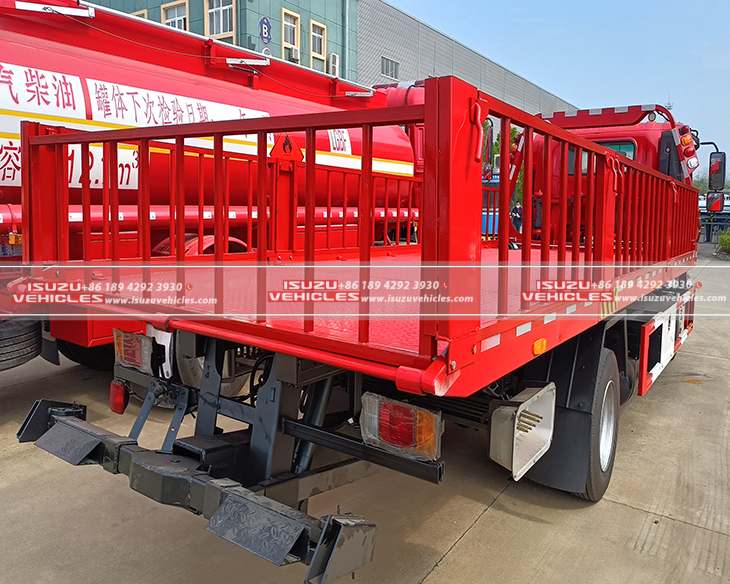

Deck Size (Inside) | 5580mmX2220mm (L×W) |
Max Load Rating | 3000kg |
Deck Construction | Sheet Metal Forming |
Vehicle Towing | Two Cars |
Deck Work Distance
(Working Motion) |
2700mm |
Deck Height Above Ground
(Ground Clearance) |
1070mm |
Deck Min Tilt Angle | 8° |

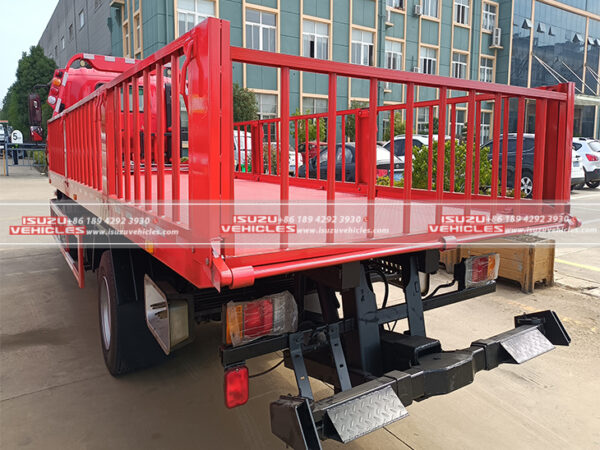

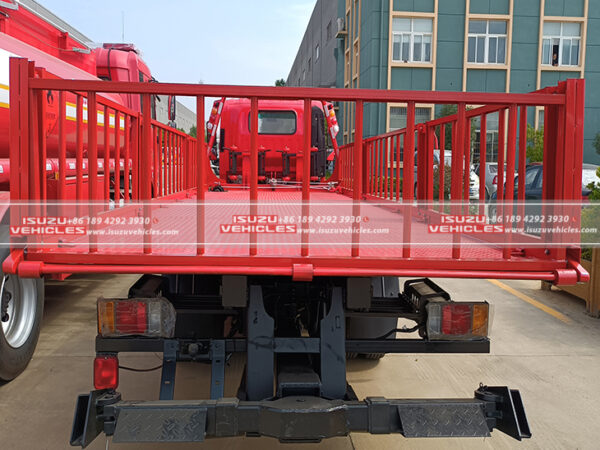

Wheel lift: | |
Rated Capacity
Fully Retracted |
1800kg |
Rated Capacity
Fully Extended |
1330kg |

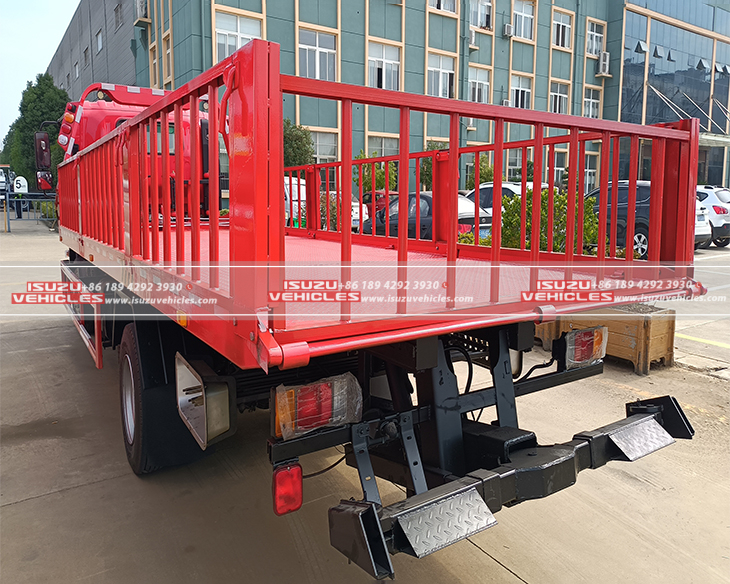

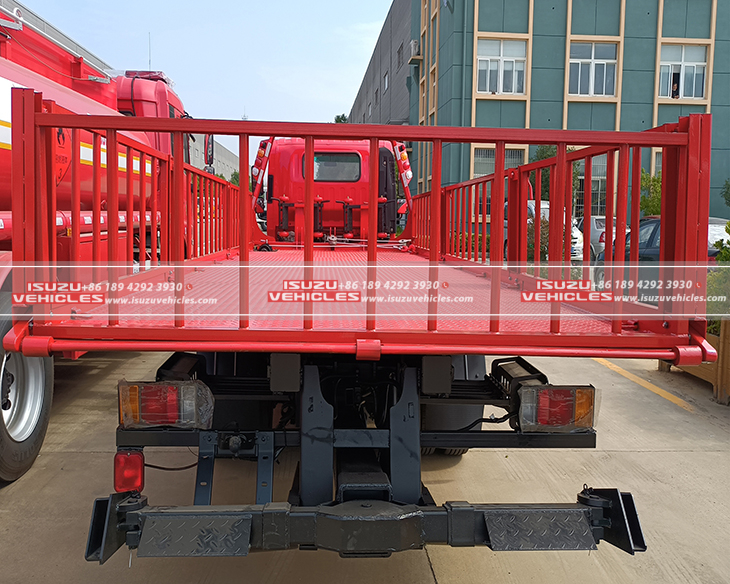

Rear Towing Distance | 2540mm |
Effective Length of Arm | 1640mm |
Telescopic Travel | 1340mm |
The Max Distance from
The Upper Surface of the Fully Retracted Cross Bar to the Ground |
550mm |
Positive Tilt Angle | 7° |
Negative Tilt Angle | -9.5° |
Winch: | |
Winch Qty | 1pcs |
Winch Type: | Planetary |
Winch Power Mode | Hydraulic |
Winch Capacity Each | 40kN |
Winch Diameter | φ110mm |
Winch Cable Diameter | φ11mm |
Winch Cable Length | 2500mm |
Hydraulic System | Haizhanli Oil Cylinder, Hefei Wany Hydraulic Pump, Italy/Turkey Hyde Hydraulic Valve; Italy Multi-way Valve and Balance Valve; Domestic Well-Known Brand Hydraulic Oil Pipes with Imported Oil Pipe Joints, Suizhou Power Take-Off |
Towing Accessories: | |
Strap | 6nos |
Slide-In L-Arms | 1set |
Frame Forks | 1set |
Fork Receiver | 1set |
Chain Hook | 1nos |
Auxiliary Wheel | 2nos |
