ISUZU 30M Aerial Work Platform Truck

ISUZU 30M Aerial Work Platform Truck

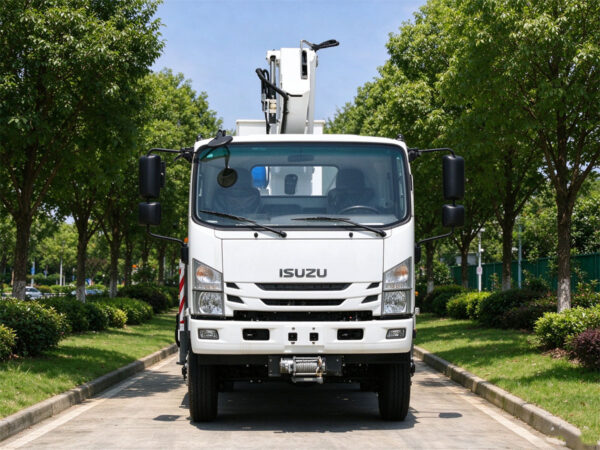

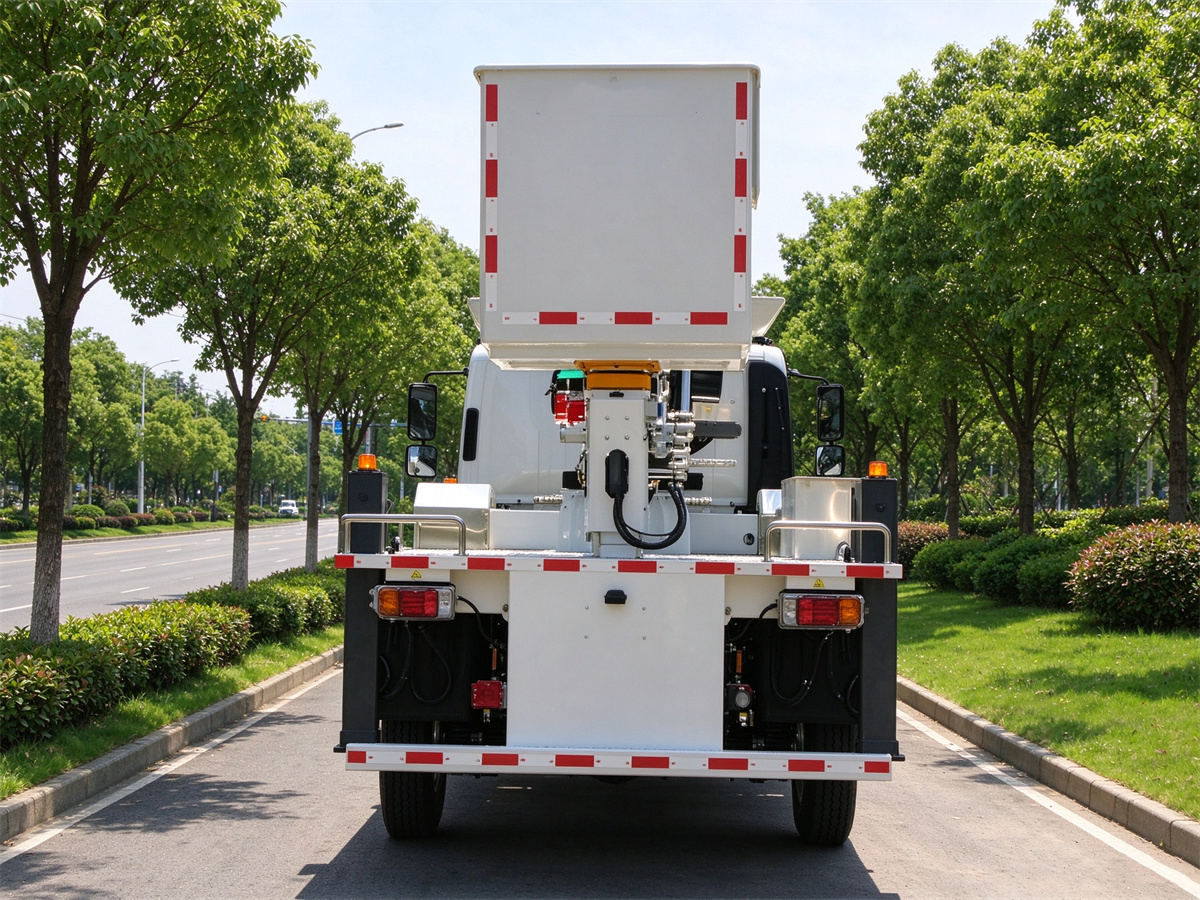

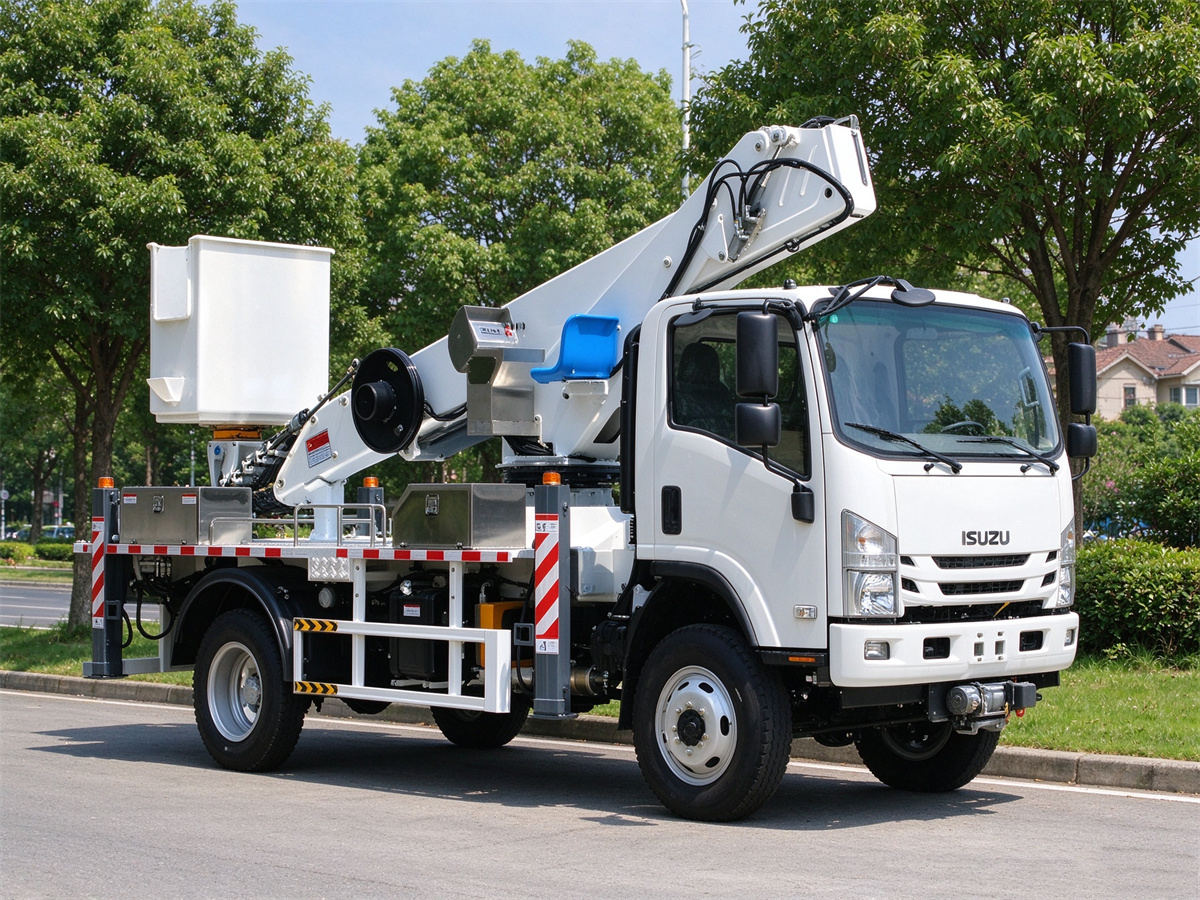

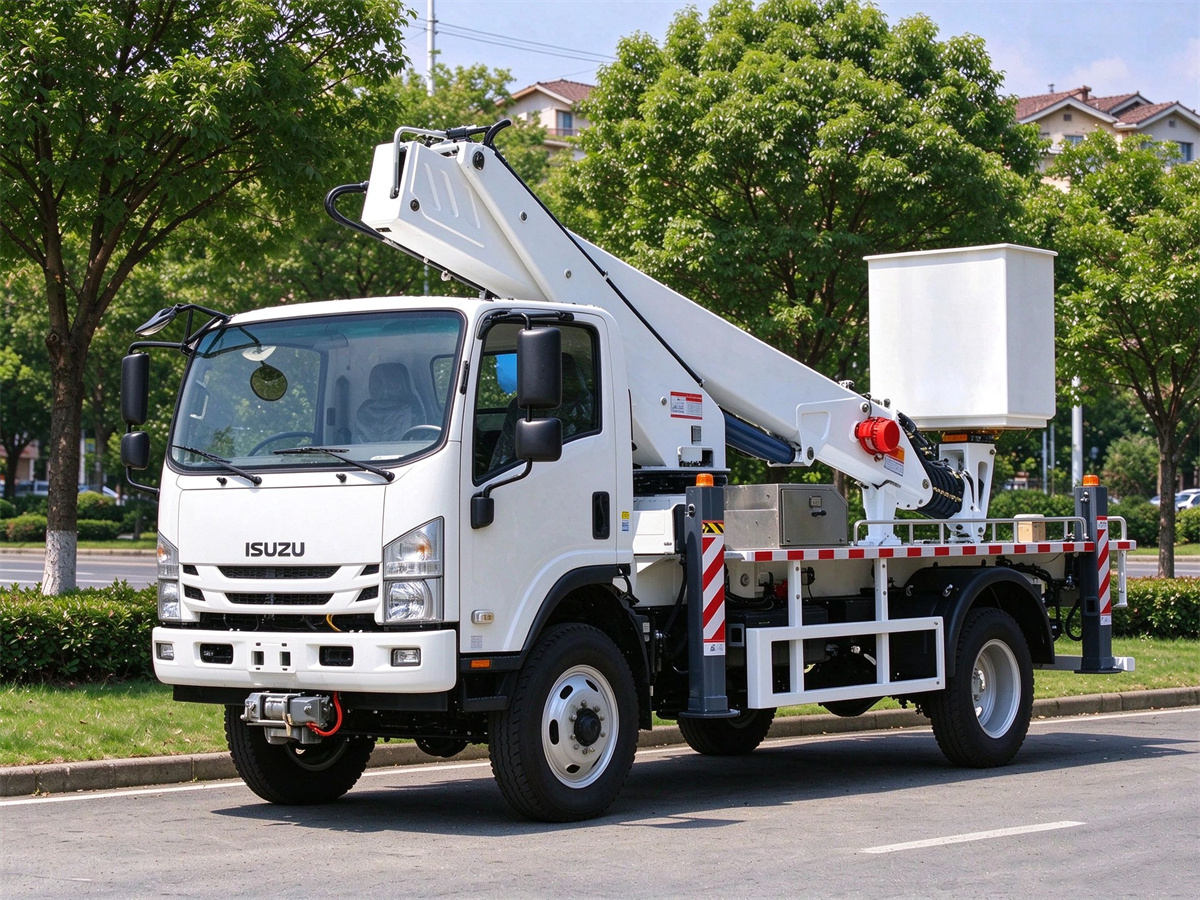

The ISUZU 30M Aerial Work Platform Truck is a professional high-altitude operation vehicle built on the ISUZU 700P 4×4 chassis, designed for utility maintenance, streetlight installation, telecommunications work, electrical infrastructure servicing, and industrial facility maintenance. Equipped with a 30-meter aerial working system, a six-section telescopic boom, and a maximum working radius of 14.8 meters, this truck provides the height and reach required for demanding elevated operations while offering flexible positioning through its 360-degree boom rotation.

Powered by the ISUZU 4HK1-TCG61 diesel engine, which delivers 190 HP (139 kW) from a displacement of 5193 ml, the vehicle combines practical road performance with a Euro VI emissions configuration. Its MLD six-speed manual transmission, 4×4 left-hand-drive configuration, and 4175 mm wheelbase make it suitable for service fleets operating across urban roads, industrial facilities, and selected work locations with more challenging access conditions. The truck measures 7995 × 2200 × 3250 mm, with a gross vehicle weight of 10,550 kg and a curb weight of 5050 kg, while the three-seat ISUZU 700P single-row cab includes air conditioning to support daily operation.

The aerial platform is designed to accommodate a rated basket load of 250 kg, with basket dimensions of 1400 × 700 × 1150 mm and a maximum working height of 30 meters. Its front V-type and rear H-type outriggers can be controlled independently, providing a support arrangement tailored to the operating site. Combined with electro-hydraulic proportional control, automatic hydraulic leveling, and multiple operating modes, the system helps operators position the basket accurately for maintenance and installation work. Customers exploring different equipment configurations can also review our bucket lift trucks for other elevated access requirements and working-height specifications.

Features

1. ISUZU 700P 4×4 Chassis and Euro VI Engine

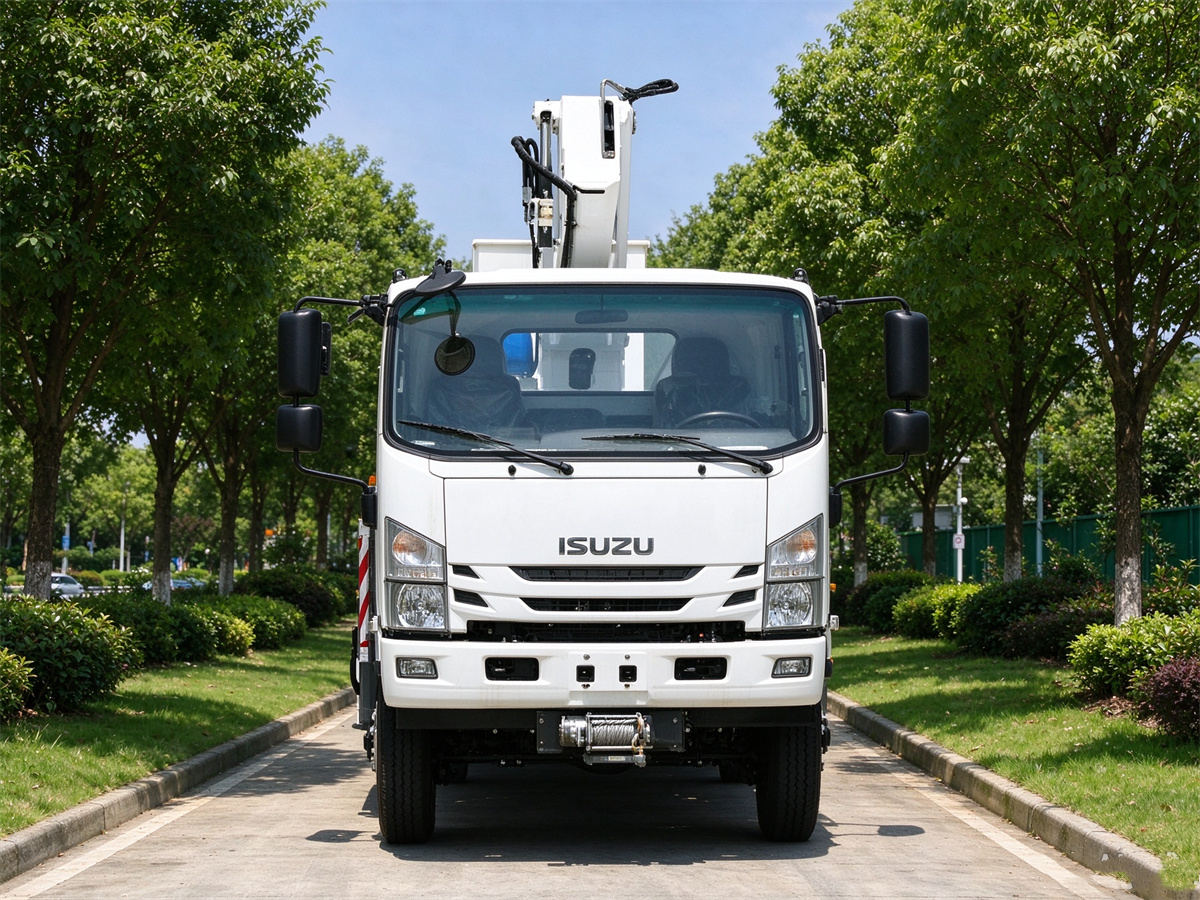

The ISUZU 30M Aerial Work Platform Truck uses the ISUZU 700P chassis with a four-wheel-drive configuration and left-hand steering, providing a practical foundation for mobile aerial operations. Its 4HK1-TCG61 engine features a vertical inline-cylinder arrangement, water cooling, a four-stroke design, and electronically controlled high-pressure common-rail fuel injection. With 190 HP (139 kW) of output and 5193 ml displacement, the engine supports vehicle transportation and the demands of daily fleet use, while the Euro VI emissions specification is intended for markets and operating environments that require this emissions standard.

2. Six-Section Telescopic Boom with 30-Meter Working Height

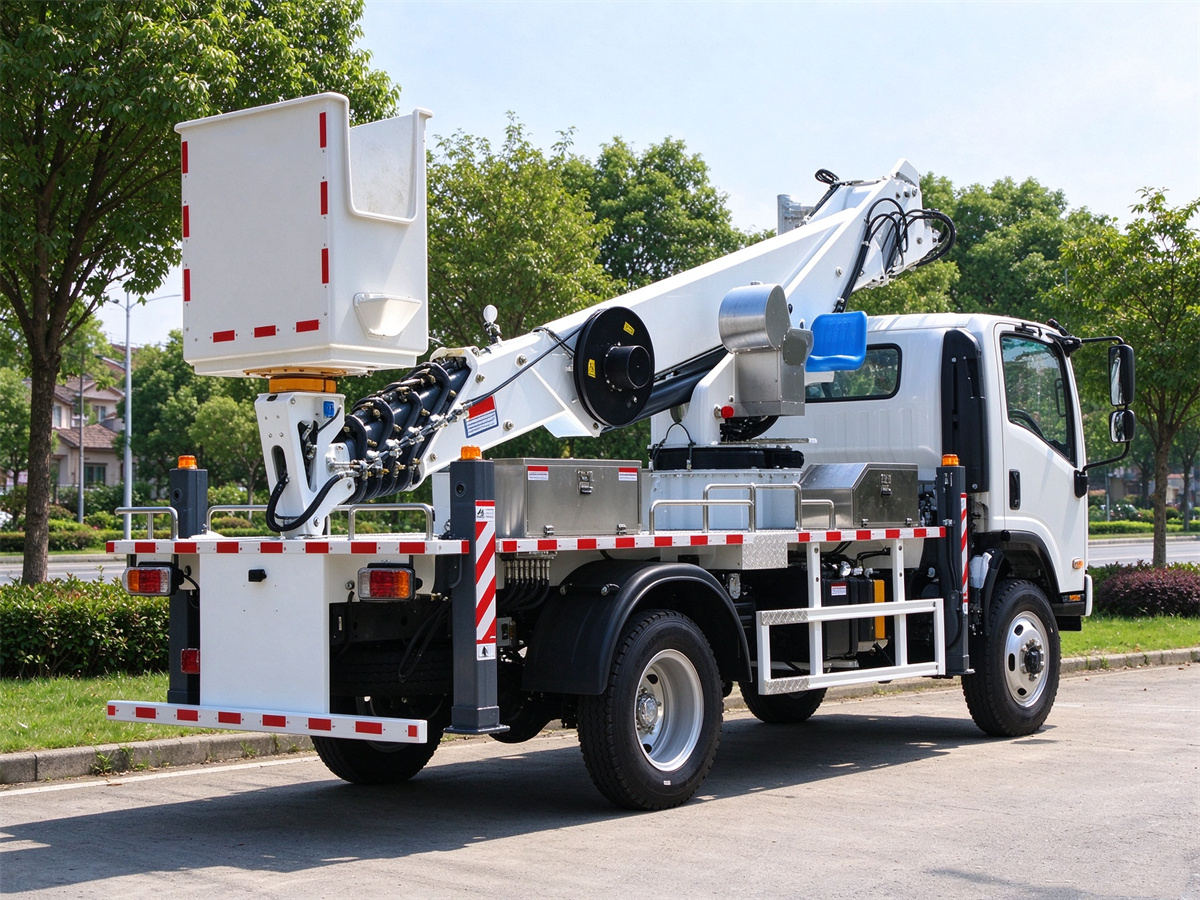

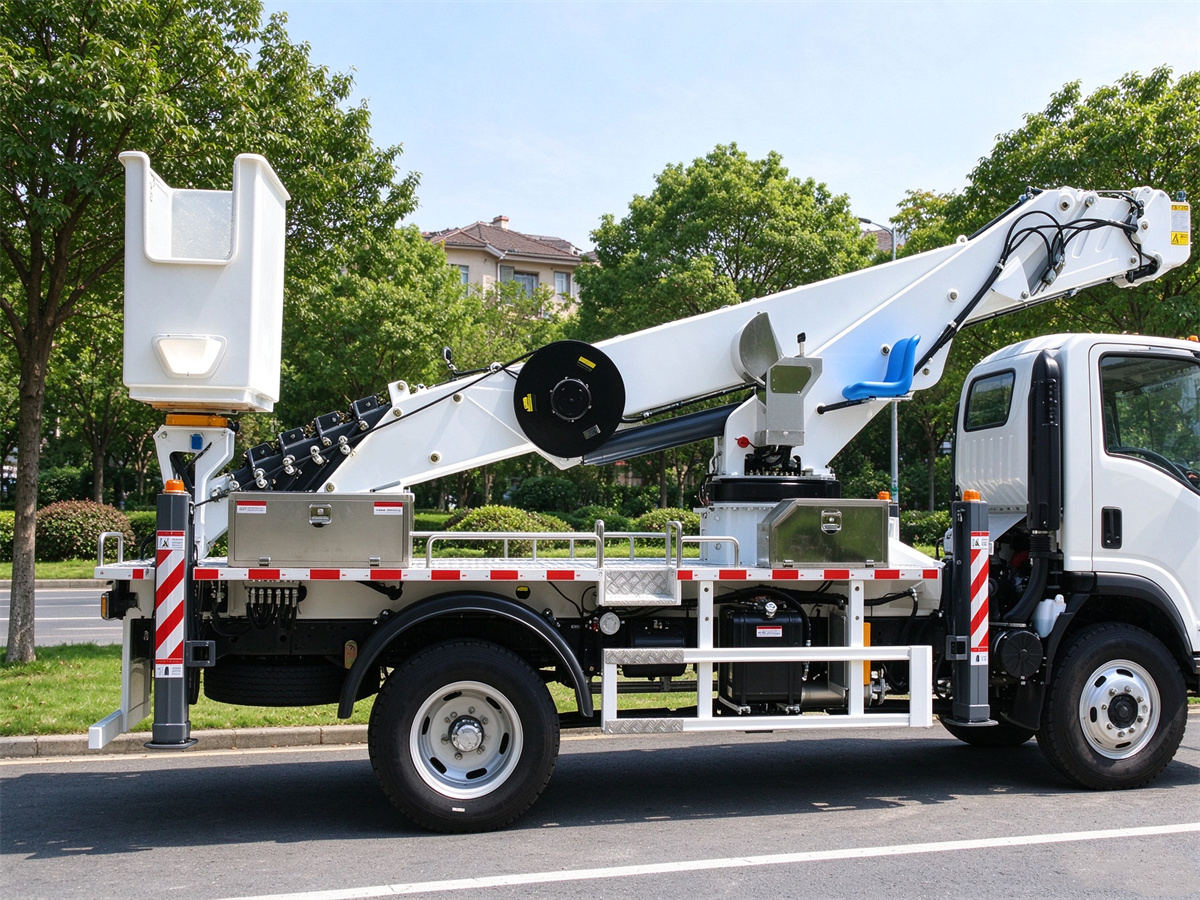

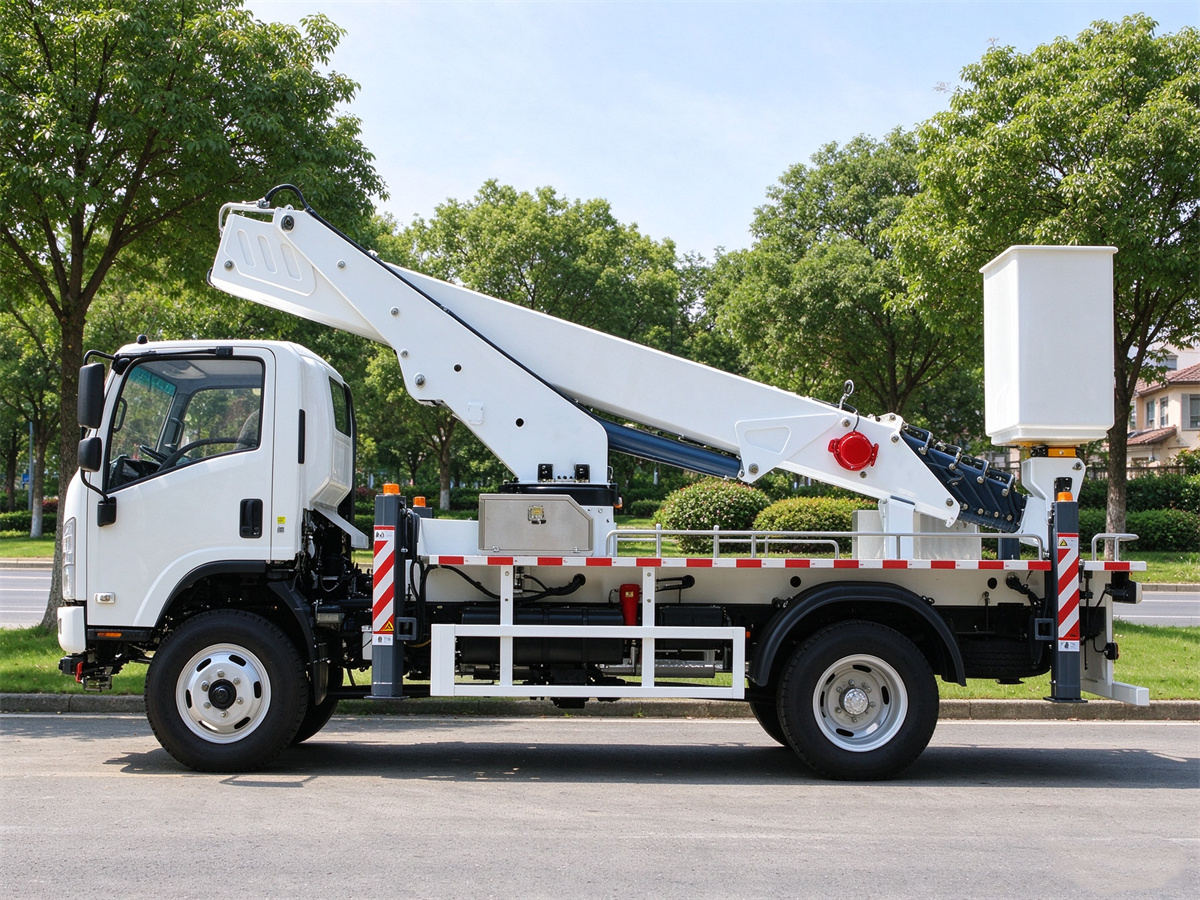

The truck is equipped with a six-section telescopic boom that extends to a maximum working height of 30 meters and provides a maximum working radius of 14.8 meters. The boom can rotate through 360 degrees, allowing the operator to position the basket around the vehicle and access elevated work areas from different directions. This combination of height, outreach, and rotation is suitable for streetlight servicing, overhead cable installation, telecommunications maintenance, and other operations where workers need to reach elevated structures without repeatedly repositioning the truck.

3. Independent Outriggers for Stable Positioning

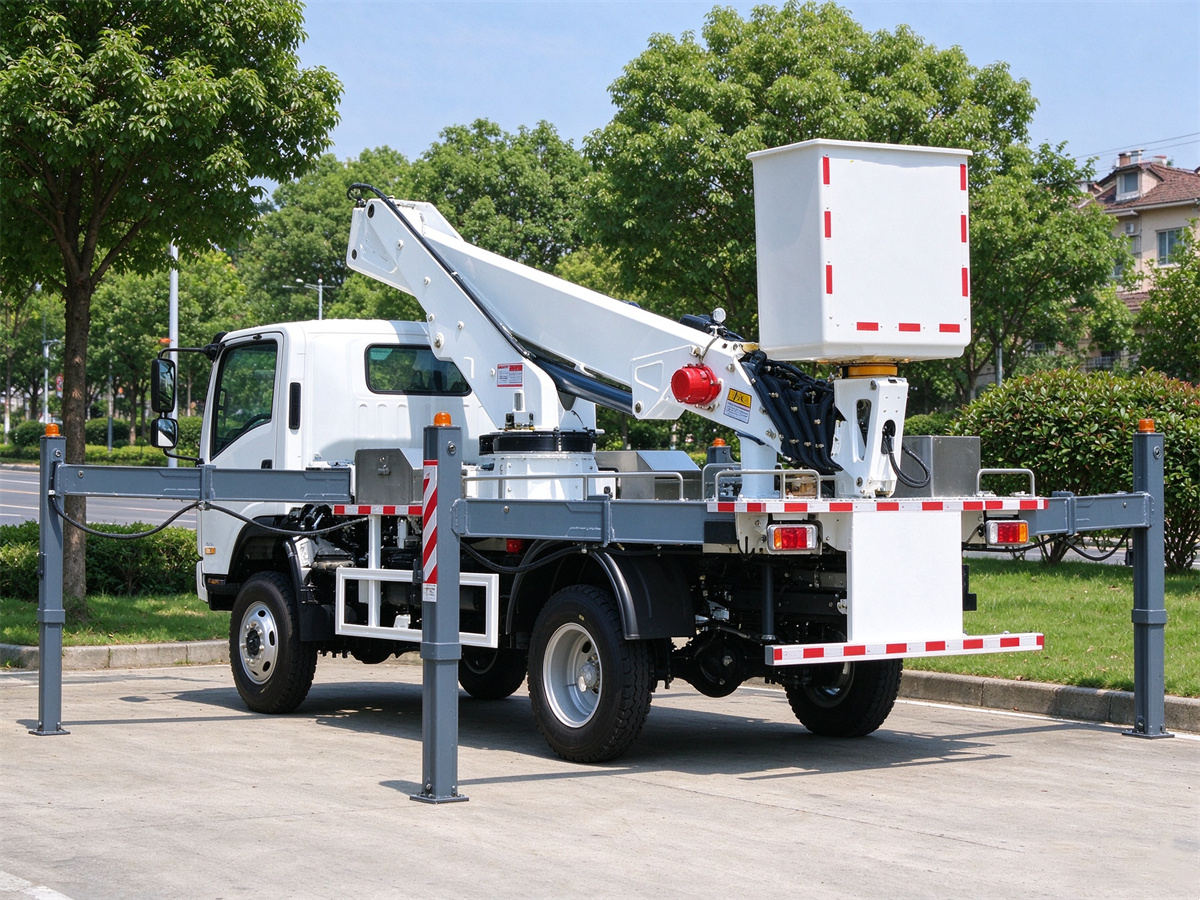

The outrigger system uses a front V-type and rear H-type configuration, with independent control to support deployment according to site conditions and the manufacturer’s operating procedures. The specified vertical outrigger span is 4350 mm, while the horizontal span is 4180 mm. Before raising the boom, operators should deploy the outriggers on a suitable load-bearing surface and verify that the vehicle is correctly leveled, following the prescribed safety procedures and any applicable restrictions for the working area.

4. Aerial Basket with 250 kg Rated Capacity

The working basket measures 1400 × 700 × 1150 mm and has a rated loading capacity of 250 kg, providing space for personnel and the tools required for routine maintenance tasks. The basket features 360-degree rotation, helping operators adjust their working orientation without relying solely on boom repositioning. A hydraulic automatic leveling system is provided to maintain the basket’s level as the aerial equipment moves through its permitted operating range, improving convenience when carrying out precise installation and repair work.

5. Multiple Operating Modes and Electro-Hydraulic Control

The truck provides four operating modes: electrical operation from the working platform, ground remote control, a controller in the basket, and an emergency lever. Its electro-hydraulic proportional control system enables smooth movement and stepless speed regulation, while an optional load-proportional system can support synchronized operation of multiple movements. These controls allow operators to adjust boom movement according to the task, helping achieve accurate positioning when working near lighting poles, overhead wiring, building exteriors, and industrial structures.

6. Safety Interlocks, Communication, and Emergency Recovery

An automatic interlocking device for getting on and off the truck is designed to lock the relevant functions and reduce the risk of misoperation. The system also includes real-time display functions and a wireless intercom between the working platform and the vehicle, allowing communication between elevated personnel and ground operators during coordinated work. An emergency electric pump provides a recovery option if the engine or main pump fails, enabling the operator to lower the platform and return to the ground according to the manufacturer’s emergency procedures.

7. Applications in Municipal and Infrastructure Maintenance

The ISUZU 30M Aerial Work Platform Truck is suitable for contractors, utility companies, municipal departments, and industrial service providers that require reliable access to elevated work areas. Typical applications include streetlight maintenance, electrical installation, telecommunications servicing, outdoor facility repairs, and infrastructure inspection. For projects that also require lifting materials or equipment, our truck-mounted crane models offer a different solution for lifting and handling tasks, while our firefighting vehicles serve specialized emergency response and fire protection requirements. Selecting equipment according to working height, outreach, payload, road conditions, and local operating regulations helps ensure that each vehicle matches the practical needs of its intended application.

Specifications
