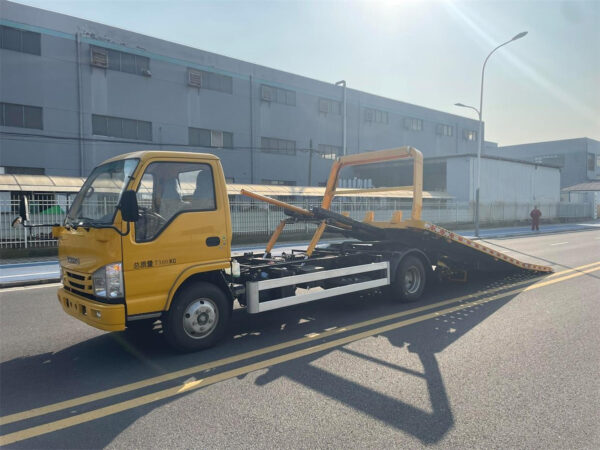

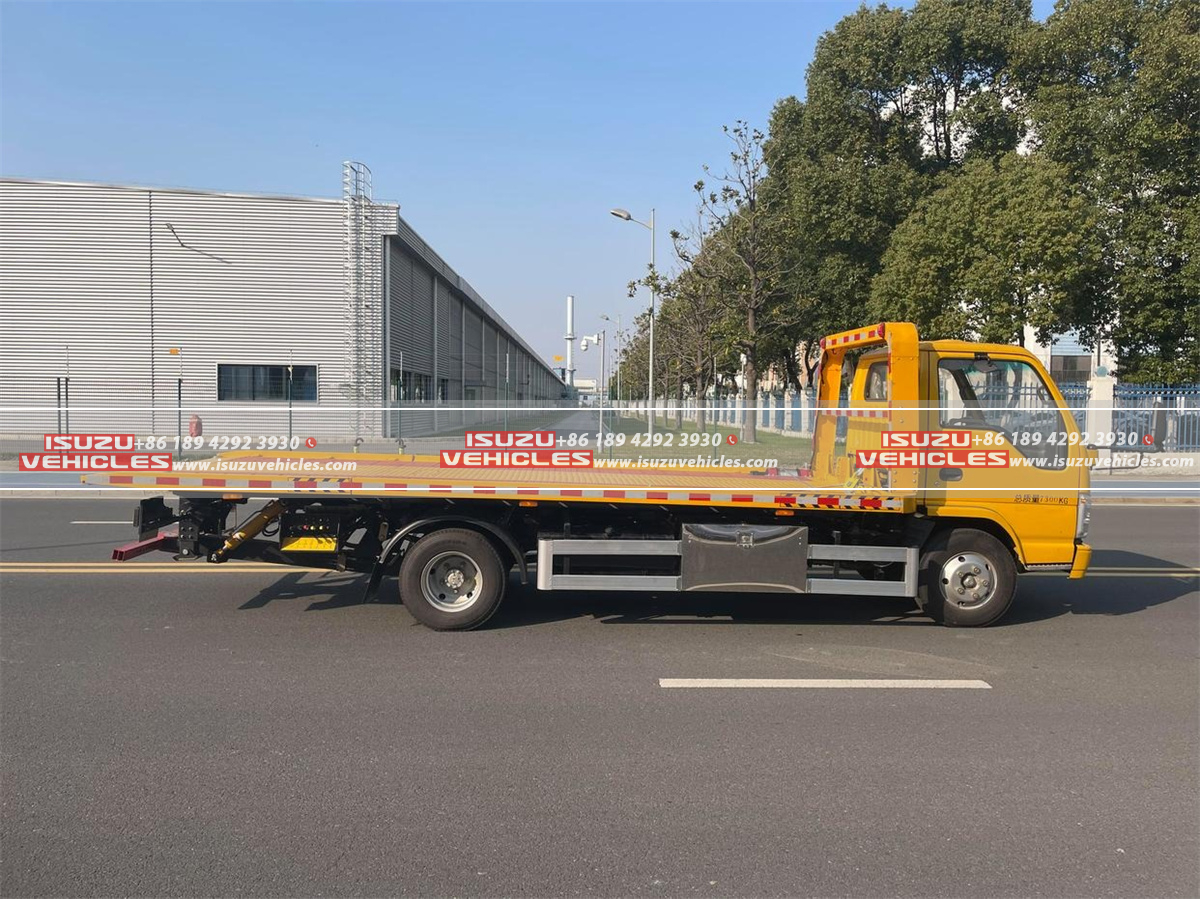

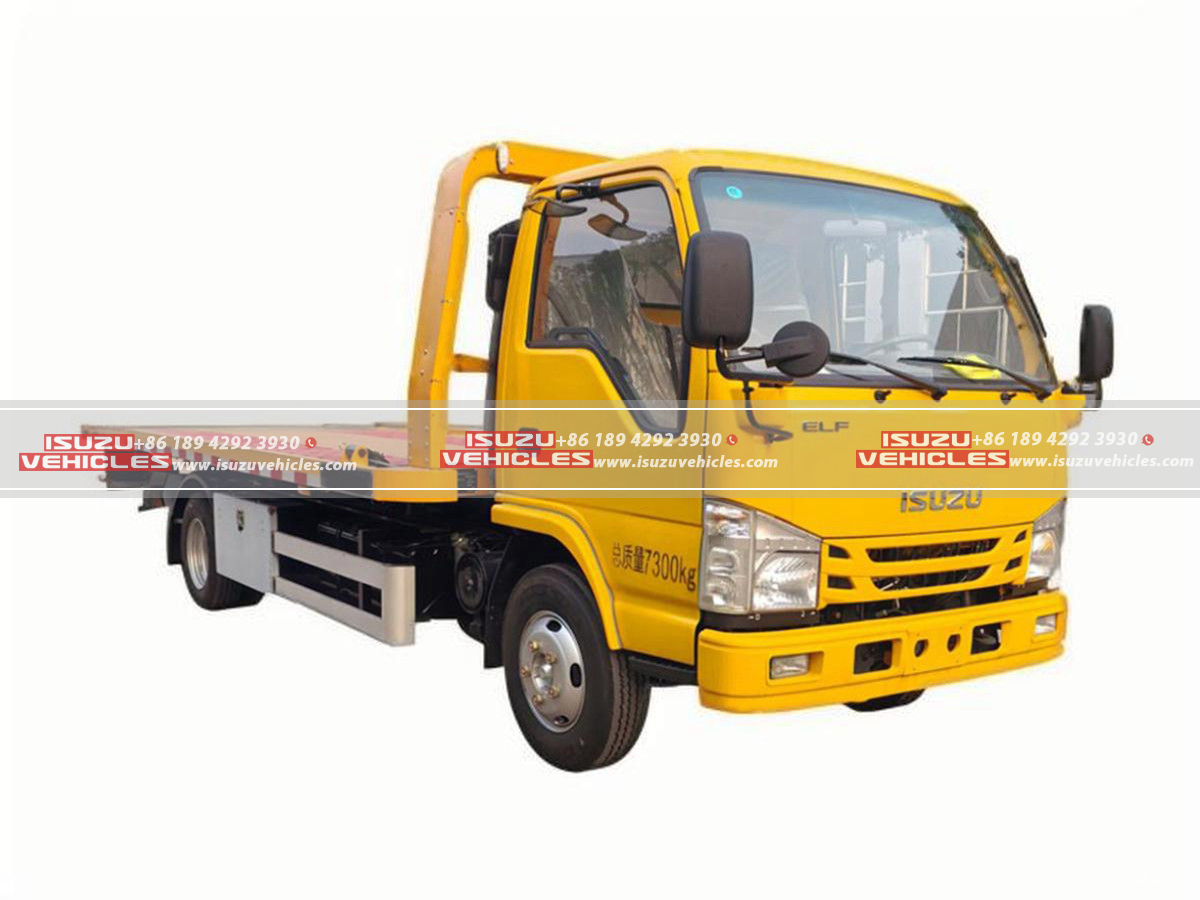

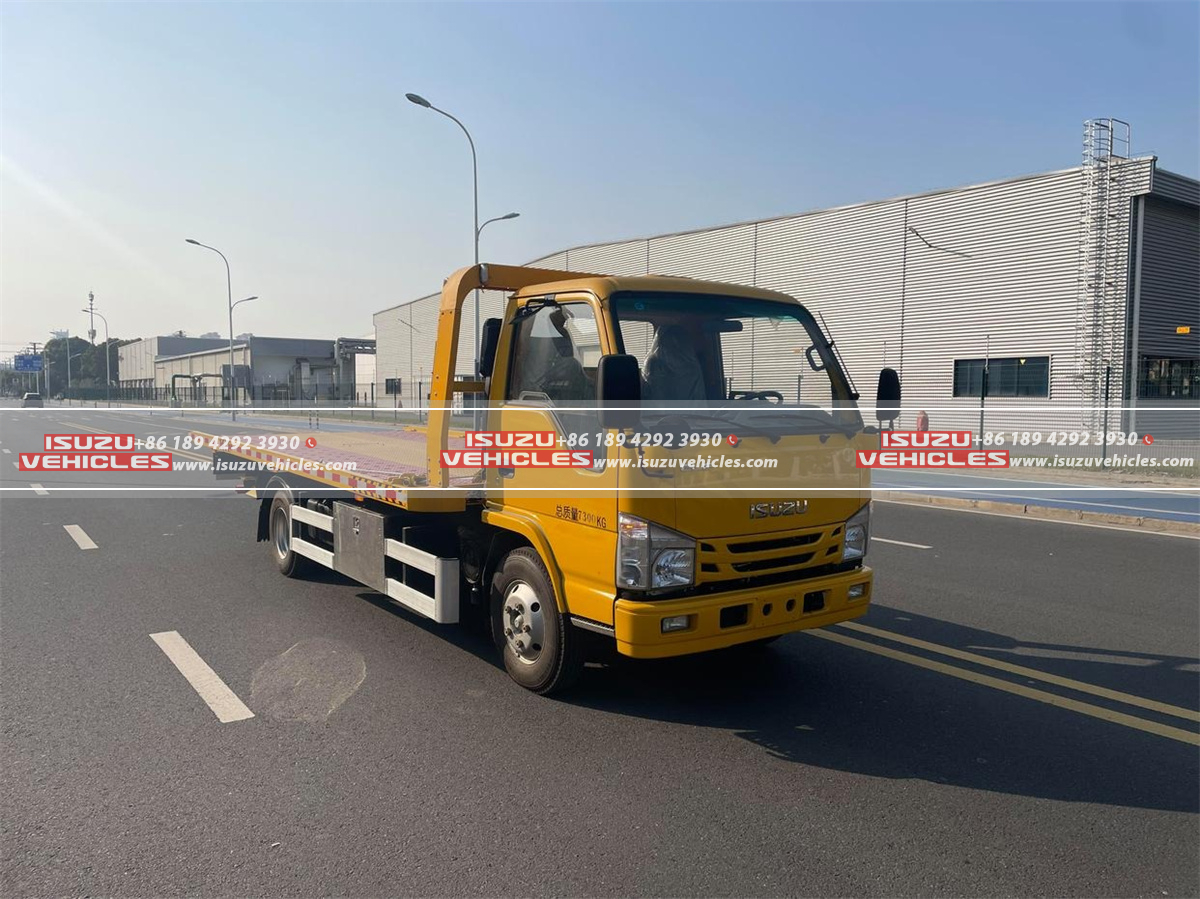

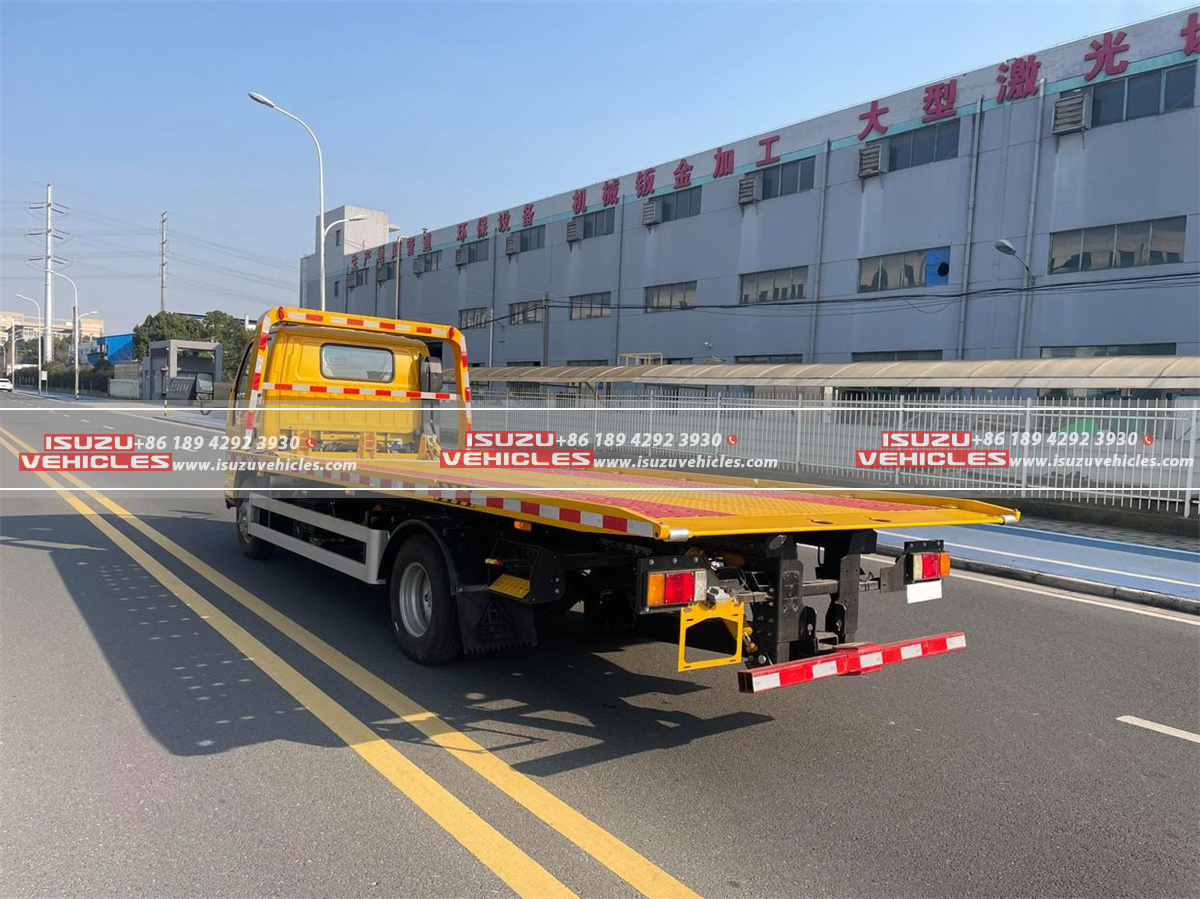

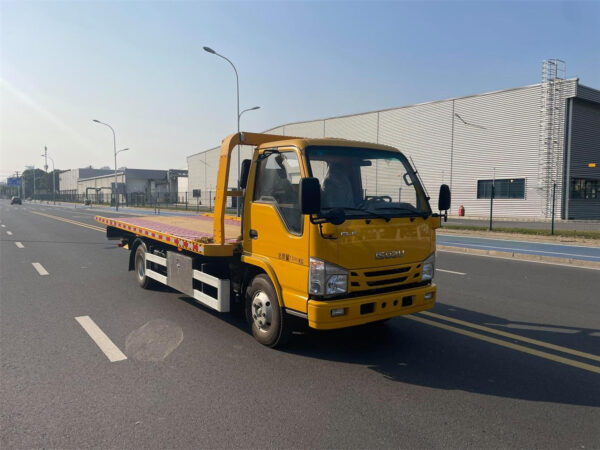

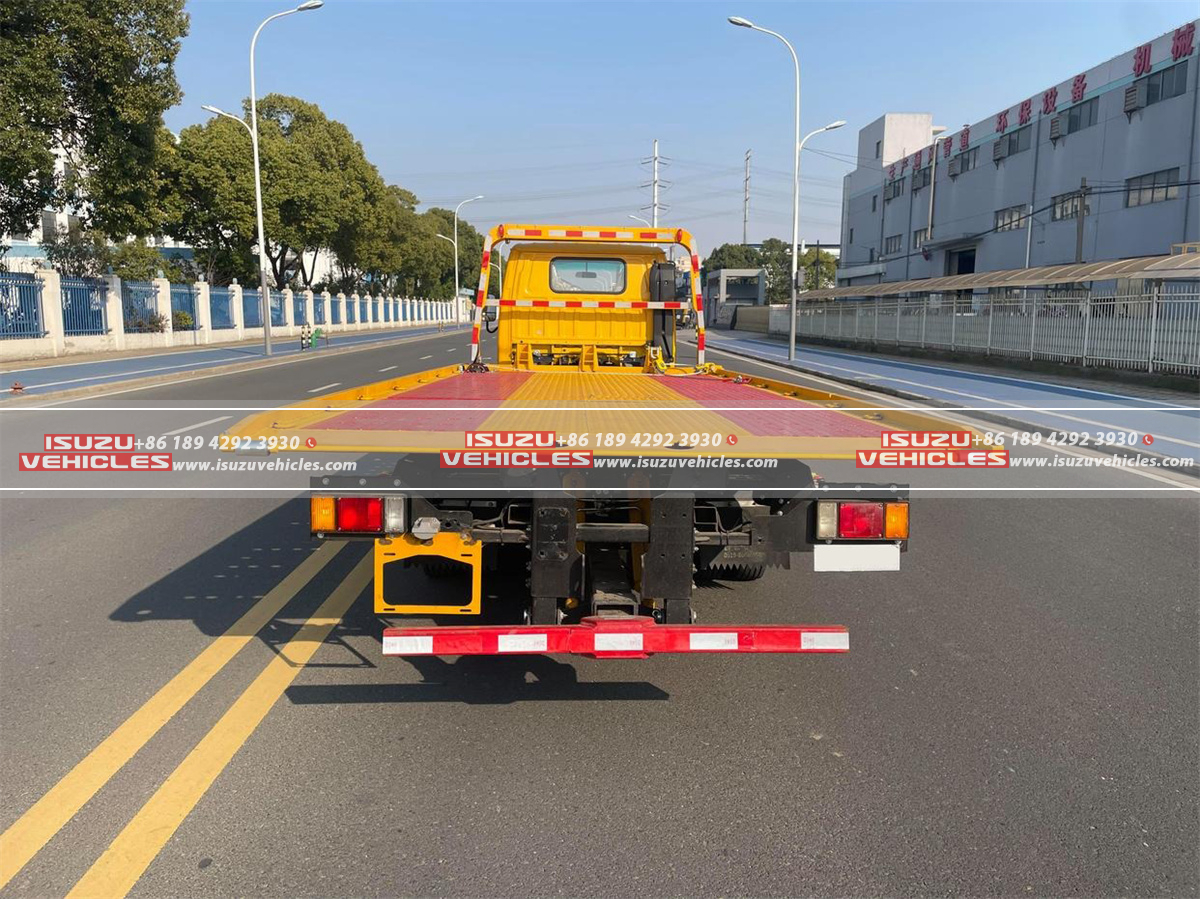

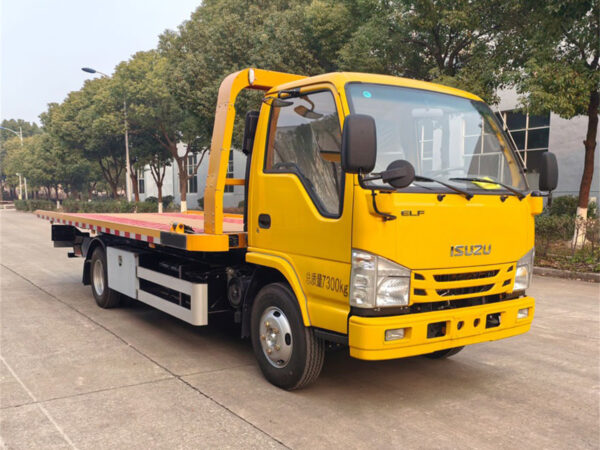

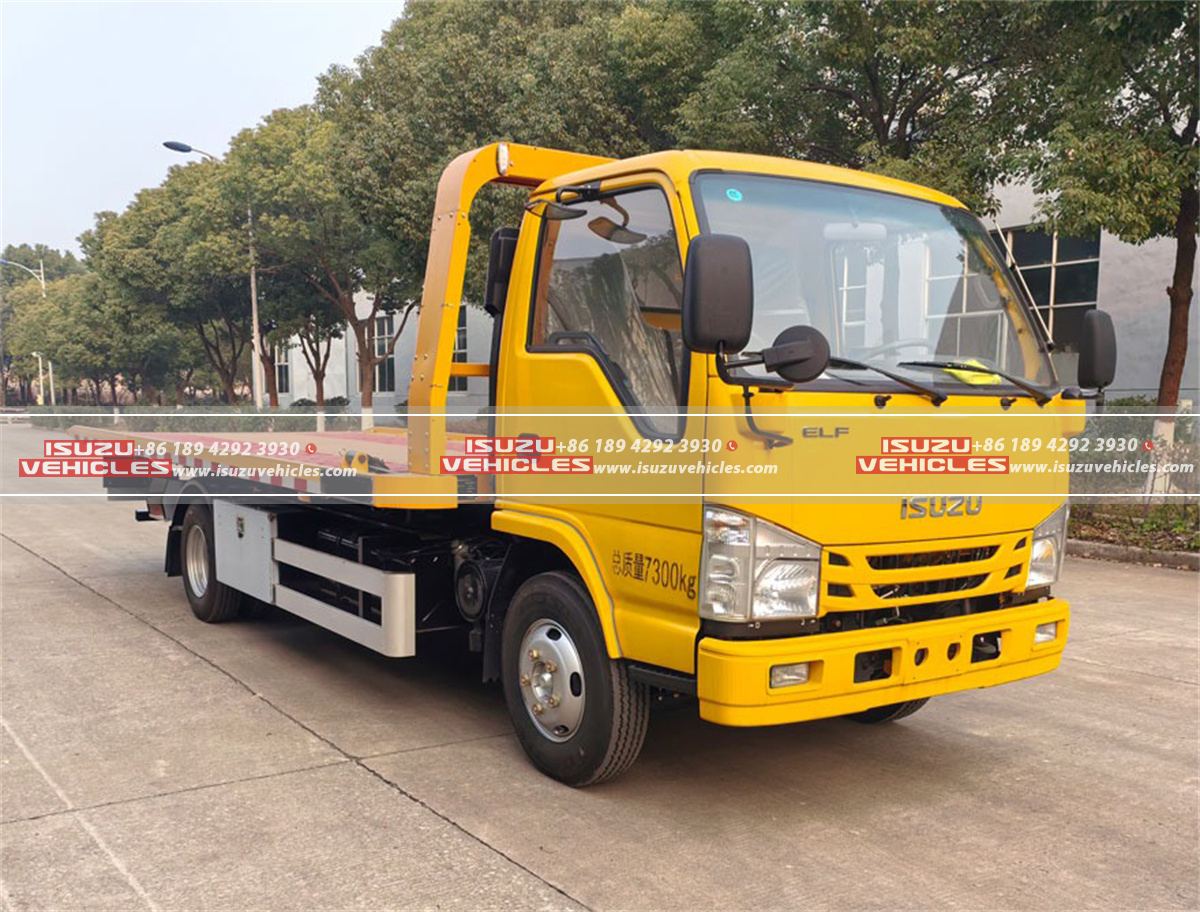

ISUZU 3T 100P Flatbed Wrecker Truck

Compact Powerhouse for Urban Recovery: The ISUZU 3T 100P Flatbed Wrecker
Built on Isuzu’s renowned light-duty 100P 1X chassis with a 7,300 kg Gross Vehicle Weight (GVW), this flatbed wrecker combines agility and rugged functionality to excel in congested urban towing environments. At its core lies the purpose-engineered FB3U2 body unit, integrating a robust 3-ton stamped steel flatbed paired with a versatile 2-ton underlift system—delivering exceptional versatility for light-duty vehicle recovery and transport.

Optimized for efficiency, the truck features a 40KN planetary winch supplied with 21 meters of high-tensile steel cable, ensuring reliable recovery power in tight spaces. A strategically placed stainless steel toolbox keeps essential gear secure, while the inclusion of four lashing belts, a chain hook, two trolleys, and boom forks with bases ensures comprehensive load management straight from deployment. The standout automatic clamp system streamlines vehicle securing, and integrated remote control allows operators to manage winch and bed functions safely from a distance—dramatically enhancing workflow efficiency during high-pressure operations.

Mounting this feature-rich recovery package onto Isuzu’s proven 100P narrow-body chassis (1,695 mm cab width) creates an exceptionally agile yet fully equipped asset, ideal for towing professionals navigating city streets, parking structures, or confined accident scenes.

Key Features

I. Chassis & Powertrain

• Reliable ISUZU 100P 1X Chassis: 3,815 mm wheelbase for superior urban maneuverability.
• EURO 6-Compliant Engine: ISUZU 4KB1-TCG60 2.5L diesel (130 HP, 360 N·m torque) paired with a smooth-shifting 5-speed manual transmission (MSB-5MT).
• Advanced Cab Design: Day Cab with 4-point hydraulic suspension, power steering, adjustable driver seat, central locking, power windows, and a multi-function LCD instrument panel.
• Safety Braking: Dual-circuit air brakes with ABS and engine exhaust brake support.

II. Body & Recovery Systems

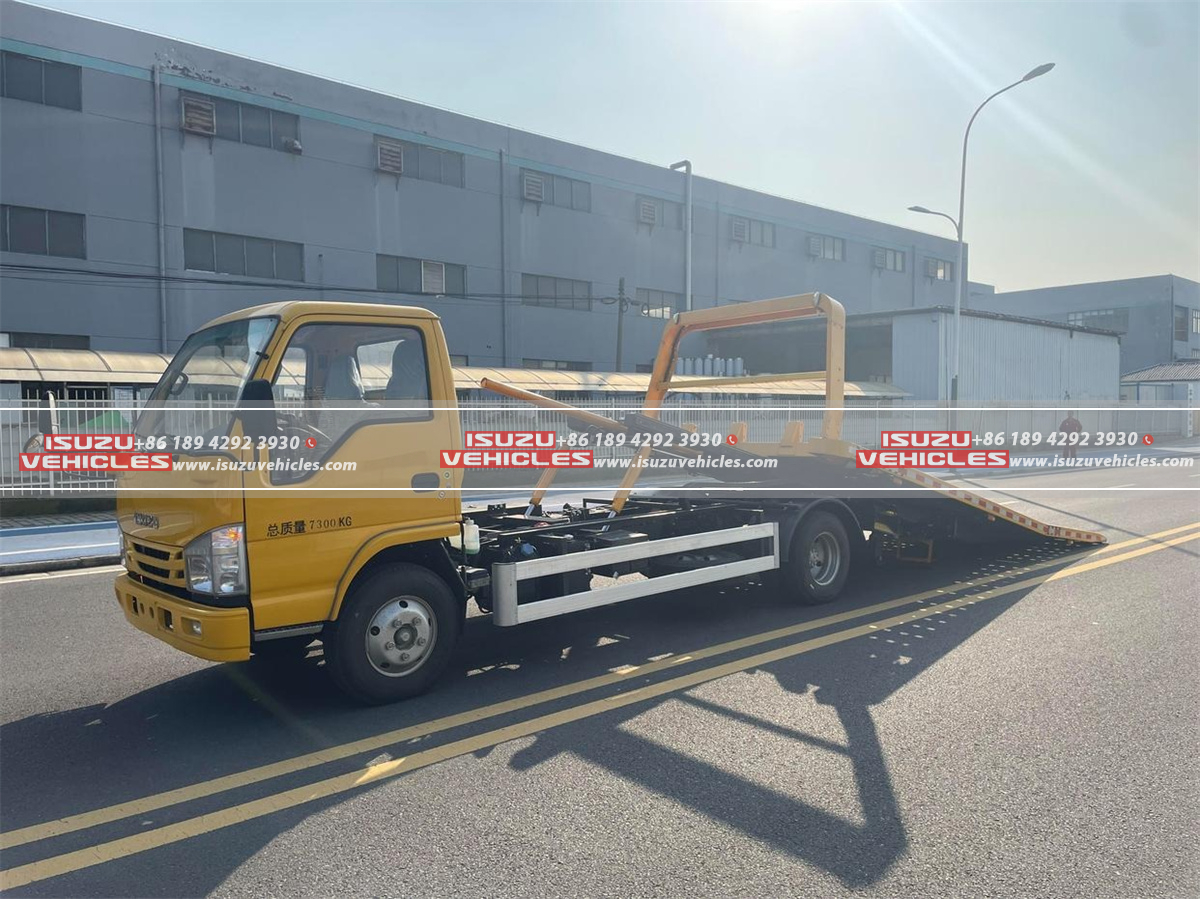

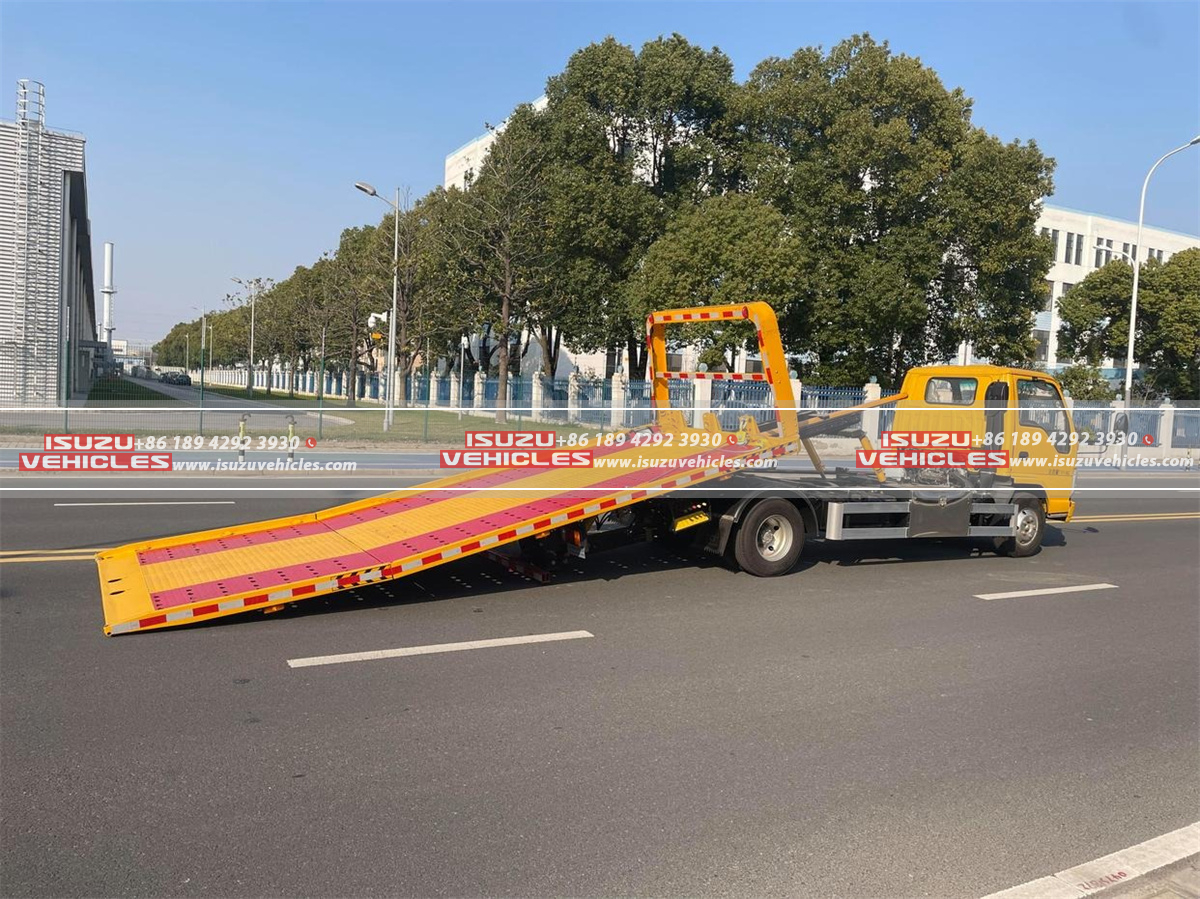

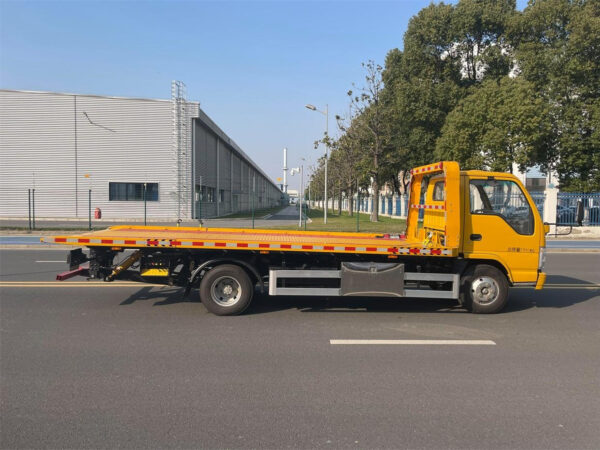

• High-Strength Flatbed: 3-ton capacity (5,500 mm L × 1,980 mm W), 4mm thick floorplate, black acrylic urethane finish.
• Integrated Underlift: 2-ton maximum lift capacity (upper-folded design) with dual lifting cylinders.
• Winch & Hydraulics: 40KN planetary winch + cable tensioner, powered by 6 hydraulic cylinders and a precision control valve.
• Secure Loading Features:
  • 7 tie-down points (2 front/5 rear) + 2 front safety chains.
  • Roller bed positive lock-down + anti-tilt mechanism.
  • Hydraulic dock stabilizers for platform stability.
  • Full-length subframe with wear pads for structural integrity.

III. Operational Convenience

• Dual illuminated controls for low-light safety.
• Integrated chain trays (driver/passenger sides).
• Winch air clutch release + remote control (included).
• LED lights + back-up alarm for enhanced visibility.
• Mud flaps and 12V-60Ah battery standard.

SPECIFICATIONS:
