Brief:

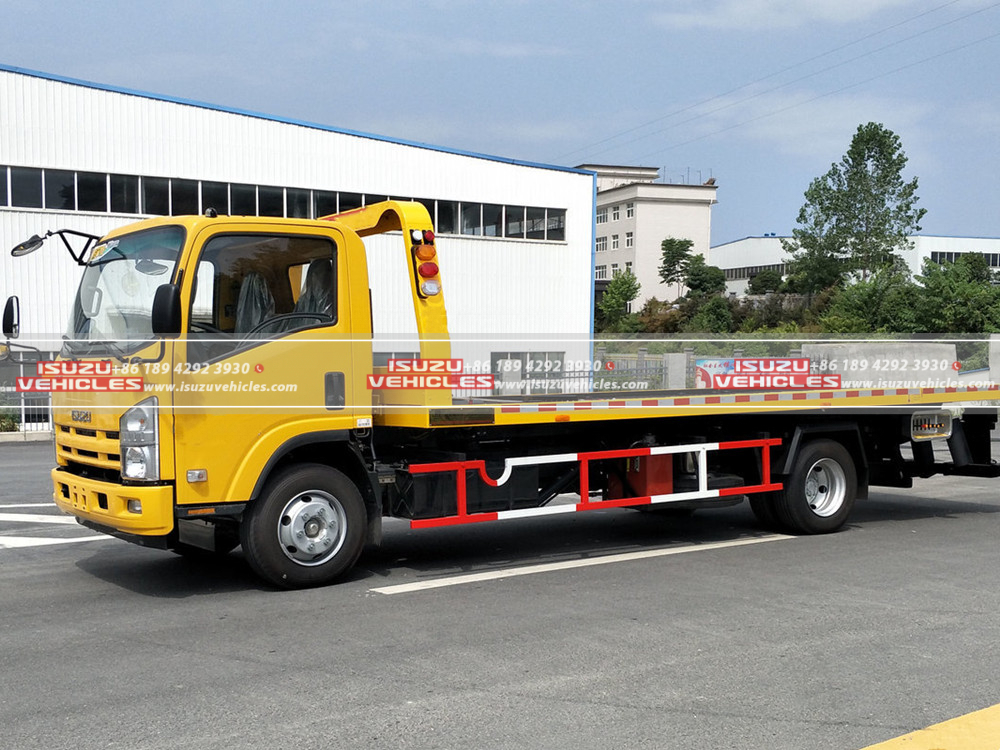

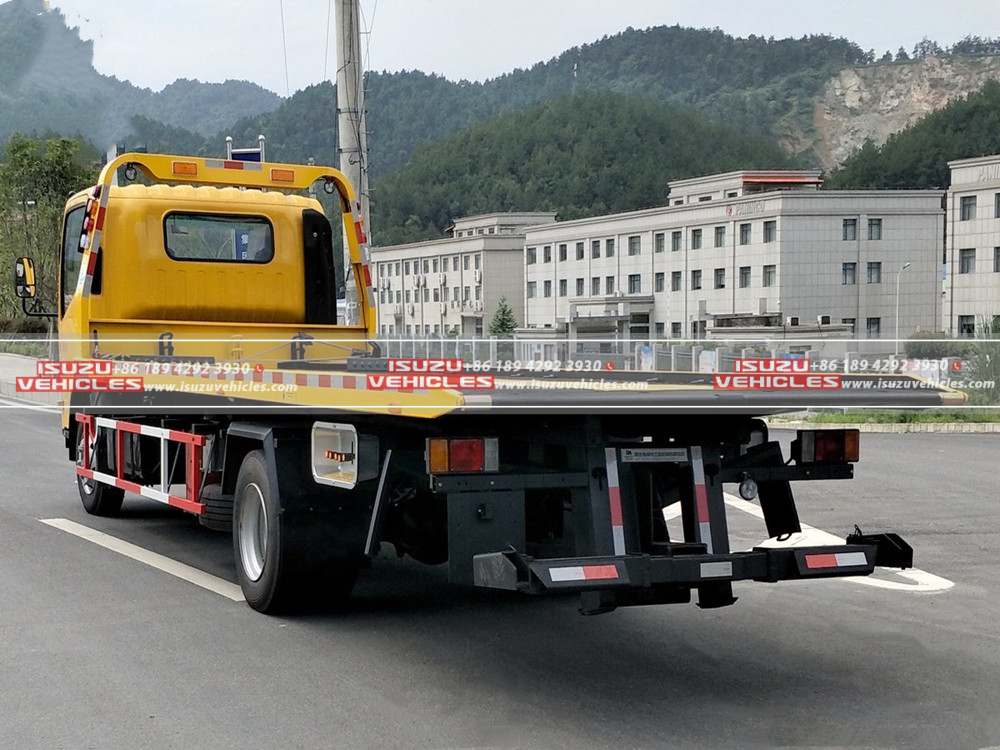

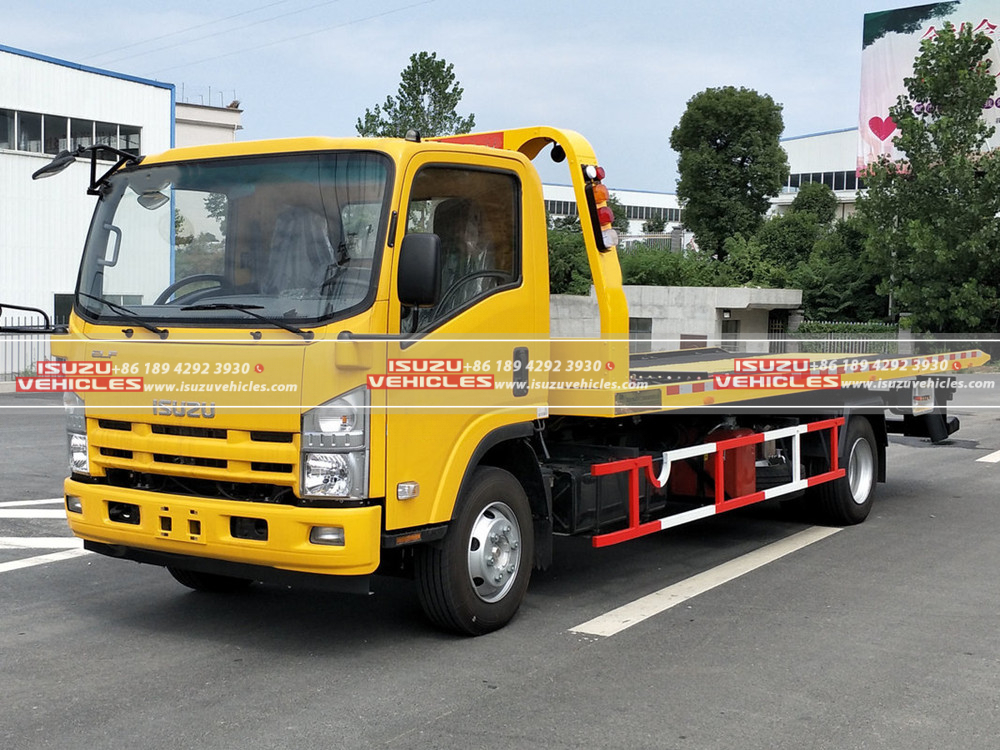

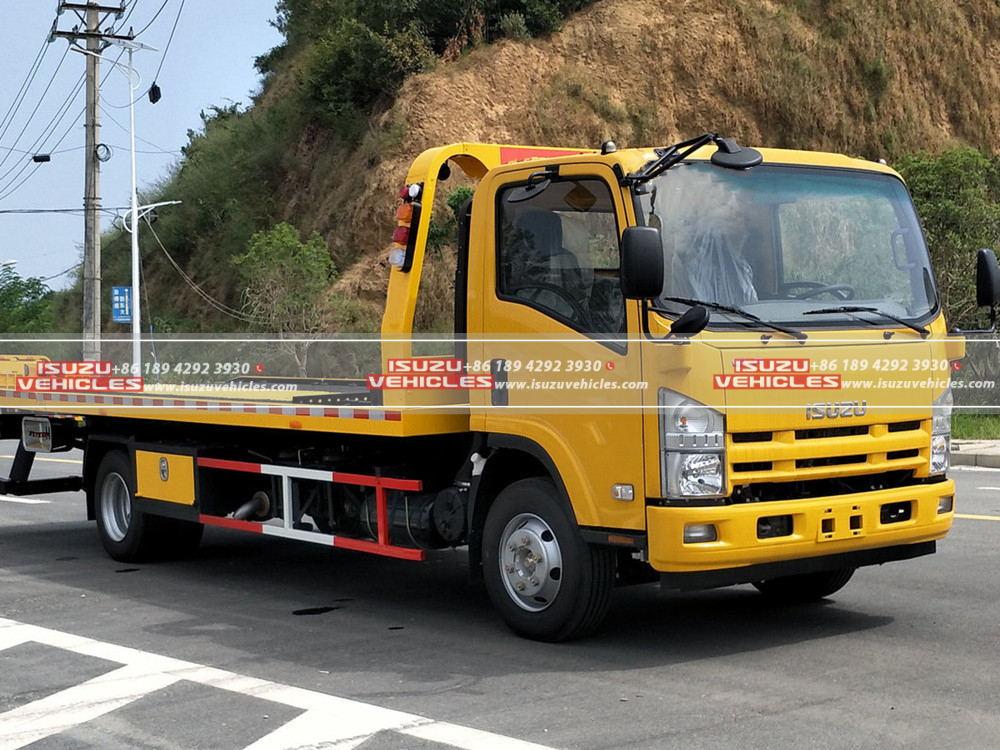

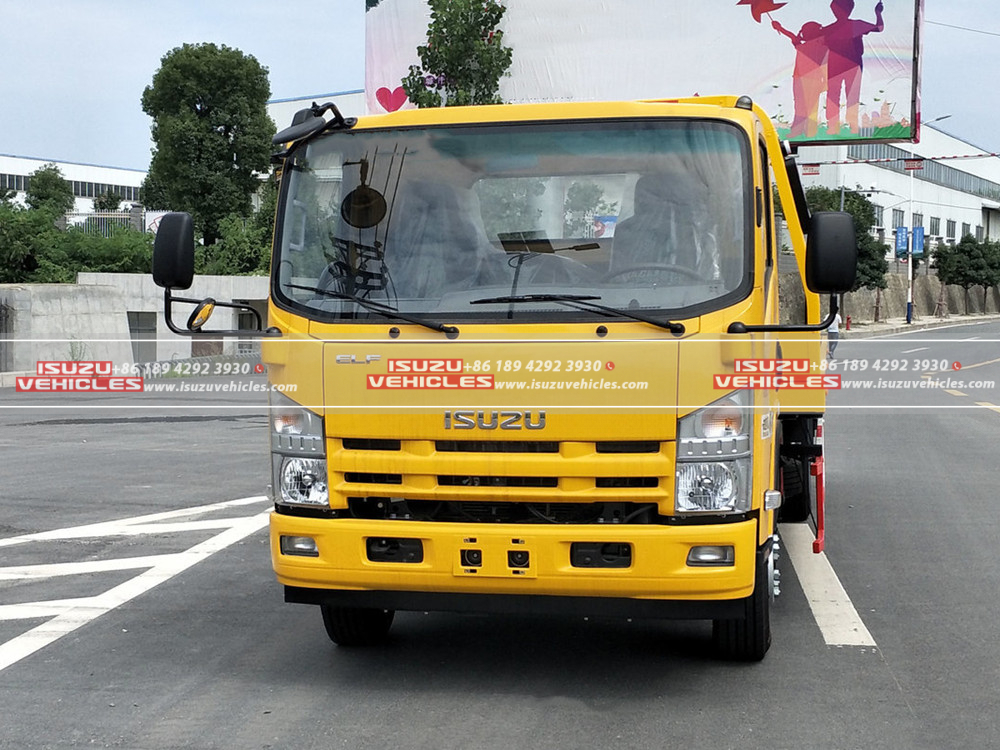

The ISUZU 3 Ton Wrecker Tow Truck is a robust and reliable vehicle designed for efficient towing and recovery operations. With a powerful engine, sturdy chassis, and advanced upper equipment, this tow truck is equipped to handle a wide range of towing tasks with ease. Whether it’s roadside assistance, vehicle recovery, or towing disabled vehicles, the ISUZU 3 Ton Wrecker Tow Truck is built to deliver exceptional performance and reliability.
Features:
- Powerful Engine: Equipped with a Qingling Isuzu 4HK1-TC51 engine, with a displacement of 5.193L, delivering a maximum horsepower of 190 and an output power of 141 kW. This engine ensures optimal performance and efficiency during towing operations.
- Versatile Transmission: Features a Isuzu six-speed manual transmission with 6 forward gears and 1 reverse gear, providing smooth and precise shifting for enhanced control and maneuverability.
- Sturdy Chassis: Built on a Qingling Isuzu 700P chassis with a wheelbase of 4475mm, providing stability and durability. The chassis model QL1100A8MAY offers reliable support for heavy-duty towing tasks.

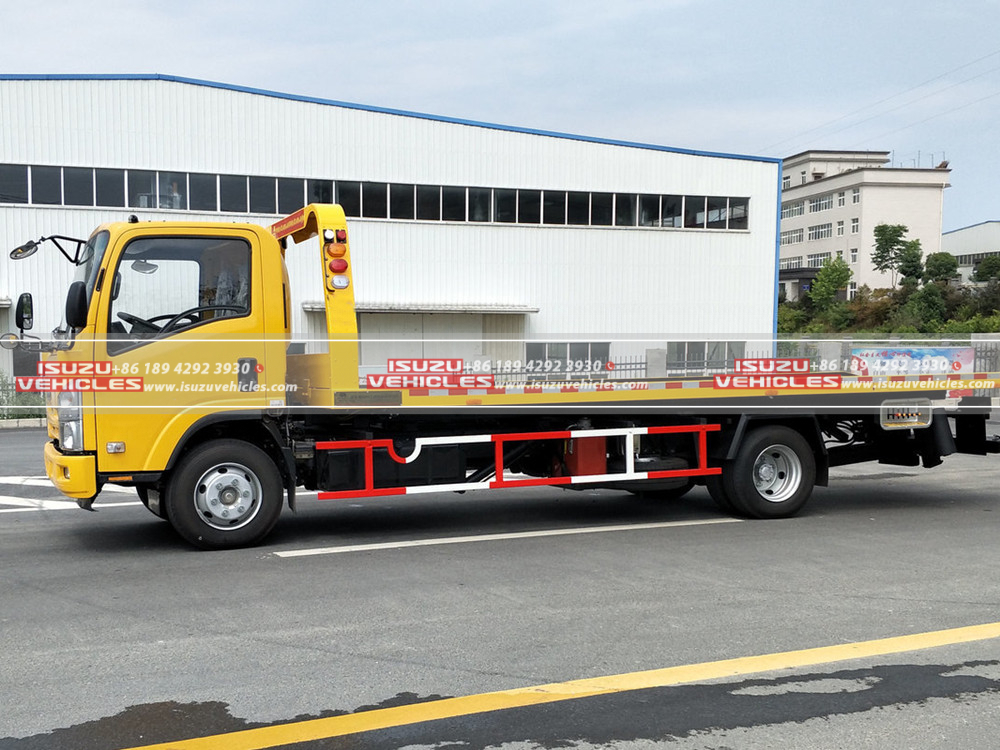

- Advanced Upper Equipment: The PFT5100TQZP5 upper equipment, branded by ISUZU, offers a lifting capacity of 3125kg, ensuring efficient and safe towing operations. This upper equipment is designed for easy operation and reliable performance.
- High Load Capacity: With a gross weight of 10 tons and a vehicle weight of 6.68 tons, the ISUZU 3 Ton Wrecker Tow Truck can handle heavy loads with ease, making it suitable for a variety of towing applications.
- Optimized Suspension: Features front and rear suspension systems with dimensions of 1.11/2.905 meters, providing enhanced stability and comfort during towing operations.
- Reliable Tires: Equipped with 6 tires with specifications of 8.25R20 14PR, offering excellent traction and durability for various road conditions.
- Compliance with Emission Standards: Conforms to EURO II, EURO III, EURO IV, EURO V, and EURO VI emission standards, ensuring environmental compliance and reducing emissions during operation.
SPECIFICATIONS:
Basic Information | |
---|---|
Drive Form | 4X2 |
Wheelbase | 4475mm |
Vehicle Dimensions | 8.49×2.42×2.44 meters |
Gross Weight | 10 tons |
Vehicle Weight | 6.68 tons |
Maximum Speed | 110 km/h |
Front Wheel Track/Rear Wheel Track | Front: 1680mm; Rear: 1650mm |
Front Suspension/Rear Suspension | 1.11/2.905 meters |
Engine Parameters | |
---|---|
Engine Model | Qingling Isuzu 4HK1-TC51 |
Displacement | 5.193L |
Maximum Horsepower | 190 horsepower |
Maximum Output Power | 141 kW |
Fuel Type | Diesel |
Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
Upper Equipment Parameters | |
---|---|
Vehicle Model | PFT5100TQZP5 |
Upper Equipment Brand | ISUZU |
Lifting Capacity | 3125kg |
Transmission Parameters | |
---|---|
Transmission Model | Isuzu Six-speed Manual |
Number of Gears | 6 |
Reverse Gears | 1 |
Chassis Parameters | |
---|---|
Chassis Brand | Qingling |
Chassis Series | Isuzu 700P |
Chassis Model | QL1100A8MAY |
Number of Leaf Springs | 8/10+6 |
Tires | |
---|---|
Number of Tires | 6 |
Tire Specifications | 8.25R20 14PR |
