BRIEF:

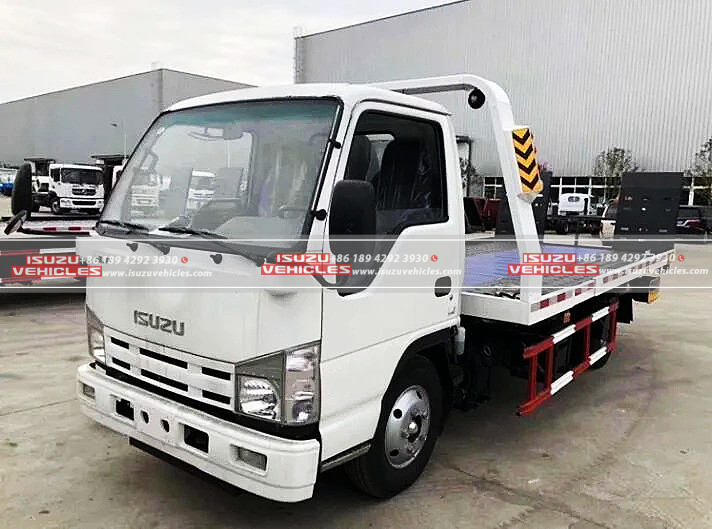

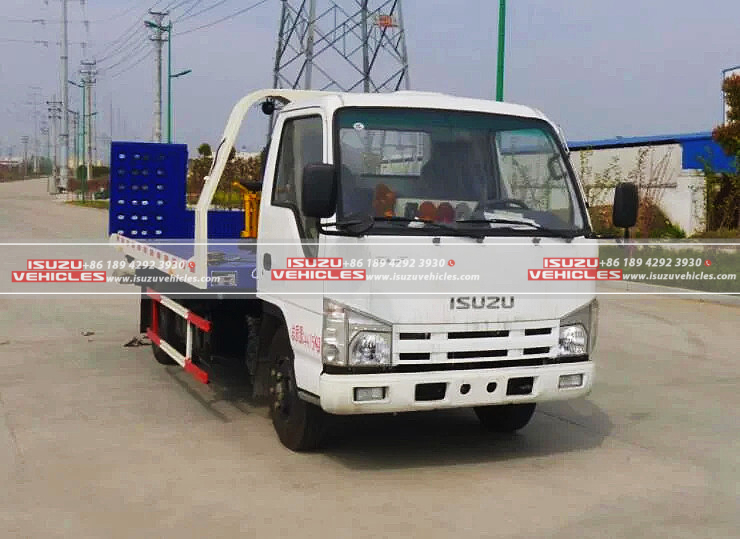

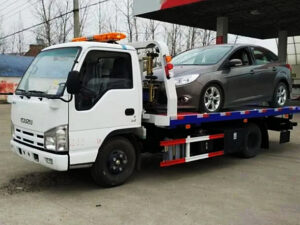

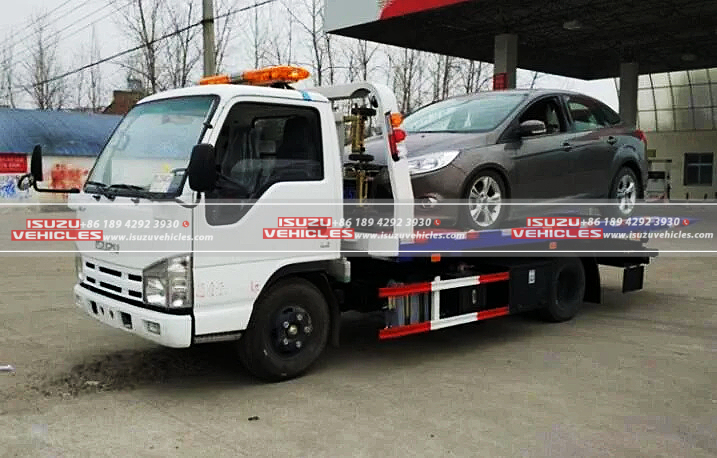

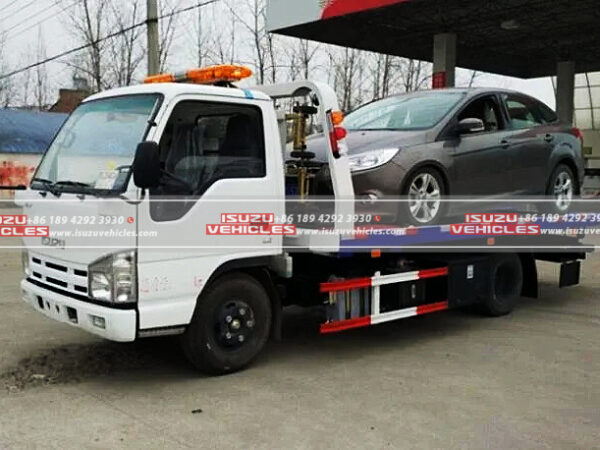

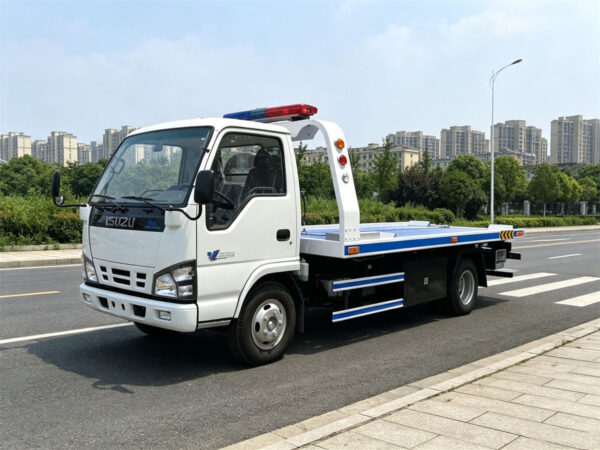

The ISUZU 5 Ton Landing Flatbed Low Angle Road Rescue Towing Truck is a versatile and powerful vehicle designed to handle a wide range of towing and rescue operations. With its robust chassis, advanced engine, and specialized superstructure, this towing truck is engineered to provide reliable and efficient performance in various road rescue scenarios.
This ISUZU Towing Truck is a dependable and versatile solution for towing and road rescue missions, ensuring safety and efficiency in challenging scenarios.
FEATURES:
1. Impressive Power and Efficiency:
- Equipped with a 4-stroke direct injection, 4-cylinder in-line engine, this towing truck generates 98HP and 72KW of power for exceptional towing capabilities.
- Turbo-charging and inter-cooling technology ensure efficient fuel combustion and reduced emissions, meeting EURO 4 standards.
- The 2771ml diesel engine delivers both power and fuel efficiency, making it suitable for long-distance and demanding towing tasks.
2. Reliable Chassis:
- Built on an Isuzu chassis, known for its durability and performance.
- The 4*2 drive model provides excellent stability and maneuverability.
- Single cabin design with left-hand drive offers operator comfort and control.
3. Enhanced Safety:
- The pneumatic (Air brake/exhaust brake) system ensures reliable braking performance, even when towing heavy loads.
- Power steering with hydraulic assistance enables precise and responsive handling.
4. Impressive Load Capacity:
- Front and rear axles can handle loads of 2500kg and 4800kg, respectively, ensuring the truck can tow and rescue vehicles of various sizes.
- The low-angle design of the flatbed allows for easier loading and unloading.
5. High-Quality Tires:
- The truck is equipped with 7.00R16 all-radial tires, including a spare, providing excellent traction and stability on different road surfaces.
6. Flexible Superstructure:
- The platform organ boasts a large dimension of 5500*2300mm, constructed from durable Q235 carbon steel, with a maximum loading capacity of 4000kg.
- A rear manual flip board, along with a powerful winch with a 4000kg towing capacity, ensures efficient vehicle retrieval.
7. Enhanced Safety and Convenience:
- Other essential features include auxiliary wheels, alarm lights, hooks, bundling belts, and an automatic sliding plate.
- Optional features like a caution light, air conditioning, and an inlet valve can be added for increased functionality and operator comfort.
8. Maximum Speed and Maneuverability:
- With a top speed of 98km/h, this towing truck can swiftly respond to emergency situations and reach its destination quickly.
- The 6-speed manual gearbox allows for precise control during towing operations.
SPECIFICATIONS:
General Technical Parameters
Parameter | Unit | Value |
---|---|---|
Overall Dimension | mm | 7500x2300x2460 |
Gross Vehicle Weight | Kg | 7300 |
Curb Weight | Kg | 3800 |
Chassis Specification
Parameter | Value |
---|---|
Chassis Brand | Isuzu |
Drive Model | 4*2 |
Cabin | Single, Left-Hand Drive |
Engine Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
Power | 72KW/98HP |
Emission Standard | EURO 4 |
Displacement | 2771(ml) |
Fuel Type | Diesel |
Gearbox | 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance |
Brake System | Pneumatic(Air brake/exhaust brake) |
Wheel Base | 3815(mm) |
Front/Rear Axle Loading | 2500/4800(Kg) |
Approach/Departure Angle | 24/12(°) |
Tire | 7.00R16, 6pcs + 1 spare tire |
Max Driving Speed | 98(km/h) |
Superstructure Specification
Parameter | Dimension | Material | Max Loading Capacity |
---|---|---|---|
Platform Organ | 5500*2300(mm) | Q235 carbon steel | 4000(kg) |
Rear Manual Flip Board Length | 800(mm) | N/A | N/A |
Winch | N/A | N/A | 4000(kg) |
Length of Steel Rope | 25(m) | N/A | N/A |
Speed of Winch | 3.23~8 (m/min) | N/A | N/A |
Hoisting Organ | N/A | N/A | 5000(kg) |
Other Parts and Options
- Auxiliary wheels, alarm light, hooks, 4 bundling belts, automatic sliding plate, etc.
- Options: Caution light, air conditioner, inlet valve, etc.
