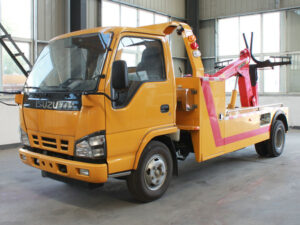

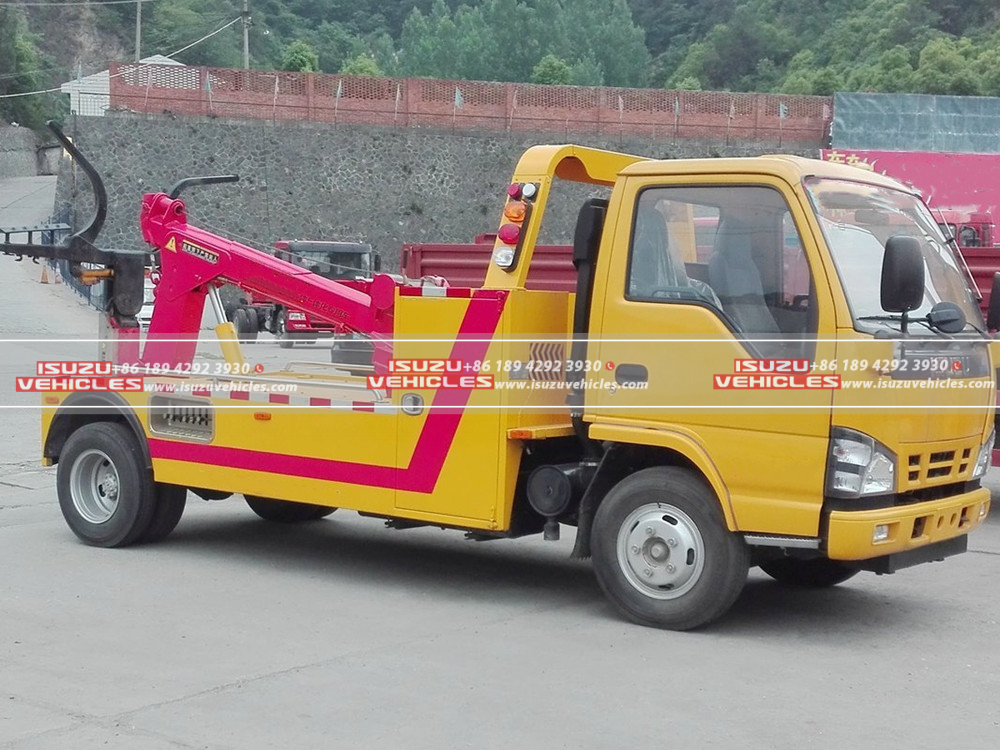

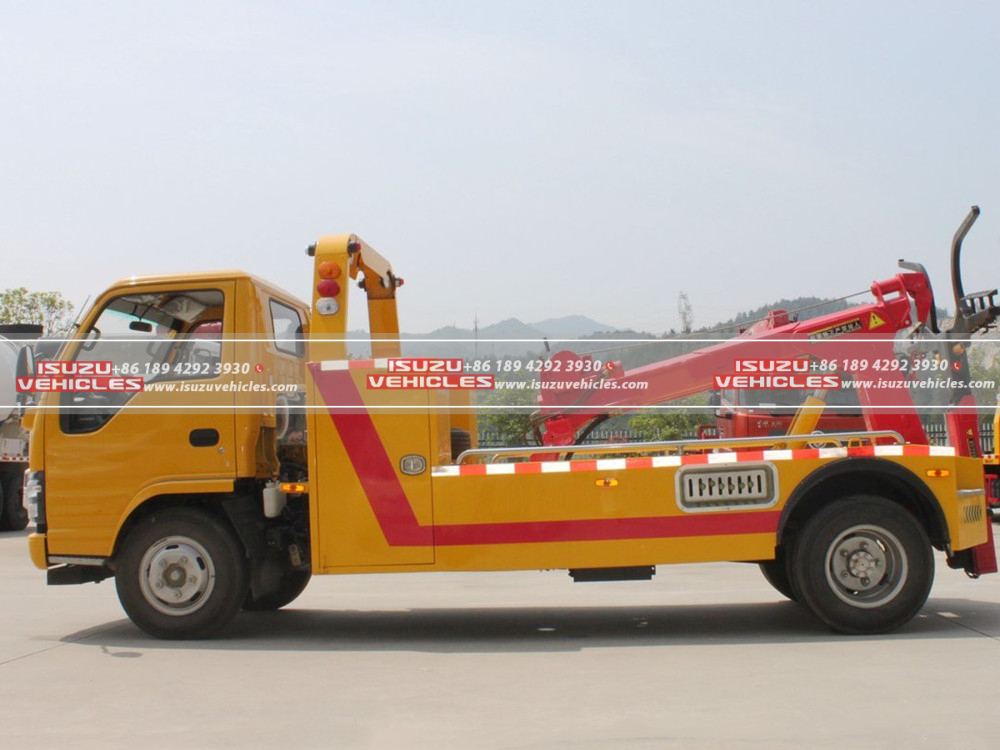

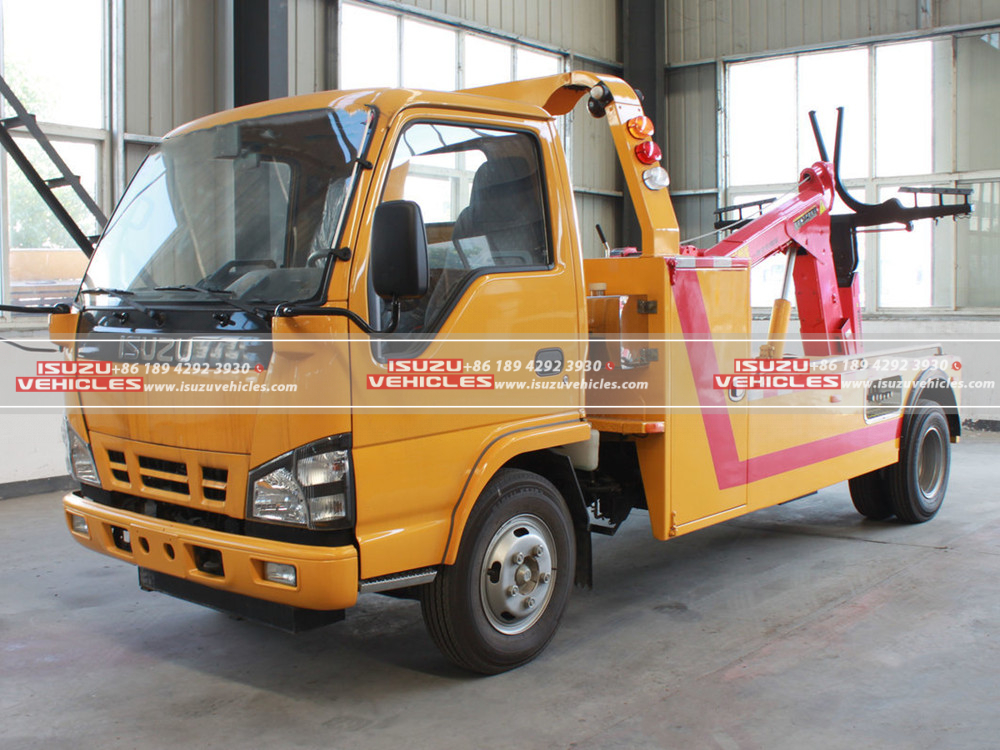

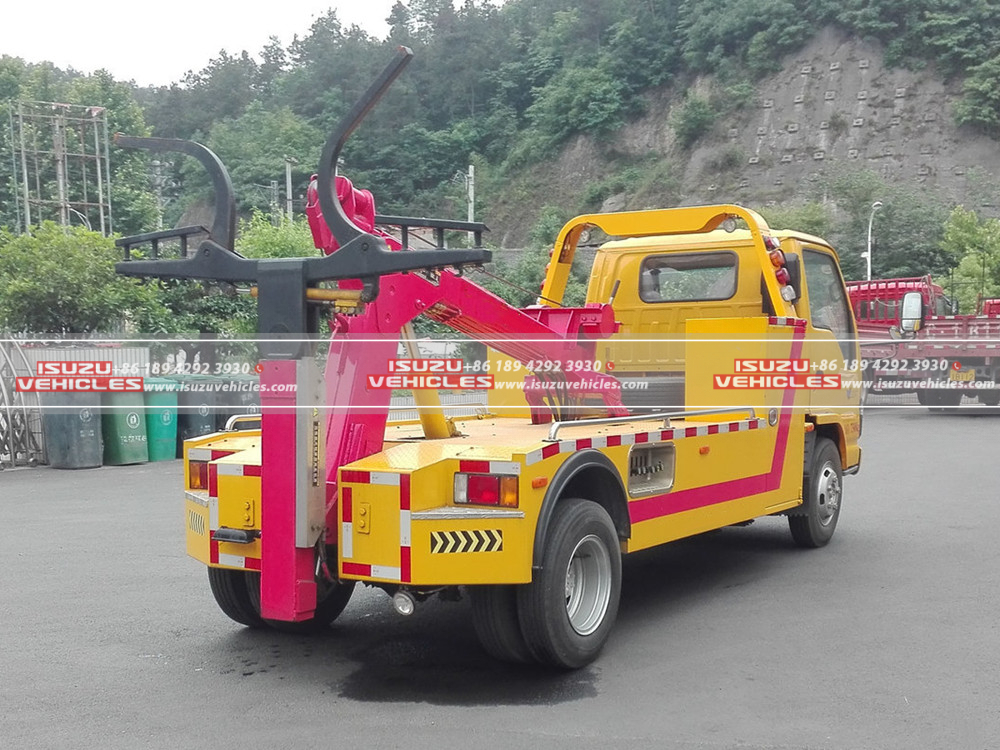

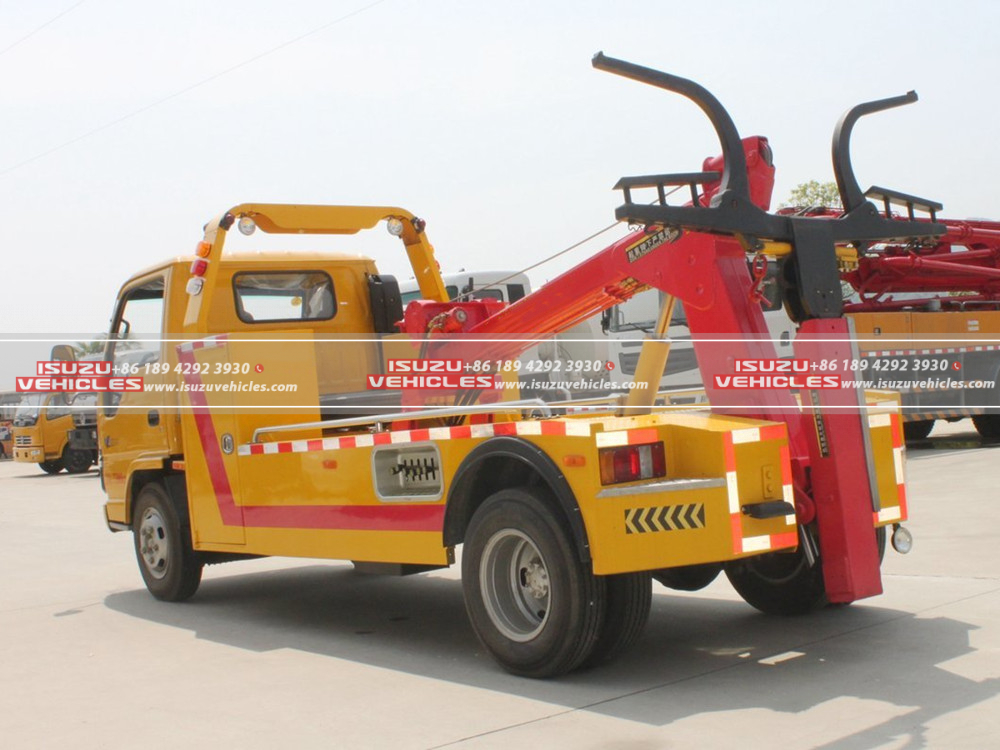

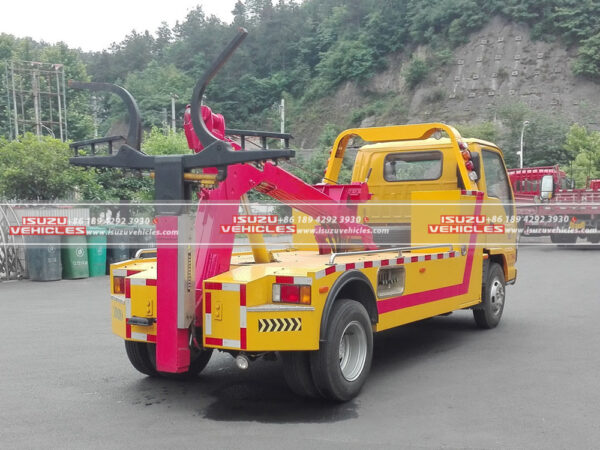

Product Brief: ISUZU 3 Ton Tow Wrecker Truck
The ISUZU 3 Ton Tow Wrecker Truck is a versatile and reliable solution designed for towing and recovery operations. Engineered with a combination of durability, efficiency, and performance, this wrecker truck is built on the renowned ISUZU 600P chassis, offering exceptional handling and stability. The truck features a robust and fuel-efficient 3.0-liter diesel engine, compliant with China’s National V emissions standards, ensuring both eco-friendliness and high performance.
This wrecker truck is ideal for urban and suburban environments due to its compact dimensions, reliable towing capacity, and efficient diesel engine. It is equipped with a six-speed manual transmission, allowing for precise control and optimal power distribution when navigating various terrains. The ISUZU 3 Ton Tow Wrecker Truck’s load and towing capabilities make it an excellent choice for municipal services, road assistance, and light-duty towing tasks.

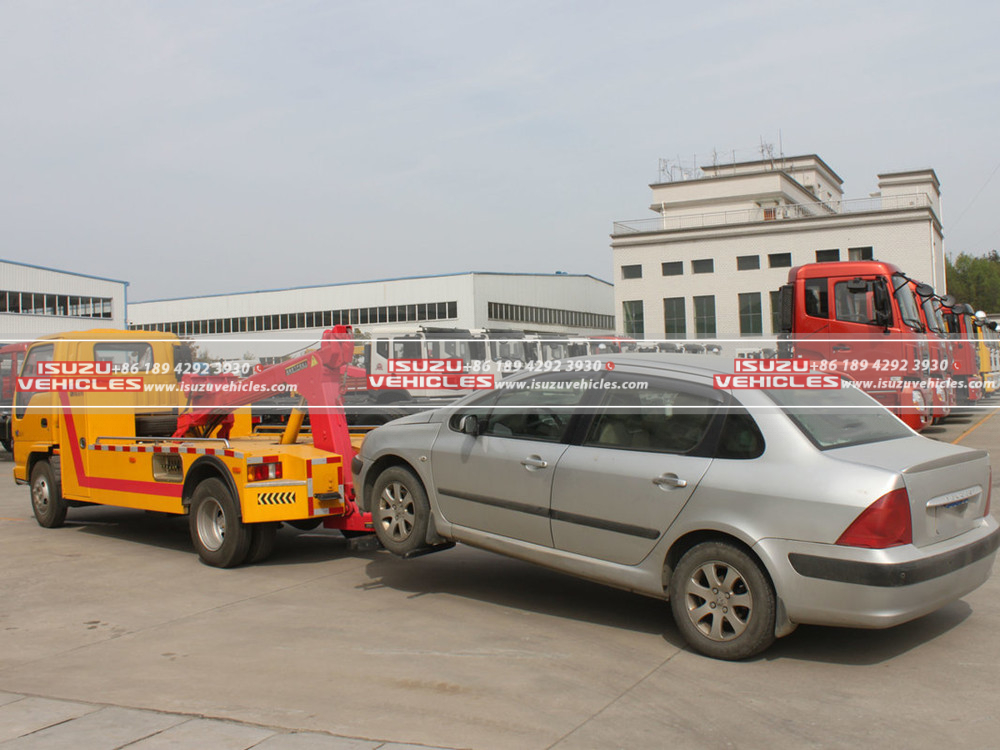

The truck’s integrated towing arm is designed to lift and tow vehicles efficiently, capable of handling a lifting weight of up to 3,190 kg. This feature ensures that it can safely transport a wide range of vehicles, from small passenger cars to larger vans. Its performance, durability, and user-friendly operation make it a top contender for companies looking for a cost-effective, dependable tow wrecker.
Key Features of the ISUZU 3 Ton Tow Wrecker Truck
1. Chassis and Body Design
- 4×2 Drive Configuration: The truck’s 4×2 drive layout makes it suitable for road recovery in both urban and rural settings. It provides sufficient traction for most towing operations, reducing complexity while improving fuel efficiency.
- Dimensions: With a length of 5.9 meters, width of 1.99 meters, and height of 2.6 meters, the ISUZU 3 Ton Tow Wrecker is compact enough for maneuvering through narrow city streets while being robust enough to manage medium-duty towing tasks. Its 3,815 mm wheelbase ensures a stable and balanced structure, contributing to safe towing.
- Gross Vehicle Weight: Weighing in at a total of 7.3 tons, this tow truck is balanced and solid enough to carry out its duties without compromising maneuverability or fuel economy.
- Suspension System: The front suspension features 8 leaf springs, while the rear incorporates a combination of 6 leaf springs and 5 auxiliary springs. This setup ensures smoother rides even when carrying or towing heavier loads.
2. Powerful and Efficient Engine
- Engine Model: Powered by the Qingling ISUZU 4KH1CN5HS engine, this truck features a reliable 3.0-liter diesel engine, known for its durability and fuel efficiency.
- Max Output: With a maximum horsepower of 130 HP (72 kW), this engine provides adequate power to handle towing operations while maintaining good fuel efficiency.
- Fuel Type and Emission Standards: Running on diesel fuel, the engine meets China’s stringent National V emission standards, ensuring that it’s both eco-friendly and compliant with regulatory requirements.
- Top Speed: The ISUZU 3 Ton Tow Wrecker Truck can reach a maximum speed of 110 km/h, making it versatile for highway use, as well as rapid deployment in emergency recovery situations.
3. Transmission and Control
- Six-Speed Manual Transmission: The ISUZU wrecker is equipped with a 6-speed manual transmission, delivering smooth gear shifts and enhanced control over the vehicle during towing and recovery operations. This allows for maximum efficiency when towing vehicles of varying sizes.
- Reverse Gear: The wrecker is fitted with a single reverse gear for efficient maneuvering, which is crucial in tight spaces and during vehicle alignment for towing.
4. Superior Towing Capacity
- Lifting and Towing Mechanism: The wrecker’s integrated towing equipment is built to handle a lifting weight of 3,190 kg, making it suitable for most light- and medium-duty vehicles. This feature ensures quick and secure vehicle recovery, even for larger vans and commercial vehicles.
- Certified Uplift System: The truck comes with a certified PFT5071TQZL5 brand uplift system from Pafite, ensuring reliable, robust, and efficient towing operations.
5. Reliable Tires and Suspension
- Tire Specifications: Fitted with six 7.00-16 14PR or 7.00R16 14PR tires, the truck is well-equipped to handle various terrains, providing stability and traction for towing operations. The 14-ply rated tires enhance load-bearing capacity, making it suitable for demanding work conditions.
- Wheelbase and Suspension: The wheelbase of 3,815 mm provides stability, while the combination of leaf spring suspensions ensures the truck can handle the strain of heavy loads without compromising on driving comfort.
6. Comfort and Safety Features
- Driver Comfort: The ISUZU 3 Ton Tow Wrecker is designed with the operator in mind, featuring a spacious and ergonomic cab. The seating arrangement offers comfort for long hours of operation, and controls are positioned for ease of use, allowing the driver to focus on safe and efficient towing.
- Safety Standards: The truck meets high safety standards, ensuring the protection of both the operator and the vehicle being towed. This includes reliable braking systems, stable towing equipment, and clear visibility for the driver.
The ISUZU 3 Ton Tow Wrecker Truck is an outstanding vehicle for light- to medium-duty towing and recovery operations. With its durable ISUZU chassis, fuel-efficient 3.0-liter engine, and high lifting capacity, it is a perfect choice for municipal road assistance, towing services, and emergency response teams. The combination of robust engineering, eco-friendly performance, and user-friendly controls ensures that this truck delivers consistent performance while maintaining reliability and safety. Whether for urban towing or rural recovery, the ISUZU 3 Ton Tow Wrecker Truck stands out as a practical, cost-effective solution for professionals in the towing industry.
SPECIFICATIONS:
| Category | Specification |
|---|---|
| Basic Information | |
| Drive Configuration | 4X2 |
| Wheelbase | 3815 mm |
| Vehicle Dimensions | 5.9 m × 1.99 m × 2.6 m |
| Gross Vehicle Weight (GVW) | 7.3 tons |
| Curb Weight | 3.98 tons |
| Maximum Speed | 110 km/h |
| Front/Rear Track Width | Front: 1504 mm; Rear: 1425 mm |
| Front/Rear Overhang | Front: 1.015 m; Rear: 1.07 m |
| Engine Parameters | |
| Engine Model | Qingling ISUZU 4KH1CN5HS |
| Displacement | 2.999 L |
| Maximum Horsepower | 130 HP |
| Maximum Power Output | 72 kW |
| Fuel Type | Diesel |
| Emission Standards | EURO Ⅱ, EURO Ⅲ, EURO Ⅳ, EURO Ⅴ |
| Uplift Equipment Parameters | |
| Uplift Equipment Brand | Pafite |
| Lifting Capacity | 3190 kg |
| Transmission Parameters | |
| Transmission Model | ISUZU 6-Speed Manual |
| Number of Gears | 6 Forward, 1 Reverse |
| Chassis Parameters | |
| Chassis Brand | Qingling |
| Chassis Series | ISUZU 600P |
| Chassis Model | QL1070A5KAY |
| Leaf Springs | 8/6 + 5 |
| Tires | |
| Number of Tires | 6 |
| Tire Specifications | 7.00-16 14PR, 7.00R16 14PR |
