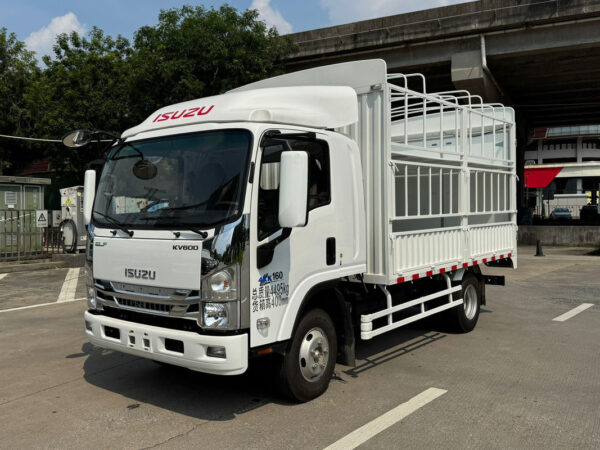

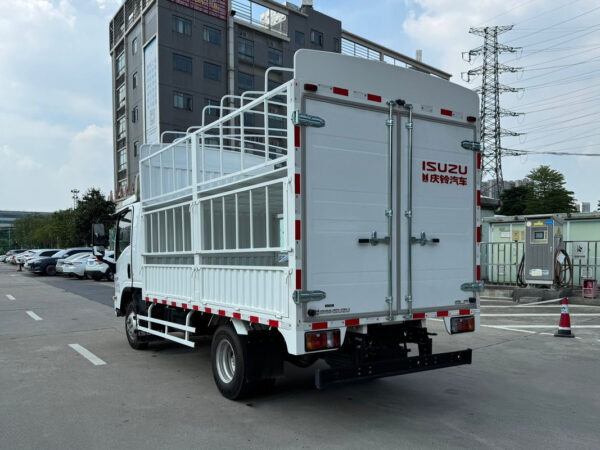

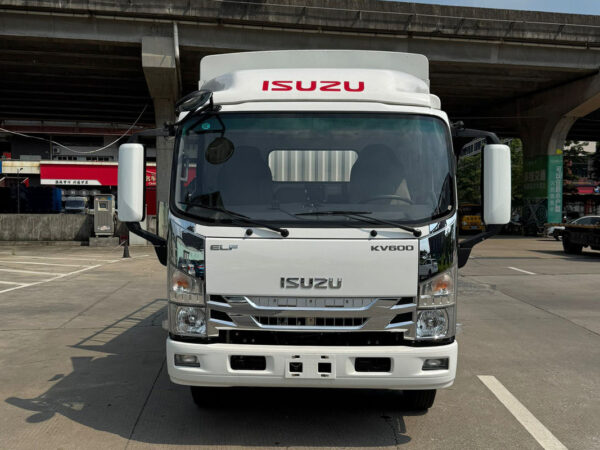

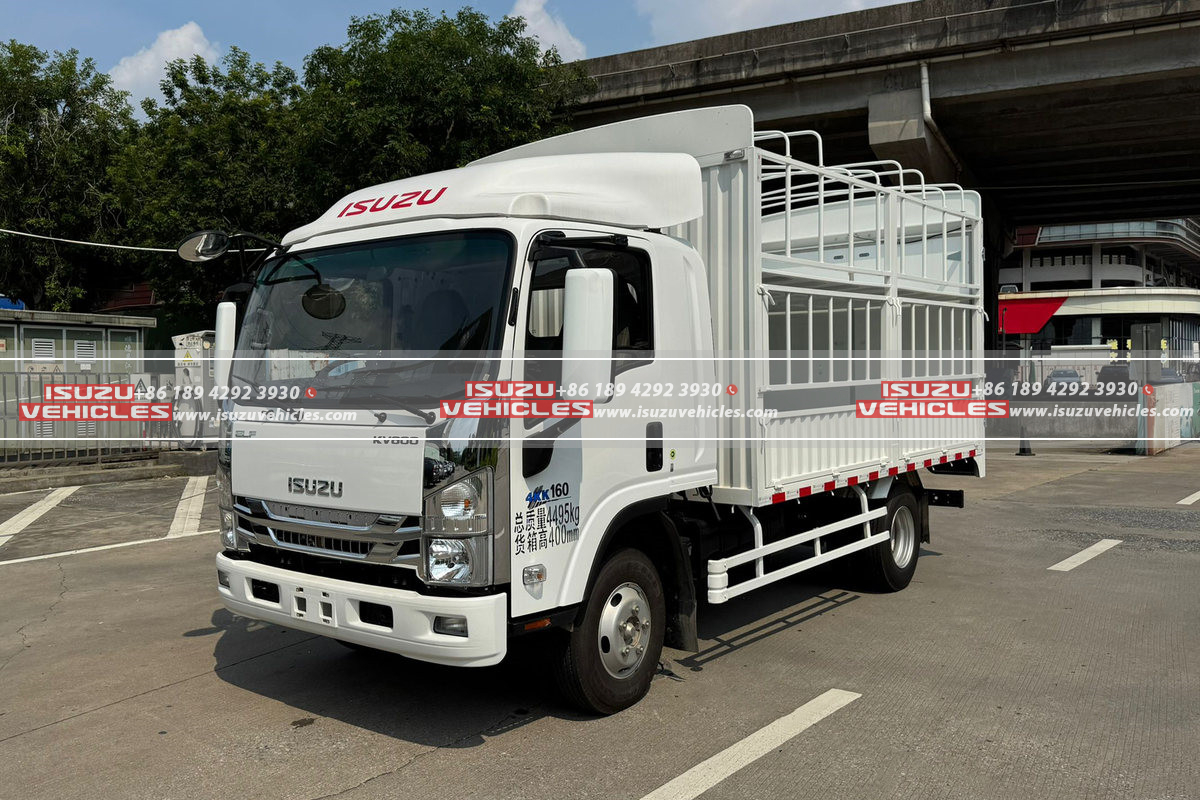

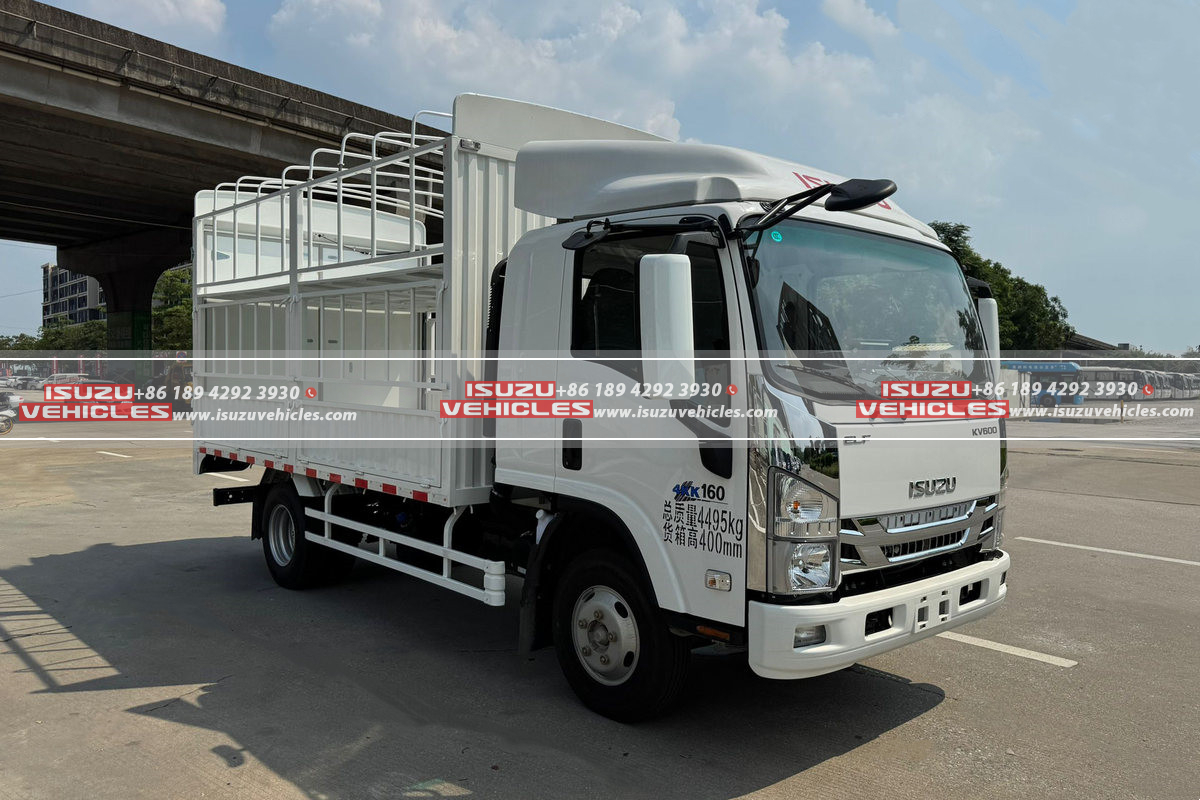

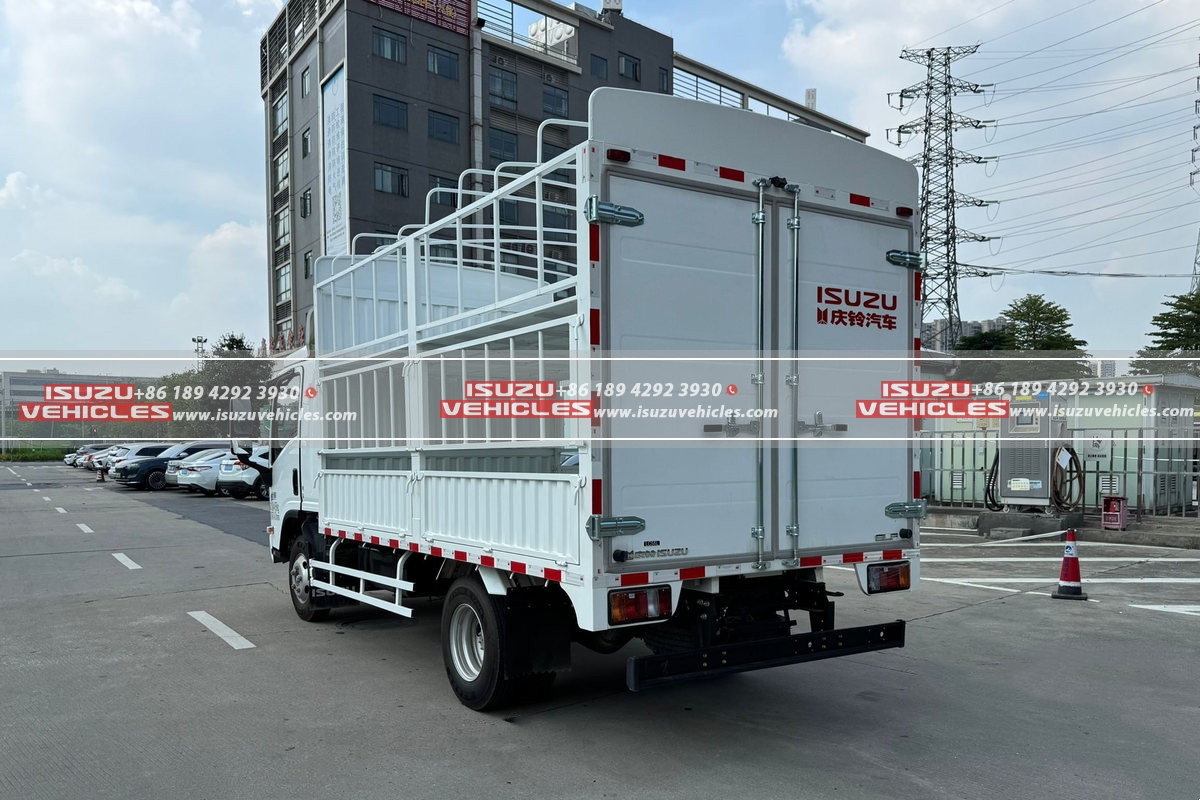

ISUZU 4 Meter Livestock Cargo Truck
The ISUZU 4 Meter Livestock Cargo Truck is a compact and highly efficient light-duty commercial vehicle designed to meet the demanding needs of urban livestock and agricultural transport. Built in Chongqing, this truck combines dependable ISUZU engineering with practical cargo capacity, making it particularly suitable for city distribution routes where maneuverability, reliability, and efficient operation are essential.
With a 4×2 drive configuration and a wheelbase of 3360 mm, the vehicle offers excellent balance between stability and flexibility, allowing it to navigate narrow city streets, rural access roads, and busy market areas with ease. The truck features a total vehicle length of 5.995 meters, a width of 2.15 meters, and a height of 3.075 meters, creating a compact yet capable transport solution for livestock movement and specialized cargo applications.
The truck operates with a gross vehicle weight of 4.495 tons, while maintaining a rated payload capacity of 1.495 tons, which allows operators to transport livestock safely and efficiently while remaining within regulatory limits. With a curb weight of 2.805 tons, the vehicle maintains an optimal balance between structural strength and payload efficiency.
Designed specifically for urban distribution markets, the truck also offers practical road capability with a 19° approach angle and 20° departure angle, allowing smoother entry and exit when driving on ramps, loading areas, or uneven farm roads. The vehicle is classified under a yellow commercial license plate, reflecting its professional cargo transport capabilities.
Powertrain and Engine Performance
At the core of the truck is the reliable Qingling ISUZU 4KH1CN6LB engine, a modern diesel power unit known for its durability, fuel efficiency, and consistent performance in light commercial vehicles.
This inline four-cylinder diesel engine features a 2.999-liter displacement, delivering an ideal balance of power and efficiency for city logistics and livestock transport. The engine delivers a maximum output of 88 kW (120 horsepower), ensuring the vehicle maintains stable performance even when carrying livestock or operating under moderate load conditions.
With a maximum torque of 290 N·m, the engine provides sufficient pulling power to handle frequent starts and stops typical of urban delivery routes and agricultural transport operations. Additionally, the engine meets China VI emission standards, reflecting modern environmental compliance while maintaining dependable diesel performance.
Transmission and Driving Control
The vehicle is equipped with the durable ISUZU 5-speed manual transmission, designed to provide smooth gear transitions and reliable operation under daily commercial use.
This manual gearbox includes five forward gears and one reverse gear, allowing the driver to maintain efficient control over engine performance across a range of driving conditions. Whether navigating busy urban streets or traveling between farms and distribution centers, the transmission system ensures responsive acceleration and stable cruising capability.
The rear axle ratio of 5.71 further enhances the truck’s ability to handle loads effectively while maintaining fuel efficiency during regular transport operations.
Livestock Cargo Body Design

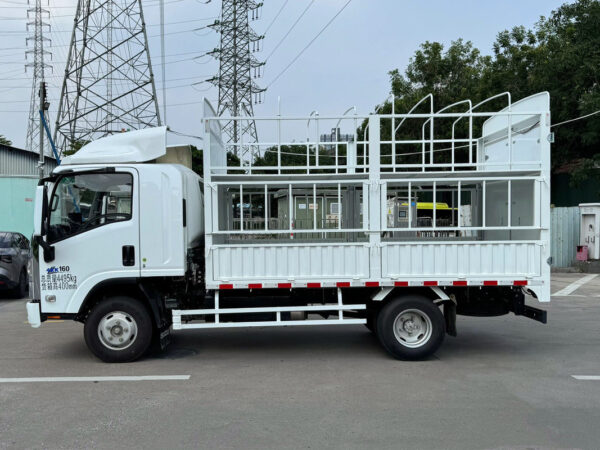

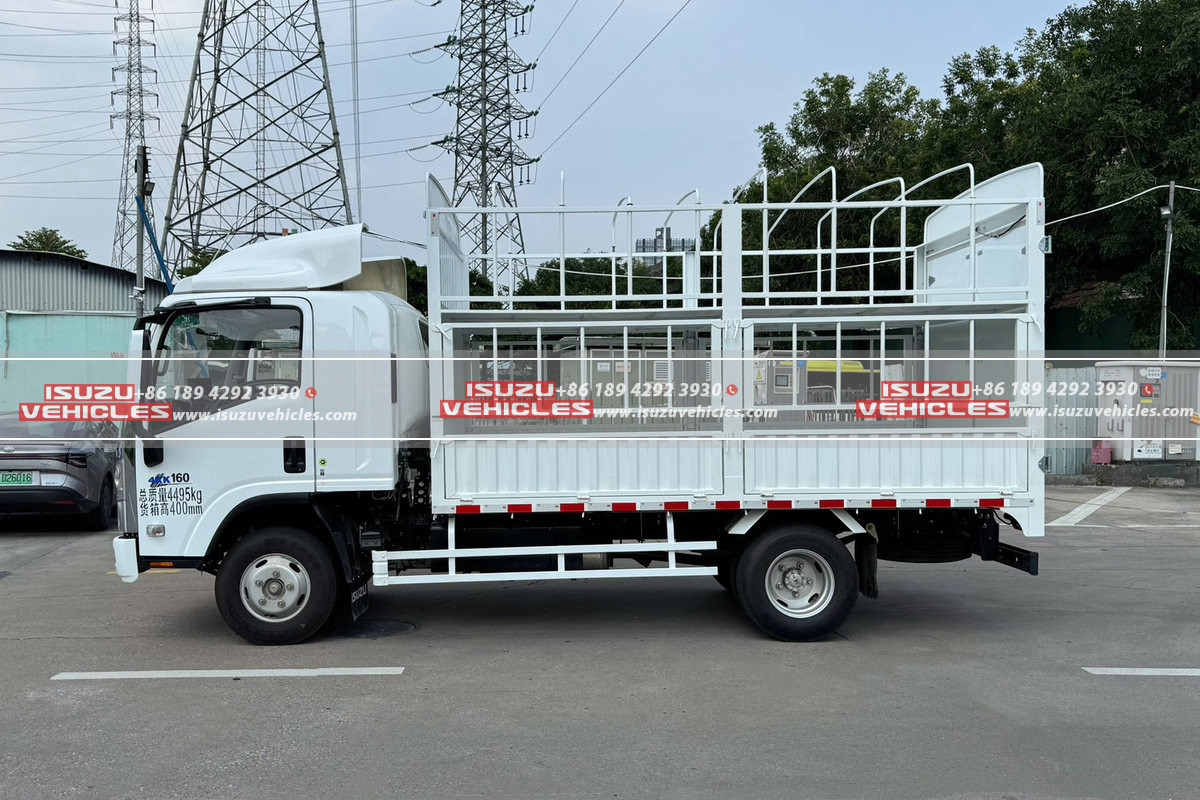

The truck features a box-type cargo structure, specifically designed to accommodate livestock transport while maintaining durability and structural stability.
The cargo compartment measures 4.13 meters in length, 2.3 meters in width, and 2.3 meters in height, creating a spacious interior suitable for safely transporting animals while ensuring adequate ventilation and movement space. The interior cargo width of approximately 2.3 meters allows for efficient space utilization, supporting both livestock transport and other specialized cargo needs.
This well-proportioned cargo body design supports safe loading and unloading processes, making the truck a practical choice for farms, livestock markets, and agricultural distribution networks.
Cabin Layout and Driver Comfort
The single-row cabin is designed with simplicity and practicality in mind, offering seating for three occupants, including the driver and two passengers. With a cab width of 1995 mm, the interior provides adequate space for comfortable daily operation.
The driver’s seating position offers clear road visibility and convenient access to the vehicle’s controls, which helps reduce fatigue during frequent city deliveries or longer agricultural transport routes. The straightforward cabin layout reflects the truck’s focus on durability, ease of use, and efficient daily operation.
Chassis and Structural Strength
The chassis system is engineered to support stable load distribution and long-term durability under regular commercial use. The front axle supports up to 1,750 kg, while the rear axle carries up to 2,745 kg, ensuring reliable weight handling across the vehicle structure.
The suspension system features a leaf spring configuration of 8/6+5, which enhances load-bearing capability while maintaining vehicle stability during transport. This suspension design is particularly effective for livestock cargo trucks because it helps absorb road impacts while maintaining consistent support for the cargo area.
Tire Configuration and Road Performance
The truck is equipped with six durable commercial tires using the 7.00R16 8PR tire specification, designed to provide dependable load capacity and road grip.
These tires contribute to improved stability during transport, especially when the truck is carrying livestock or navigating uneven rural roads. Their robust construction ensures durability during daily operation while maintaining consistent traction across various road conditions.
Safety and Control Systems
Safety is enhanced through the integration of ABS (Anti-lock Braking System), which helps maintain steering control during sudden or emergency braking. This feature prevents wheel lock-up, improving vehicle stability and reducing braking distance on wet or slippery road surfaces.
Combined with the truck’s balanced chassis structure and reliable braking system, the ABS feature ensures a safer driving experience for operators transporting livestock or other cargo in both urban and rural environments.
The ISUZU 4 Meter Livestock Cargo Truck represents a practical and dependable solution for agricultural logistics and city distribution. With its durable ISUZU diesel engine, efficient cargo space, and strong chassis design, the vehicle provides operators with a reliable transport platform that supports both productivity and long-term operational efficiency.
SPECIFICATIONS
| Item | Details |
|---|---|
| Type | Box Truck |
| Drive Type | 4×2 |
| Wheelbase | 3360 mm |
| Cargo Box Length Class | 4.1 m |
| Overall Length | 5.995 m |
| Overall Width | 2.15 m |
| Overall Height | 3.075 m |
| Front Track | 1685 mm |
| Rear Track | 1525 mm |
| Curb Weight | 2.805 tons |
| Rated Payload | 1.495 tons |
| Gross Weight | 4.495 tons |
| Max Speed | 105 km/h |
| Origin | Chongqing, China |
| Ton Level | Light Truck |
| Approach Angle | 19° |
| Departure Angle | 20° |
| Application | Urban Delivery |
| Front Overhang / Rear Overhang | 1.11 m / 1.525 m |
| License Plate | Yellow Plate |
| Energy Type | Diesel |
| Engine Brand | Qingling ISUZU |
| Engine Model | 4KH1CN6LB |
| Engine | Qingling ISUZU 4KH1 |
| Cylinders | 4 |
| Fuel | Diesel |
| Configuration | In-line |
| Displacement | 2.999 L |
| Emission Standard | China 6 |
| Max Output Power | 88 kW |
| Max Horsepower | 120 HP |
| Max Torque | 290 N·m |
| Transmission Model | ISUZU 5-speed |
| Transmission Brand | ISUZU |
| Transmission Type | Manual |
| Forward Gears | 5 |
| Reverse Gears | 1 |
| Cargo Body Type | Box |
| Cargo Body Length | 4.13 m |
| Cargo Body Width | 2.3 m |
| Cargo Body Height | 2.3 m |
| Inner Cargo Width | 2.3 m |
| Cab Width | 1995 mm |
| Seating Capacity | 3 persons |
| Seat Rows | Single row |
| Fuel Tank Capacity | 100 L |
| Front Axle Load | 1750 kg |
| Rear Axle Load | 2745 kg |
| Final Drive Ratio | 5.71 |
| Leaf Spring | 8/6+5 |
| Tire Specification | 7.00R16 8PR |
| Number of Tires | 6 |
| ABS | Standard |
