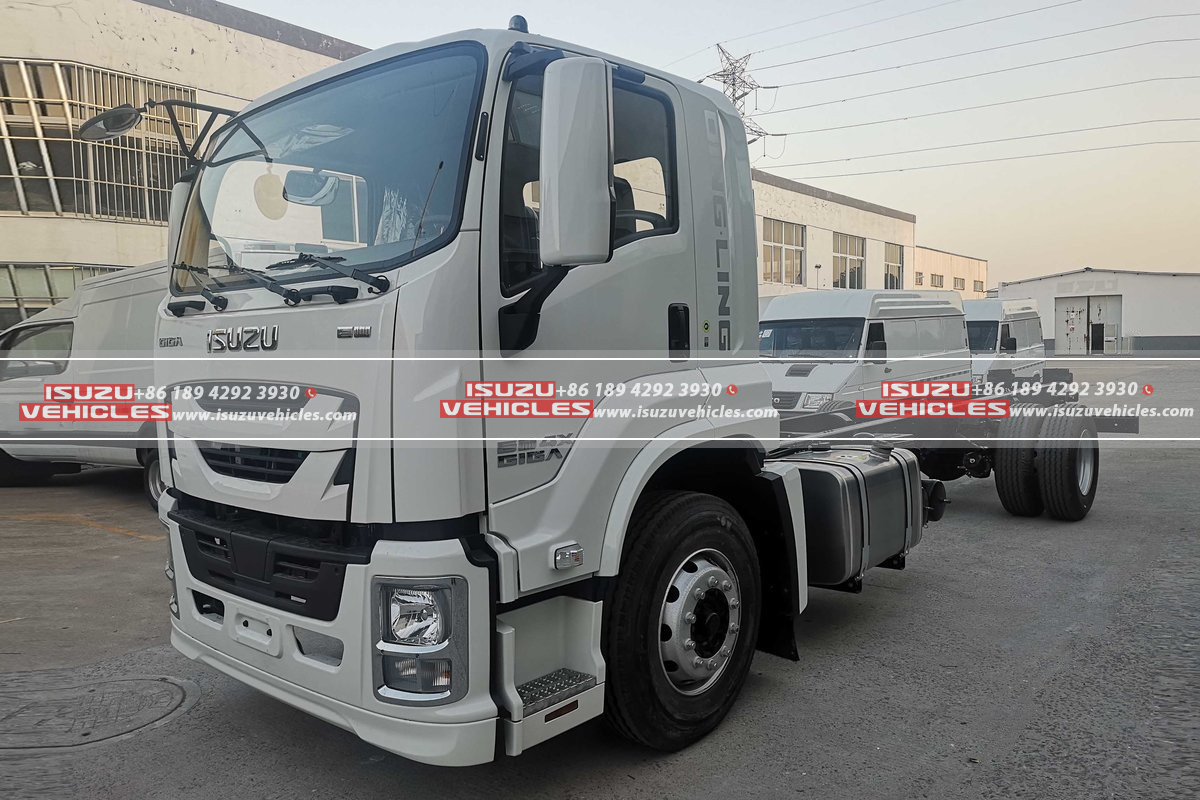

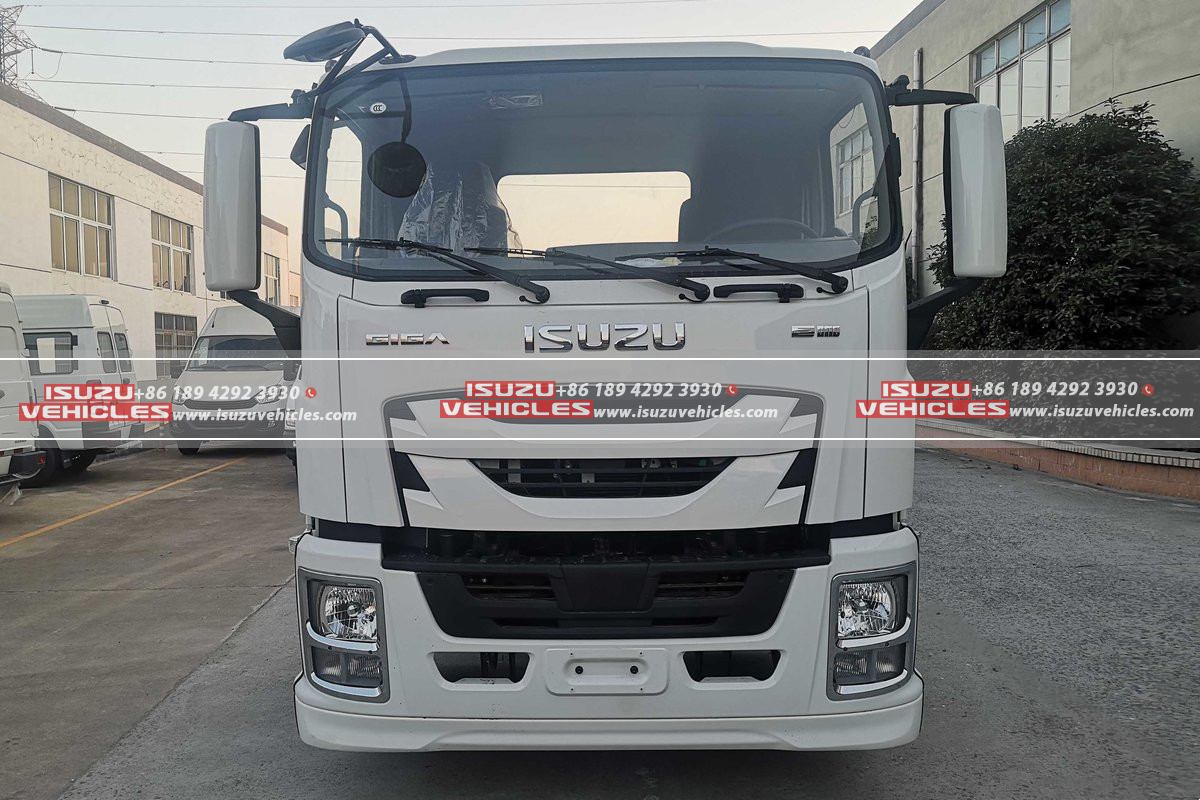

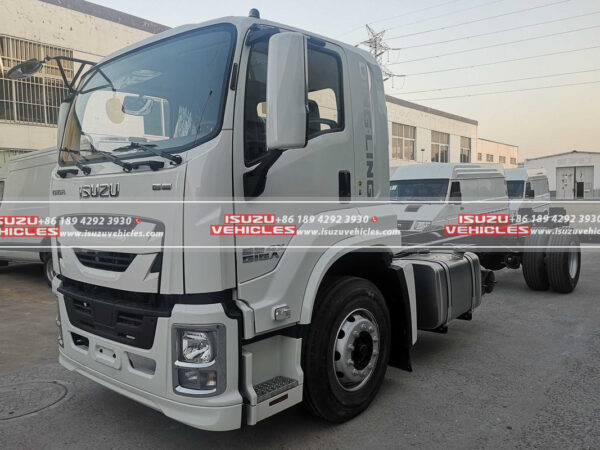

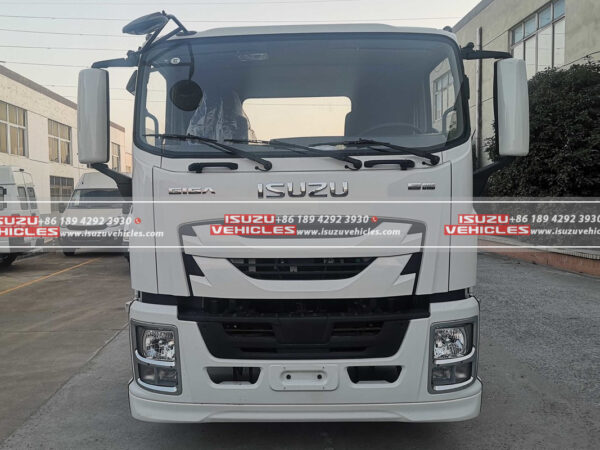

ISUZU GIGA 6.6 Meter Cargo Truck
The ISUZU GIGA 6.6 Meter Cargo Truck is a powerful and reliable medium-duty vehicle designed to meet the demanding requirements of various industries, including building materials transport and agricultural product delivery. Built with a focus on strength, performance, and capacity, the ISUZU GIGA offers superior payload capacity and exceptional engine performance, making it an ideal choice for businesses looking for a dependable workhorse.
With a gross vehicle weight of 18 tons and a payload capacity of 10.65 tons, the ISUZU GIGA stands out for its impressive ability to carry large loads while maintaining excellent road handling and driving stability. Powered by the Qingling Isuzu 4HK1-TCG60 engine, this truck combines high torque with a durable chassis, ensuring long-lasting reliability and efficient transportation of goods.
Key Features of ISUZU GIGA 6.6 Meter Cargo Truck
Engine Power and Efficiency
At the core of the ISUZU GIGA 6.6 Meter Cargo Truck is the Qingling Isuzu 4HK1-TCG60 engine, a high-performance diesel engine that delivers 205 horsepower (151 kW) and an impressive 647 N·m of maximum torque. With a 5.193L displacement, this engine provides ample power to handle the demands of medium-duty transportation tasks, whether it’s for building materials or agricultural products.
The engine is designed with a National VI emission standard, ensuring environmental compliance while maintaining high power output. Its maximum torque at 1600 RPM ensures optimal efficiency when the truck is loaded, providing consistent performance across various driving conditions.

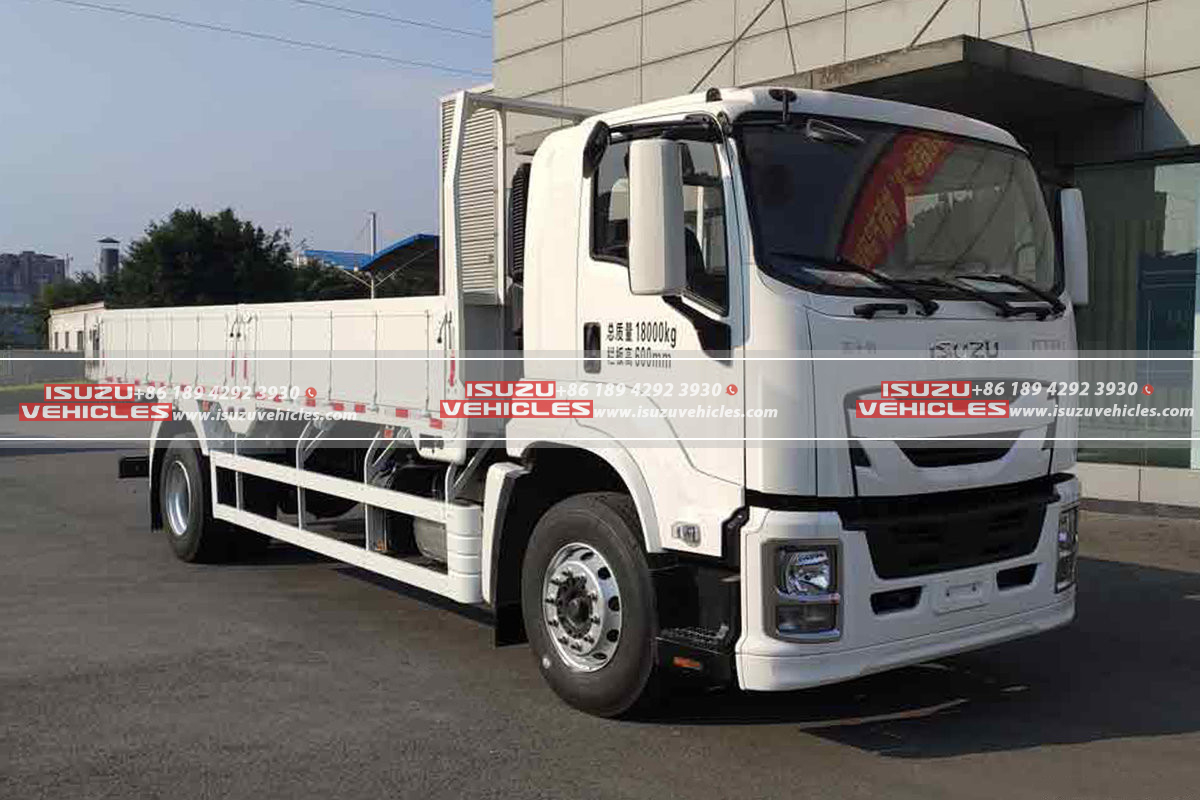

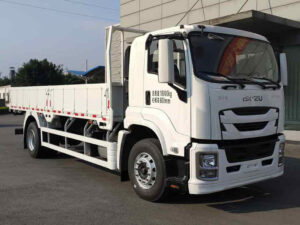

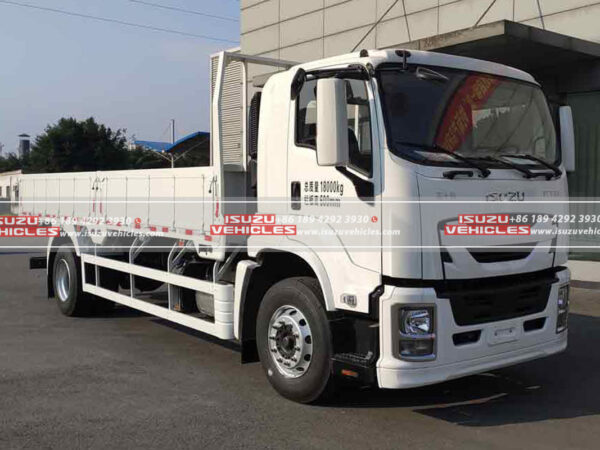

Cargo Box Specifications and Capacity
The cargo box of the ISUZU GIGA is designed for heavy-duty transport with a 6.65-meter length, 2.43-meter width, and 0.6-meter height. This stake-side box design provides a spacious and versatile cargo area, making it ideal for the transportation of large and bulky items such as construction materials, farm equipment, or agricultural by-products.
With a payload capacity of 10.65 tons, the ISUZU GIGA is capable of handling substantial loads, ensuring that businesses can maximize their productivity and efficiency. The robust construction of the cargo box also ensures that goods are securely transported with minimal risk of damage during transit.
Transmission and Driving Performance
Equipped with the Isuzu MLD-6Q manual transmission, the ISUZU GIGA offers a 6-speed forward transmission and 1 reverse gear, enabling drivers to handle varying terrain and road conditions with ease. The manual transmission provides greater control over the vehicle, which is especially useful when maneuvering heavy loads in tight spaces or navigating challenging driving conditions.
The rear axle ratio of 4.555 ensures an efficient balance between power delivery and fuel efficiency, contributing to a smooth and responsive driving experience.

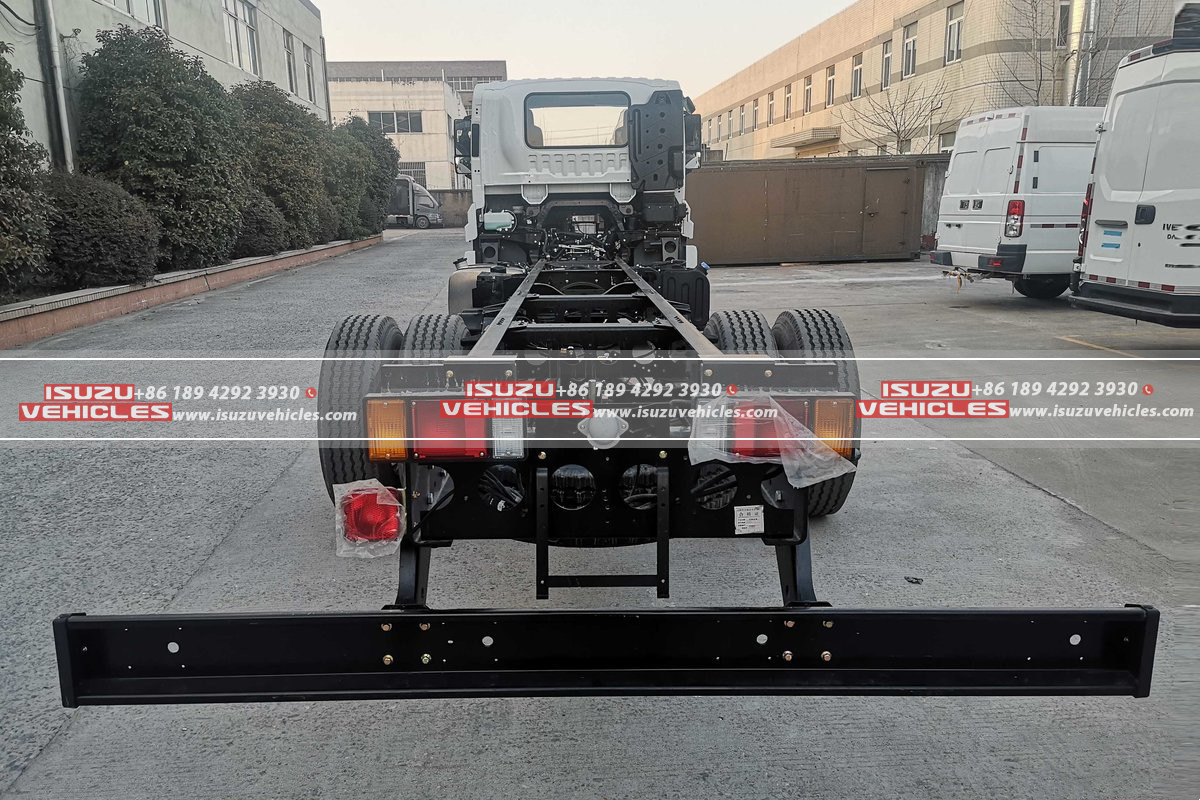

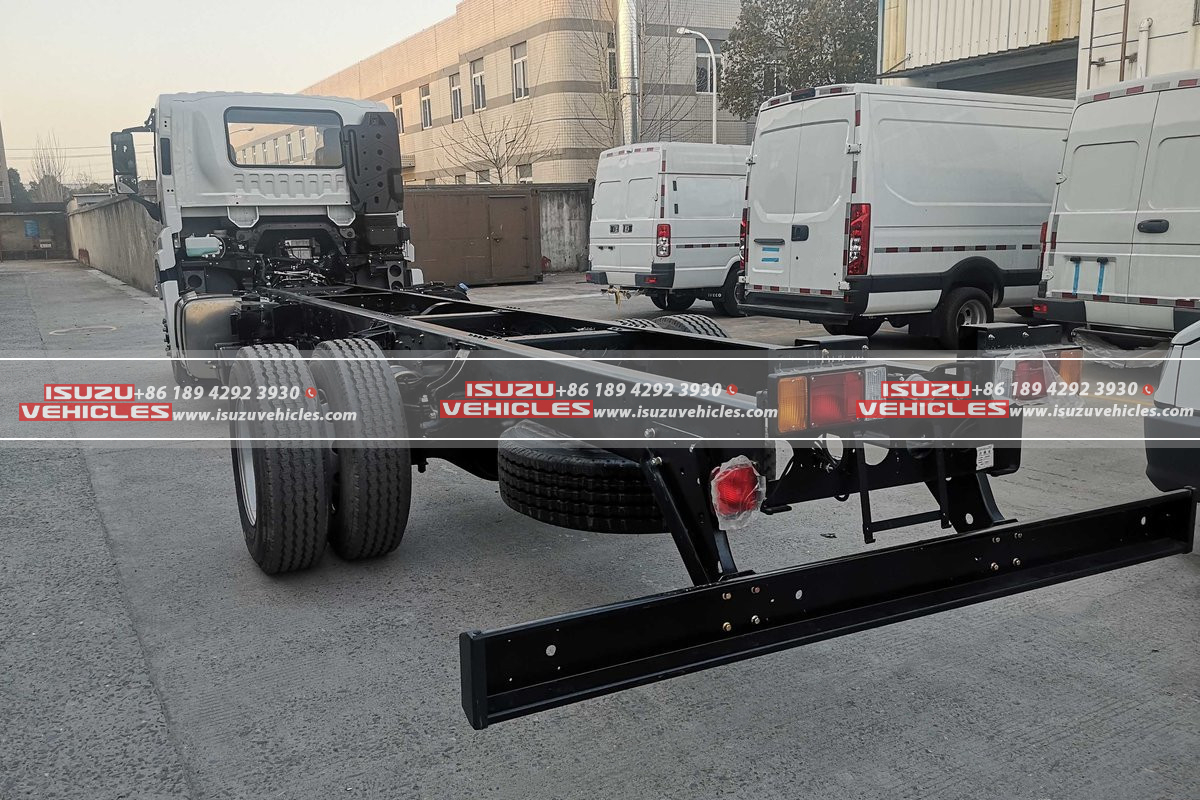

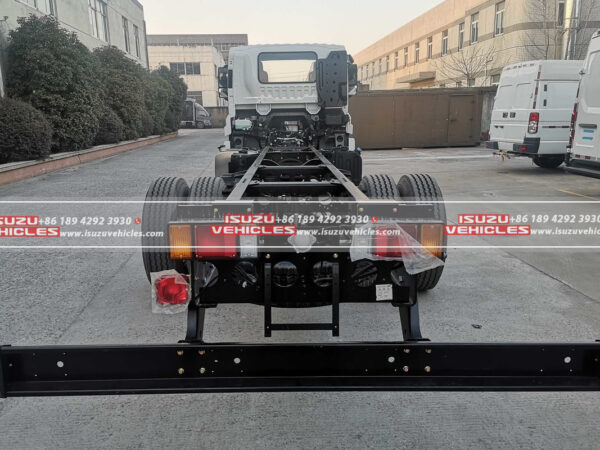

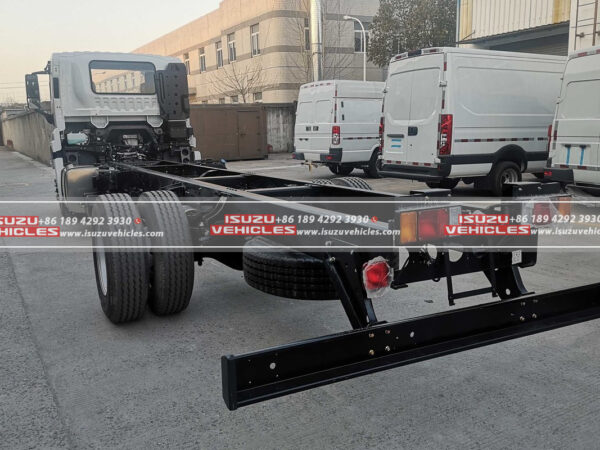

Chassis Durability and Suspension
The ISUZU GIGA 6.6 Meter Cargo Truck features a robust chassis with leaf spring suspension (7+7), designed to support the vehicle’s heavy-duty payload while ensuring stability and comfort during operation. The leaf spring suspension provides reliable support, reducing strain on the truck and ensuring a smoother ride even when carrying large and heavy cargo.
With a front axle load capacity of 6,500 kg and a rear axle load capacity of 11,500 kg, the ISUZU GIGA is built to withstand the rigors of long-distance hauling and heavy-load transport.
Safety and Handling Features
For enhanced safety, the ISUZU GIGA comes equipped with an ABS anti-lock braking system, providing superior control during braking and reducing the risk of wheel lock-up on slippery surfaces. This system enhances the truck’s handling and stability, ensuring a safer driving experience for both the driver and cargo.
The front disc brakes and rear drum brakes provide excellent stopping power, making the truck more responsive during sudden stops or emergency maneuvers.
Tire Specifications and Road Performance
The ISUZU GIGA 6.6 Meter Cargo Truck is fitted with 6 high-performance tires in the size of 295/80R22.5 18PR, offering excellent traction and durability. These tires are specially selected for their ability to handle heavy loads and long-distance travel, ensuring that the truck maintains stable performance across both urban roads and highways.
The tires contribute to the truck’s superior road handling, providing a smooth and safe ride even when fully loaded.
The ISUZU GIGA 6.6 Meter Cargo Truck is an excellent choice for businesses that require a heavy-duty truck with superior load capacity, engine performance, and reliability. Designed to meet the needs of industries such as construction and agriculture, the ISUZU GIGA is built to carry large volumes of goods with ease, while providing efficient, stable, and safe operation on the road.
SPECIFICATIONS:
| Parameter Category | Description |
|---|---|
| Vehicle Type | Cargo Truck |
| Drive Type | 4X2 |
| Wheelbase | 5550mm |
| Box Length Class | 6.7m |
| Engine | Qingling Isuzu 4HK1-TCG60 |
| Transmission | Isuzu MLD-6Q |
| Rear Axle Ratio | 4.555 |
| Body Length | 9m |
| Body Width | 2.53m |
| Body Height | 3m |
| Front Wheelbase | 1960mm |
| Rear Wheelbase | 1855mm |
| Gross Vehicle Weight | 18 tons |
| Curb Weight | 7.155 tons |
| Payload | 10.65 tons |
| Max Speed | 105KM/h |
| Production Place | Chongqing |
| Tonnage Class | Medium Truck |
| Approach Angle | 15 degrees |
| Departure Angle | 12 degrees |
| Market Segment | Building Materials Transport, Agricultural & By-products Transport |
| Front/Rear Overhang | 1.335/2.115m |
| Fuel Type | Diesel |
| Engine Parameters | |
| – Engine Model | Qingling Isuzu 4HK1-TCG60 |
| – Engine Brand | Qingling Isuzu |
| – Engine Nickname | Isuzu 4HK1 |
| – Cylinder Count | 4 Cylinders |
| – Fuel Type | Diesel |
| – Cylinder Arrangement | Inline |
| – Displacement | 5.193L |
| – Emission Standard | National VI |
| – Max Output Power | 151kw |
| – Max Horsepower | 205 HP |
| – Max Torque | 647N·m |
| – Max Torque RPM | 1600RPM |
| – Rated RPM | 2600RPM |
| Cargo Box Parameters | |
| – Cargo Box Type | Stake Side |
| – Cargo Box Length | 6.65m |
| – Cargo Box Width | 2.43m |
| – Cargo Box Height | 0.6m |
| Cab Parameters | |
| – Cab Type | N/A |
| – Cab Suspension | N/A |
| – Cab Width | 2200mm |
| – Passenger Capacity | 3 Persons |
| – Seat Rows | Row and Half |
| – Driver Seat Type | N/A |
| Transmission Parameters | |
| – Transmission Model | Isuzu MLD-6Q |
| – Transmission Brand | Isuzu |
| – Shift Type | Manual |
| – Forward Gears | 6 |
| – Reverse Gears | 1 |
| Chassis Parameters | |
| – Front Axle Load | 6500KG |
| – Rear Axle Load | 11500KG |
| – Gear Ratio | 4.555 |
| – Leaf Spring Count | 7+7 |
| Tires | |
| – Tire Specification | 295/80R22.5 18PR |
| – Tire Count | 6 |
| Control Configuration | |
| – ABS Anti-lock Braking System | Yes |
| Interior Configuration | |
| – Multi-function Steering Wheel | N/A |
| – Air Conditioning Type | N/A |
| – Electric Rearview Mirror | N/A |
| – Rearview Mirror Heating | N/A |
| Multimedia Configuration | |
| – Bluetooth/In-car Phone | N/A |
| – Radio | N/A |
| – LCD Instrument Panel | N/A |
| Lighting Configuration | |
| – Front Fog Lights | N/A |
| – Headlight Height Adjustment | N/A |
| Braking System | |
| – Exhaust Brake | N/A |
| – Front Brake Type | Disc |
| – Rear Brake Type | Drum |
