BRIEF:

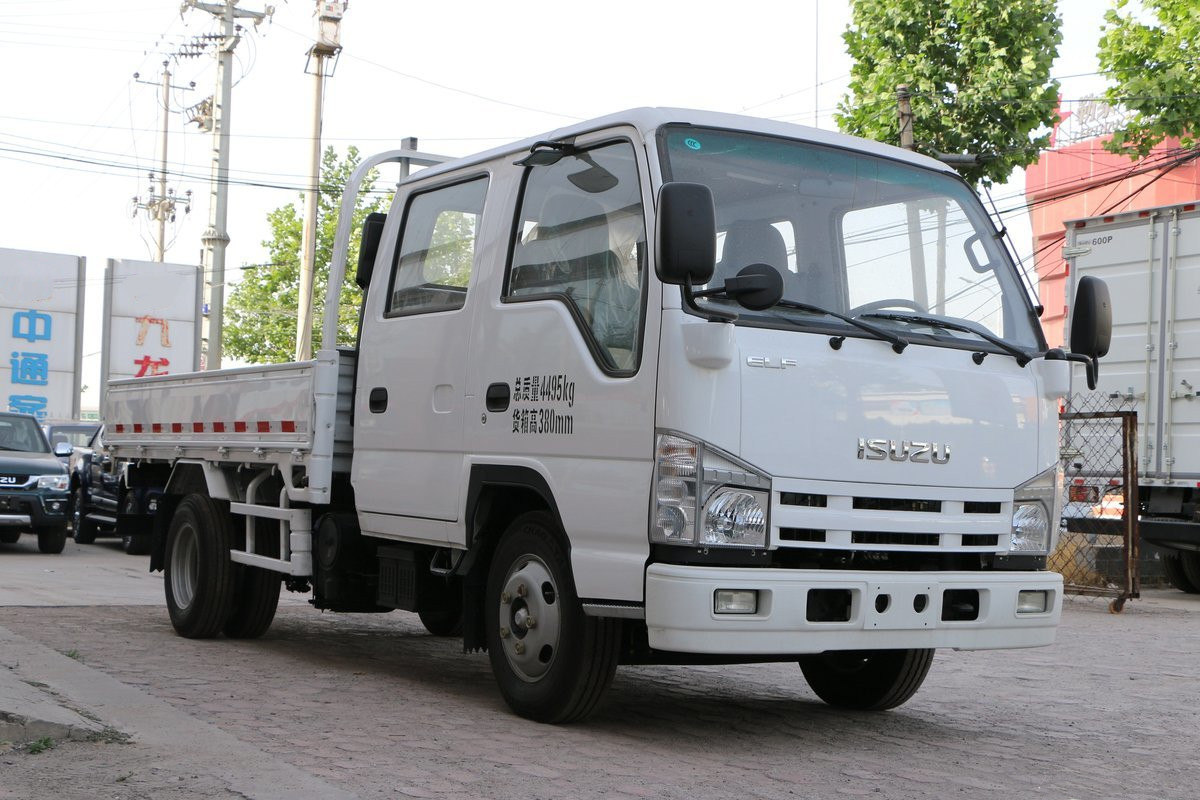

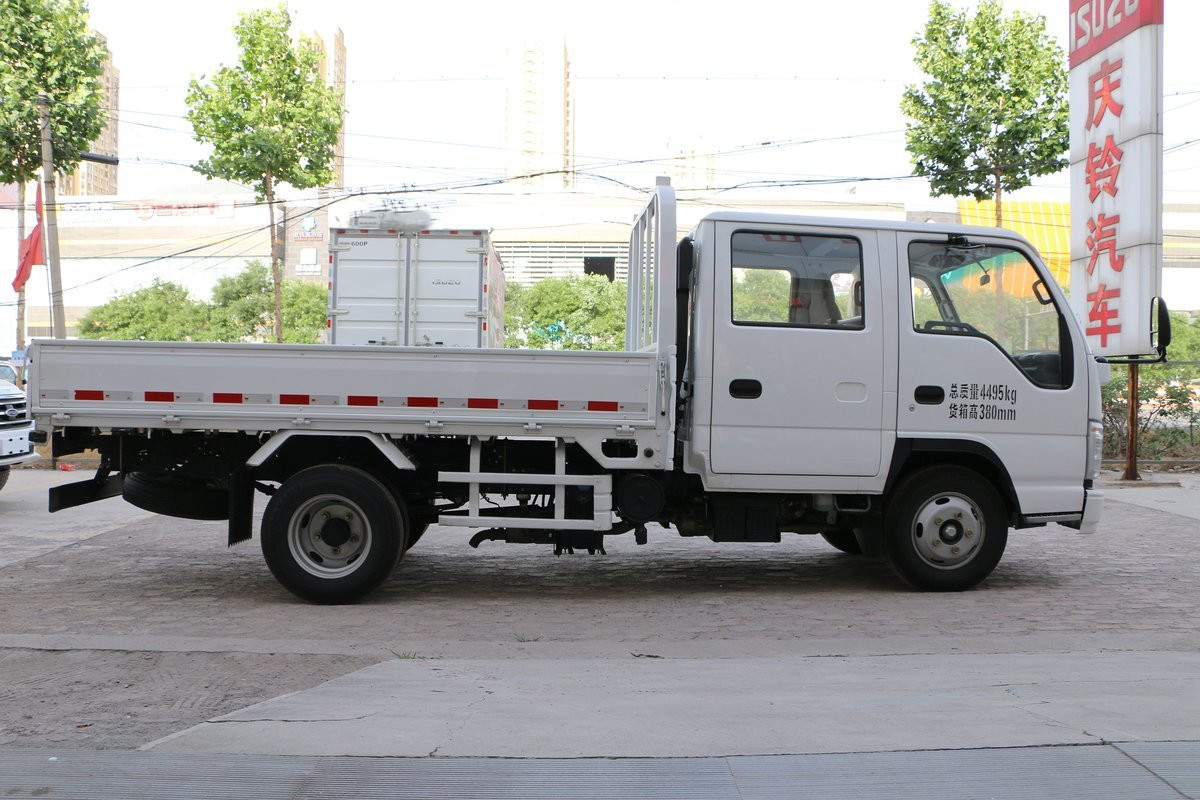

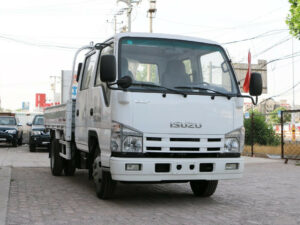

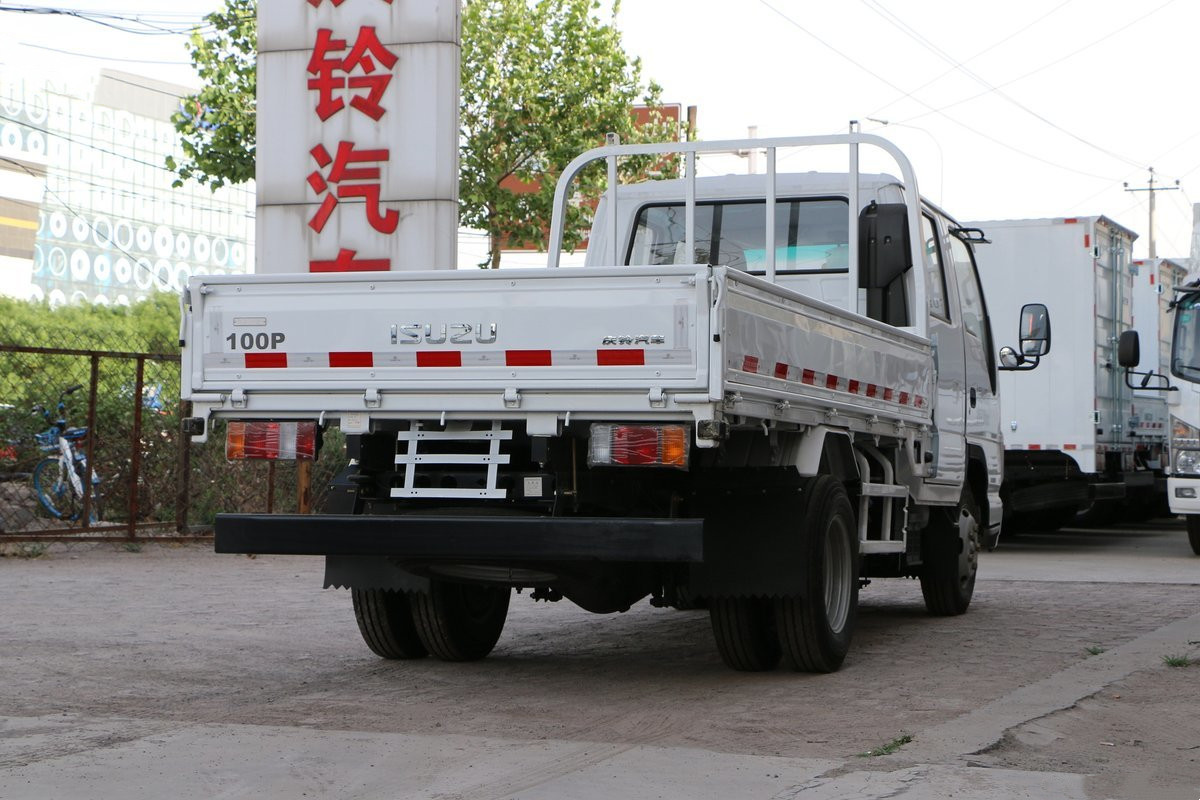

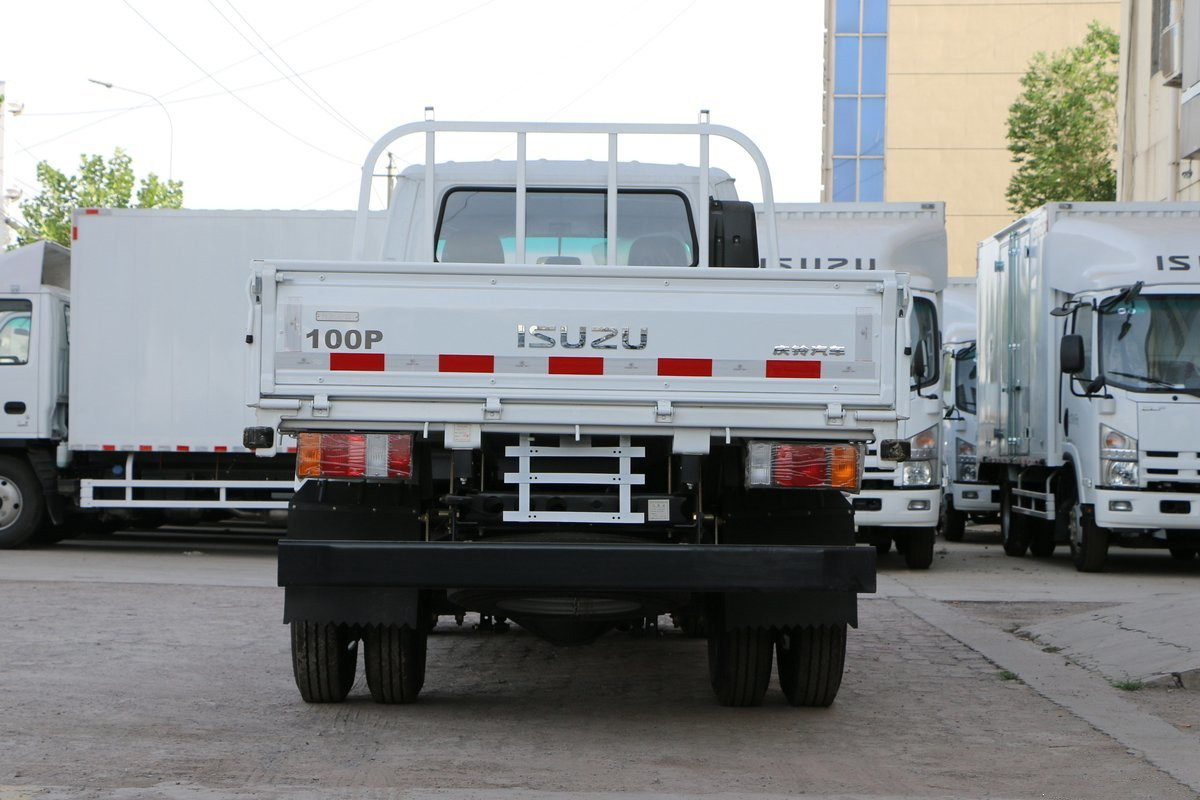

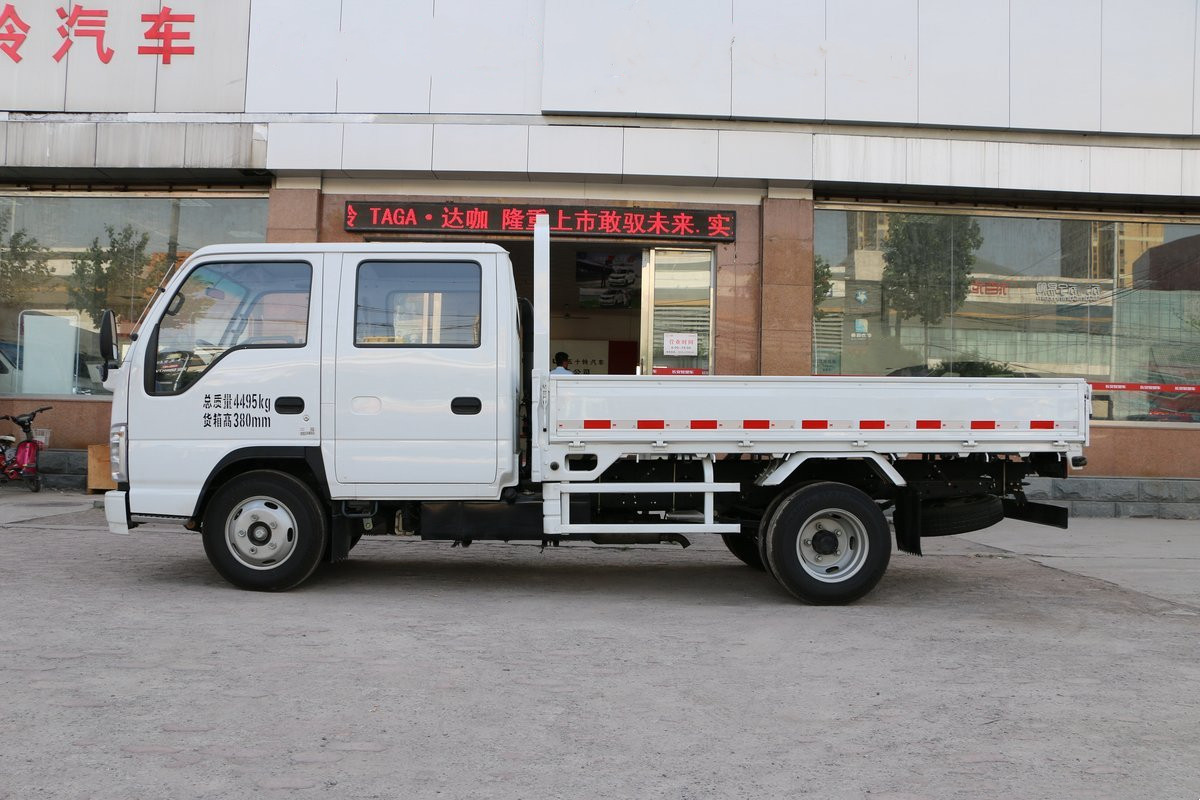

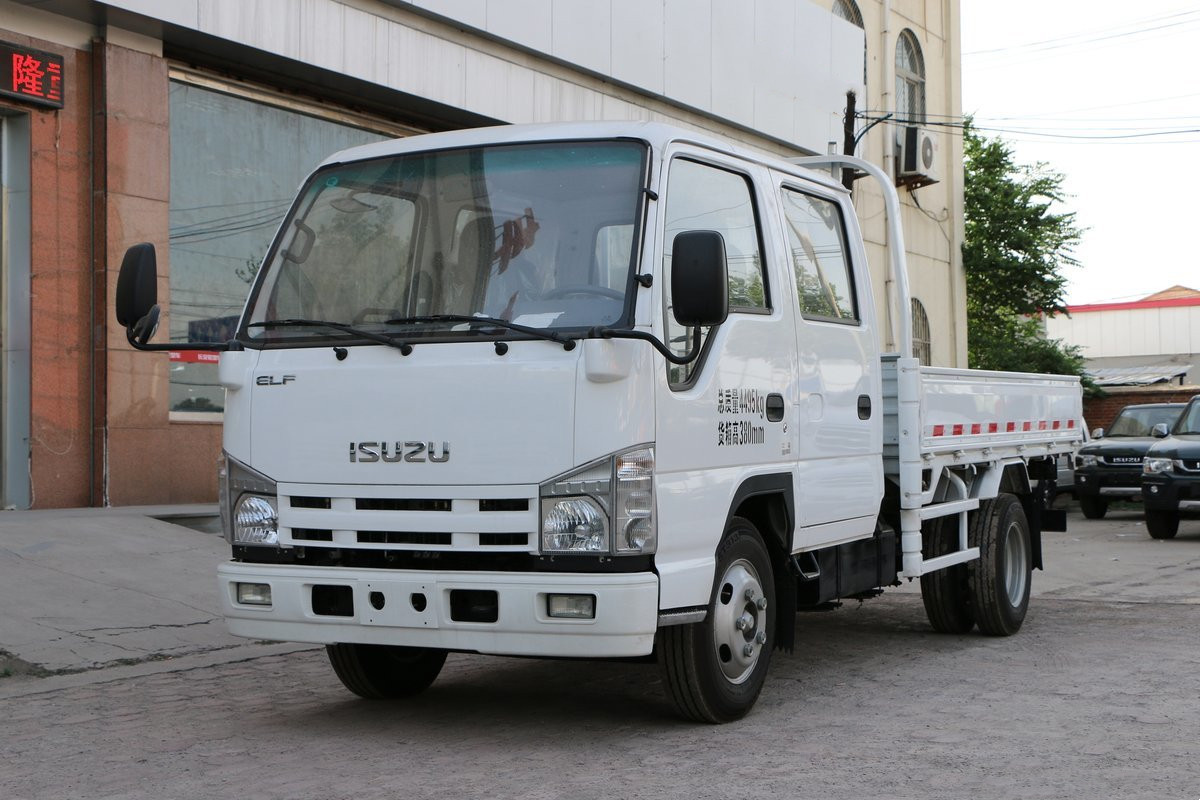

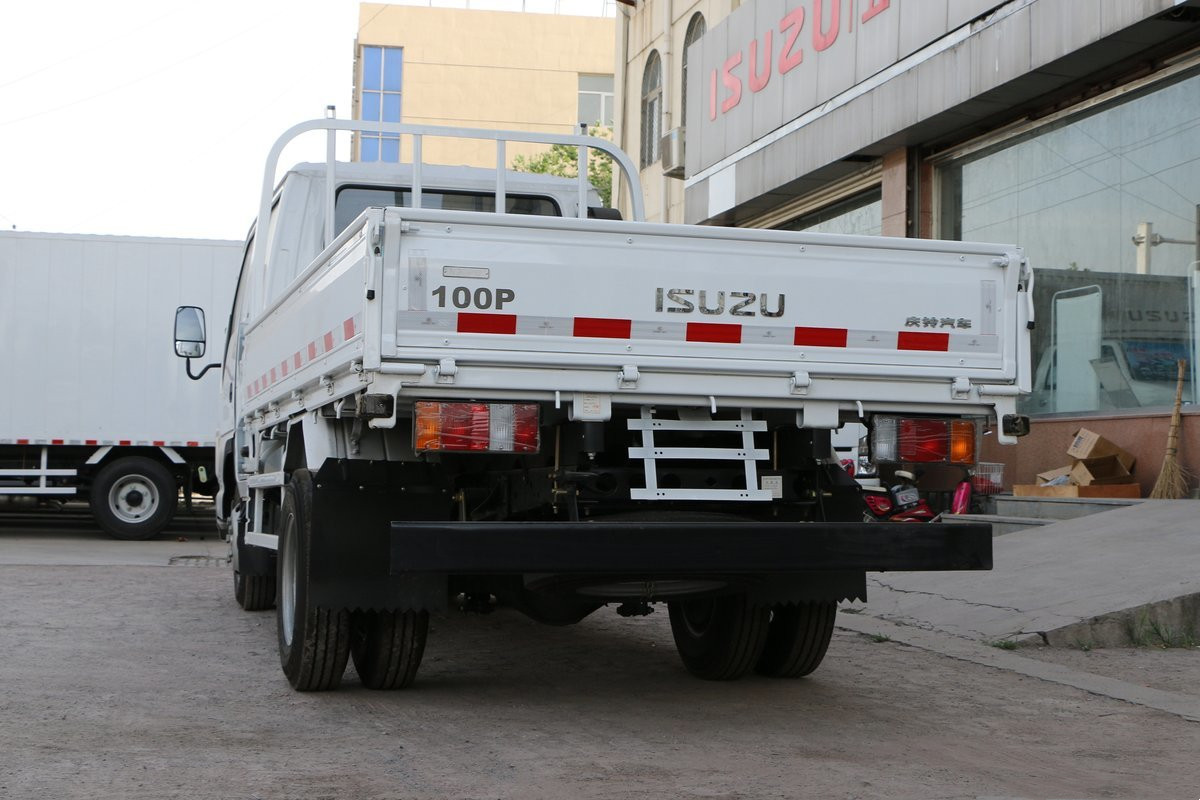

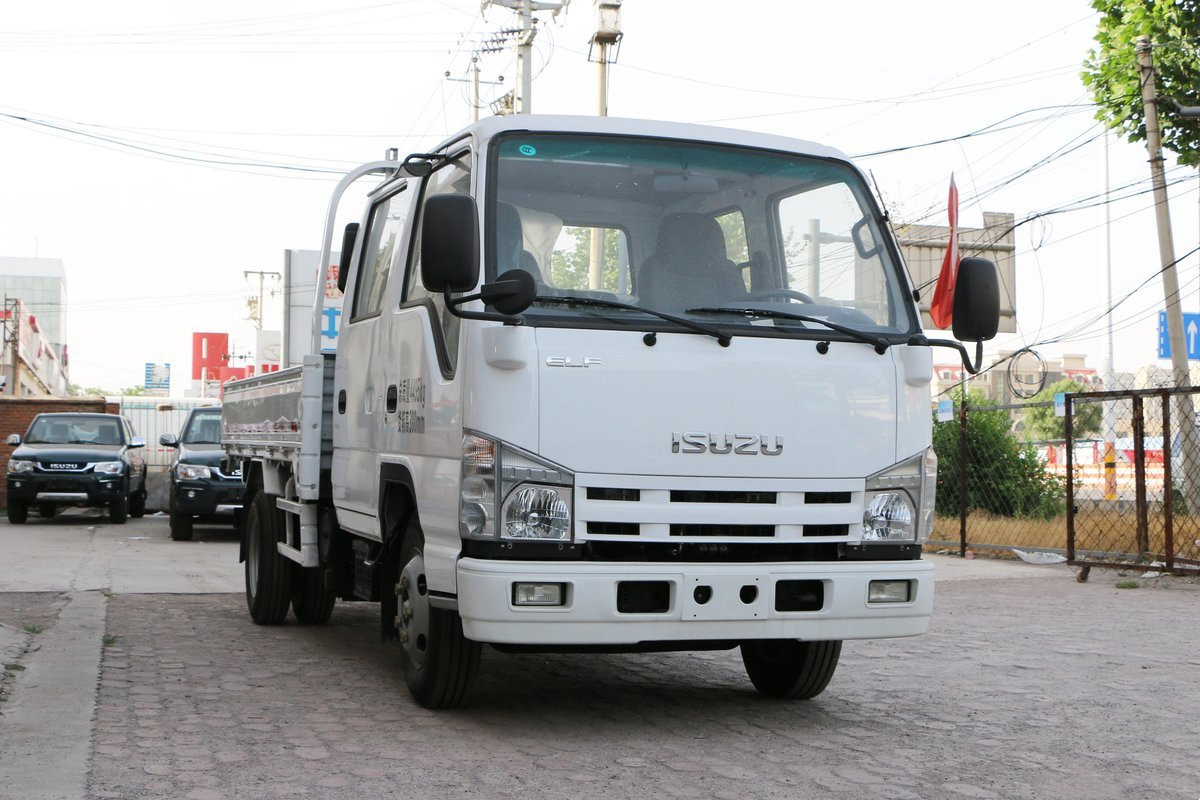

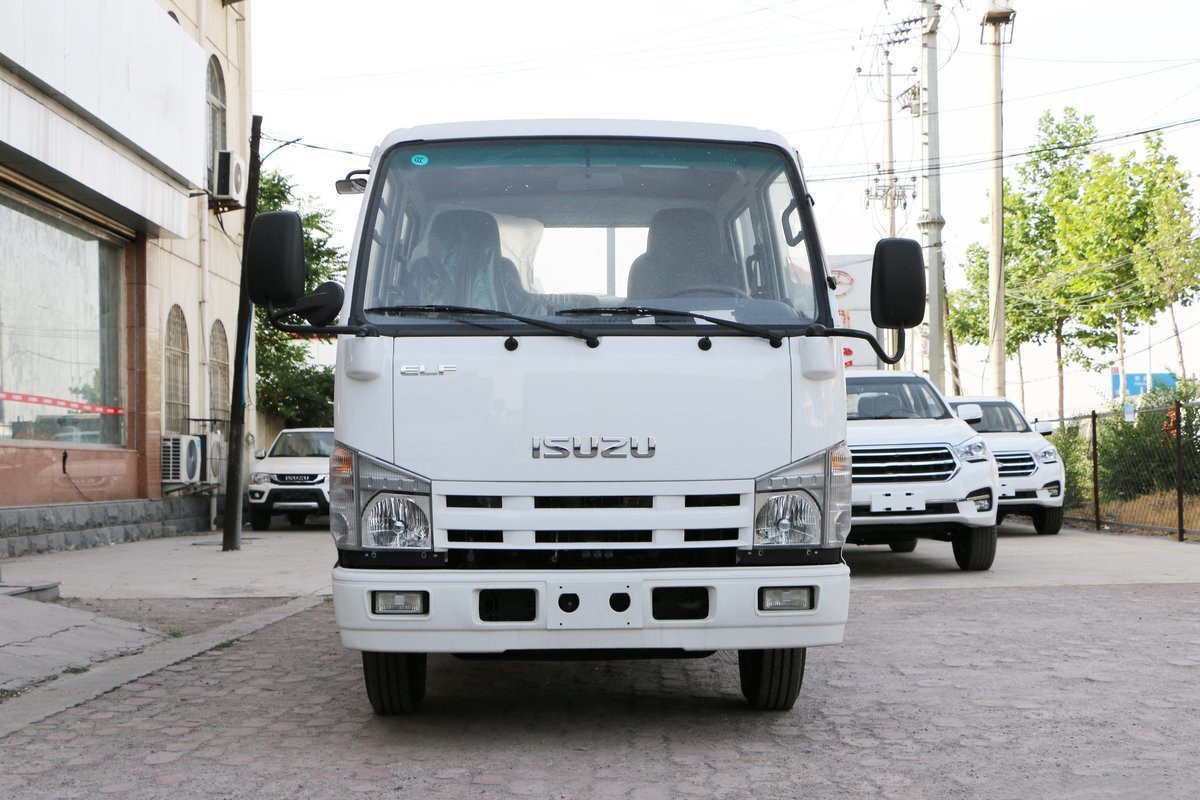

The ISUZU 4 Meter Double Row Flatbed Light Dump Truck is a versatile cargo vehicle designed for efficient transportation and loading tasks. Built with precision engineering and reliable components, this light truck delivers optimal performance in various operational environments. This ISUZU Cargo Dump Truck is an ideal choice for businesses and industries seeking a reliable, efficient, and versatile cargo transportation solution.
FEATURES:
- Robust Construction:
- Sturdy chassis construction ensures durability and longevity.
- Flatbed cargo box designed for ease of loading and unloading.
- Powerful Engine:
- Equipped with the Qingling Isuzu 4KH1CN5LS engine, renowned for its efficiency and reliability.
- In-line 4 cylinders provide a balanced power delivery.
- Transmission:
- Manual transmission system (Isuzu MSB-5MT) with 5 forward gears and 1 reverse gear.
- Smooth and precise gear shifting for enhanced control.
- Optimized Dimensions:
- Compact dimensions with a wheelbase of 3360mm, making it agile and maneuverable.

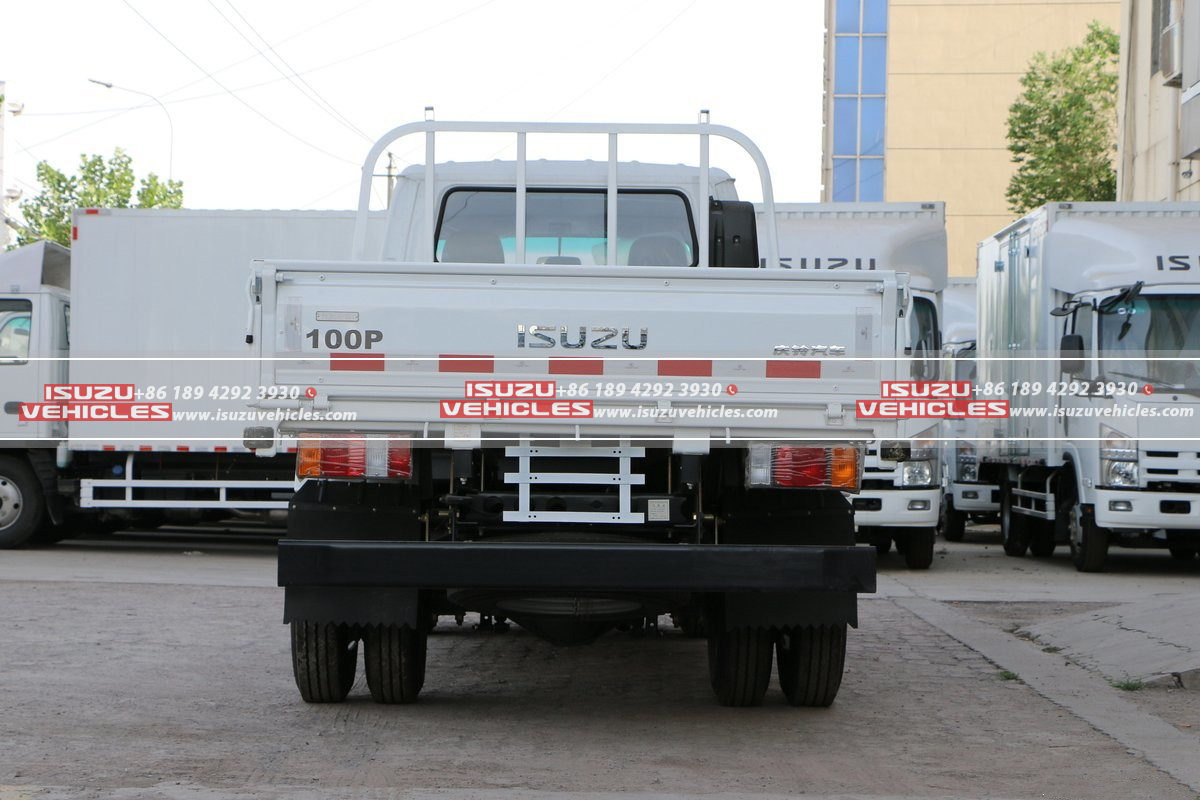

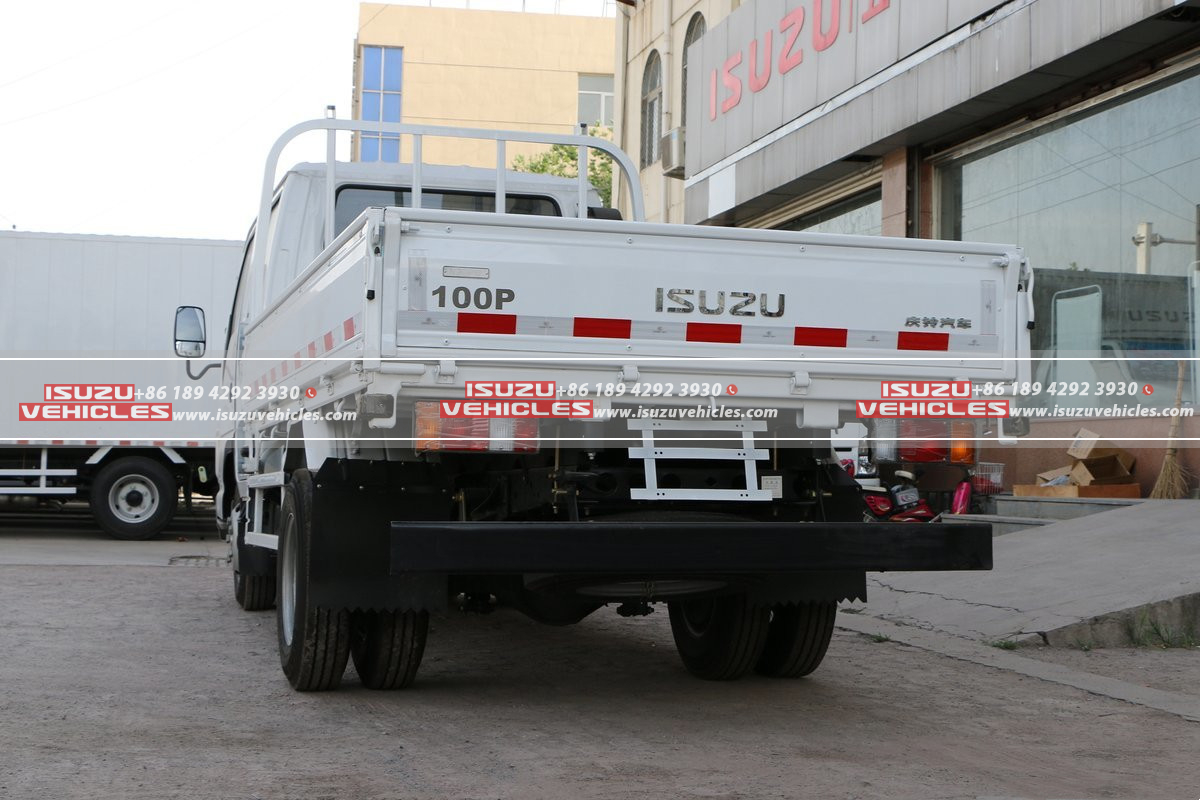

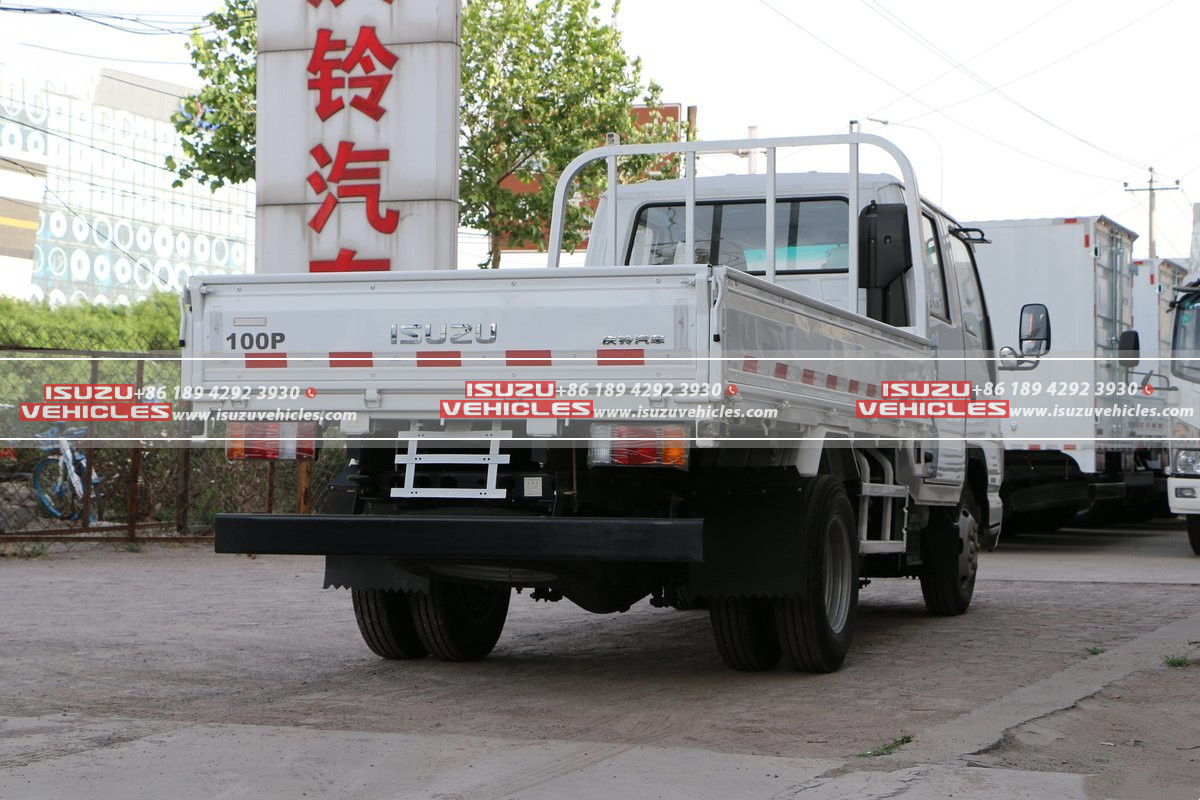

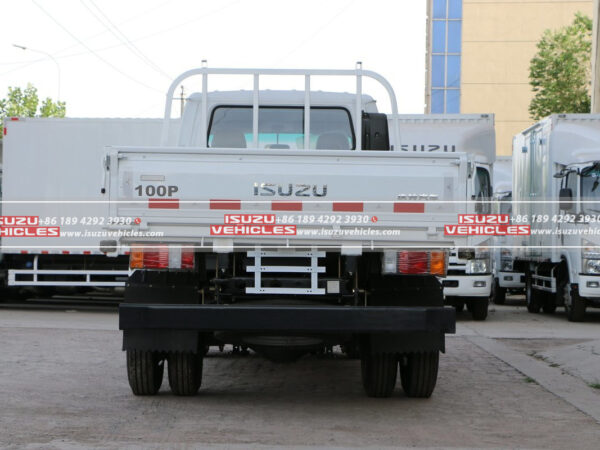

- 3.2-meter flatbed cargo box for accommodating various loads.
- Safety and Stability:
- Leaf spring suspension system (3/3+2) for stable and comfortable rides.
- Front and rear axle allowable loads (1580KG and 2915KG, respectively) ensure safe transportation.
- Fuel Efficiency:
- Diesel-powered for fuel efficiency and cost-effectiveness.
- Complies with EURO 2, EURO 3, EURO 4, EURO 5, and EURO 6 emission standards.
- User-Friendly Design:

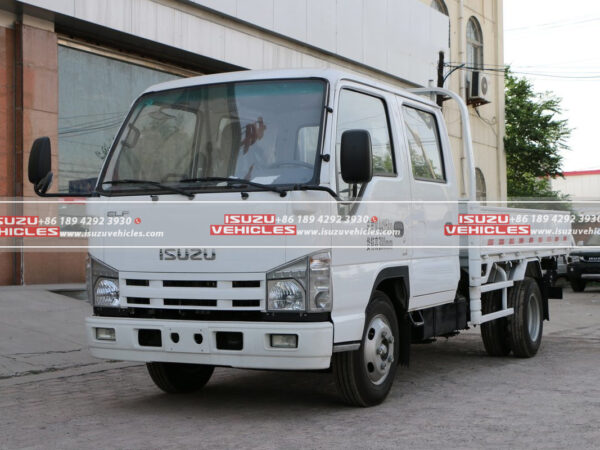

- Spacious flat roof cab with a capacity for 5 passengers in a double-row arrangement.
- Flatbed cargo box dimensions (3.235m x 1.79m x 0.38m) for versatile cargo handling.
- Reliable Tires:
- Equipped with 6.50R16 10PR radial tires for enhanced traction and stability.
- Six tires provide a robust foundation for various terrains.
- Tonnage Level:
- Categorized as a Light Truck, offering the perfect balance between payload capacity and maneuverability.
- Performance Metrics:
- Maximum speed of 98 km/h ensures timely and efficient transportation.
- Well-balanced approach and departure angles (24 degrees and 16 degrees, respectively) for navigating diverse terrains.
- Origin:
- Proudly manufactured in Chongqing, a testament to the vehicle’s quality and craftsmanship.
SPECIFICATIONS:
Category | Details |
---|---|
Basic Information | |
Announcement Model | QL1040A6HW |
Type | Cargo Truck |
Drive Form | 4X2 |
Wheelbase | 3360mm |
Box Length | 3.2 meters |
Engine | Qingling Isuzu 4KH1CN5LS |
Transmission | Isuzu MSB-5MT |
Rear Axle Speed Ratio | 6.142 |
Vehicle Length | 5.95 meters |
Vehicle Width | 1.88 meters |
Vehicle Height | 2.32 meters |
Front Wheel Track | 1377mm |
Rear Wheel Track | 1425mm |
Total Weight | 2.55 tons |
Rated Load | 1.62 tons |
Gross Vehicle Weight | 4.495 tons |
Maximum Speed | 98KM/h |
Place of Origin | Chongqing |
Tonnage Level | Light Truck |
Approach Angle | 24 degrees |
Departure Angle | 16 degrees |
Front/Rear Overhang | 1.015/1.575 meters |
Fuel Type | Diesel |
Engine Parameters | |
Engine Model | Qingling Isuzu 4KH1CN5LS |
Engine Brand | Qingling Isuzu |
Common Name for Engine | Isuzu 4KH1 |
Number of Cylinders | 4 |
Cylinder Arrangement | In-line |
Displacement | 2.999L |
Emission Standard | EURO 2, EURO 3, EURO 4, EURO 5, EURO 6 |
Maximum Output Power | 72kw |
Maximum Horsepower | 98 horsepower |
Maximum Torque | 220N·m |
Maximum Torque Speed | 1700RPM |
Rated Speed | 3400RPM |
Cargo Box Parameters | |
Cargo Box Type | Flatbed |
Cargo Box Length | 3.235 meters |
Cargo Box Width | 1.79 meters |
Cargo Box Height | 0.38 meters |
Cab Parameters | |
Cab Type | Flat Roof |
Number of Passengers | 5 people |
Seat Rows | Double Row |
Transmission Parameters | |
Transmission Model | Isuzu MSB-5MT |
Transmission Brand | Isuzu |
Transmission Type | Manual |
Forward Gears | 5 gears |
Reverse Gears | 1 gear |
Chassis Parameters | |
Front Axle Allowable Load | 1580KG |
Rear Axle Allowable Load | 2915KG |
Speed Ratio | 6.142 |
Number of Leaf Springs | 3/3+2 |
Suspension Type | Leaf Spring Suspension |
Tires | |
Tire Specifications | 6.50R16 10PR |
Tire Type | Radial Tire |
Number of Tires | 6 pieces |
