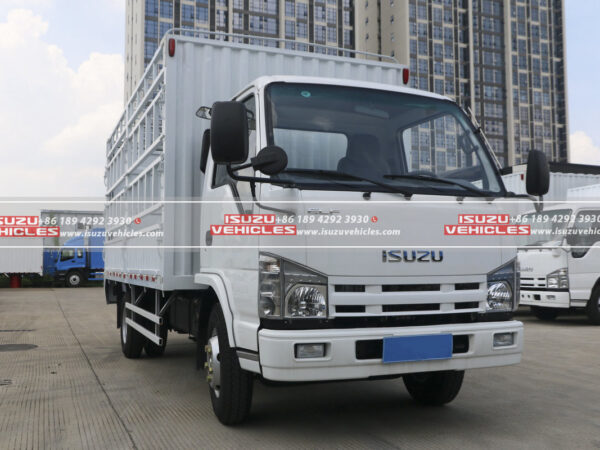

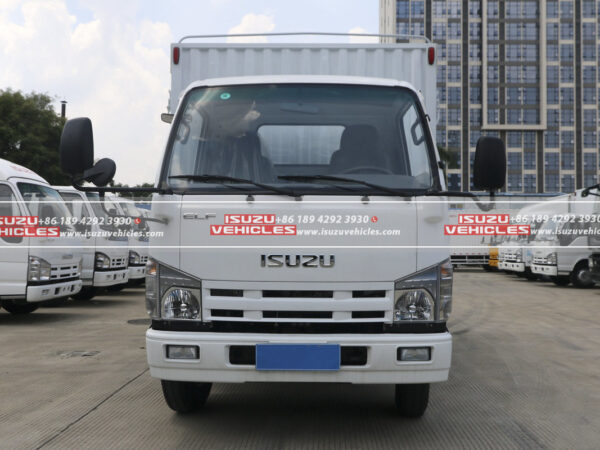

ISUZU 5 Meter Single Row Box Cage Truck: Efficient and Durable for Agricultural Transport
The ISUZU 5 Meter Single Row Box Cage Truck is designed specifically for transporting agricultural products, offering reliable performance, enhanced durability, and optimized functionality. It is built for the modern logistics and transportation needs of rural and urban areas, ensuring a smooth and efficient delivery process. With a robust diesel engine and manual transmission, this truck is ideal for hauling light to medium loads in diverse environments.
Key Features
- Engine Performance
At the heart of the ISUZU 5 Meter Box Cage Truck is the Qingling ISUZU 4KH1CN5LS engine. This diesel-powered engine offers excellent fuel efficiency and power, with a displacement of 2.999L, delivering a maximum output of 72 kW (98 horsepower) and a peak torque of 220 Nm at 1700 RPM. The engine complies with EURO IV and EURO V emissions standards, ensuring a cleaner and more environmentally friendly operation. With a rated speed of 3400 RPM, this engine provides the necessary torque for daily work in agricultural and municipal settings. - Transmission and Performance
The truck is equipped with a 5-speed manual transmission (ISUZU MSB-5MT), allowing for smooth gear shifts that provide power and control when navigating different terrain. With the ability to operate efficiently at a top speed of 98 km/h, the ISUZU 5 Meter Box Cage Truck is well-suited for both highway and off-road environments. The 6.142 rear axle ratio further supports the vehicle’s overall performance and stability, even under heavy loads.
Chassis and Build Specifications
- Dimensions and Weight
With a wheelbase of 3360 mm, the ISUZU 5 Meter Box Cage Truck is a compact yet capable vehicle, offering a total vehicle length of 5.995 meters. The width of 2.16 meters and height of 2.96 meters contribute to its stability and load capacity. The truck features a front axle load of 1680 kg and a rear axle load of 2445 kg, ensuring that it can comfortably carry agricultural products or light machinery.The truck’s gross weight of 4.125 tons supports a rated payload capacity of 1.495 tons, which makes it an ideal solution for transporting both bulk agricultural goods and other heavy cargo. Additionally, the vehicle has a robust cargo box length of 4.25 meters, a width of 2.03 meters, and the option for customized side doors and a tiltable cabin for improved accessibility. - Durability and Functionality
The ISUZU 5 Meter Box Cage Truck is built to handle tough conditions. Its spring suspension system, comprising of 3/3+2 leaf springs, enhances durability while providing stability during long-haul journeys. The manual gearbox and ABS braking system (anti-lock braking system) ensure driver control, particularly when handling varying road conditions. Its alloy wheels and 7.00R16 tires provide excellent road grip, making it safe to drive on both paved and unpaved roads.
Cargo Box and Customization

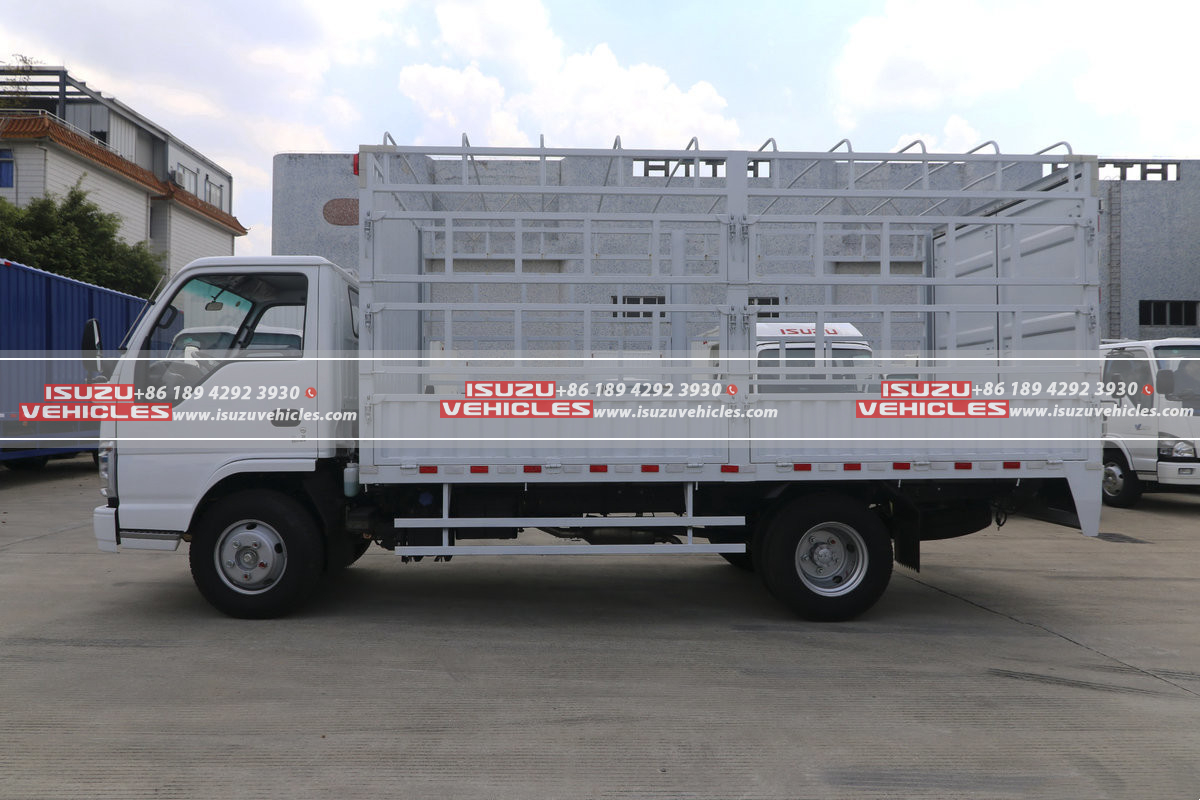

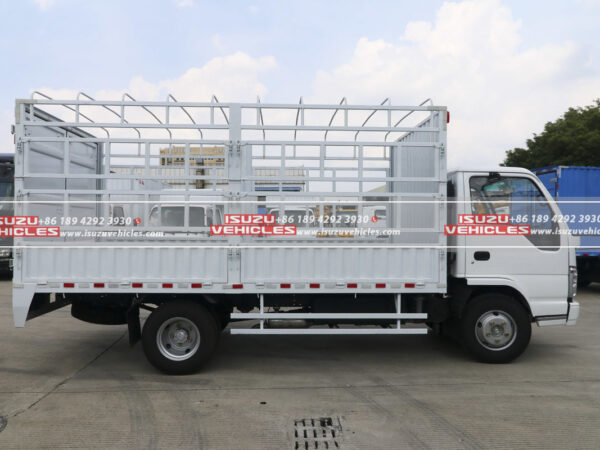

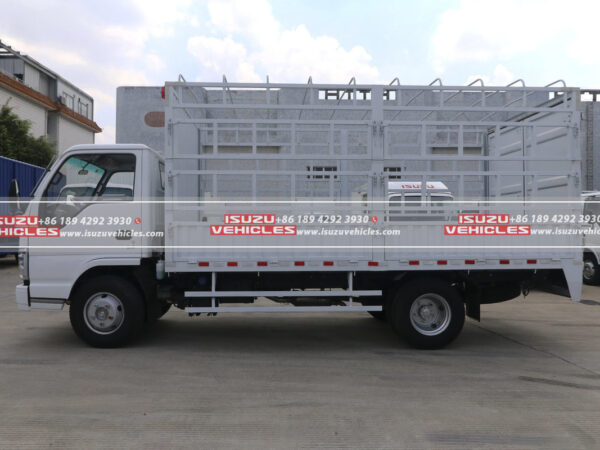

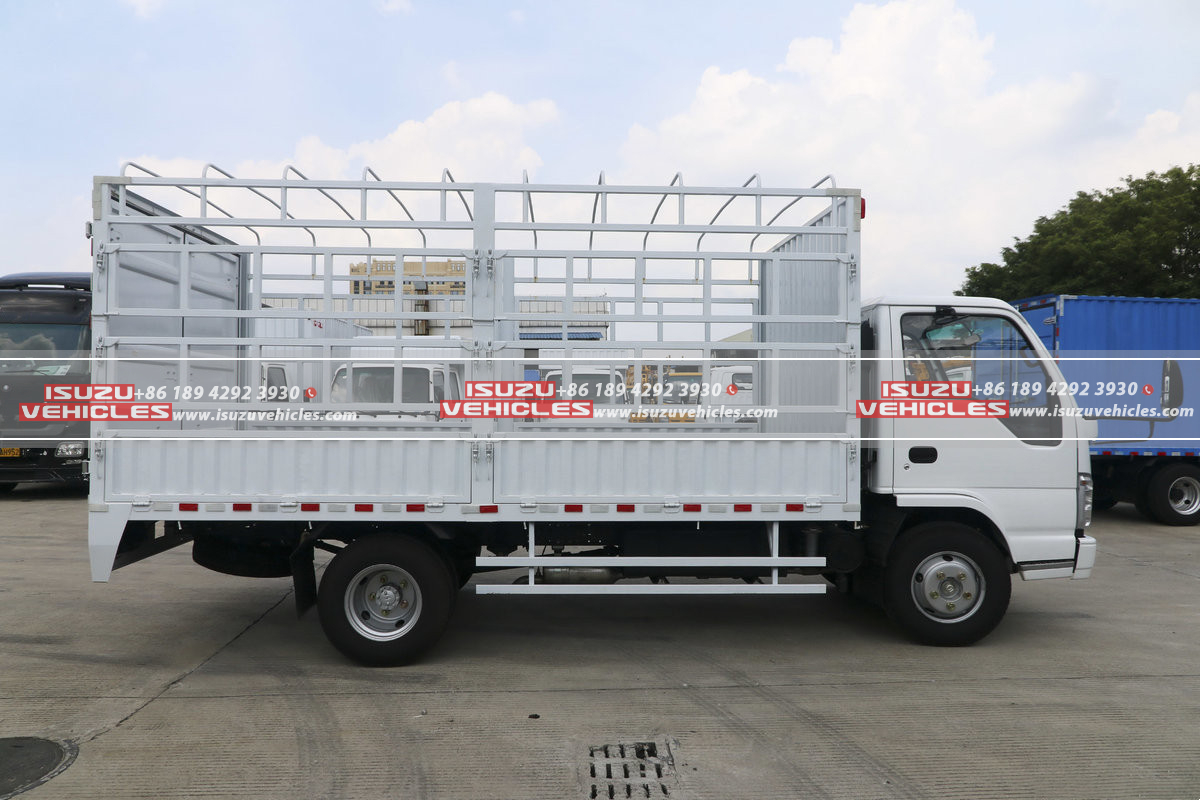

- Versatile Cargo Box Design

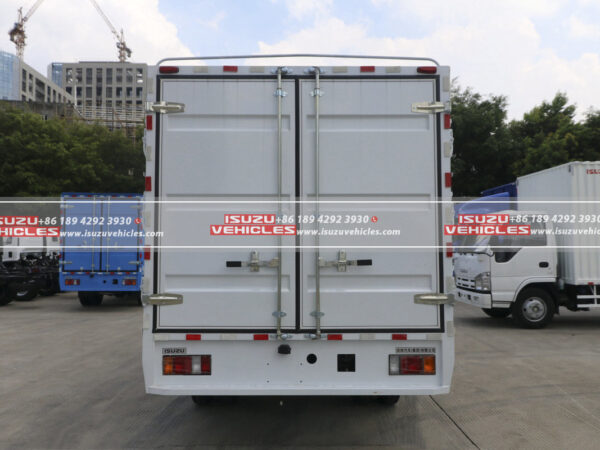

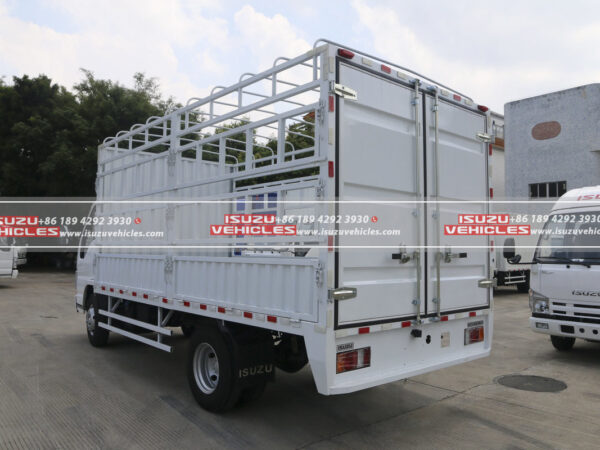

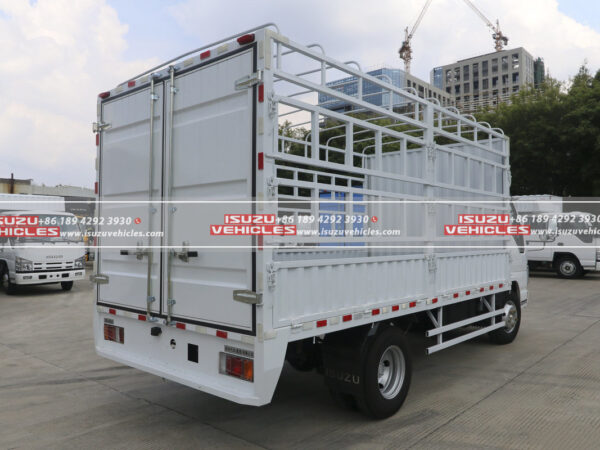

The box cage design offers flexibility, ideal for transporting loose items, vegetables, fruits, and other agricultural products. The truck’s cargo box material is durable, and designed to withstand heavy-duty use. The standard box size of 4.25 meters in length provides ample space for large loads. For added convenience, the truck is equipped with optional features, such as side-opening doors, skirt-type rear protection, and the ability to customize the driver’s cabin with a CD player and metallic paint finish. - Adjustable Features for Practical Use
The ISUZU 5 Meter Box Cage Truck is adaptable to different logistical needs. The tiltable driver’s cabin feature provides comfort for long trips, ensuring that drivers can adjust their seating for better ergonomics. The optional aerodynamic deflector helps reduce fuel consumption by improving the truck’s aerodynamics, while the rear skirt-type protection adds an extra layer of safety for the vehicle.
Comfort and Safety Features

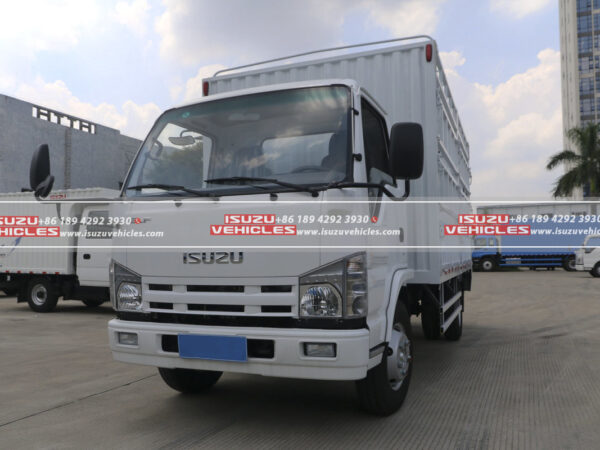

- Driver Comfort
The single-row cabin is designed for two passengers, with ample seating space and controls that are easy to reach, offering a comfortable driving experience. Additionally, the power steering system ensures that drivers experience minimal effort while steering the truck, enhancing overall ease of operation. - Safety Enhancements
With ABS anti-lock braking system and an efficient manual transmission, the ISUZU 5 Meter Box Cage Truck guarantees stable handling and braking even in challenging conditions. The lightweight design and high safety standards ensure that the truck can handle heavy-duty tasks while maintaining a safe operation. Moreover, its fuel tank capacity of 100 liters ensures long journeys with fewer refueling stops.
Market Applications and Versatility
The ISUZU 5 Meter Single Row Box Cage Truck is primarily designed for agricultural transport, offering a practical and reliable solution for hauling agricultural products like fruits, vegetables, and grains. It serves the rural and urban sectors, with applications ranging from food transportation to small municipal deliveries. The vehicle’s ability to handle various loads and its versatility in different environments make it a valuable asset to businesses in the agriculture, logistics, and construction sectors.
The ISUZU 5 Meter Box Cage Truck’s design and performance make it an excellent choice for businesses looking to streamline their transportation processes. With features tailored for reliability, ease of use, and customization, it is a truck that can meet the diverse needs of various industries and environments. The combination of powerful engine, advanced suspension, and spacious cargo design ensures that this model can be depended on for long-term, heavy-duty use.
SPECIFICATIONS:
| Category | Details |
|---|---|
| Type | Box Cage Cargo Truck |
| Drive Type | 4X2 |
| Wheelbase | 3360 mm |
| Cargo Box Length | 4.2 meters |
| Engine | Qingling ISUZU 4KH1CN5LS |
| Transmission | ISUZU MSB-5MT |
| Rear Axle Ratio | 6.142 |
| Body Length | 5.995 meters |
| Body Width | 2.16 meters |
| Body Height | 2.96 meters |
| Front Track | 1504 mm |
| Rear Track | 1525 mm |
| Gross Vehicle Weight | 4.125 tons |
| Curb Weight | 2.5 tons |
| Rated Payload | 1.495 tons |
| Top Speed | 98 km/h |
| Country of Origin | Chongqing, China |
| Weight Class | Light-duty Truck |
| Approach Angle | 24 degrees |
| Departure Angle | 16 degrees |
| Target Market | Agricultural Products Transport |
| Optional Features | Aerodynamic Deflector, Skirt-type Rear Protection, Side Doors, Tiltable Cabin, CD Player, Metallic Paint |
| Front/Rear Overhang | 1.015 m / 1.62 m |
| Fuel Type | Diesel |
Engine Parameters
| Engine Model | Qingling ISUZU 4KH1CN5LS |
|---|---|
| Engine Brand | Qingling ISUZU |
| Engine Common Name | ISUZU 4KH1 |
| Cylinder Count | 4 cylinders |
| Fuel Type | Diesel |
| Cylinder Arrangement | Inline |
| Displacement | 2.999L |
| Emission Standard | EURO IV, EURO V |
| Max Output Power | 72 kW |
| Max Horsepower | 98 hp |
| Max Torque | 220 Nm |
| Max Torque RPM | 1700 RPM |
| Rated RPM | 3400 RPM |
Cargo Box Parameters
| Cargo Box Type | Box Cage Type |
|---|---|
| Cargo Box Length | 4.25 meters |
| Cargo Box Width | 2.03 meters |
| Cargo Box Height | – |
| Cargo Box Material | – |
Cabin Parameters
| Cabin Width | – |
|---|---|
| Seating Capacity | 2 people (single-row) |
| Seating Rows | 1 row |
Transmission Parameters
| Transmission Model | ISUZU MSB-5MT |
|---|---|
| Transmission Brand | ISUZU |
| Shifting Method | Manual |
| Forward Gears | 5 gears |
| Reverse Gears | 1 gear |
Fuel Tank
| Fuel Tank Material | Steel |
|---|---|
| Fuel Tank Capacity | 100L |
Chassis Parameters
| Front Axle Load | 1680 kg |
|---|---|
| Rear Axle Load | 2445 kg |
| Rear Axle Ratio | 6.142 |
| Spring Configuration | 3/3+2 (Leaf Spring) |
| Aluminum Alloy Wheels | Yes |
Tires
| Tire Specification | 7.00R16 |
|---|---|
| Tire Type | Radial Tires (Bias Ply) |
| Number of Tires | 6 |
Control and Safety Features
| ABS (Anti-lock Braking System) | Yes |
|---|---|
| Power Steering | Yes |
