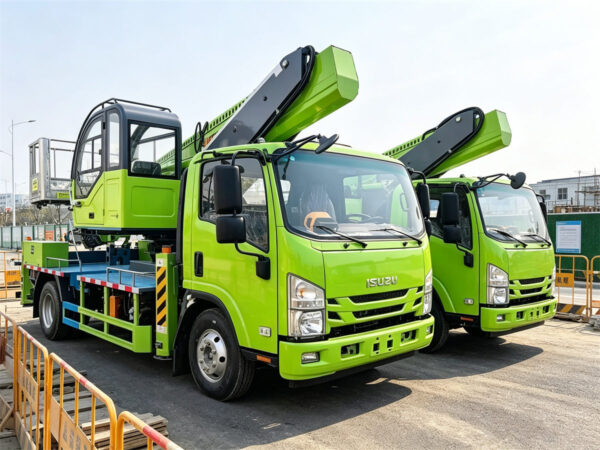

ISUZU 45M Telescopic Aerial Bucket Truck
The ISUZU 45M Telescopic Aerial Bucket Truck is a high-performance aerial work platform engineered for demanding applications such as power line maintenance, street lighting installation, telecommunications construction, bridge inspection, municipal engineering, and industrial facility maintenance. Combining the renowned reliability of the ISUZU FTR chassis with an advanced multi-section telescopic boom, this vehicle delivers exceptional working height, operational stability, and operator safety, making it an ideal solution for customers who require dependable performance in complex working environments.
Built on the robust ISUZU FTR 4×2 commercial chassis, the truck features a gross vehicle weight of 19,300 kg while maintaining excellent maneuverability for both urban streets and construction sites. Powered by the proven ISUZU 4HK1-TCG60 Euro VI diesel engine, it delivers 151 kW (205 HP) and 647 N·m of torque, providing sufficient power for highway transportation as well as demanding hydraulic operations.
The aerial device utilizes an 8-section synchronized hexagonal telescopic boom, allowing operators to reach a maximum working height of 45 meters while maintaining outstanding structural rigidity throughout the operating range. A spacious insulated working bucket, precision hydraulic controls, and a fully stabilized outrigger system enable safe and efficient operation at elevated positions.
Designed for utility companies, contractors, municipalities, and infrastructure maintenance providers, the ISUZU Telescopic Aerial Bucket Truck combines modern cab comfort, advanced safety technology, and professional aerial performance into a versatile working platform capable of handling a wide variety of elevated maintenance tasks.
Features
Outstanding 45-Meter Telescopic Working Performance
The most significant advantage of this 45M aerial bucket truck is its exceptional vertical and horizontal working capability. The advanced 8-section hexagonal synchronized telescopic boom provides excellent rigidity while maintaining smooth extension and retraction throughout the entire operating cycle.

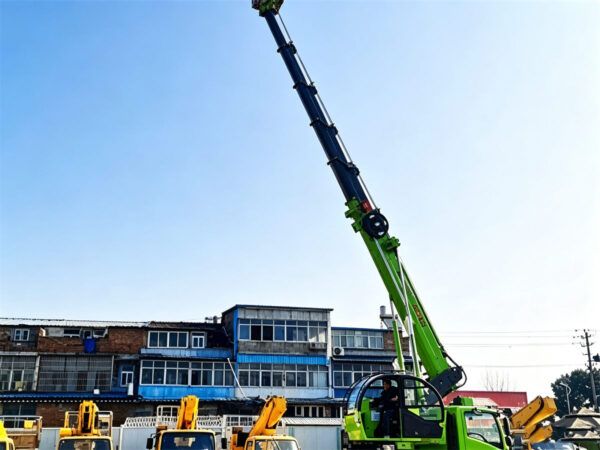

With a maximum working height of 45 meters, operators can safely perform maintenance on electrical transmission lines, communication towers, bridges, airport lighting systems, stadium facilities, and high-rise commercial buildings without requiring larger crane equipment. The platform also offers a maximum working radius of 25 meters at maximum working height, greatly expanding the accessible working area while minimizing the need for repositioning the vehicle.
The hydraulic slewing mechanism provides 360° continuous platform rotation, allowing technicians to work efficiently around obstacles and complete multiple tasks from a single setup location.
Large Working Platform with Excellent Safety
The aerial platform is designed to maximize both operator comfort and safety during extended working hours. The bucket measures 1,600 × 730 × 1,000 mm, providing generous space for personnel, tools, and maintenance equipment while remaining lightweight and structurally strong. Customized bucket dimensions are also available to accommodate different operational requirements.
The bucket supports a rated load of 200 kg, making it suitable for one or two operators together with essential equipment used in utility maintenance and construction work.

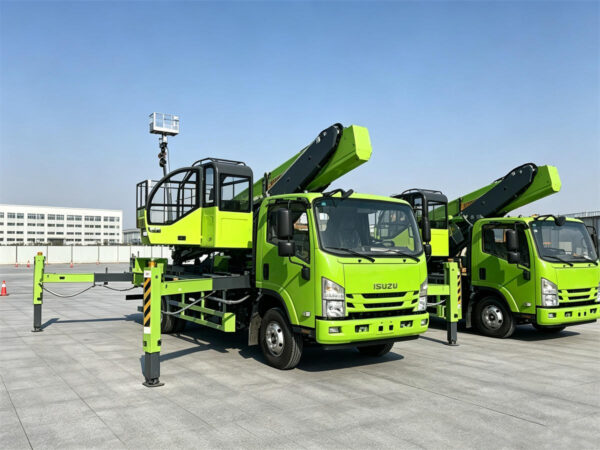

The truck employs a highly stable outrigger arrangement featuring front W-type outriggers and rear H-type outriggers with a three-stage extension system. The lateral stabilizer span reaches 8.1 meters, significantly improving stability during high-elevation operations while reducing chassis movement under varying load conditions.
Combined with the advanced hydraulic control system, the aerial platform delivers smooth, accurate movements that improve operational precision and enhance job site safety.
Reliable ISUZU Powertrain and Heavy-Duty Chassis
At the heart of the vehicle is the dependable ISUZU 4HK1-TCG60 engine, a 5.193-liter turbocharged and intercooled diesel engine designed for commercial-duty applications. Producing 205 HP and 647 N·m of torque, the engine provides responsive acceleration, excellent fuel efficiency, and dependable long-term reliability.
Power is transmitted through the proven ISUZU MLD-6Q six-speed manual transmission, featuring synchronized gears for smoother shifting and improved driving comfort. The drivetrain is specifically engineered to support both road transportation and continuous hydraulic equipment operation.
The reinforced U-profile ladder frame chassis utilizes a two-layer mounting structure that provides exceptional torsional rigidity, allowing the aerial device to maintain structural stability during full boom extension.
The suspension system consists of heavy-duty semi-elliptic leaf springs (7/7+7) that effectively absorb road impacts while maintaining stable load distribution. The front steering axle is rated at 6,300 kg, while the rear driving axle carries up to 13,000 kg, ensuring dependable performance under fully equipped working conditions.
Modern Cab Comfort and Comprehensive Safety Systems
The ISUZU VC61 sleeper cab is designed to improve driver comfort during long-distance transportation and extended work schedules. Its 4-point hydraulic suspension system minimizes vibration, creating a smoother driving experience over various road conditions.
The spacious 2,480 mm wide cab features adjustable driver seating, multifunction steering wheel controls, electric windows, central locking, and an easy-to-read multifunction LCD instrument panel that keeps important vehicle information readily accessible.
Standard equipment includes air conditioning, radio, and entertainment functions that enhance driver comfort during daily operations.
Safety remains a primary focus throughout the vehicle. The braking system incorporates a dual-circuit compressed-air service brake, spring-energy parking brake, engine exhaust brake, and ABS, providing confident braking performance under various driving conditions. The steering system utilizes a recirculating ball hydraulic power steering mechanism with an adjustable steering column for improved vehicle handling and reduced driver fatigue.
The truck’s 24V electrical system, equipped with dual 12V/180Ah batteries and a powerful 24V 17.5 kW starter, supplies stable electrical power for both vehicle operation and aerial platform functions.
The ISUZU 45M Telescopic Aerial Bucket Truck is an outstanding solution for organizations that require dependable aerial access, excellent working stability, and long-term operational reliability. As part of the professional lineup of ISUZU Vehicles, it complements other specialized equipment such as bucket trucks, crane trucks, cherry picker trucks, and utility service vehicles, offering contractors and public service providers an efficient platform capable of handling demanding high-altitude maintenance projects with confidence.
Specification
| Item | Specification |
|---|---|
| Overall Size (LxWxH) | 7.500×2.510×3.900mm |
| Front/Rear Track | 1.990/1.855mm |
| Front/Rear Overhang | 1.335/1,585mm |
| Wheelbase | 4.500mm |
| Gross Vehicle Weight | 19,300kg |
| Tare/Curb Weight | 14,900kg |
| Front/Rear Axle Rating | 6,300kg/13,000kg |
| Chassis Truck Line | ISUZU/FTR 4X /4HK205 E6 |
| Cab Model | VC61 4X |
| Cab Type | Sleeper Cab |
| Cab Roof | Standard |
| Cab Width | 2,480mm |
| Cab Construction | 4-Point hydraulic suspension cab |
| Instrument & Controls | Center lock/Electric doors and windows/Multi-functional steering/Multi-functional LCD instrument |
| Driver Seats | Adjustable |
| Tiltable | Front Tilt Table |
| Equipment & Device | AC/Radio/Cassette recorder |
| Engine Make/Model | ISUZU/4HK1-TCG60 |
| Output Power/Speed | 151kW (205 HP)/2,600rpm |
| Max. Output Torque/Speed | 647N.m/1,600rpm |
| Displacement | 5.193 L |
| Engine Type | 4-Cylinder in-line, Water-cooled, Turbocharged and Intercooled |
| Emission Regulation | EURO 6 |
| Transmission Make/Model | ISUZU/MLD-6Q |
| Transmission Type | Manual |
| Gear Numbers | 6F+1R |
| Synchronizer | Equipped |
| Steering Type | Recirculating ball, powered adjustable column |
| Steering Position | Left-hand side |
| Chassis Type | U-profile parallel ladder cold riveted cross |
| Frame Layer | 2-layer standard body unit mounting |
| Suspension | Mechanical, Semi-elliptic Leaf Springs 7/7+7 |
| Front Axle Type | Steering Axle |
| Front Axle Rating | 6,300kg |
| Rear Axle Type | Driving Axle |
| Rear Axle Rating | 13,000kg |
| Rear Axle Ratio | 5.571 |
| Working Voltage | 24V, Negative Grounded |
| Starter | 24V 17.5kW |
| Battery Type | 2x12V/180Ah |
| Service Brake | Dual Circuit compressed Air Brake |
| Parking Brake | Spring Energy |
| Auxiliary Brake | Engine Exhaust Brake |
| Others | ABS |
| Bucket Rated Capacity | 200kg |
| Max Working Height | 45m |
| Max. Working Radius at Max. Working Height | 25m |
| Max. Working Radius | 6m |
| Max. Working Height at Max. Working Radius | 8m |
| Outrigger Span (Lateral) | 8.1m |
| Platform Slewing Angle | 360° |
| Bucket Size (LxWxH) | 1,600x730x1,000mm (Customizable) |
| Boom Type | 8-Section Hexagonal Synchronized Telescoping Boom |
| Outriggers | The front W and rear H-shaped outriggers, 3-Stage |
