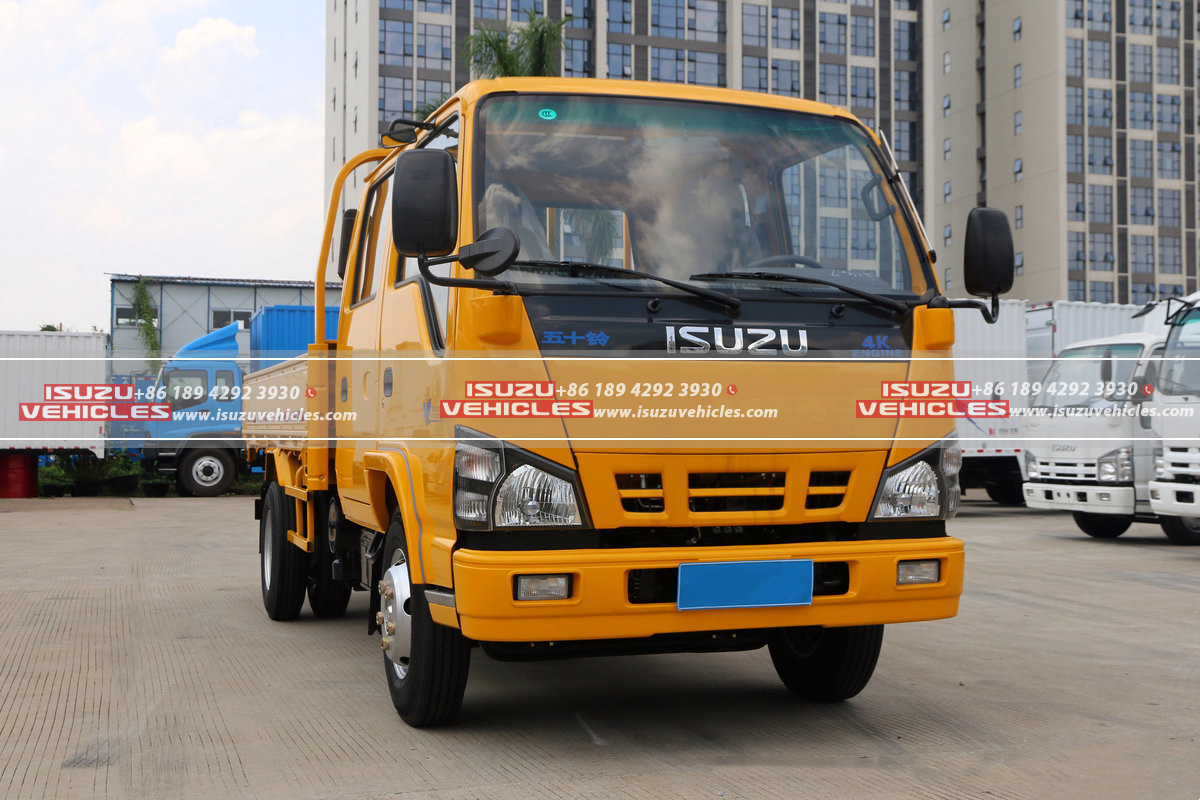

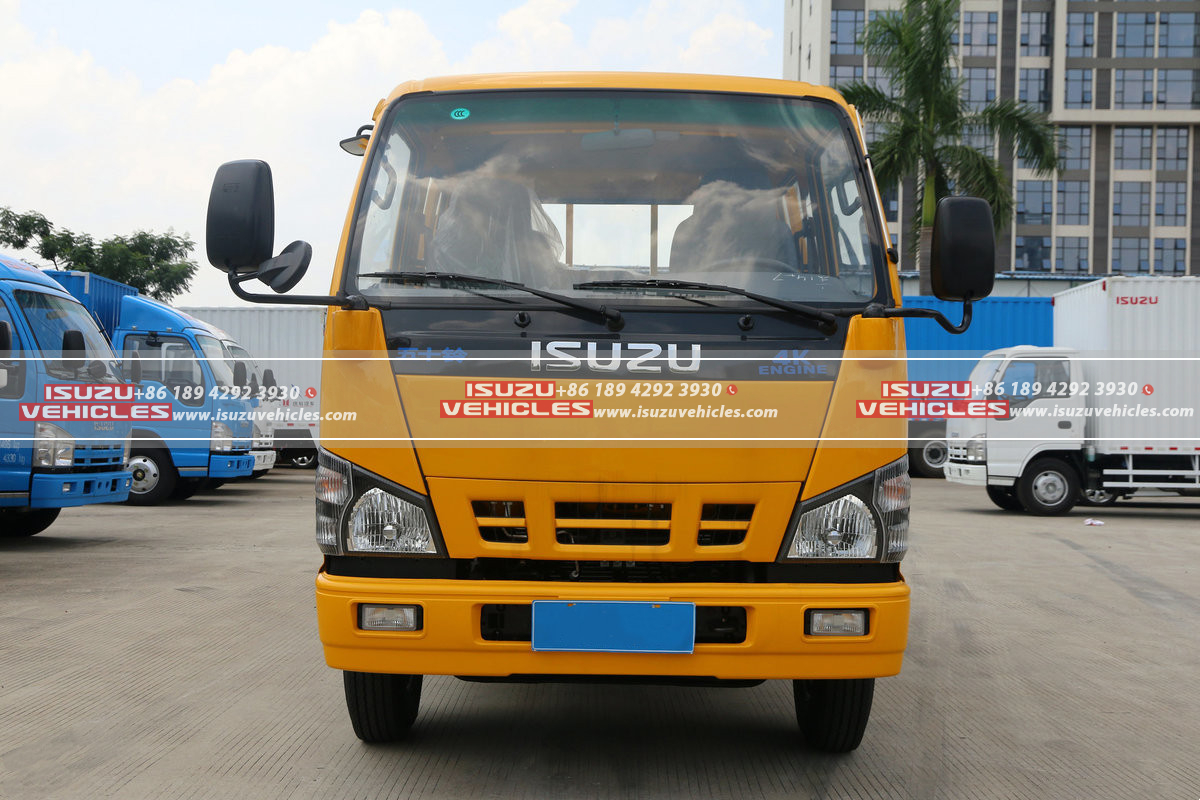

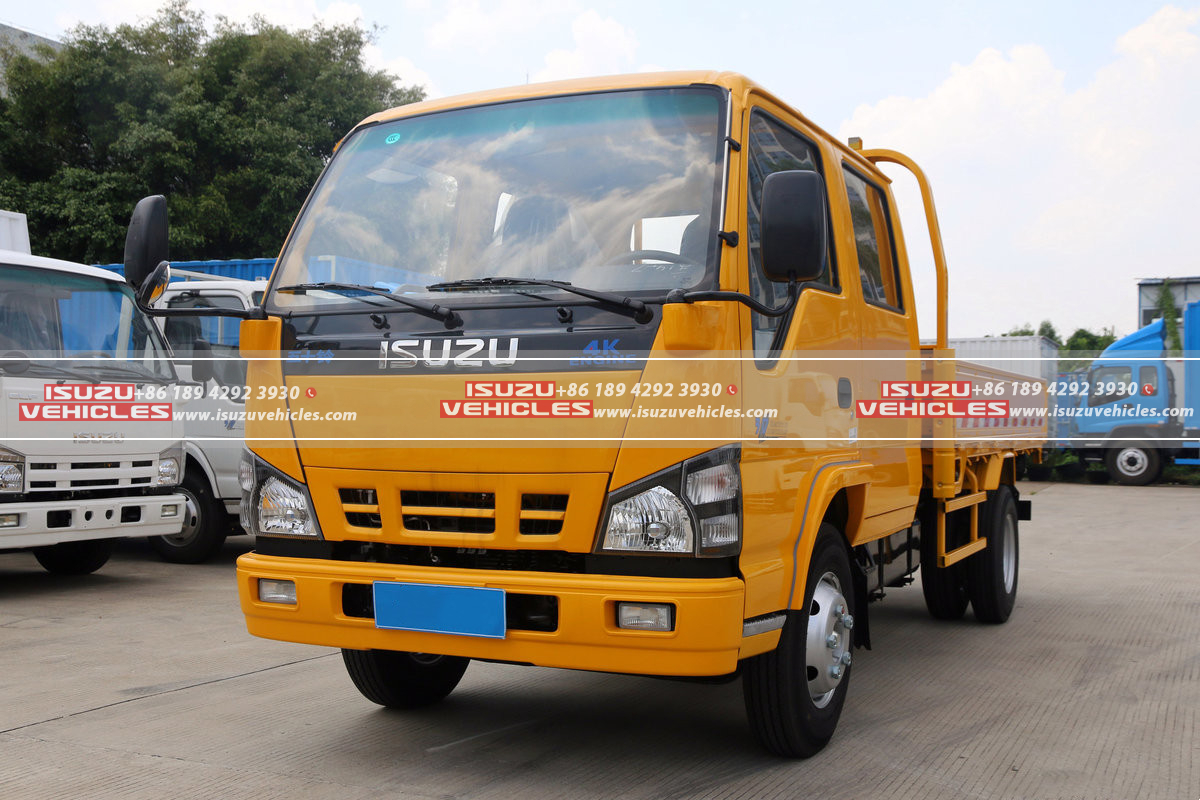

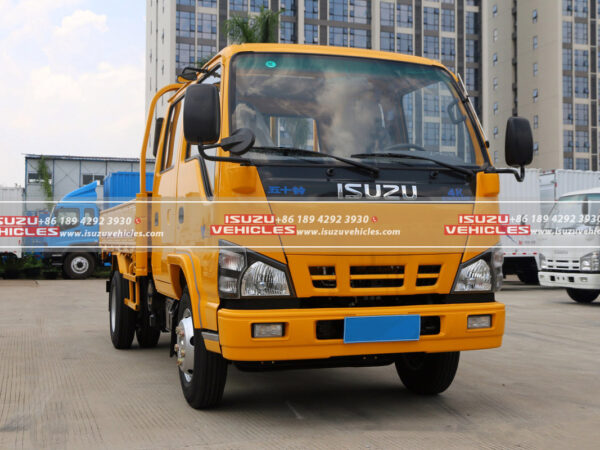

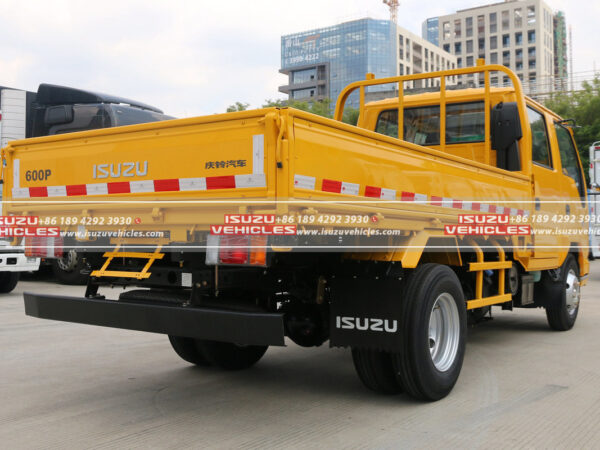

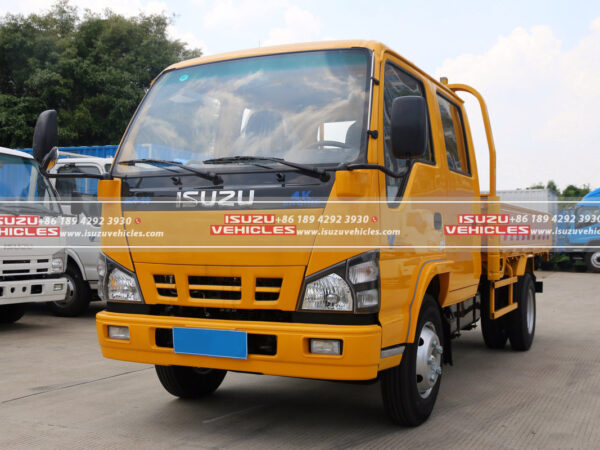

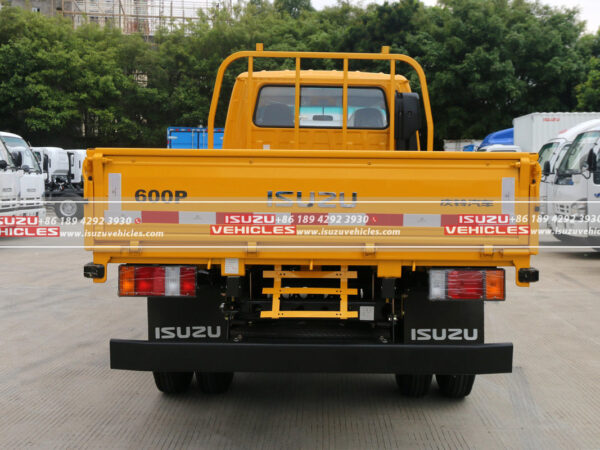

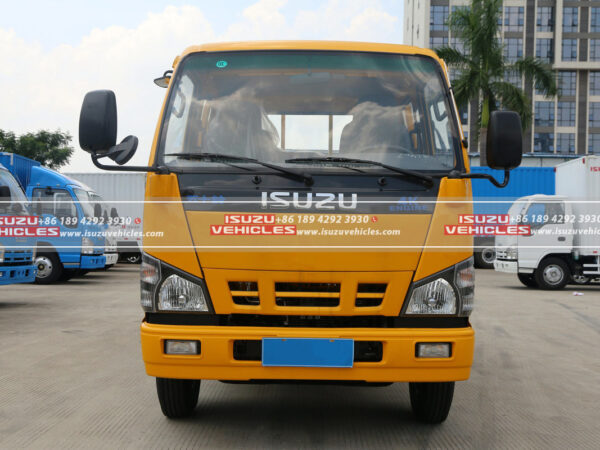

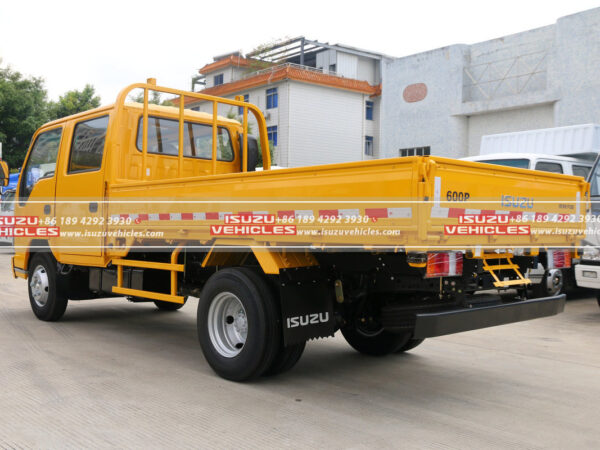

ISUZU 600P 3.2 Meter 130 Horsepower Cargo Truck
The ISUZU 600P 3.2 Meter Cargo Truck is a robust and reliable vehicle designed to meet the demands of light-duty commercial transport. Equipped with a powerful 130 horsepower engine, this truck offers excellent performance and durability for a variety of business needs. With its 3.2-meter stake side cargo box, it can carry up to 3.5 tons of cargo, making it an ideal choice for businesses requiring a versatile and dependable truck.
This 4×2 drive truck boasts a gross vehicle weight of 2.655 tons and a gross combination weight of 6.48 tons, ensuring a strong load-bearing capacity for transporting goods over long distances or across challenging terrains. The ISUZU 600P features a 5-speed manual transmission, allowing precise control over performance, making it perfect for urban deliveries and highway driving.
Key Features of ISUZU 600P 3.2 Meter 130 Horsepower Cargo Truck
Engine and Performance
At the heart of the ISUZU 600P is the powerful Qingling Isuzu 4KH1CN5HS engine. This 2.999L inline 4-cylinder diesel engine delivers a maximum output power of 96kW and a maximum horsepower of 130hp, ensuring the truck is capable of handling heavy loads and long-distance driving with ease. The engine produces a maximum torque of 290Nm at 1500RPM, making the truck highly efficient for both urban and highway performance.
The manual 5-speed transmission and the 6.142 rear axle ratio work together to optimize fuel efficiency and improve load-handling capability. The ISUZU 600P ensures smooth power delivery, providing reliability even when operating at full capacity.

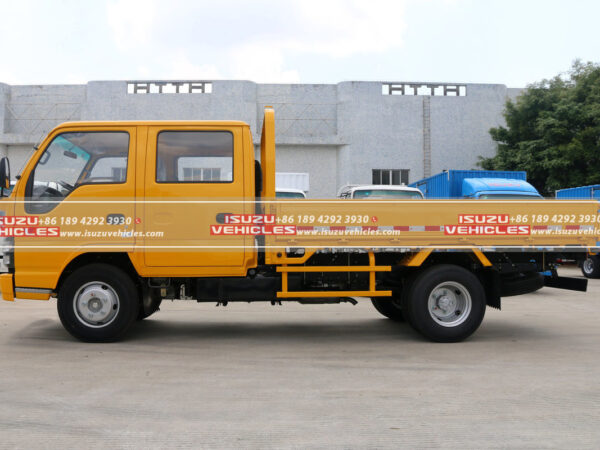

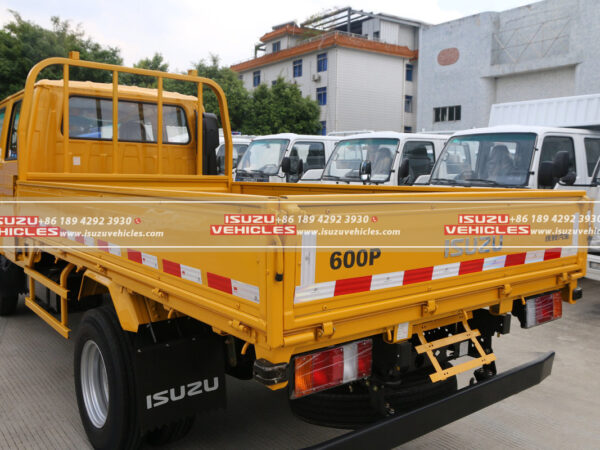

Cargo Box and Dimensions

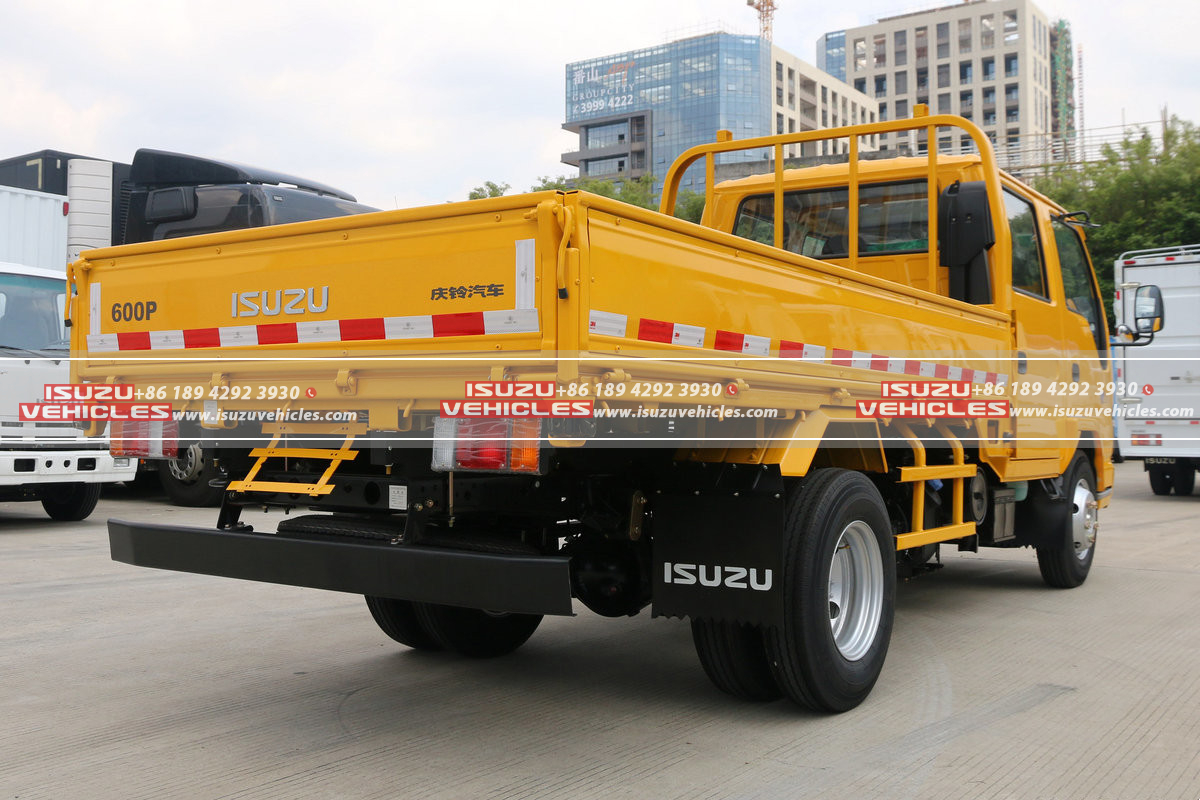

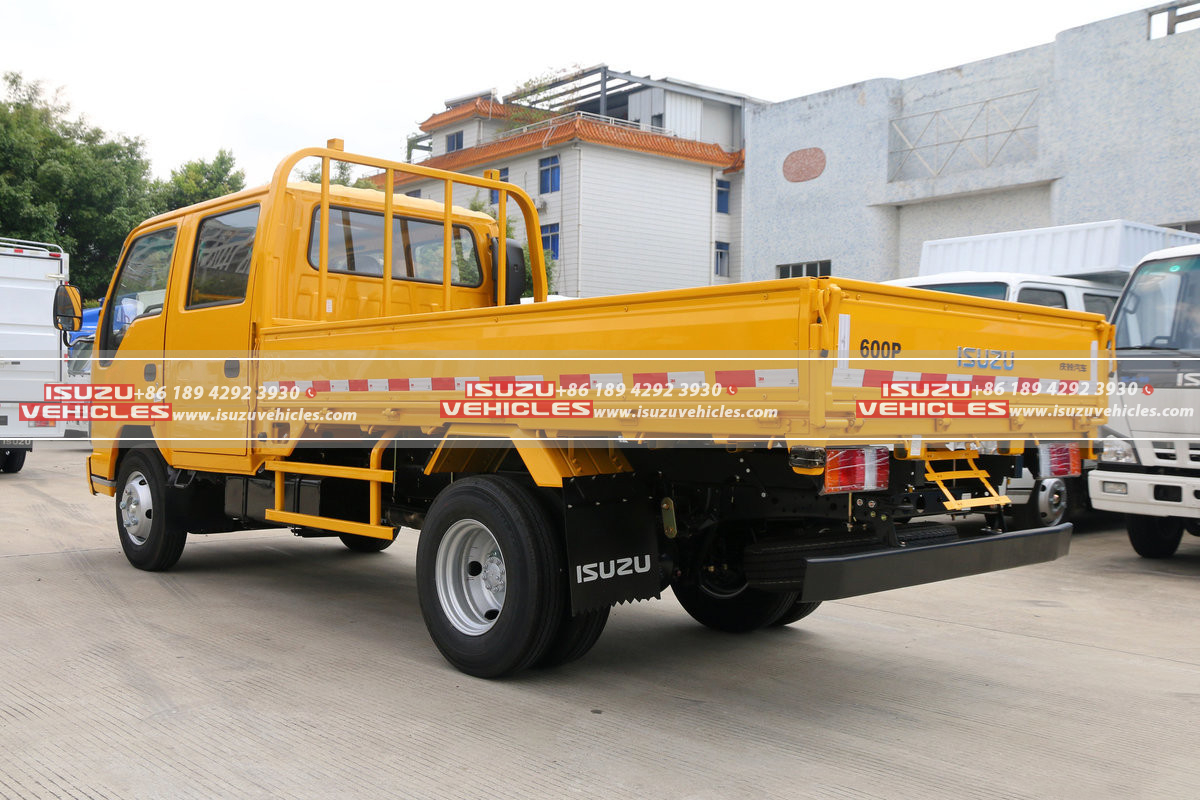

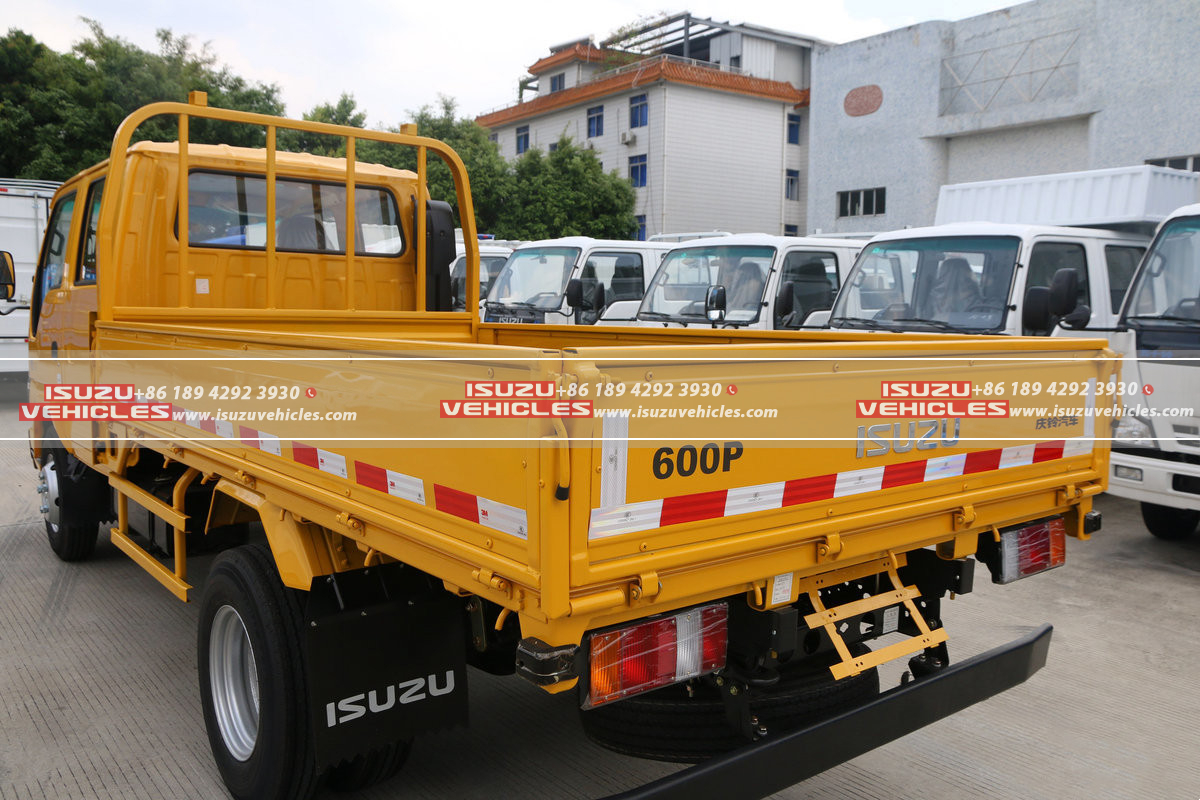

The ISUZU 600P is equipped with a 3.2-meter stake side cargo box, ideal for various commercial applications. With a cargo box length of 3.235 meters, width of 1.79 meters, and height of 0.38 meters, the truck provides ample space for transporting goods, equipment, and materials. The rated payload capacity of 3.5 tons makes it a strong contender for businesses that require a medium-duty cargo vehicle for regular deliveries.

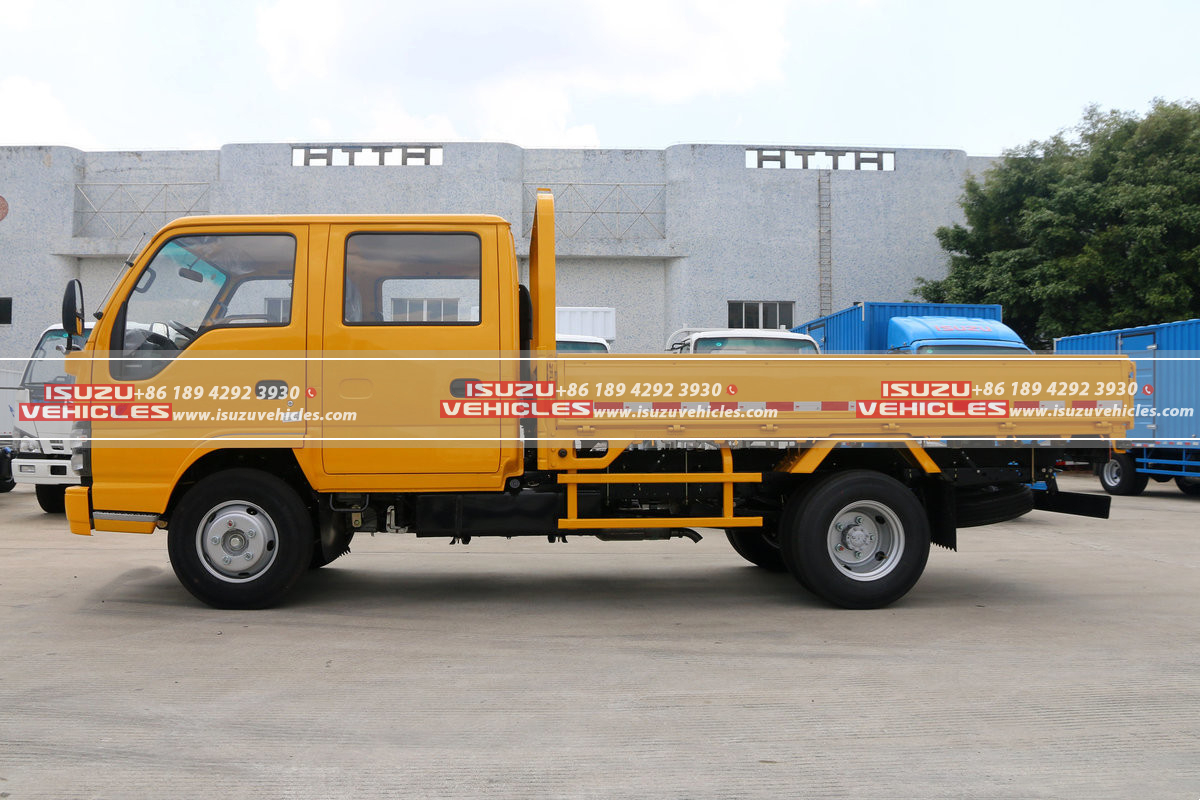

With a body length of 5.95 meters and width of 1.88 meters, the 600P strikes a balance between cargo capacity and maneuverability, making it suitable for navigating both city streets and rural roads.
Safety and Handling
The ISUZU 600P comes equipped with modern safety features, including an ABS anti-lock braking system that prevents wheel lockup and enhances control during emergency braking. This is crucial for maintaining stability when driving under heavy loads or on slippery surfaces.

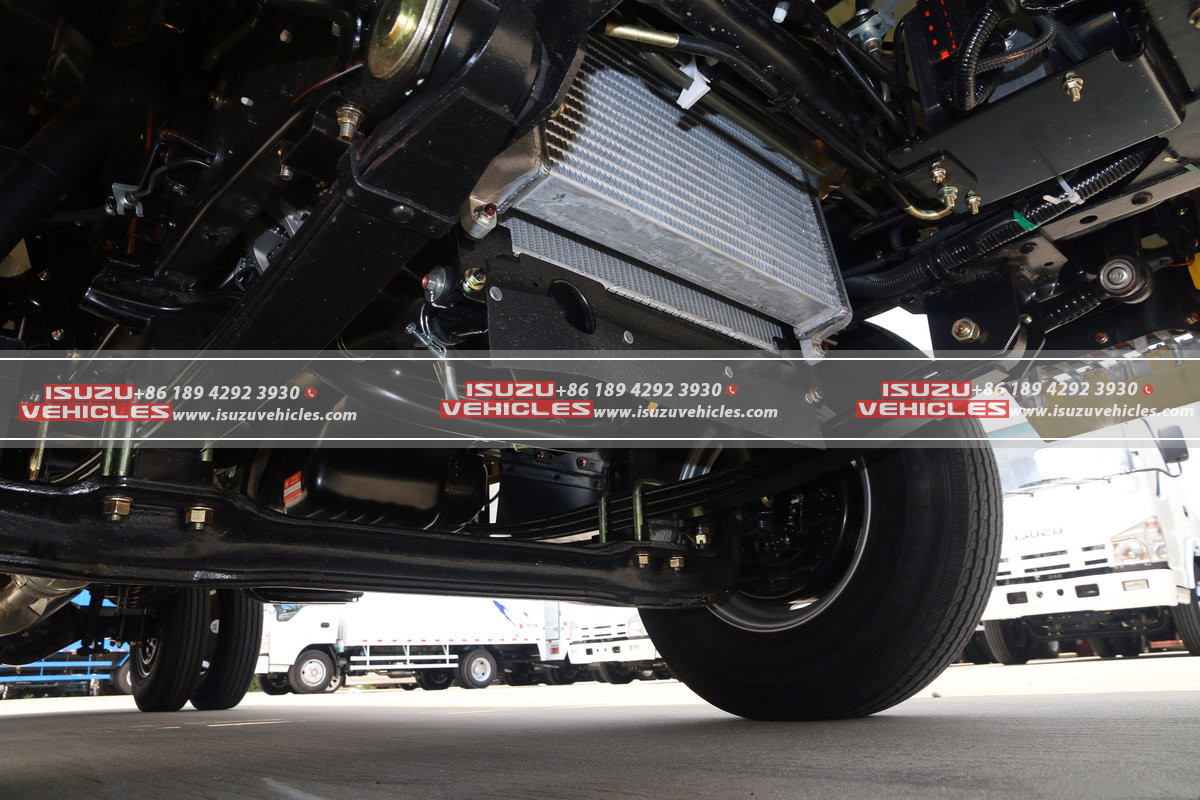

The truck’s steering assist system further improves handling and maneuverability, especially when navigating tight spaces. Additionally, the leaf spring suspension system with 8/6+5 spring configuration ensures a smooth and stable ride, even when fully loaded, making it ideal for long hauls and heavy-duty use.
Interior and Comfort
The ISUZU 600P provides a comfortable cabin designed for practicality and ease of use. The flat-top cab offers seating for 5 passengers, making it suitable for both the driver and crew on extended trips. The dual-row seating configuration ensures ample space, while the manual air conditioning system provides a cool environment in varying weather conditions.
With features like a manual transmission, multi-functional steering wheel, and power steering, the ISUZU 600P ensures ease of driving, offering control and comfort for the driver, especially during long-distance deliveries or on busy city streets.
Tires and Durability
The ISUZU 600P is equipped with 7.00R16 14PR tires, designed for long-lasting durability and heavy-duty performance. These radial tires provide excellent grip and traction, ensuring stability under various driving conditions, including highways and off-road paths. The truck’s 6 tires are specifically selected for high performance and durability, allowing the ISUZU 600P to maintain stability even under heavy loads.
With an axle load capacity of 2050kg for the front axle and 4430kg for the rear axle, the truck is built to withstand significant stress, ensuring reliable performance across diverse applications.
Performance and Versatility
The ISUZU 600P stands out with its gross vehicle weight of 2.655 tons and total weight capacity of 6.48 tons, making it a highly versatile and powerful option for a wide range of businesses. The truck’s maximum speed of 110km/h allows for highway travel, while its approach angle of 24 degrees and departure angle of 16 degrees provide flexibility on various terrains, making it suitable for both urban and rural use.
With its combination of strong engine performance, high payload capacity, and efficient design, the ISUZU 600P is a reliable choice for businesses in need of a durable light-duty truck for everyday use.
The ISUZU 600P 3.2 Meter 130 Horsepower Cargo Truck offers a winning combination of performance, safety, and versatility, making it the ideal solution for businesses requiring a high-capacity cargo truck. Whether you need to transport goods across the city or tackle longer hauls, the ISUZU 600P provides the performance and reliability you need.
SPECIFICATIONS:
| Parameter Category | Details |
|---|---|
| Vehicle Type | Cargo Truck |
| Drive Type | 4X2 |
| Wheelbase | 3360mm |
| Box Length Class | 3.2m |
| Engine | Qingling Isuzu 4KH1CN5HS |
| Transmission | Isuzu MSB-5SM |
| Rear Axle Ratio | 6.142 |
| Vehicle Length | 5.95m |
| Vehicle Width | 1.88m |
| Vehicle Height | 2.35m |
| Front Track | 1504mm |
| Rear Track | 1425mm |
| Gross Vehicle Weight | 6.48t |
| Curb Weight | 2.655t |
| Payload | 3.5t |
| Max Speed | 110KM/h |
| Manufacturing Location | Chongqing |
| Tonnage Class | Light Truck |
| Approach Angle | 24° |
| Departure Angle | 16° |
| Market Segment | N/A |
| Remarks | Standard Configuration: Turn signal lights, reflective markings, maintenance-free battery. Options: Skirt-style rear guard, tiltable cab, CD player, metallic paint cab |
| Front/Rear Suspension | 1.015/1.575m |
| Fuel Type | Diesel |
| Engine Parameters | |
| – Engine Model | Qingling Isuzu 4KH1CN5HS |
| – Engine Brand | Qingling Isuzu |
| – Engine Nickname | Isuzu 4KH1 |
| – Cylinder Count | 4 |
| – Fuel Type | Diesel |
| – Cylinder Arrangement | Inline |
| – Displacement | 2.999L |
| – Emission Standard | China V |
| – Max Output Power | 96kw |
| – Max Horsepower | 130hp |
| – Max Torque | 290N·m |
| – Max Torque RPM | 1500RPM |
| – Rated RPM | 3400RPM |
| Cargo Box Parameters | |
| – Cargo Box Type | Stake Side |
| – Cargo Box Length | 3.235m |
| – Cargo Box Width | 1.79m |
| – Cargo Box Height | 0.38m |
| Cab Parameters | |
| – Cab Type | Flat Top |
| – Cab Width | N/A |
| – Passenger Capacity | 5 |
| – Seat Rows | Double |
| Transmission Parameters | |
| – Transmission Model | Isuzu MSB-5SM |
| – Transmission Brand | Isuzu |
| – Shift Type | Manual |
| – Forward Gears | 5 |
| – Reverse Gears | 1 |
| Fuel Tank | |
| – Fuel Tank Material | Iron |
| – Fuel Tank Capacity | 70L |

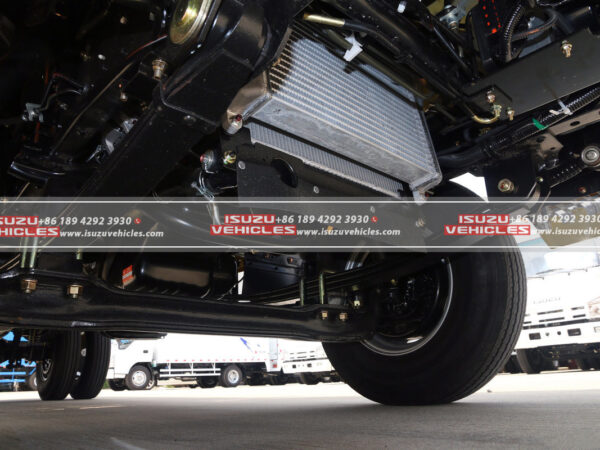

| Chassis Parameters | |
| – Front Axle Load | 2050KG |
| – Rear Axle Load | 4430KG |
| – Speed Ratio | 6.142 |
| – Leaf Spring Count | 8/6+5 |
| Tires | |
| – Tire Brand | Chaoyang |
| – Tire Size | 7.00R16 14PR |
| – Tire Type | Radial |
| – Tire Count | 6 |
| Control Configuration | |
| – ABS Anti-Lock Braking System | Yes |
| – Power Steering | Yes |
| Interior Configuration | |
| – Air Conditioning Type | Manual |
