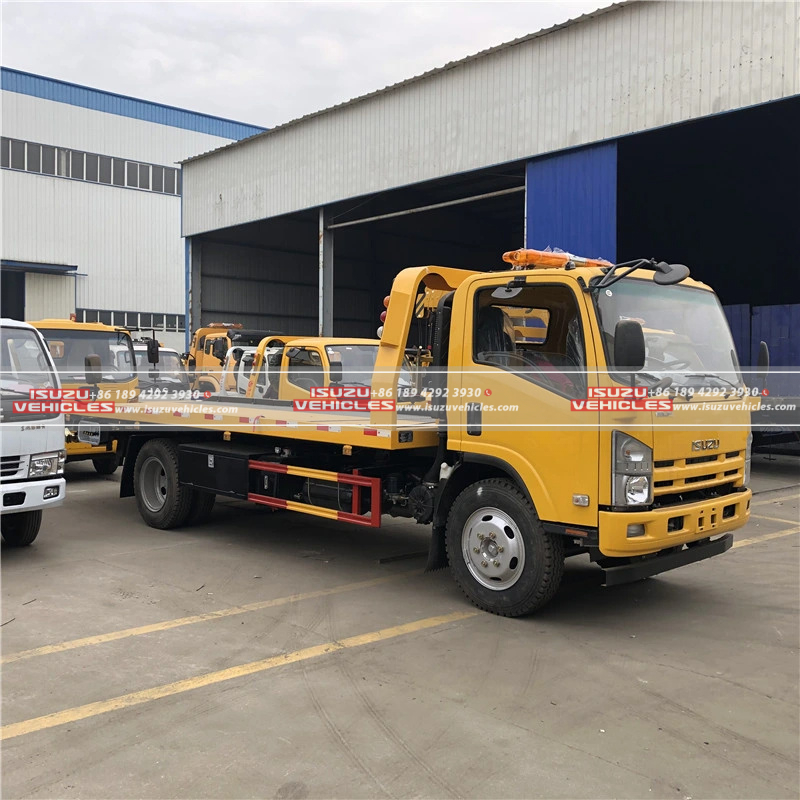

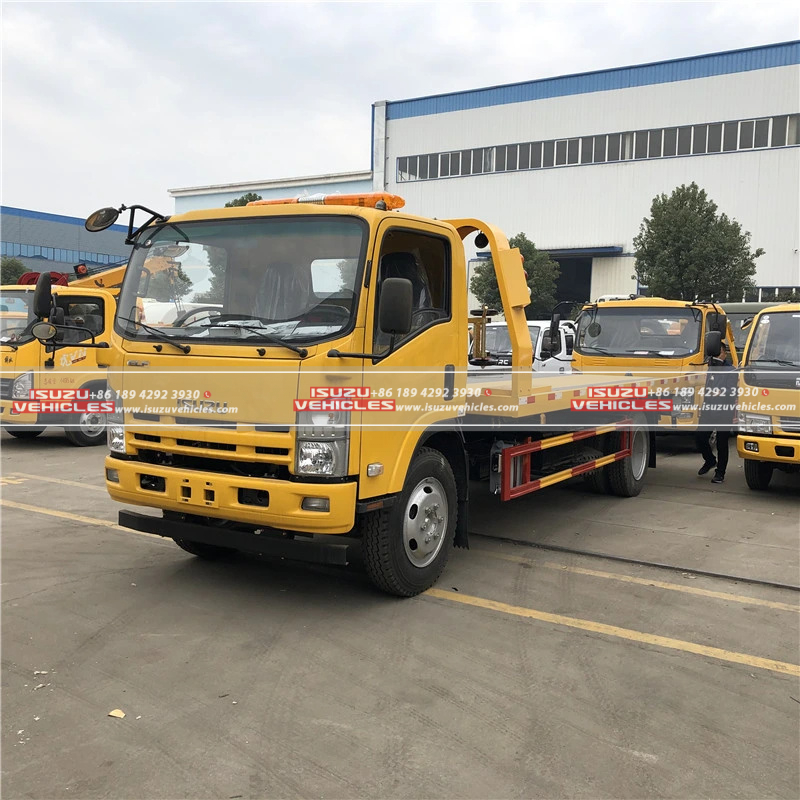

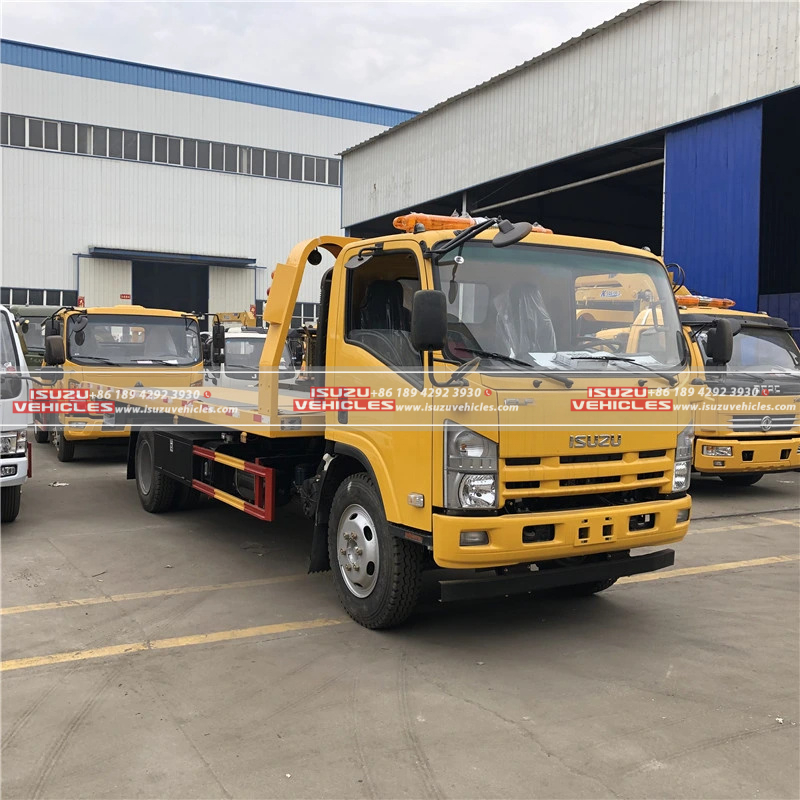

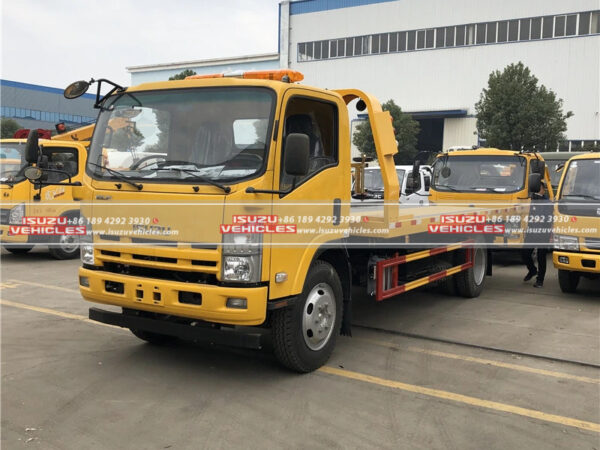

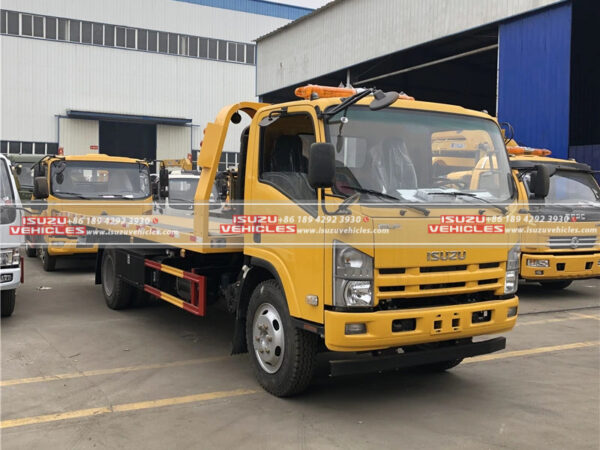

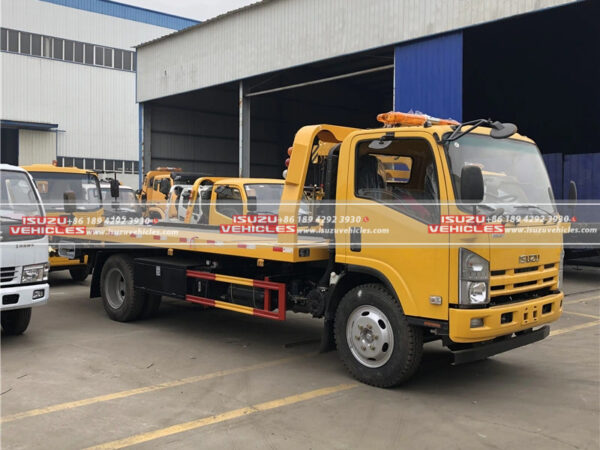

ISUZU 6 Ton Multipurpose Platform Car Carrier Tow Truck
Engineered for Heavy-Duty Versatility
The ISUZU 6-Ton Multipurpose Platform Car Carrier Tow Truck is designed for efficient vehicle recovery and transport operations. Built on ISUZU’s proven commercial chassis, it combines turbocharged diesel power with a robust 3.5-ton rear axle, ensuring reliable performance in demanding environments. With 85kW/2771ml displacement and a five-speed transmission, this truck delivers optimal torque (285N.m) across a broad rpm range (1800–2000rpm), maximizing fuel efficiency and load management. Its compact yet functional dimensions (5995x2300x2220mm) and 3360mm wheelbase ensure maneuverability in urban and highway settings, while adhering to 2021 safety regulations.
Features
1. Advanced Powertrain
Turbocharged Diesel Engine
The heart of the ISUZU tow truck is its four-valve, high-pressure common rail engine with turbocharged intercooling, engineered for low emissions and high torque output. Diesel-powered and rated at 116 horsepower, it achieves a peak speed of 3200rpm, ensuring rapid response during recovery operations.
2. Adaptable Carrying Platform
Modular Flatbed Design

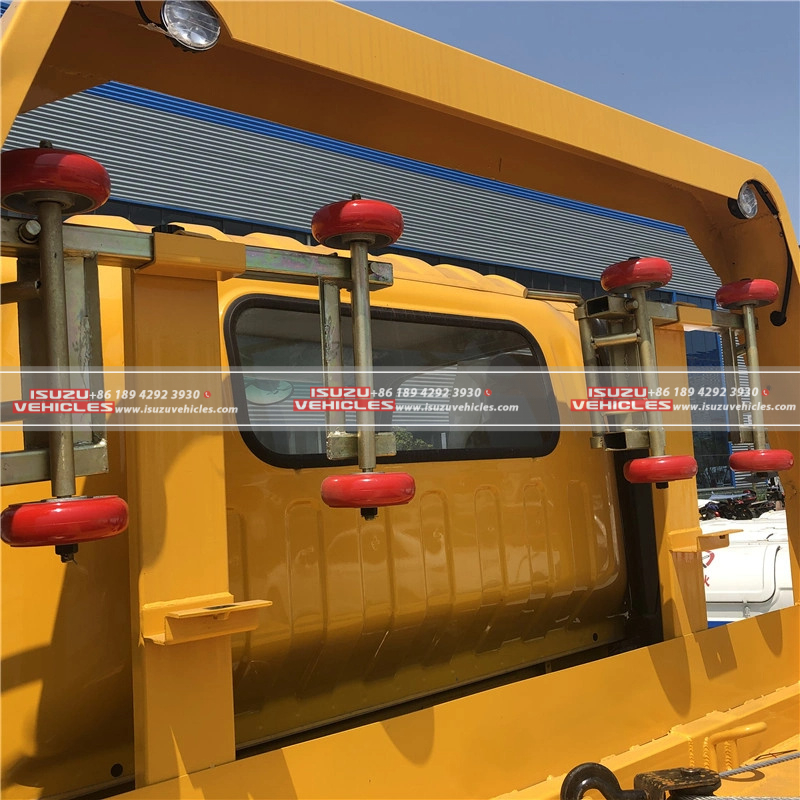

The 5400mm main flatbed extends to 6600mm or 6700mm with telescopic tailboards, accommodating vehicles of varying sizes. With a 2300mm width and 900mm ground clearance, the platform supports a 3-ton carrying capacity, reinforced by a 4-ton winch for secure load handling. The 1300mm rear support arm provides an additional 2-ton lifting capacity, ideal for multi-vehicle transport.
3. Safety and Compliance
Integrated Safety Systems
Standard ABS, air brakes, and front under-run protection ensure compliance with 2021 safety mandates. The cab features brake pad wear alerts, seat belt alarms, and door-locking prompts, while self-adjusting brake arms and adjustable headlights enhance operational reliability.
4. Driver-Centric Cab
Ergonomic Control Hub

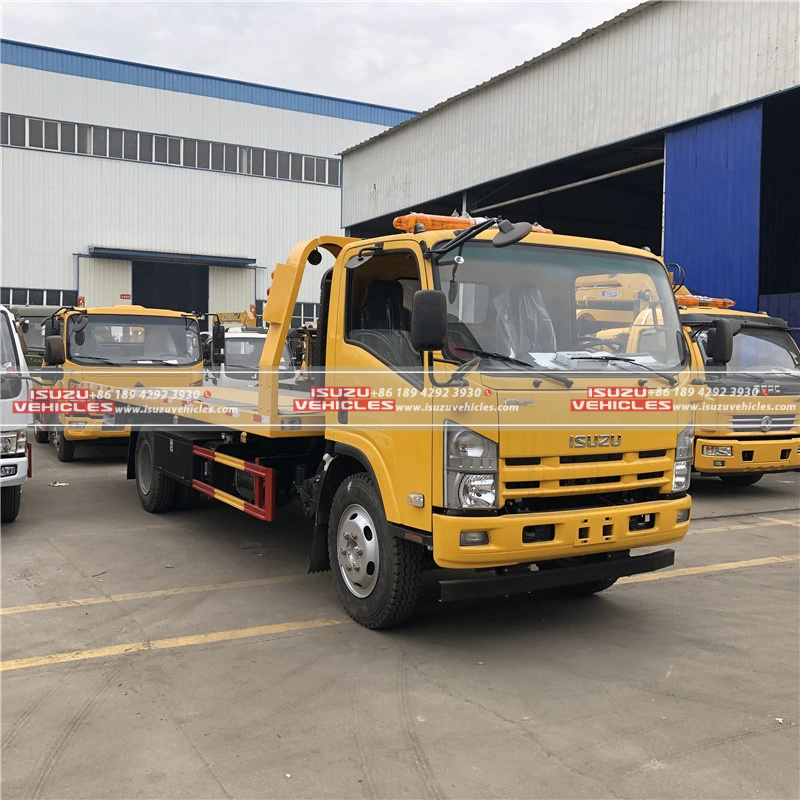

The New ISUZU Cab integrates a multi-functional steering wheel, central locking, and power windows for intuitive operation. Enhanced by enamel paint durability and a sunroof for visibility, the design prioritizes driver comfort during extended missions.
5. Rugged Build Specifications
Reinforced Chassis
7.00R16 tires and a 3865kg kerb-to-4495kg gross mass ratio ensure stability under load. The in-line cylinder arrangement and turbocharged intake system further reinforce the truck’s ability to withstand rigorous towing cycles.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Torque | 285N.m |
| Torque Speed | 1800 – 2000rpm |
| Engine Type | Four-valve, high-pressure common rail, turbocharged intercooled |
| Tires | 7.00R16 |
| Cab and Other Features | New ISUZU cab, 3.5-ton rear axle, central locking, power windows, key, multi-functional steering wheel. Standard equipment for the model: enamel paint, ABS, power steering, air brakes, front under-run protection, self-adjusting brake arms, adjustable headlights, sunroof. 2021 new regulations: brake pad wear alarm, seat belt alarm, door locking prompt |
| Flatbed Length | 5400mm main board; 4200mm main board + 1200mm tail telescopic board; 4200mm main board + 1300mm tail telescopic board |
| Flatbed Width | 2300mm |
| Flatbed Ground Clearance | 900mm |
| Winch Pulling Force | 4 tons |
| Flatbed Carrying Capacity | 3 tons |

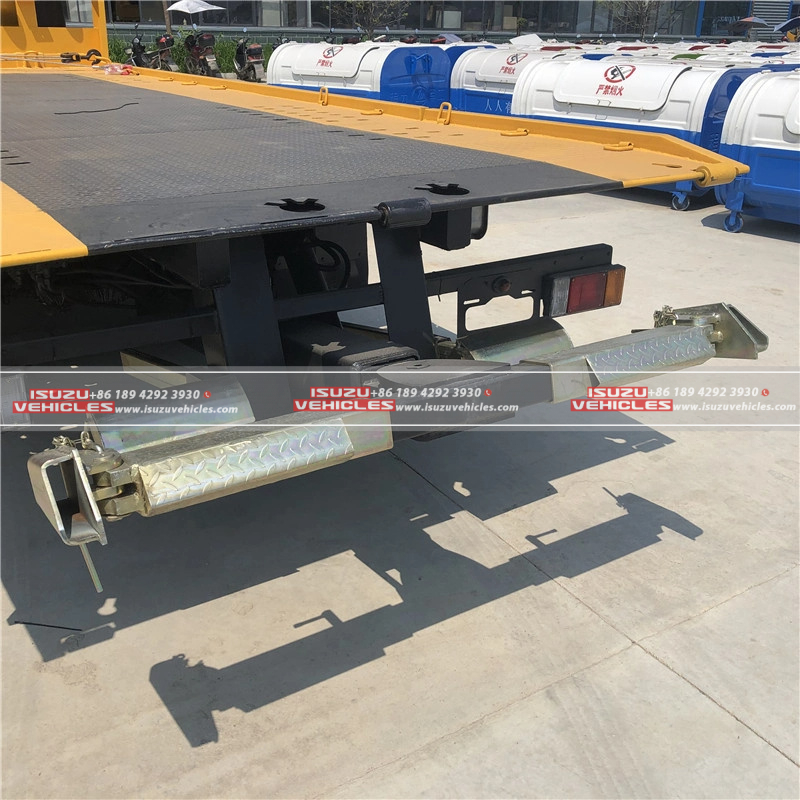

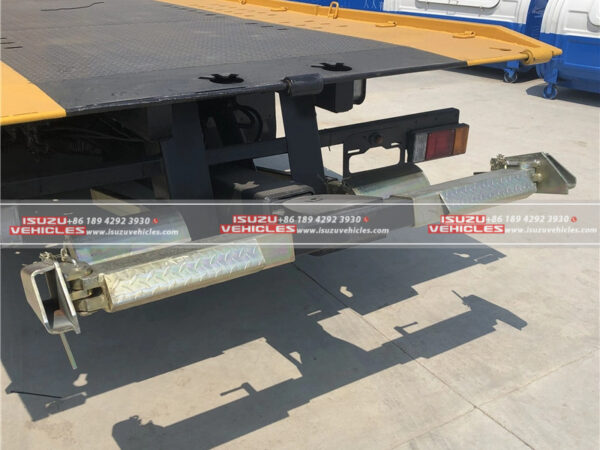

| Rear Support Arm Extension Length | 1300mm |
| Rear Support Arm Lifting Capacity | 6 tons |
| Vehicle Model | New Isuzu Wrecker, Flatbed Towing and Recovery Vehicle |
| Overall Dimensions | 5995×2300×2220mm |
| Gross Mass | 4495kg |
| Kerb Mass | 3865kg |
| Brand | ISUZU |
| Wheelbase | 3360mm |
| Transmission | Five-speed |
| Engine Model | Isuzu 116 horsepower |
| Power/Displacement | 85kw/2771ml |
| Fuel Type | Diesel |
| Intake Type | Turbocharged intercooled |
| Cylinder Number | – |
| Cylinder Arrangement | In-line |
| Rated Speed | 3200rpm |
