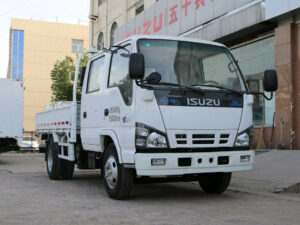

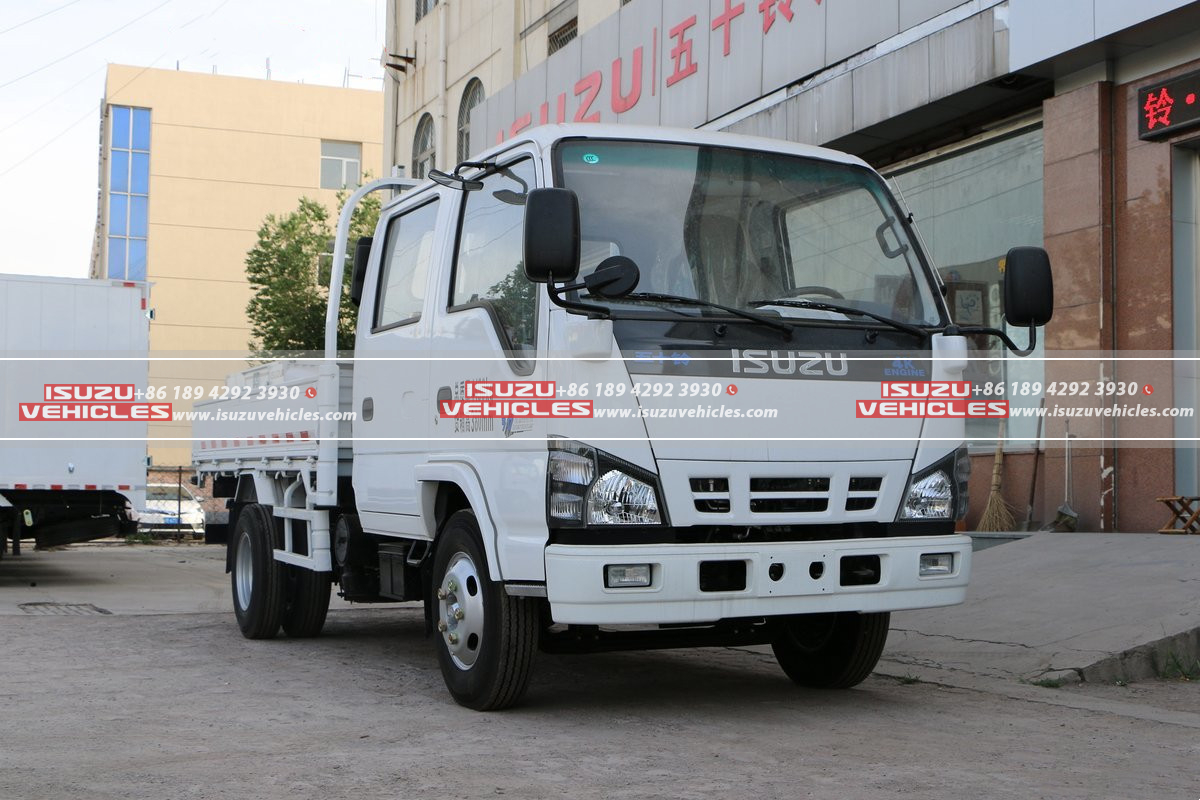

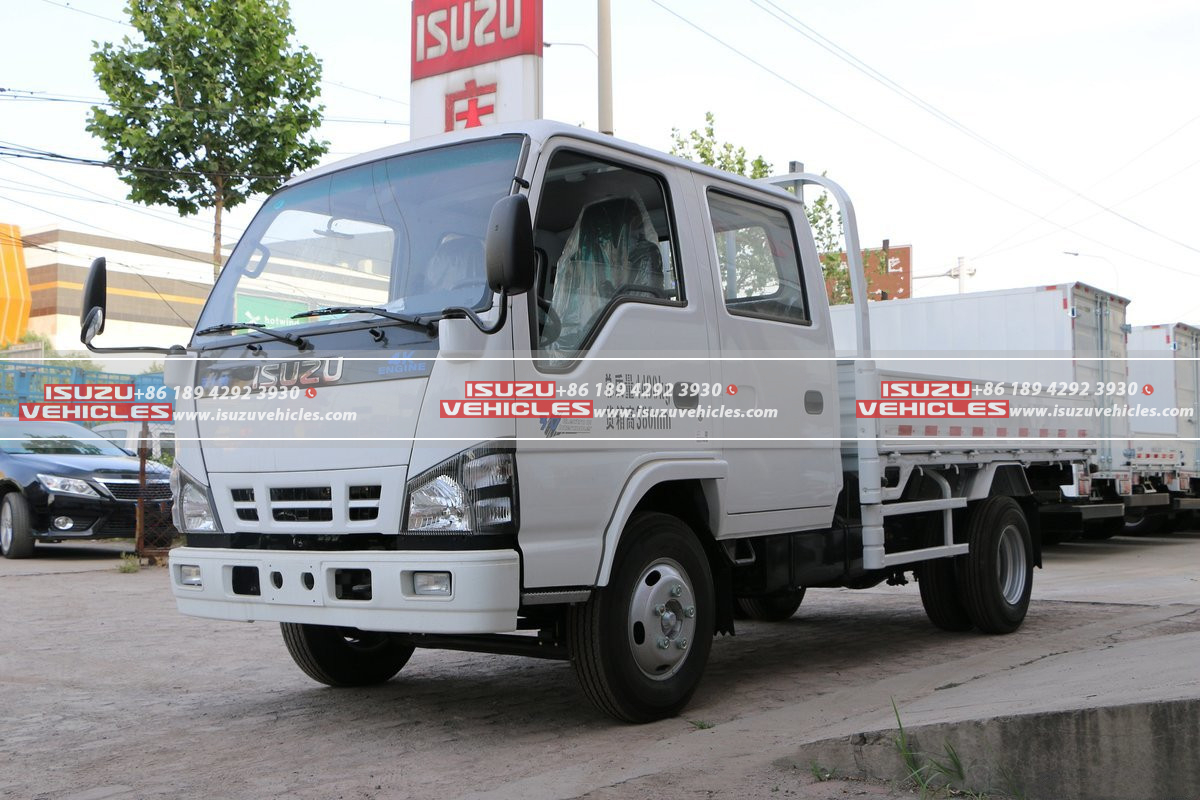

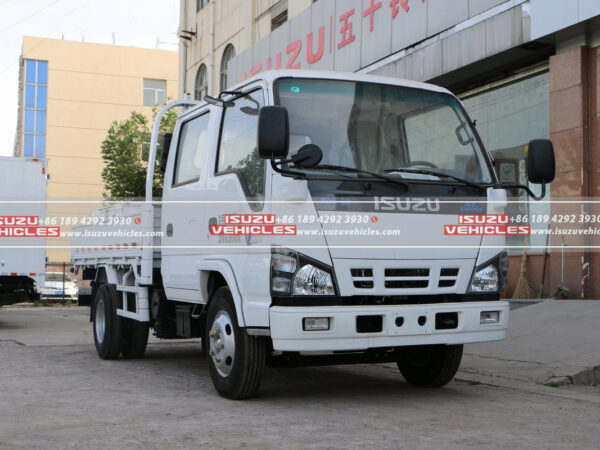

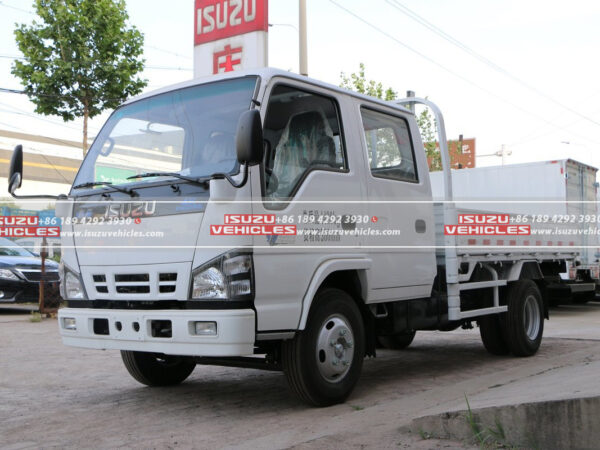

ISUZU 600P 3.2 Meter Cargo Truck
The ISUZU 600P 3.2 Meter Cargo Truck is a powerful, compact, and highly versatile vehicle designed for businesses that require a reliable and efficient cargo solution. Built with a 4×2 drive configuration, this light-duty truck is equipped to tackle urban deliveries, logistics, and distribution with ease. The 2.565 tons gross vehicle weight and 1.6 tons rated payload capacity ensure that the ISUZU 600P can carry significant loads while maintaining fuel efficiency and durability.
Its 3.2-meter cargo box is perfect for carrying medium-sized freight, providing an ideal balance between payload capacity and maneuverability. The vehicle’s compact body dimensions of 5.95 meters in length, 1.88 meters in width, and 2.35 meters in height ensure that it can navigate tight urban spaces without compromising on performance. Powered by the robust Qingling Isuzu 4KH1CN5HS engine, the 600P offers impressive output with 130 horsepower and 290Nm torque, making it a reliable choice for both short and long-distance transport needs.
Key Features of ISUZU 600P 3.2 Meter Cargo Truck
Engine and Performance
The ISUZU 600P is equipped with the Qingling Isuzu 4KH1CN5HS engine, a 3.0L inline four-cylinder diesel engine known for its reliability and fuel efficiency. Producing a maximum horsepower of 130hp and a maximum torque of 290Nm, this engine ensures that the 600P has the power needed for both urban deliveries and long-distance driving. With a maximum output power of 96kW, the engine delivers consistent performance under varying loads and road conditions.
The 5-speed manual transmission coupled with a rear axle ratio of 6.142 provides smooth handling and optimal power distribution. The vehicle’s maximum speed of 110km/h makes it ideal for highway transport without compromising on fuel economy. The China V emission standard ensures compliance with environmental regulations while offering excellent fuel efficiency.
Cargo Box and Dimensions

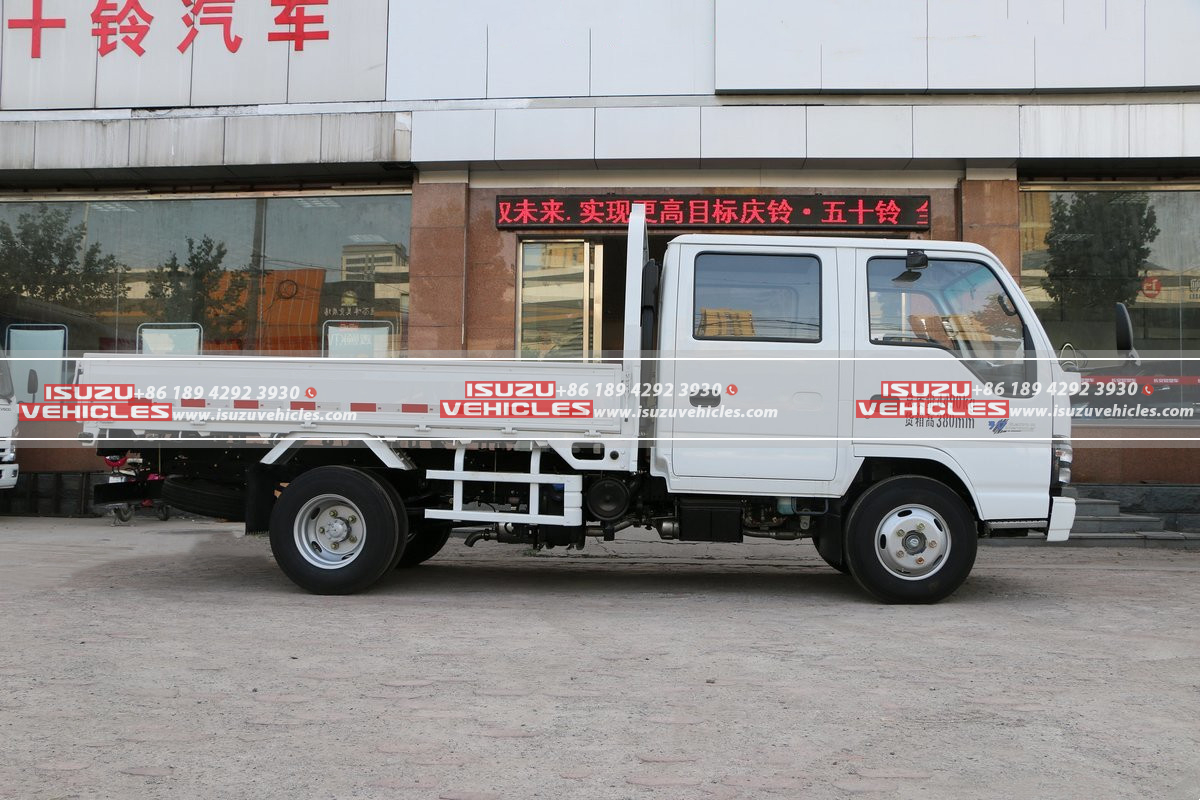

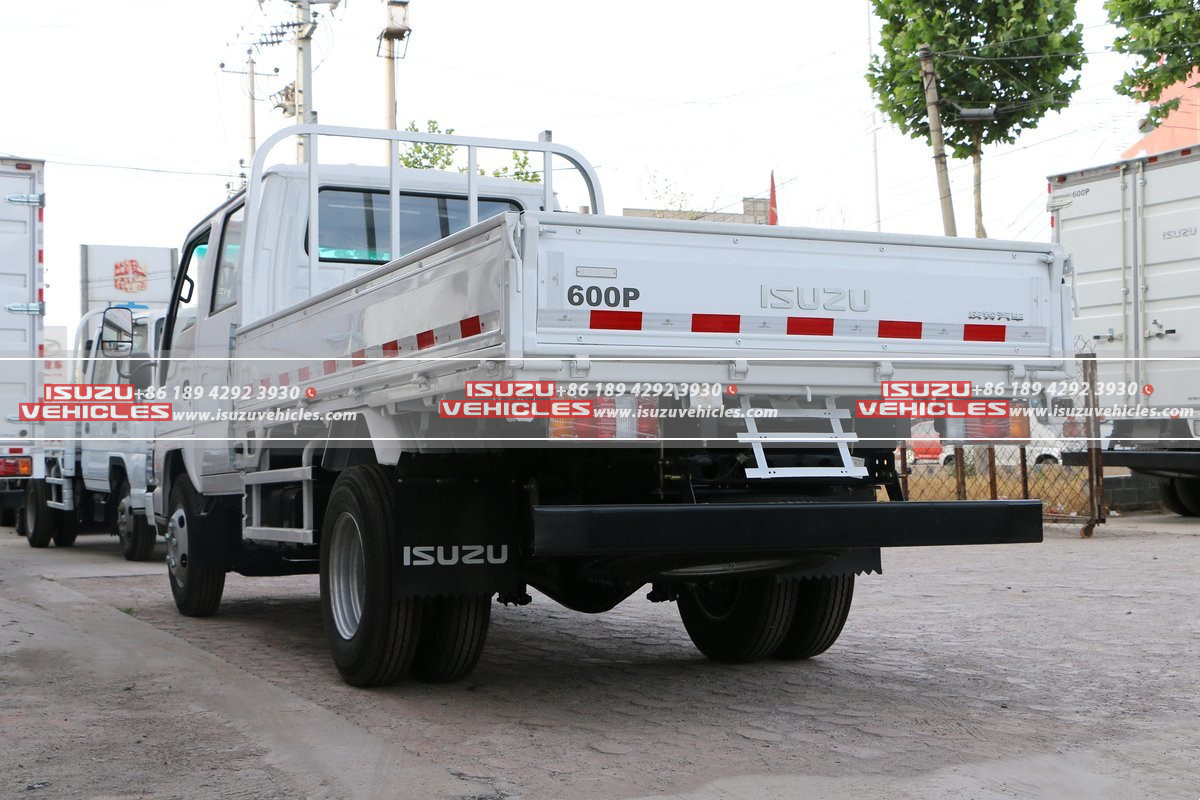

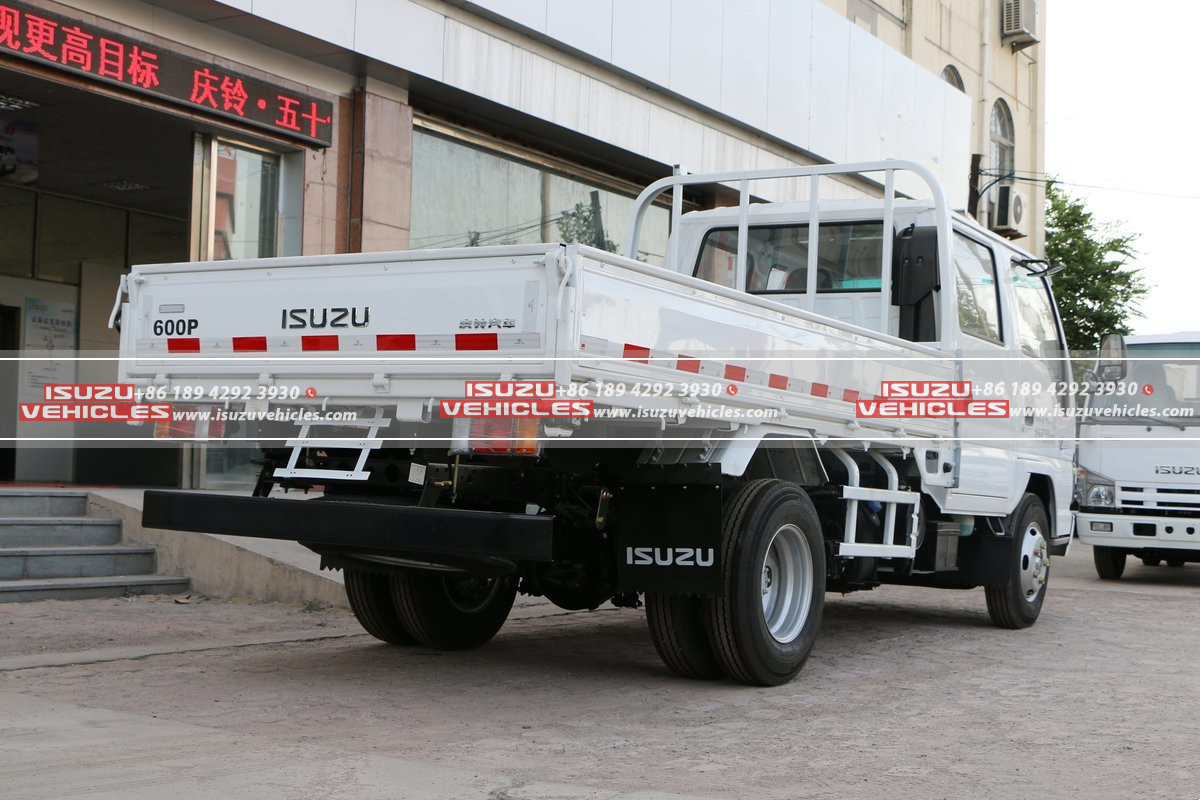

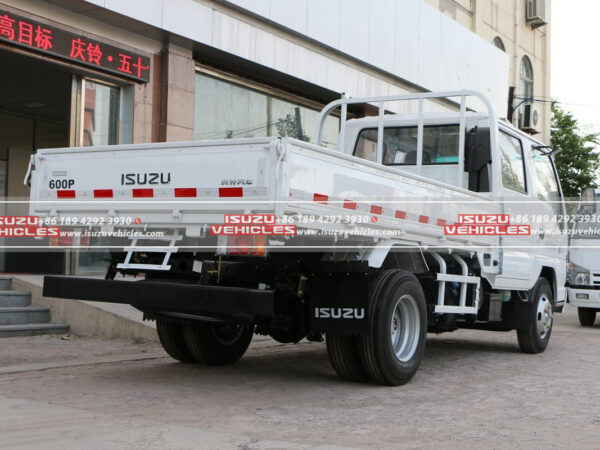

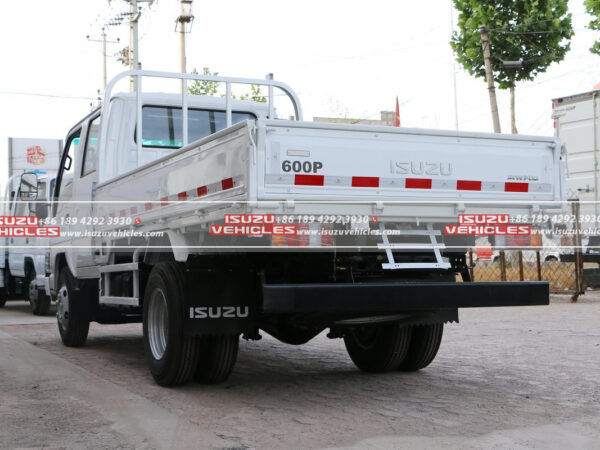

The cargo box of the ISUZU 600P offers ample space for commercial use, with a length of 3.235 meters, width of 1.79 meters, and height of 0.38 meters. The stake side design provides easy access and secure transportation of various cargo types, from goods to equipment. The rated payload capacity of 1.6 tons allows for heavy-duty use, making it a practical choice for businesses requiring a reliable cargo vehicle.

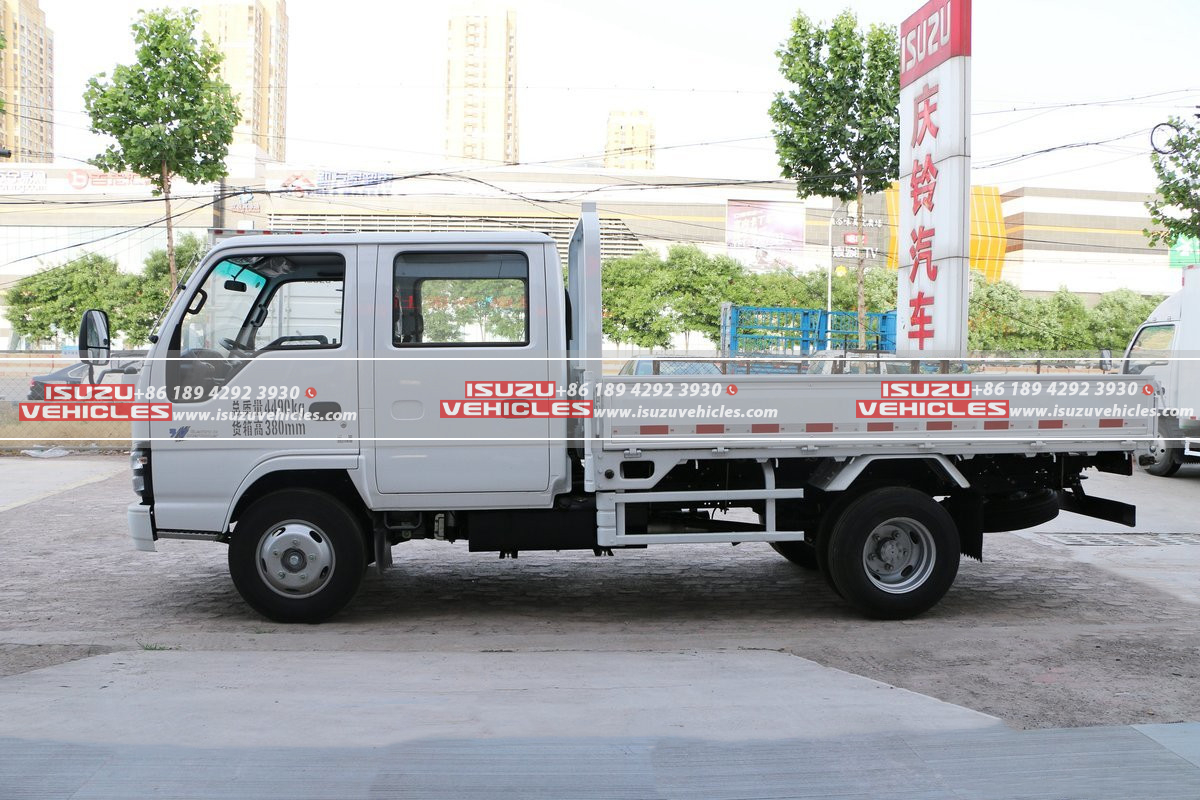

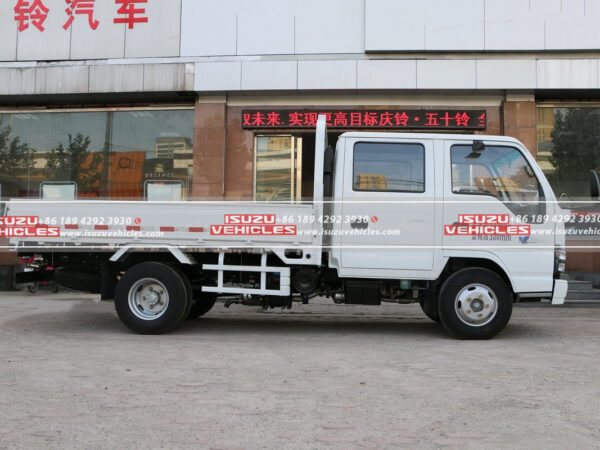

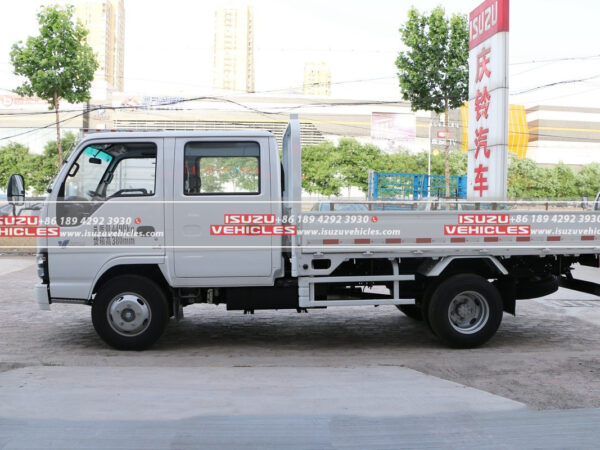

With its compact body dimensions, including a body length of 5.95 meters and a width of 1.88 meters, the 600P is agile enough to maneuver through urban traffic while still offering a substantial cargo capacity. The front and rear suspension systems are designed to absorb shocks from uneven surfaces, ensuring a smooth and stable ride for both driver and cargo.
Safety and Handling
The ISUZU 600P prioritizes safety with the inclusion of an ABS anti-lock braking system (ABS), which prevents wheel lockup and maintains steering control during emergency braking. The vehicle’s leaf spring suspension system enhances stability, particularly when carrying heavy loads, while the manual handbrake ensures easy parking in all conditions.

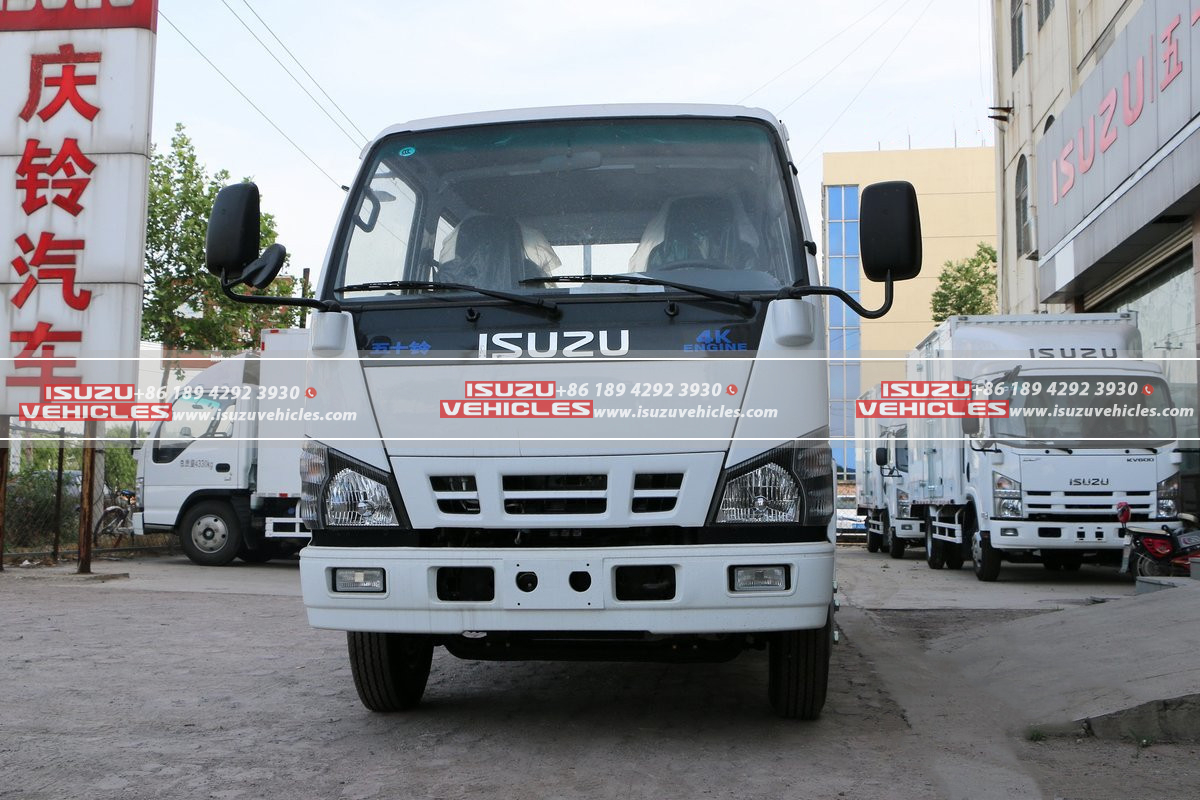

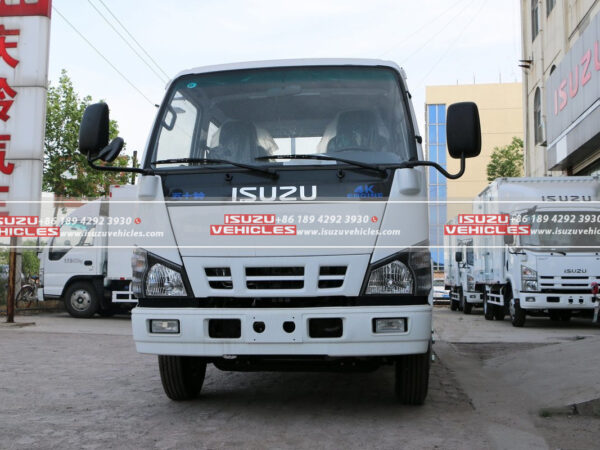

The front fog lights improve visibility in low-light conditions, while the headlight height adjustment feature allows drivers to customize their headlights for optimal road visibility. These features collectively make the 600P a safe and reliable choice for daily commercial operations.

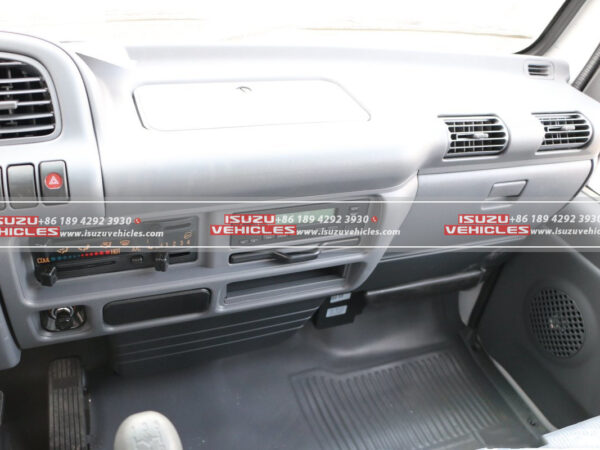

Interior and Comfort

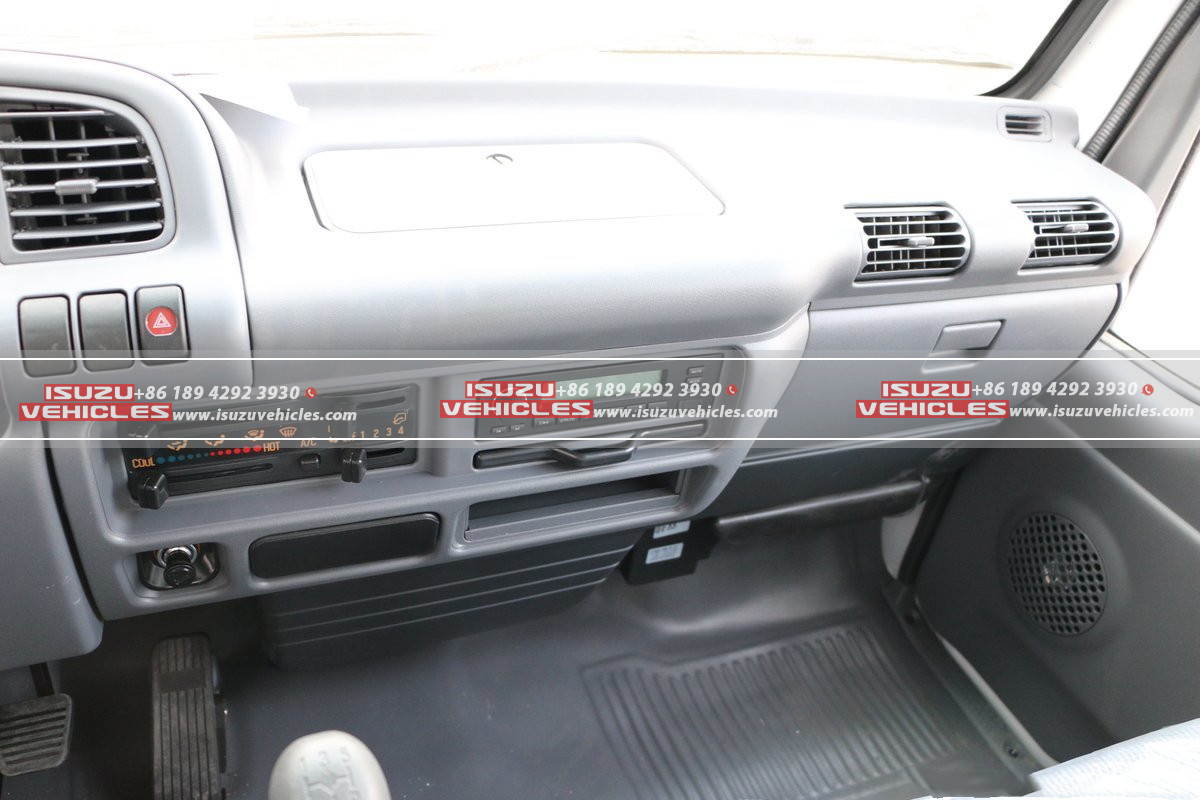

Inside the ISUZU 600P, the flat-top cab design accommodates up to 5 passengers, providing ample space and comfort during long-haul drives. The manual air conditioning system keeps the cabin cool in all weather conditions, ensuring a comfortable driving environment. The multimedia configuration includes an external audio input (AUX/USB/iPod, etc.) and radio, allowing drivers and passengers to stay entertained during their journeys.
The manual transmission provides direct control over the vehicle’s gears, giving the driver a hands-on driving experience. The steering wheel is designed for ease of handling, ensuring that both short and long drives are comfortable and manageable.
Performance and Versatility
With its compact size, the ISUZU 600P is perfect for navigating narrow streets and busy urban areas. Its approach angle of 24 degrees and departure angle of 16 degrees provide excellent clearance over obstacles, making it ideal for both city deliveries and rural routes. The front and rear wheel tracks (1504mm and 1425mm, respectively) contribute to the truck’s stability when carrying heavy cargo.
The ISUZU 600P also offers a gross combination weight of 4.49 tons, ensuring that it can be used for a variety of demanding tasks, from cargo transportation to equipment hauling.
The ISUZU 600P 3.2 Meter Cargo Truck is a high-performance, efficient, and versatile vehicle, designed to meet the needs of businesses that rely on a dependable cargo truck. With its powerful engine, spacious cargo box, and advanced safety features, the 600P is a reliable workhorse for a wide range of commercial applications.
SPECIFICATIONS:
| Type | Value |
|---|---|
| Type | Truck |
| Drive Form | 4X2 |
| Wheelbase | 3360mm |
| Box Length Class | 3.2m |
| Engine | Qingling Isuzu 4KH1CN5HS |
| Transmission | Isuzu MSB-5SM |
| Rear Axle Ratio | 6.142 |
| Body Length | 5.95m |
| Body Width | 1.88m |
| Body Height | 2.35m |
| Front Wheel Track | 1504mm |
| Rear Wheel Track | 1425mm |
| Gross Vehicle Weight | 2.565 tons |
| Rated Payload | 1.6 tons |
| Gross Combination Weight | 4.49 tons |
| Maximum Speed | 110KM/h |
| Production Place | Chongqing |
| Tonnage Class | Light Truck |
| Approach Angle | 24 degrees |
| Departure Angle | 16 degrees |
| Segment Market | N/A |
| Front/Rear Suspension | 1.015/1.575m |
| Fuel Type | Diesel |
| Engine Parameters | |
| Engine Model | Qingling Isuzu 4KH1CN5HS |
| Engine Brand | Qingling Isuzu |
| Engine Nickname | Isuzu 4KH1 |
| Number of Cylinders | 4 |
| Fuel Type | Diesel |
| Cylinder Arrangement | Inline |
| Displacement | 2.999L |
| Emission Standard | China V |
| Maximum Output Power | 96kw |
| Maximum Horsepower | 130hp |
| Maximum Torque | 290N·m |
| Maximum Torque RPM | 1500RPM |
| Rated RPM | 3400RPM |
| Cargo Box Parameters | |
| Cargo Box Form | Stake Side |
| Cargo Box Length | 3.235m |
| Cargo Box Width | 1.79m |
| Cargo Box Height | 0.38m |
| Cab Parameters | |
| Cab Type | Flat Top |
| Cab Width | N/A |
| Number of Passengers | 5 |
| Number of Seat Rows | Double |
| Transmission Parameters | |
| Transmission Model | Isuzu MSB-5SM |
| Transmission Brand | Isuzu |
| Shift Mode | Manual |
| Forward Gears | 5 |
| Reverse Gears | 1 |
| Chassis Parameters | |
| Front Axle Load | 1580KG |
| Rear Axle Load | 2910KG |
| Speed Ratio | 6.142 |
| Leaf Spring Count | 3/3+2 |
| Suspension Type (Front/Rear) | Leaf Spring Suspension |
| Tires | |
| Tire Specification | 7.00R16 8PR |
| Number of Tires | 6 |
| Control Configuration | |
| ABS Anti-Lock Braking System | Yes |
| Power Steering | N/A |
| Internal Configuration | |
| Air Conditioning Control | Manual |
| Multimedia Configuration | |
| External Audio Input (AUX/USB/iPod, etc.) | Yes |
| Radio | Yes |
| Lighting Configuration | |
| Front Fog Lights | Yes |
| Headlight Height Adjustable | Yes |
| Braking System | |
| Parking Brake | Hand Brake |
