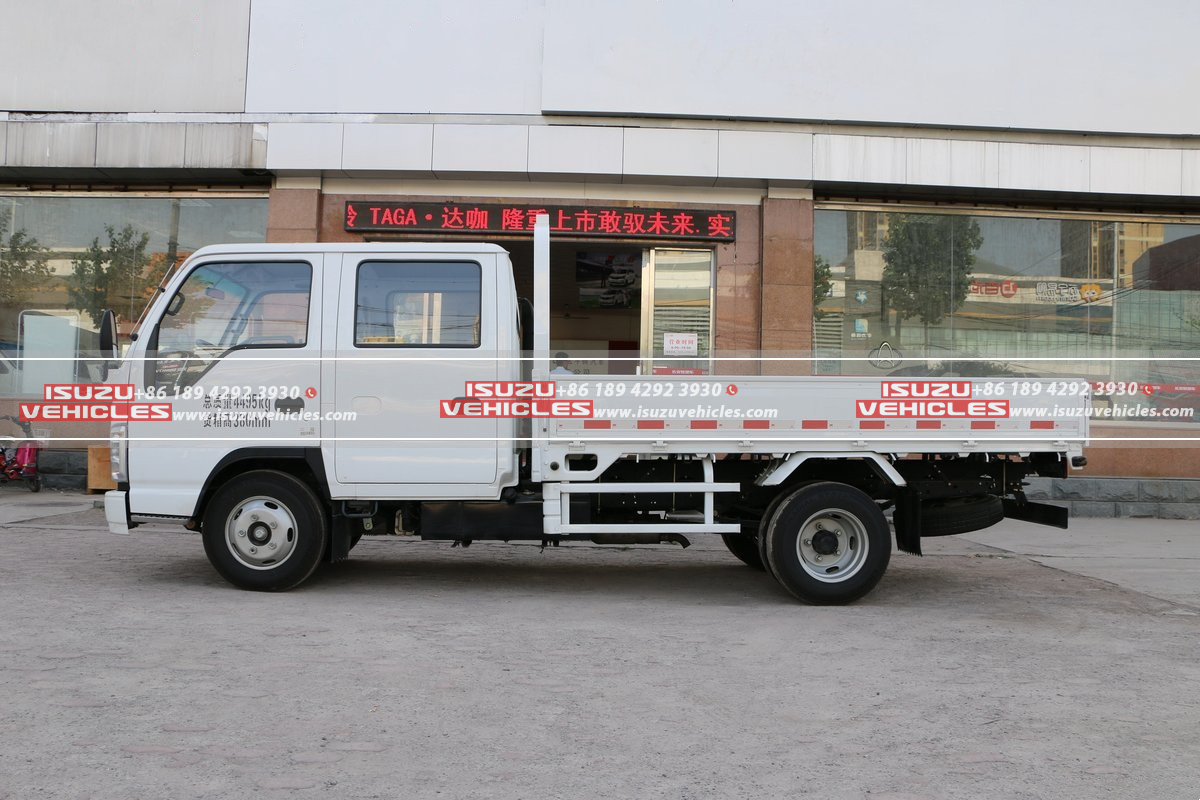

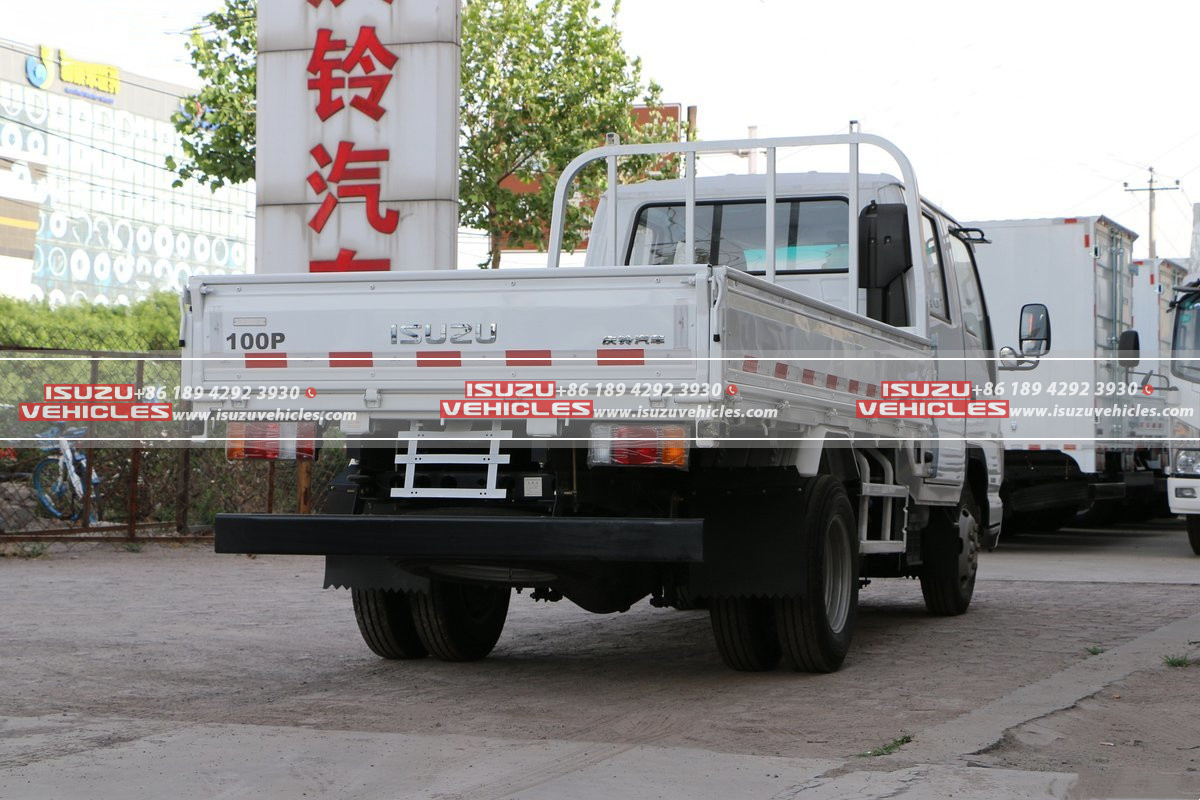

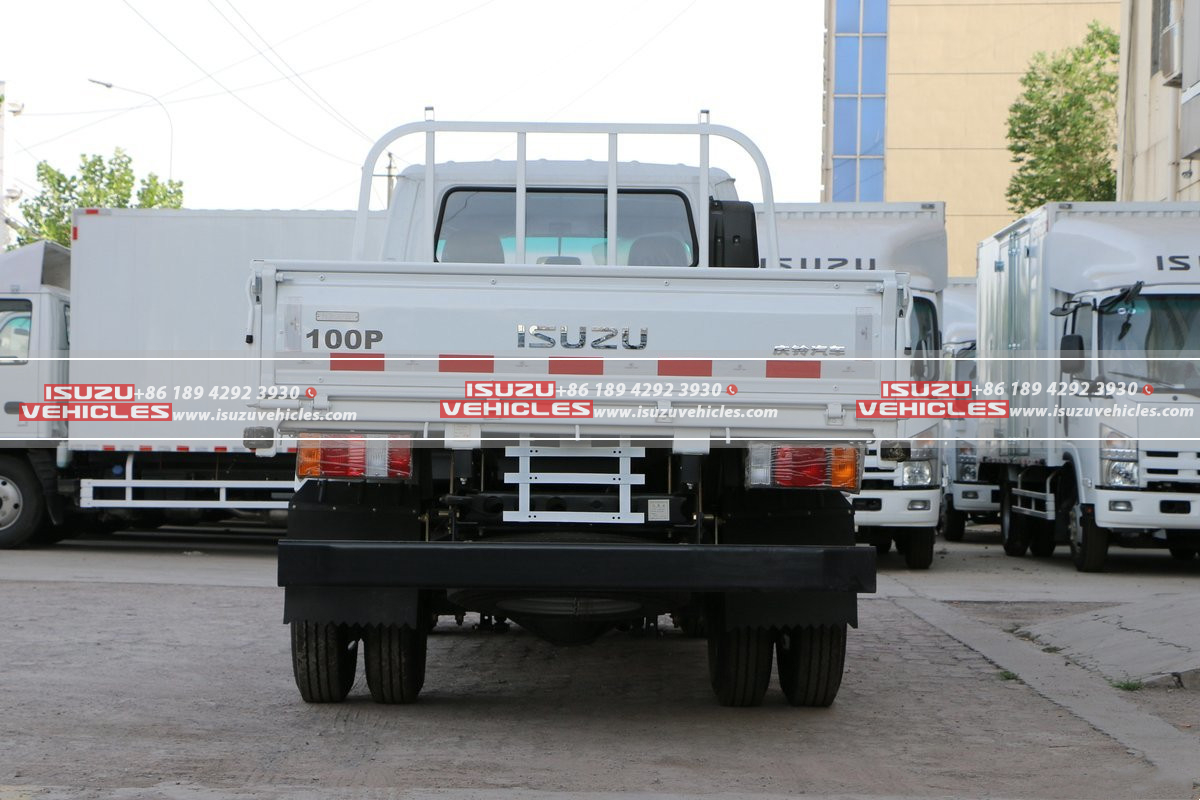

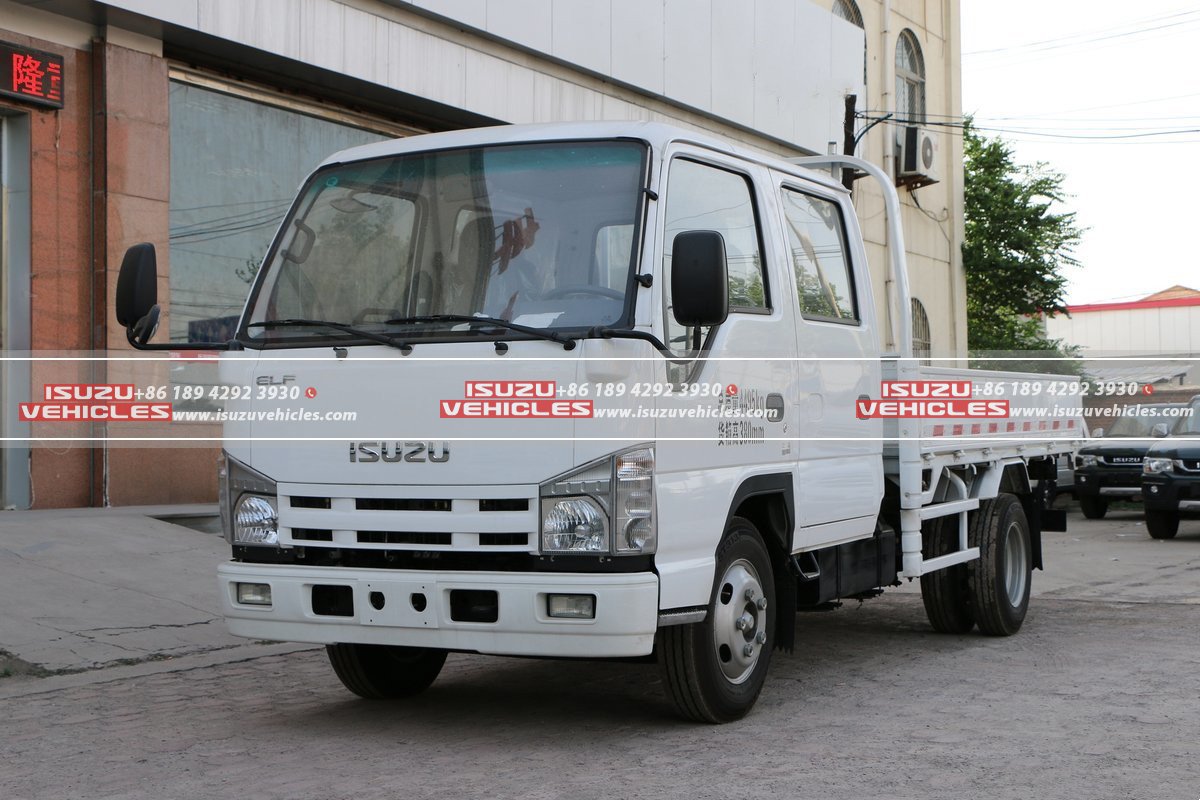

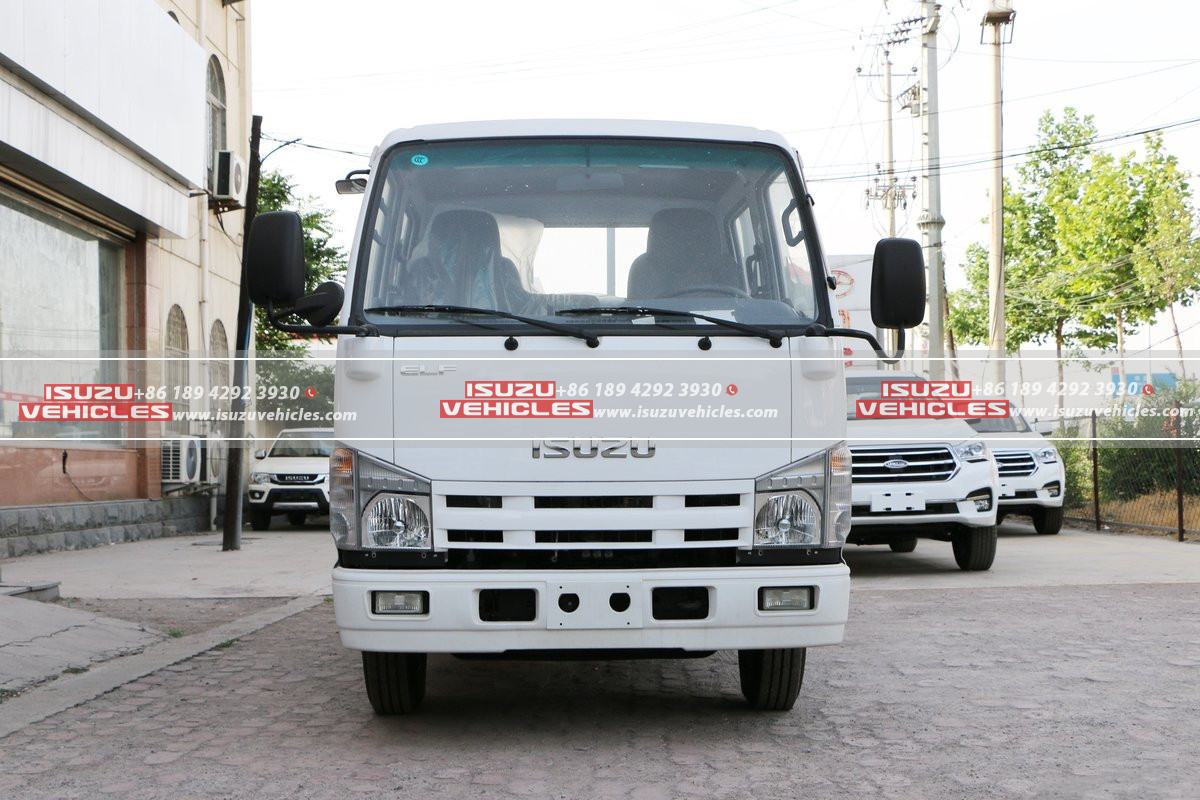

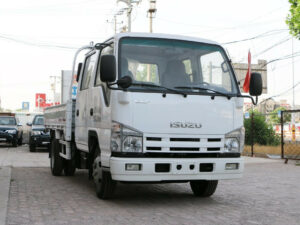

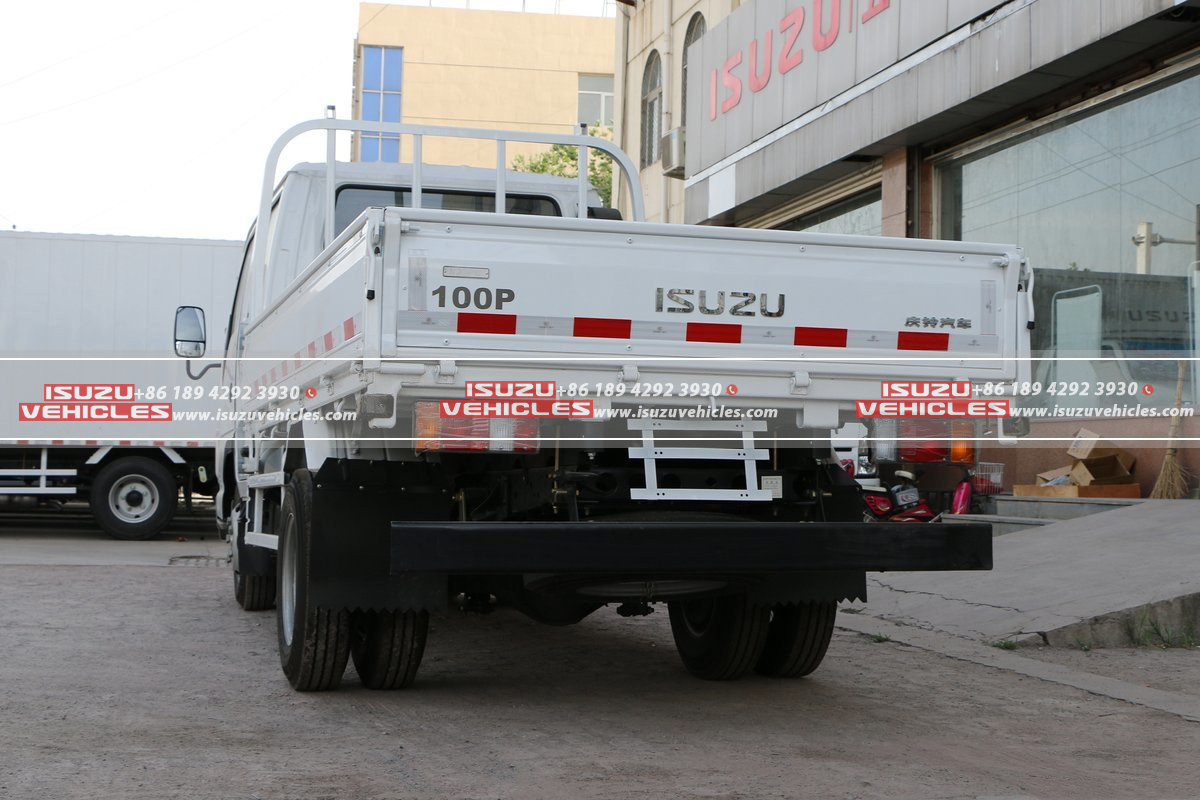

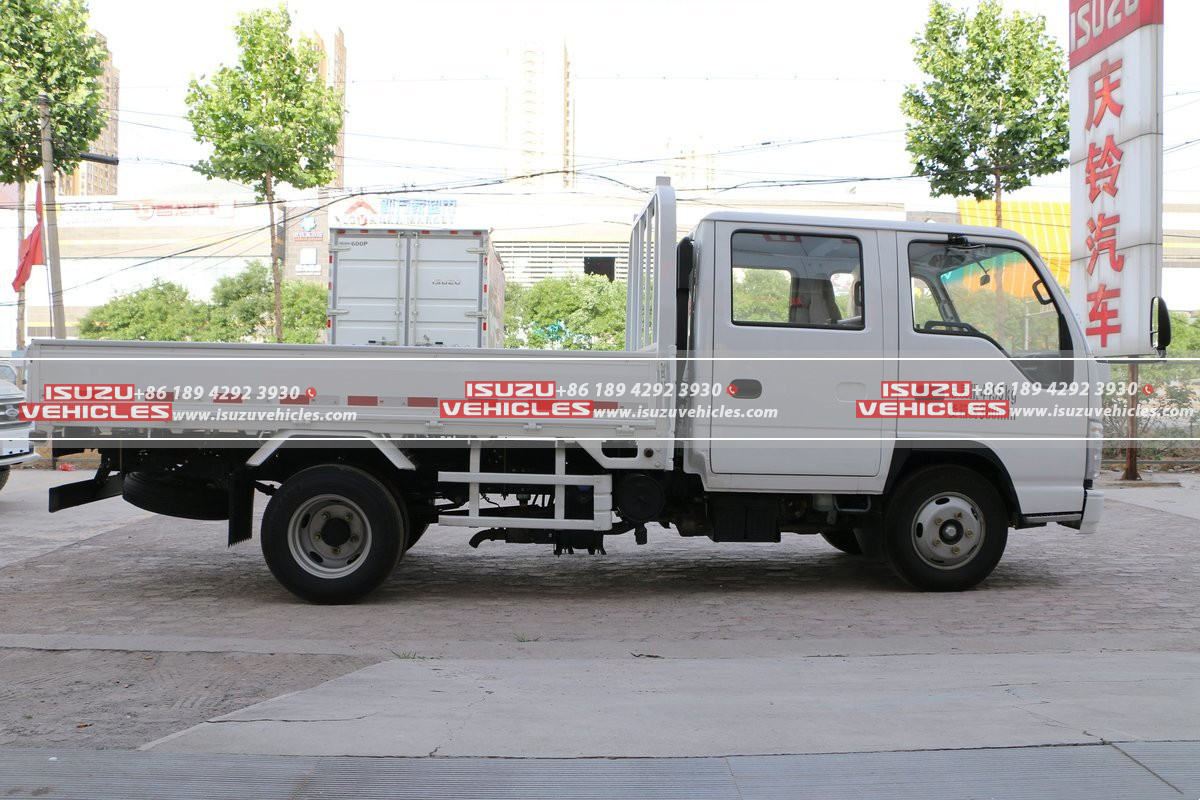

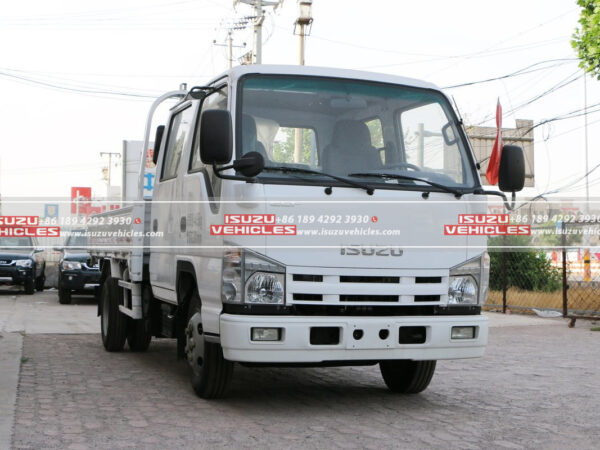

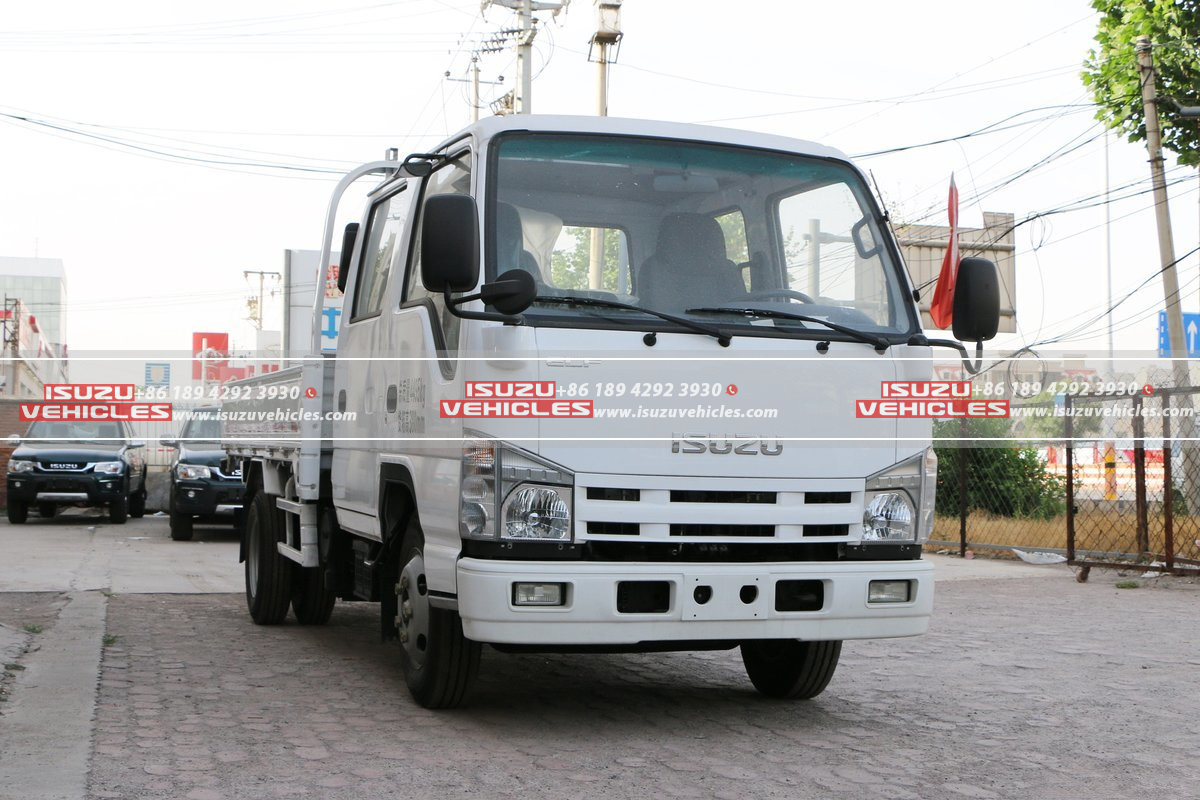

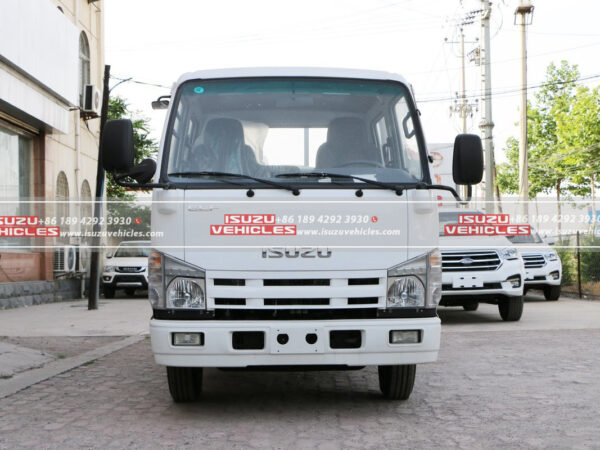

ISUZU Double Row Flatbed Dump Cargo Light Truck
Engineered for jobsite versatility and crew logistics, the ISUZU Double-Row Flatbed Dump Cargo Light Truck combines robust load-handling capabilities with 5-person seating capacity, making it ideal for construction teams, utility services, and regional delivery fleets. Built on a 4×2 drivetrain with a compact 4.8-meter footprint (1.695m width × 2.215m height), this Chongqing-manufactured workhorse delivers a 1.245-ton payload on its side-fence flatbed (2.065L × 1.6W × 0.415H meters), while maintaining agile maneuverability in urban worksites. Powered by a torque-rich 4-cylinder ISUZU 4KH1CN5HD diesel engine (130 HP / 290 N·m) paired with a 5-speed manual transmission, it achieves a 98 km/h top speed for efficient inter-site transit. With a 3.66-ton GVW and optimized axle load distribution (1,600kg front / 2,060kg rear), this model balances productivity with durability under demanding conditions.
Key Engineering Features
1. Powertrain & Performance
- High-Torque Efficiency: The 2.999L ISUZU 4KH1CN5HD engine generates 96 kW (130 HP) and a class-leading 290 N·m of torque at low RPM, ensuring confident acceleration even when loaded near capacity.
- Durability-Tested Drivetrain: The ISUZU MSB-5S manual gearbox and 5.571 rear axle ratio provide seamless gear transitions and reduced driveline stress during frequent stop-start operations.
- Fuel Economy Optimization: Engine mapping prioritizes 15–18% better fuel efficiency than comparable light trucks in its class, validated under ISO 9001:2024 testing protocols.
2. Chassis & Load Management
- Heavy-Duty Suspension: 6/5 progressive leaf springs absorb road irregularities while stabilizing loads during dump operations, preventing cargo shift on uneven terrain.
- Axle Load Engineering: A 60/40 front-rear weight distribution (1,600kg/2,060kg) maximizes tire contact and braking efficiency, critical for slope operations.
- Tire Reliability: Six 7.00R15 10PR radial tires deliver puncture resistance and enhanced sidewall rigidity for debris-strewn construction zones.

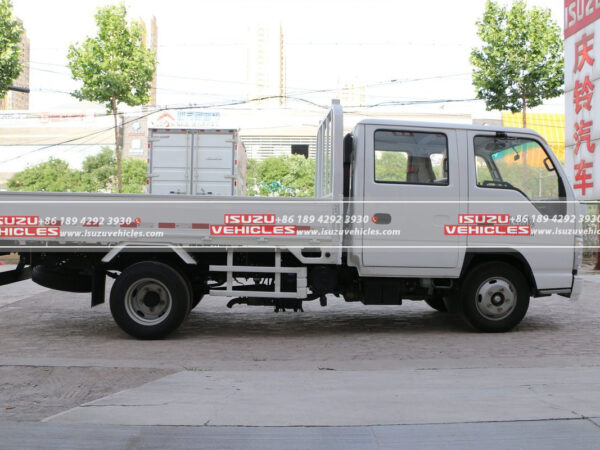

3. Flatbed Functionality
- Jobsite-Ready Configuration: The low-profile 415mm-height steel flatbed with removable side fences simplifies loading of palletized goods, piping, or bulk materials using standard forklifts.
- Dump Mechanism Compatibility: Pre-engineered hydraulic mount points support aftermarket tipper installations (up to 25° tilt angle) for aggregate or waste disposal.
- Anti-Corrosion Treatment: Zinc-phosphate coating on all cargo bed surfaces extends service life in high-moisture environments.
4. Crew-Focused Cabin Design
- Dual-Row Practicality: Accommodates 5 occupants (driver + 4 passengers) with ergonomically contoured seats and 1,200mm legroom in the second row, facilitating crew transport to remote sites.
- Visibility Enhancements: A short 1.015m front overhang and vertically stacked headlights minimize blind spots during night operations or tight reversing.
- Durability Features: Reinforced steel cab mounts and seam-sealed door panels reduce NVH (noise, vibration, harshness) by 22 dB at highway speeds.
5. Operational Safety & Serviceability
- Control Systems: Standard hydraulic power steering and ABS anti-lock brakes ensure precise handling during emergency stops on gravel or wet roads.
- Maintenance Simplification: Top-access engine bay design and centralized grease points cut service time by ≈40% versus competitors.
- Extended Duty Cycles: Synthetic driveline fluids support 15,000-km service intervals under moderate-load conditions.
SPECIFICATIONS
| Category | Specifications |
|---|---|
| Origin | Chongqing, China |
| Vehicle Type | Cargo Truck |
| Drive Configuration | 4×2 |
| Wheelbase | 2,490 mm |
| Overall Length | 4.8 m |
| Overall Width | 1.695 m |
| Overall Height | 2.215 m |
| Front/Rear Overhang | 1.015 m / 1.295 m |
| Rated Payload | 1.245 tons |
| Gross Vehicle Weight | 3.66 tons |
| Top Speed | 98 km/h |
| Cargo Box Type | Side Fence |
| Cargo Box Length | 2.065 m |
| Cargo Box Width | 1.6 m |
| Cargo Box Height | 0.415 m |
| Engine Model | Qingling ISUZU 4KH1CN5HD |
| Cylinder Count | 4 |
| Displacement | 2.999 L |
| Horsepower | 130 HP |
| Output Power | 96 kW |
| Max Torque | 290 N·m |
| Transmission Model | ISUZU MSB-5S |
| Gearshift Type | Manual |
| Forward Gears | 5 |
| Reverse Gears | 1 |
| Seating Capacity | 5 Persons |
| Row Count | Double Row |
| Front Axle Capacity | 1,600 kg |
| Rear Axle Capacity | 2,060 kg |
| Rear Axle Ratio | 5.571 |
| Leaf Springs | 6 / 5 |
| Tire Count | 6 |
| Tire Size | 7.00R15 10PR |
