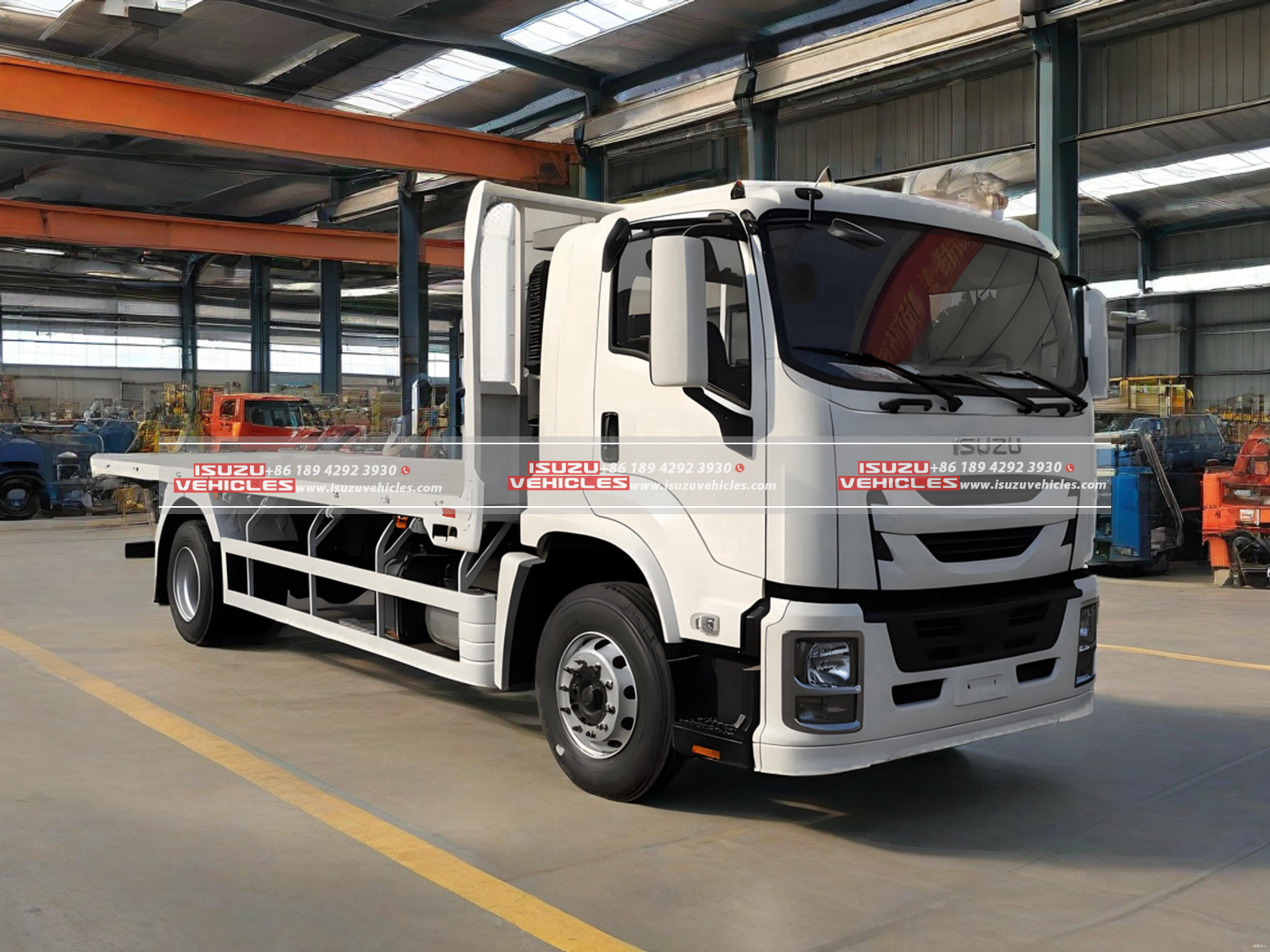

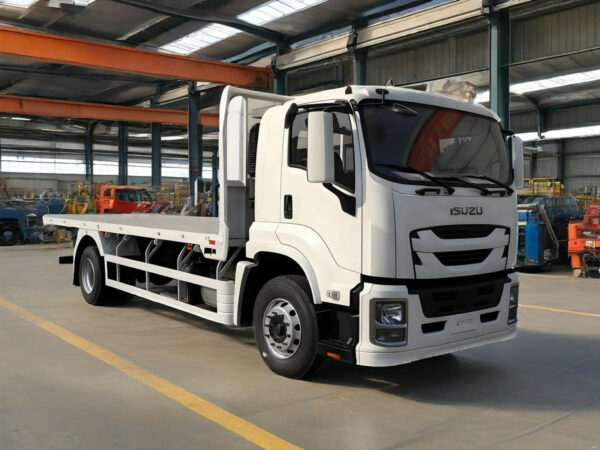

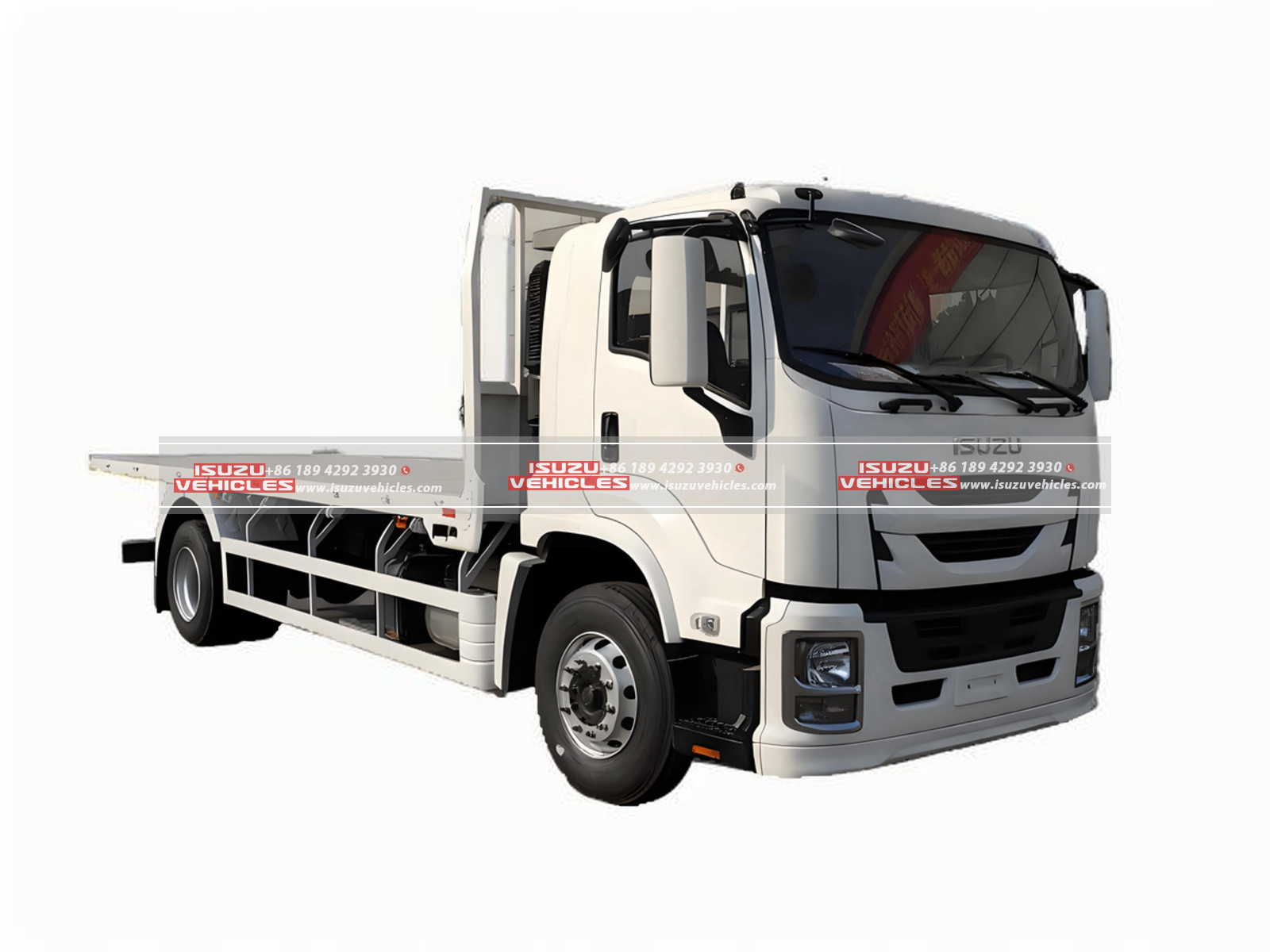

ISUZU 6T FTR Flatbed Wrecker Truck

Engineered for Demanding Recovery: The ISUZU 6T FTR Flatbed Wrecker Built upon the exceptionally reliable and robust ISUZU FTR 4×2 chassis, featuring a commanding 205HP ISUZU 4HK1-TCG60 engine and a strategically optimized 3900mm wheelbase, this flatbed wrecker is meticulously configured to excel in the most challenging vehicle recovery and transport scenarios. The foundation of its impressive capability lies in the purpose-engineered FB6U8 body unit, which integrates a substantial 6-ton capacity patterned flatbed constructed from durable 5mm thick steel with a formidable 8-ton rated underlift system, delivering exceptional operational versatility for a wide range of roadside assistance and impound duties.

Critical to its structural integrity during heavy lifting operations, the boom assembly is securely mounted on an integrated sub-frame, ensuring optimal force distribution and minimizing stress points on the chassis. For powerful and reliable winching operations essential to recovery work, the wrecker is equipped with a high-performance 50KN planetary winch, supplied ready for action with 25 meters of robust steel cable and featuring convenient options like a winch air clutch release and an optional remote control to enhance operator safety and flexibility. The vehicle arrives as a comprehensive, ready-to-deploy solution, including essential accessories such as four heavy-duty lashing belts, a secure chain hook, two versatile trolleys, and two pairs of boom forks with bases, significantly reducing the need for immediate aftermarket additions.

An innovative L-type automatic tire-lock system ensures swift and secure positioning of recovered vehicles onto the bed, significantly enhancing operational speed and safety during loading. Further augmenting its on-site utility, an auxiliary air line assembly is standard, providing readily available pneumatic power to operate air tools or inflate tires directly at the recovery scene. This meticulously curated package, seamlessly integrated onto the proven Isuzu FTR platform, culminates in a powerful, fully-equipped, and exceptionally reliable asset for professional towing and recovery services demanding peak performance and durability.

Key Features

I. Chassis & Cab Foundation

• Robust ISUZU FTR 4×2 Chassis: Provides the dependable backbone for heavy-duty operations.
• Powerful ISUZU 4HK1-TCG60 Engine: Delivers 205 HP and 647 N.m torque (EURO 6 compliant) for strong performance.
• ISUZU MLD-6Q Manual Transmission: Features 6 forward gears + 1 reverse with synchronizers for smooth shifting.
• Sleeper Cab (VC61 4X Model): Offers a 2480mm wide workspace with 4-point hydraulic suspension for driver comfort.
• Advanced Driver Environment: Includes power steering, adjustable driver seat, tilt & telescopic multifunction steering wheel, power windows, central locking, and a multi-function LCD instrument panel.
• Climate Control: Factory-fitted air conditioning ensures operator comfort in all weather.
• Dual Circuit Air Brakes with ABS: Enhanced by an engine exhaust brake for superior stopping power and control.

II. Body & Platform System

• High-Capacity Design: Features a 6-ton load rated flatbed (5200mm L x 2500mm W) paired with an 8-ton maximum capacity underlift.
• Durable Construction: Platform utilizes 5mm thick patterned steel floor and is finished with black acrylic urethane paint for corrosion resistance.
• Full Length Subframe with Wear Pads: Provides critical structural reinforcement and reduces friction during platform movement.
• Optimized Tilt Mechanism: Employs dual tilt cylinders and one bed extension cylinder, achieving a minimum tilt angle of 9° and a platform working stroke of 3290mm.
• Secure Roller Bed System: Incorporates positive lock-down rollers and an anti-tilt feature for safe vehicle retention.
• Enhanced Stability: Includes hydraulic dock stabilizers to secure the truck during loading/unloading.
• Versatile Tie-Down Points: Offers 7 strategically placed tie-down points (2 front, 5 rear) and 2 front safety chains for securing loads.
• Practical Storage: Features chain trays on both driver and passenger sides for equipment organization.

III. Recovery & Lifting Mechanisms

• Powerful 50KN Planetary Winch: Delivers substantial pulling force with 25 meters of φ11mm steel cable.
• Efficient Underlift System: Offers an effective length of 2200mm, a telescopic stroke of 2000mm, and tilt angles of +7° upward / -9.5° downward (lifting 3000kg when fully extended).
• Hydraulic Control: Relies on high-quality components, including an Italian Hyde hydraulic valve.
• Cable Management: Includes a cable tensioner for optimal winch operation.

IV. Operational Safety & Convenience

• Dual Illuminated Controls: Allow for safe and intuitive operation in low-light conditions.
• Comprehensive Lighting & Alarms: Features bright LED lights and an audible back-up alarm.
• Standard Mud Flaps: Help protect following vehicles and comply with road regulations.
• Essential Electrics: 24V negative grounded system powered by 2x 12V-70Ah batteries.

V. Core Dimensions & Weights

• Overall Size: 6450mm (L) x 2500mm (W) x 2800mm (H)
• Wheelbase: 3900mm
• Gross Vehicle Weight Rating (GVWR): 19300 kg
• Curb Weight: 9600 kg
• Payload Capacity: 9700 kg
• Axle Ratings: Front 6300 kg / Rear 13000 kg

SPECIFICATIONS:
