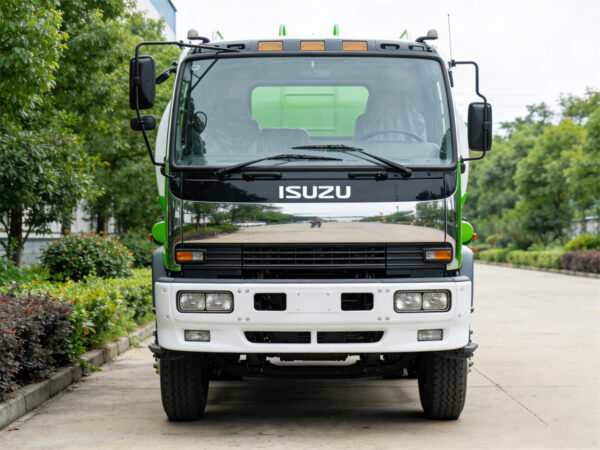

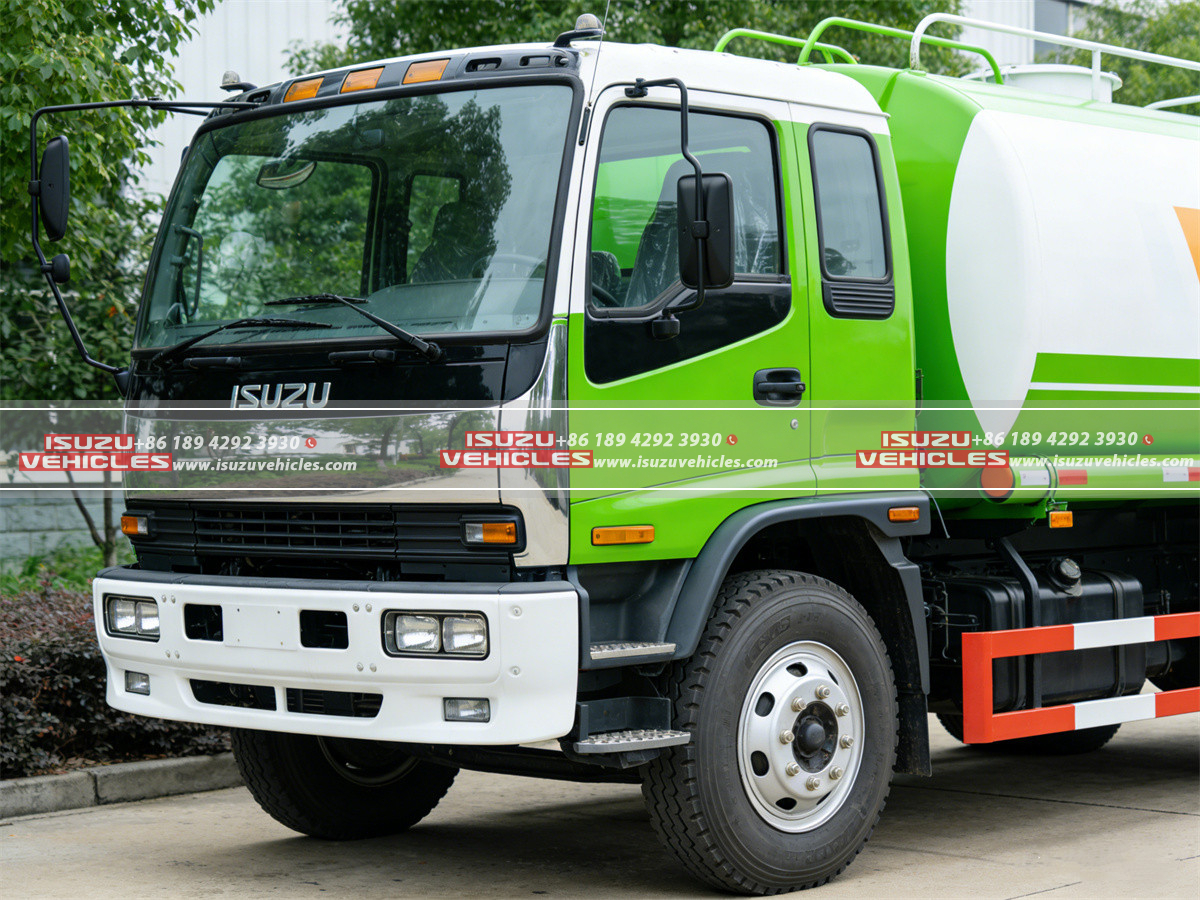

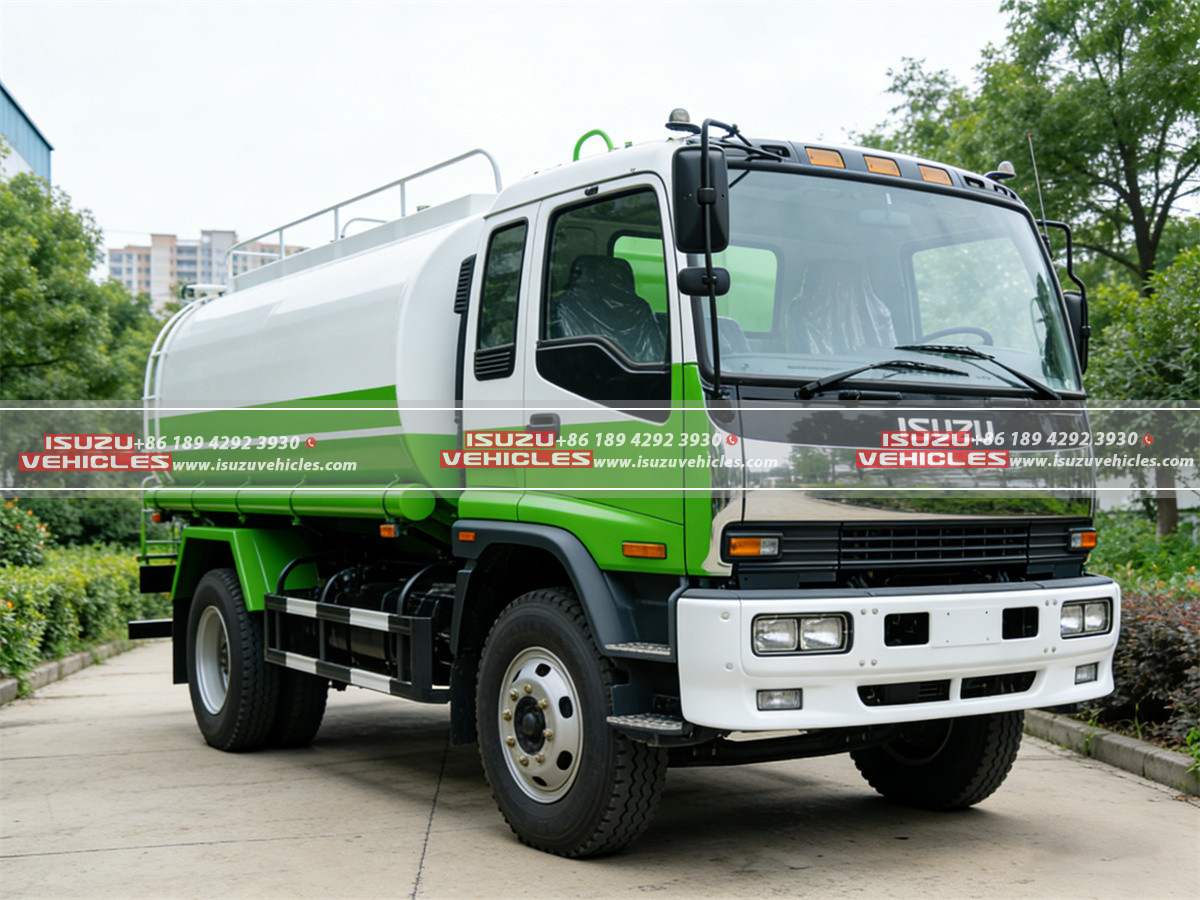

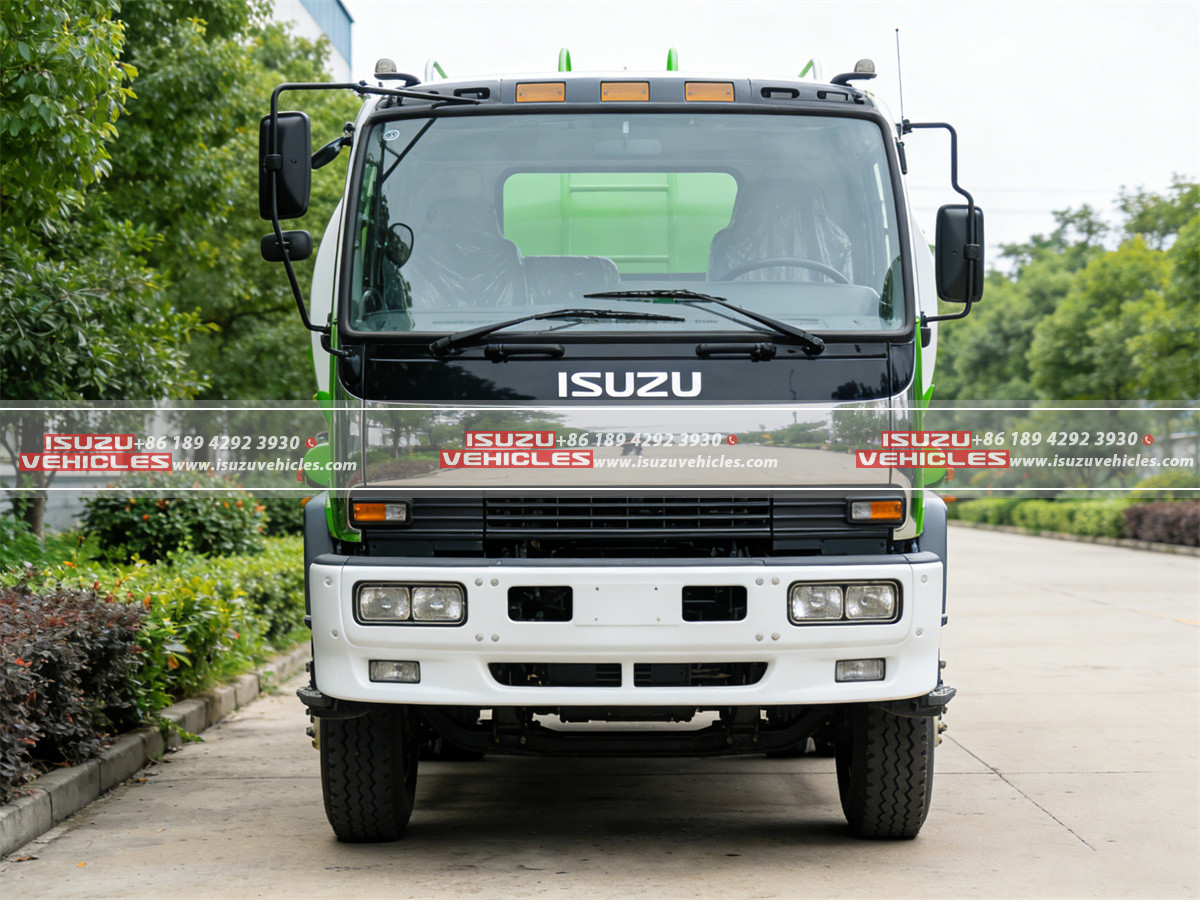

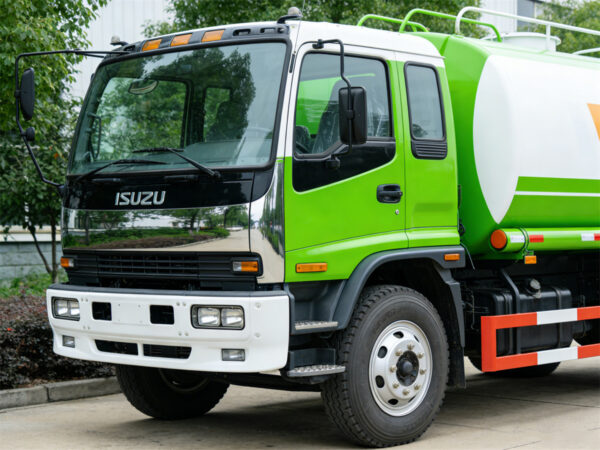

ISUZU F Series 8000L Water Sprinkler Truck

The ISUZU F Series 8000L Water Sprinkler Truck is a versatile and reliable municipal service vehicle designed for urban sanitation, road maintenance, and environmental management. Built on the durable ISUZU F Series chassis, this model combines dependable power, efficient water spraying capability, and practical operational features, making it well suited for city roads, highways, construction areas, and landscaping projects.

Powered by the proven ISUZU 4HK1-TCG60 diesel engine, the truck delivers stable performance with 205 horsepower and 650 N·m of torque, ensuring smooth operation even under heavy working conditions. The 6-speed ISUZU MLD-6Q manual transmission provides balanced power delivery and efficient fuel consumption, allowing the vehicle to maintain a maximum speed of 95 km/h while carrying a full water load.

With an overall length of 7800 mm, wheelbase of 4500 mm, and a gross vehicle weight of 16,000 kg, the truck offers a well-balanced structure that ensures both maneuverability and stability. The 8000-liter carbon steel water tank is engineered with an elliptical design and internal anti-wave plates, which reduce water sloshing during travel and improve vehicle safety. In addition, the tank interior is coated with epoxy anti-corrosion treatment, extending service life and ensuring reliable long-term performance.

Designed for practical field operations, the truck integrates a high-efficiency self-priming centrifugal water pump with a rated flow of 60 m³/h and a lift capacity of 90 meters, enabling strong and consistent spraying performance. This configuration allows the vehicle to perform multiple functions such as road washing, dust suppression, and landscaping irrigation, making it an essential vehicle for municipal and environmental service fleets.

Key Features

Reliable ISUZU Powertrain

At the core of the truck is the ISUZU 4HK1-TCG60 turbocharged diesel engine, a highly regarded engine known for durability, efficiency, and stable power output. With a displacement of 5.193 liters, the engine utilizes high-pressure common rail fuel injection, ensuring improved fuel efficiency and reduced emissions while complying with Euro VI / China VI emission standards.

Paired with the ISUZU MLD-6Q 6-speed manual gearbox, the powertrain delivers smooth gear transitions and optimal torque distribution for both highway driving and low-speed operational tasks such as road washing or irrigation.

High-Capacity 8000L Water Tank

The sprinkler truck is equipped with an 8000-liter (8 CBM) water tank constructed from high-quality carbon steel with a 4 mm thickness, providing excellent durability and structural strength. The elliptical tank design enhances vehicle balance while reducing the impact of water movement during transportation.

Inside the tank, anti-wave plates help stabilize water flow and improve safety when the vehicle is in motion. The interior surface is treated with epoxy anti-corrosion coating, protecting the tank against rust and extending its operational lifespan. A top manhole with safety cover allows convenient inspection and maintenance, while an external sight level gauge enables operators to monitor the water level at any time.

Efficient Water Pump System

The vehicle utilizes the 80QZB-60/90 self-priming centrifugal pump, which is powered through the Power Take-Off (PTO) from the engine. This pump delivers a rated flow of 60 m³/h with a maximum lift of 90 meters and a suction height of up to 7 meters, allowing the truck to draw water from nearby sources such as rivers, reservoirs, or hydrants.

This high-efficiency pumping system ensures stable water pressure and reliable spraying performance during daily municipal operations.

Multi-Functional Spraying System

To accommodate various road cleaning and environmental tasks, the truck is equipped with multiple spraying devices that provide flexible operation.

The front sprinklers are installed on both sides of the front bumper to perform low-pressure road flushing, effectively cleaning road surfaces and controlling dust. At the rear, fan-shaped spray nozzles distribute water evenly across a wide area, making them suitable for dust suppression on large surfaces.

In addition, side sprayers extend the spraying coverage for roadside vegetation or curbside cleaning, while the rear-mounted water cannon provides long-distance water spraying with a range of more than 35 meters and 360-degree adjustable rotation, making it ideal for landscaping irrigation and emergency water supply.

The overall spray width ranges from 14 to 18 meters, allowing the truck to efficiently cover wide road sections in a single pass.

Durable Chassis and Suspension

The truck is supported by a robust ISUZU F Series 4×2 chassis, engineered for stability and durability under heavy operational loads. The front axle capacity of 6000 kg and rear axle capacity of 10,000 kg ensure reliable weight distribution and safe driving performance.

A heavy-duty leaf spring suspension system (8 / 10 + 8 configuration) enhances load-bearing capability and reduces vibration when traveling on uneven road surfaces, ensuring consistent performance in demanding working environments.

Safe and Practical Operation Design

Operator safety and ease of use are key considerations in the truck’s design. The vehicle is equipped with a full air braking system, spring energy parking brake, and exhaust auxiliary brake, ensuring reliable braking performance under various driving conditions. The inclusion of ABS further improves vehicle control and braking stability.

At the rear of the vehicle, an anti-slip operation platform allows operators to safely control the manual water cannon, while rear working lights provide sufficient illumination during night operations. Additional safety features such as LED warning lamps, reverse alarm, and emergency shutoff system help enhance operational safety in busy urban environments.

Convenient Pipeline and Control System

The water pipeline system is built with anti-corrosion steel piping to ensure long-term durability. The truck includes a DN80 inlet port, two DN65 outlet ports, and a DN50 drain valve, allowing flexible water intake, discharge, and tank cleaning operations.

A stainless steel filtration system is installed to prevent debris from entering the pump and pipeline, protecting the equipment and ensuring smooth water flow. All spraying operations are managed through a manual valve control system, providing straightforward and reliable operation for drivers and maintenance crews.

SPECIFICATIONS
