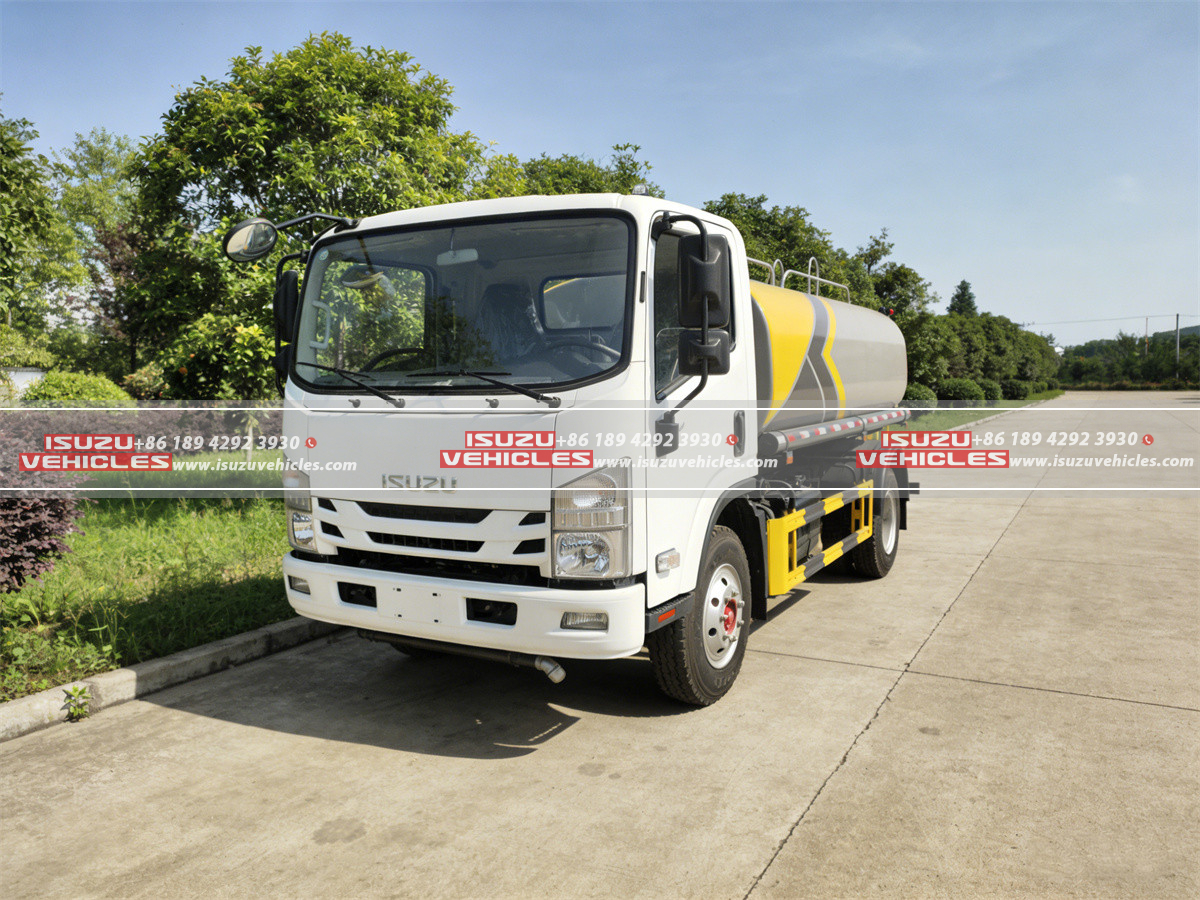

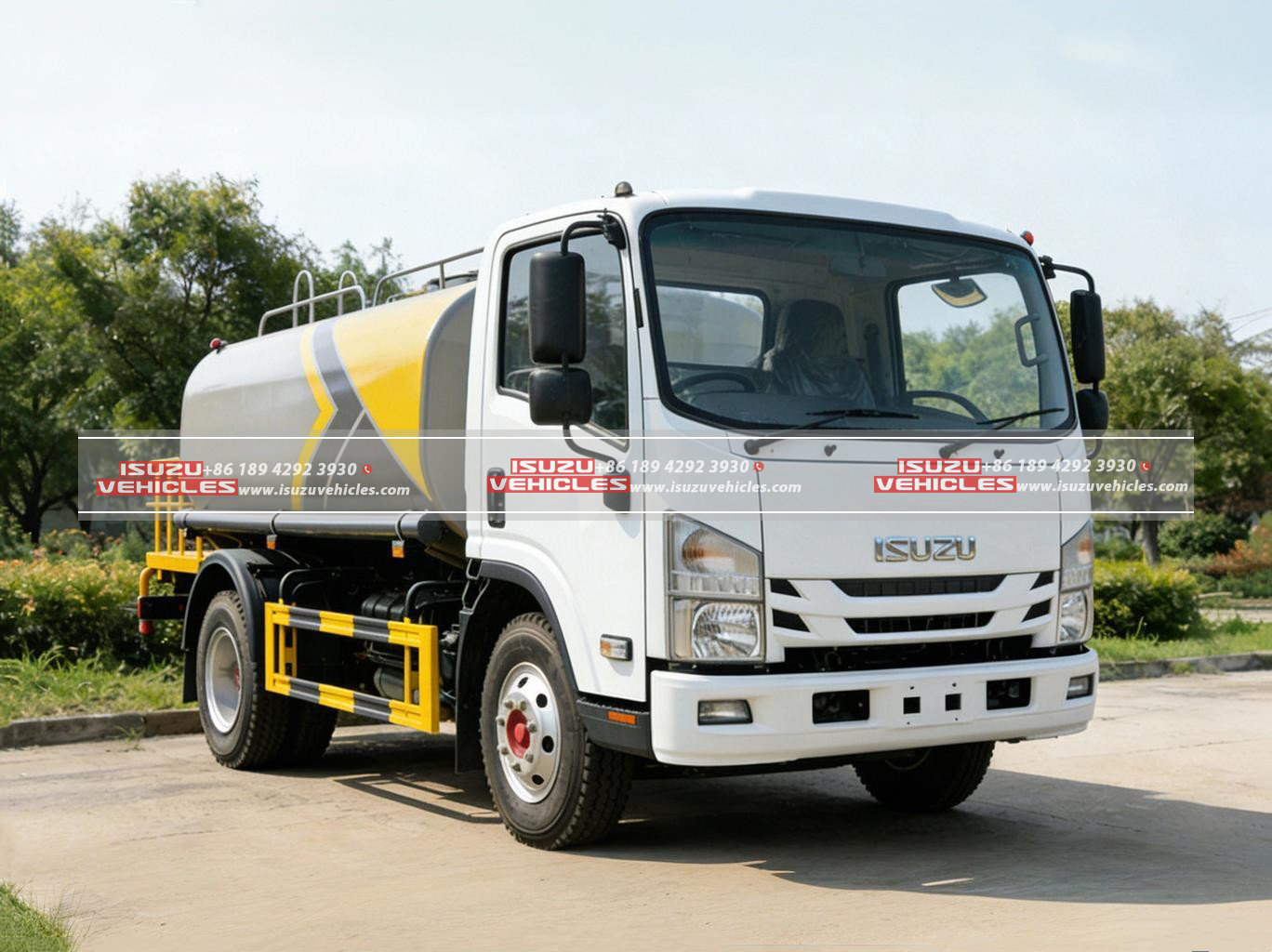

ISUZU ELF 5,000L Water Sprinkler Truck
The ISUZU ELF 5,000L Water Sprinkler Truck is a compact yet highly efficient municipal service vehicle designed for road cleaning, dust suppression, landscaping irrigation, and environmental maintenance. Built on the dependable ISUZU ELF 4×2 chassis, this truck combines reliable engineering, efficient spraying technology, and a durable tank structure, making it an excellent solution for urban sanitation departments, construction sites, and municipal maintenance teams.
Powered by the robust ISUZU 4KH1CN5HS turbocharged diesel engine, the vehicle delivers 130 horsepower and stable torque performance, ensuring reliable power for both road transportation and spraying operations. The engine’s 2.999-liter displacement and Euro V emission standard compliance provide an ideal balance between fuel efficiency and environmental responsibility, which is essential for modern urban service vehicles.
The truck features a compact design with overall dimensions of 5,995 × 1,980 × 2,450 mm and a wheelbase of 3,360 mm, allowing it to maneuver easily through narrow streets, residential communities, and densely populated urban areas. With a gross vehicle weight of 7,300 kg and a rated payload capacity of 3,000 kg, the vehicle is well suited for daily municipal water spraying and road maintenance operations.
At the core of the vehicle’s functionality is the 5,000-liter stainless steel water tank, constructed from high-quality 304 stainless steel with a 6 mm tank body thickness. The tank incorporates reinforced internal anti-wave plates that stabilize water movement during transportation, ensuring safe driving performance and extended equipment durability.
Features
Reliable ISUZU Powertrain
The truck is equipped with the proven ISUZU 4KH1CN5HS inline four-cylinder turbocharged diesel engine, which is widely recognized for its durability and fuel-efficient performance in light-duty commercial vehicles. With a maximum power output of 96 kW (130 HP), the engine delivers stable performance for both driving and operating the water pump system.
Paired with the ISUZU MSB-5 manual transmission, the drivetrain offers five forward gears and one reverse gear, enabling smooth power delivery and precise control under different operating conditions. This reliable powertrain combination ensures long service life and consistent operational efficiency.
Durable 5,000L Stainless Steel Water Tank
The truck features a 5,000-liter elliptical water tank made from 304 stainless steel, which offers excellent corrosion resistance and structural strength. The 6 mm tank body thickness provides enhanced durability, ensuring that the tank can withstand continuous use in demanding municipal environments.
Inside the tank, reinforced anti-wave plates reduce the impact of water movement during driving, improving vehicle stability and operational safety. This robust tank design ensures long-term reliability even during frequent filling and spraying cycles.
High-Efficiency Sprinkler Pump System
The vehicle is equipped with a stainless steel self-priming sprinkler pump, designed to deliver powerful and consistent water pressure during spraying operations. With a flow rate of 60 m³/h and a maximum lift height of 90 meters, the pump provides strong water output suitable for large road surfaces and landscaping tasks.
The pump also features a self-priming height of over 7 meters, allowing the vehicle to draw water from various sources such as ponds, rivers, or reservoirs when necessary. This capability greatly improves the operational flexibility of the truck in different environments.
Multi-Functional Spraying System
To meet various municipal maintenance requirements, the truck is equipped with a comprehensive multi-directional spraying system. The front flushing nozzles are designed for effective road washing, helping remove dust and debris from road surfaces.

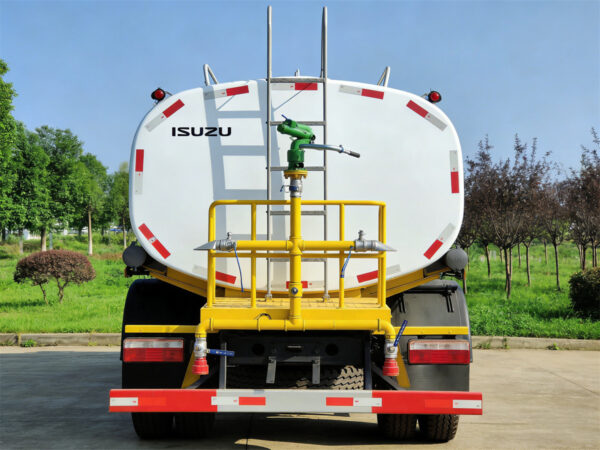

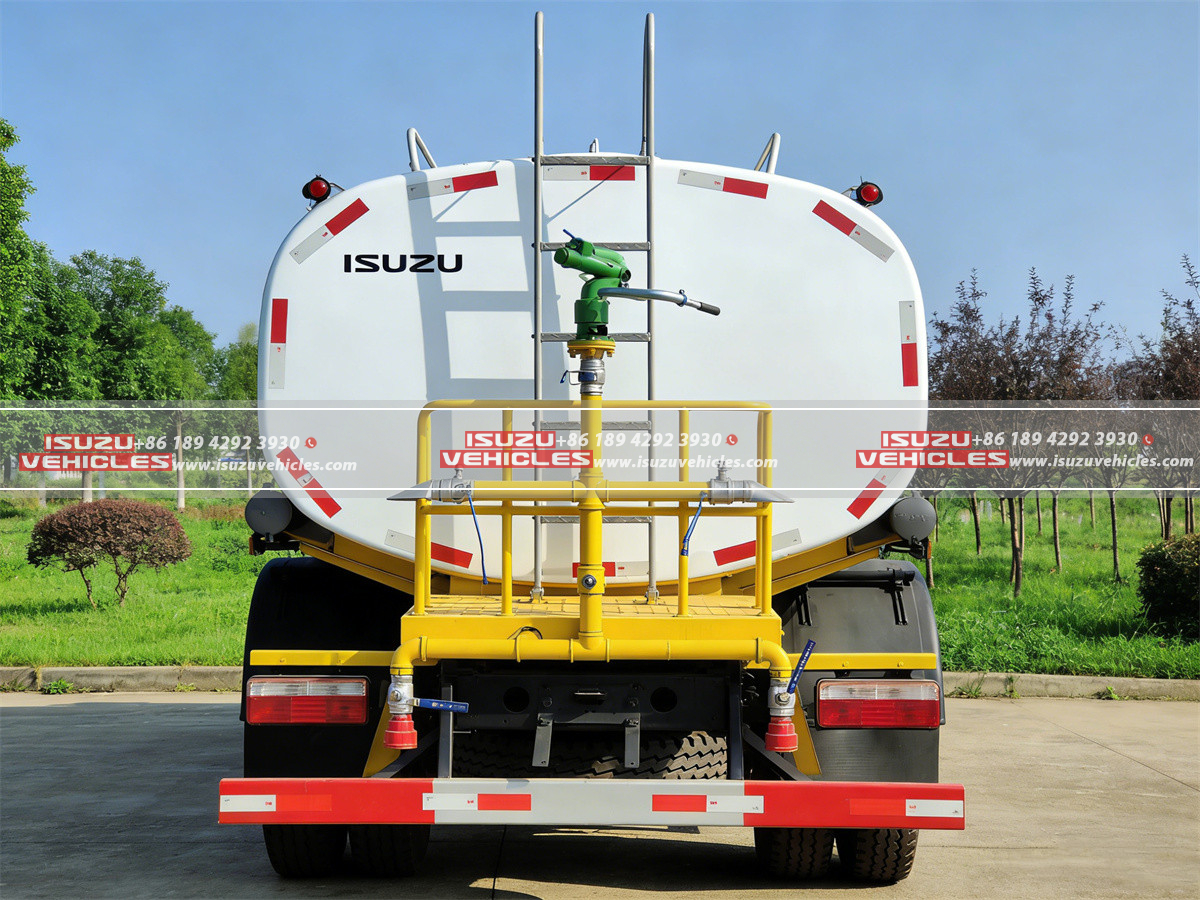

Additional side sprayers allow the truck to irrigate roadside plants and clean curbs efficiently, while rear sprinkling nozzles help suppress dust across wider road areas. At the rear platform, a 360-degree rotating water cannon provides powerful long-distance spraying with a range exceeding 35 meters, making it suitable for landscaping irrigation, road cooling, and emergency firefighting support.
The water cannon offers adjustable spray patterns, including heavy rain, medium rain, light rain, drizzle, and mist, allowing operators to adapt water flow according to specific operational needs.
Efficient Water Suction Capability
The water sprinkler vehicle is capable of drawing water directly from external sources thanks to its efficient suction system. With a maximum suction height exceeding 7 meters, the truck can refill its water tank from natural water sources when hydrants are unavailable.
Under normal operating conditions, the system can complete full tank suction in less than 15 minutes, significantly improving operational efficiency during extended field operations.
Practical Pipeline and Accessories
The pipeline system is constructed from corrosion-resistant steel, ensuring durability and reliable performance under constant water pressure. The truck includes essential accessories such as one self-flow valve, one fire joint connection, and two water pipes, allowing operators to quickly connect external water sources or extend spraying capabilities when required.
These accessories enhance the versatility of the truck, making it suitable for a wide range of municipal and environmental maintenance applications.
Operator-Friendly Cabin and Safety Options
The vehicle features the ISUZU ELF day cab, which is designed with durable steel construction and accommodates three occupants, including the driver and two passengers. The cabin can be configured in either left-hand drive or right-hand drive, allowing it to meet the requirements of different international markets.
Optional equipment such as rear working lights, LED warning beacons, and a rear camera system can be installed to enhance operational safety, particularly when working in busy urban areas or during nighttime operations.
The ISUZU ELF 5,000L Water Sprinkler Truck combines reliable ISUZU engineering, durable stainless steel tank construction, and a versatile spraying system, making it an efficient and practical solution for municipal sanitation, road cleaning, landscaping irrigation, and environmental maintenance operations.
SPECIFICATIONS
| Item | Details |
|---|---|
| Chassis Brand | ISUZU |
| Chassis Model | ISUZU ELF |
| Drive Type | 4×2 |
| Overall Dimensions (L×W×H) | 5,995 × 1,980 × 2,450 mm |
| Wheelbase | 3,360 mm |
| Gross Vehicle Weight (GVW) | 7,300 kg |
| Curb Weight | 4,300 kg |
| Rated Payload | 3,000 kg |
| Front Axle Capacity | 2,600 kg |
| Rear Axle Capacity | 4,700 kg |
| Tire Size | 7.00R16 |
| Number of Tires | 6 + 1 Spare |
| Engine Brand | ISUZU |
| Engine Model | 4KH1CN5HS |
| Engine Type | Inline 4-cylinder Turbocharged Diesel |
| Displacement | 2.999 L |
| Maximum Power | 96 kW |
| Maximum Horsepower | 130 HP |
| Emission Standard | Euro V |
| Fuel Type | Diesel |
| Transmission Brand | ISUZU |
| Transmission Model | MSB-5 |
| Transmission Type | Manual |
| Gears | 5 Forward + 1 Reverse |
| Operation | Manual |
| Cabin Model | ISUZU ELF Day Cab |
| Driving Type | Left-hand or Right-hand Drive |
| Structure | Steel Construction |
| Seat Capacity | 3 Persons |
| Configuration | Single Row, Flat Floor |
| Tank Capacity | 5,000 Liters |
| Tank Shape | Elliptical |
| Tank Material | Stainless Steel 304 |
| Tank Body Thickness | 6 mm |
| Tank Structure | Reinforced with Internal Anti-wave Plates |
| Spraying Width | ≥ 14 meters |
| Water Cannon Range | ≥ 35 meters |
| Pump Self-priming Height | ≥ 7 meters |
| Pump Flow Rate | 60 m³/h |
| Pump Lift Height | 90 meters |
| Pump Type | Stainless Steel Self-Priming Sprinkler Pump |
| Front Sprinkler | Front Flushing Nozzles |
| Side Sprayers | Left & Right Side Spraying |
| Rear Sprinkler | Rear Sprinkling Nozzles |
| Water Cannon | Rear Platform Mounted |
| Cannon Rotation | 360° Adjustable |
| Water Spray Modes | Heavy Rain, Medium Rain, Light Rain, Drizzle, Mist |
| Maximum Suction Height | ≥ 7 meters |
| Full Tank Suction Time | ≤ 15 minutes |
| Self-flow Valve | 1 Piece |
| Fire Joint | 1 Piece |
| Water Pipes | 2 Pieces |
| Pipe Material | Corrosion Resistant Steel |
| Stainless Steel Pump | Optional Upgrade |
| Rear Working Lights | Optional |
| Warning Beacon | Optional |
| Rear Camera | Optional |
