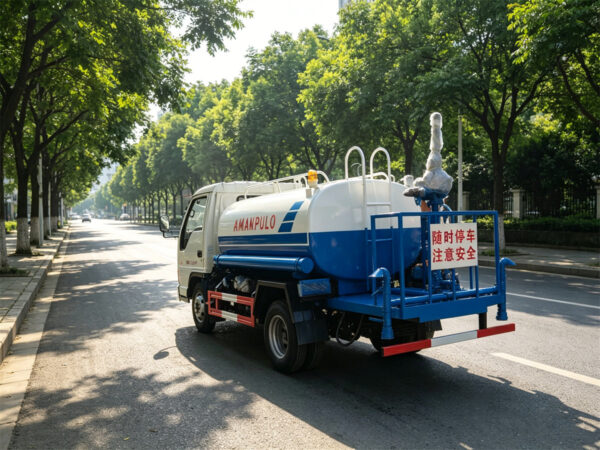

ISUZU Mini Water Sprayer Truck
The ISUZU Mini Water Sprayer Truck represents an efficient and versatile solution for municipal dust suppression, road cleaning, and landscaping irrigation operations across urban environments. Built on the compact ISUZU mini/light-duty single row cab chassis, this specialized vehicle combines the renowned reliability of ISUZU engineering with practical water spraying capabilities that address the everyday requirements of city sanitation departments, park maintenance services, and municipal infrastructure management teams.
This mini water sprayer has been thoughtfully engineered to deliver essential dust control and surface wetting functions in spaces where larger dedicated water trucks would prove impractical or impossible to operate effectively. The vehicle excels in navigating narrow streets, confined residential areas, pedestrian walkways, and landscape zones that require regular maintenance but present accessibility challenges for conventional-sized equipment.
Key Highlights
The ISUZU Mini Water Sprayer Truck features a 2 to 3 cubic meter water tank capacity that provides sufficient volume for daily municipal tasks while maintaining the compact proportions and fuel efficiency that make this vehicle economical to operate across extended work shifts. The standard 2.5 cubic meter tank configuration strikes an effective balance between operational duration and vehicle weight considerations, enabling operators to complete substantial assignments without excessive refilling interruptions.
The multi-functional spraying system supports diverse applications including road cleaning, dust suppression, landscaping irrigation, and emergency fire assistance, making this vehicle a genuinely versatile addition to any municipal fleet. The combination of front, rear, and side spray capabilities, along with an optional water cannon that achieves ranges of 20 to 25 meters, enables operators to address varying requirements without requiring multiple specialized vehicles.
The compact ISUZU mini chassis with overall dimensions of approximately 5,200 by 1,900 by 2,300 millimeters and a minimum turning radius of 6.5 meters or less ensures exceptional maneuverability through narrow streets, residential communities, parks, and sidewalks where larger equipment simply cannot operate effectively. This agility proves invaluable for municipal operations that must maintain cleanliness across diverse urban environments with varying accessibility constraints.
Powered by the ISUZU 4KB1CN6LB diesel engine producing 95 to 120 horsepower with maximum torque reaching 220 to 280 Newton-meters, this mini water sprayer delivers adequate power for both driving and water pumping operations while maintaining the fuel efficiency that municipal budget considerations demand. The engine’s compliance with Euro V or Euro VI emission standards ensures environmental responsibility alongside operational effectiveness.
The vehicle’s durable Q235 carbon steel tank construction with anti-corrosion coating provides long service life and reliable performance in demanding municipal applications, while the integrated water level indicator and overflow protection system ensure safe and efficient operation throughout each work assignment.
Features
Chassis and Structural Configuration
The foundation of this mini water sprayer truck rests upon the ISUZU mini/light-duty single row cab chassis, a platform specifically designed for applications requiring compact dimensions without sacrificing the reliability and durability that ISUZU vehicles consistently deliver. The 4×2 drive configuration with left-hand steering provides optimal visibility for navigating tight urban spaces while maintaining the mechanical simplicity that facilitates straightforward maintenance and reduces ownership costs.
The vehicle’s overall dimensions of approximately 5,200 by 1,900 by 2,300 millimeters represent a deliberately compact footprint that enables access to locations inaccessible to larger water trucks, including narrow alleyways, confined parking areas, and pedestrian zones that require regular dust suppression attention. The minimum turning radius of 6.5 meters or less ensures that the vehicle can execute tight turns and navigate typical urban intersections without difficulty, making it ideally suited for the stop-and-go patterns characteristic of municipal spraying operations.
The 2,800-millimeter wheelbase contributes to stable handling characteristics during both highway transit and low-speed maneuvering, while the front axle rated at 1,800 kilograms and rear axle rated at 3,000 kilograms provide appropriate load-carrying capacity for the vehicle’s intended payload. With a gross vehicle weight rating of approximately 4,500 kilograms and a curb weight of around 2,800 kilograms, the vehicle maintains a rated payload capacity of approximately 1,500 kilograms, sufficient for carrying a full water load plus any additional equipment or materials required for daily operations.
The 5-speed manual transmission delivers appropriate gear ratios for the vehicle’s operational requirements, enabling drivers to select suitable speeds for varying road conditions and traffic situations. The dry single-plate clutch with a 250-millimeter diameter provides reliable power transfer, while the hydraulic power steering system ensures responsive and effortless maneuverability that operators appreciate during extended spraying operations requiring constant directional adjustments.
Engine Performance and Specifications
The propulsion and auxiliary power requirements of the ISUZU Mini Water Sprayer are satisfied by the ISUZU 4KB1CN6LB inline 4-cylinder diesel engine, a powerplant that exemplifies ISUZU’s expertise in producing reliable and efficient engines for commercial vehicle applications. Available in both naturally aspirated and turbocharged configurations, this engine delivers typical power output of 105 horsepower within the 95 to 120 horsepower range, providing sufficient capability for vehicle propulsion and water pump operation.
The maximum torque of approximately 220 to 280 Newton-meters achieved at engine speeds between 1,800 and 2,200 revolutions per minute ensures that the vehicle maintains adequate pulling power during demanding situations while supporting the hydraulic demands of the water pumping system. The 2.5 to 2.8-liter displacement provides an effective balance between performance capability and fuel economy, enabling municipal operators to maximize productive work time while minimizing fuel expenditure.
Emission compliance with Euro V or Euro VI standards ensures that the vehicle meets current environmental regulations and positions it favorably for future requirements that municipalities may encounter as emissions standards continue to evolve. The 60 to 80-liter fuel tank capacity provides adequate range for typical daily municipal operations, reducing the frequency of refueling stops and contributing to overall operational efficiency.
Water Tank System
The 2 to 3 cubic meter water tank constructed from carbon steel Q235 with anti-corrosion coating provides reliable containment for dust suppression and irrigation water across extended operational periods. The standard 2.5 cubic meter configuration has been selected to optimize the balance between operational duration and vehicle weight considerations, ensuring that the tank provides sufficient capacity for meaningful work assignments without excessive impact on fuel efficiency or maneuverability.
The tank shape options of elliptical or square configuration both incorporate internal anti-wave baffles that prevent excessive water sloshing during transit, maintaining vehicle stability and ensuring consistent water availability for spraying operations. The 450-millimeter diameter manhole with locking cover provides convenient access for filling, cleaning, and inspection activities while preventing unauthorized access and water contamination during transport.
The water level indicator provides operators with immediate visibility into remaining tank capacity, enabling informed decisions about when to return for refilling and preventing the operational disruptions that can occur when water supplies are exhausted unexpectedly during critical spraying operations.
Water Spraying System
The comprehensive spraying system addresses diverse dust suppression and surface wetting requirements through multiple application methods strategically positioned around the vehicle. The self-priming centrifugal pump serves as the heart of the spraying system, delivering flow rates of 40 to 60 cubic meters per hour with pump heads of 40 to 50 meters, providing sufficient pressure and volume for effective coverage across all spray configurations.
The front spraying system achieves coverage widths of 10 to 12 meters or greater, making it ideal for road dust suppression ahead of the vehicle’s path and enabling efficient treatment of wide road surfaces in a single pass. The adjustable fan-shaped nozzles allow operators to customize spray patterns based on specific requirements, from broad gentle misting for dust control to more concentrated application for targeted cleaning.
The rear spraying configuration provides coverage widths of 6 to 8 meters, enabling operators to treat road surfaces behind the vehicle or direct spray toward areas that require attention during reverse maneuvering. This capability proves particularly valuable for reaching surfaces that the front spray cannot access due to obstacles or road geometry.
The side sprays address roadside dust suppression requirements, treating areas adjacent to the vehicle’s travel path where dust and debris may accumulate or where landscaping elements require periodic irrigation. This multi-directional capability ensures comprehensive coverage without requiring multiple vehicle passes or supplemental equipment.
The optional water cannon represents the vehicle’s maximum-throw capability, achieving ranges of 20 to 25 meters with adjustable spray patterns that can be configured for column spray or mist application depending on the specific requirements of each assignment. This flexibility enables the vehicle to address emergency dust control situations, reach elevated surfaces, or provide support during firefighting operations where water projection distance becomes critical.
Pipeline and Valve System
The water distribution infrastructure employs galvanized steel or corrosion-resistant piping throughout the system, ensuring long-term durability and reliable water delivery despite the potentially corrosive effects of varying water quality and environmental exposure. The quality piping materials resist both internal corrosion from water chemistry and external corrosion from road salt, moisture, and environmental contaminants.
The manual or pneumatic ball valves provide precise flow control for each spray zone, enabling operators to activate specific spray functions independently or in combination based on the requirements of each operational situation. The valve selection allows municipalities to choose between the simplicity of manual operation or the enhanced convenience of pneumatic control based on their operational preferences and budget considerations.
The multi-stage filtration system protects both the pump and spray nozzles from damage caused by debris, sediment, or particulate matter that may be present in water supplies. This protection proves essential for maintaining consistent spray performance and extending the service life of expensive pump and nozzle components that would suffer accelerated wear without adequate filtration.
Power Take-Off System
The PTO-driven water pump system draws power from the vehicle’s transmission, engaging through either manual or electric control mechanisms accessible from within the cab. This configuration eliminates the need for a separate auxiliary engine, simplifying the vehicle design and reducing both initial cost and ongoing maintenance requirements.
The in-cab engagement controls enable the operator to activate or deactivate the water pump system without leaving the vehicle cab, maintaining operator comfort and safety while enabling rapid response to changing operational requirements. The water pump engagement indicator provides clear confirmation of system status, preventing accidental operation or inadvertent spraying when the system is not intentionally activated.
Suspension, Braking, and Safety Features
The suspension system employs independent or leaf spring configuration at the front axle and reinforced leaf springs at the rear axle, providing appropriate load-carrying capability and ride quality for the vehicle’s municipal service requirements. This suspension setup handles the dynamic loads imposed during water transport while maintaining stable vehicle behavior during transit operations.
The hydraulic brake system with vacuum booster delivers reliable stopping power appropriate for the vehicle’s weight and operational speeds, while the mechanical parking brake engages the rear wheels to prevent unintended movement when parked. The optional ABS system enhances safety during emergency braking situations by preventing wheel lockup and maintaining directional stability on slippery surfaces.
Safety features extend throughout the vehicle design, incorporating an anti- slip rear working platform that provides secure footing for operators who need to perform maintenance or inspection tasks on the vehicle exterior. The rear working lights illuminate the spray area for operations conducted during low-light conditions, while the reverse alarm alerts nearby pedestrians and workers when the vehicle backs up.
The emergency shut-off valve enables rapid termination of water flow in hazardous situations, and the overflow protection system prevents water from escaping the tank during transport or filling operations, maintaining environmental compliance and operational safety.
Electrical and Control System
The 12V or 24-volt electrical system powers all lighting, monitoring, and control functions throughout the vehicle, with the dual voltage capability providing flexibility for various equipment configurations and regional requirements. The in-cab control switches enable convenient management of all spraying functions from the operator’s position, reducing the need to exit the vehicle during routine operations.
The water pump engagement indicator provides clear visual confirmation of system status, while the optional rear-view camera enhances visibility during reverse operations in crowded urban environments. These electrical features contribute to both operational efficiency and safety during daily municipal spraying activities.
Optional Configurations and Customization
The ISUZU Mini Water Sprayer Truck offers several optional enhancements that allow purchasers to tailor the vehicle to specific operational requirements. The stainless steel tank upgrade provides enhanced corrosion resistance for operations involving aggressive water chemistry or demanding environmental conditions, extending the tank’s service life and maintaining water quality throughout extended use.
The electric hose reel system enables convenient deployment and storage of supplemental hose for reaching areas beyond the vehicle’s standard spray capabilities, adding versatility for landscaping irrigation and localized cleaning applications. The high-pressure washing system provides enhanced cleaning capability for stubborn contamination that standard low-pressure spraying cannot adequately address.
The LED warning light bar enhances vehicle visibility during operations, alerting other road users to the presence of the slow-moving spraying vehicle. The GPS fleet management system enables dispatchers and fleet managers to track vehicle location, monitor operational hours, and optimize resource deployment across municipal operations.
The winter anti-freeze system protects the water tank, piping, and spray components from freeze damage during cold weather operations, enabling year-round utility in regions experiencing seasonal temperature drops that would otherwise limit vehicle availability.
Performance and Operational Advantages
The compact ISUZU mini chassis delivers exceptional maneuverability that makes this water sprayer ideally suited for narrow streets, residential communities, parks, and sidewalks where larger water trucks simply cannot operate effectively. The tight turning radius and compact dimensions enable access to locations that would otherwise require manual spraying equipment or smaller portable units with limited capacity.
The 2 to 3 cubic meter water tank capacity provides sufficient volume for daily municipal dust suppression and irrigation tasks while maintaining the fuel efficiency and operational economy that municipal budget constraints demand. This capacity enables meaningful work assignments without excessive refilling interruptions, maximizing productive utilization of vehicle and operator time.
The multi-functional spraying system supports diverse applications including road cleaning, dust suppression, landscaping irrigation, and emergency fire assistance, providing municipalities with genuine versatility from a single vehicle investment. This flexibility proves particularly valuable for smaller municipal operations that cannot justify multiple specialized vehicles but nonetheless face diverse dust control and irrigation requirements.
With reliable ISUZU engineering and durable Q235 tank construction, this mini water sprayer offers long service life and low maintenance costs that contribute to favorable total cost of ownership over the vehicle’s operational lifetime. The combination of proven ISUZU drivetrain components and purpose-built water management equipment creates a vehicle that municipal fleet managers can depend upon for years of productive, economical service.
Specification
| Item | Details |
|---|---|
| General Vehicle Parameters | |
| Vehicle Type | Mini Water Sprayer Truck |
| Chassis Brand | ISUZU |
| Drive Type | 4×2 (Left-hand drive) |
| Overall Dimensions (L×W×H) | ≈ 5,200 × 1,900 × 2,300 mm |
| Gross Vehicle Weight (GVW) | ≈ 4,500 kg |
| Curb Weight | ≈ 2,800 kg |
| Rated Payload Capacity | ≈ 1,500 kg |
| Max Driving Speed | 95 km/h |
| Minimum Turning Radius | ≤ 6.5 m |
| Chassis Configuration | |
| Cab Type | ISUZU mini/light-duty single row cab |
| Seating Capacity | 2 persons |
| Wheelbase | 2,800 mm |
| Axle Load Capacity | Front Axle: 1,800 kg; Rear Axle: 3,000 kg |
| Transmission | 5-speed manual gearbox |
| Clutch | Dry single plate, Ø250 mm |
| Steering System | Hydraulic power steering |
| Engine System | |
| Engine Model | ISUZU 4KB1CN6LB (or equivalent) |
| Engine Type | Inline 4-cylinder, naturally aspirated or turbocharged diesel |
| Emission Standard | Euro V / Euro VI |
| Engine Power | 95–120 hp (typical 105 hp) |
| Maximum Torque | ≈ 220–280 Nm @ 1,800–2,200 rpm |
| Displacement | 2.5–2.8 L |
| Water Tank System | |
| Tank Volume | 2–3 CBM (standard 2.5 CBM) |
| Tank Material | Carbon steel Q235 with anti-corrosion coating |
| Tank Shape | Elliptical or square with internal anti-wave baffles |
| Manhole | Ø450 mm with locking cover |
| Water Level Indicator | Equipped |
| Water Spraying System | |
| Water Pump Type | Self-priming centrifugal pump |
| Pump Flow Rate | 40–60 m³/h |
| Pump Head | 40–50 m |
| Front Spraying | Spray width ≥ 10–12 m, adjustable fan-shaped nozzles |
| Rear Spraying | Spray width ≥ 6–8 m |
| Side Sprays | For roadside dust suppression |
| Water Cannon (Optional) | Range ≥ 20–25 m, adjustable column or mist spray |
| Pipeline & Valve System | |
| Pipe Material | Galvanized steel or corrosion-resistant piping |
| Valve Type | Manual or pneumatic ball valves |
| Filtration System | Multi-stage filter to protect pump and nozzles |
| Power Take-Off (PTO) System | |
| Drive Mode | PTO driven from gearbox |
| Engagement Method | Manual or electric control inside cab |
| Suspension & Brake System | |
| Front Suspension | Independent or leaf spring suspension |
| Rear Suspension | Reinforced leaf springs |
| Brake System | Hydraulic brake with vacuum booster |
| Parking Brake | Mechanical rear wheel brake |
| ABS | Optional |
| Tire & Fuel System | |
| Tire Specification | 6.50R16 or 7.00R16 (4+1 spare) |
| Fuel Tank Capacity | ≈ 60–80 liters |
| Electrical & Control System | |
| Operating Voltage | 12V or 24V |
| Control Features | In-cab control switches for spraying functions; water pump engagement indicator; optional rear-view camera |
| Safety & Convenience Features | Anti-slip rear working platform; rear working lights; reverse alarm; emergency shut-off valve; overflow protection system |
| Optional Configurations | Stainless steel tank upgrade; electric hose reel system; high-pressure washing system; LED warning light bar; GPS fleet management system; winter anti-freeze system |
| Performance Highlights | Compact ISUZU mini chassis offers excellent maneuverability for narrow streets, residential areas, parks and sidewalks. 2–3 CBM tank supports daily operations with high fuel efficiency. Multi-functional spraying system for road cleaning, dust suppression, irrigation and emergency fire use. Reliable structure ensures long service life and low maintenance costs. |
