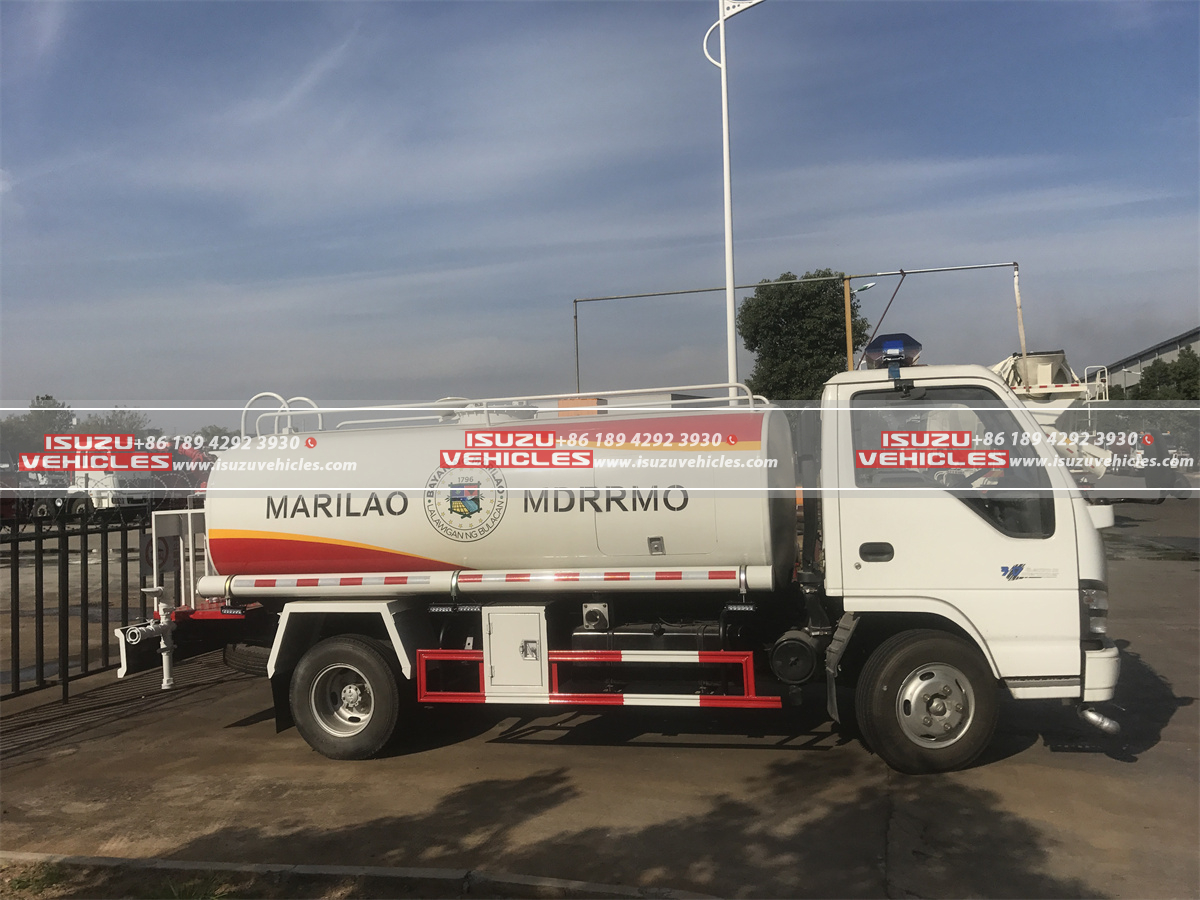

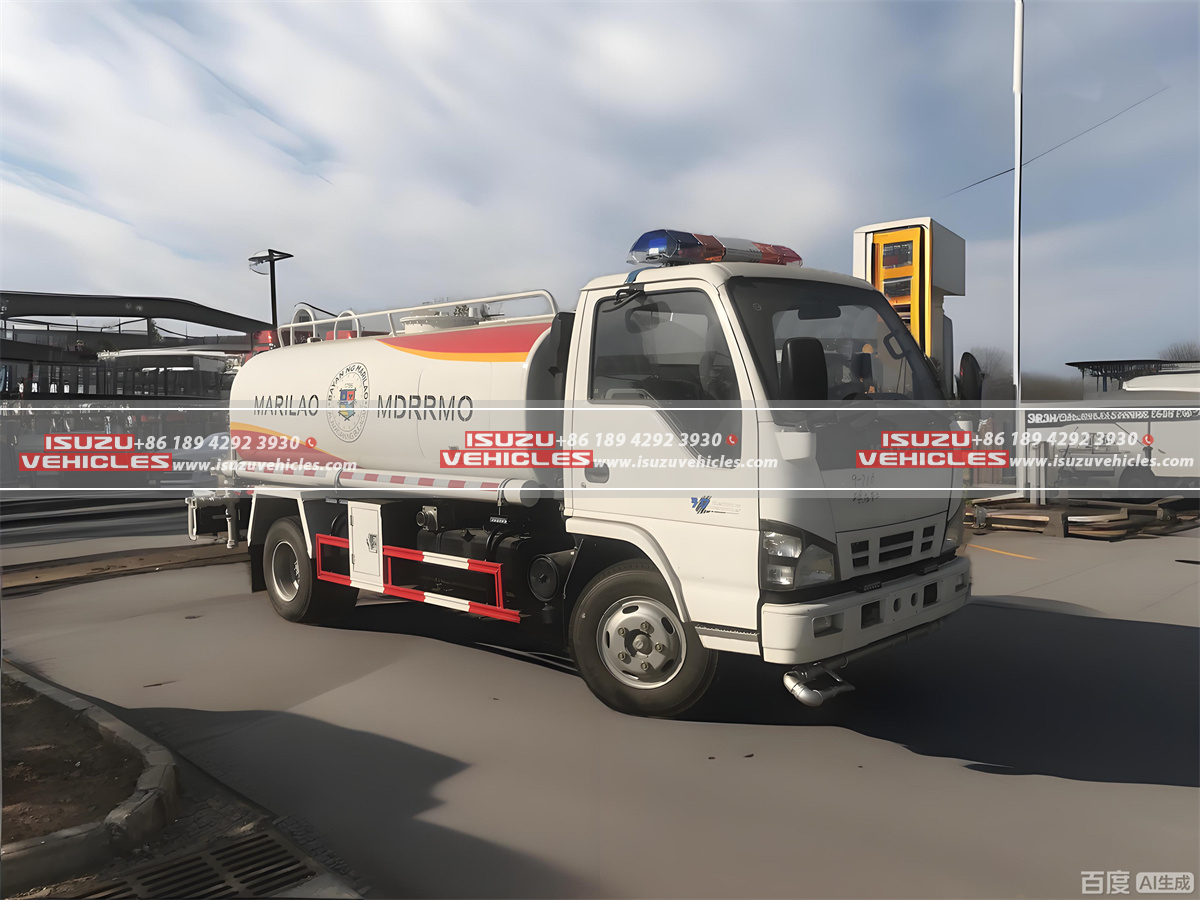

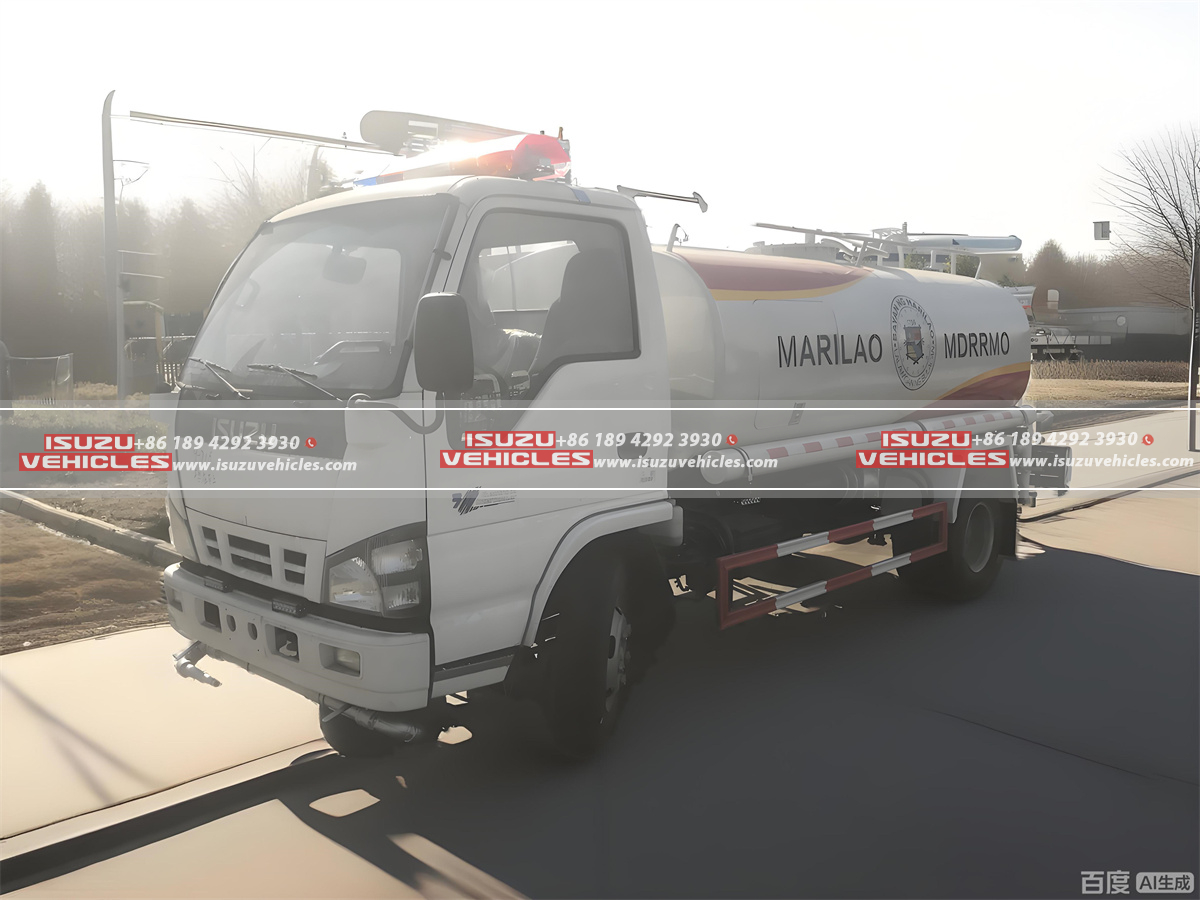

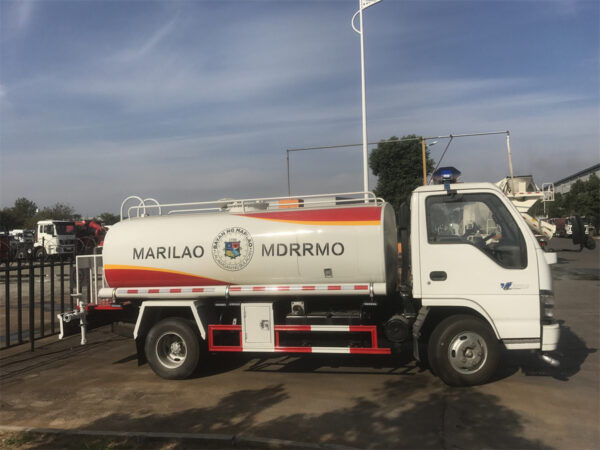

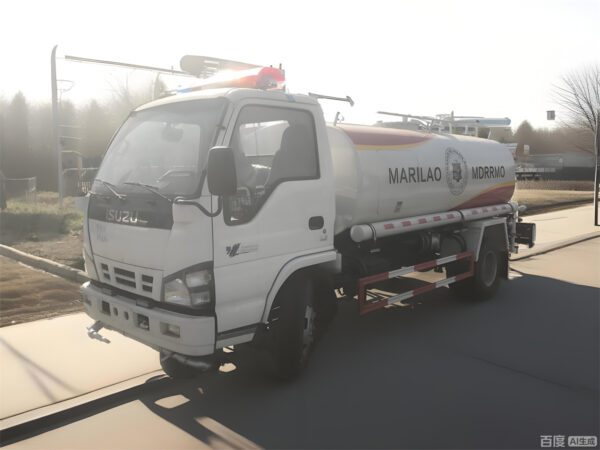

ISUZU 5,000L Water Sprinkler Truck

The ISUZU 5,000L Water Sprinkler Truck represents a robust and highly efficient solution for comprehensive municipal and industrial water management tasks. Built upon the reliable ISUZU 600P 4×2 chassis and powered by a compliant Euro 5 diesel engine, this vehicle integrates a substantial 5,000-litre stainless steel tank with a high-performance sprinkler system. Engineered for demanding operations, it excels in road cleaning, dust suppression, irrigation, and auxiliary firefighting, offering exceptional spraying width, impressive cannon range, rapid water suction capabilities, and versatile flow adjustment to meet diverse operational requirements with precision and reliability.

Features

1. Chassis & Powertrain: Foundation of Reliability

• Robust Platform: Utilizes the proven ISUZU 600P 4×2 Day Cab (Left-hand Drive), featuring a steel construction, single-row, flat cabin comfortably seating 3 passengers.
• Dimensions & Capacity: Measures 5970×2000×2550(mm) with a wheelbase of 3,360mm, balancing maneuverability and stability. It boasts a gross vehicle weight (GVW) of 7,300kg and a curb weight of 4,800kg, supported by a front axle capacity of 2.58T and a rear axle capacity of 4.72T, rolling on 7.00R16 6+1 tires.
• Efficient Power: Equipped with the ISUZU 4KH1CN5HS diesel engine, delivering 130 horsepower and meeting stringent Euro 5 emission standards for environmental compliance.
• Durable Transmission: Features the ISUZU/MSB manual transmission with 5 forward gears and 1 reverse gear (5F+1R), ensuring precise control and durability under load.

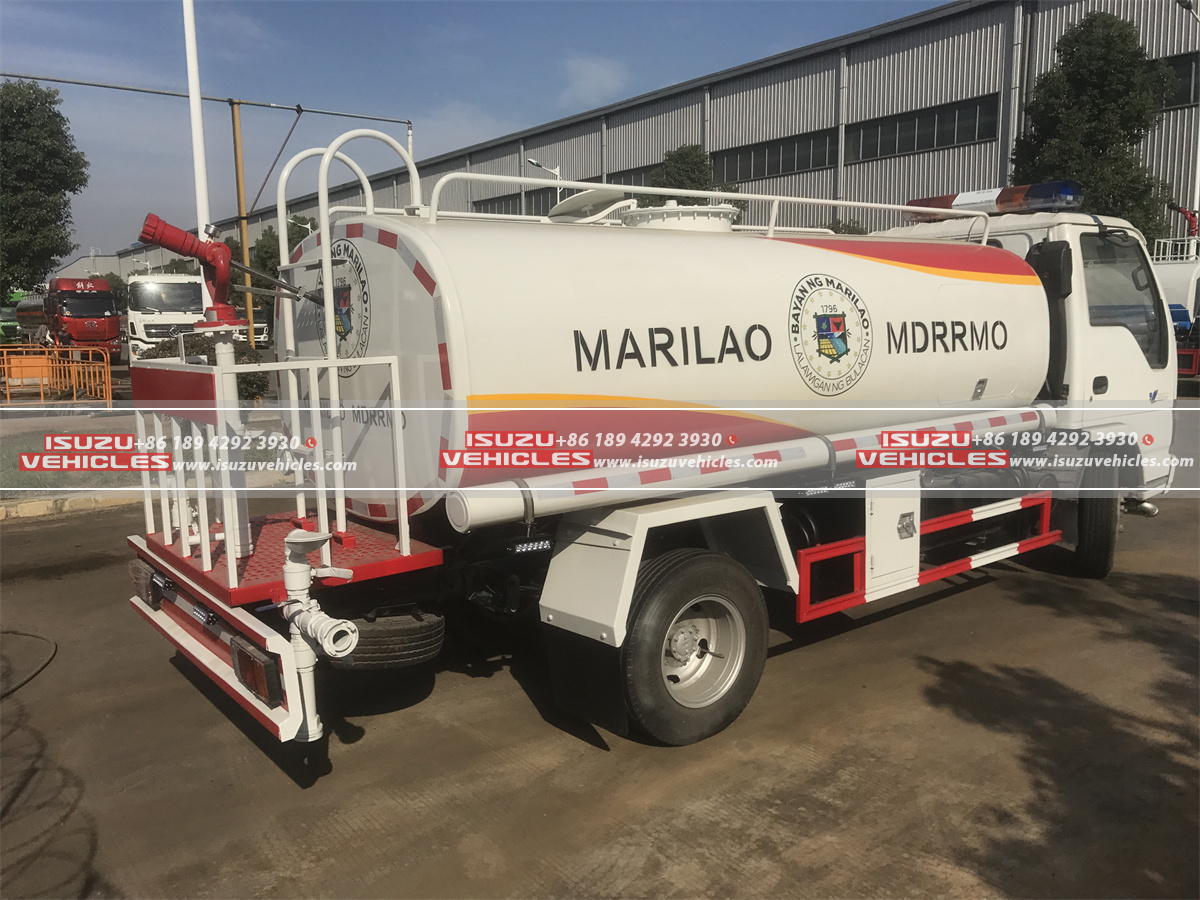

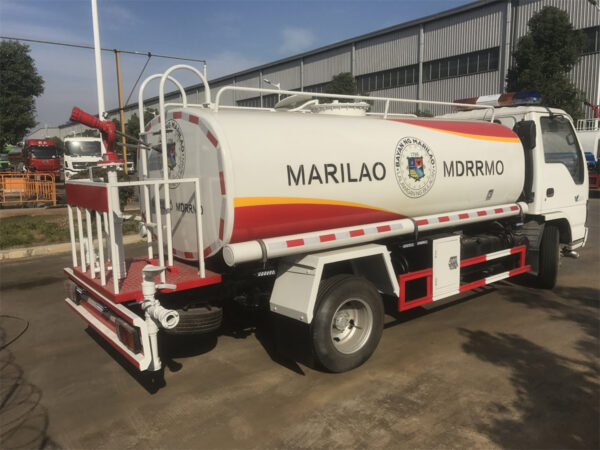

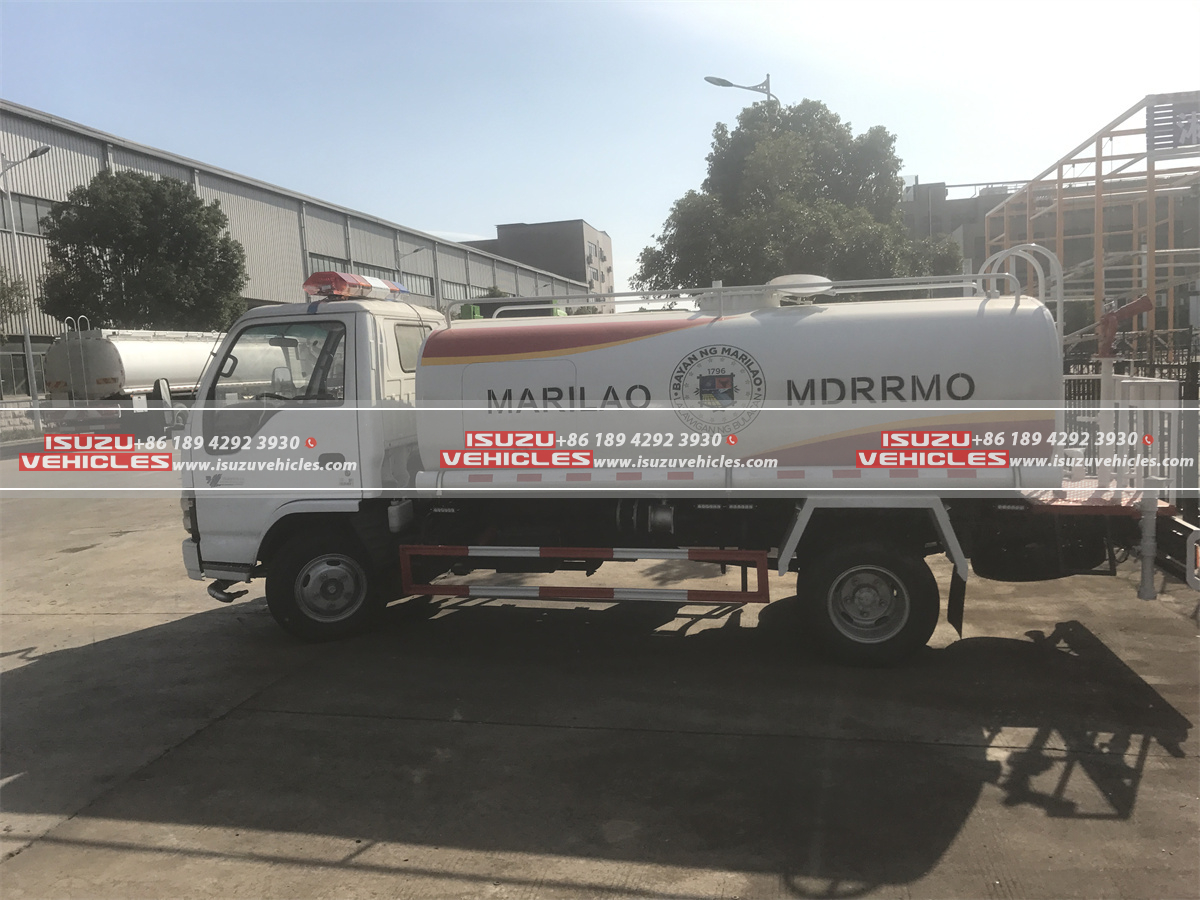

2. Tank & Body System: Built for Durability and Capacity

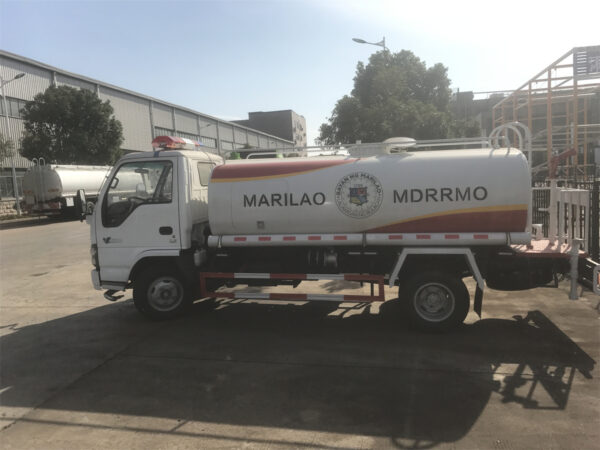

• High-Capacity Storage: The core component is a 5,000L water tank, providing ample volume for extended operational periods without frequent refilling.
• Premium Construction: Fabricated from high-grade stainless steel 304, renowned for its exceptional corrosion resistance and longevity, even when handling various water qualities or additives. The tank body thickness is a substantial 6mm, ensuring structural integrity and impact resistance.

3. Performance Metrics: Engineered for Effectiveness

• Extensive Coverage: Achieves a spraying width ≥14 meters, enabling efficient cleaning or irrigation of wide roadways or areas in a single pass.
• Long-Range Capability: The integrated water cannon delivers a range ≥35 meters, crucial for dust suppression over large areas or targeted firefighting support.
• Rapid Water Uptake: Features a suction height >7 meters, allowing access to water sources like rivers or ponds below road level, and achieves a full tank suction time of <15 minutes, minimizing downtime.
• Pump Performance: Driven by a powerful stainless steel self-priming sprinkler pump with a flow rate of 60m³/h and a lift height of 90m, ensuring consistent and powerful water delivery under various operational conditions.

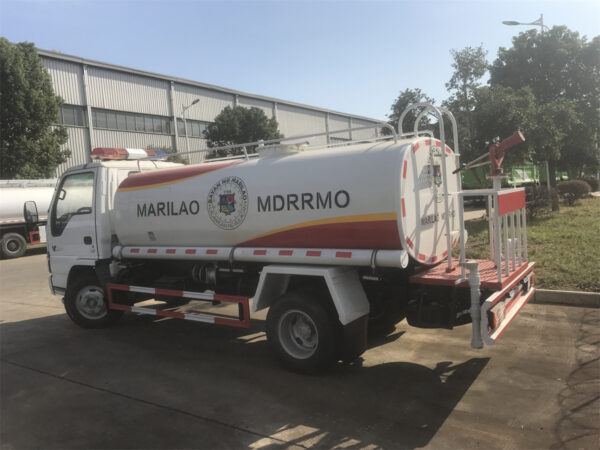

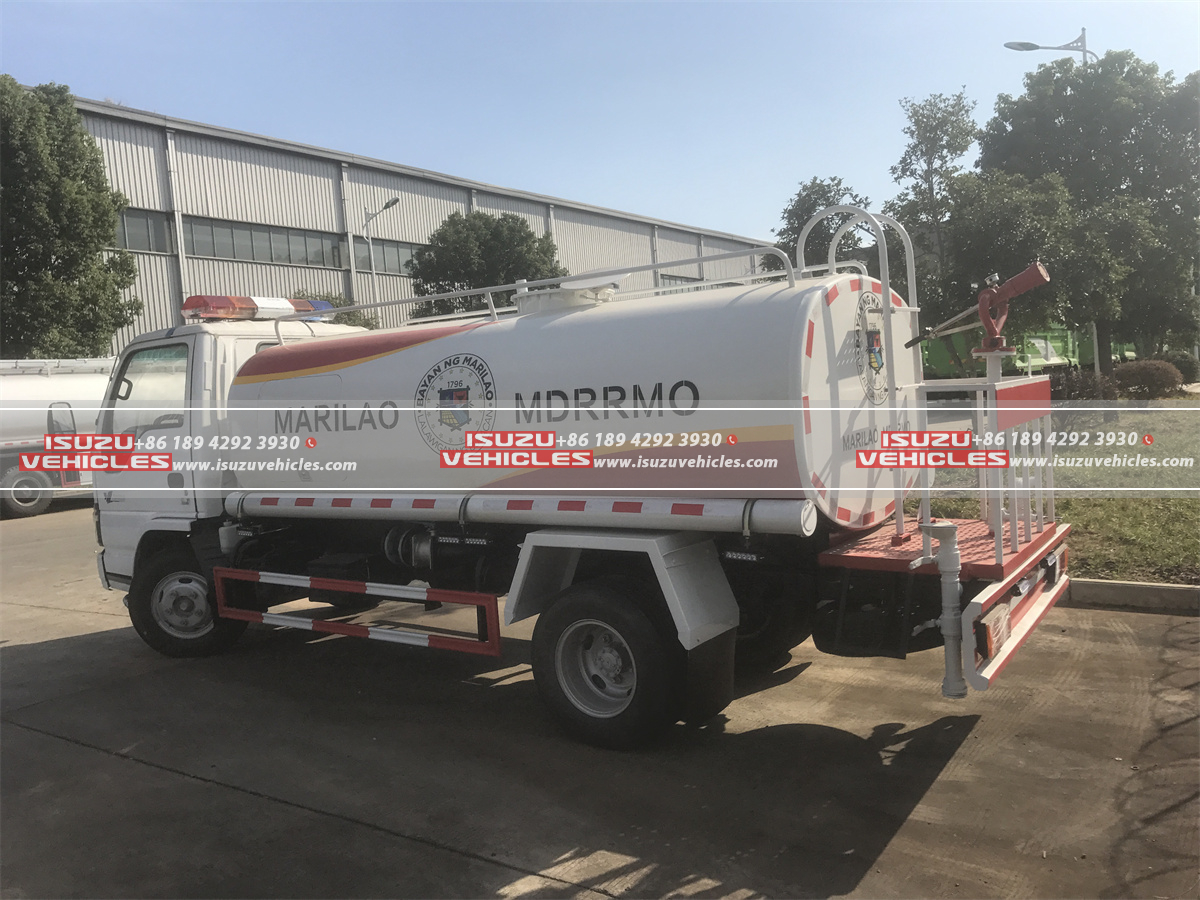

4. Sprinkler System Equipment: Unmatched Versatility

• Comprehensive Spray Options: The system of the sprinkler truck is equipped for front flushing, side spraying, and rear sprinkling, providing maximum flexibility for different cleaning and irrigation scenarios. A dedicated platform houses both a water cannon and a handheld water gun.
• Advanced Water Cannon: The water cannon can be rotated 360 degrees, offering unparalleled directional control. Crucially, the water flow can be precisely adjusted through multiple settings: heavy rain, medium rain, light rain, drizzle, and mist, allowing operators to tailor the water application perfectly to the task, whether it’s gentle irrigation or powerful dust knockdown.
• Essential Accessories: The package includes 1 self-flow valve, 1 fire joint, and 2 water pipes, ensuring readiness for various water intake and discharge requirements, including firefighting connections.

SPECIFICATIONS
