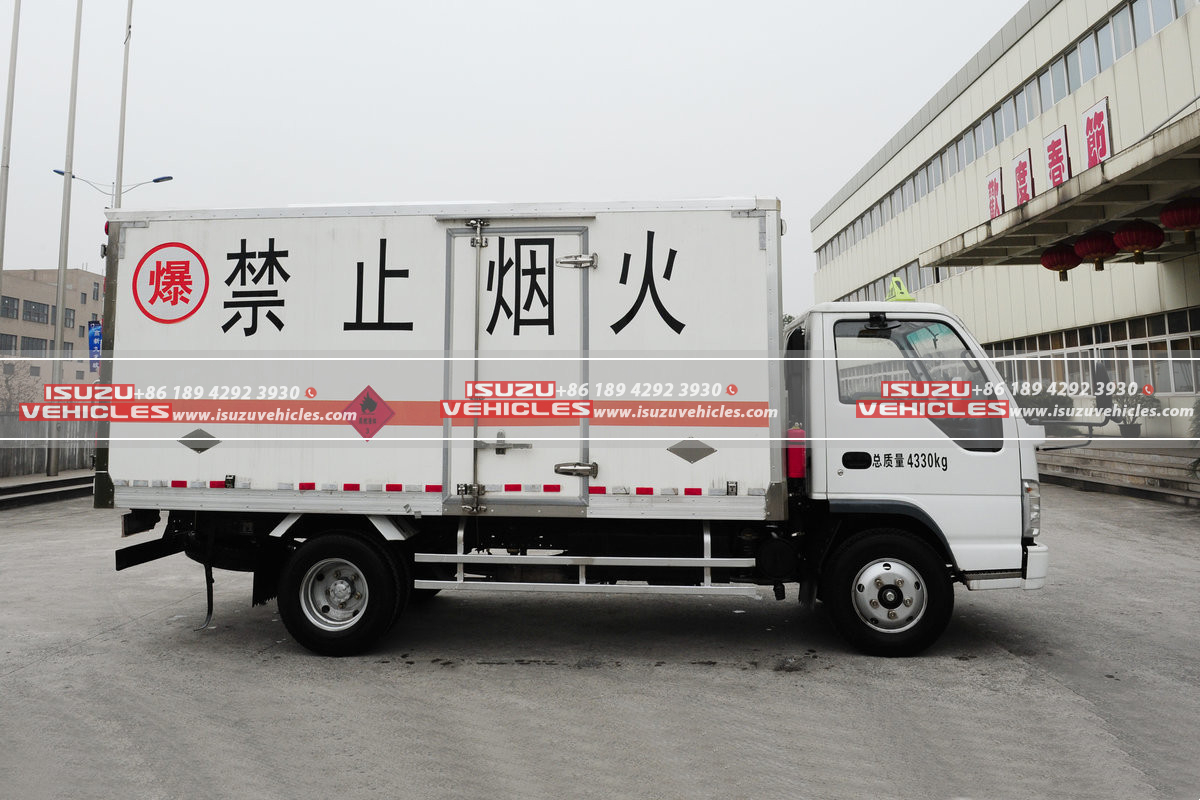

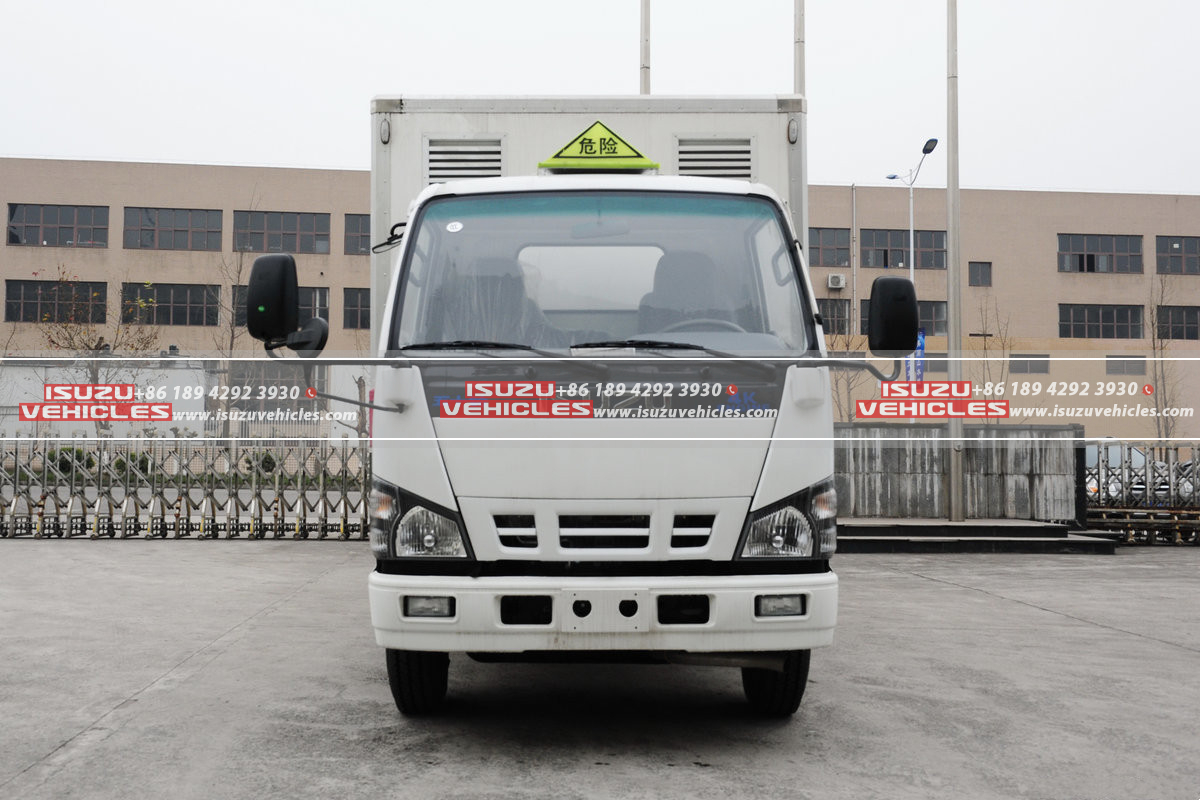

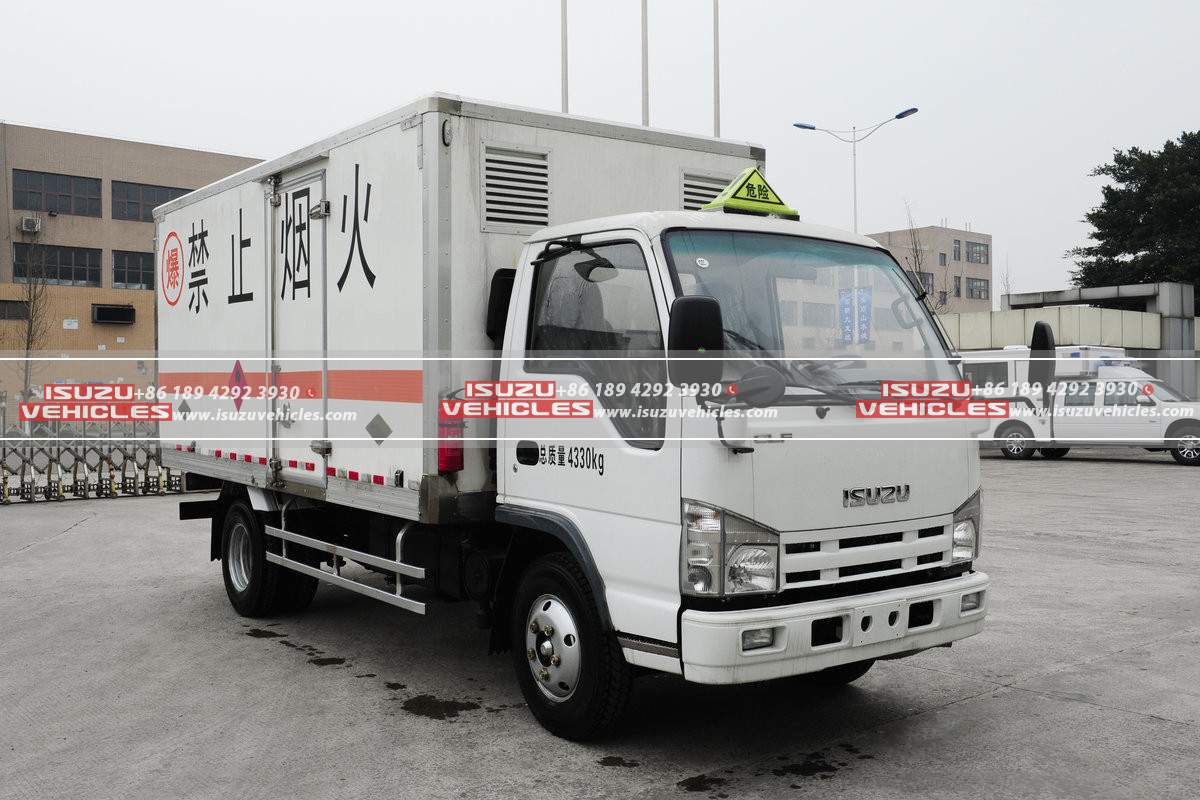

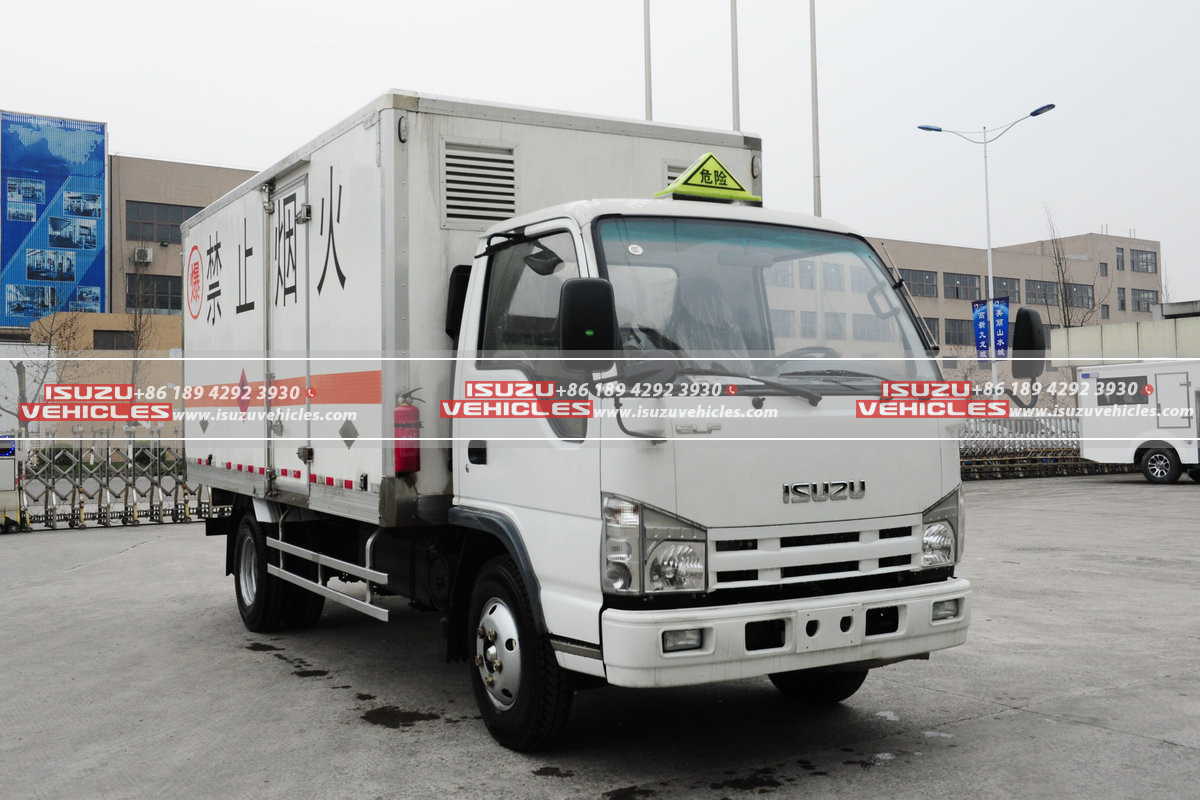

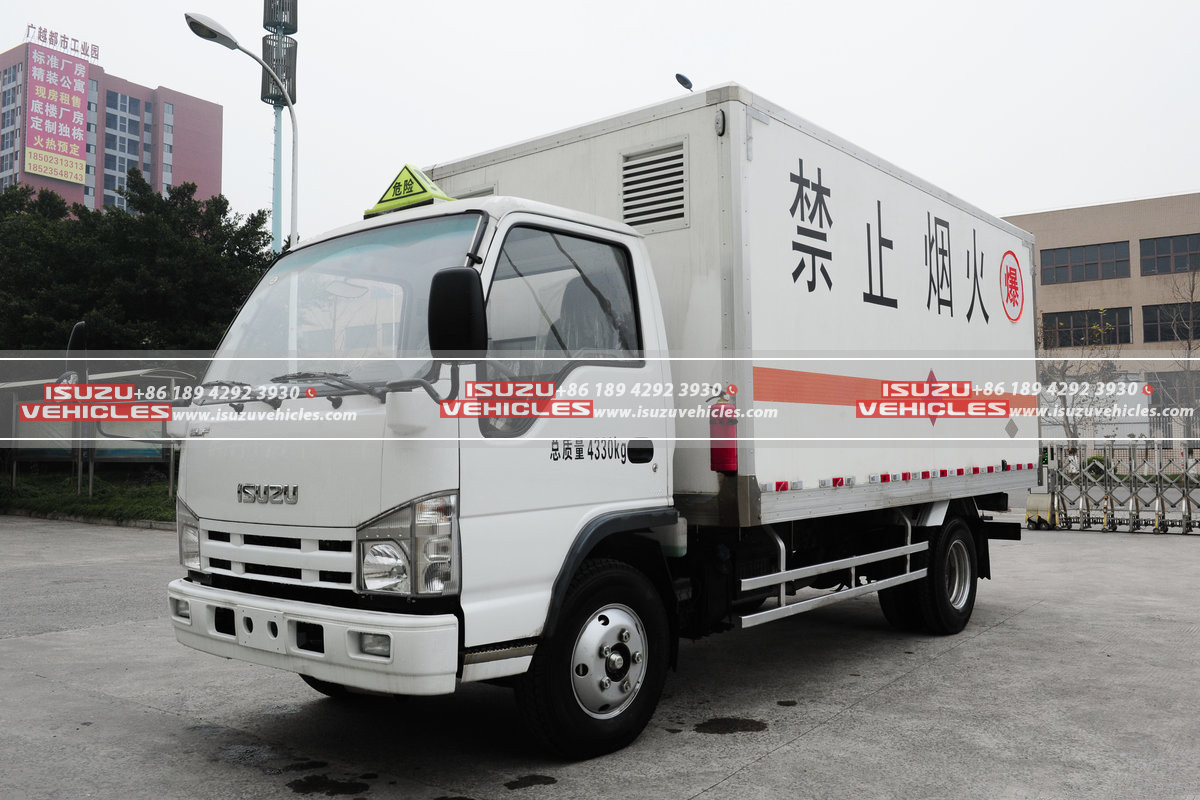

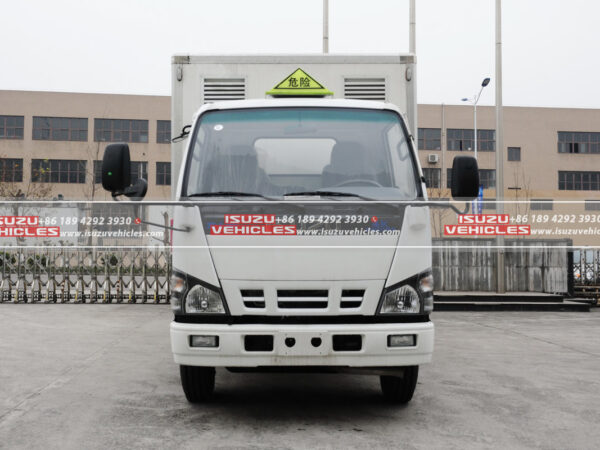

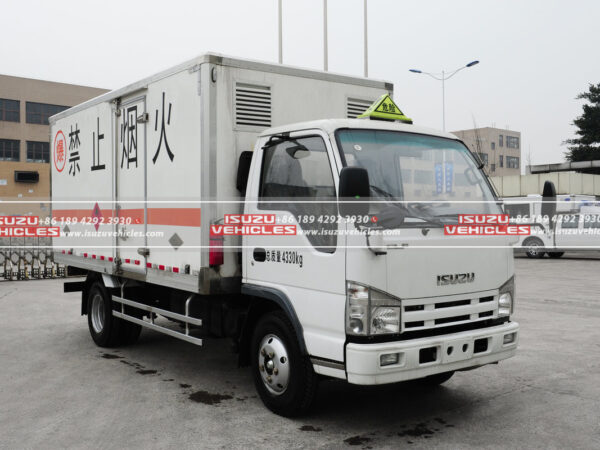

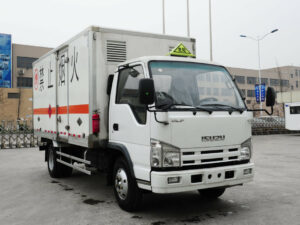

ISUZU Blasting Equipment Transport Cargo Truck

ISUZU Blasting Equipment Transport Cargo Truck

Overview

The ISUZU Blasting Equipment Transport Cargo Truck is specifically designed for the safe and efficient transport of flammable gases and blasting equipment. This vehicle offers robust performance, superior safety features, and reliable fuel efficiency, making it an ideal choice for hazardous material transportation.

Basic Information

• Drive Type: The vehicle utilizes a 4X2 drive type, providing balanced traction and stability for both urban and rural routes.
• Wheelbase: The wheelbase measures 3360 mm, ensuring optimal maneuverability and load distribution.
• Type: This model is classified as a Flammable Gas Box Transport Truck, making it suitable for transporting hazardous materials.
• Vehicle Dimensions: The overall dimensions of the truck are 5.995 meters in length, 2.11 meters in width, and 2.85 meters in height, allowing for ample cargo space while maintaining a compact footprint.
• Front Overhang / Rear Overhang: The front overhang is 1.015 meters, and the rear overhang is 1.62 meters, which aids in better handling and load management.
• Rated Load Capacity: The truck has a rated load capacity of 1.495 tons, providing substantial payload capability.
• Total Weight: The total gross vehicle weight is 4.33 tons, ensuring a sturdy and durable structure.
• Front Track / Rear Track: The front track measures 1504 mm, and the rear track is 1525 mm, contributing to the vehicle’s stability and balance.
• Maximum Speed: The truck can reach a maximum speed of 80 km/h, which is ideal for safe transportation of flammable materials.

Engine Parameters

• Engine Model: The truck is powered by the Qingling Isuzu 4KH1CN5LS engine, renowned for its reliability and efficiency.
• Number of Cylinders: The engine features 4 cylinders, ensuring smooth and consistent power delivery.
• Displacement: The engine displacement is 2.999 liters, providing a balance between power and fuel efficiency.
• Maximum Output Power: The engine delivers a maximum output power of 72 kW, offering sufficient power for various transport needs.
• Maximum Horsepower: The engine produces up to 98 horsepower, ensuring robust performance.
• Emission Standard: Compliant with Euro V emission standards, the truck is environmentally friendly and reduces harmful emissions.
• Engine Brand: The engine is manufactured by Qingling Isuzu, a trusted name in the industry.
• Fuel Type: The engine runs on diesel, which is widely available and cost-effective.
• Maximum Torque: The engine generates a maximum torque of 220 N·m, providing excellent pulling power.
• Maximum Torque RPM: The peak torque is achieved at 1700 rpm, ensuring optimal performance at lower speeds.
• Rated RPM: The engine operates at a rated RPM of 3400, ensuring efficient power delivery.

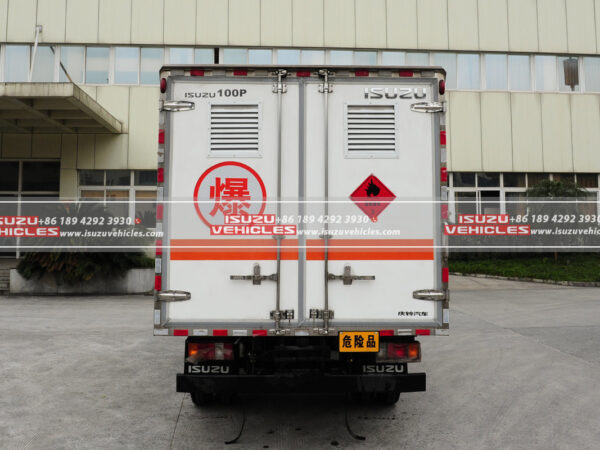

Cargo Box Parameters

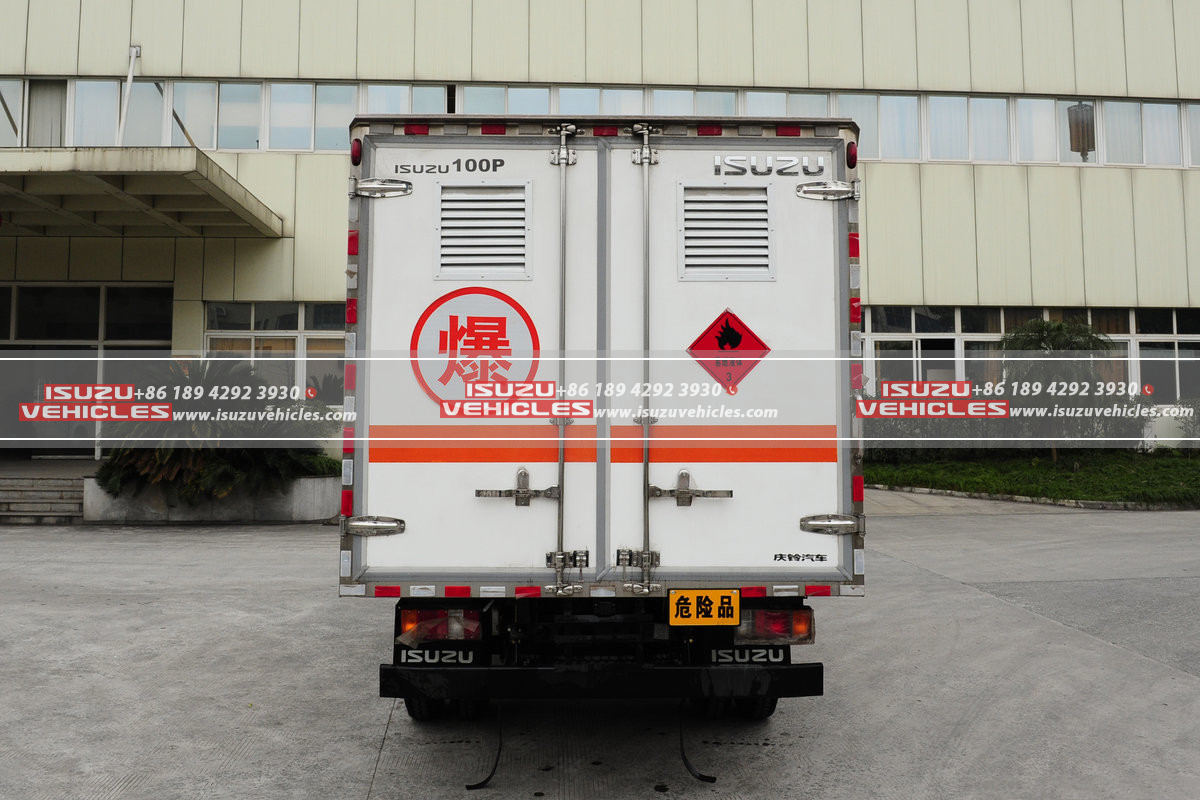

• Cargo Box Dimensions: The cargo box measures 4.23 meters in length, 2.01 meters in width, and 1.78 meters in height, offering ample space for transporting blasting equipment and flammable gases.

Superstructure Parameters

• Vehicle Announcement: The vehicle is officially recognized under the model announcement QL5040XRQA6HAJ.
• Superstructure Brand: The superstructure is manufactured by Qingling, ensuring high-quality construction and durability.

Transmission Parameters

• Transmission Model: The truck is equipped with the Qingling Isuzu MSB-5S transmission, known for its reliability and smooth shifting.
• Number of Gears: The transmission features 5 gears, providing a good balance between performance and fuel efficiency.

Chassis Parameters

• Chassis Brand: The chassis is built by Qingling ISUZU, ensuring robust construction and reliability.
• Chassis Series: The truck belongs to the Isuzu 100P series, known for its durability and performance.
• Chassis Model: The specific chassis model is QL1045A6HAY.
• Rear Axle Description: The rear axle has a gear ratio of 5.571, providing optimal torque and performance.
• Number of Leaf Springs: The truck is fitted with 3/3+2 leaf springs, enhancing load-bearing capacity and ride comfort.

Tires

• Number of Tires: The truck comes with 6 tires, ensuring stability and safety.
• Tire Specifications: The tires are 7.00R16 8PR, providing excellent traction and durability.

This ISUZU Blasting Equipment Transport Cargo Truck is engineered for safety, reliability, and efficiency, making it an exceptional choice for transporting flammable gases and other hazardous materials. With its robust construction and advanced features, it offers a reliable solution for specialized transportation needs.

SPECIFICATIONS:

Basic Information
Drive Type	4X2
Wheelbase	3360 mm
Type	Flammable Gas Box Transport Truck
Vehicle Dimensions	5.995 × 2.11 × 2.85 meters
Front Overhang / Rear Overhang	1.015 / 1.62 meters
Rated Load Capacity	1.495 tons
Total Weight	4.33 tons
Front Track / Rear Track	Front Track: 1504 mm; Rear Track: 1525 mm
Maximum Speed	80 km/h
Engine Parameters
Engine Model	Qingling Isuzu 4KH1CN5LS
Number of Cylinders	4
Displacement	2.999 L
Maximum Output Power	72 kW
Maximum Horsepower	98 hp
Emission Standard	Euro V
Engine Brand	Qingling Isuzu
Fuel Type	Diesel
Maximum Torque	220 N·m
Maximum Torque RPM	1700 rpm
Rated RPM	3400 rpm
Cargo Box Parameters
Cargo Box Dimensions	4.23 × 2.01 × 1.78 meters
Superstructure Parameters
Vehicle Announcement	QL5040XRQA6HAJ
Superstructure Brand	Qingling
Transmission Parameters
Transmission Model	Qingling Isuzu MSB-5S
Number of Gears	5
Chassis Parameters
Chassis Brand	Qingling ISUZU
Chassis Series	Isuzu 100P
Chassis Model	QL1045A6HAY
Rear Axle Description	Gear Ratio 5.571
Number of Leaf Springs	3/3+2
Tires
Number of Tires	6
Tire Specifications	7.00R16 8PR
