GENERAL

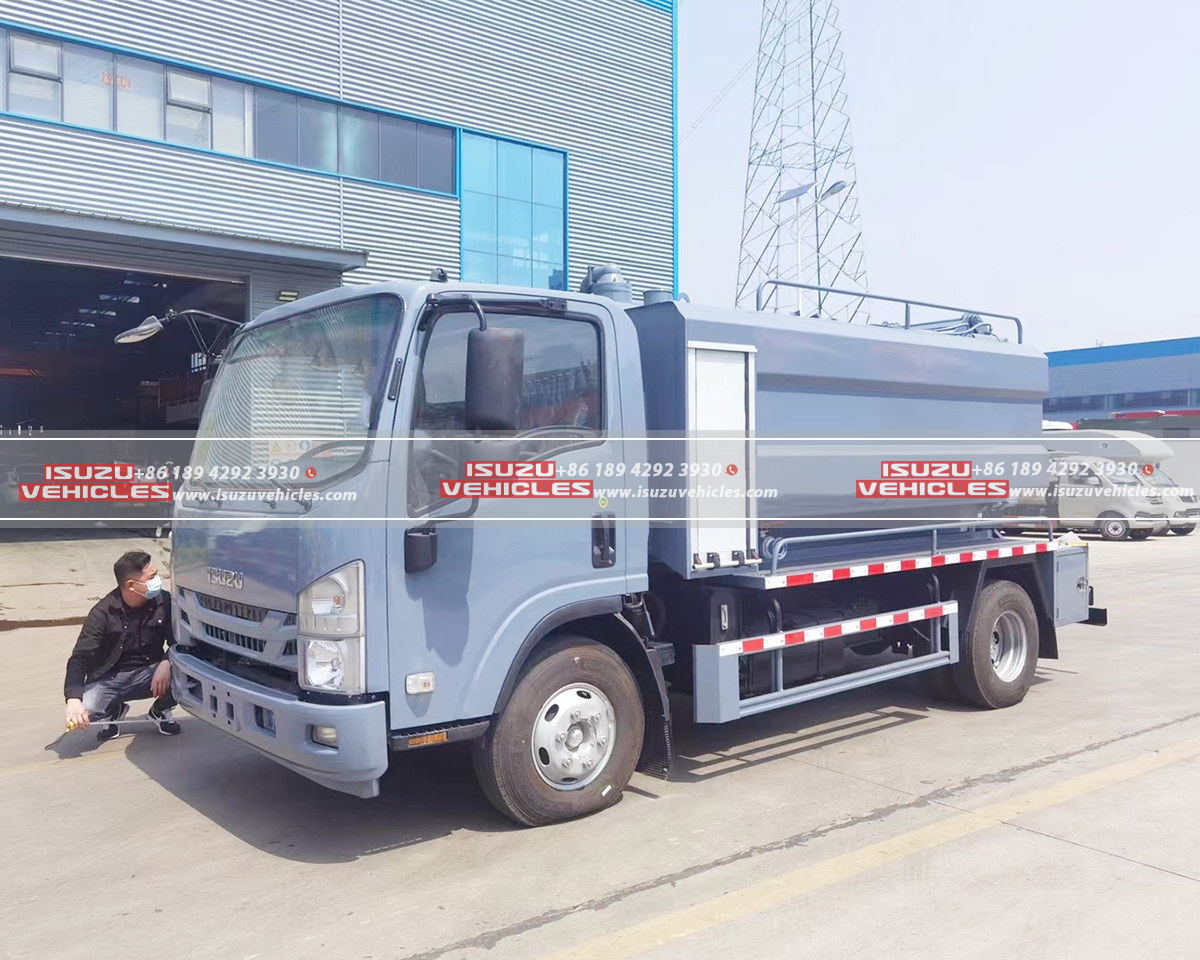

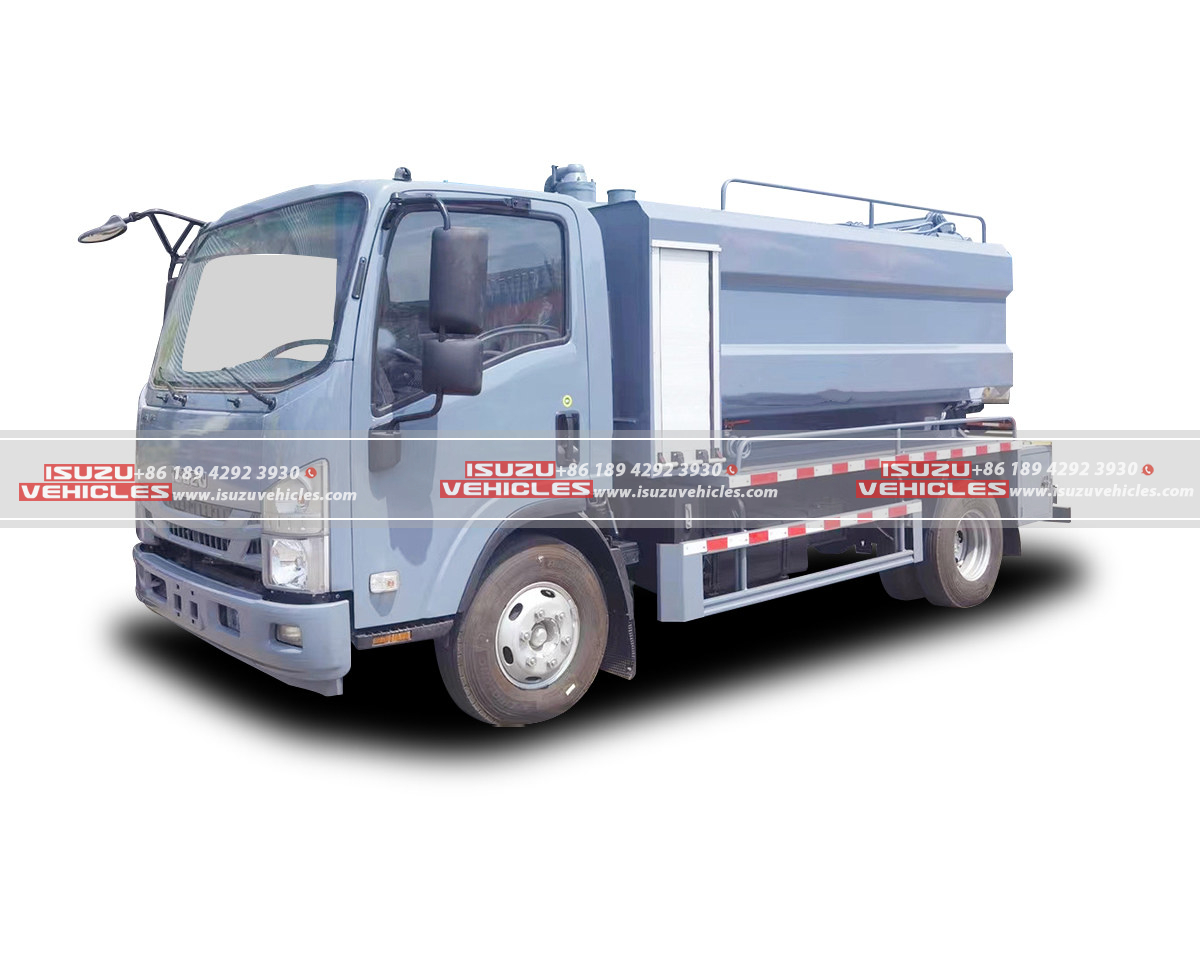

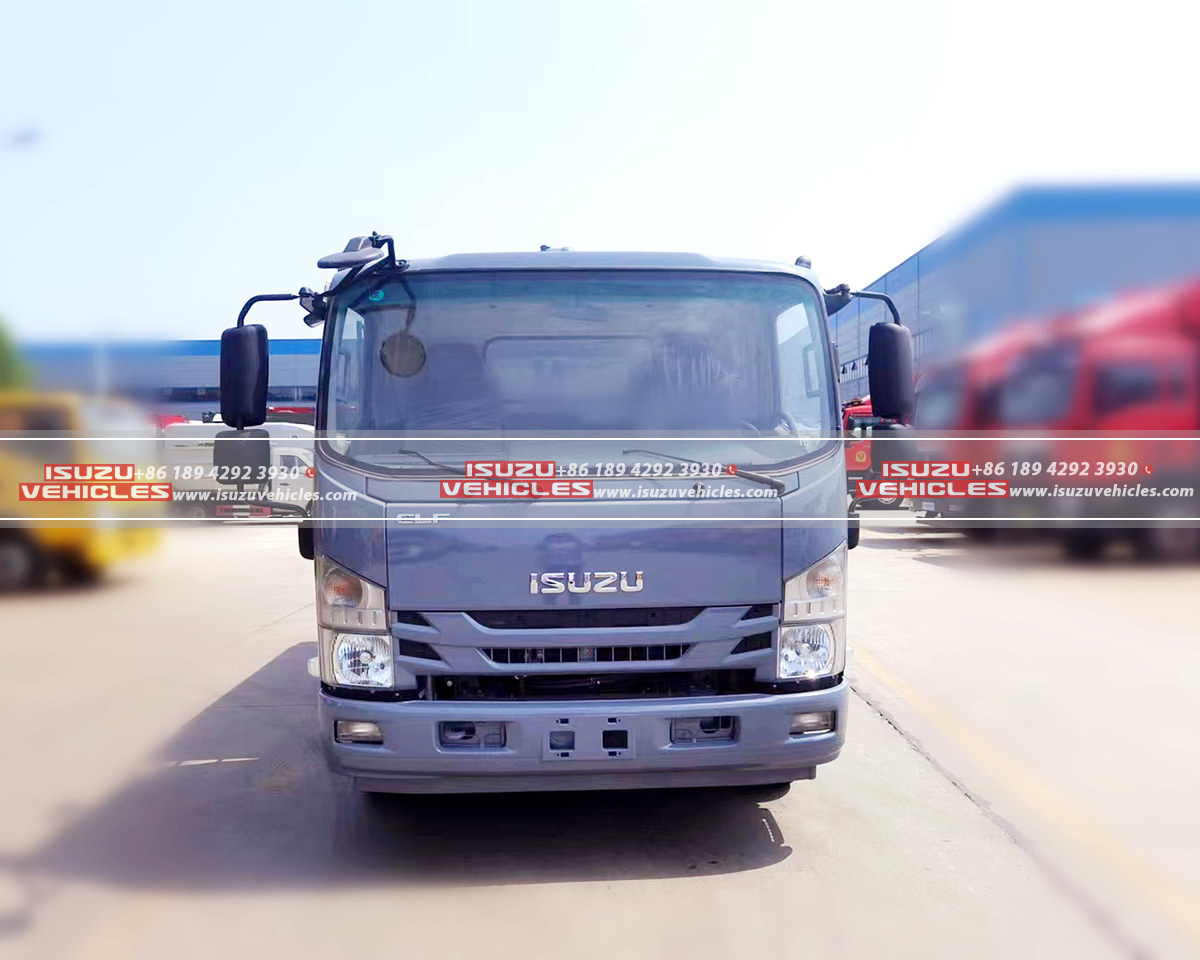

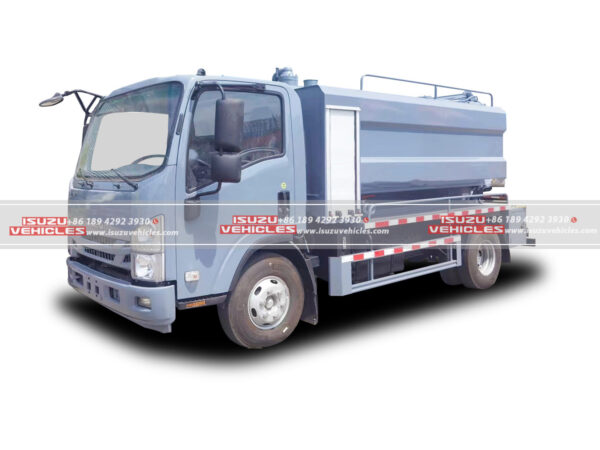

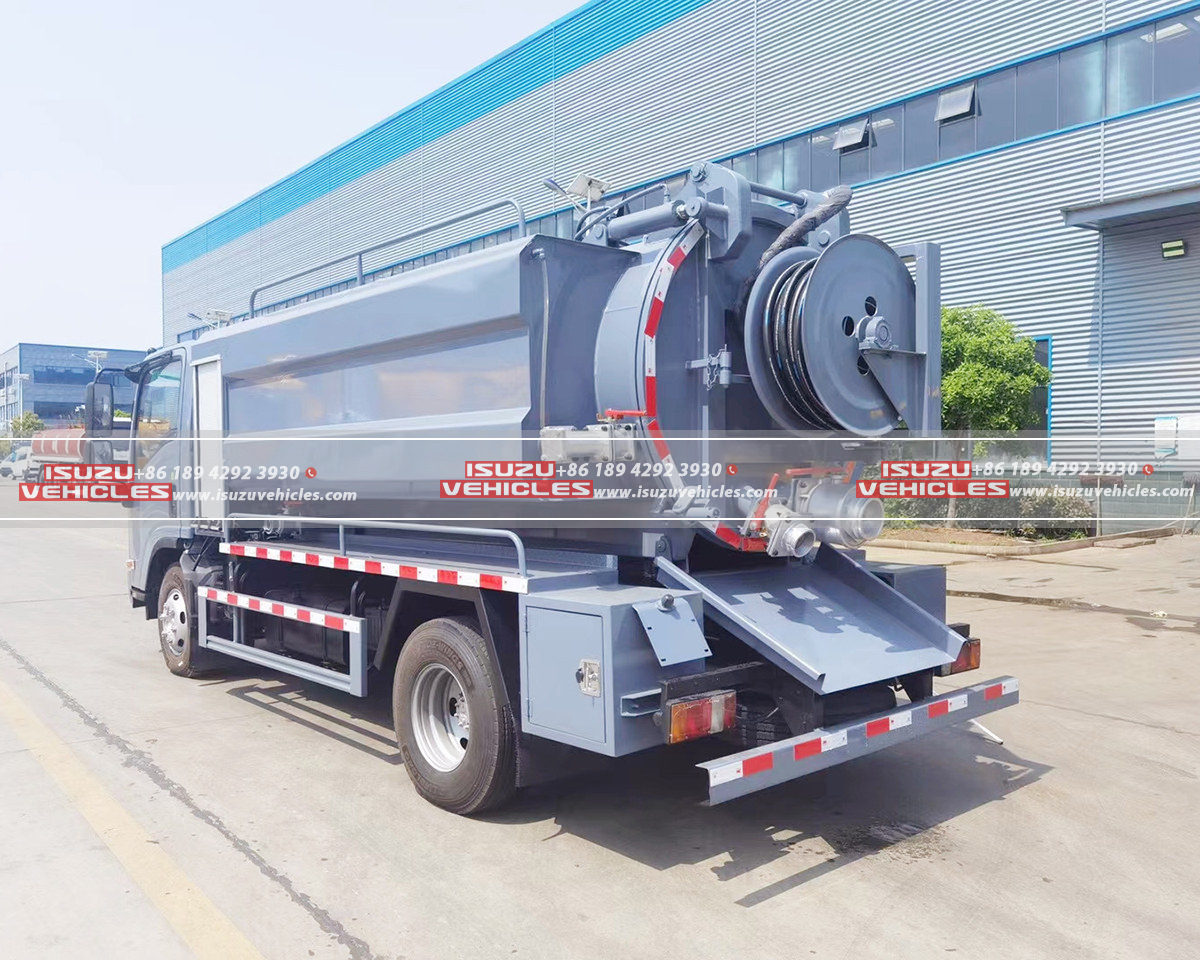

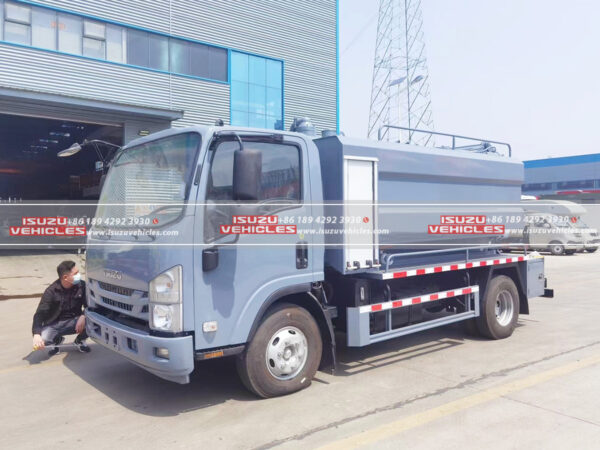

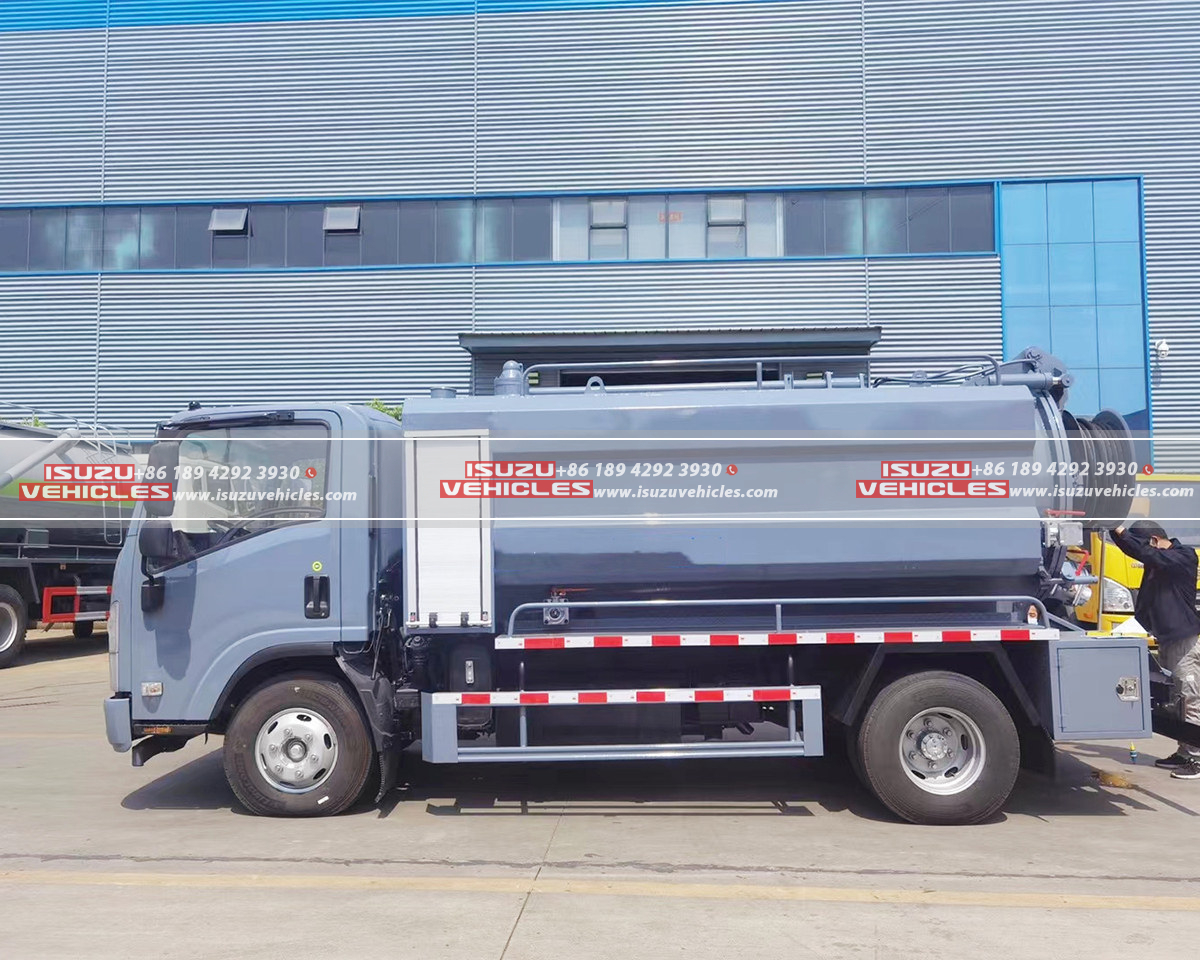

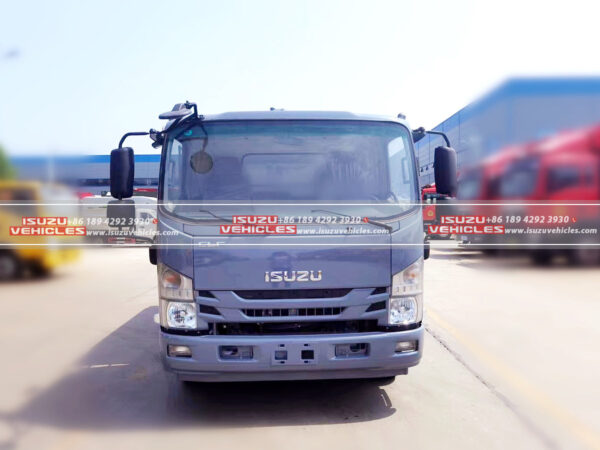

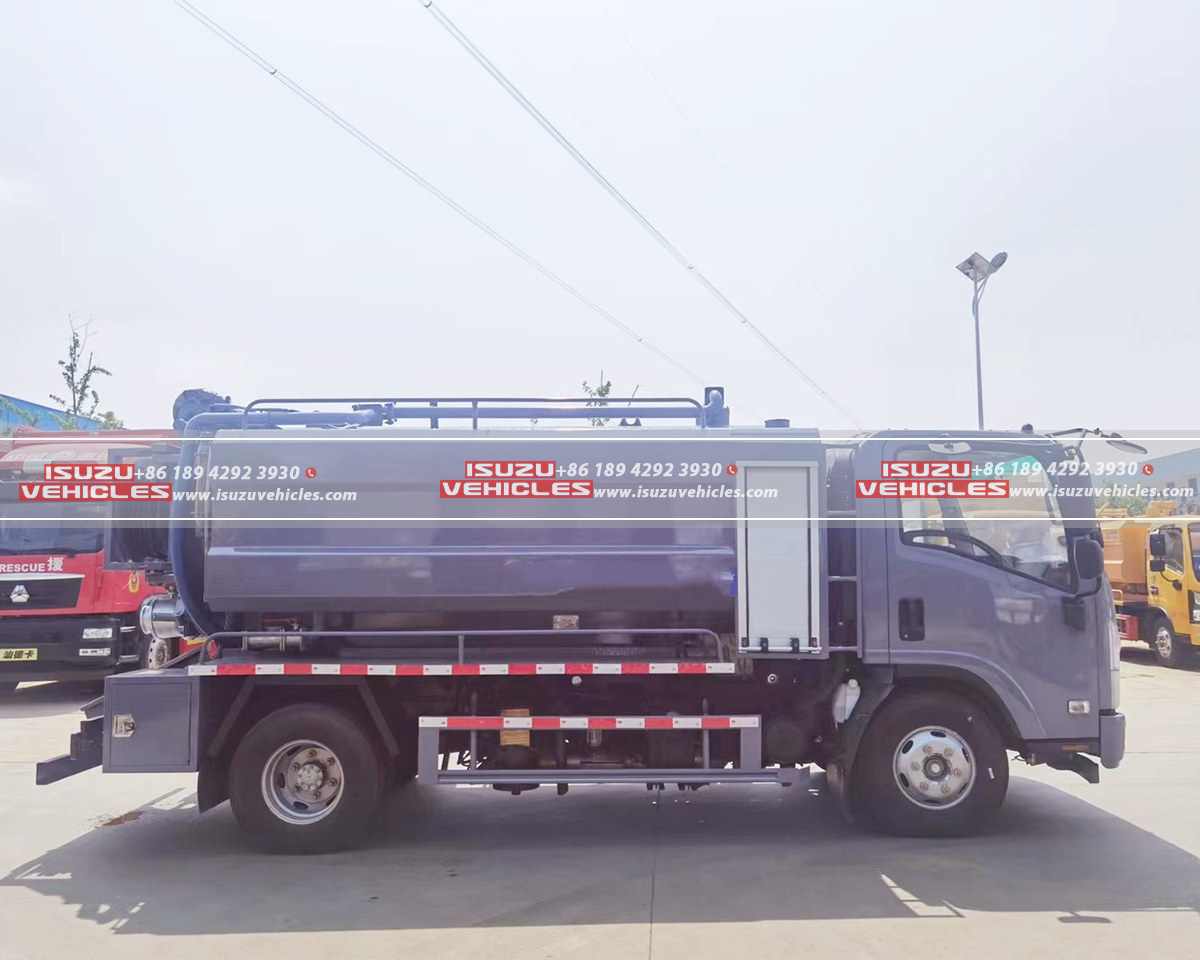

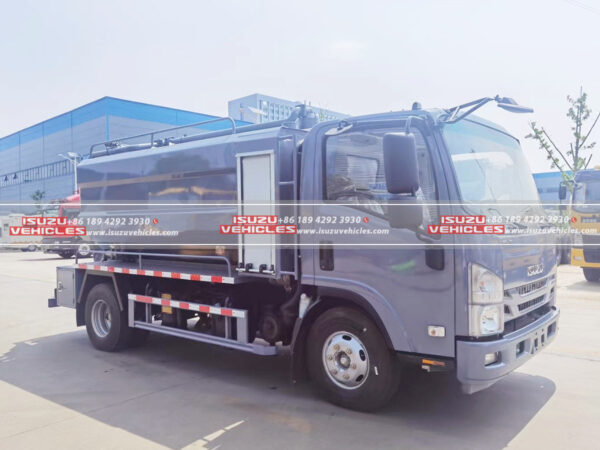

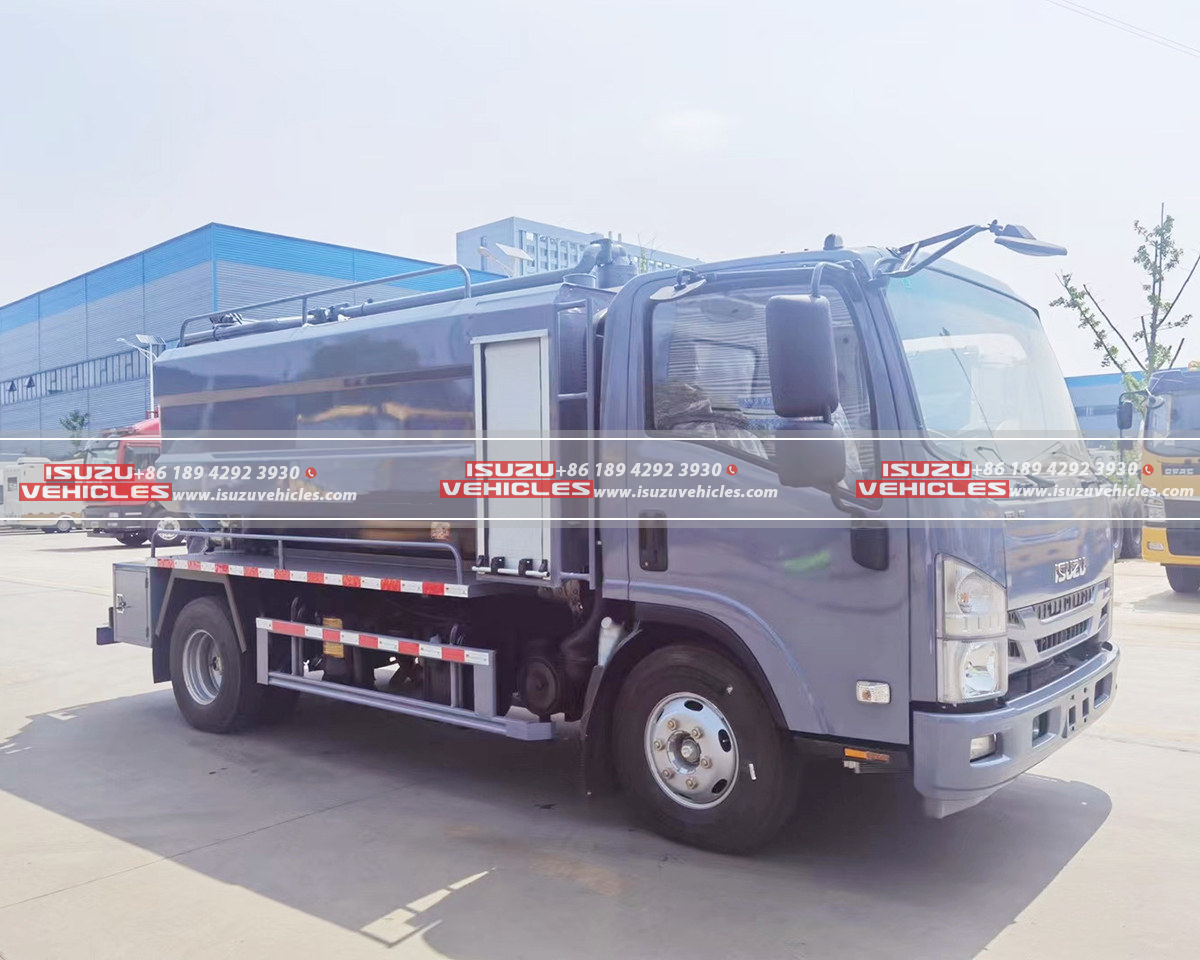

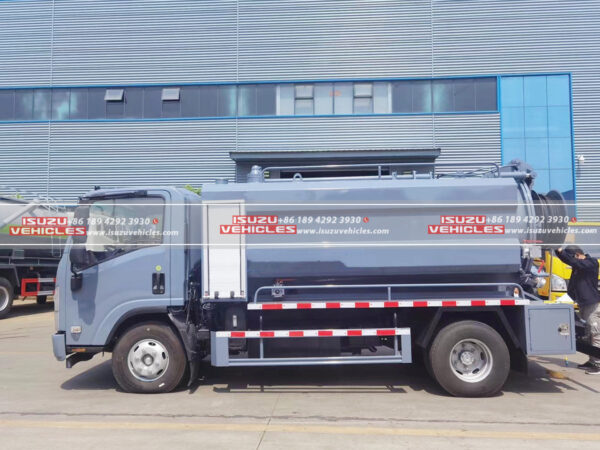

The ISUZU combined jetting vacuum truck, model GSJ05QL130L5, is a powerful and versatile vehicle designed to handle a wide range of cleaning and suction tasks. The truck is manufactured by ISUZU and is equipped with a 4×2 left-hand drive, making it easy to maneuver in urban areas. The overall dimension of the truck is 5,990×2,130×2,660 (mm), and it has a gross vehicle weight of 7,300kg and a curb weight of 4,525kg. The chassis is designed by ISUZU M600, providing the truck with excellent stability and durability. The cabin features hydraulic power steering and can accommodate one driver and two passengers.
ENGINE
The ISUZU combined jetting vacuum truck is powered by a reliable and efficient ISUZU 4KH1CN5HS engine. This engine features four cylinders in line, four strokes direct injection, water cooling, and Intercooled Turbocharged technology. With a displacement of 2.999L, the engine delivers a nominal power of 130HP (96Kw) at 3,400rpm and a peak torque of 290N.m at 1,500rpm. The engine complies with Euro 5 emission standards, ensuring that the vehicle operates in an environmentally friendly manner. The truck’s transmission is a manual diesel-operated ISUZU/MSB model, featuring five forward speeds and one reverse speed.
CAPACITY

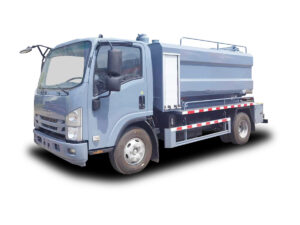

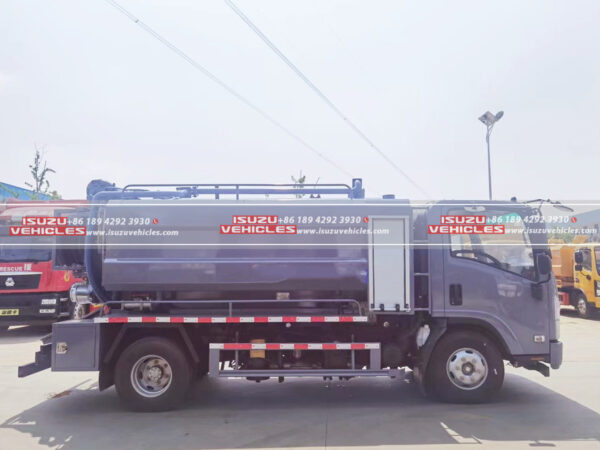

The ISUZU combined jetting vacuum sewer truck has a 5,000-liter capacity sludge and clean tank. The tank is divided into two compartments: a 4,000-liter cleaning water tank compartment and a 1,000-liter sludge/sewage tank compartment. The tank is mounted with an arrangement for rear tipping and has a thickness of 6mm. The division of compartments ensures that the truck can efficiently store and transport both clean water and sludge/sewage. The tank also has level indicators made of transparent acrylic tubing with a thick wall to provide accurate readings of the tank’s contents.
HIGH-PRESSURE JETTING PUMP, VACUUM PUMP, HOSE, AND SAFETY DEVICE
The ISUZU combined jetting vacuum truck is equipped with a PINFL/MGS50 heavy-duty positive displacement single-acting triplex reciprocating pump, which can be driven by a split shaft from the total power take-off unit. The pump has a rated power output of 137kw and a scavenging capacity of 287l/min. 8m3/min at suction absolute pressure 100hPa. The vacuum pump has a continuous-duty vacuum of 80% and a maximum vacuum of 95%. The truck is also equipped with a hose reel on the rear end of the combined tank, which can store up to 120 meters of sewer jetting hose 1″. The truck also has five heavy-duty spiral suction hoses, 4″ diameter, with quick-connect fittings on each end and male-female couplings for suction applications. The truck is equipped with an anti-flow device, ensuring safe and efficient operation.
| GENERAL | |
| Make/Model | ISUZU / GSJ05QL130L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
5,990×2,130×2,660 (mm) |
| Gross Vehicle Weight | 7,300kg |
| Curb Weight | 4,525kg |
| Wheelbase | 3,360mm |
| Chassis Designed | ISUZU M600 |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive Wheel (Tires) | 4+2 and one spares (total of 11 wheels) |
| Tire Size | 7.00R16 |
| ENGINE | |
| Make / Model | ISUZU / 4KH1CN5HS |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 2.999L |
| Nominal Power | 130HP (96Kw) @ 3,400rpm |
| Peak Torque | 290N.m@1,500rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MSB |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 5F+1R |
| CAPACITY | 5,000L |
| Sludge and Clean Tank | |
| Tipping | The tank is mounted with an arrangement for the rear tipping |
| Thickness | 6mm |
| Division of Compartment | The tank is divided into two compartments.
Cleaning water tank compartment: 4,000liters Sludge/sewage tank compartment: 1,000liters |
| Level Indicators | Material: Transparent acrylic tubing with thick wall
Quantities: Total two units. One on each compartment. |
| Rear Door | Fully open-able type
It is reinforced for structural integrity. Raised to the angle of 80°to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches. |
| High-Pressure Jetting Pump | |
| Make/Model | PINFL/MGS50 |
| Type | Heavy-duty positive displacement single-acting triplex reciprocating pump to be driven by a split shaft from total power take-off unit. |
| Pump Rated Power Output | 137kw |
| Scavenging Capacity | 287l/min |
| Vacuum Pump | |
| Make/Model | YIFENG / 2BE-204 |
| Pump Capacity | 6~21.4m3/min@ suction absolute pressure 60hPa;
16.3~22.8m3/min@ suction absolute pressure 100hPa; 16.6~24.1m3/min@ suction absolute pressure 200hPa; 16.6~24.2m3/min@ suction absolute pressure 400hPa |
| Cont. Duty Vacuum | 80% |
| Maximum Vacuum | 95% |
| Type | Water ring vacuum pump, heavy duty/multi-cylinder type, strong high-pressure, continuous duty.
It is fitted with a rotary sliding vane, positive displacement type exhauster/compressor. |
| Max. Exhaust Power | 41.6kw |
| Rotated Speed | 1,170rpm |
| Hose | |

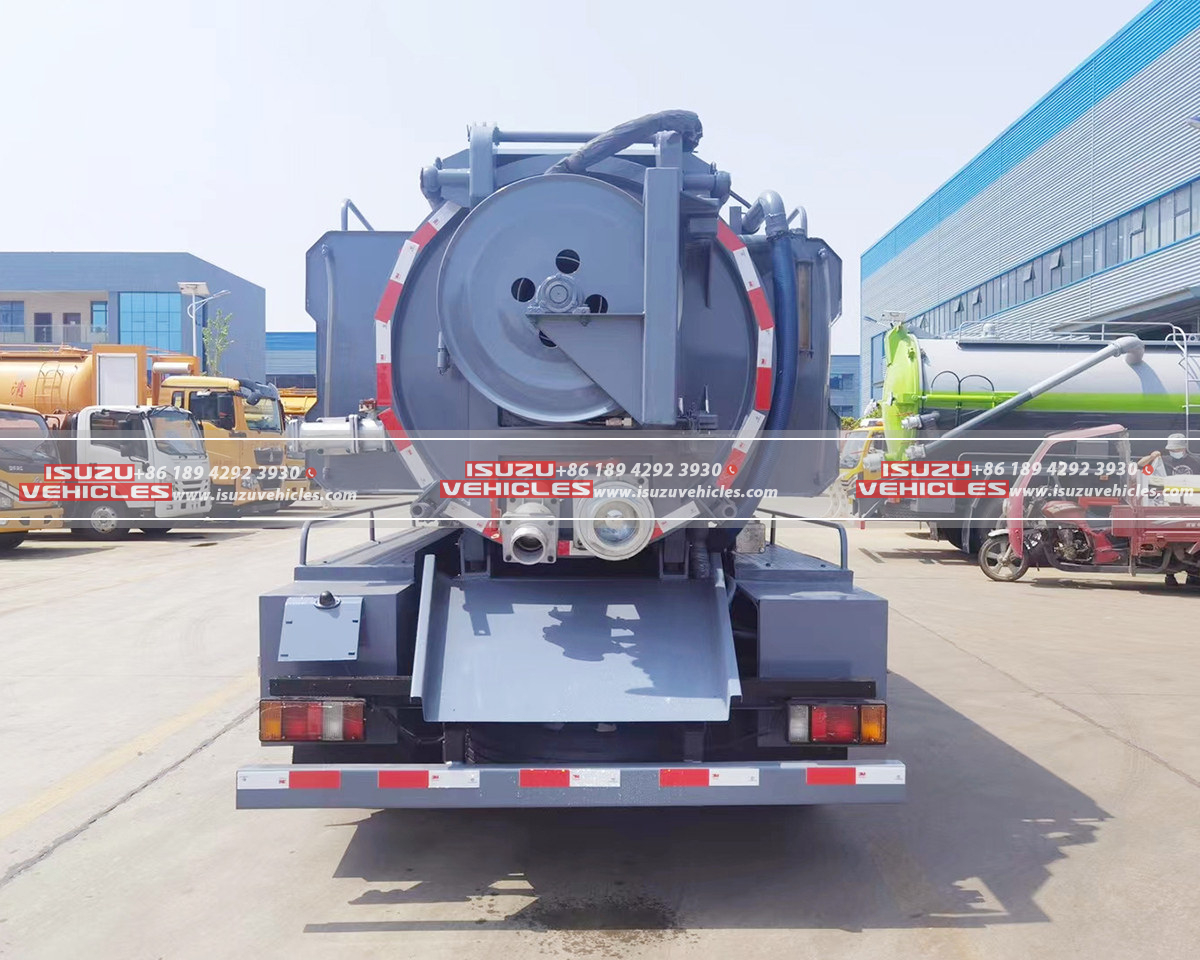

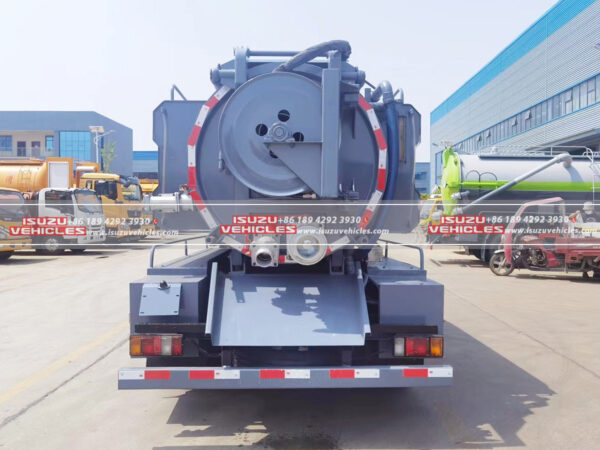

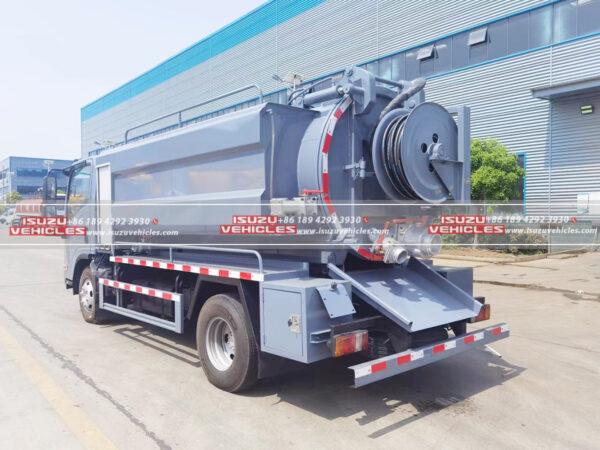

| Hose Reel | On the rear end of the Combined tank is provided the hose’s reel, which is designed to store up to 120 meters of the supplied sewer jetting hose 1″. Delivery and recovery of the jetting hose is done via a low-speed, high torque hydraulic. |
| Heavy Duty Spiral Suction Hoses | Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application |
| Safety Device | Equipped with anti-flow devices |
