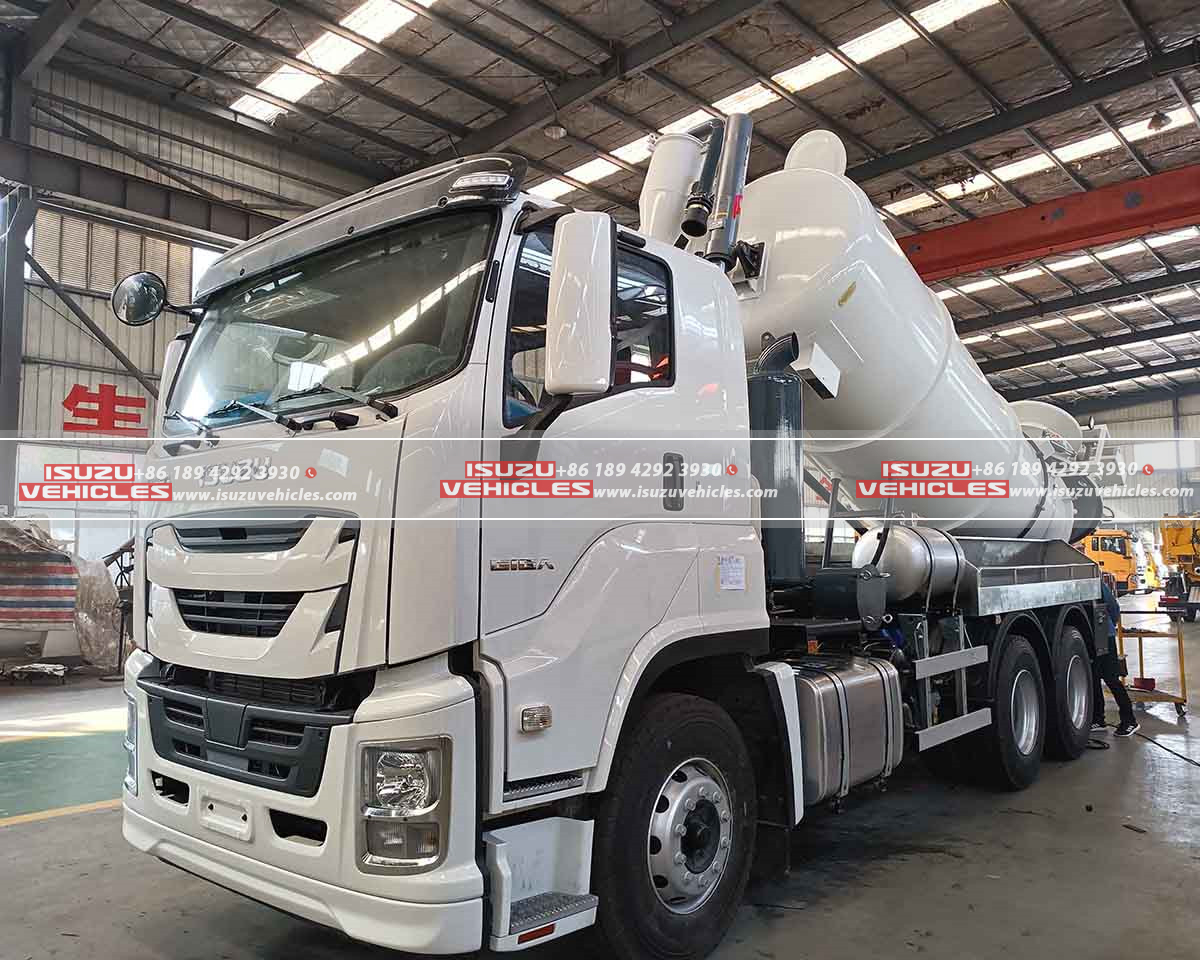

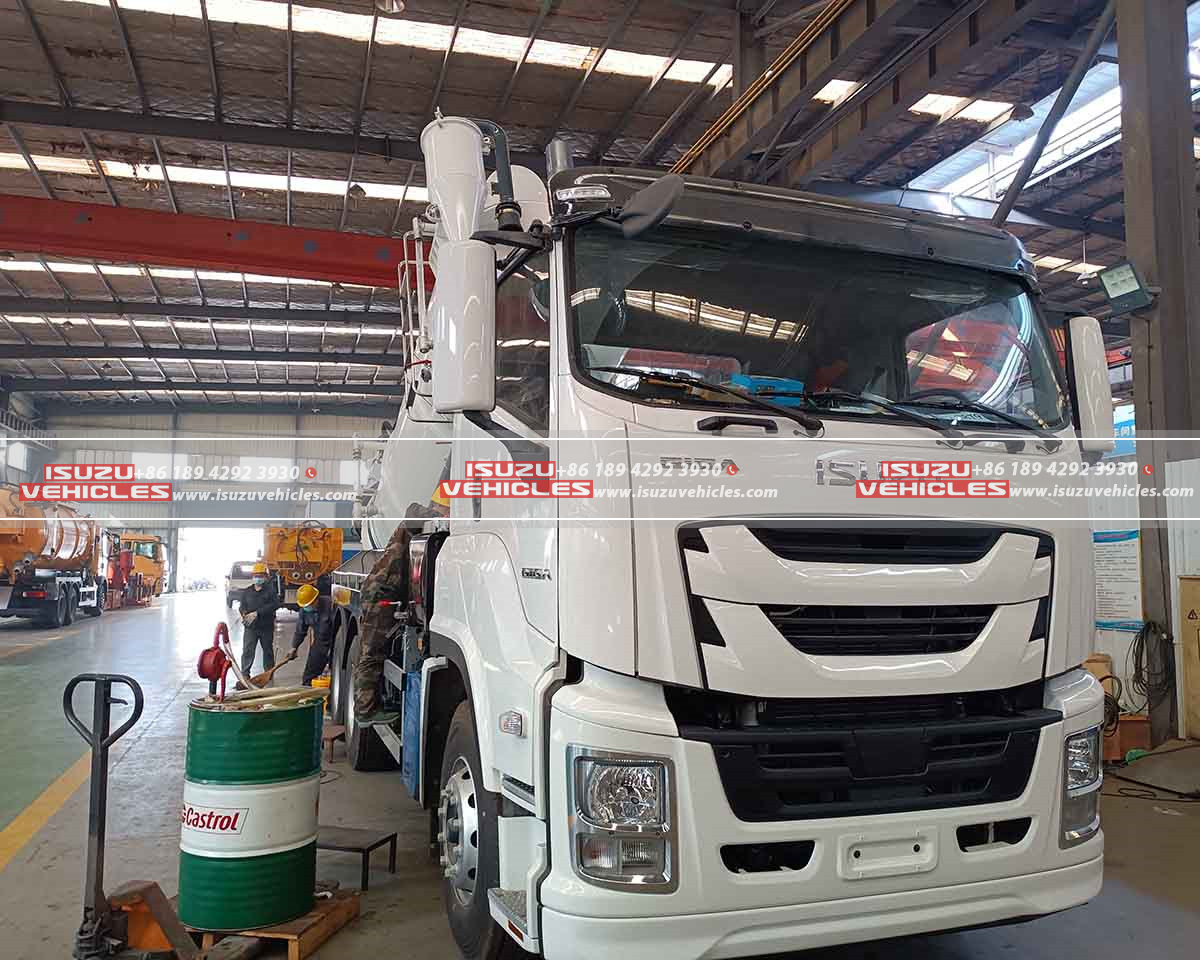

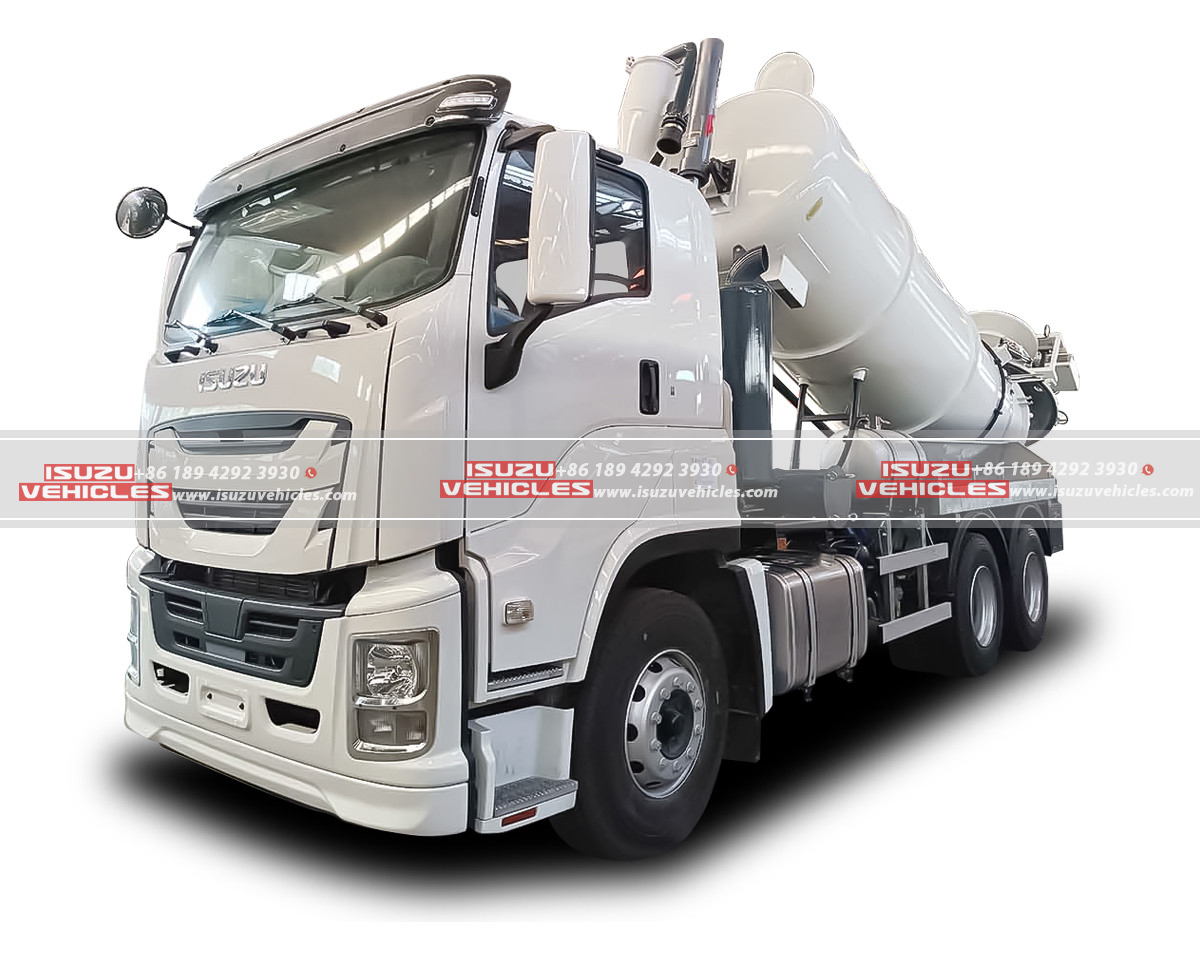

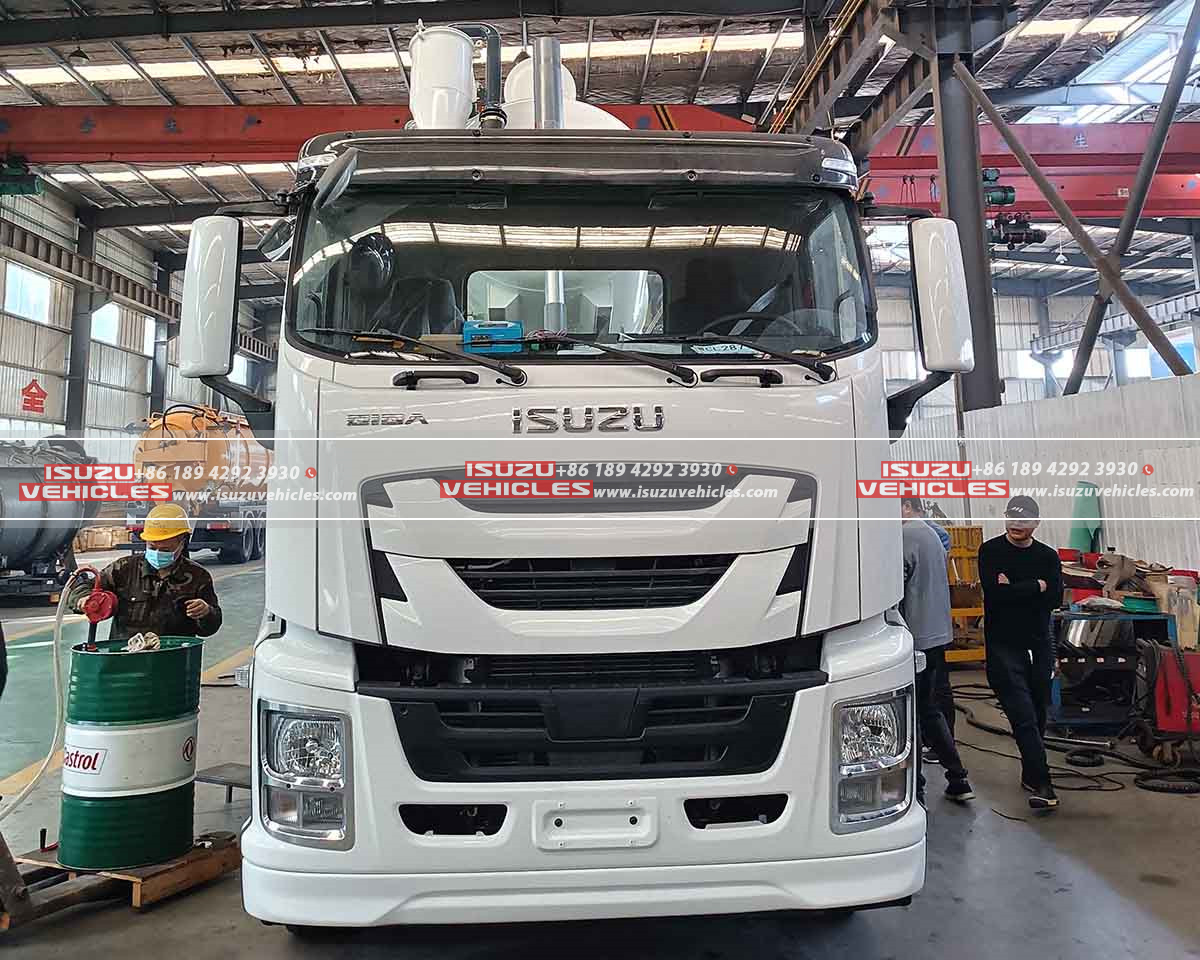

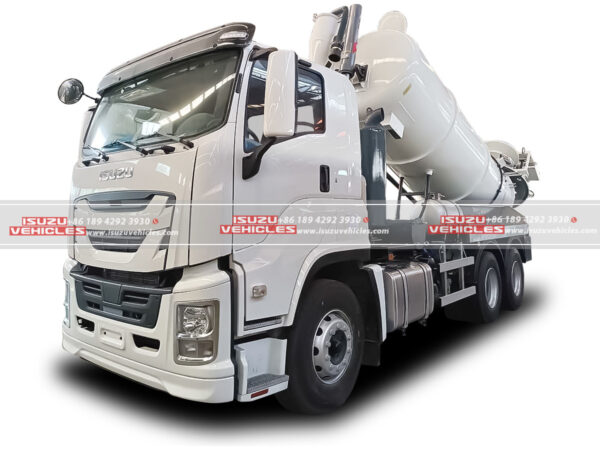

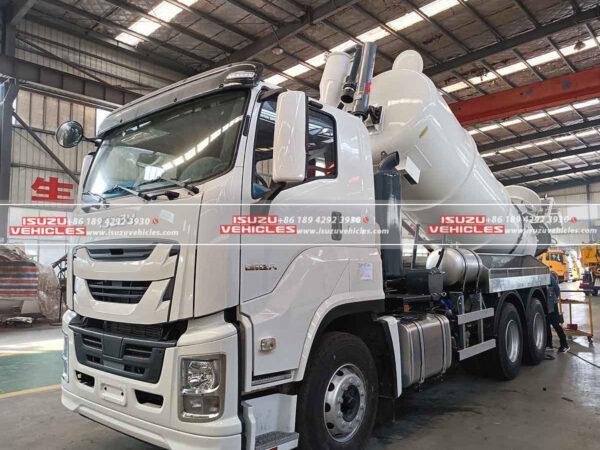

Introducing the ISUZU combined sewer jetting truck, a heavy-duty machine designed to provide efficient cleaning and maintenance of sewer systems. This truck boasts a powerful engine, durable chassis, and advanced cleaning and suction capabilities to make cleaning sewage lines a breeze.
The ISUZU combined sewer jetting truck is powered by a Euro 5 compliant 6UZ1-TCG51 engine that delivers 350 horsepower (257 kW) at 2000 rpm and a peak torque of 1422 N.m at 1400 rpm. The engine is coupled with a FAST 12JSDX240TA diesel transmission with 12 forward and 2 reverse speeds, allowing the truck to handle tough cleaning tasks with ease.
This 4×2 left-hand drive truck is built on an ISUZU GIGA chassis and measures 9,885 mm x 2,500 mm x 3,450 mm (L x W x H), with a gross vehicle weight of 25,000 kg and a curb weight of 14,300 kg. The truck has a wheelbase of 4,565 mm plus an additional 1,370 mm. The tires are 315/80R22.5, with 6+4 drive wheels and one spare, for a total of 11 wheels.
The tank of the ISUZU combined sewer jetting truck has a capacity of 10,000 liters and is divided into two compartments. The cleaning water tank compartment can hold 6,000 liters, while the sludge/sewage tank compartment can hold 4,000 liters. Both compartments have level indicators made of transparent acrylic tubing with thick walls. The tank is mounted with an arrangement for rear tipping and has a thickness of 6mm. The rear door is fully openable and reinforced for structural integrity.
The truck features a Pratissoli MF50 high-pressure jetting pump with a rated power output of 108 kW and a scavenging capacity of 330 l/min. The jetting pump is driven by a split shaft from the total power take-off unit. The vacuum pump is a MORO PM110W water-cooled vacuum pump with a pump capacity of 16,400 liters per minute. The vacuum pump has a maximum vacuum of 95% and a continuous duty vacuum of 80%. The pump is a heavy-duty/multi-cylinder type with a maximum exhaust power of 41 kW and a rotational speed of 1,400 rpm.
This sewer jetting truck is equipped with a heavy-duty spiral suction hose with five 4″ diameter hoses measuring 3 meters in length. The hose comes with aluminum or galvanized steel light and easy-to-handle PVC hoses along with quick-connect fittings on each end and male-female couplings for suction applications. The truck is also equipped with a hose reel on the rear end that can store up to 120 meters of the supplied sewer jetting hose. The delivery and recovery of the jetting hose are done via a low-speed, high-torque hydraulic system.
Safety is paramount when operating the ISUZU combined sewer jetting truck, and it comes equipped with anti-flow devices to prevent accidents. The cabin is designed with hydraulic power steering and can accommodate 1 driver and 2 passengers.
In summary, the ISUZU combined sewer jetting truck is a reliable and efficient machine designed to provide maximum performance in cleaning sewage lines. With its advanced cleaning and suction capabilities, it is a valuable addition to any municipality or organization responsible for maintaining sewage systems.
| GENERAL | |
| Make/Model | ISUZU / GSJ10QL350L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
9,885 x 2,500 x 3,450 (mm) |
| Gross Vehicle Weight | 25,000kg |
| Curb Weight | 14,300kg |
| Wheelbase | 4,565+1,370mm |
| Chassis Designed | ISUZU GIGA |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive Wheel (Tires) | 6+4 and one spares (total of 11 wheels) |
| Tire Size | 315/80R22.5 |
| ENGINE | |
| Make / Model | ISUZU / 6UZ1-TCG51 |
| Type | 6 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 9.839L |
| Nominal Power | 350HP (257kw) @ 2000rpm |
| Peak Torque | 1,422N.m@1,400rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | FAST/ 12JSDX240TA |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 12F+2R |
| CAPACITY | 10,000L |
| Sludge and Clean Tank | |
| Tipping | The tank is mounted with an arrangement for the rear tipping |
| Thickness | 6mm |
| Division of Compartment | The tank is divided into two compartments.
Cleaning water tank compartment: 6,000liters Sludge/sewage tank compartment: 4,000liters |
| Level Indicators | Material: Transparent acrylic tubing with thick wall
Quantities: Total two units. One on each compartment. |

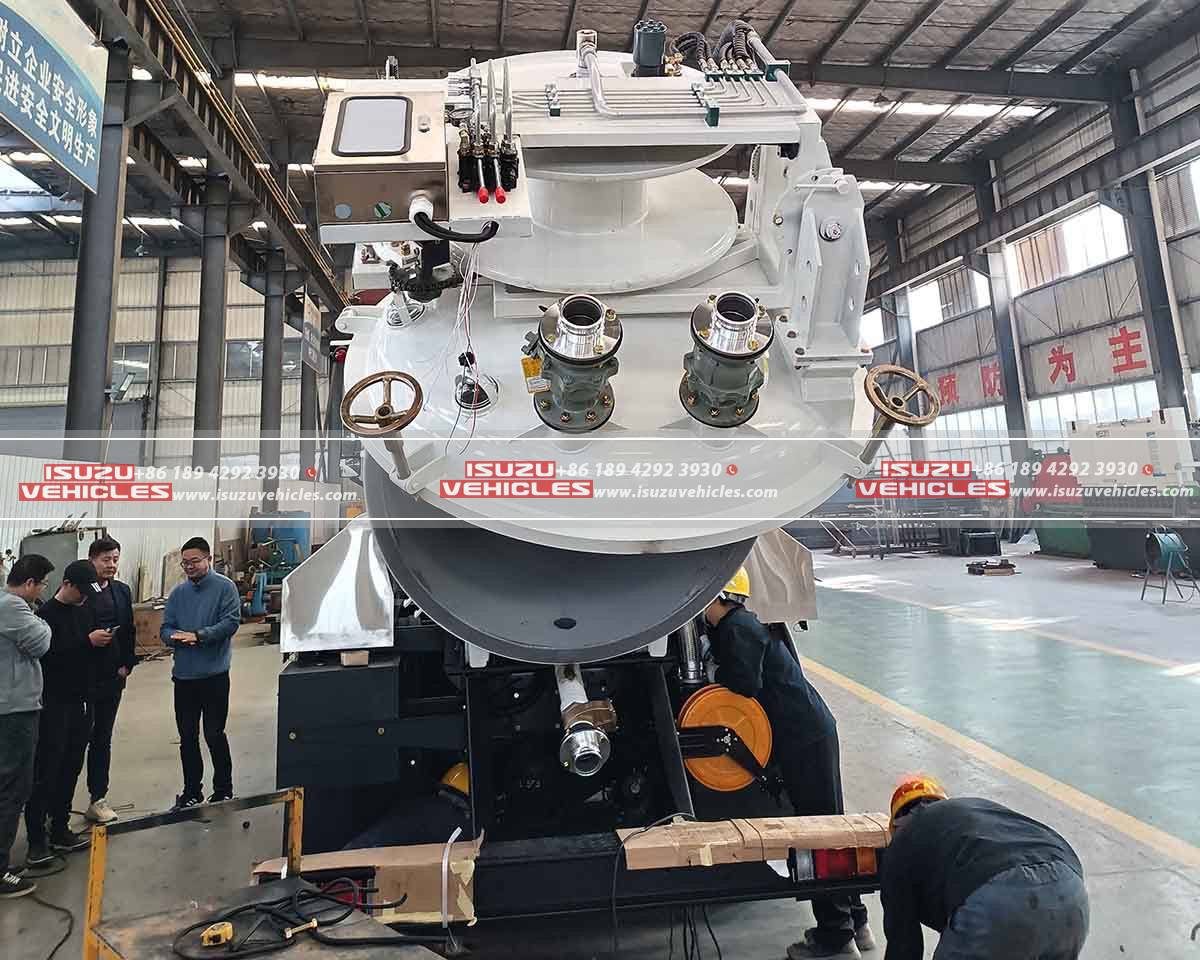

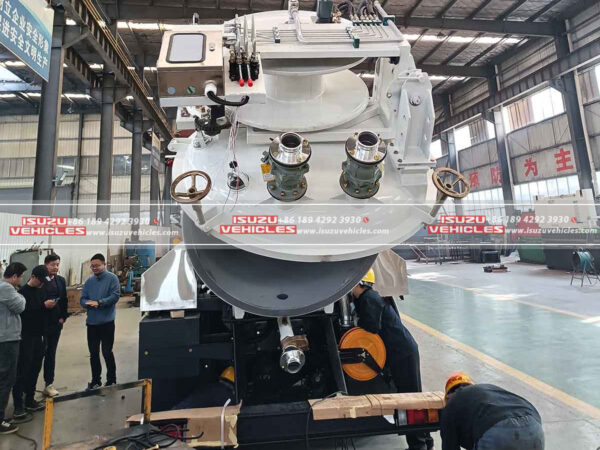

| Rear Door | Fully open-able type
It is reinforced for structural integrity. Raised to the angle of 80°to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches. |
| High-Pressure Jetting Pump | |
| Make/Model | Pratissoli/ MF50 |
| Type | Heavy-duty positive displacement single-acting triplex reciprocating pump to be driven by a split shaft from total power take-off unit. |
| Pump Rated Power Output | 108kw |
| Scavenging Capacity | 330l/min |
| Vacuum Pump | |
| Make/Model | MORO/ PM110W |
| Pump Capacity | 16,400Lt/min |
| Cont. Duty Vacuum | 80% |
| Maximum Vacuum | 95% |
| Type | Water-cooled vacuum pump, heavy duty/multi-cylinder type, strong high-pressure, continuous duty. |
| Max. Exhaust Power | 41kw |
| Rotated Speed | 1,400rpm |
| Hose | |
| Hose Reel | On the rear end of the Combined tank is provided the hose’s reel, which is designed to store up to 120 meters of the supplied sewer jetting hose 1″. Delivery and recovery of the jetting hose is done via a low-speed, high torque hydraulic. |
| Heavy Duty Spiral Suction Hoses | Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application |
| Safety Device | Equipped with anti-flow devices |
