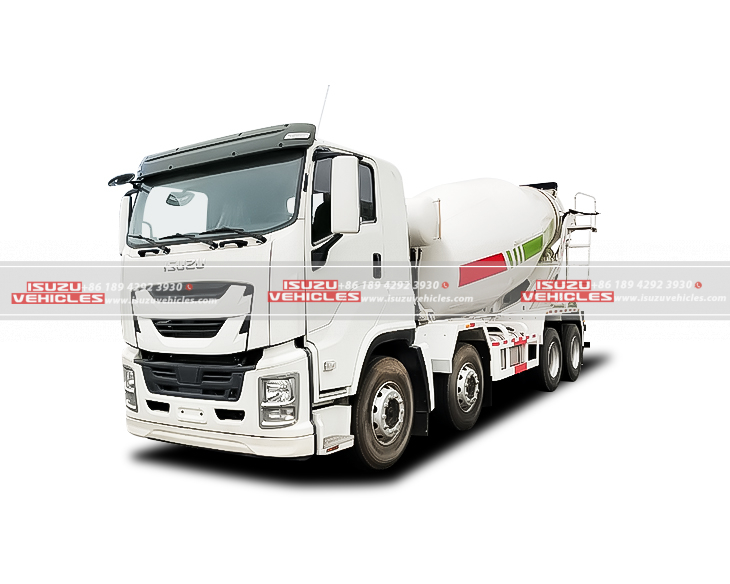

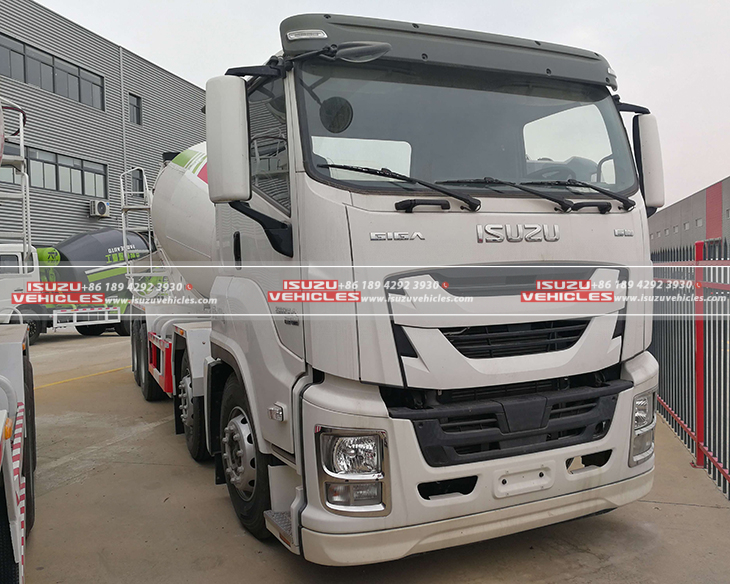

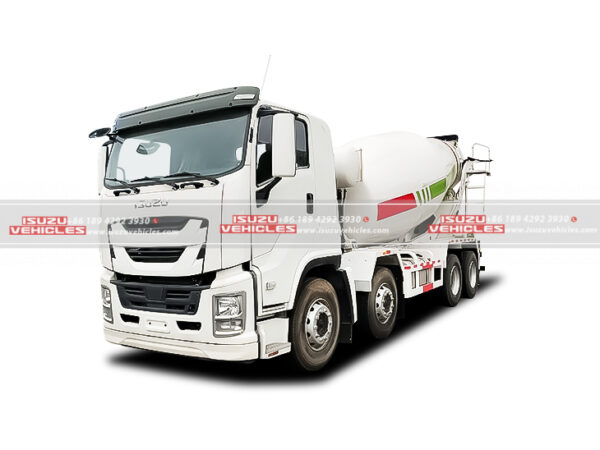

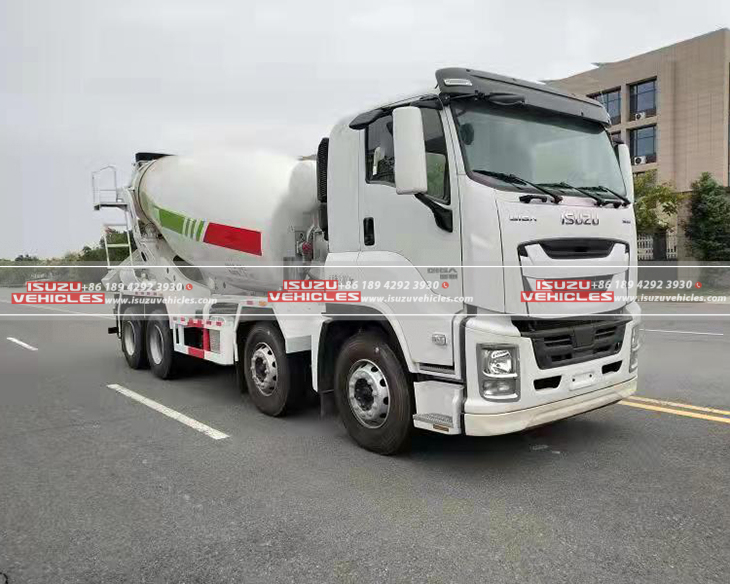

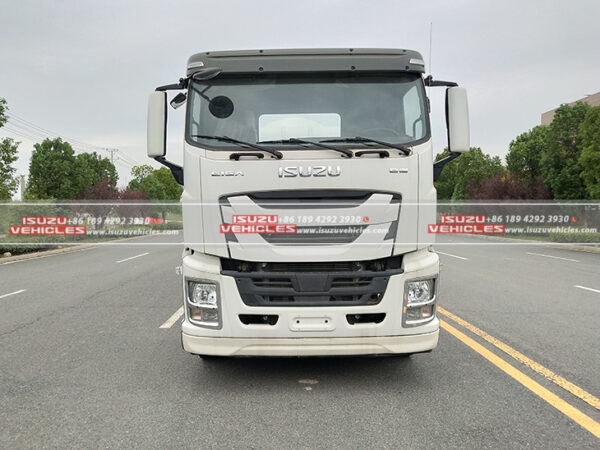

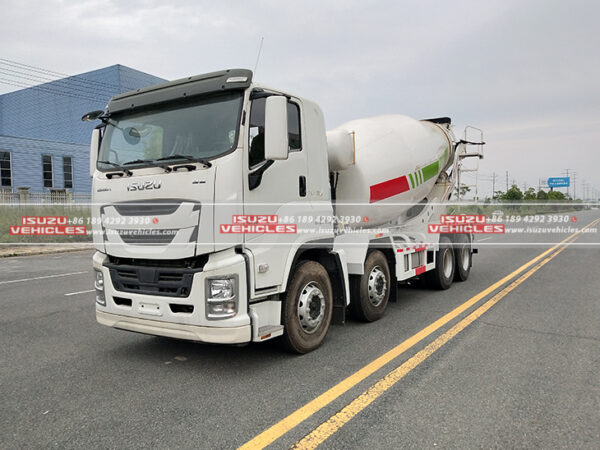

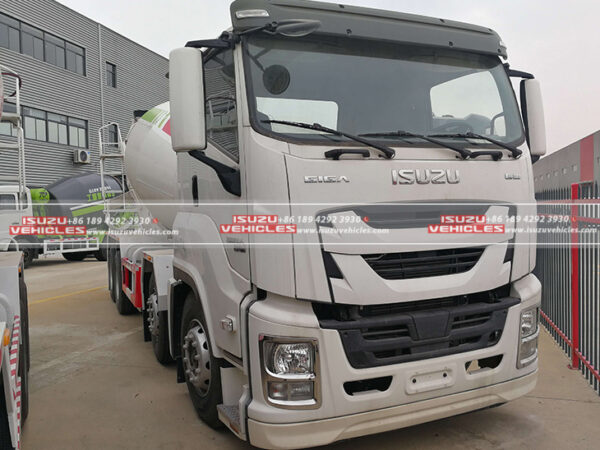

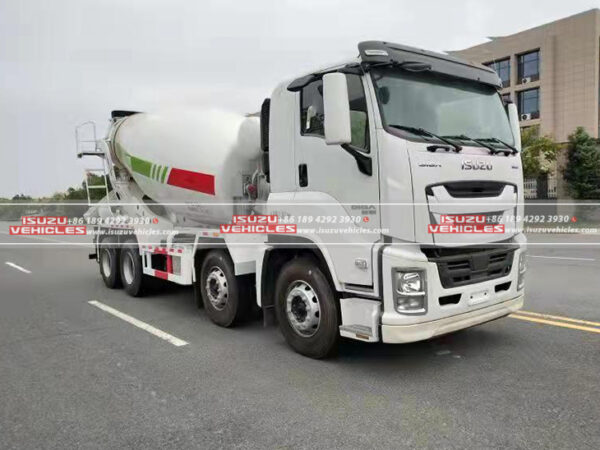

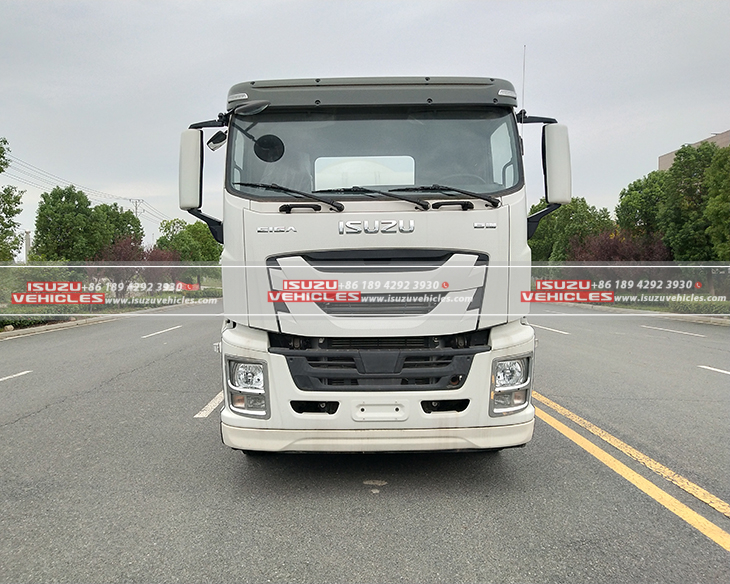

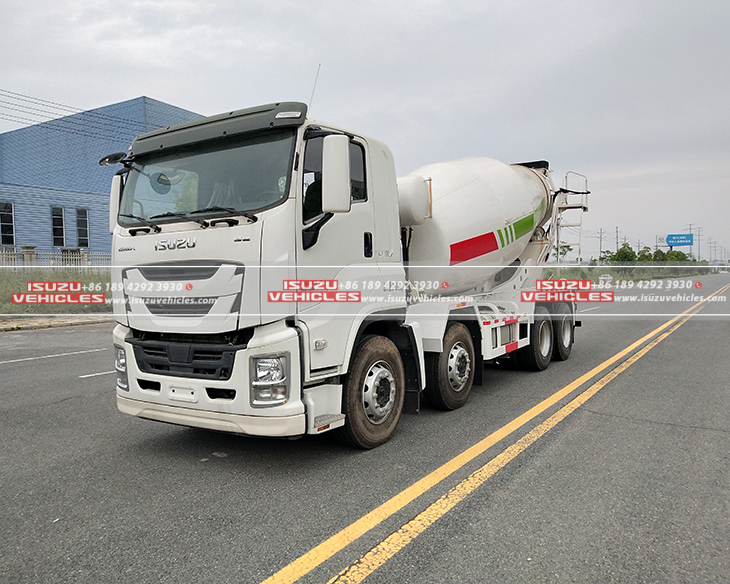

ISUZU Concrete Mixer Truck
Model & Compliance
The ISUZU Concrete Mixer Truck is a GB VI (EURO Ⅵ) compliant concrete mixer truck, designed to meet rigorous emission standards while delivering robust performance in urban and industrial construction environments. With a total vehicle mass of 31,000 kg and a payload capacity of 16,600 kg, it balances efficiency and durability for high-volume concrete transportation.
Core Specifications
- Dimensions: Compact yet powerful at 9,600 × 2,550 × 3,990 mm, optimized for maneuverability in confined worksites.
- Powertrain: Powered by the ISUZU 6UZ1-TCG61 engine—a 9,839 cc turbocharged diesel unit generating 279 kW—ensuring reliable torque for steep gradients and heavy loads.
- Fuel Efficiency: Engineered with a 37.0 L/100 km optimized fuel consumption rate, reducing operational costs without compromising power.
Features

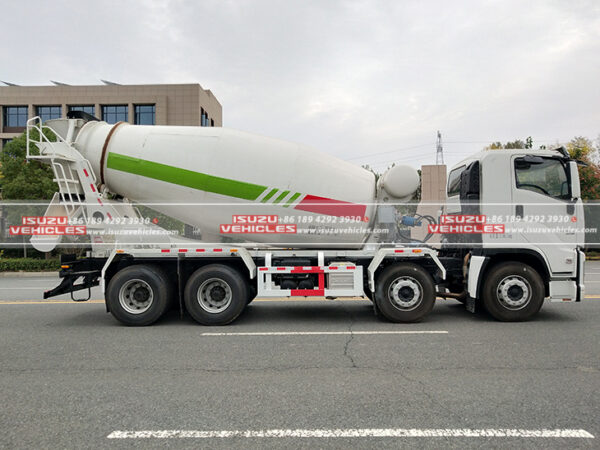

1. High-Efficiency Mixer Drum

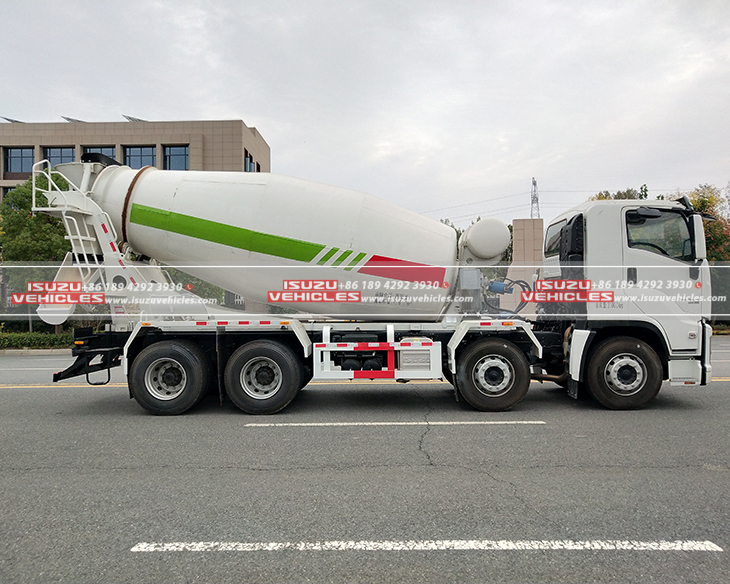

- 7.6 m³ Mixing Capacity: The 2100 mm-diameter drum, with a 5,800 mm total length and 13° installation angle, ensures homogeneous blending and minimal concrete segregation during transit.
- Durable Construction: Fabricated from wear-resistant steel, the drum supports continuous operation under abrasive conditions while maintaining a 500 mm ground clearance for rough terrain adaptability.
2. Robust Chassis Design
- QL2310U4TDHY Chassis: Features a 4-axle configuration with a 6,200 mm wheelbase (1,850 + 2,980 + 1,370 mm) and 12R22.5 18PR/11.00R20 18PR tires, providing exceptional stability and load distribution.

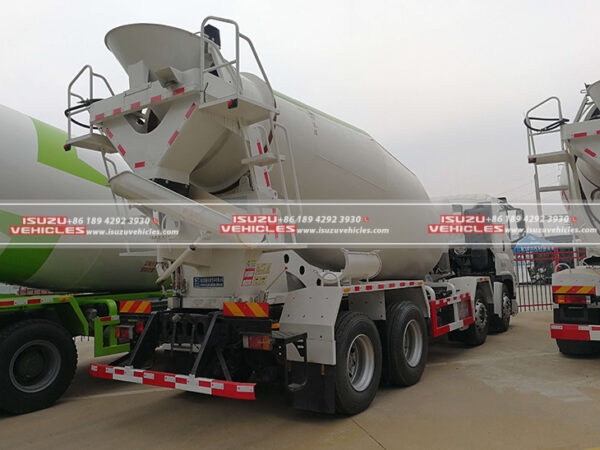

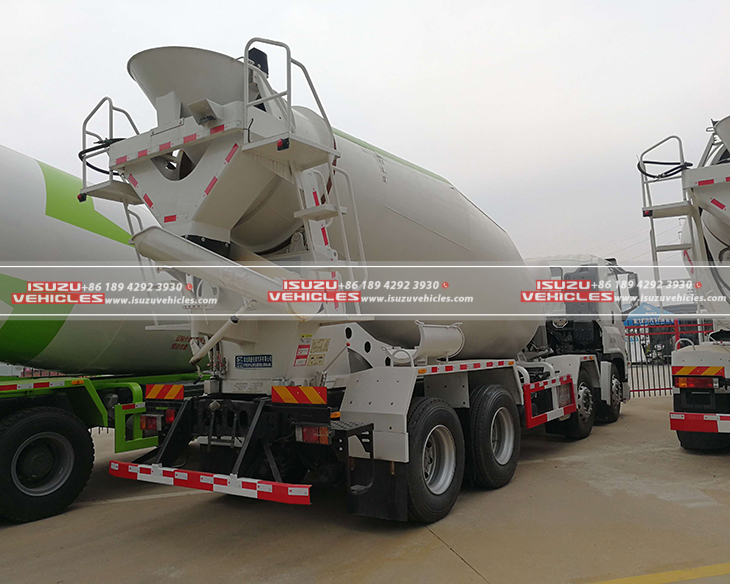

- Reinforced Protection: Equipped with Q235 steel side/rear guards (120×50 mm cross-section) bolted to the frame, enhancing structural integrity and compliance with safety regulations.
3. Advanced Safety & Smart Technology
- ABS with Satellite Tracking: Utilizes APG3550500H1 ABS (manufactured by Zhejiang Asia-Pacific Mechanical) and integrated GPS-enabled telematics for real-time fleet monitoring and anti-lock braking precision.

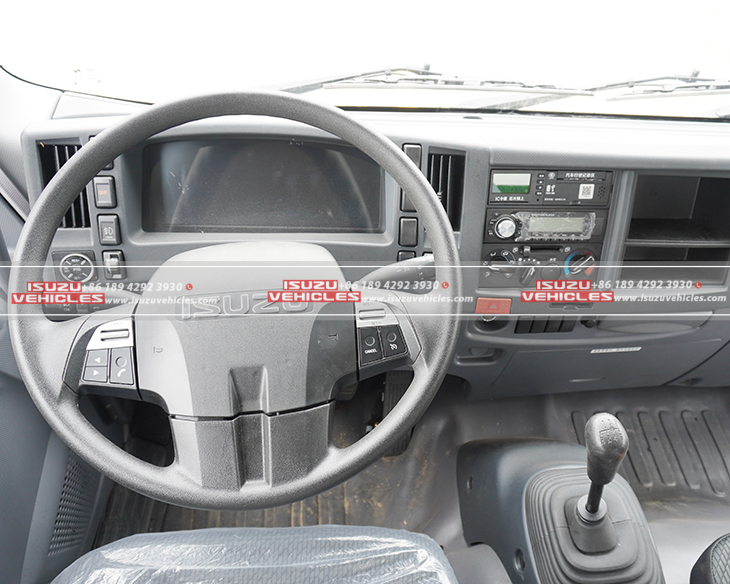

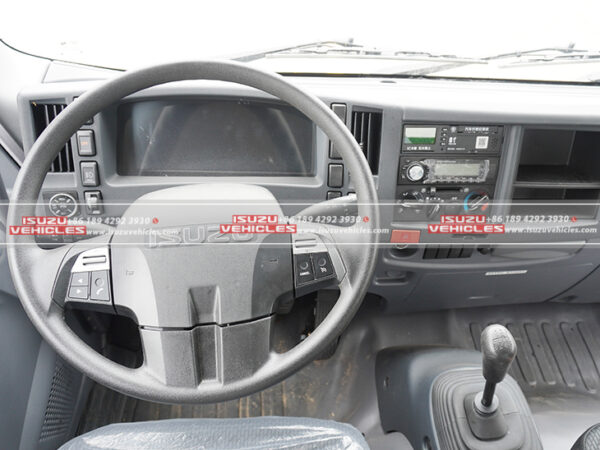

- Driver-Centric Ergonomics: A 2-seater cabin with 89 km/h max speed and 25°/15° approach/departure angles ensures smooth navigation through complex job sites.
4. Customization Options.
- Aesthetic Flexibility: Available with modernized exterior styling to align with corporate branding requirements.
Engineered for Excellence
The ISUZU Mixer Truck integrates ISO-certified manufacturing standards with innovations like 278 kW net engine output and GB17691-2018 emission compliance, making it a sustainable and productivity-driven solution for contractors prioritizing reliability, efficiency, and regulatory adherence.
SPECIFICATIONS
| Category | Specification | Value |
|---|---|---|
| Vehicle Profile | Model | STD5311GJBQL6 |
| Overall Dimensions (L×W×H) | 9,600 × 2,550 × 3,990 mm | |
| Seating Capacity | 2 (Front Row) | |
| Total Mass | 31,000 kg | |
| Payload Capacity | 16,600 kg | |
| Curb Weight | 14,270 kg | |
| Performance | Max. Speed | 89 km/h |
| Approach/Departure Angle | 25° / 15° | |
| Front/Rear Overhang | 1,370 mm / 2,030 mm | |
| Emission & Compliance | Emission Standard | GB17691-2018 China VI (GB VI) |
| ABS System | APG3550500H1 (Zhejiang Asia-Pacific) | |
| Telematics | GPS-Enabled Driving Recorder | |
| Mixer Drum | Mixing Capacity | 7.6 m³ |
| Drum Diameter × Length | Ø2,100 mm × 5,800 mm | |
| Installation Angle | 13° | |
| Chassis & Drivetrain | Chassis Model | QL2310U4TDHY |
| Axle Configuration | 4 Axles | |
| Wheelbase | 1,850 + 2,980 + 1,370 mm | |
| Front/Rear Track Width | 2,060 mm / 1,855 mm | |
| Tire Specifications | 12R22.5 18PR or 11.00R20 18PR | |
| Engine | Model | 6UZ1-TCG61 |
| Manufacturer | Isuzu Vehicles | |
| Displacement | 9,839 cc | |
| Power Output | 279 kW (374 hp) | |
| Fuel Consumption | 37.0 L/100 km | |
| Safety & Protection | Side/Rear Guard Material | Q235 Steel |
| Guard Ground Clearance | 500 mm | |
| Guard Section Size | 120 × 50 mm | |
| Customization | Optional Features | ETC Module, Modern Exterior Styling |
