ISUZU 700P 4 CBM Mixer Truck

ISUZU 700P 4 CBM Mixer Truck

The ISUZU 700P 4 CBM Mixer Truck is a compact and efficient concrete transportation vehicle designed for construction projects that require reliable concrete mixing and delivery performance in both urban and off-road environments. Built on the durable ISUZU 700P chassis, this mixer truck combines strong power output, excellent maneuverability, and a high-quality mixing system, making it suitable for residential construction, road development, commercial buildings, and municipal engineering projects.

Powered by the ISUZU 4HK1-TCG61 diesel engine, the truck delivers 190 HP (139 kW) with a maximum torque of 507 N·m, providing sufficient power for transporting concrete under different working conditions. The Euro VI emission-compliant engine features a 4-cylinder inline structure, turbocharging, intercooling, and water cooling technology, ensuring stable performance, improved fuel efficiency, and long-term reliability. The matching ISUZU MLD-6Q manual transmission with 6 forward gears and 1 reverse gear allows smooth operation and effective power control.

The vehicle adopts a 4×2 left-hand drive configuration with overall dimensions of approximately 7,600 × 2,350 × 3,600 mm, a 3,815 mm wheelbase, and a gross vehicle weight of 10,550 kg. Its compact structure allows easy movement through narrow construction sites while maintaining a strong payload capability of approximately 3,800 kg. The ISUZU 700P cab provides a comfortable driving environment with air conditioning, audio system, and two seats, helping operators maintain efficiency during long working hours.

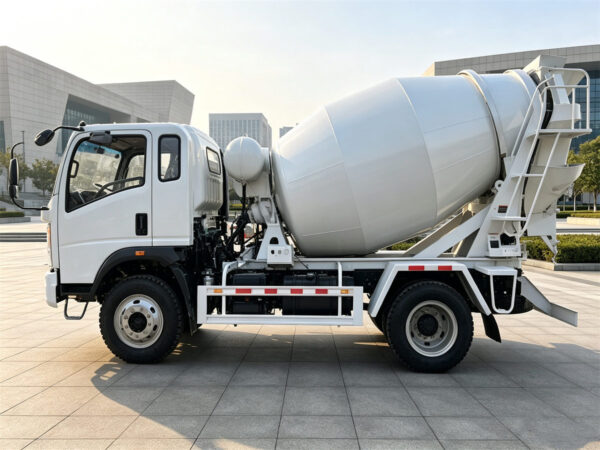

Equipped with a 4 cubic meter concrete mixer drum, the truck features a high-strength mixing system made from wear-resistant steel materials, ensuring excellent durability and continuous mixing performance. The hydraulic system uses premium components from internationally recognized brands, providing stable drum rotation, efficient concrete discharge, and reliable operation throughout the service life of the vehicle.

Features

Efficient 4 CBM Concrete Mixing System

The mixer body is designed with a 4 CBM mixing drum capacity, making the truck an ideal solution for small and medium-sized construction projects where flexibility and efficiency are important. The drum is manufactured with Q355 high-strength wear-resistant steel, featuring a 6 mm head thickness and 5 mm drum thickness, which provides excellent resistance against abrasion caused by continuous concrete mixing.

The internal mixing blades are made from Q345B high-strength wear-resistant steel with a 5 mm thickness, ensuring effective concrete blending and reducing material wear during operation. The drum adopts carbon dioxide gas-shielded welding technology, improving structural strength and extending service durability.

With a mixing drum rotation speed of 2–14 r/min and a discharge residue rate of less than 0.7%, the concrete mixer truck can maintain consistent concrete quality while supporting a wide slump range of 40–210 mm, allowing it to handle different concrete requirements on construction sites.

Reliable ISUZU 700P Chassis Performance

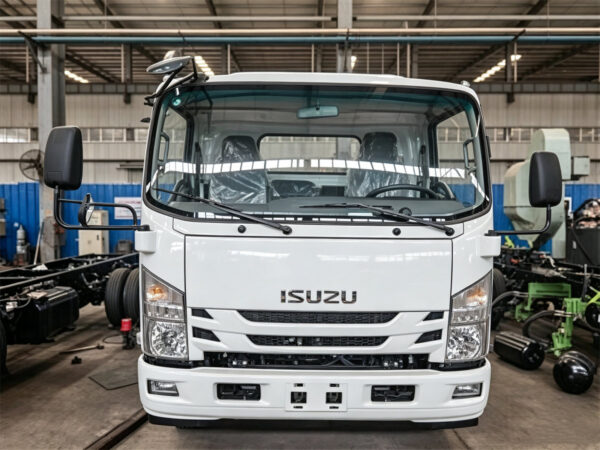

The foundation of this mixer truck is the proven ISUZU 700P chassis, which is well-known for durability, fuel efficiency, and easy maintenance. The chassis uses heavy-duty suspension systems, including semi-elliptical leaf springs at the front and reinforced spring suspension at the rear, providing stable support when carrying concrete loads.

The front axle has a capacity of 3,500 kg, while the rear axle supports up to 7,000 kg, ensuring excellent load distribution and driving stability. Equipped with 235/75R17.5 tires with six standard tires and one spare tire, the vehicle provides dependable traction on paved roads and construction areas.

The braking system combines air brakes, drum brakes, mechanical parking brakes, and exhaust valve braking (EVB), offering improved safety and control during transportation, especially when operating on slopes or uneven roads.

Advanced Hydraulic Drive Components

The mixer drum is powered by a professional hydraulic system using high-quality components, including Danfoss hydraulic pumps and motors from Denmark. The hydraulic pump features a displacement of 90 ml/rpm, while the hydraulic motor provides 80 ml/rpm displacement, ensuring smooth drum rotation and stable mixing performance.

The PMP 90 reducer from Italy, with a reduction ratio of 1:141, delivers reliable power transmission and efficient operation. This combination of hydraulic components reduces maintenance requirements while improving overall mixer reliability under continuous construction conditions.

Practical Feeding and Discharging Design

The mixer truck is equipped with a practical inlet and outlet system designed for convenient concrete loading and unloading. The feed port diameter reaches 600 mm, with a feeding speed of approximately 4 m³/min and a discharge speed of approximately 3 m³/min, allowing efficient concrete handling at construction sites.

The hopper size is designed at 900 × 800 mm, while the main groove length reaches 1,200 mm with an additional 500 mm extension groove, providing operators with better flexibility during concrete delivery operations.

Durable Protection and Professional Appearance

To improve corrosion resistance and maintain long-term appearance, the entire mixer body receives professional painting treatment. Both the interior and exterior surfaces are spray-painted with high-quality coatings, including two layers of anti-corrosion primer and two layers of enamel metal paint.

The ISUZU mixer truck is also equipped with a 350-liter water supply system using air pressure control, supporting cleaning operations and helping maintain the mixing equipment after daily use. With its reliable chassis, efficient mixing structure, and durable components, this ISUZU 700P 4 CBM Mixer Truck provides a practical and professional solution for concrete transportation and construction applications.
