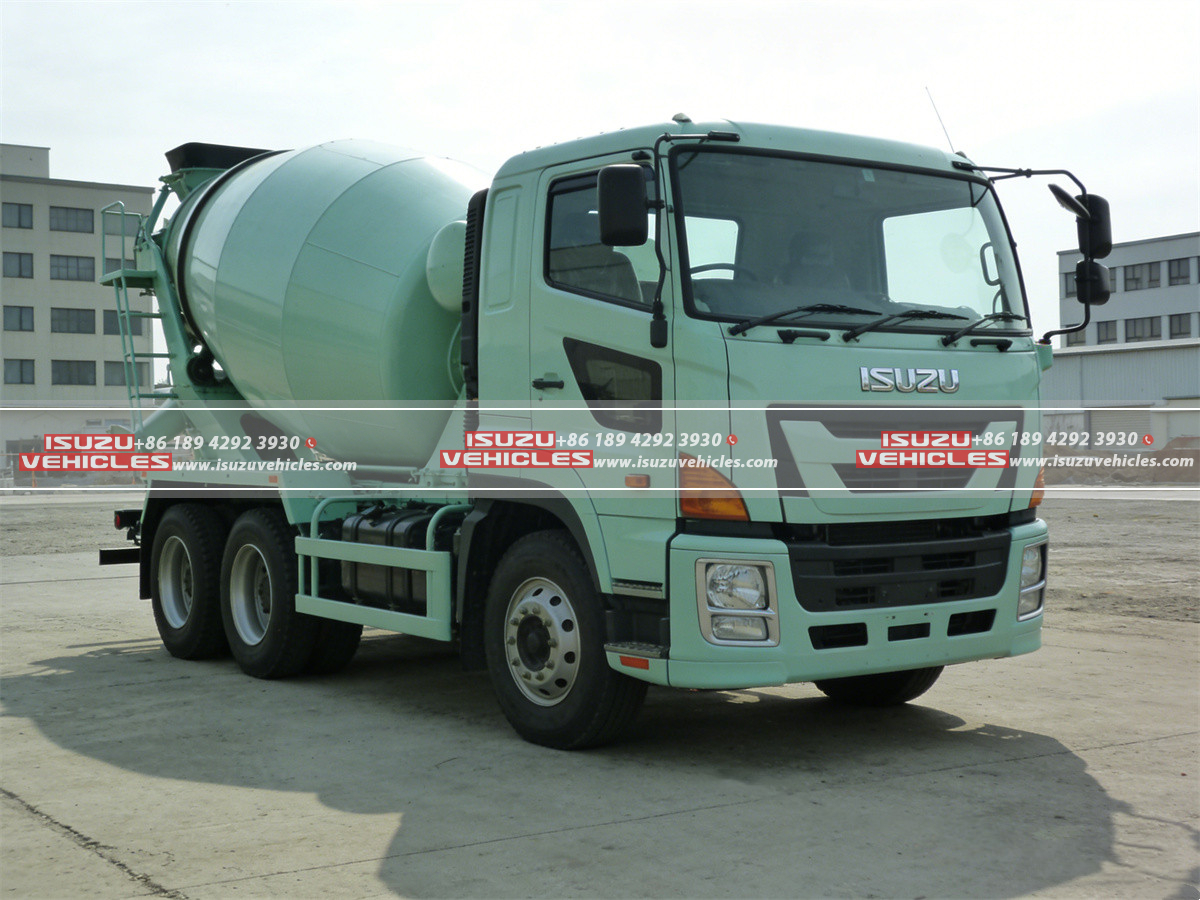

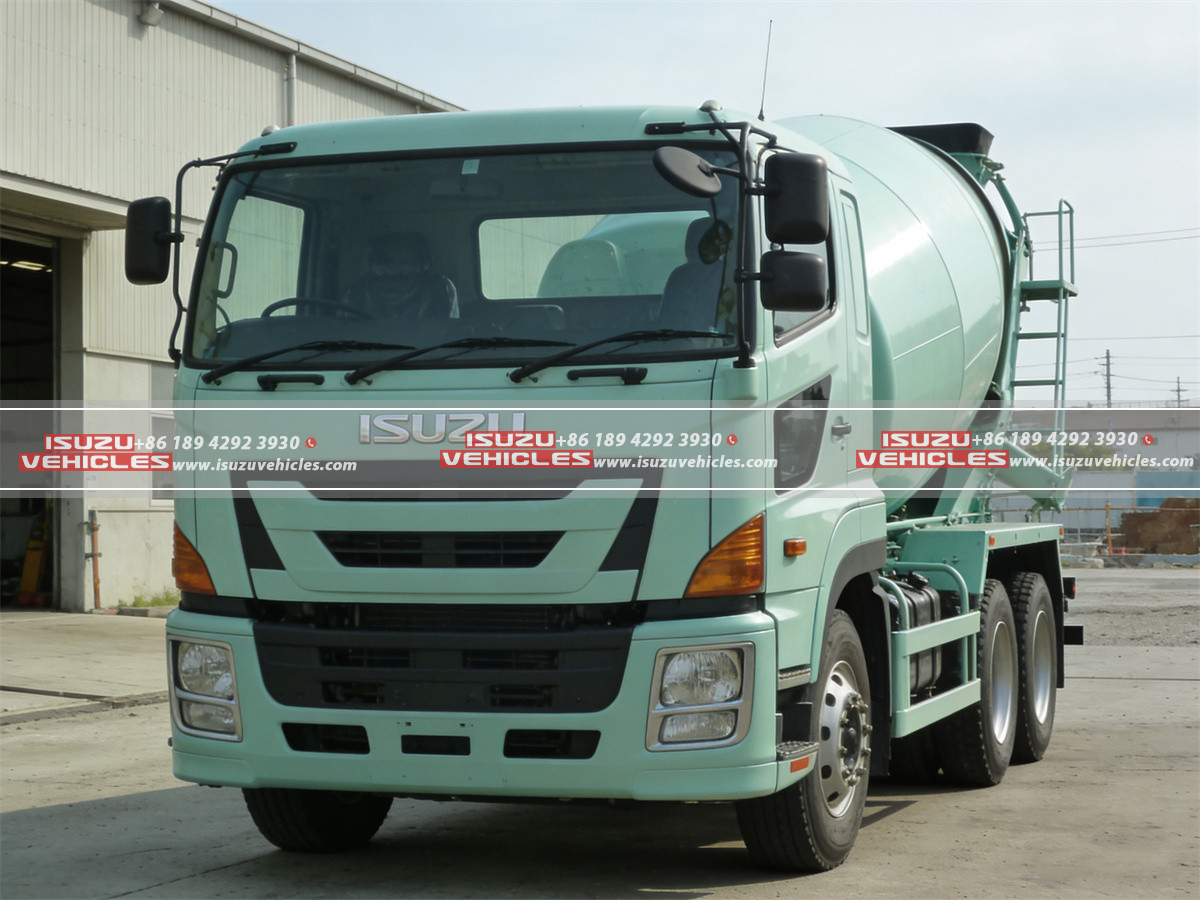

ISUZU GIGA 12 CBM Concrete Mixer Truck
The ISUZU GIGA 12 CBM Mix Truck is a heavy-duty construction vehicle engineered to deliver consistent, reliable, and high-efficiency concrete transportation for demanding infrastructure and building projects. Built on the robust ISUZU GIGA 6×4 chassis, this mixer truck integrates strong structural engineering with advanced powertrain technology, making it an ideal solution for construction companies, concrete suppliers, and large-scale civil engineering contractors that require dependable equipment capable of operating under challenging site conditions.
With an impressive gross vehicle weight of 31,000 kg and a rated payload capacity of 14,370 kg, the vehicle is designed to handle substantial loads while maintaining excellent stability and road performance. The truck measures 10,200 mm in length, 2550 mm in width, and 3950 mm in height, providing a balanced structure that accommodates a large mixing drum without compromising maneuverability. Its carefully engineered 1850 + 3700 + 1370 mm wheelbase configuration ensures stable load distribution and reliable traction even when navigating uneven construction terrain.
Powering this heavy-duty mixer truck is the well-known ISUZU 6WG1-TCG52 engine, a powerful inline 6-cylinder turbocharged and intercooled diesel engine with a displacement of 15.681 liters. This engine delivers an impressive 338 kW (460 horsepower) and 2250 N·m of maximum torque, providing the strong pulling capability necessary for transporting fully loaded concrete across urban roads, highways, and rugged construction zones. Combined with a FAST 12-speed manual transmission, the drivetrain ensures smooth gear transitions and optimal torque output under varying load conditions.
Designed for efficiency and durability, the truck is equipped with a 12 cubic meter mixing drum constructed from high-strength wear-resistant steel, which enhances longevity while maintaining consistent mixing performance. With a maximum speed of 90 km/h and compliance with Euro VI / China VI emission standards, this vehicle not only delivers strong performance but also aligns with modern environmental and regulatory requirements.
Key Features and Performance Highlights
High-Performance ISUZU Powertrain
At the heart of the vehicle lies the ISUZU 6WG1-TCG52 diesel engine, a reliable and high-output engine designed specifically for heavy commercial vehicles operating in demanding environments. Featuring high-pressure common rail fuel injection, turbocharging, and intercooling technology, the engine ensures efficient combustion, enhanced fuel economy, and powerful torque delivery at low engine speeds.
Paired with the FAST 12JSD180T manual transmission, which offers 12 forward gears and 2 reverse gears, the drivetrain provides flexible gear ratios for both heavy hauling and smooth highway cruising. This configuration allows operators to maintain optimal engine efficiency whether transporting fresh concrete through busy urban areas or climbing steep construction site gradients.
Large Capacity 12 CBM Mixing Drum
The truck is equipped with a 12 CBM mixer drum, featuring a 19 CBM geometric capacity that ensures efficient mixing and transportation of concrete while preventing overflow during operation. Constructed with 5 mm thick wear-resistant steel and reinforced 6 mm mixing blades, the drum is designed to withstand constant abrasion and high rotational forces associated with concrete mixing.
With a drum inclination angle of 13°, the mixer maintains optimal mixing dynamics, ensuring that the concrete remains uniform during transportation. The drum operates at a rotation speed of 0–14 rpm, with a feeding speed of ≥ 3 m³/min and a discharging speed of ≥ 2 m³/min, allowing for fast and efficient loading and unloading processes at construction sites.
Advanced Hydraulic Mixing System
To ensure smooth and reliable drum operation, the mixer truck utilizes a high-quality hydraulic drive system featuring internationally recognized components such as Eaton or Rexroth hydraulic pumps and motors, along with a durable PMP or Bonfiglioli reducer. This system provides stable torque output and precise control over drum rotation.
The mechanical control system allows operators to easily adjust drum speed and direction, while the air-cooled hydraulic system ensures consistent performance even during extended working hours. A 60-liter hydraulic oil tank further supports reliable and continuous operation in demanding construction environments.
Efficient Feeding and Discharge System
Designed to streamline the concrete loading and unloading process, the truck includes a 600-liter feeding hopper and a 1200 mm discharge chute, complemented by two extension chutes that provide flexible placement during concrete pouring operations. The adjustable discharge height ranging from 800 to 1200 mm ensures compatibility with various construction setups and pouring positions.
The pneumatic water supply system with a 400-liter water tank enables efficient cleaning and mixing support. Using air pressure water supply and high-pressure washing, operators can quickly rinse the drum and chute after operation, helping maintain equipment cleanliness and prolonging service life.
Heavy-Duty Chassis and Suspension System
The ISUZU GIGA 6×4 chassis provides exceptional load-bearing capacity and durability for continuous construction use. The vehicle features dual front axles with a capacity of 7000 kg each and dual rear axles rated at 13,000 kg each, ensuring balanced load distribution even when the mixer drum is fully loaded.
Supporting this configuration is a heavy-duty leaf spring suspension system with a 9 / 12 spring configuration, which enhances shock absorption and structural durability when driving on rough or uneven construction terrain.
Durable Tire and Braking System
The truck is equipped with 12.00R20 steel radial tires, offering excellent durability, traction, and load-carrying capacity for heavy-duty construction transport. A full set of 12 tires plus one spare ensures operational reliability and safety during long-distance operations.
For braking performance, the vehicle adopts a full air brake system, combined with spring energy parking brakes and an engine exhaust auxiliary brake, providing strong and reliable stopping power even under heavy loads. The inclusion of ABS anti-lock braking technology further enhances vehicle stability and safety during emergency braking situations.
Operator Safety and Functional Design

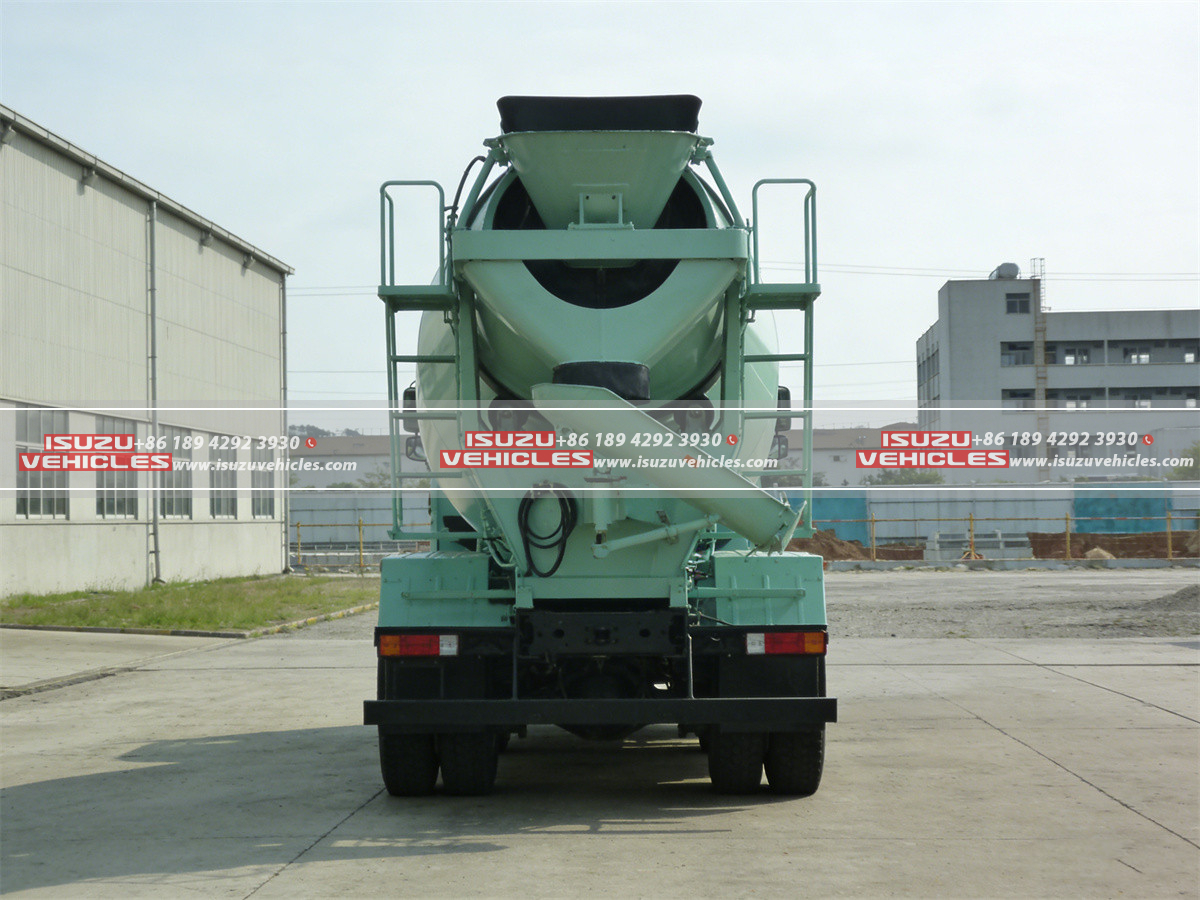

Safety and ease of operation are central to the truck’s design. The mixer truck features an anti-slip rear operation platform, allowing operators to safely monitor and control the discharge process. The drum safety guard protects key moving components, while LED rear working lights improve visibility during nighttime or low-light operations.
Additional safety features include a reverse alarm system, which alerts nearby workers during reversing maneuvers, and an optional camera monitoring system that enhances rear visibility and operational safety. A side-mounted ladder allows convenient access for maintenance and inspection of the mixer drum.
The ISUZU GIGA 12 CBM Mix Truck combines powerful engine performance, durable mixer drum construction, advanced hydraulic technology, and heavy-duty chassis engineering, making it a dependable solution for large-scale concrete transportation and construction operations. Its robust design and efficient working systems ensure reliable performance across urban construction projects, infrastructure development sites, and demanding industrial environments.
SPECIFICATIONS:
| Item | Details |
|---|---|
| Chassis Brand | ISUZU GIGA |
| Drive Type | 6×4 |
| Wheelbase | 1850 + 3700 + 1370 mm |
| Overall Length | 10,200 mm |
| Overall Width | 2550 mm |
| Overall Height | 3950 mm |
| Gross Vehicle Weight (GVW) | 31,000 kg |
| Curb Weight | 16,500 kg |
| Rated Payload | 14,370 kg |
| Max Speed | 90 km/h |
| Fuel Type | Diesel |
| Emission Standard | Euro VI / China VI |
| License Plate Type | Yellow Plate |
| Engine Brand | ISUZU |
| Engine Model | 6WG1-TCG52 |
| Engine Type | Inline 6-Cylinder Turbocharged Intercooled Diesel |
| Displacement | 15.681 L |
| Max Power | 338 kW |
| Max Horsepower | 460 HP |
| Max Torque | 2250 N·m |
| Rated Speed | 1800 rpm |
| Fuel Injection | High Pressure Common Rail |
| Transmission Brand | FAST |
| Transmission Model | FAST 12JSD180T |
| Transmission Type | Manual |
| Forward Gears | 12 |
| Reverse Gears | 2 |
| Clutch Type | Dry Single Plate |
| PTO | Equipped for mixer drum drive |
| Mixer Drum Volume | 12 CBM |
| Geometric Drum Volume | 19 CBM |
| Drum Material | High Strength Wear-Resistant Steel |
| Drum Thickness | 5 mm |
| Mixing Blade Thickness | 6 mm |
| Drum Inclination Angle | 13° |
| Filling Rate | ≤ 60% |
| Residual Rate | ≤ 0.7% |
| Drum Rotation Speed | 0–14 rpm |
| Feeding Speed | ≥ 3 m³/min |
| Discharging Speed | ≥ 2 m³/min |
| Hydraulic Pump Brand | Eaton / Rexroth |
| Hydraulic Motor Brand | Eaton / Rexroth |
| Reducer Brand | PMP / Bonfiglioli |
| Control Method | Mechanical Control |
| Cooling Method | Air Cooling |
| Hydraulic Oil Tank Capacity | 60 L |
| Feeding Hopper Capacity | 600 L |
| Discharge Chute Length | 1200 mm |
| Extension Chutes | 2 pcs |
| Discharge Height | 800–1200 mm Adjustable |
| Water Supply System | Pneumatic Water Tank |
| Water Tank Capacity | 400 L |
| Water Supply Type | Air Pressure |
| Cleaning Method | High Pressure Washing |
| Pipeline Material | Anti-Corrosion Steel |
| Front Axle Capacity | 7000 kg × 2 |
| Rear Axle Capacity | 13000 kg × 2 |
| Suspension Type | Heavy Duty Leaf Spring |
| Leaf Spring Configuration | 9 / 12 |
| Tire Size | 12.00R20 |
| Tire Type | Steel Radial |
| Number of Tires | 12 + 1 Spare |
| Fuel Tank Capacity | 400 L |
| Braking System | Full Air Brake |
| Parking Brake | Spring Energy Brake |
| Auxiliary Brake | Engine Exhaust Brake |
| ABS | Equipped |
| Drum Emergency Stop | Equipped |
| Rear Operation Platform | Anti-Slip Platform |
| Safety Guard | Drum Safety Guard |
| Rear Working Lights | LED |
| Reverse Alarm | Equipped |
| Camera System | Optional |
| Ladder | Side Mounted |
