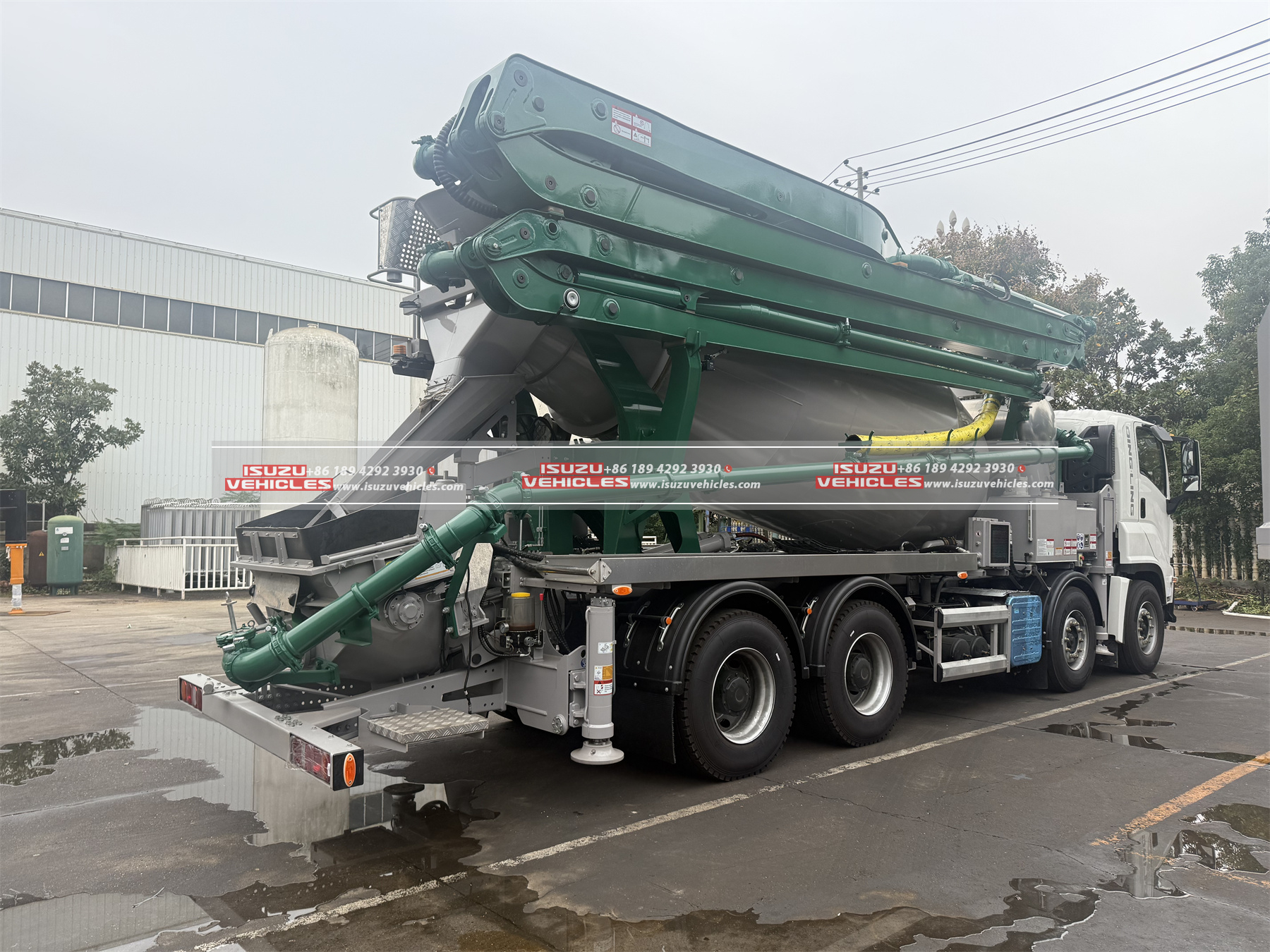

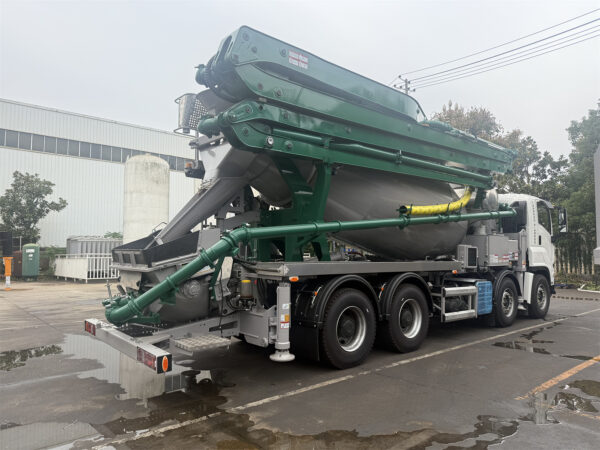

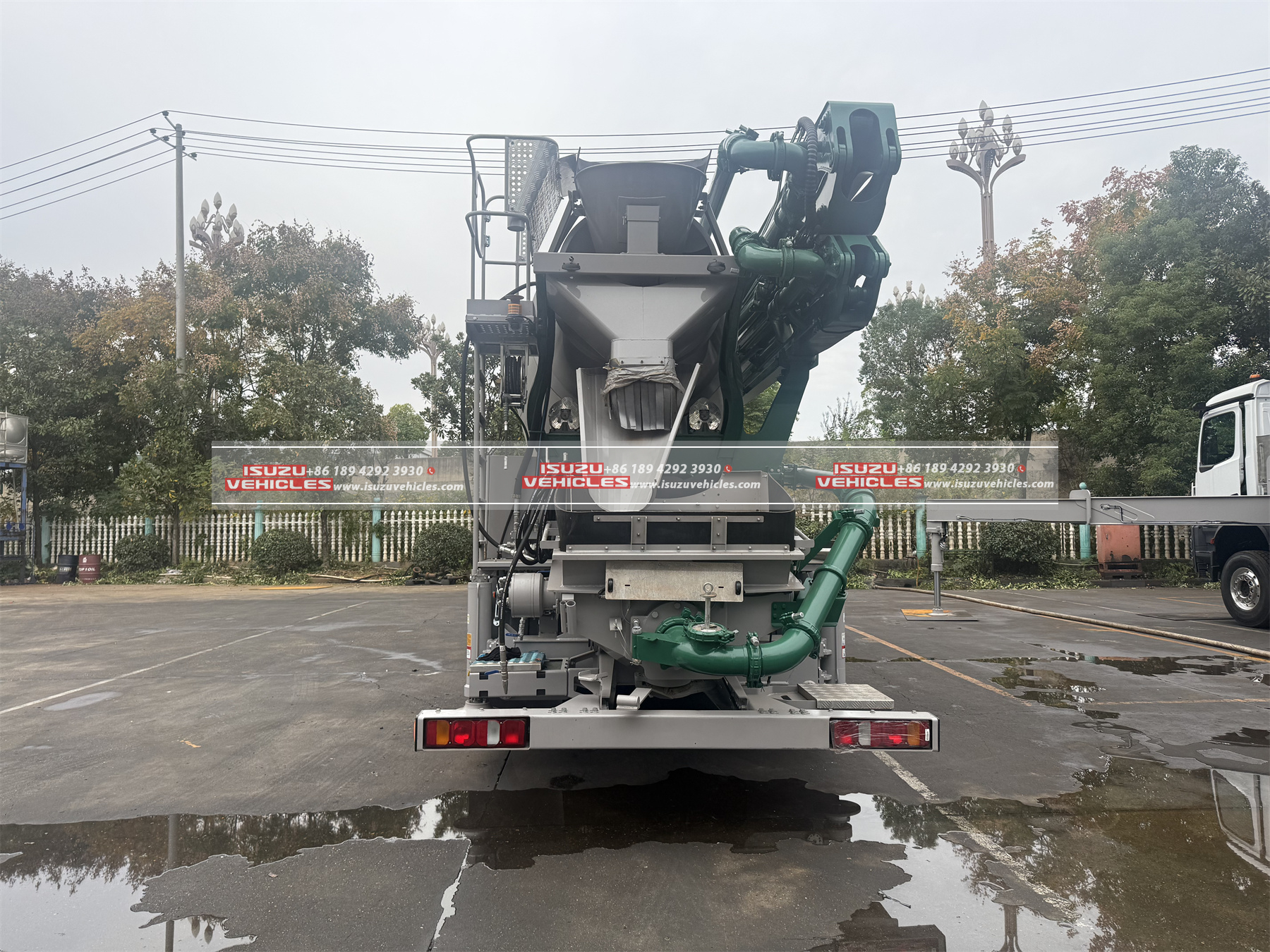

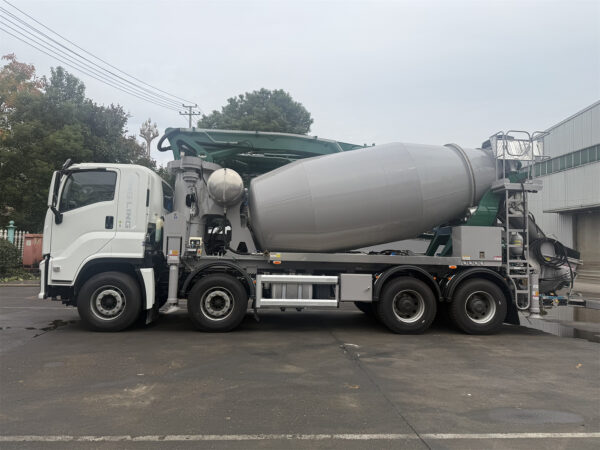

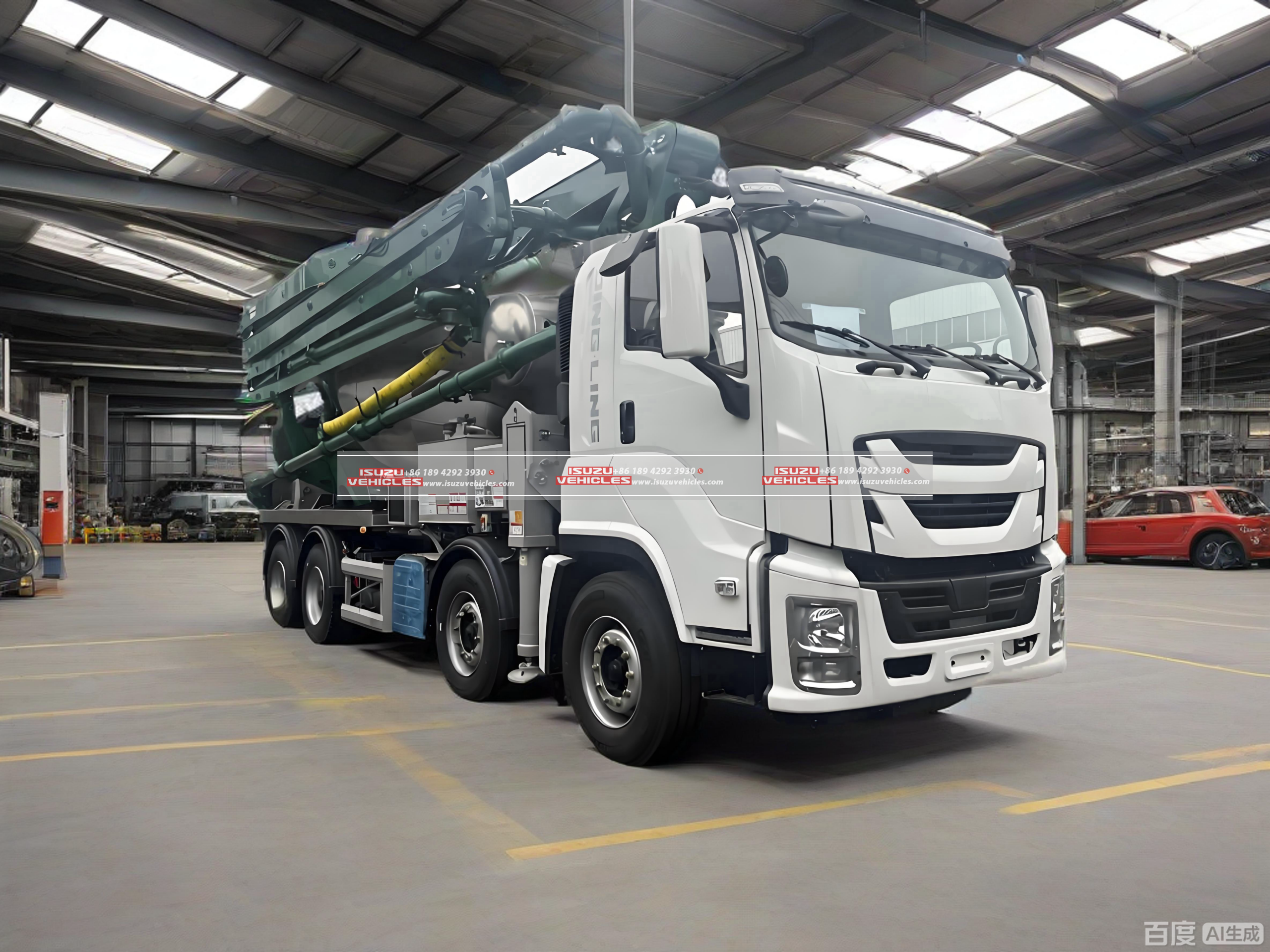

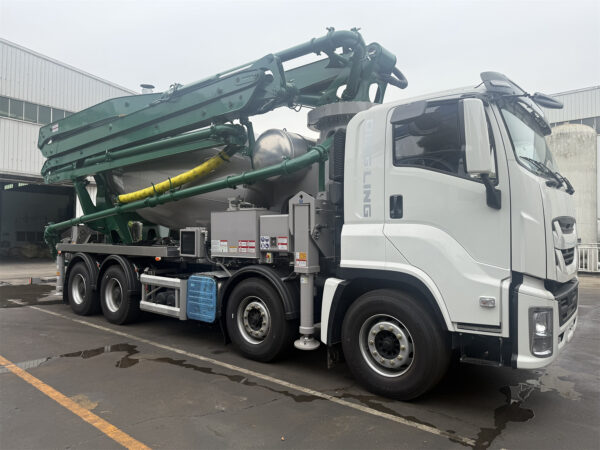

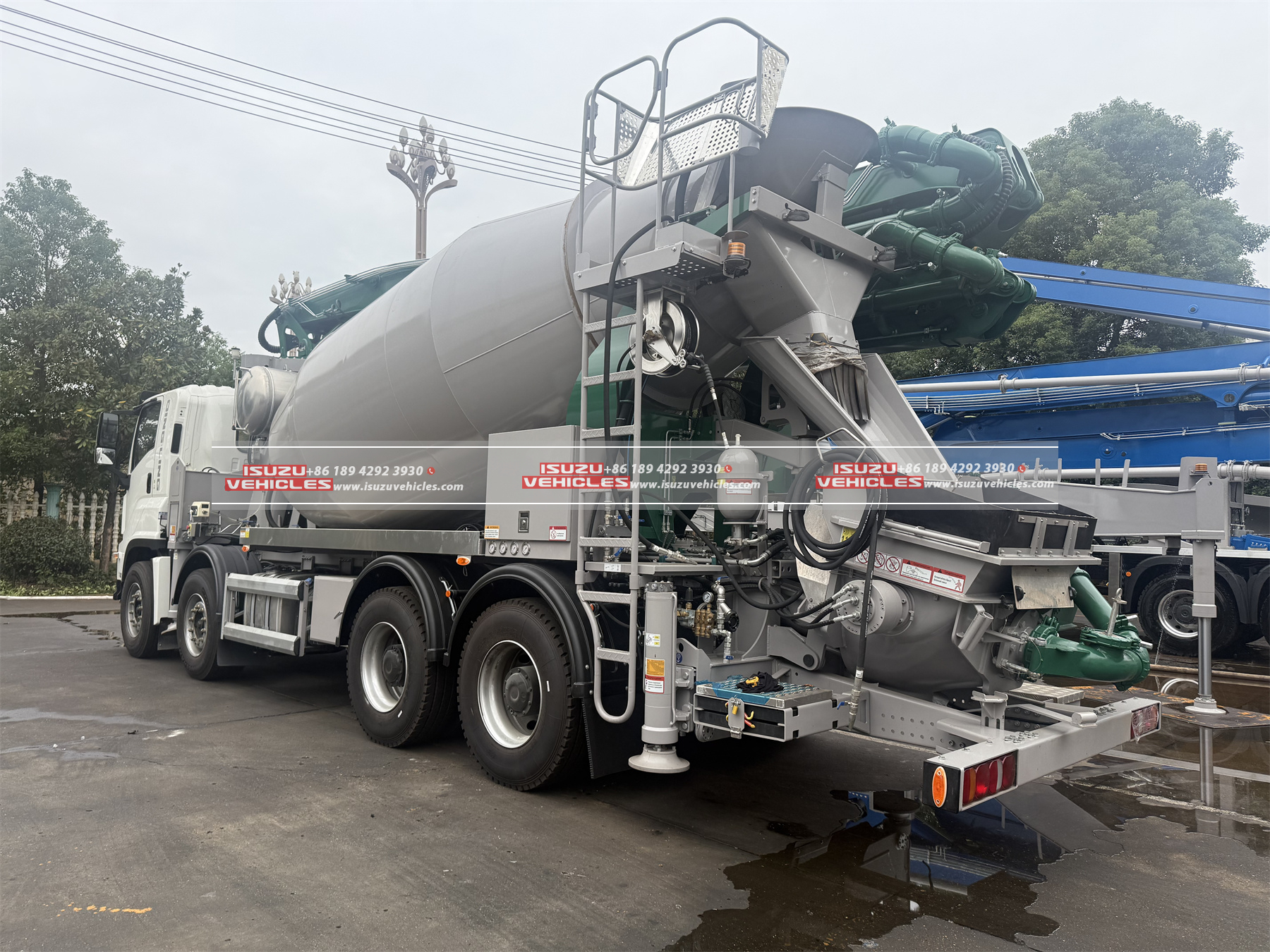

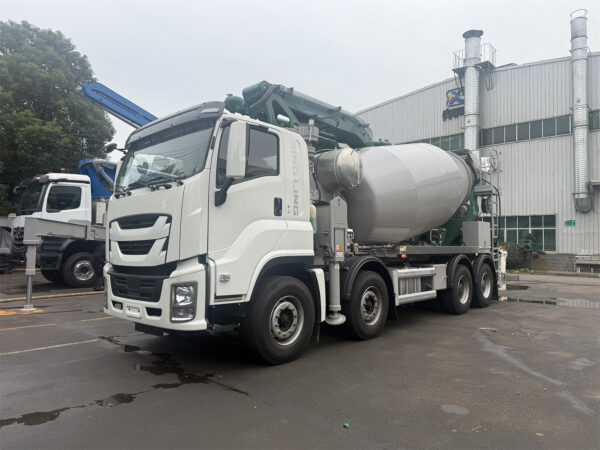

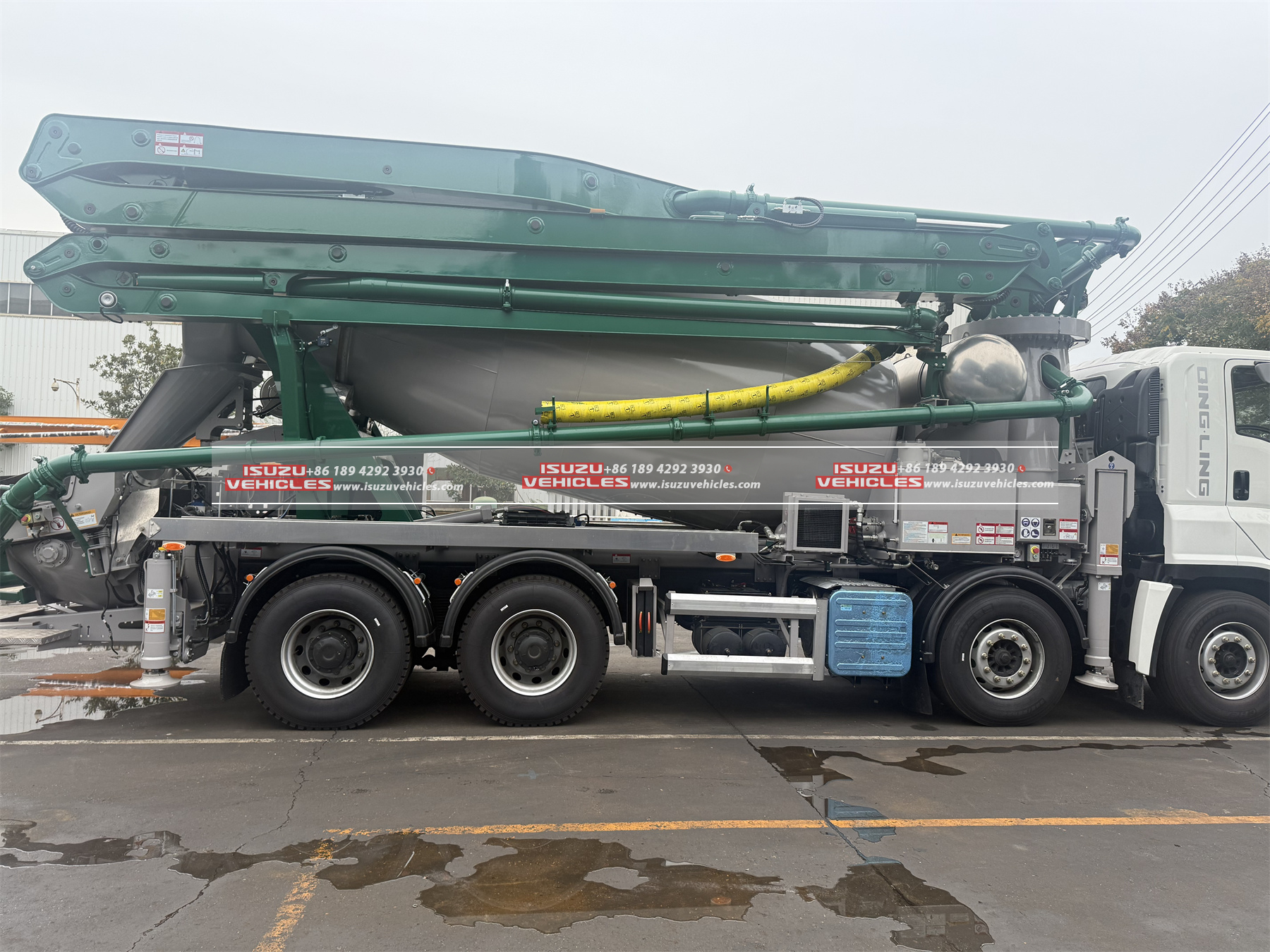

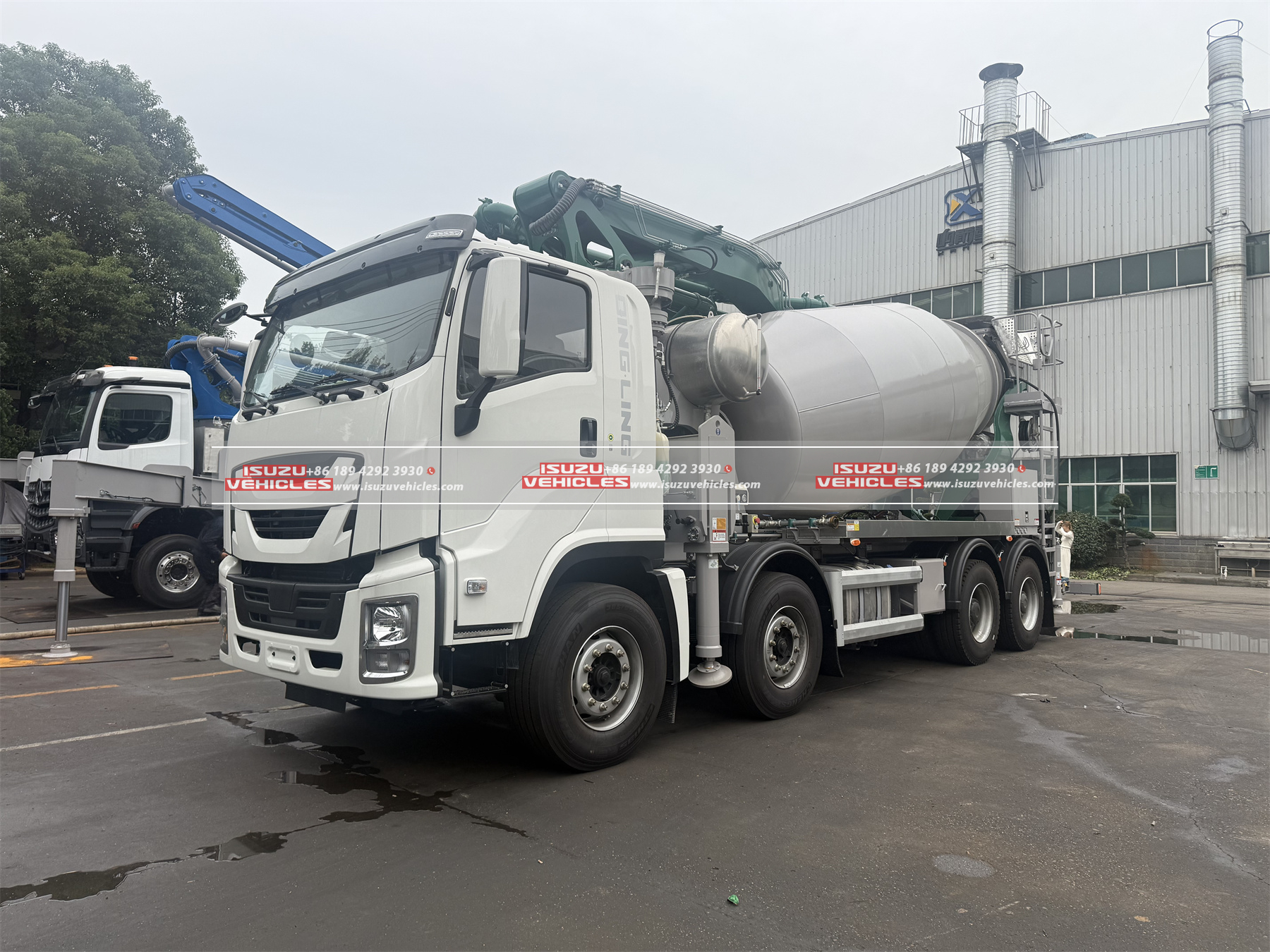

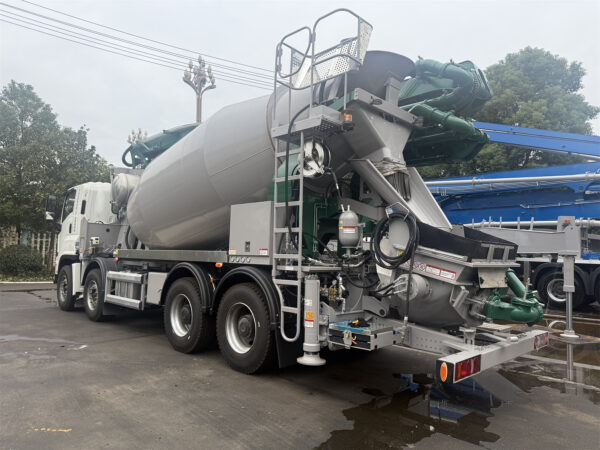

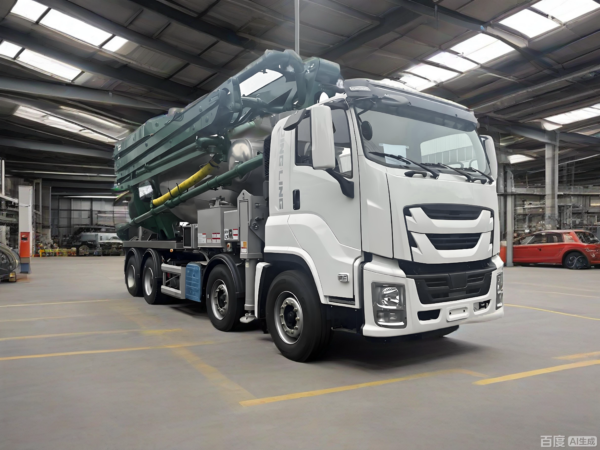

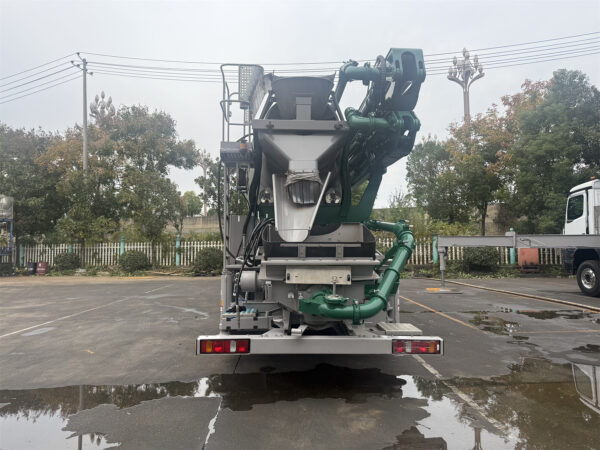

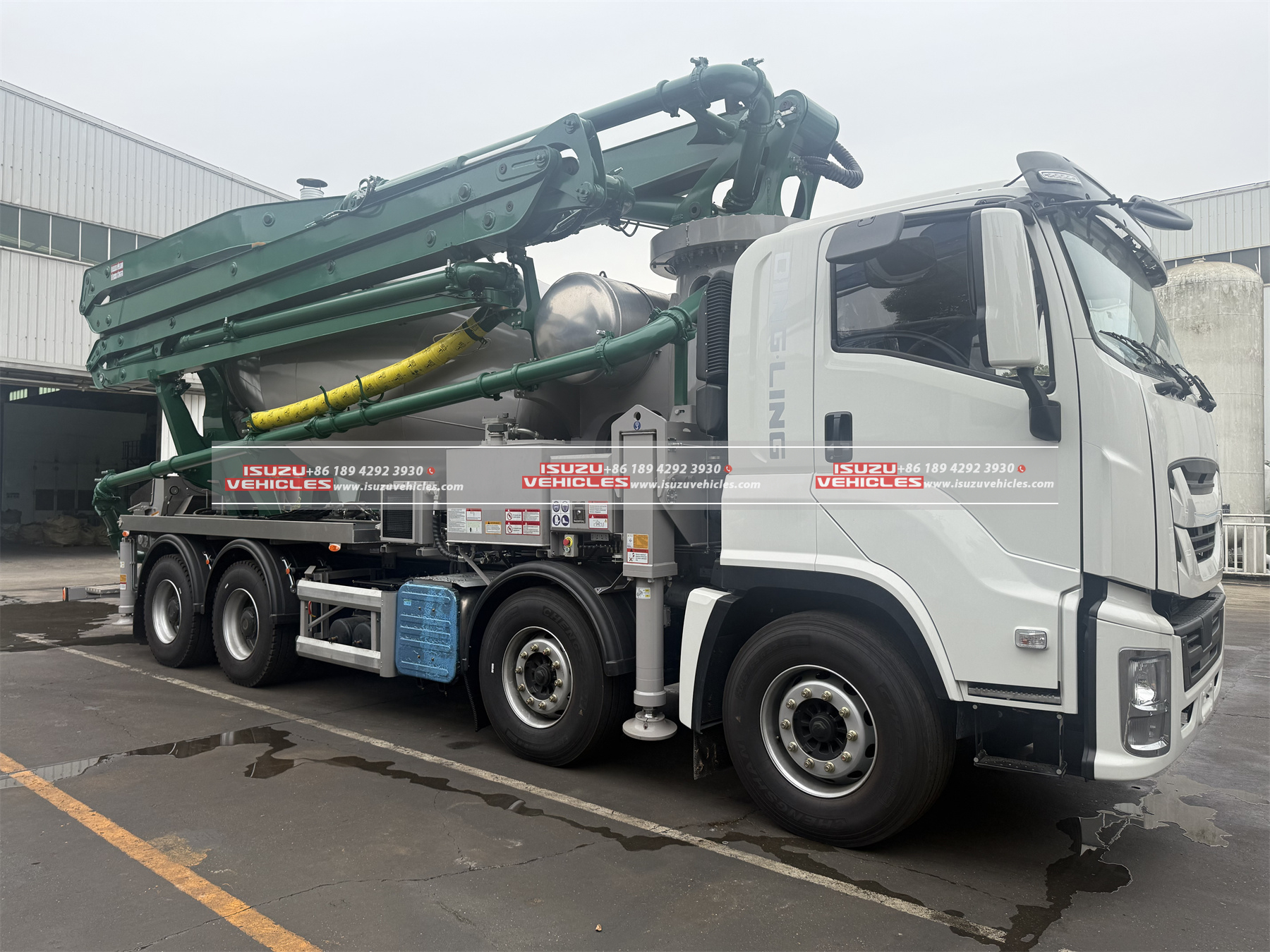

ISUZU 10CBM Concrete Mixer 24M Pump Combined Truck
The ISUZU 10CBM Concrete Mixer 24M Pump Combined Truck is a high-efficiency, multi-functional construction vehicle designed for integrated concrete mixing, pumping, and placement operations. Built on the robust ISUZU GIGA 6X/8×4 chassis with a Euro 6-compliant 6UZ1-TCG61 engine, this powerhouse delivers 380HP (279kW) and an impressive 1,756N·m torque at low RPM (1,000–1,200 rpm), ensuring optimal performance under heavy loads and steep gradients.
The truck combines a 10m³ wear-resistant steel mixing drum with a 24-meter Z-fold placing boom, engineered for precision and durability. Key highlights include:
- Rexroth hydraulic systems (pump and motor) for smooth drum rotation and pumping.
- High-pressure S-valve pumping system capable of handling diverse concrete grades with minimal blockage risk.
- 3-section Z-fold boom (compact storage, wide 24m reach) controlled via proportional remote for safe, precise placement.
- CAN bus integrated control for real-time monitoring of engine, hydraulics, and boom operations.
With a 41,000kg GVW and 13-ton rear axle capacity, this truck is ideal for medium-scale residential and commercial projects, offering all-in-one concrete delivery with reduced operational costs.
Features
1. Chassis & Cab

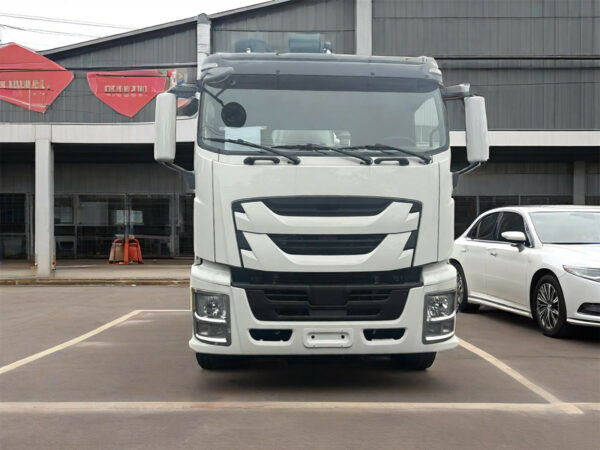

- VC61 6X sleeper cab (2,480mm width) with 4-point hydraulic suspension for driver comfort.
- Advanced controls: Multifunctional LCD panel, tilt/telescopic steering, and electric windows.
- Safety systems: Dual-circuit air brakes, ABS, and exhaust brake for downhill control.
2. Mixing System
- 10m³ drum with optimized spiral blades for uniform mixing and low residue.
- Rexroth hydraulic motor enables seamless switching between mixing and unloading modes.
- Air-pressure water system for efficient drum cleaning.
3. Pumping & Boom System
- High-efficiency pump with Tokyo Keiki valves and energy accumulator for pressure stability.
- 24m Z-fold boom (high-strength steel) with hydraulic outriggers for stability during operation.
- LED work lights and anti-slip ladders for enhanced safety.
4. Dimensions & Weights
| Parameter | Specification |
|---|---|
| Overall Size (L×W×H) | 10,100×2,550×3,990mm |
| Wheelbase | 1,850+2,980+1,370mm |
| Ground Clearance | 430mm |
| Payload Capacity | 20,150kg |
5. Optional Add-Ons
- Telematics for remote fleet monitoring.
- Customized hopper designs for specialized aggregates.
This ISUZU combined truck redefines efficiency in concrete construction, merging Japanese chassis reliability with German hydraulic precision for unparalleled performance. Its intelligent control system and low-maintenance design make it a cost-effective solution for contractors prioritizing productivity and durability.
Note: Specifications may vary by configuration. Consult local dealers for regional compliance details.
SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Weight | 10,900 kg |
| Boom System | |
| – Expansion Type | Z-fold |
| – Turret Rotation Angle | ±360° |
| – Max. Vertical Height | 24 m |
| – Max. Horizontal Length | 20 m |
| – Min. Unfolded Height | 10.6 m |
| – 1st Boom (Length/Rotation) | 7,000 mm / 90° |
| – 2nd Boom (Length/Rotation) | 6,400 mm / 180° |
| – 3rd Boom (Length/Rotation) | 6,500 mm / 260° |
| Mixing System | |
| – Drum Capacity | 10 m³ |
| – Drum Pump/Motor | Rexroth |
| – Reducer | China brand |
| – Water Tank Capacity | 800 L |
| Pumping System | |
| – Max. Concrete Displacement | 58 m³/h |
| – Max. Pumping Pressure | 7.2 MPa |
| – Pumping Rate | 31 strokes/min |
| – Pipe Diameter | φ100 mm |
| – Delivery Cylinder (Dia./Stroke) | φ200 mm / 1,000 mm |
| – Main Cylinder (Dia./Stroke) | φ95 mm / 1,000 mm |
| – Hopper Capacity | 0.5 m³ |
| – Pumping Pipe Type | Single layer |
| Hydraulic System | |
| – Type | Open system |
| – Tank Capacity | 300 L |
| – Main Hydraulic Pump | Rexroth |
| – Boom Pump | China brand |
| – Gear Pump | Casappa |
| Control System | |
| – Directional Valves | Tokyo Keiki (Main/Swing Cyl.) |
| – Swing Cylinder Charging Valve | Tokyo Keiki |
| – Energy Accumulator | Olaer |
| – Control Mode | CAN Bus |
Key Notes:
- The Z-fold boom design combines compact storage (10.6m folded) with extensive reach (24m vertical/20m horizontal).
- High-efficiency pumping: 58m³/h output at 7.2MPa pressure ensures rapid concrete placement.
- Global component synergy: German Rexroth hydraulics, Japanese Tokyo Keiki valves, and European Olaer accumulators ensure reliability.
- CAN Bus control enables real-time system monitoring and coordinated operation.
Specifications reflect standard configuration; optional components may vary.
