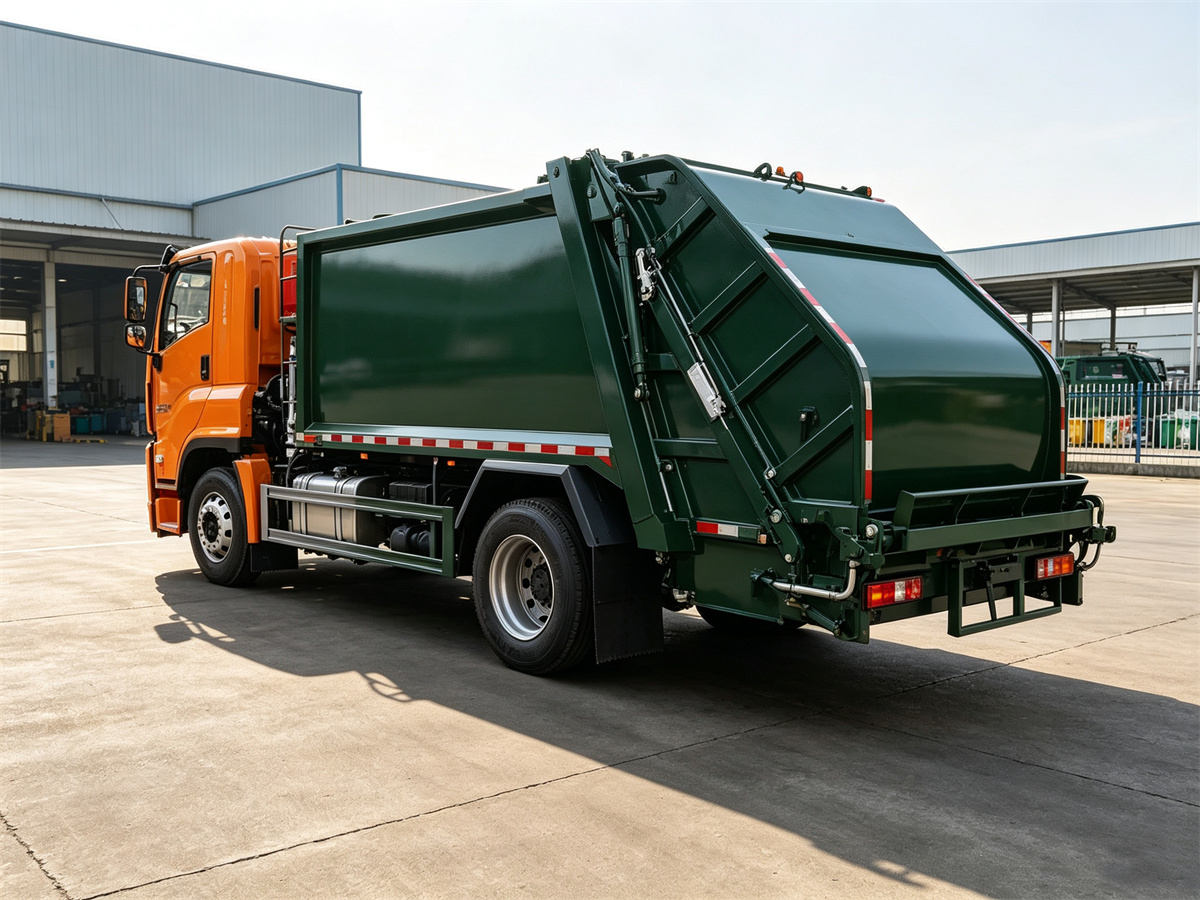

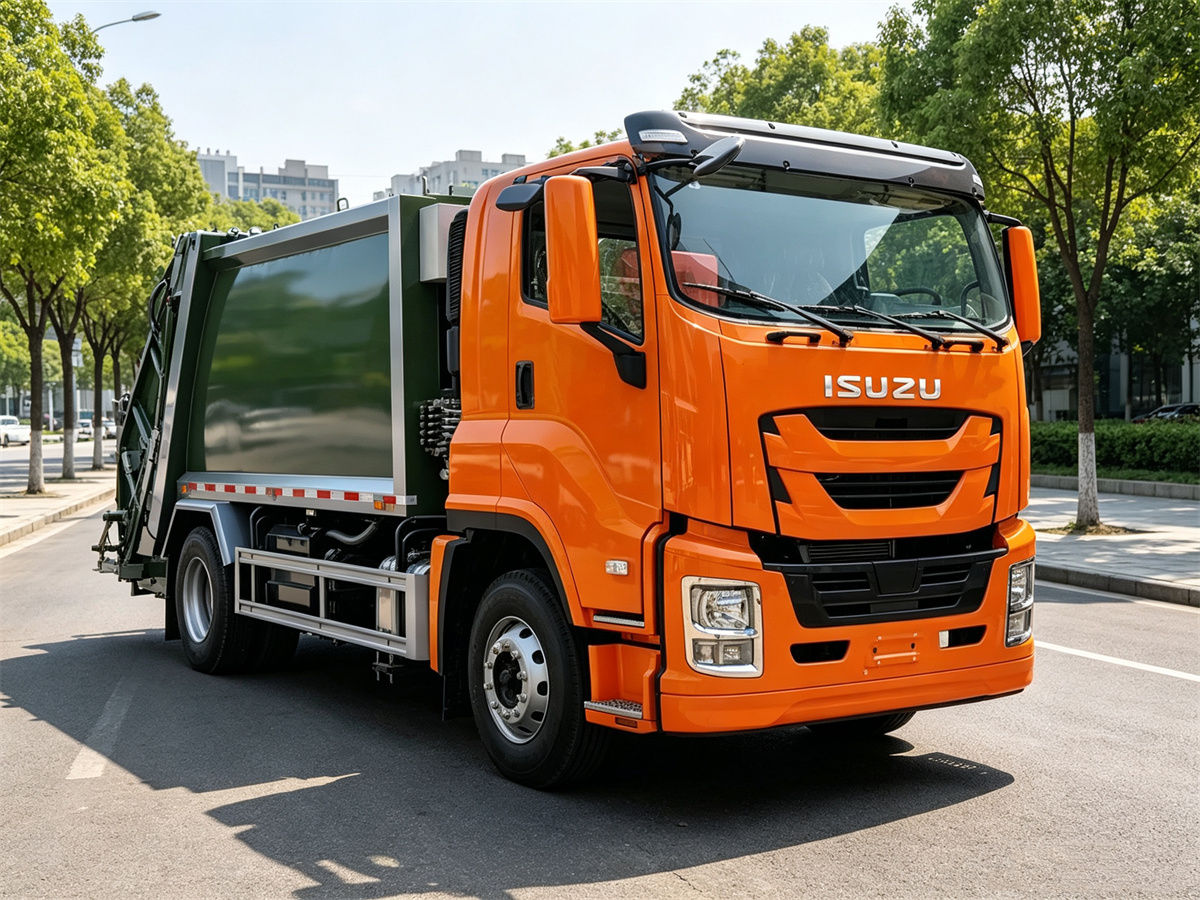

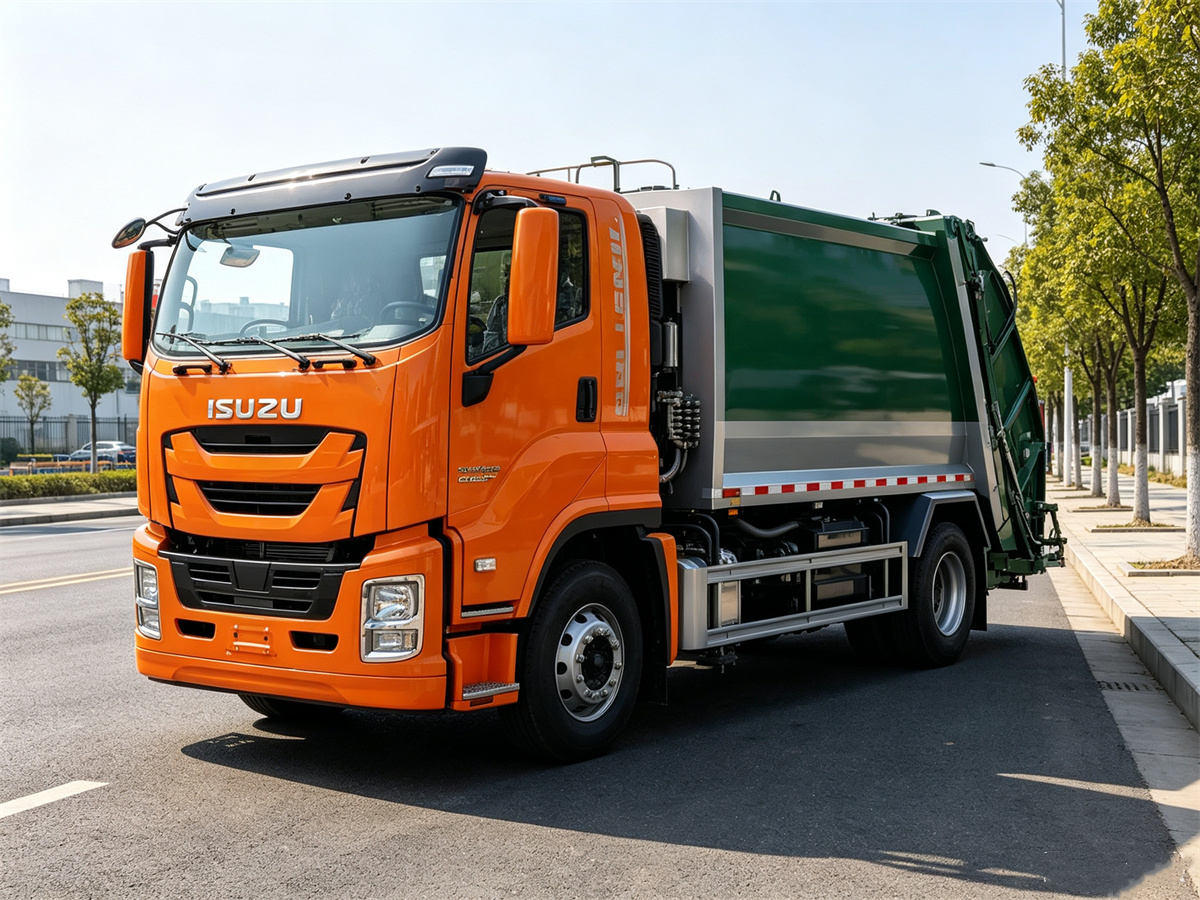

ISUZU GIGA 16 CBM Garbage Disposal Truck
The ISUZU GIGA 16 CBM Garbage Disposal Truck is a heavy-duty waste collection and transportation vehicle designed for efficient municipal sanitation operations, large-scale garbage transfer, and urban environmental management projects. Built with a powerful chassis platform and a high-capacity compactor body, this garbage disposal truck combines strong loading capability, reliable operation, and excellent waste compression performance to meet the demanding requirements of modern cities.
Powered by the WD615.87 290 HP diesel engine, the truck delivers strong output and stable performance even under heavy-load working conditions. The 9.7-liter straight-six, water-cooled, inter-cooled engine provides a maximum torque of 1,160 N·m, ensuring sufficient power for garbage transportation routes that include urban roads, industrial areas, and long-distance transfer operations.
The vehicle adopts a 4×2 left-hand drive configuration with a payload capacity of 18,000 kg and a curb weight of 10,800 kg. Its reinforced structure and 5,000 mm wheelbase provide excellent stability when carrying large volumes of compressed waste. With overall dimensions of 8,850 × 2,500 × 3,250 mm, the truck offers a practical balance between large capacity and road maneuverability.
Equipped with a 16 CBM garbage compactor body, the truck is designed to significantly improve waste collection efficiency by compressing household and commercial waste before transportation. The high-strength box structure uses 5 mm thick side and bottom plates, providing durability against long-term wear caused by heavy waste materials.
The compactor system features a fast loading process, requiring only 8–10 seconds for loading operations, while each compression cycle takes approximately 50–60 seconds. After arriving at the disposal site, the garbage can be discharged through the dump unloading system within 30–40 seconds, helping reduce waiting time and improve fleet productivity.
With its powerful engine, durable compactor body, and efficient hydraulic operation system, the ISUZU GIGA 16 CBM Garbage Disposal Truck is an ideal solution for cities, waste management companies, and sanitation departments requiring reliable large-capacity garbage transportation equipment.
Features
Powerful Heavy-Duty Performance for Waste Transportation
The ISUZU GIGA garbage disposal truck is built on a heavy-duty platform designed to handle intensive municipal waste collection tasks. The WD615.87 engine provides excellent power reserves, allowing the vehicle to maintain stable performance even when fully loaded.
The engine adopts a straight-six cylinder structure with water cooling and intercooling technology, improving heat management and ensuring consistent operation during continuous working hours. With 213 kW rated power at 2,200 rpm and strong low-speed torque, the truck can easily operate in urban areas with frequent stopping and starting.
Key power system advantages include:
- 290 HP diesel engine
- 9,726 ml displacement
- 1,160 N·m maximum torque
- Water-cooled and inter-cooled design
- Strong performance under heavy loads
The combination of engine power and reinforced chassis makes this garbage disposal truck suitable for daily garbage collection, waste transfer stations, and industrial waste transportation.
High-Capacity 16 CBM Compactor Body
The main advantage of the ISUZU GIGA garbage disposal truck is its large-volume 16 cubic meter compactor box, which allows operators to collect more waste during each working cycle and reduce the number of trips required for disposal.
The garbage box is manufactured using high-strength steel plates, with 5 mm thickness on both the sides and bottom, providing excellent resistance against deformation and corrosion caused by continuous waste loading.
The compactor body is designed with:
- 16 m³ garbage storage capacity
- Reinforced steel structure
- 200-liter sewage collection tank
- Hydraulic compression mechanism
- Efficient waste volume reduction
The compression function increases the amount of waste transported per trip, improving operational efficiency and helping sanitation companies reduce fuel consumption and labor costs.
Efficient Compression and Fast Operation System
The garbage compactor system is designed for high-frequency waste collection operations where speed and reliability are essential. The hydraulic loading mechanism completes the loading process within only 8–10 seconds, allowing operators to quickly collect waste from multiple locations.
Each compression cycle takes approximately 50–60 seconds, ensuring continuous operation without long interruptions. When the truck reaches the disposal location, the dump unloading system allows waste to be discharged efficiently within 30–40 seconds.
The operational system provides:
- Fast loading performance
- Short compression cycle time
- Quick unloading capability
- Improved garbage collection efficiency
This makes the truck especially suitable for busy urban environments where sanitation vehicles need to complete multiple collection routes every day.
Reliable Transmission, Axles, and Driving System
The ISUZU GIGA 16 CBM Garbage Disposal Truck uses the HW19710 10-speed manual transmission, providing flexible gear selection and efficient power transfer. The gearbox includes 10 forward gears and 2 reverse gears, allowing smooth operation under different road conditions.
The truck is equipped with a ZF8198 power steering system, air brake system, and durable HF7/ST16 axle combination, providing excellent control and safety when carrying heavy waste loads.
The chassis configuration includes:
- Heavy-duty front and rear axles
- Air brake system
- Power-assisted steering
- 295/80R22.5 tires
- 6 tires plus 1 spare tire
These components ensure reliable driving performance and long service life during intensive garbage transportation operations.
Comfortable Cab and Practical Working Design
The ISUZU truck uses the HW76 new type cabin, providing a comfortable and practical driving environment for operators. The standard air-conditioning system improves working comfort, especially during long garbage collection routes in hot climates.
The spacious cab design helps reduce driver fatigue while providing better visibility and easier vehicle control. Combined with the durable chassis structure and efficient waste handling system, the ISUZU GIGA garbage disposal truck provides a professional solution for modern sanitation fleets.
With its large-capacity compactor body, strong 290 HP engine, and efficient waste handling system, the ISUZU GIGA 16 CBM Garbage Disposal Truck delivers reliable performance for municipal cleaning projects, commercial waste collection, and large-scale environmental management operations.
Specification
| Item | Specification |
|---|---|
| Section 1 – Main Specification | |
| Product Name | ISUZU GIGA 16 CBM Garbage Disposal Truck |
| Driving Type | 4×2, left-hand drive |
| Section 2 – Weights | |
| Payload | 18,000 kg |
| Curb Weight | 10,800 kg |
| Section 3 – Dimensions | |
| Wheelbase | 5,000 mm |
| Overall Dimension (L×W×H) | 8,850 × 2,500 × 3,250 mm |
| Box Capacity | 16 CBM |
| Max Speed | 90 km/h |
| Section 4 – Engine | |
| Engine Model | WD615.87 (290 HP) |
| Engine Type | 4-stroke water-cooled, inter-cooling |
| No. of Cylinders | Straight-6 cylinders |
| Displacement | 9,726 ml |
| Rated Power / Rev | 213 kW / 2,200 rpm |
| Max Torque / Rev | 1,160 N·m / 1,100–1,600 rpm |
| Section 5 – Drive Line | |
| Transmission | HW19710, 10 forwards, 2 reverse gears, manual operation |
| Steering | ZF8198, with power steering |
| Brake System | Air brake |
| Section 6 – Cab | |
| Cab | HW76 New type cabin |
| Standard Configuration | with A/C |
| Section 7 – Axle | |
| Front Axle | HF7 |
| Rear Axle | ST16 |
| Section 8 – Tire Specification | |
| Tire Specification | 295/80R22.5 standard tire, 6 tires + 1 spare tire |
| Section 9 – Compactor Garbage Truck Body | |
| Box Volume | 16 m³ |
| Box Material | Side 5 mm, bottom 5 mm |
| Sewage Tanker | 200 L |
| Loading Time | 8–10 s |
| Loading Cycle Time | 50–60 s per turn |
| Unloading Mode | Dump |
| Unloading Time | 30–40 s |
