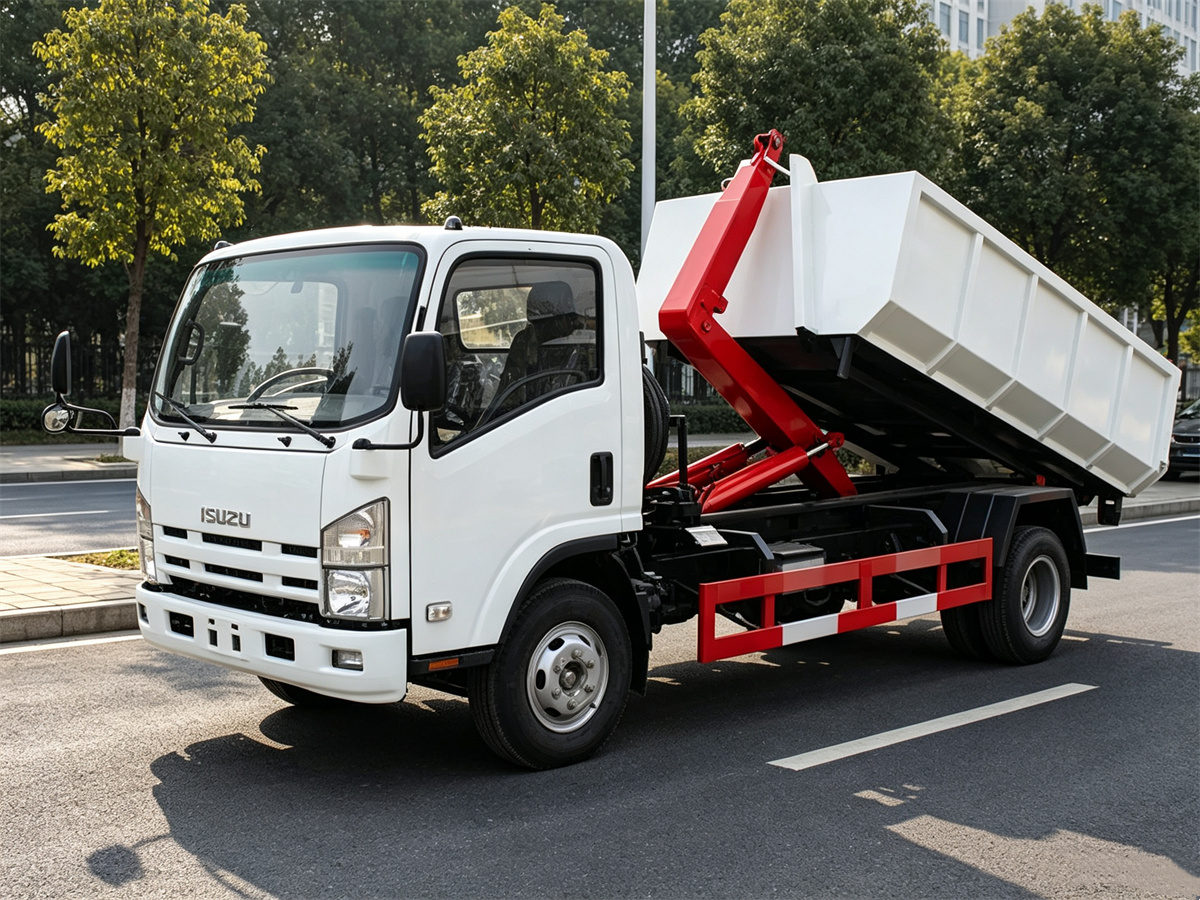

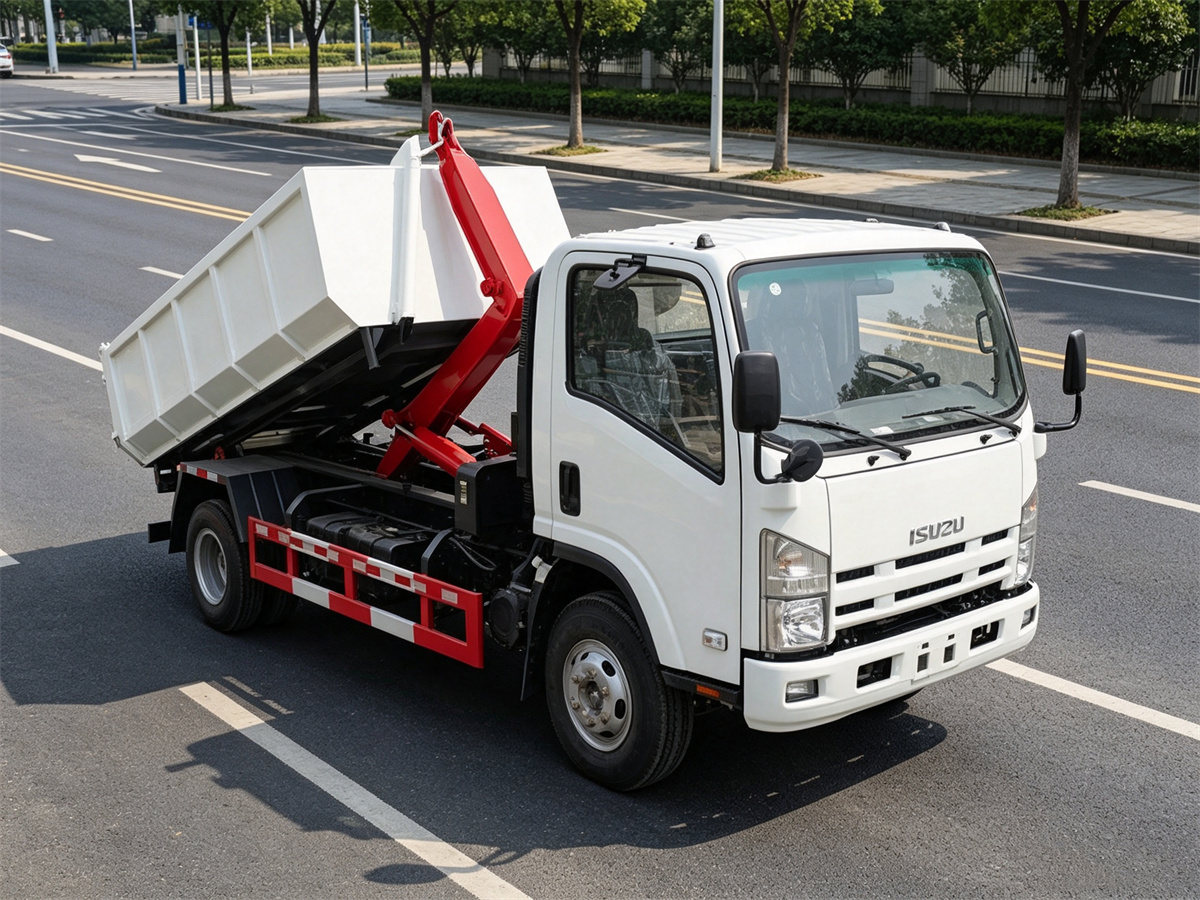

ISUZU 6 CBM Hooklift Garbage Truck
The ISUZU 6 CBM Hooklift Garbage Truck is a practical and versatile waste collection vehicle designed for municipal sanitation, industrial waste transportation, construction sites, commercial waste management, and other applications where detachable garbage containers are required. By combining a reliable ISUZU diesel chassis with a hydraulic hooklift loading system, the truck can efficiently load, transport, and unload different detachable containers, providing greater flexibility than a conventional fixed-body garbage truck.
The vehicle has overall dimensions of 7,430×2,470×2,950mm and a two-axle configuration, with a curb weight of approximately 7,255kg. Its compact dimensions allow it to operate on urban roads and within industrial compounds while still providing sufficient structural strength for handling a 6 CBM garbage container.
Power is supplied by an ISUZU 5,900ml diesel engine producing approximately 190HP (140kW), with a Euro 4 emission standard. The engine is matched with a 5-speed manual transmission with 5 forward gears and 1 reverse gear, while the air brake system and 9.00-20 tires provide dependable support for regular waste transportation operations.
The hooklift system uses hydraulic cylinder lifting and self-loading technology, allowing the truck to pick up a compatible 6 CBM container from the ground, secure it onto the chassis, transport it to the designated destination, and unload it without requiring a separate crane or lifting vehicle. The hydraulic system operates at a pressure of up to 16MPa and provides a dumping angle of at least 45°, allowing efficient waste discharge.
With a single-row two-door cab that can accommodate two or three passengers, six working tires plus one spare, and manual hydraulic controls positioned at the side of the vehicle body, the ISUZU 6 CBM Hooklift Garbage Truck provides a straightforward and efficient solution for containerized waste collection and transportation.
Features
1. Reliable ISUZU Chassis

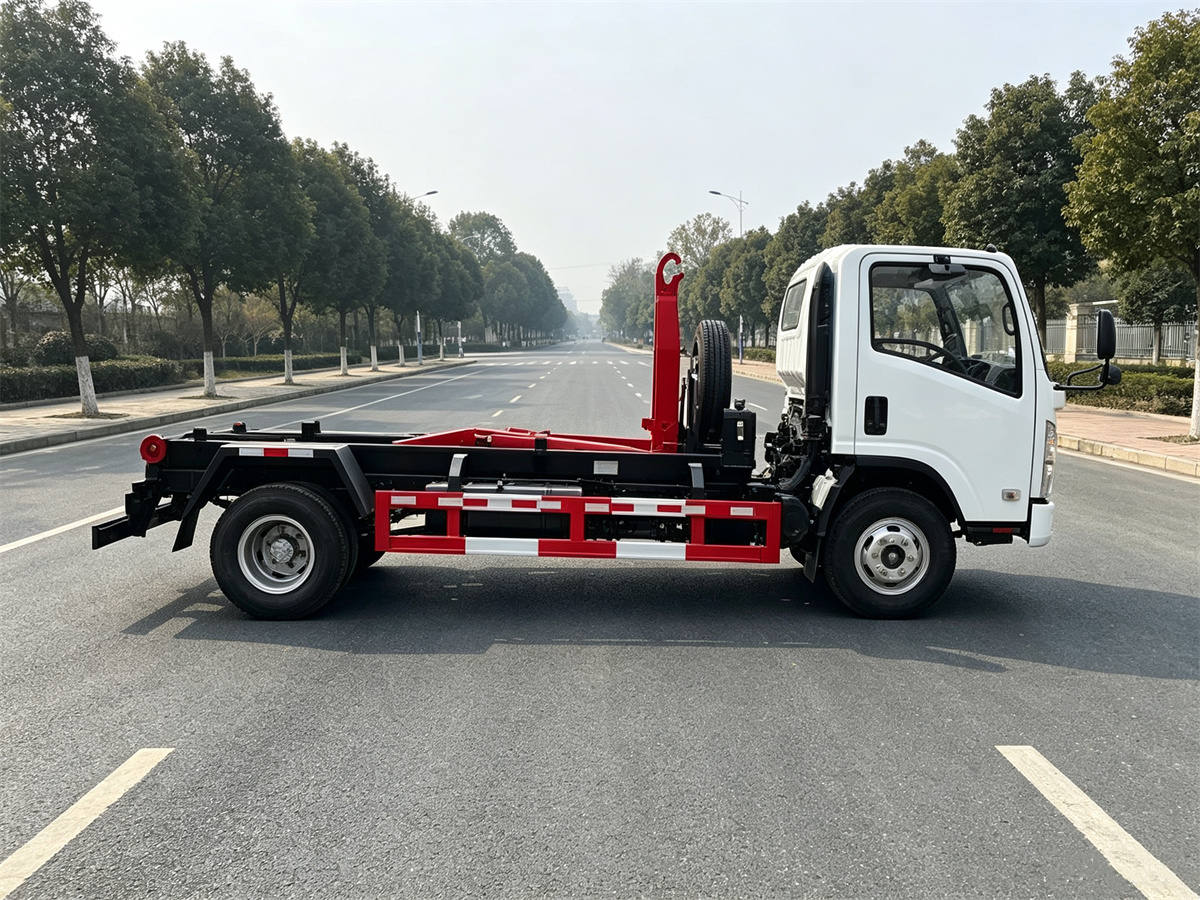

The ISUZU chassis provides a durable foundation for daily waste transportation, with a two-axle configuration and a compact overall body measuring 7,430×2,470×2,950mm. The chassis is designed to support the hydraulic hooklift mechanism and detachable container while maintaining practical road maneuverability.
The truck is equipped with six working tires plus one spare tire, using 9.00-20 tires for suitable load-bearing capability and road durability. An air brake system further contributes to dependable braking performance during transportation.
2. Powerful 190HP ISUZU Diesel Engine
The vehicle is powered by an ISUZU 5,900ml diesel engine delivering approximately 190HP (140kW), providing sufficient power for container loading, transportation, and unloading operations.
The Euro 4 engine is paired with a manual transmission featuring 5 forward and 1 reverse gear, allowing the driver to select suitable gears for urban roads, industrial areas, waste transfer stations, and other operating environments.
3. 6 CBM Detachable Garbage Container
The truck is designed to handle a 6 CBM garbage container, making it suitable for applications where waste containers need to be positioned at collection points and transported to centralized disposal or treatment facilities after being filled.
The detachable-container design allows one truck to serve multiple collection locations, while empty containers can be exchanged when required, helping sanitation operators organize waste collection routes more efficiently.

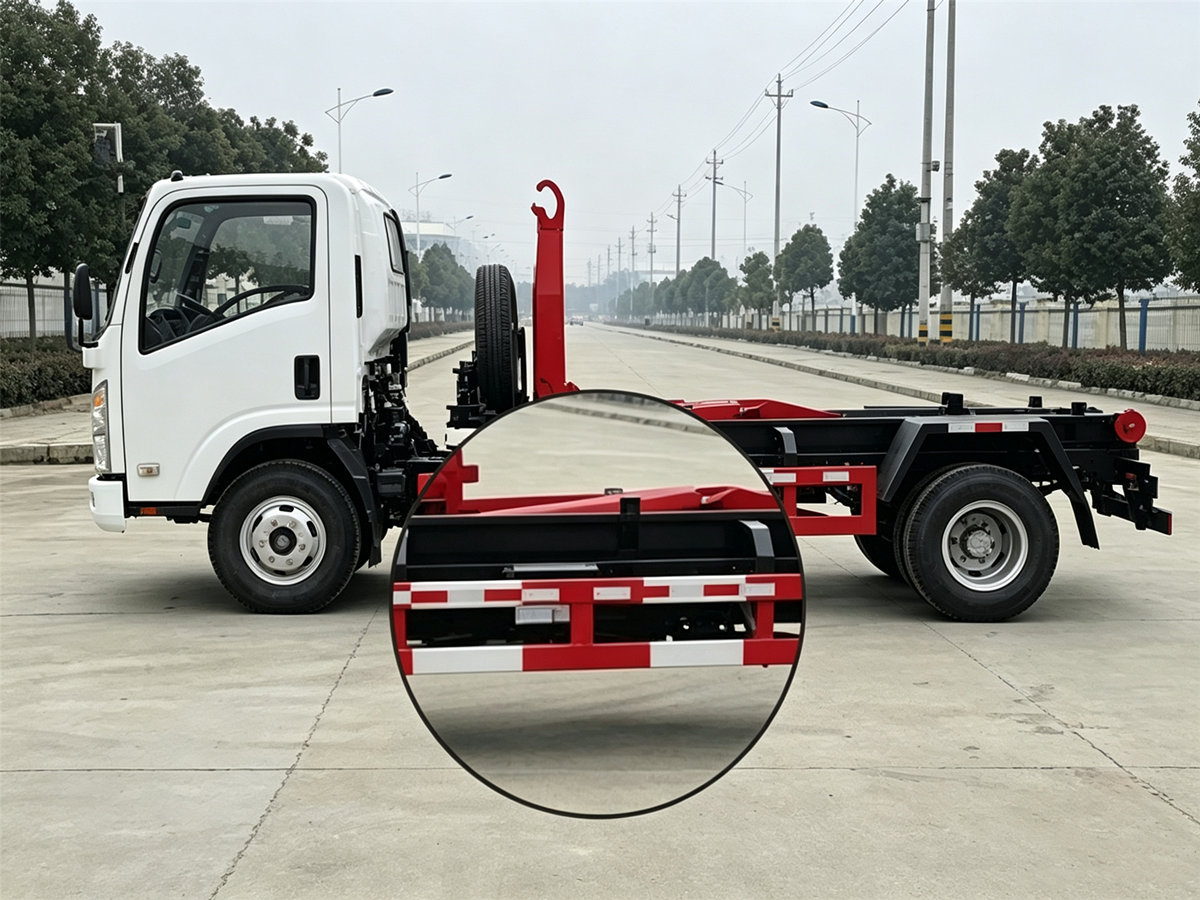

4. Hydraulic Hooklift Self-Loading System
The main advantage of the ISUZU Hooklift Garbage Truck is its hydraulic self-loading capability, which allows the vehicle to pick up and place detachable containers using its own lifting mechanism.
The hydraulic cylinder raises the hooklift structure and pulls the container onto the chassis, eliminating the need for an external crane in normal loading operations. This provides a practical solution for municipal and industrial customers who require flexible container handling with minimal additional equipment.
5. Efficient Hydraulic Dumping Function
The hooklift system provides a dumping angle of at least 45°, allowing the container to be raised sufficiently for efficient garbage discharge. The hydraulic cylinder lifting mechanism provides the necessary force to raise the container smoothly and control its movement during unloading.
With a maximum hydraulic system pressure of approximately 16MPa, the system is designed to provide reliable lifting performance when handling a fully loaded container within the truck’s specified operating capacity.
6. Simple Manual Hydraulic Control
The hydraulic hooklift is controlled through a manual hydraulic control system positioned on the side of the truck body, giving the operator direct access to the main loading and unloading functions.
This straightforward configuration reduces system complexity and makes the truck relatively easy to operate and maintain, which can be particularly useful for municipal sanitation fleets and industrial operators that prefer proven mechanical and hydraulic controls.
7. Practical Cab for Daily Operations
The single-row ISUZU cab features two doors and is configured for two or three passengers, providing adequate space for the driver and sanitation workers. Its compact layout is well suited to frequent urban waste collection operations where the truck needs to stop and start repeatedly.
The cab is combined with power from the 190HP diesel engine and a manual five-speed transmission, providing a practical balance between driving performance, operating simplicity, and maintenance convenience.
8. Versatile Waste Management Applications
The ISUZU 6 CBM Hooklift Truck can be used for a variety of containerized waste management tasks, including municipal household garbage collection, construction waste transportation, industrial waste handling, commercial waste removal, and transfer-station operations.
Because the truck can independently load, transport, and unload detachable containers, operators can leave containers at waste-generation points and use the hooklift truck to exchange or transport them as required, making the system particularly useful for flexible waste collection networks where different locations generate different quantities of waste.
Specifications
| ITEM | VALUE |
|---|---|
| Cab | Single row cab, 2 doors, rated passengers 2 or 3, Brand: Isuzu |
| Tire | 9.00-20 with 1 spare tire |
| Chassis – Tire No. | 6+1 (spare) |
| Braking System | air brake |
| Transmission | Manual, 5 forward and 1 reverse |
| Engine brand | ISUZU |
| Fuel type | diesel |
| Engine – Horse Power(kw/hp) | 140kw/190hp |
| Engine – Displacement(ml) | 5,900ml |
| Engine – Emission standard | Euro 4 |
| Overall dimension (LWH/mm) | 7,430×2,470×2,950mm |
| Dimension & Weight – Axles No. | 2 |
| Dimension & Weight – Curb Weight(kg) | 7,255 |
| Dimension & Weight – Max speed(km/h) | 52 |
| Garbage bucket volume(m³) | 6m³ |
| Performance Parameter – Dump angle(°) | ≥45° |
| Performance Parameter – Dump type | Hydraulic cylinder lifting self-loading |
| Performance Parameter – Hydraulic system pressure(Mpa) | ≤16Mpa |
| Performance Parameter – Control method | Manual hydraulic control on the body side |
