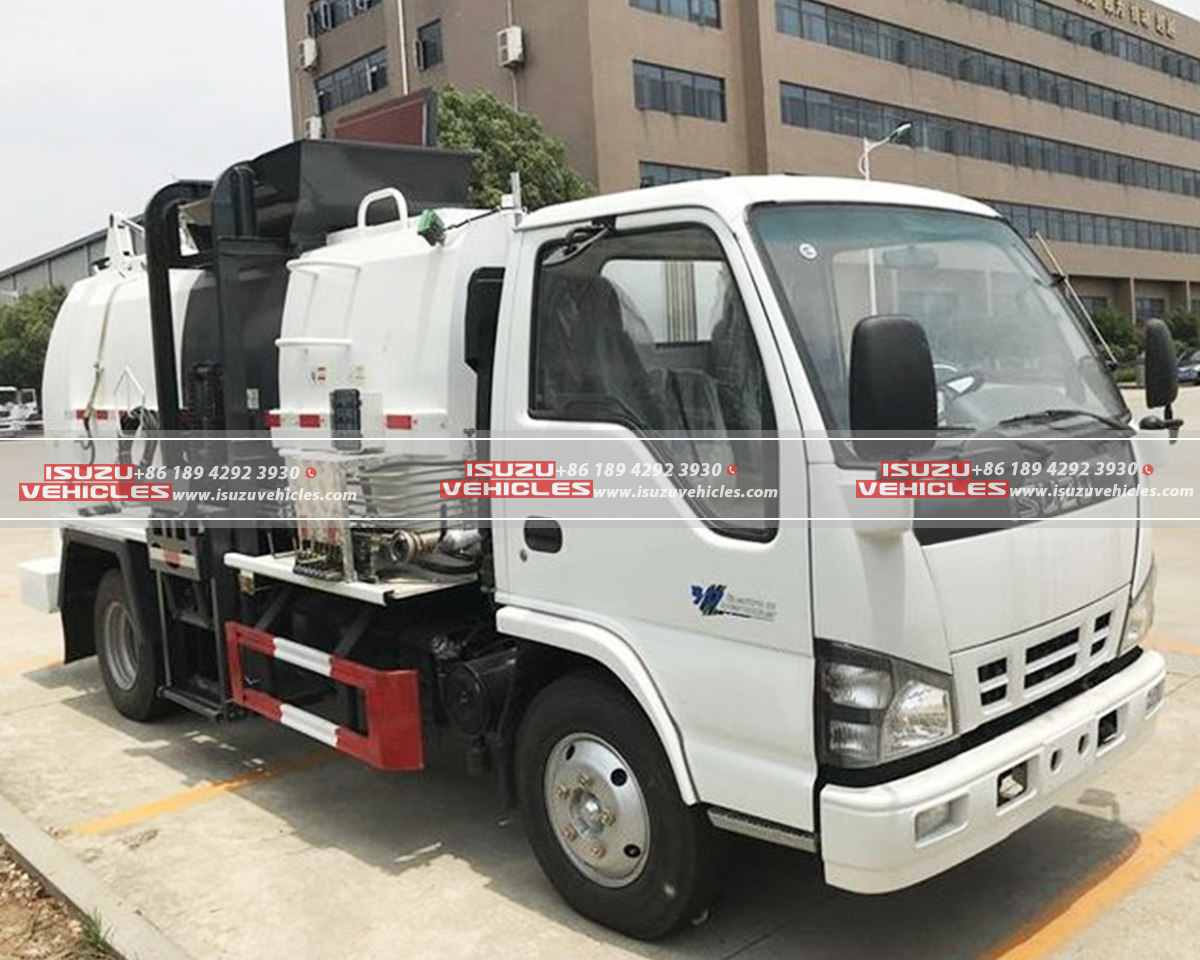

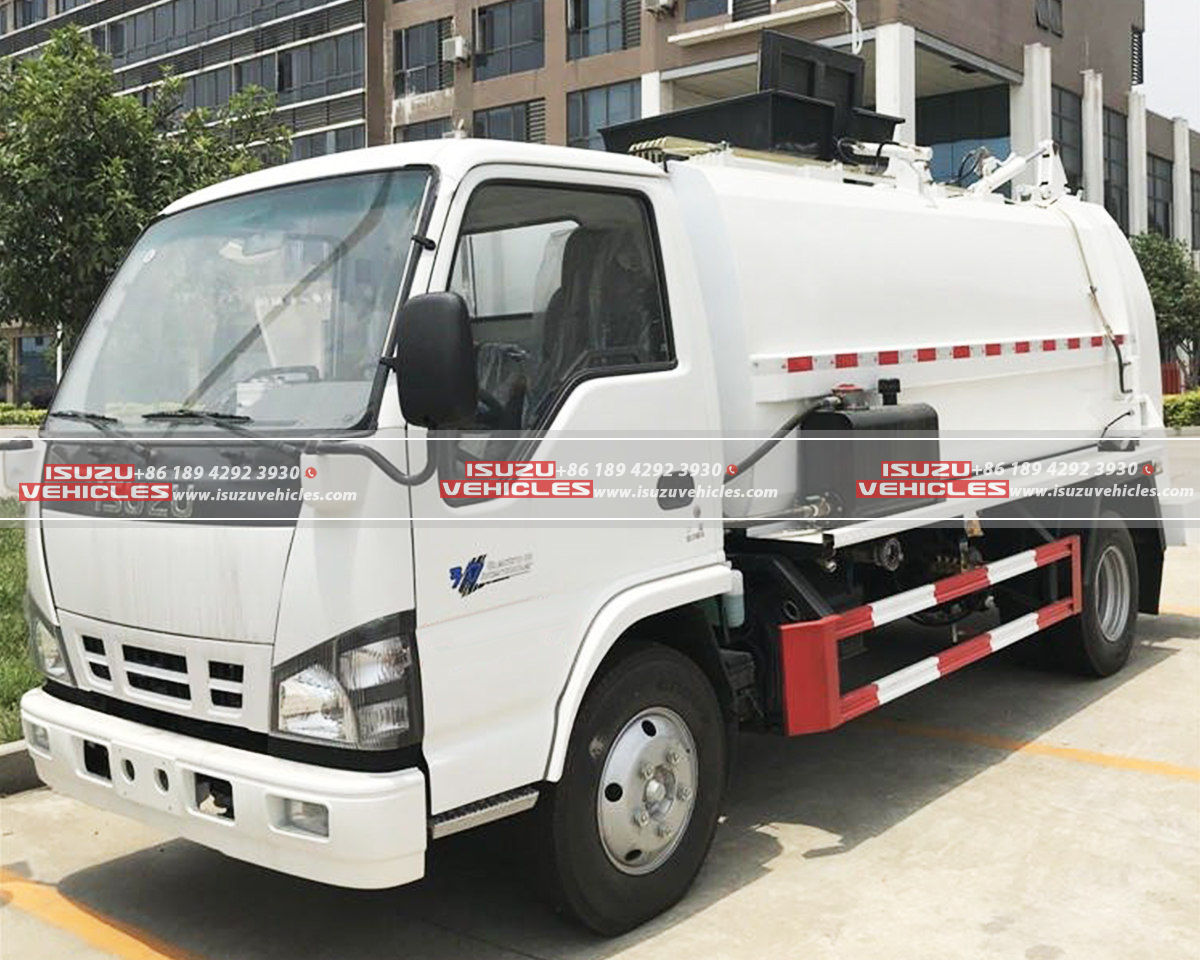

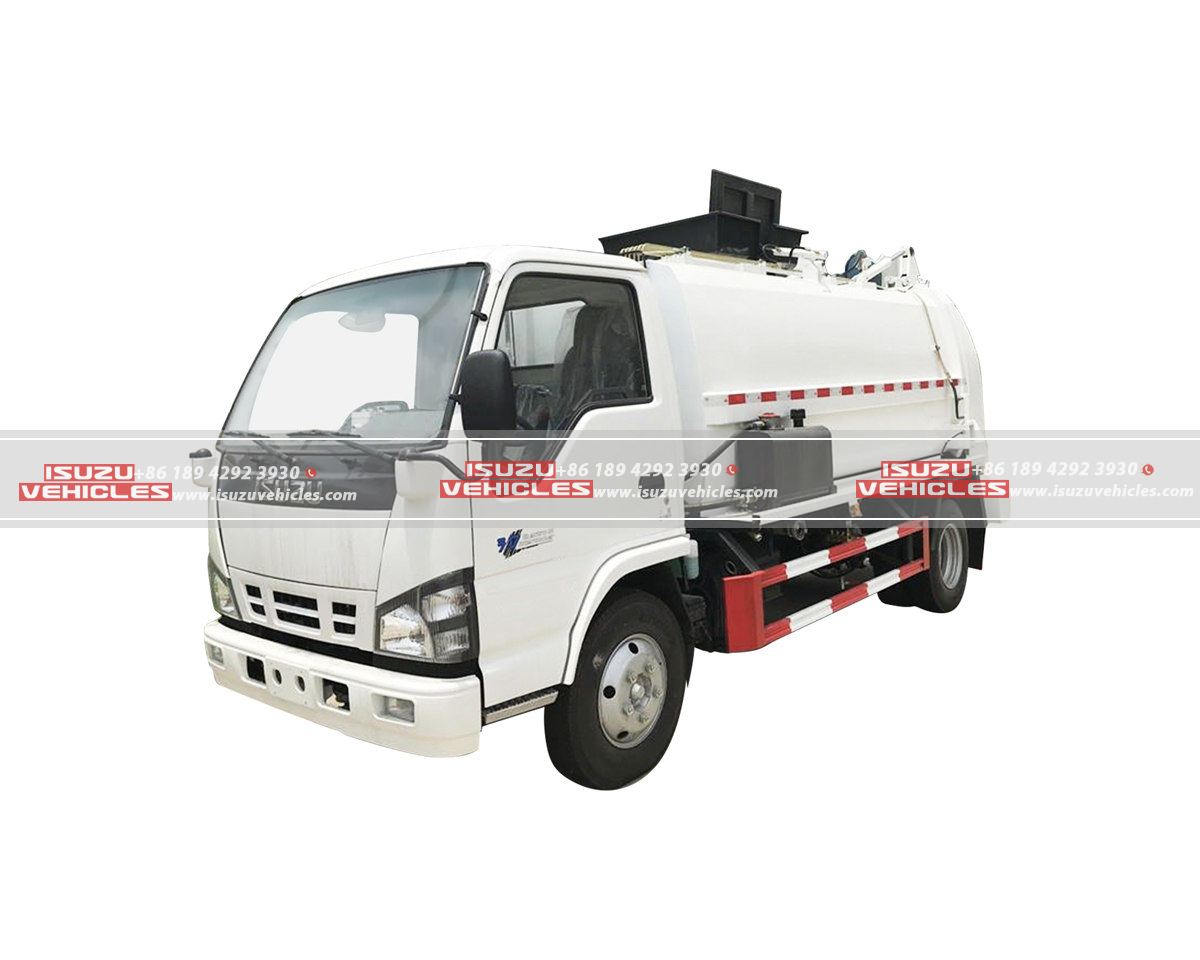

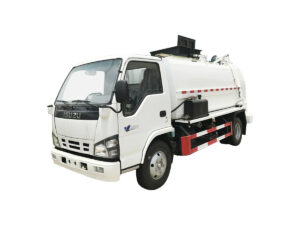

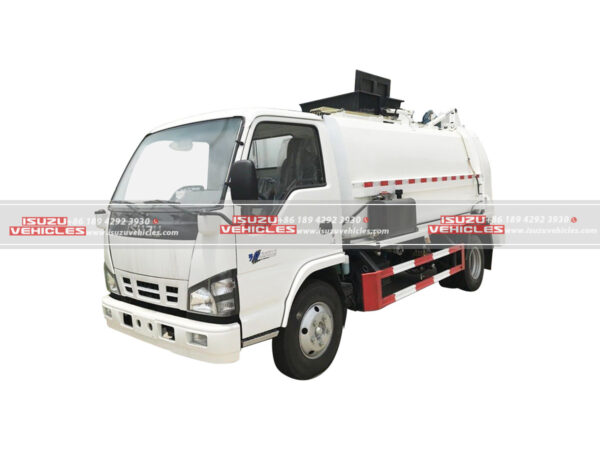

ISUZU Side Loader Compactor Garbage Truck
Agile Urban Maneuverability
Built on the ISUZU 600P chassis, this 4×2 left-hand drive ISUZU Side Loader Compactor Garbage Truck combines compact dimensions (5,995×2,260×2,650mm) with a 3,360mm wheelbase for seamless navigation in urban environments. With a gross vehicle weight of 7,300kg and curb weight of 4,600kg, it offers a robust payload-to-efficiency ratio for municipal waste operations. The 7.00R16 tires (4+2+1 spare) and hydraulic power steering cabin (accommodating 1 driver + 2 passengers) ensure stability and control during tight turns.
Euro 5-Compliant Powertrain
Equipped with the ISUZU 4KH1CN5HS engine, this ISUZU garbage truck delivers 130HP @ 3,400rpm and 290N·m torque @ 1,500rpm, optimized for low-speed waste collection cycles. The intercooled turbocharged diesel engine pairs with an ISUZU/MSB manual transmission (5F+1R) for reliable power transfer across stop-and-go routes.
Part 2: Features
High-Capacity Waste Compression

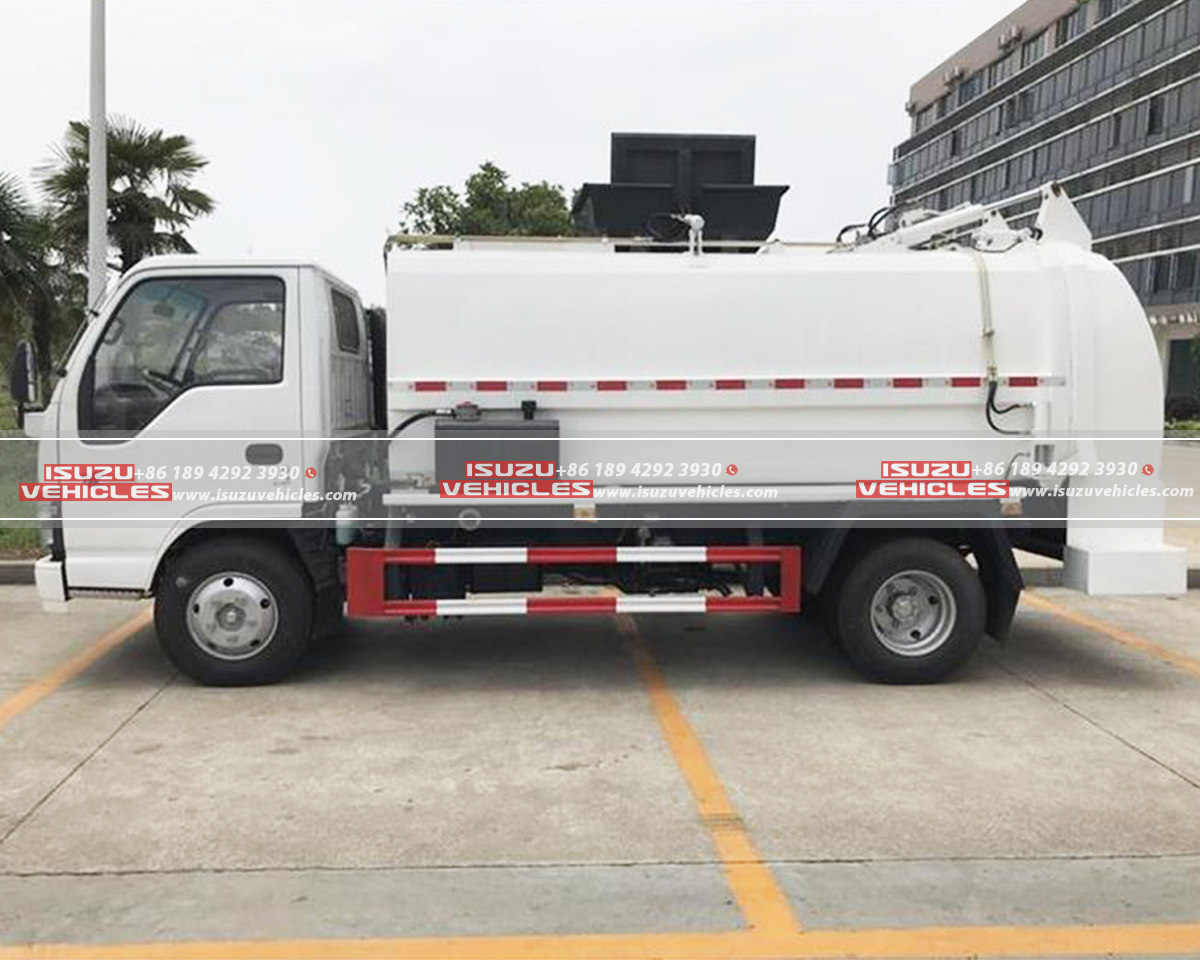

The 5m³ cargo body, constructed from Q345B corrosion-resistant steel (5mm floor, 4mm side/roof), integrates a 4mm high-tensile steel push plate for 3:1 compression efficiency. The scraper system ensures complete waste ejection, while the sludge tank beneath the hopper (with leakproof discharge outlet) prevents liquid spillage during transit.
Leak-Proof Waste Containment

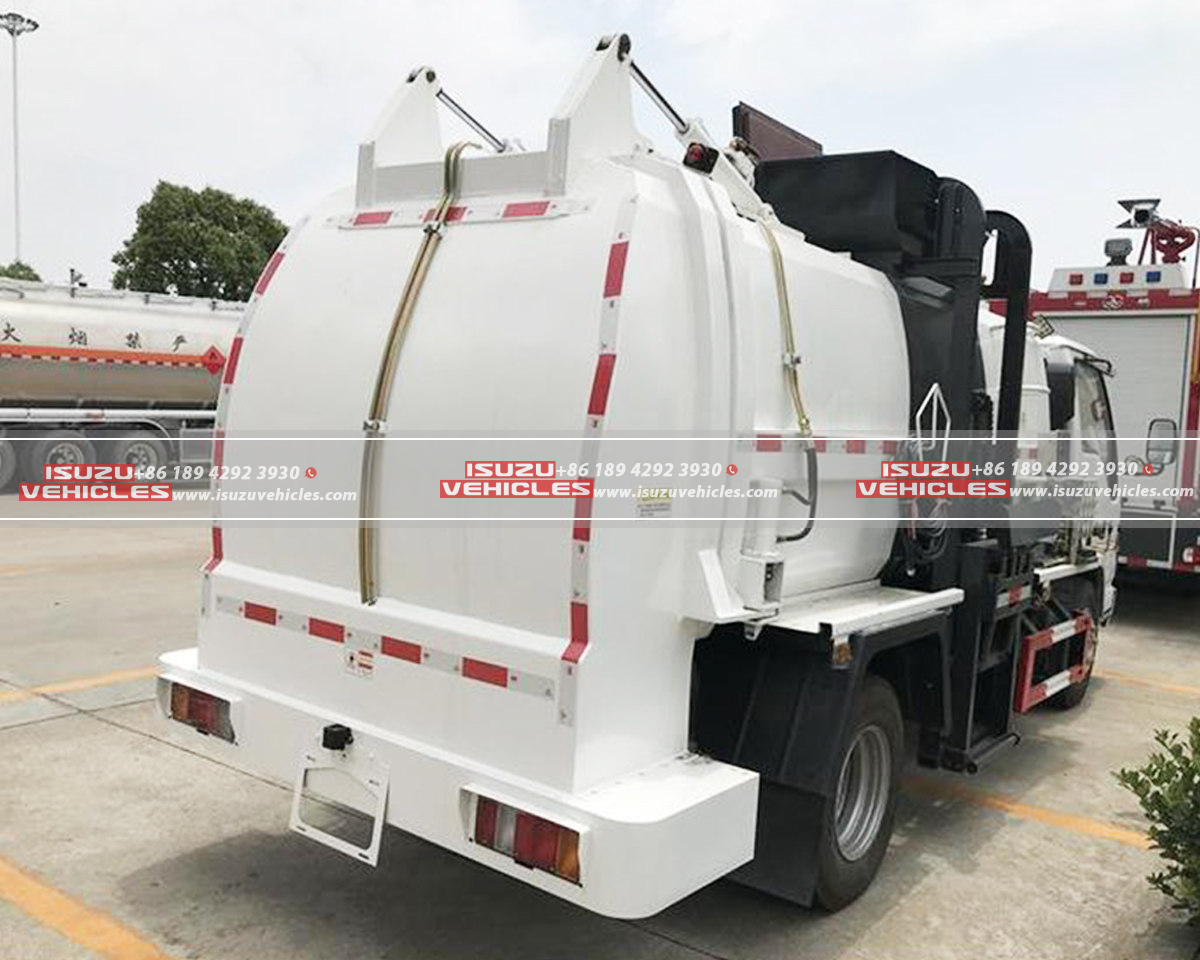

Hydraulic rear-door locks and reinforced rubber seals eliminate secondary pollution risks. The side-loading mechanism uses chain/pull-rod hydraulic lifters (operated via manual push-button controls) to handle 120L/240L standard bins, with high-strength steel arms ensuring durability under repetitive use.
Operator-Centric Design
The dual hydraulic cylinders enable smooth bin lifting/dumping within 50-second cycles, while the manual control system prioritizes simplicity and reliability. Optional upgrades include stainless steel components and customizable container configurations for diverse waste streams.
SPECIFICATIONS
| GENERAL | |
| Make/Model | ISUZU / SL05QL130L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
5,995×2,260×2,650 (mm) |
| Gross Vehicle Weight | 7,300kg |
| Curb Weight | 4,600kg |
| Wheelbase | 3,360mm |
| Chassis Designed | ISUZU 600P |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spare (total 7 wheels) |
| Tire Size | 7.00R16 |
| ENGINE | |
| Make / Model | ISUZU / 4KH1CN5HS |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 2.999L |
| Nominal Power | 130HP (96kw) @ 3400rpm |
| Peak Torque | 290N.m@1,500rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MSB |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 5F+1R |
| Upper Body | |
| Capacity | 5m3 |

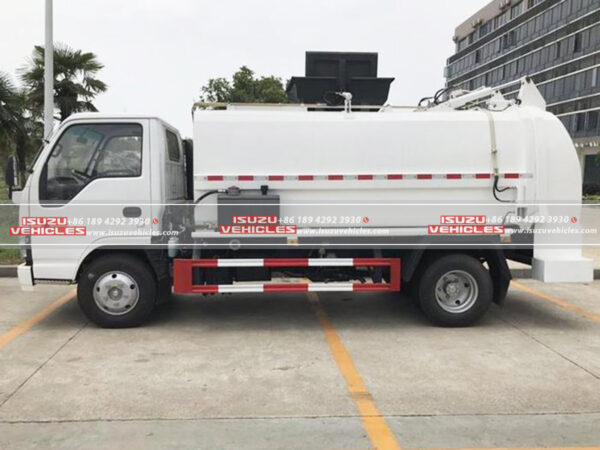

| Garbage Container | High corrosion resistance Q345B steel 5mm thickness of body floor, 4mm thickness of side and roof. |
| Pusher and Scraper | High tensile steel sheet 4 mm thickness
The push plate with its compressible function, not only realizes the compression and volume reduction of the garbage but also pushes and unloads garbage |
| Sludge Tank | Sewage water relief of sludge tank of capacity under garbage tank and tailgate with leakproof discharging outlet. |

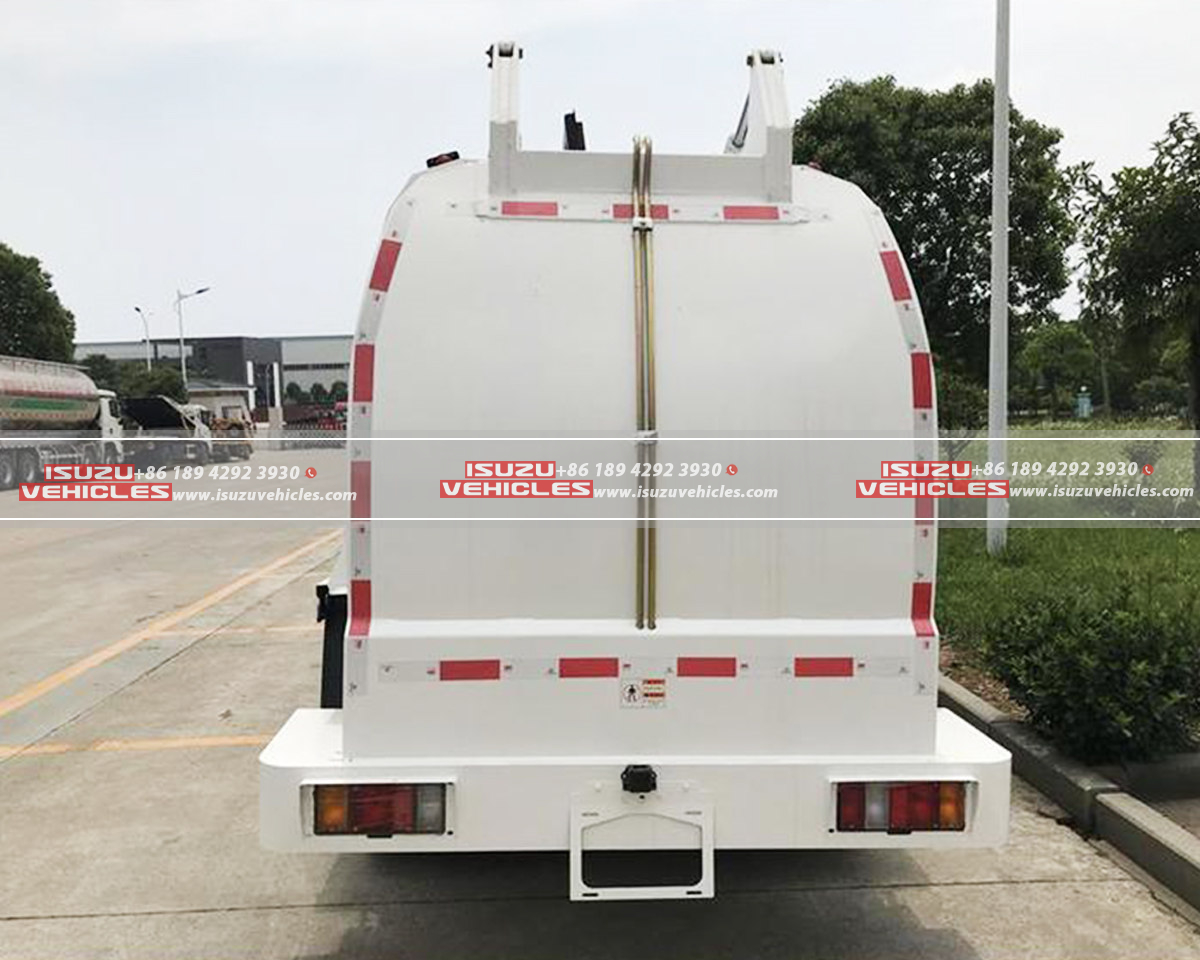

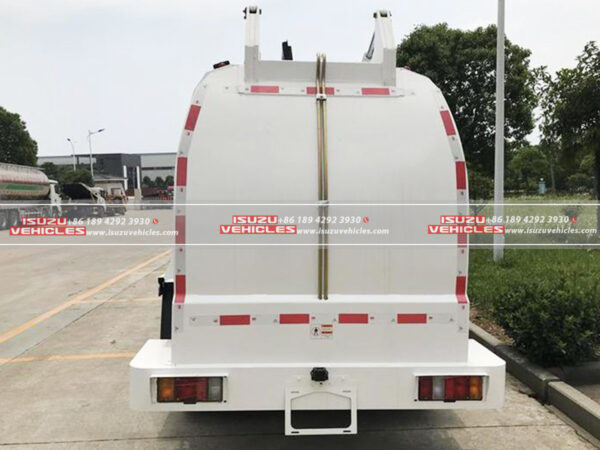

| Leakage Proof Design | Hydraulic locking is adopted between the rear door and the box body, and a specially reinforced rubber strip is used to seal between the garbage bin and the rear door assembly, which has good sealing performance and prevents secondary pollution |
| Containers Lifting Devices | |

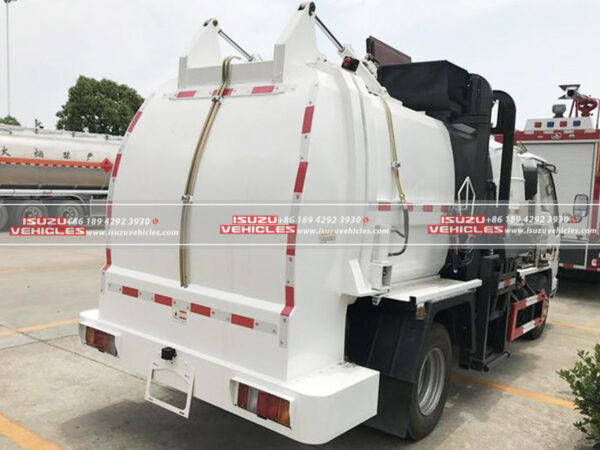

| Type | Side loading with a bin lifting device of chain type or pull rod type works in two hydraulic cylinders on the top of the tank to ensure the lifting and lowering of |
| Lifting Device | Suitable to lift standard 120L/240L plastic containers. (All lifting device arms and parts are made of High Strength Steel). |

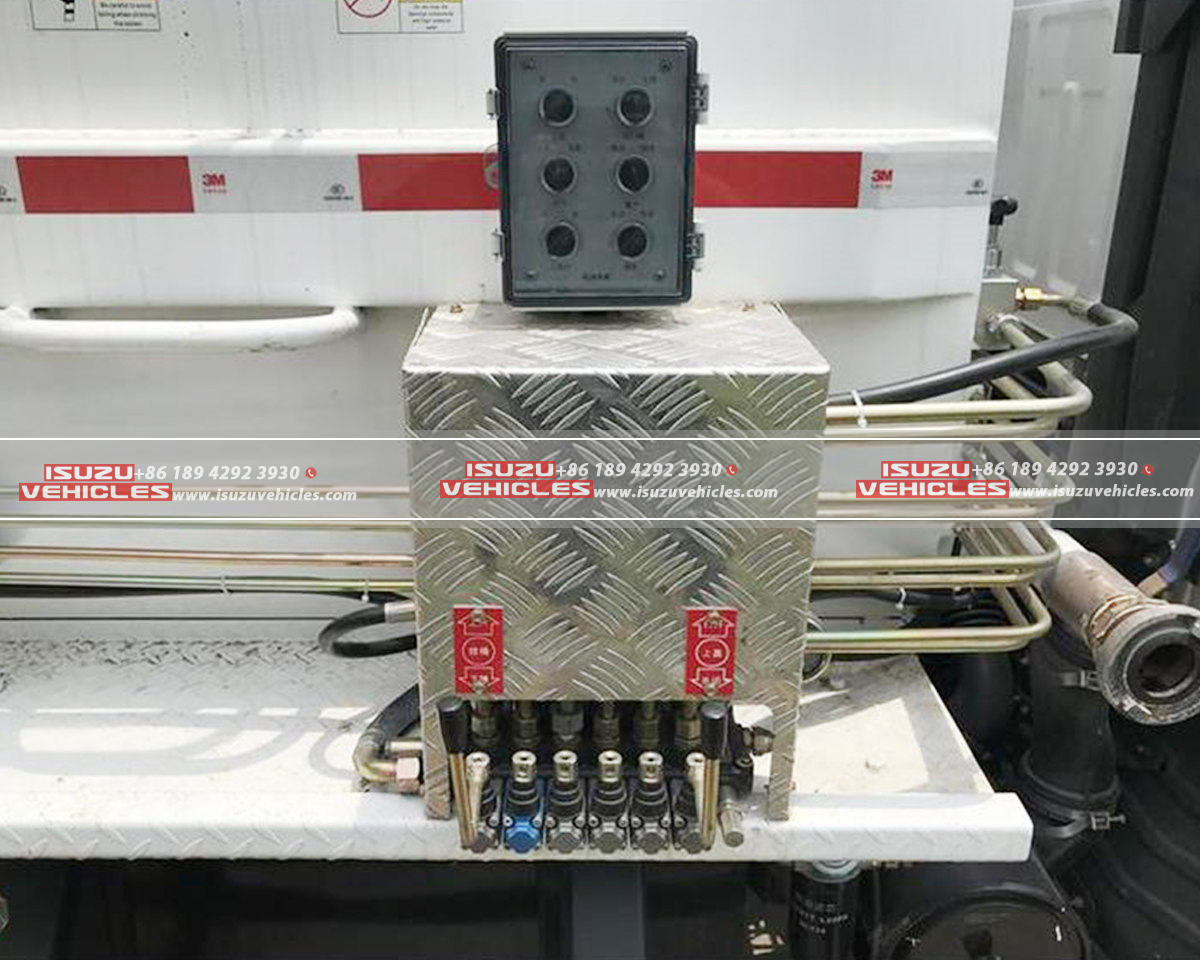

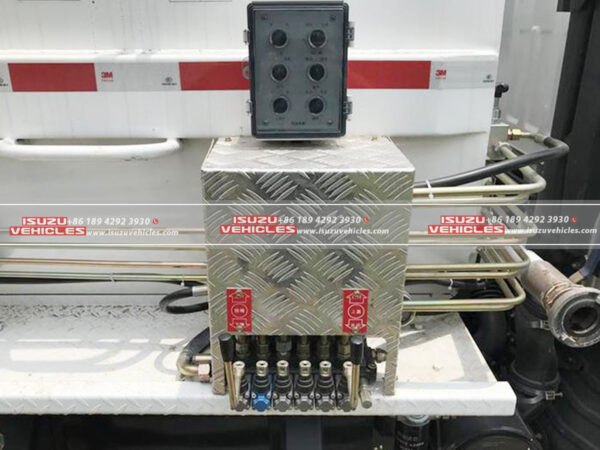

| Control System | The system is manual and pushes button control for box lifting and lifting device operations. |
