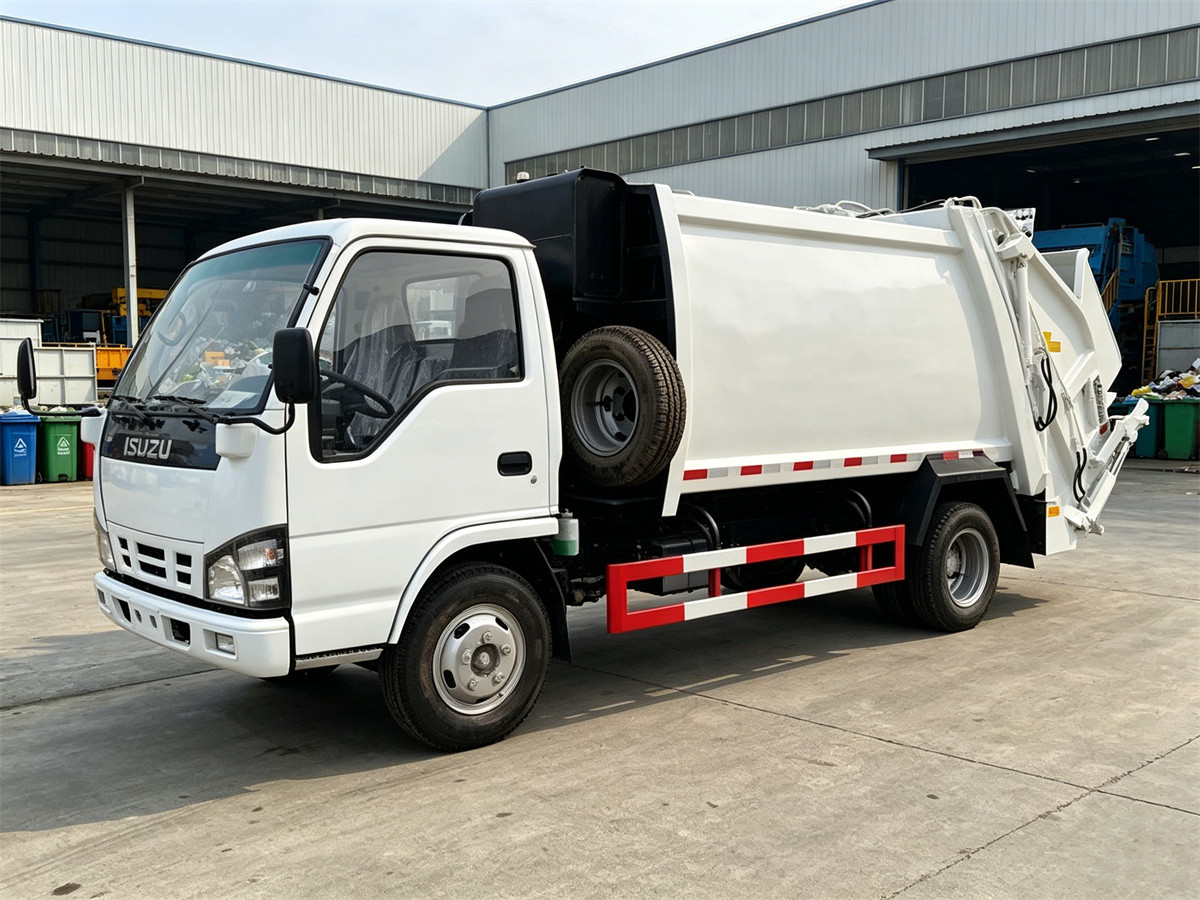

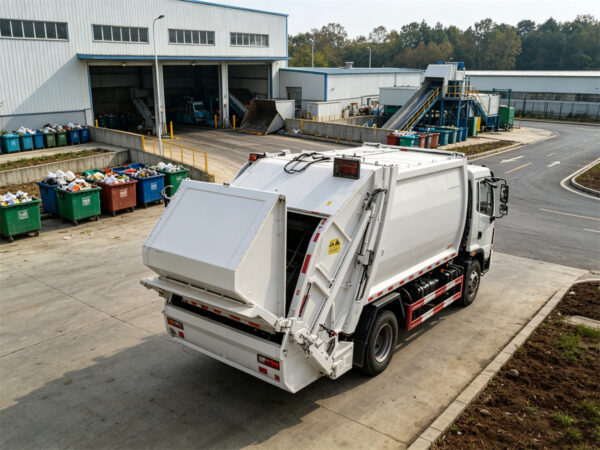

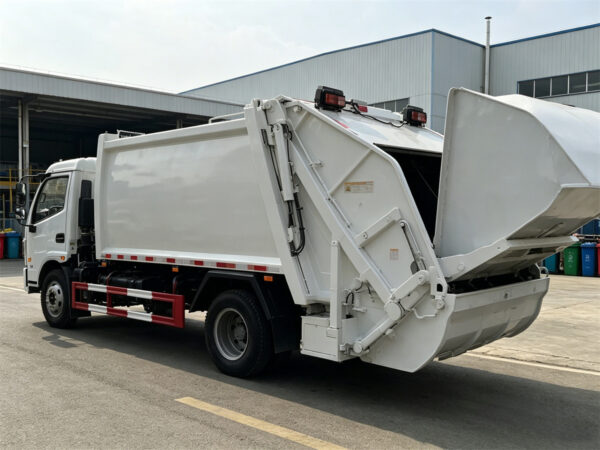

ISUZU 7 CBM Compactor Garbage Truck

ISUZU 7 CBM Compactor Garbage Truck

The ISUZU 7 CBM Compactor Garbage Truck is a compact yet highly efficient municipal waste collection vehicle designed to streamline daily refuse collection in urban streets, residential communities, commercial districts, industrial parks, and public institutions. Built on a dependable ISUZU 4×2 chassis, this refuse compactor combines excellent maneuverability with a durable hydraulic compression system, enabling sanitation operators to transport more waste while reducing collection frequency and operating costs.

Powered by a reliable 96 kW diesel engine that complies with Euro 3 emission standards, the truck delivers stable performance, excellent fuel economy, and dependable operation throughout demanding collection routes. The 7 CBM compactor body integrates loading, compression, transportation, and unloading into one complete waste management solution, helping improve collection efficiency while minimizing environmental impact through its anti-leakage design.

Designed for long service life and simple operation, the ISUZU 7 CBM Compactor Garbage Truck is an ideal choice for municipalities and environmental service providers seeking a durable, productive, and cost-effective refuse collection solution.

---

Features

Reliable ISUZU Chassis

Built on a robust ISUZU 4×2 chassis, the truck offers excellent driving stability and durability for continuous municipal sanitation operations.

Vehicle specifications include:

• Overall Dimensions: 6,500 × 1,920 × 2,500 mm
• Gross Vehicle Weight: 7,300 kg
• Curb Weight: 4,490 kg
• Rated Payload: 2,680 kg
• Wheelbase: 3,815 mm

The compact dimensions allow the truck to operate efficiently in narrow streets, residential neighborhoods, and densely populated urban areas.

Efficient Diesel Powertrain

The truck is equipped with a dependable diesel engine that provides reliable power for both driving and hydraulic compaction operations.

Powertrain highlights include:

• Engine displacement: 2,999 ml
• Maximum output: 96 kW
• Euro 3 emission standard
• Excellent fuel efficiency
• Smooth and stable operation under heavy workloads

The combination of engine performance and hydraulic efficiency ensures dependable refuse collection throughout the working day.

High-Efficiency 7 CBM Compaction Body

The 7 CBM garbage container is designed to maximize waste transportation efficiency through powerful hydraulic compression.

Key advantages include:

• 7 CBM effective container volume
• Large-capacity refuse hopper
• Fast waste loading and compression
• Higher payload utilization
• Reduced transportation frequency

The optimized compaction system enables operators to collect more refuse per trip, improving productivity while lowering fuel consumption.

Advanced Hydraulic Compression System

The ISUZU truck utilizes a reliable hydraulic system that provides smooth, powerful, and efficient compaction performance.

Hydraulic components include:

• High-performance hydraulic oil pump
• Durable lifting oil cylinders
• Reliable Power Take-Off (PTO) system
• Stable hydraulic pressure during continuous operation

Premium hydraulic components ensure long-term reliability while minimizing maintenance requirements.

Fast Operating Cycle

The automatic compaction mechanism is engineered to shorten waste collection time and improve operational efficiency.

Operational features include:

• Rapid loading and compression cycles
• Smooth hopper lifting operation
• Efficient container discharge
• Stable hydraulic movement
• Simple operator controls

These features allow sanitation crews to complete collection routes more quickly and with less manual effort.

Durable Garbage Body Construction

The refuse body is manufactured using high-quality 16Mn high-strength alloy steel, providing outstanding resistance to wear, impact, and long-term fatigue.

Construction benefits include:

• Heavy-duty welded structure
• Excellent corrosion resistance
• High structural rigidity
• Long service life under intensive municipal use

The durable body is designed to withstand continuous loading, compression, and unloading operations over many years.

Anti-Pollution Design

To help maintain cleaner streets and reduce environmental contamination, the truck incorporates an integrated water holding tank and anti-leakage system.

Environmental features include:

• Effective wastewater collection
• Reduced secondary pollution
• Cleaner loading and unloading operations
• Improved sanitation performance

This design helps prevent liquid leakage during transportation and disposal.

Comfortable and Practical Operation

The vehicle is designed to provide convenient operation for both drivers and sanitation crews.

Standard equipment includes:

• Ergonomic driver controls
• Comfortable ISUZU cab
• Reliable hydraulic operation
• Metallic paint finish for enhanced durability
• Maintenance manual and service documentation
• Standard tool kit

The practical design simplifies routine operation while reducing operator fatigue during extended working hours.

Built for Everyday Municipal Waste Collection

Combining a dependable ISUZU chassis, a durable 7 CBM compactor body, and a reliable hydraulic compression system, the ISUZU 7 CBM Compactor Garbage Truck delivers excellent productivity, durability, and operating economy. It is a dependable solution for municipalities, sanitation contractors, residential communities, factories, schools, hospitals, and commercial facilities requiring efficient and environmentally responsible waste collection.

Specification

Category & Item	Specification Description
1. Standard Specification – Chassis Technique Parameters
Drive System	4×2
Engine Displacement / Rated Power	2999 ml / 96 kW
Gross Vehicle Weight / Rated Payload / Curb Weight	7300 kg / 2680 kg / 4490 kg
Overall Dimensions (L×W×H)	6500 × 1920 × 2500 mm
Wheelbase / Number of Axles	3815 mm / 2
Front / Rear Axle Load Capacity	2300 kg / 5000 kg
2. Compaction System Technical Information
Compaction Chamber Volume	7 CBM
Working Cycle Time	20 s
Hopper Opening Angle	90°
Container Opening Angle	20°
Pre-compressor Stroke	3000 mm
Painting Specification	Standard Metallic Paint
Discharging Mode	Rear Discharge
Hopper Material	High qualified 16Mn Steel / High Strength Alloy Steel
Anti-pollution Configuration	With Water Holding Tank
Lifting Oil Cylinder	VC-87-2000/03000 (Rexroth)
Hydraulic Oil Pump	CBY3063-172L(C)-HYDRAULIC
Power Take Off (PTO)	QY750
Drawer Organizer	Buyer request designing acceptable
3. Exhaust & Chassis Supporting Specifications
Emission Standard	Euro 3
Tire Specification	7.00-15
Leaf Springs Configuration	8/6+5
Front / Rear Suspension Travel	1015 mm / 2125 mm
Approach / Departure Angle	24° / 15°
Front / Rear Track Width	1504 mm / 1425 mm
4. Spare Parts & Accessories
Standard Accessories	Maintenance Manual, Services Stations List, Product Introduction, Special Tools
Anti-pollution System	Auto Injection Plate System
