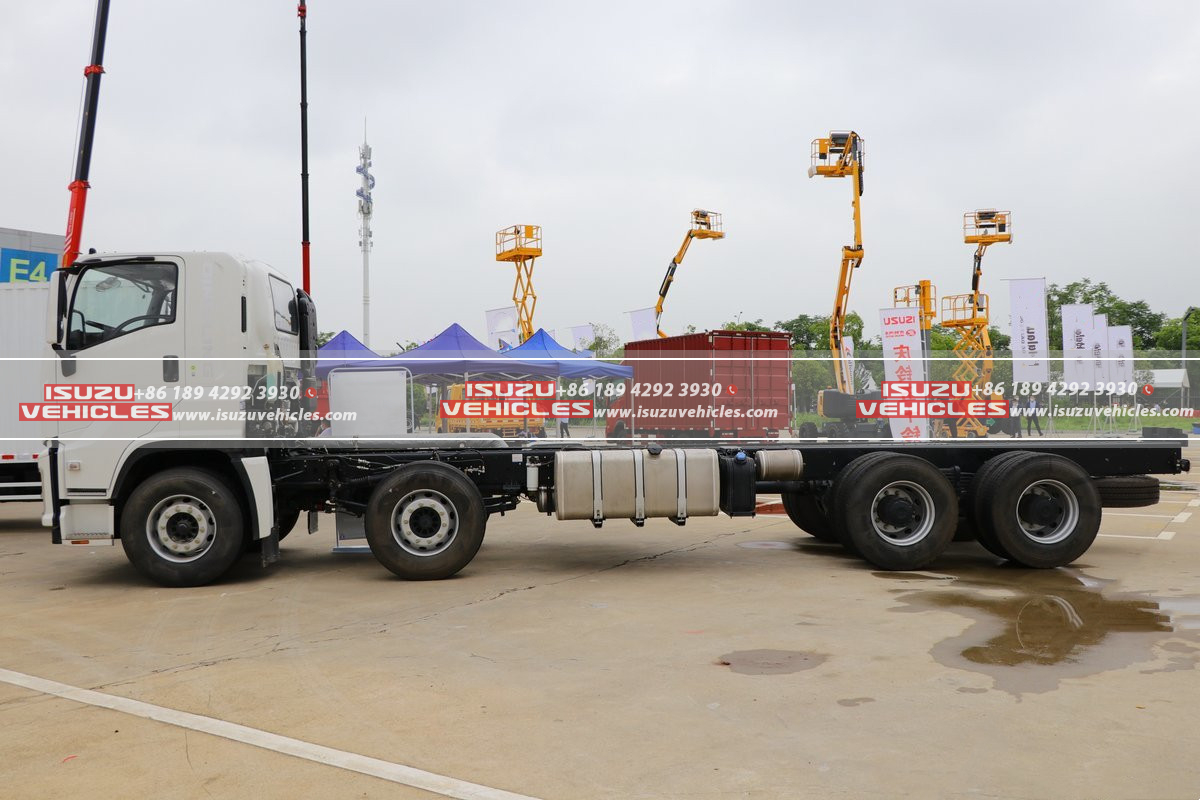

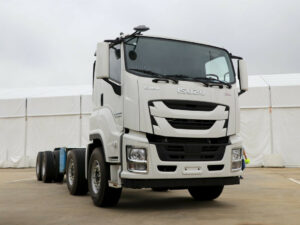

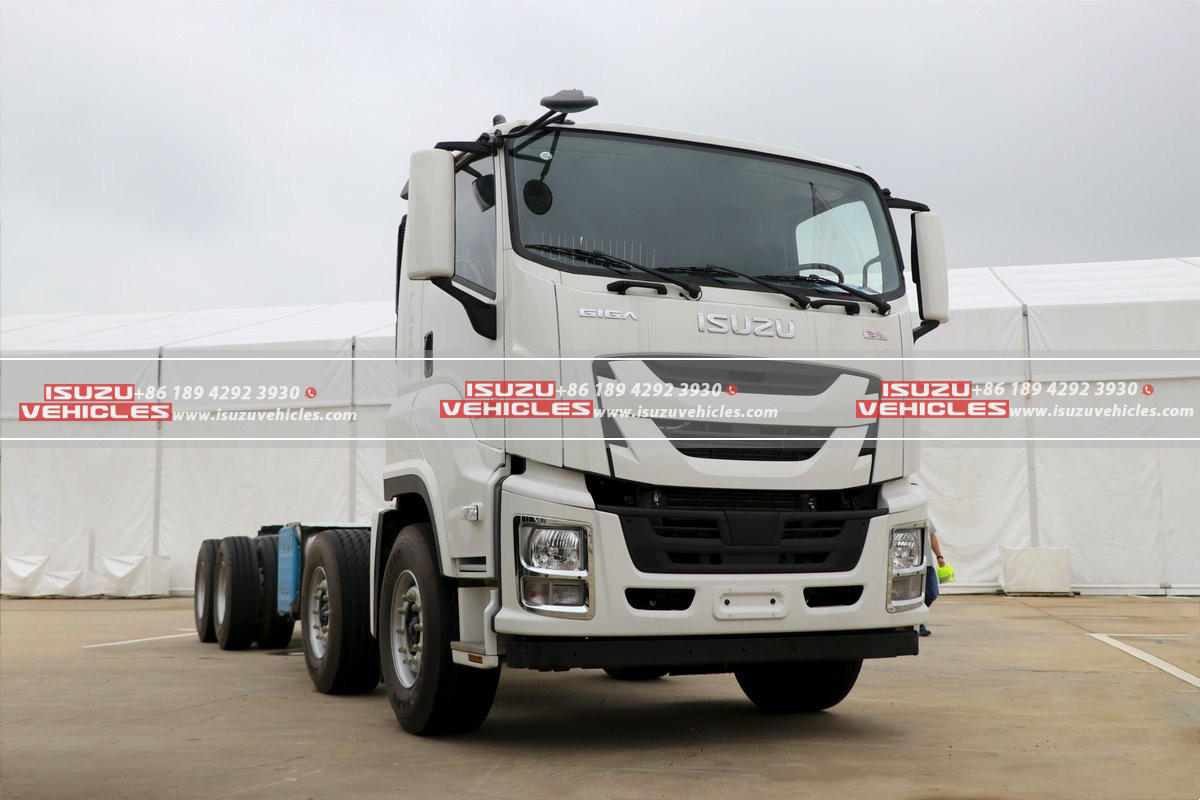

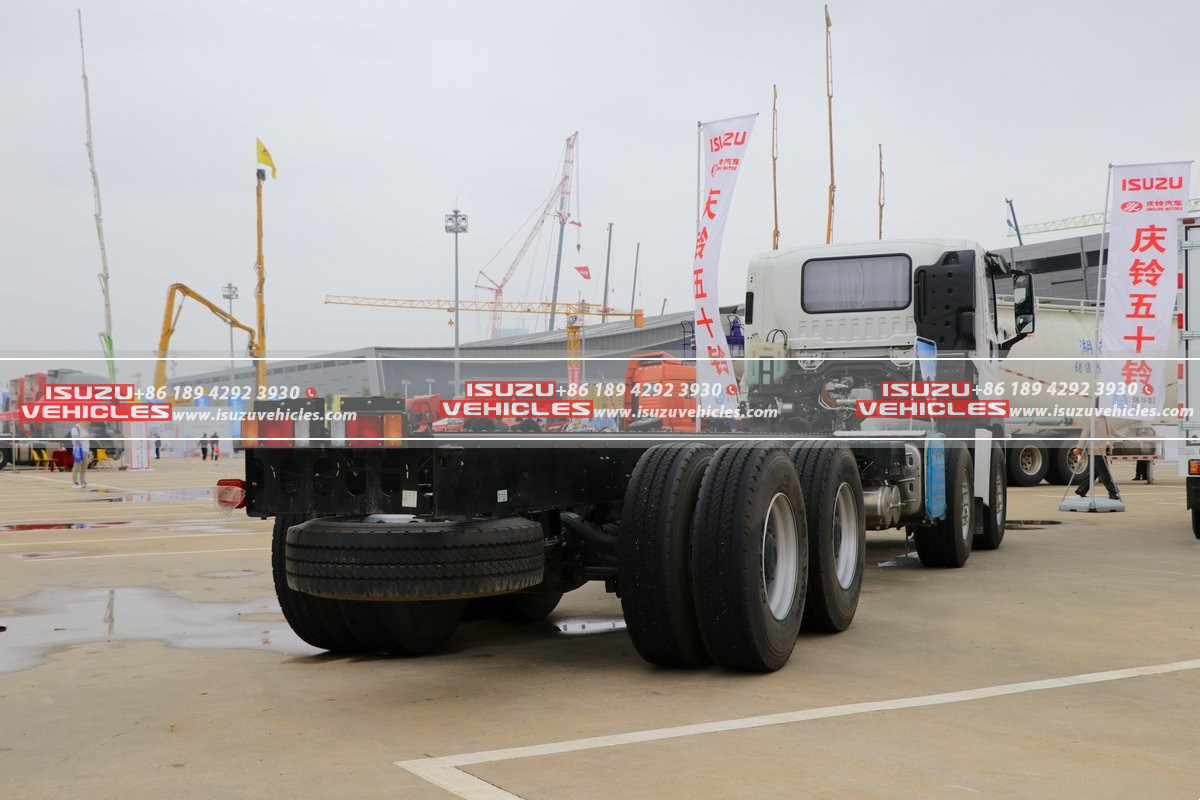

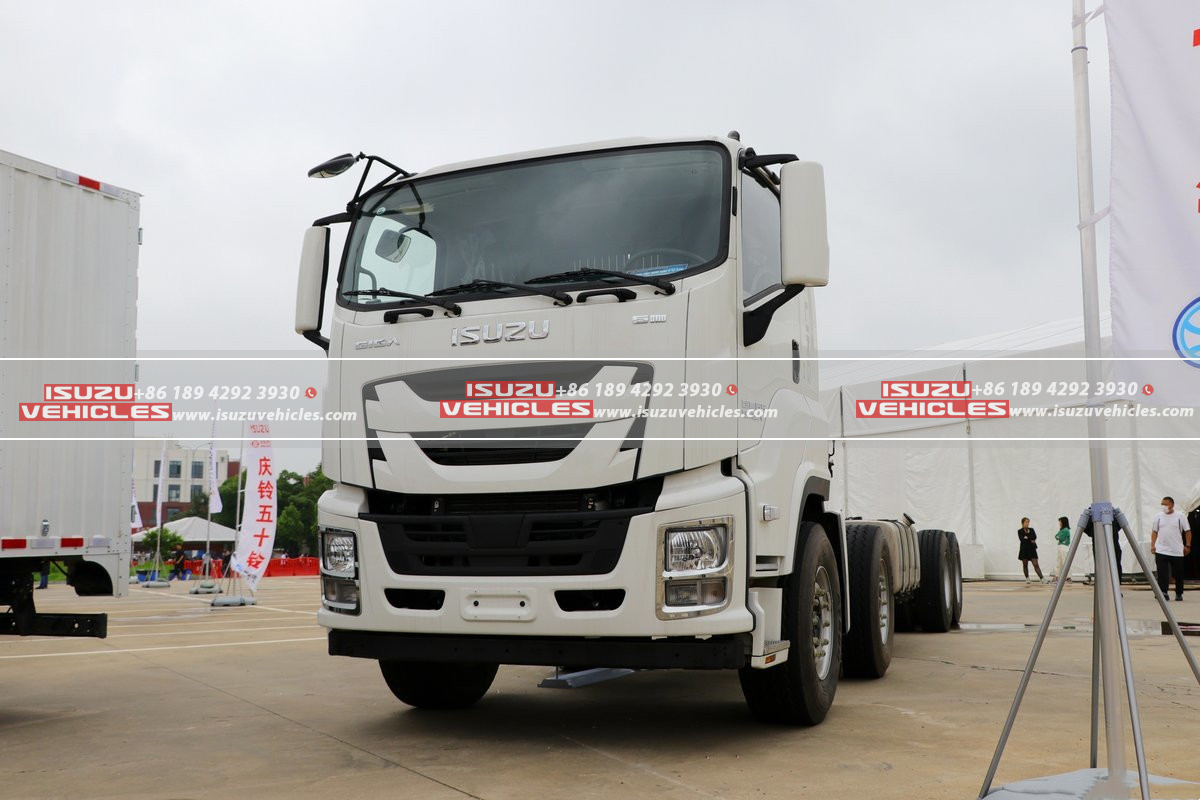

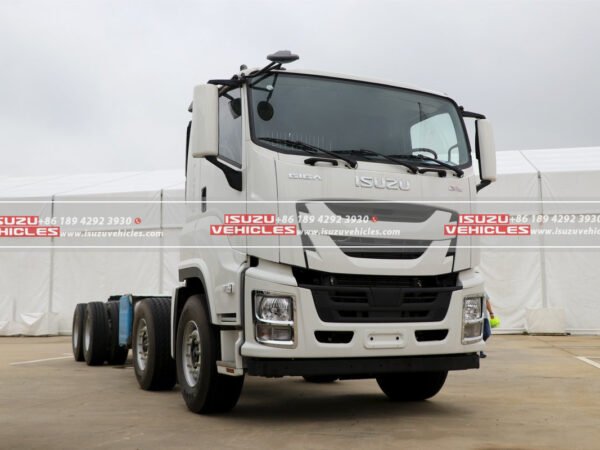

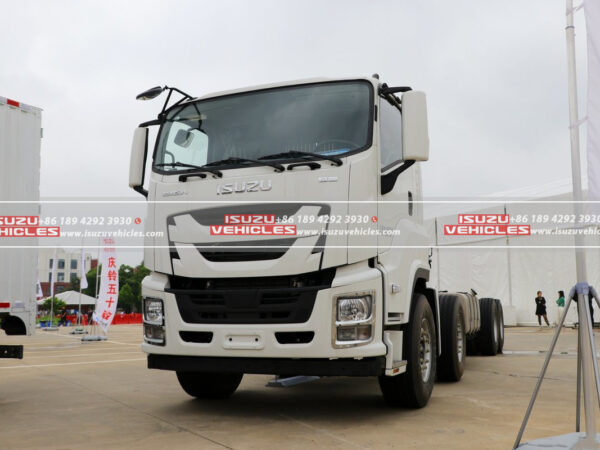

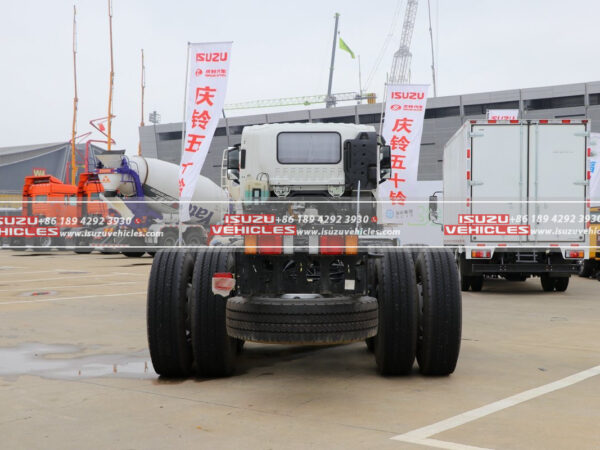

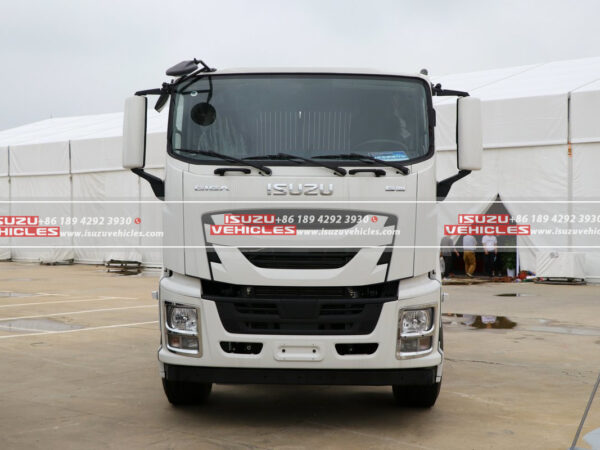

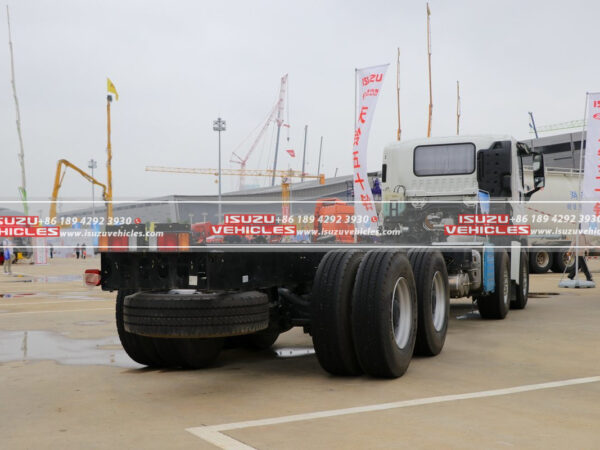

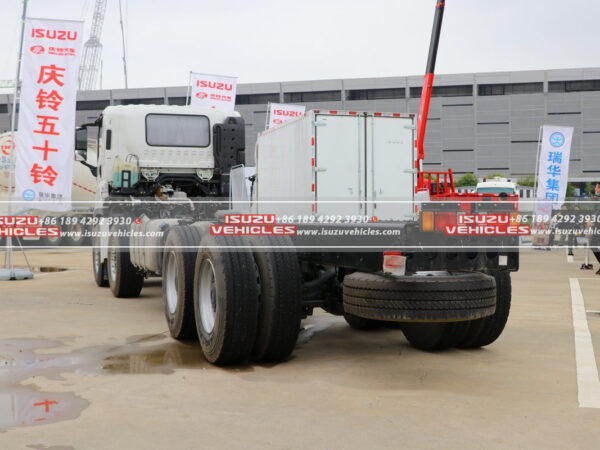

ISUZU GIGA 8*4 520 Horsepower Truck Chassis
The ISUZU GIGA 8X4 520 Horsepower Truck Chassis is designed for businesses that require a heavy-duty chassis solution for specialized operations. With a powerful 520 horsepower engine and a 16-speed transmission, this chassis provides the ideal foundation for building a wide variety of customized truck bodies. The chassis offers superior engine performance and payload capacity, making it a robust choice for demanding transportation needs.
Built with an 8X4 drive configuration, the ISUZU GIGA chassis delivers exceptional road handling and stability, especially when carrying heavy loads or traveling over difficult terrains. With a gross vehicle weight that can be customized based on the body construction, this chassis is built to handle the demands of various industries, including logistics and construction.
Key Features of ISUZU GIGA 8X4 520 Horsepower Truck Chassis
Engine Power and Performance
The ISUZU GIGA 8X4 Chassis is equipped with the Qingling Isuzu 6WG1-TCG62 engine, a 6-cylinder diesel engine renowned for its power and reliability. This engine delivers an impressive 520 horsepower (382 kW) and 2250 N·m of maximum torque, ensuring excellent performance under heavy loads. The engine is designed with a 15.681L displacement and meets the National VI emission standards, ensuring both powerful output and environmental compliance.
With a max torque RPM of 900-1300 RPM, this engine provides optimal efficiency for a variety of heavy-duty applications, making it ideal for those who need a chassis capable of handling large, specialized loads with ease.
Transmission and Gear Ratios
Equipped with a 16-speed manual transmission, the ISUZU GIGA 8X4 offers superior control and precision. The 16 gears provide excellent flexibility in speed and power delivery, allowing drivers to adapt to various road conditions, whether on highways or more challenging terrains.
The rear axle ratio of 4.55 further contributes to the chassis’s ability to maintain fuel efficiency while delivering ample torque for carrying heavy payloads. With 2 reverse gears, this chassis provides increased maneuverability, allowing for smoother operation in tight spaces or on construction sites.

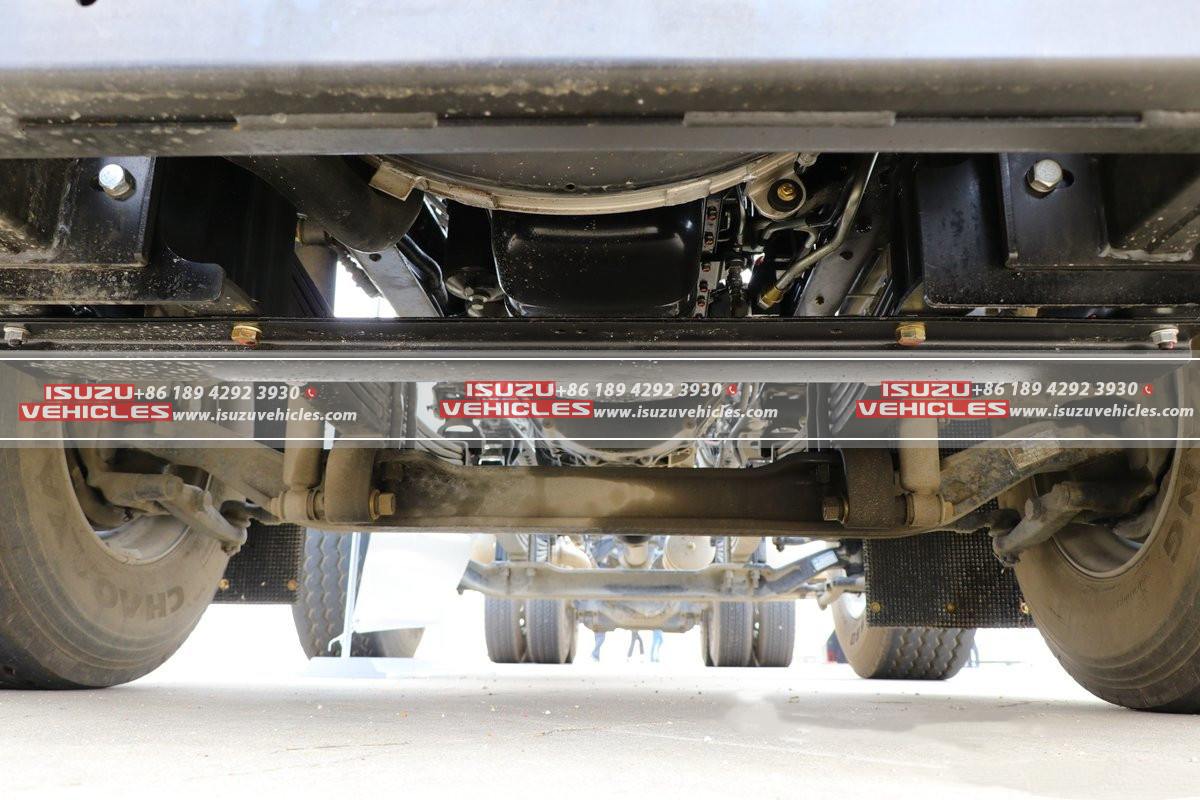

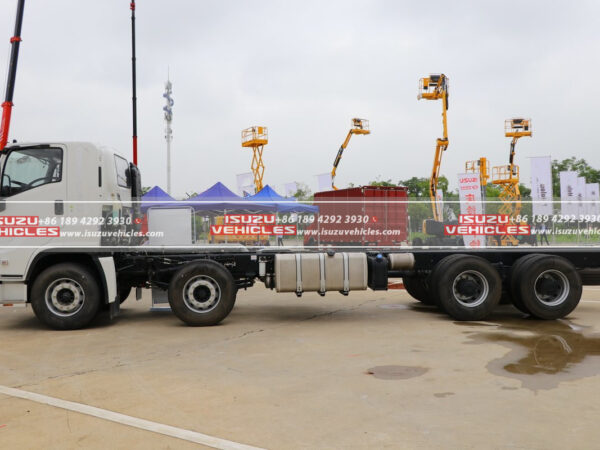

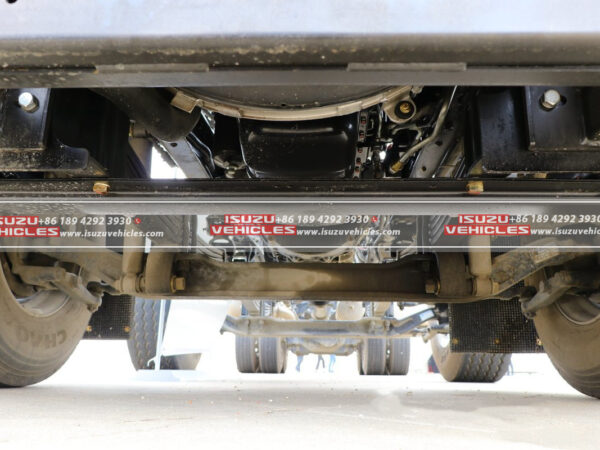

Heavy-Duty Chassis and Suspension
The ISUZU GIGA 8X4 Truck Chassis features a robust suspension system with a leaf spring count of 4/4/5, ensuring superior durability and stability when carrying large and heavy loads. The leaf spring suspension is designed to provide both comfort and stability, even under demanding driving conditions.
With an approach angle of 17 degrees and a departure angle of 24 degrees, the chassis is built to handle rough and uneven terrains, making it ideal for specialized applications such as construction or logistics.

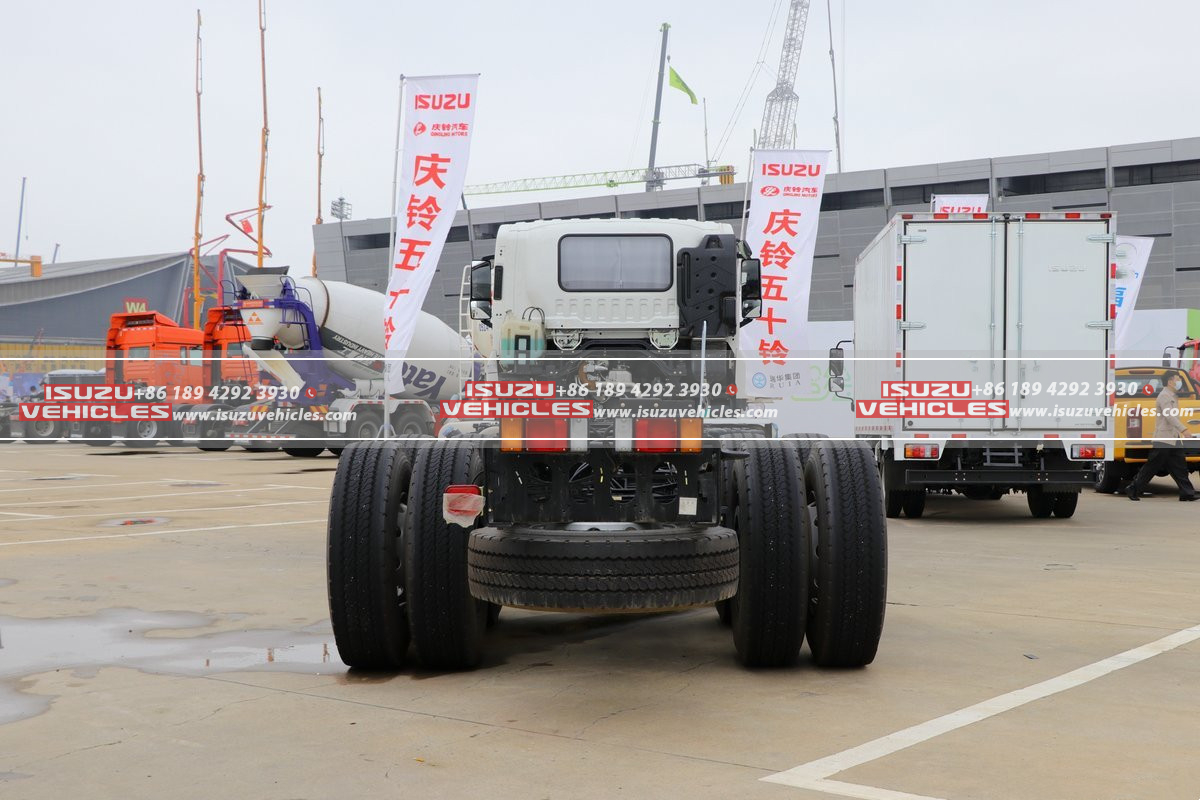

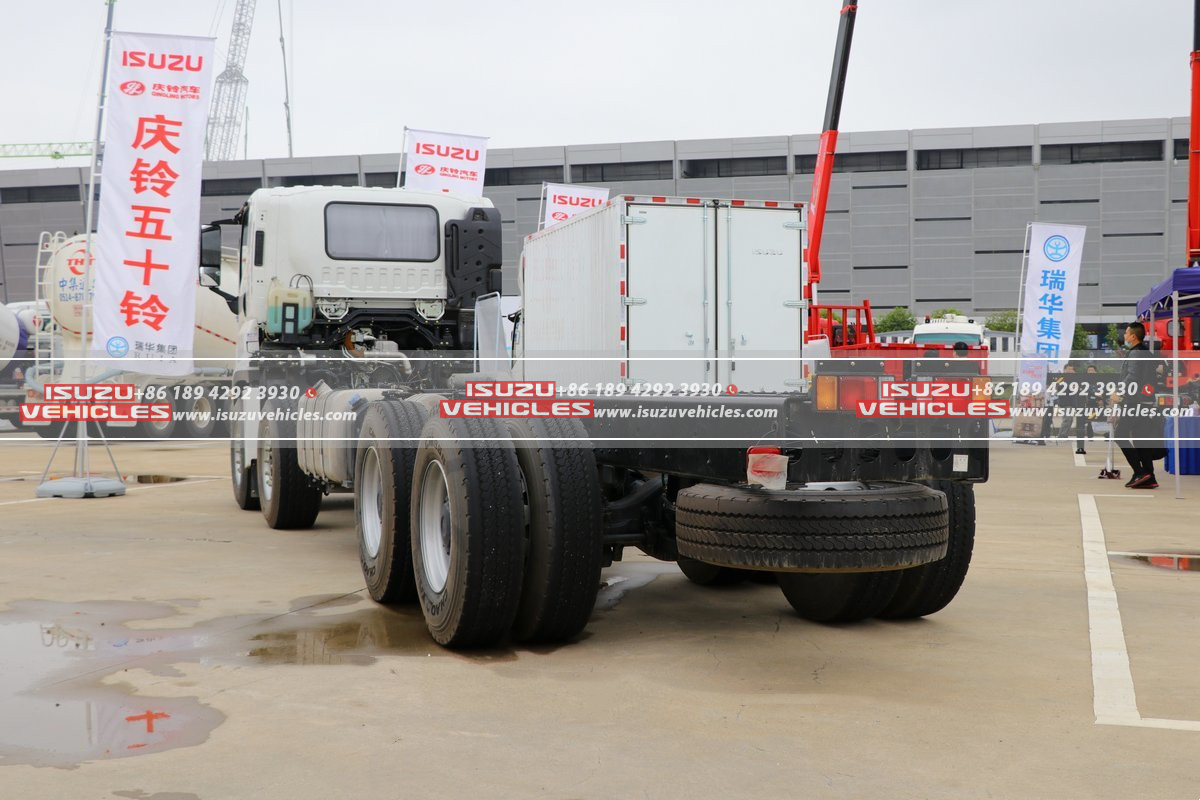

Tires and Road Performance
The ISUZU GIGA 8X4 Chassis is fitted with 12 tires, specifically 385/65R22.5 20PR and 315/80R22.5 18PR sizes, offering exceptional traction and stability across a variety of surfaces. These tires are designed to handle heavy-duty loads and provide long-lasting performance under tough operating conditions.
With the added benefit of ABS anti-lock braking system, the ISUZU GIGA chassis ensures safe and stable braking, even under heavy load or adverse weather conditions, further enhancing driving safety and handling.

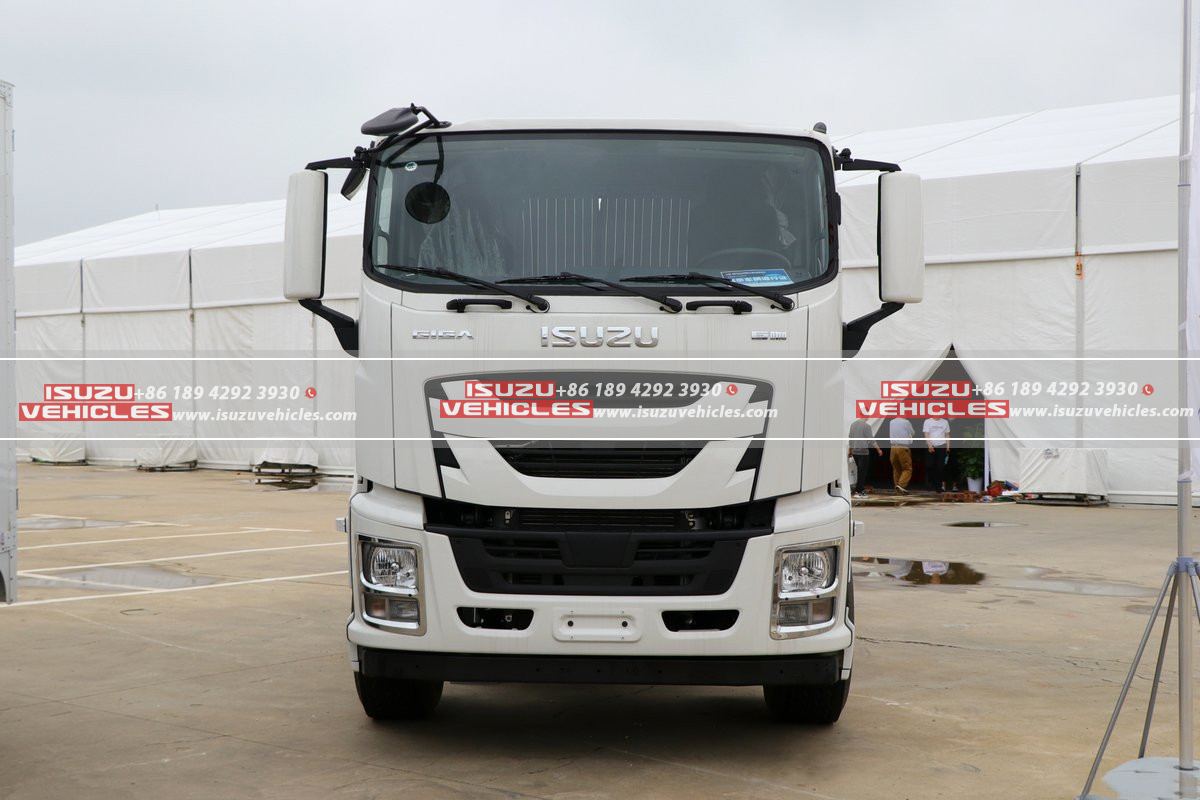

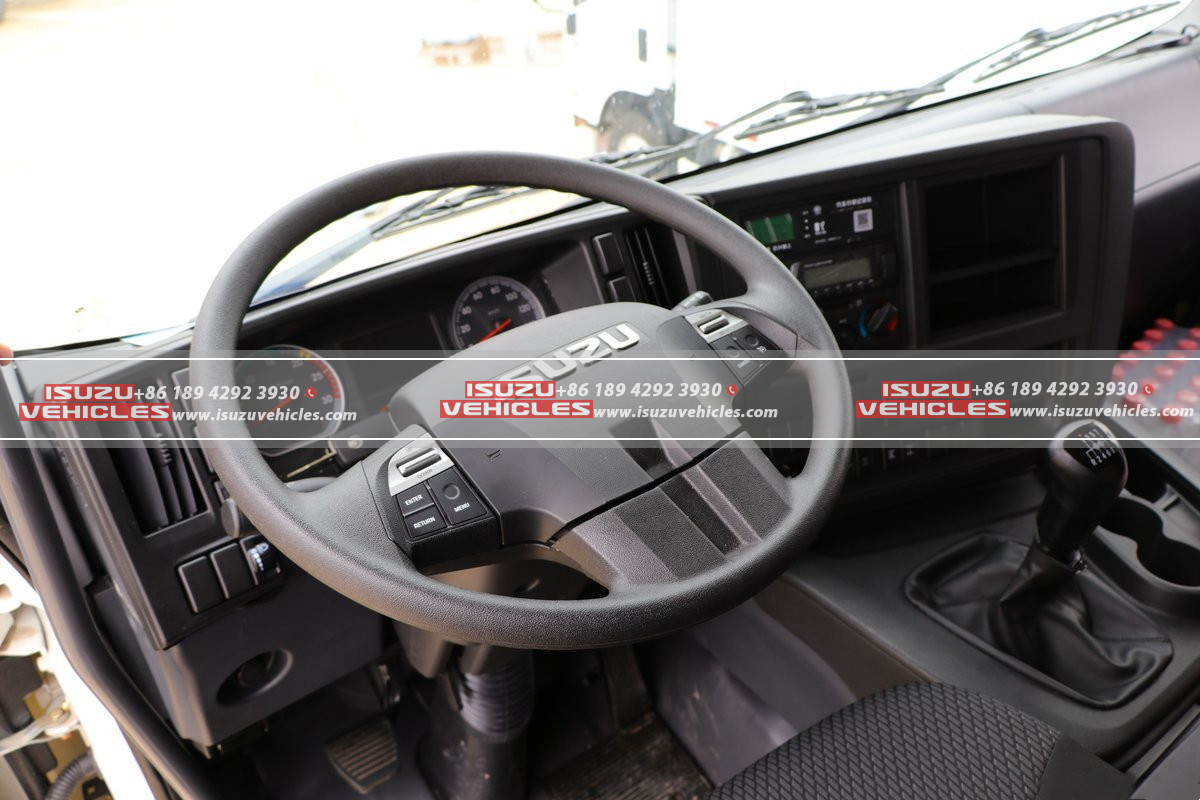

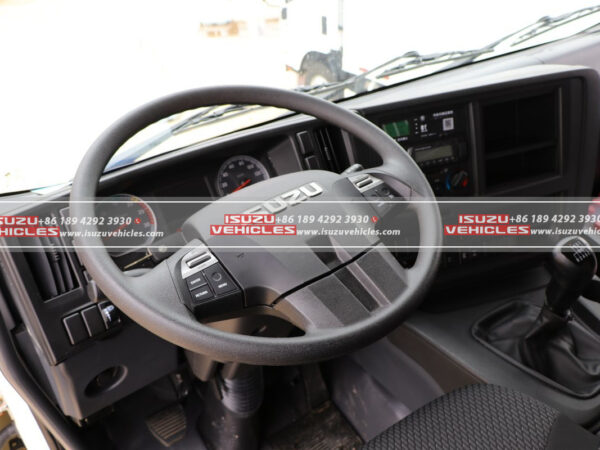

Cab Configuration
The ISUZU GIGA 8X4 Chassis is designed with a flat-top cab that provides comfortable seating for 2 passengers. The cab is equipped with a single-row and half-row seat configuration, offering ample space for the driver and a co-driver. The chassis is built to support customized body installations, making it adaptable to a wide range of transportation needs.
Specialized Operation Capability
As a chassis-only model, the ISUZU GIGA 8X4 offers businesses the flexibility to customize the truck body according to their specific requirements. Whether used for specialized logistics, construction, or material handling, this chassis serves as the backbone for a wide range of applications, making it a versatile and powerful choice for companies in need of a heavy-duty foundation.
The ISUZU GIGA 8X4 520 Horsepower Truck Chassis is built to meet the toughest challenges in heavy-duty transportation. With its powerful engine, advanced transmission system, and robust suspension, this chassis is designed for businesses that need maximum load capacity, reliability, and flexibility in their operations. Whether it’s for logistics, construction, or other specialized applications, the ISUZU GIGA 8X4 delivers exceptional performance and durability.
SPECIFICATIONS:
| Parameter Category | Description |
|---|---|
| Type | Chassis |
| Drive Type | 8X4 |
| Wheelbase | 2100+4400+1370mm |
| Box Length Class | N/A (as it’s a chassis) |
| Engine | Qingling Isuzu 6WG1-TCG62 |
| Transmission | 16-speed transmission |
| Rear Axle Ratio | 4.55 |
| Body Length | 11.115m |
| Body Width | 2.54m |
| Body Height | 3.01m |
| Front Wheelbase | 2140/2140mm |
| Rear Wheelbase | 1855/1855mm |
| Gross Vehicle Weight | N/A (total mass to be provided) |
| Curb Weight | 10.96 tons |
| Payload | N/A (rated load to be provided, but can be calculated as total mass – curb weight) |
| Max Speed | 85KM/h |
| Production Place | Jiulongpo, Chongqing |
| Tonnage Class | Heavy-duty Truck |
| Approach Angle | 17 degrees |
| Departure Angle | 24 degrees |
| Market Segment | N/A (specialized operation) |
| Front/Rear Overhang | 1.37/1.95m |
| Fuel Type | Diesel |
| Engine Parameters | |
| – Engine Model | Qingling Isuzu 6WG1-TCG62 |
| – Engine Brand | Qingling Isuzu |
| – Engine Nickname | Isuzu 6WG1 |
| – Cylinder Count | 6 Cylinders |
| – Fuel Type | Diesel |
| – Cylinder Arrangement | Inline |
| – Displacement | 15.681L |
| – Emission Standard | National VI |
| – Max Output Power | 382kw |
| – Max Horsepower | 520 HP |
| – Max Torque | 2250N·m |
| – Max Torque RPM | 900-1300RPM |
| – Rated RPM | 1800RPM |
| Cargo Box Parameters | |
| – Cargo Box Type | Chassis (no box) |
| – Cargo Box Length | N/A |
| – Cargo Box Width | N/A |
| – Cargo Box Height | N/A |
| Cab Parameters | |
| – Cab Type | Flat-top |
| – Cab Suspension | N/A |
| – Cab Width | 2200mm |
| – Passenger Capacity | 2 Persons |
| – Seat Rows | Row and Half |
| – Driver Seat Type | N/A |
| Transmission Parameters | |
| – Transmission Model | 16-speed transmission |
| – Transmission Brand | N/A |
| – Shift Type | Manual |
| – Forward Gears | 16 |
| – Reverse Gears | 2 |
| Chassis Parameters | |
| – Front Axle Load | N/A (to be determined by manufacturer) |
| – Rear Axle Load | N/A (to be determined by manufacturer) |
| – Gear Ratio | 4.55 |
| – Leaf Spring Count | 4/4/5 |
| Tires | |
| – Tire Specification | 385/65R22.5 20PR/315/80R22.5 18PR |
| – Tire Count | 12 |
| Control Configuration | |
| – ABS Anti-lock Braking System | Yes |
