ISUZU 10 CBM Industrial Vacuum Sewer Truck

ISUZU 10 CBM Industrial Vacuum Sewer Truck

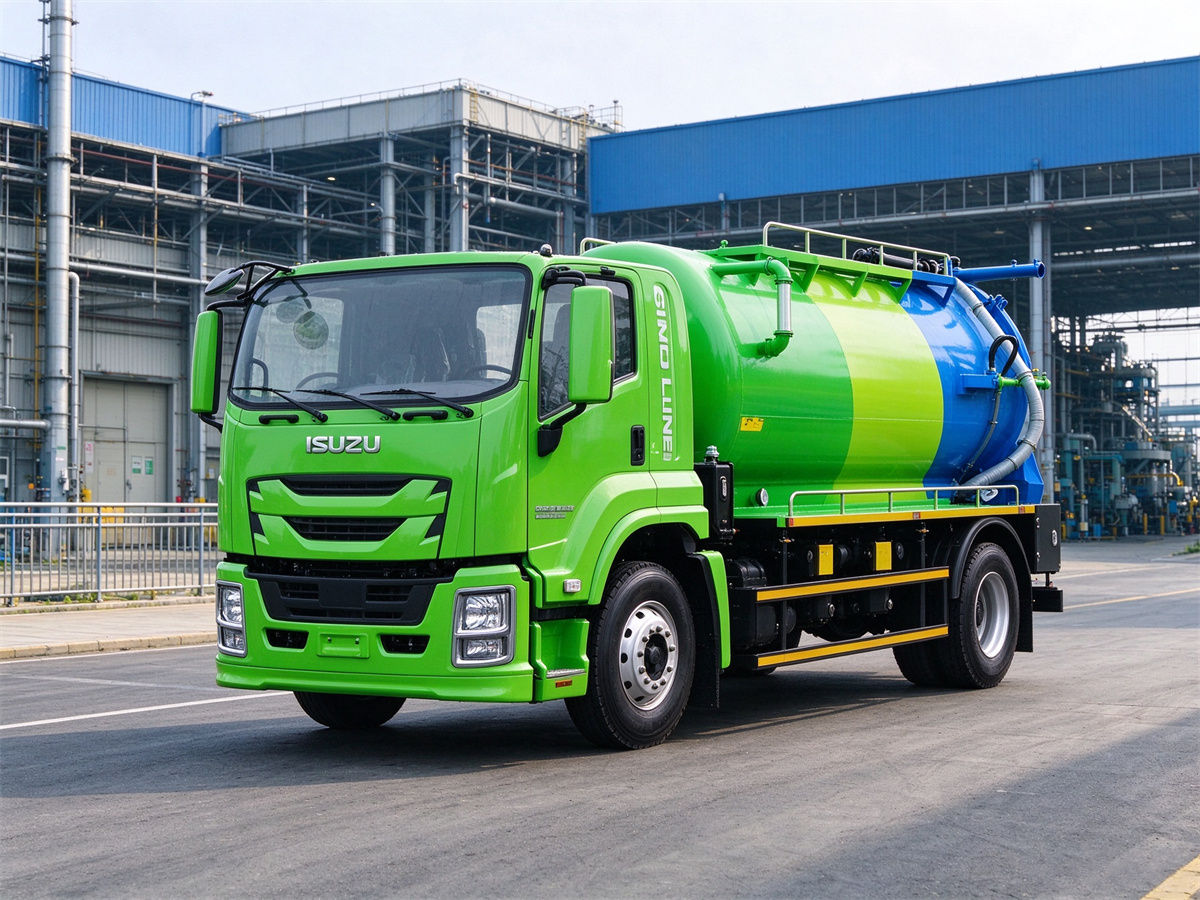

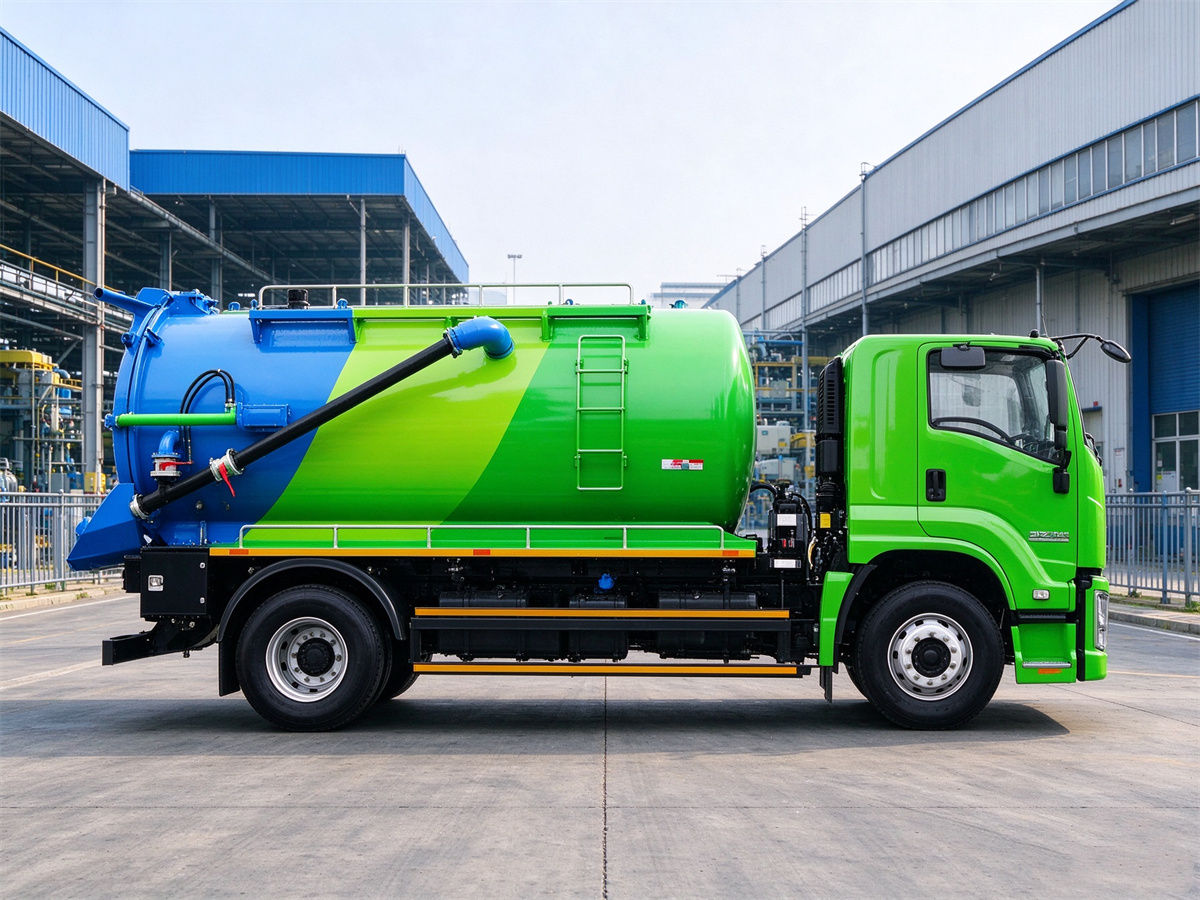

The ISUZU 10 CBM Industrial Vacuum Sewer Truck is a heavy-duty sanitation vehicle designed for industrial wastewater collection, sewage removal, sludge extraction, and sewer maintenance. Built on the ISUZU GIGA 4×2 chassis, it combines a 10,000-liter collection tank with a MORO PM80A vacuum pump and a hydraulic hose reel, making it suitable for industrial facilities, municipal drainage networks, wastewater treatment plants, and professional cleaning contractors.

Measuring 8,300 × 2,500 × 3,450 mm, the truck has a gross vehicle weight of 16,000 kg, a curb weight of 10,500 kg, and a wheelbase of 4,500 mm. Its left-hand-drive cabin accommodates one driver and two passengers and features hydraulic power steering for convenient daily operation. The vehicle is equipped with 295/80R22.5 tires, six road tires, and one spare tire, providing a robust foundation for industrial sanitation work and transportation between job sites.

Power comes from the ISUZU 4HK1-TCG60 diesel engine, a 5.193-liter, four-cylinder, four-stroke engine featuring direct injection, water cooling, and intercooled turbocharging. With a maximum output of 205 hp (151 kW) at 2,600 rpm and peak torque of 650 N·m at 1,600 rpm, the engine is paired with an ISUZU MLD manual transmission offering six forward gears and one reverse gear. The specified Euro VI emission standard makes this configuration suitable for markets requiring compliance with modern emissions regulations.

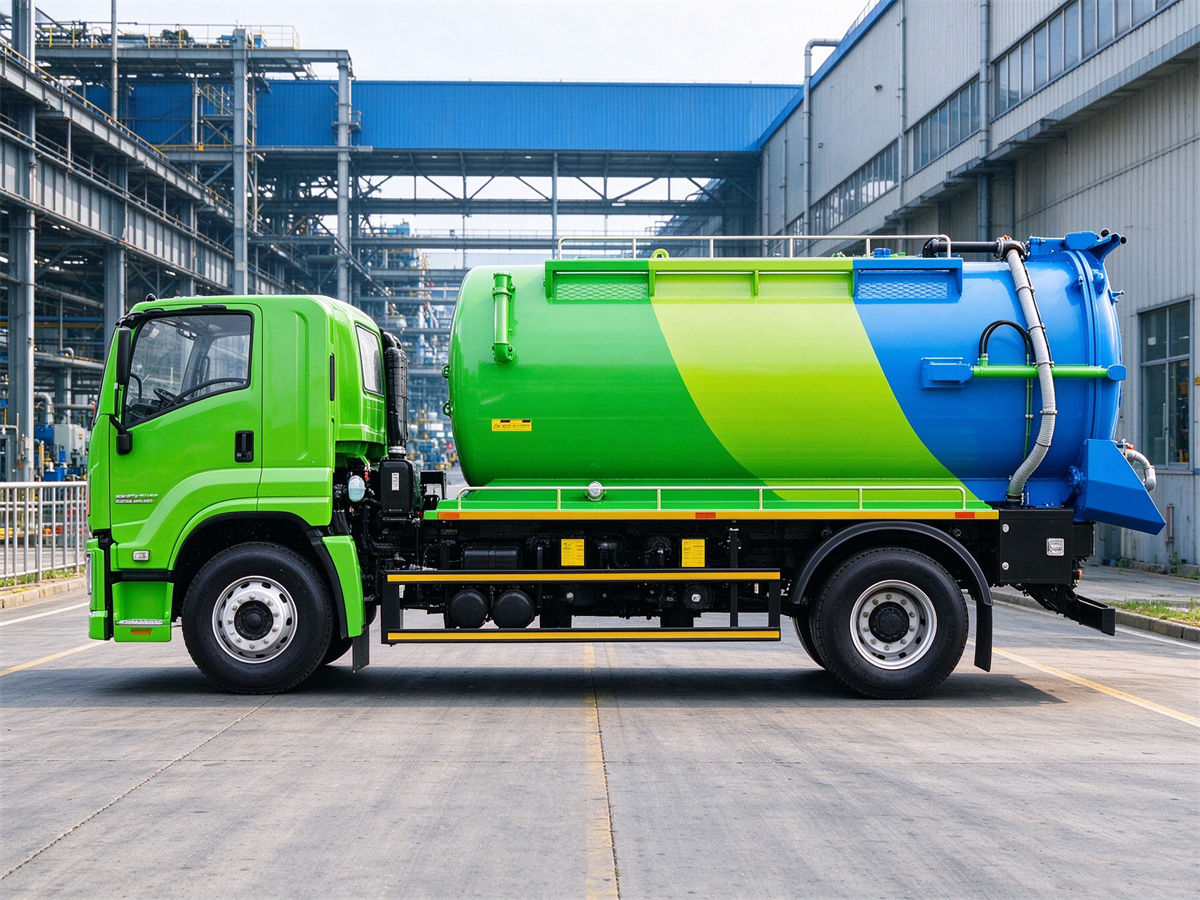

The truck features a 10,000-liter tank made from 6 mm-thick material, with a single compartment and internal safety baffles to help manage liquid movement during transportation. A thick-walled transparent acrylic tube provides a visual indication of the liquid level, while the reinforced rear door incorporates an openable cover, circumferential locking bolts operated by a handwheel, manual latches, and self-compensating seals to help prevent leakage. For related sewage collection applications, see our vacuum truck category.

Features

1. High-Performance MORO PM80A Vacuum Pump

The MORO PM80A vacuum pump is designed to support demanding industrial cleaning and sewage collection operations. With a stated pumping capacity of 12,000 liters per minute, a maximum vacuum level of 95%, and a continuous-duty vacuum rating of 80%, the system provides strong suction performance for collecting compatible liquid waste and sludge. Its heavy-duty, water-cooled, multi-cylinder design is intended for sustained operation, while the specified maximum exhaust power of 34 kW and pump speed of 1,100 rpm provide important operating parameters for equipment selection and maintenance planning.

2. Durable 10,000-Liter Collection Tank

The 10 CBM tank provides substantial collection capacity for industrial wastewater, sewage, and sludge removal, helping operators manage larger volumes of waste during routine maintenance work. Its 6 mm-thick construction is designed for demanding service, while internal safety baffles help control liquid movement as the vehicle travels. The transparent acrylic level indicator allows operators to check the tank’s contents visually, and the reinforced rear door with leak-resistant seals supports secure containment during transportation. The tank and pump should be used only with materials compatible with the specified equipment and operating conditions.

3. Hydraulic Hose Reel for Efficient Hose Handling

A rear-mounted hydraulic hose reel with a low-speed, high-torque drive stores up to 120 meters of 1-inch sewer jetting hose. This arrangement helps operators deploy, retrieve, and organize the hose more efficiently when working around drainage networks, industrial sites, and wastewater facilities. The reel helps keep the hose organized between jobs and reduces manual handling. Actual jetting performance depends on the water supply, pressure equipment, and final system configuration installed on the vehicle.

4. Heavy-Duty Suction Hoses and Quick Connections

The truck is supplied with five spiral-reinforced suction hoses, each measuring 4 inches in diameter and 3 meters in length. The lightweight PVC hose construction supports practical handling, while aluminum or galvanized-steel fittings provide connection options for demanding work environments. Quick-connect ends with male and female couplings simplify setup and removal, allowing operators to connect the suction equipment according to the requirements of each job. Before operation, all hoses, fittings, and seals should be inspected to confirm that they are correctly connected and suitable for the material being collected.

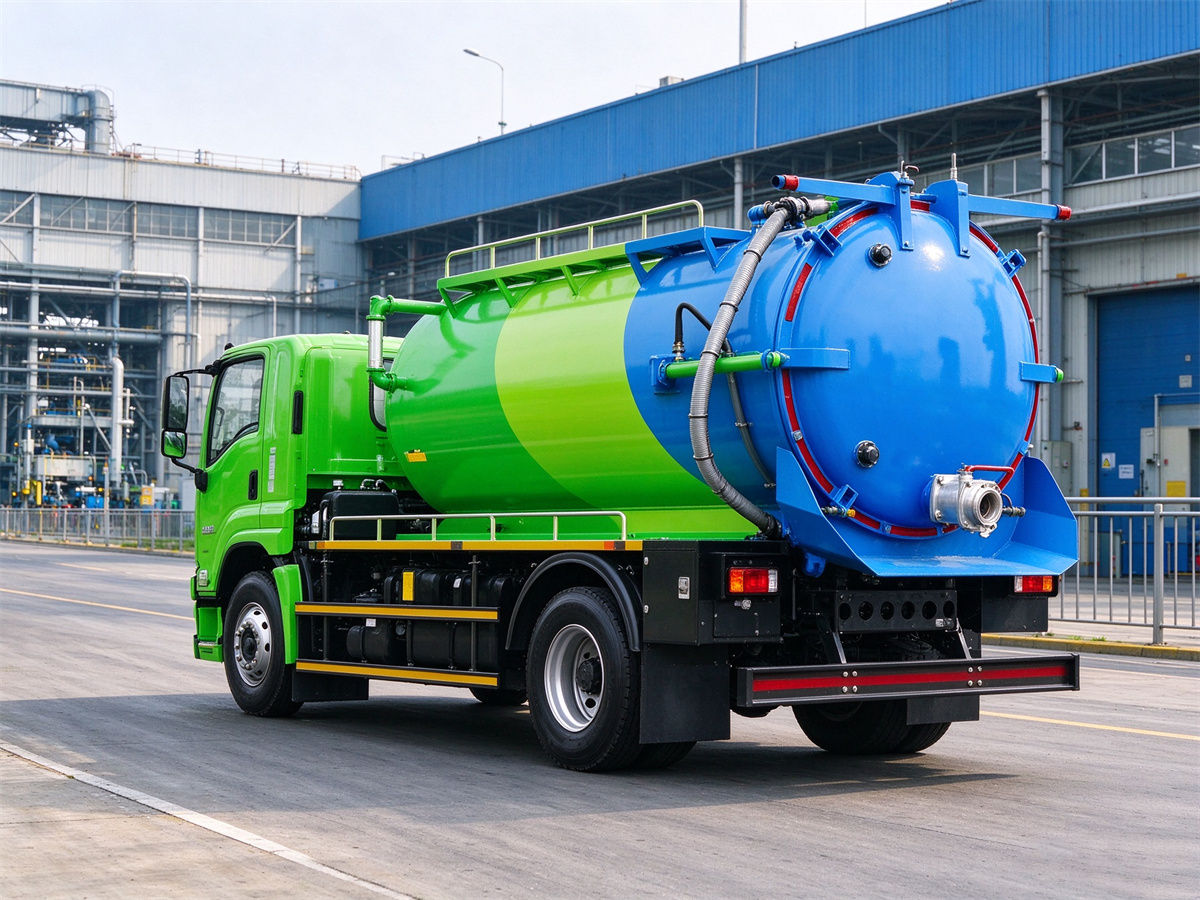

5. Reinforced Rear Door and Safety Protection

The rear door features a reinforced structure, a fully sealed design, an openable cover, handwheel-operated circumferential locking bolts, manual latches, and self-compensating seals intended to help prevent leakage. The truck also includes anti-flow protection devices to help reduce the risk of unwanted liquid movement within the system. Operators should follow the manufacturer’s procedures for loading, vacuum operation, pressure release, unloading, and maintenance, and confirm that the tank is safely depressurized before opening the rear door.

6. Applications in Industrial and Municipal Sanitation

The ISUZU 10 CBM Industrial Vacuum Sewer Truck is suitable for sewage collection, sludge extraction, industrial wastewater handling, and drainage infrastructure maintenance when the collected material is compatible with the tank and vacuum system. Its combination of a heavy-duty chassis, high-capacity vacuum pump, large collection tank, and long hose storage capacity makes it a practical option for contractors and service providers managing regular cleaning operations. For municipal waste collection needs, explore our garbage truck category.

For road maintenance projects involving dust and surface debris, our sweeper truck category offers additional vehicle options for municipal and industrial cleaning fleets. These specialized vehicles can support different tasks across industrial facilities, public roads, drainage systems, and municipal service networks.

Combining ISUZU GIGA chassis engineering, an ISUZU 4HK1-TCG60 engine, a MORO PM80A vacuum pump, and a 10,000-liter collection tank, this industrial vacuum sewer truck offers a practical configuration for professional liquid waste collection and sewer maintenance. Buyers should confirm the intended waste type, local operating regulations, and final equipment configuration before placing an order.

Specifications
