ISUZU 5 CBM Vacuum Pumper Truck

ISUZU 5 CBM Vacuum Pumper Truck

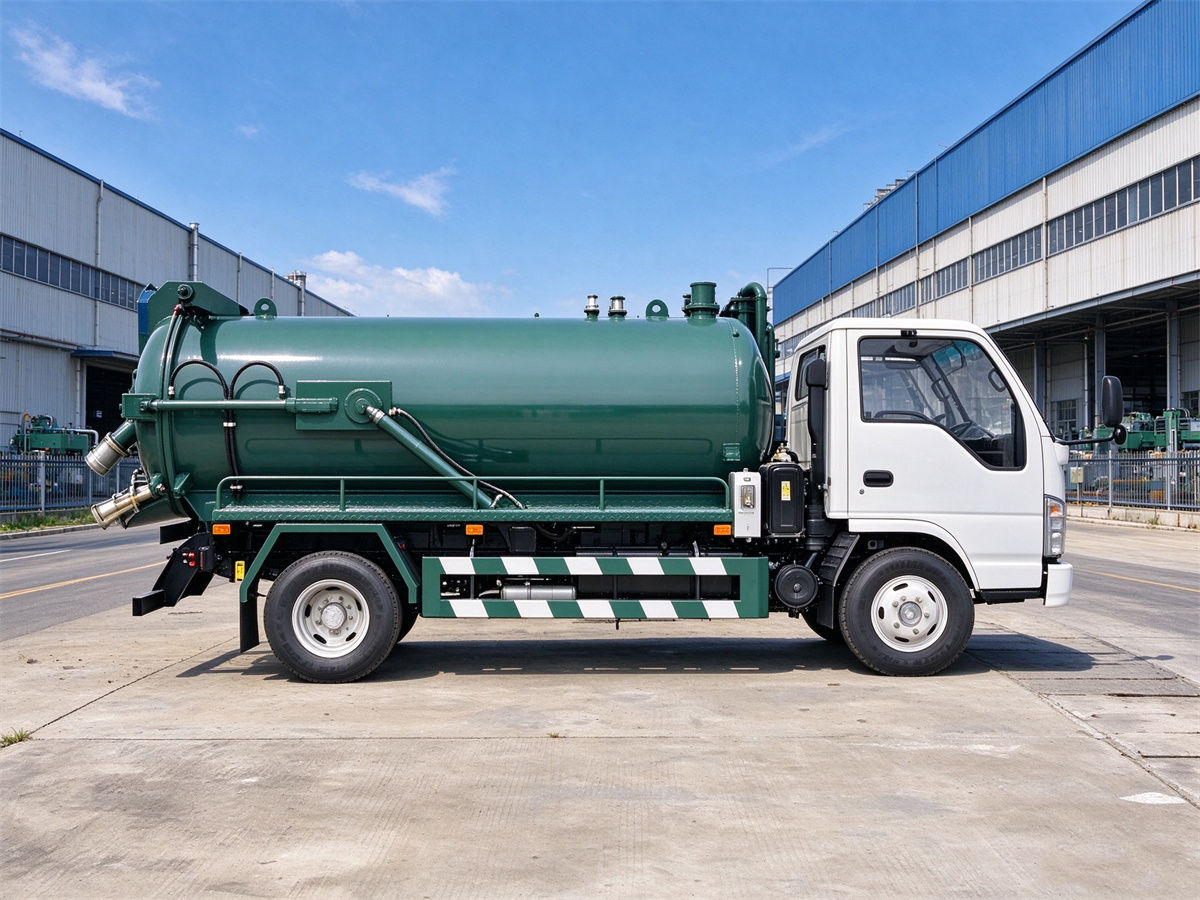

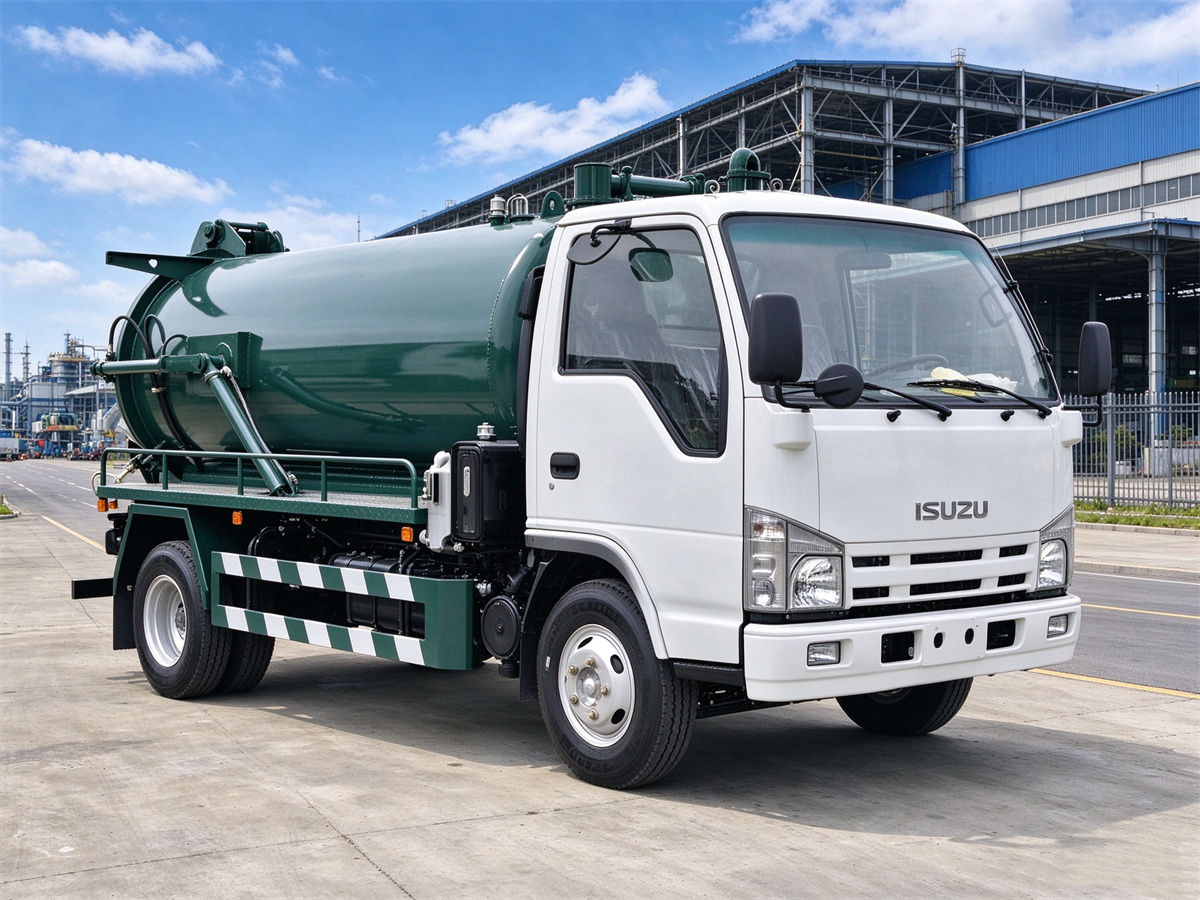

The ISUZU 5 CBM Vacuum Pumper Truck is a compact sanitation vehicle designed for sewage collection, septic tank emptying, sludge suction, and wastewater removal in municipal, commercial, and industrial environments. Built on an ISUZU 4×2 left-hand-drive chassis, this vehicle combines a 5,000-liter cylindrical tank with an Italian BP MEC6500 vacuum pump, providing a practical configuration for routine waste collection and drainage maintenance. Its compact chassis and dedicated suction equipment make it suitable for contractors, sanitation service providers, and businesses that require a maneuverable vacuum truck for regular cleaning operations.

The truck is powered by an ISUZU 4JB1CN diesel engine with a displacement of 2,771 mL and a maximum output of 98 hp (72 kW). The engine is paired with a chassis designed for practical day-to-day service, while the single-row cabin accommodates two occupants and includes air conditioning for improved driver comfort. A 3,360 mm wheelbase, front and rear wheel tracks of 1,504 mm and 1,425 mm respectively, and 7.00R16 tires provide the basic chassis configuration for this 4×2 vehicle. The specified Euro IV emission standard should be checked against the regulations in the intended destination market before purchase.

The 5,000-liter vacuum tank is manufactured from Q235 carbon steel with a stated material thickness of 6 mm, offering a durable structure for compatible sewage and sludge collection duties. The Italian BP MEC6500 vacuum pump has a specified pumping capacity of 7,000 liters per minute, a maximum vacuum level of 94%, and a stated maximum suction depth of 7 meters. Together with an 8-meter wire-reinforced suction hose and a hydraulically operated rear door, these components help simplify collection and unloading procedures at suitable work sites. For other vehicle configurations used in sewage collection and drainage work, explore our vacuum truck category.

Features

1. ISUZU Chassis and Practical Cabin Design

The ISUZU 4×2 chassis provides the foundation for a compact vacuum pumper truck intended for frequent travel between collection points. Its left-hand-drive configuration suits markets where this steering arrangement is required, while the single-row cabin seats two people and includes air conditioning for everyday working comfort. The 3,360 mm wheelbase supports the vehicle’s compact layout, and the 7.00R16 tires provide the specified tire configuration for the chassis. With front and rear axle load capacities listed as 2,580 kg and 4,720 kg, the vehicle’s final loading arrangement should be managed within the manufacturer’s approved gross vehicle and axle weight limits.

2. ISUZU 4JB1CN Diesel Engine

The truck uses an ISUZU 4JB1CN engine with a displacement of 2.771 liters and a rated maximum power of 98 hp (72 kW). This diesel power unit provides propulsion for routine sanitation work, including movement between sewage collection sites and authorized disposal facilities. The specified Euro IV emission level makes it important for buyers to confirm local import, registration, and emissions requirements before ordering, particularly in markets where newer emission standards are mandatory.

3. 5,000-Liter Cylindrical Vacuum Tank

The tank has a nominal capacity of 5,000 liters and a cylindrical design intended for collecting compatible sewage, sludge, and liquid waste. It is specified as Q235 carbon steel with a 6 mm material thickness, providing a substantial tank structure for regular service. The tank can be tipped to an angle of more than 45 degrees to assist unloading, while the rear door opens and closes through hydraulic cylinders. Operators should follow the manufacturer’s procedures for unloading and ensure the tank is safely depressurized before opening the rear door or performing maintenance.

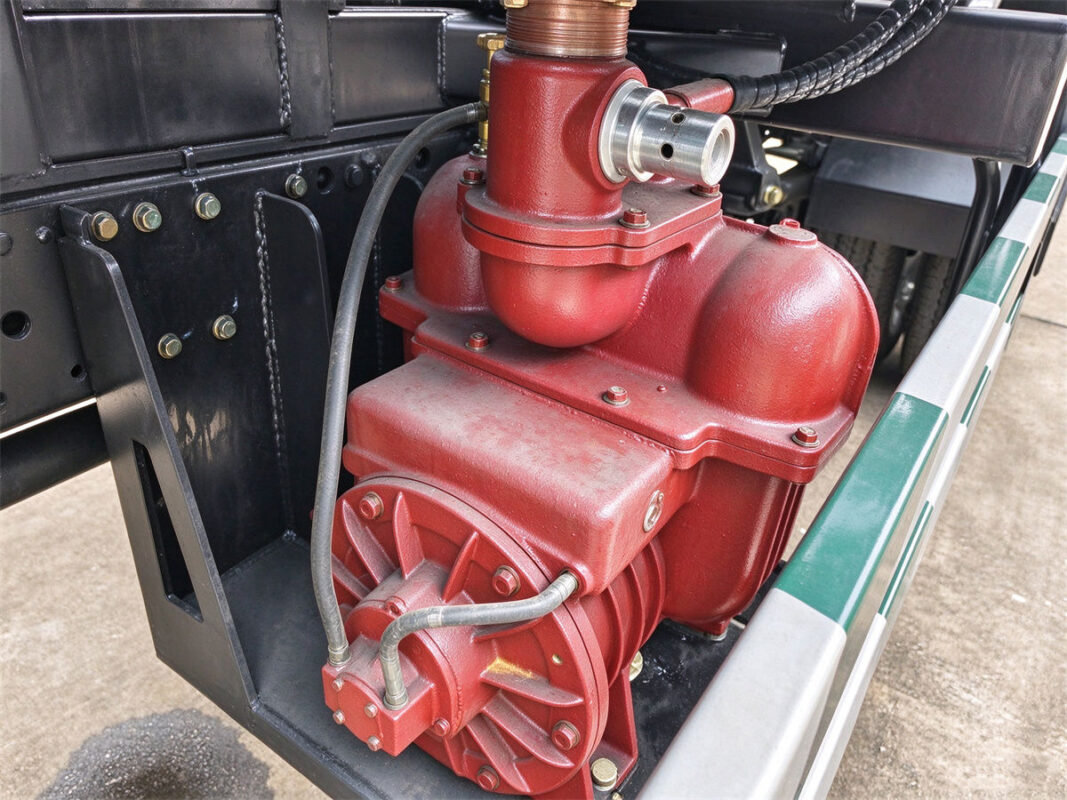

4. Italian BP MEC6500 Vacuum Pump

The BP MEC6500 vacuum pump is the main component of the truck’s sewage suction system. Its stated pumping capacity of 7,000 liters per minute and maximum vacuum level of 94% are intended to support efficient collection of suitable liquid waste and sludge. The specified maximum suction depth is 7 meters, although actual performance will depend on the material being collected, hose length and condition, site elevation, operating conditions, and the manufacturer’s instructions. Routine inspection and maintenance of the pump, drive system, valves, and associated connections are important for reliable operation.

5. Wire-Reinforced Suction Hose

The truck is supplied with an 8-meter wire-reinforced suction hose for connecting the vacuum system to sewage pits, septic tanks, and other suitable collection points. Its reinforced construction is intended to help the hose maintain its shape during suction, while the hose length provides working reach around the vehicle. Before each operation, the hose and connections should be checked for wear, leakage, blockages, and secure fitting to help maintain safe and effective suction performance.

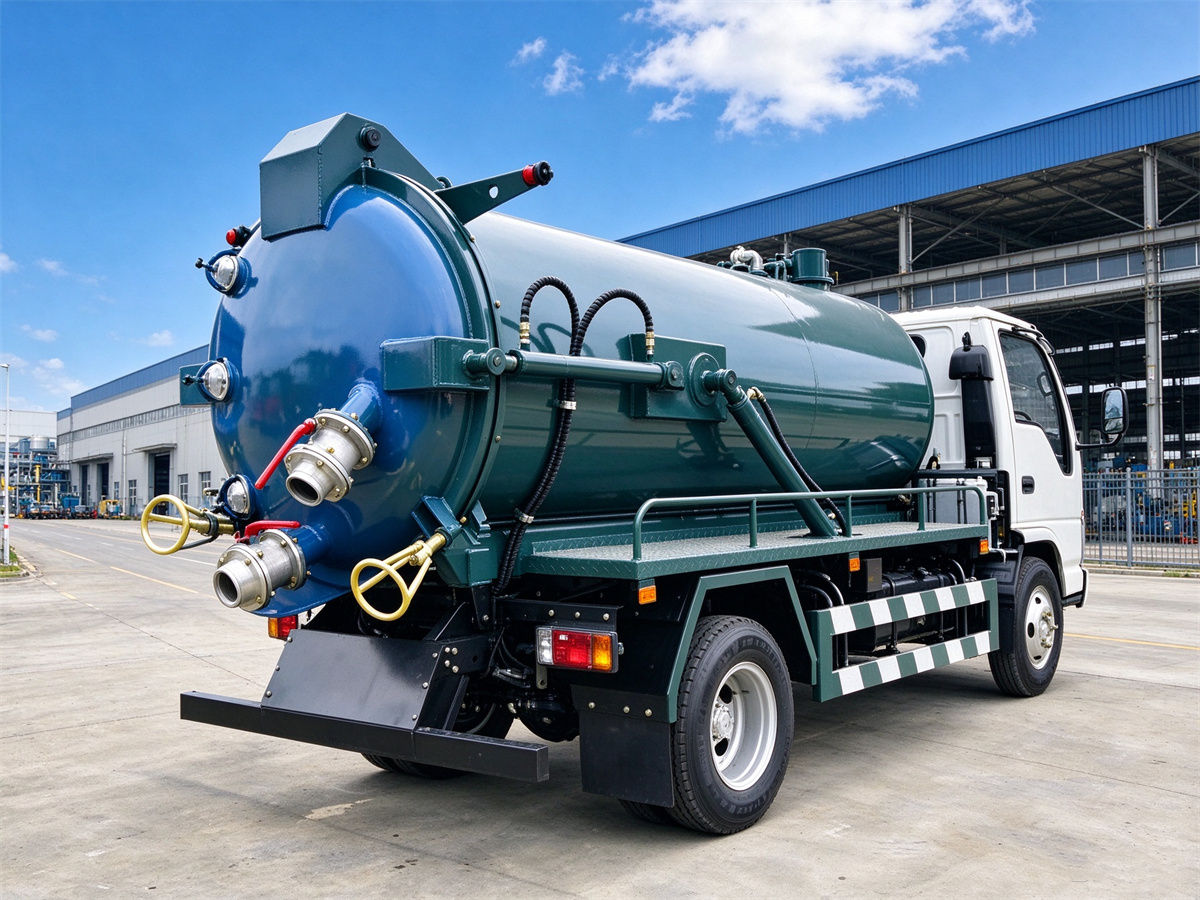

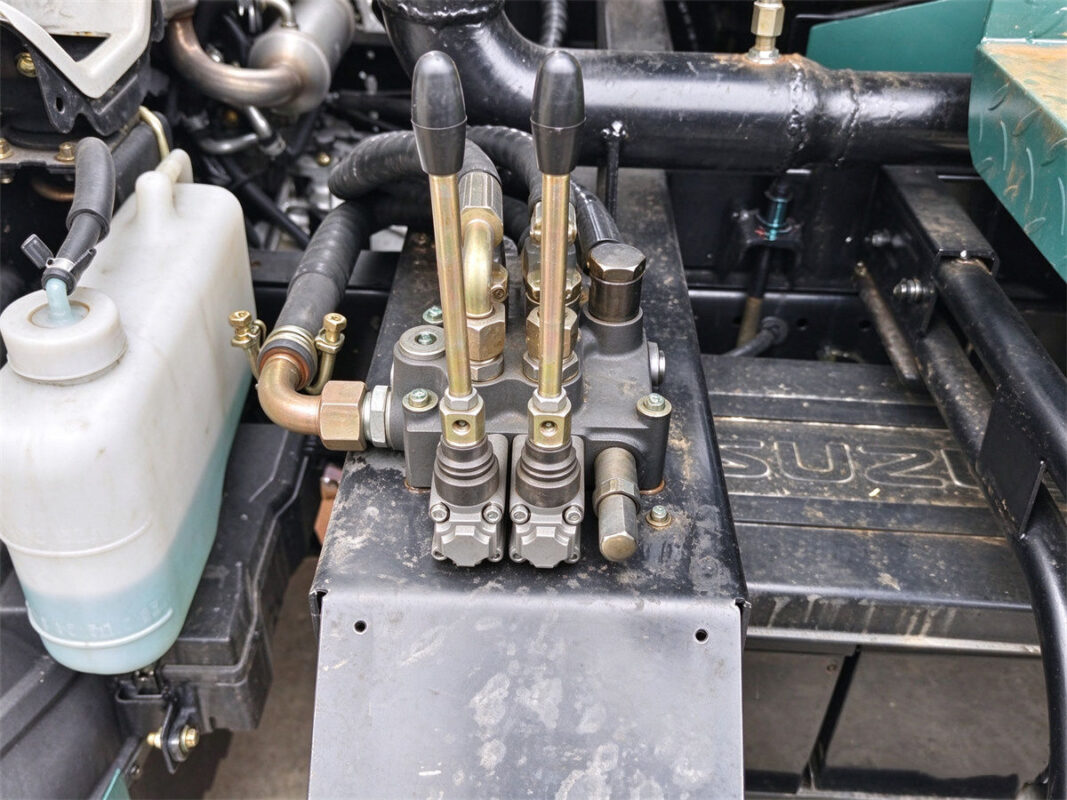

6. Hydraulic Rear Door and Efficient Unloading

The rear door is operated by hydraulic cylinders, helping operators open and close the tank for unloading and cleaning. Combined with the tank’s tipping angle of more than 45 degrees, this arrangement is designed to facilitate the discharge of collected material at an appropriate disposal site. Correct operation is essential: the vehicle should be positioned on stable ground, the discharge area should be controlled, and all relevant pressure-release and safety procedures should be followed before the rear door is opened.

7. Applications in Municipal and Commercial Sanitation

The ISUZU 5 CBM Vacuum Pumper Truck is suitable for routine septic tank emptying, sewage collection, sludge removal, and drainage maintenance when the material is compatible with the tank and pump system. Its 5,000-liter capacity and compact 4×2 configuration can support sanitation contractors, property management companies, small municipalities, and industrial facilities that need a dedicated vacuum collection vehicle. For related municipal cleaning applications, buyers can also explore our garbage truck category and our sweeper truck category to compare vehicles designed for solid waste collection and road cleaning.

By combining an ISUZU chassis, a 5,000-liter carbon-steel tank, an Italian BP MEC6500 vacuum pump, and a hydraulic unloading arrangement, this vacuum pumper truck offers a straightforward configuration for everyday sewage and sludge collection. Buyers should confirm the required emission standard, tank specifications, pump performance, and local operating requirements before finalizing the vehicle configuration.

Specifications
