ISUZU 8 Ton Vacuum Suction Truck

ISUZU 8 Ton Vacuum Suction Truck

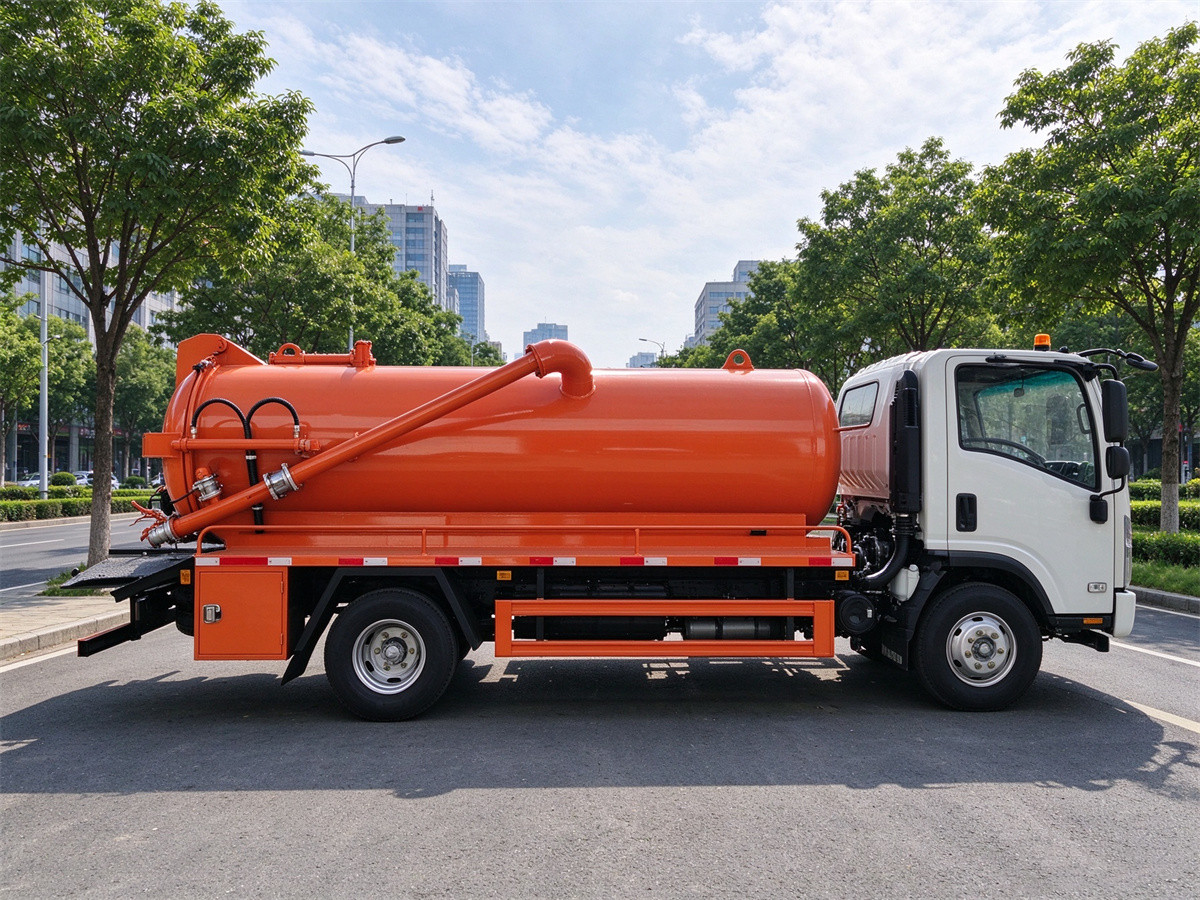

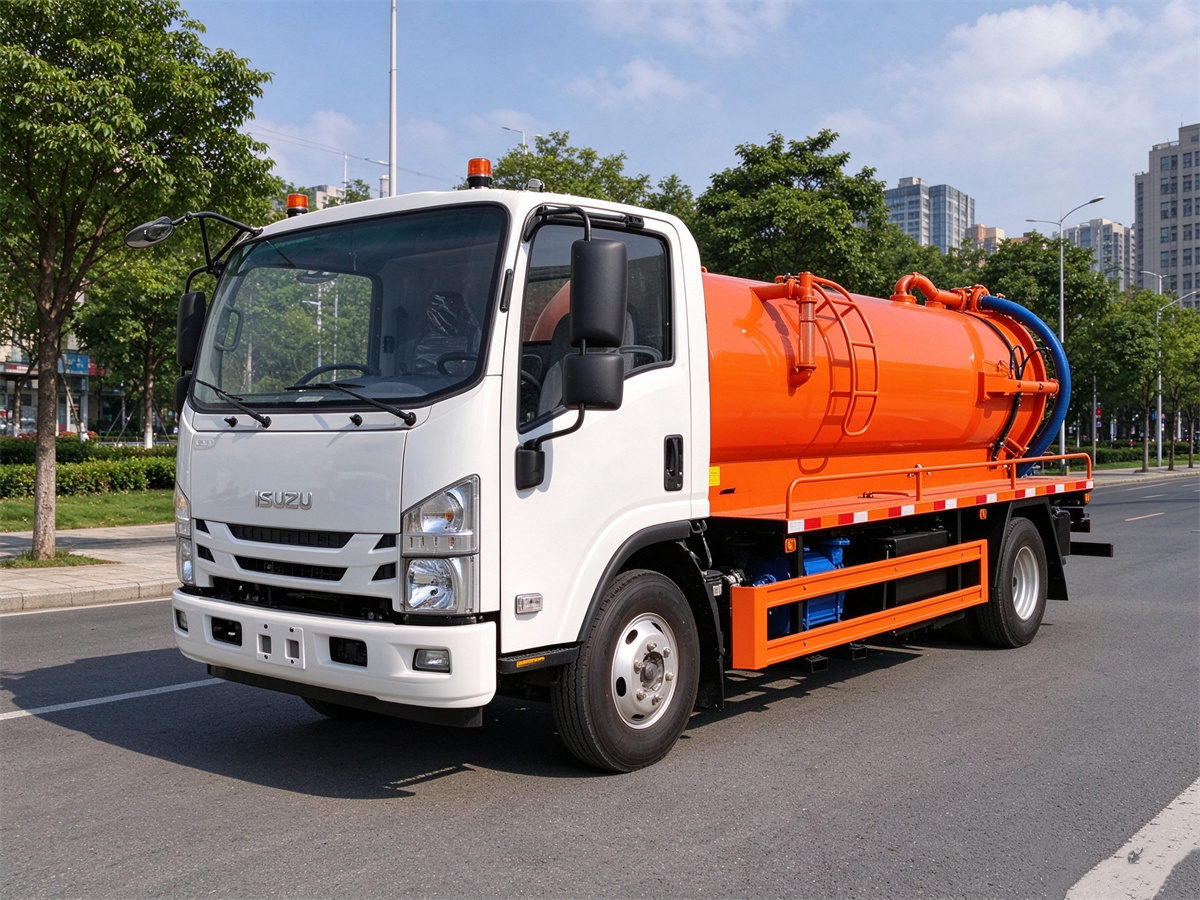

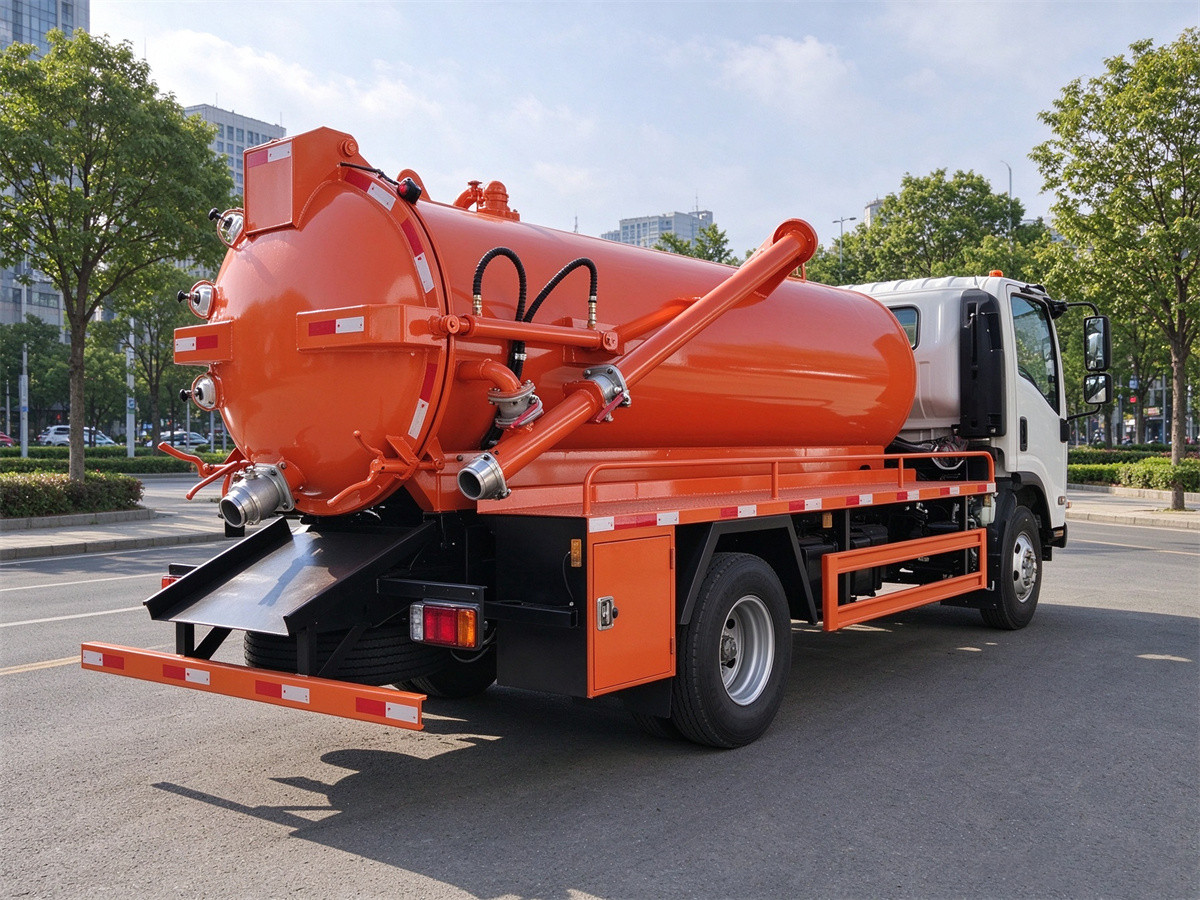

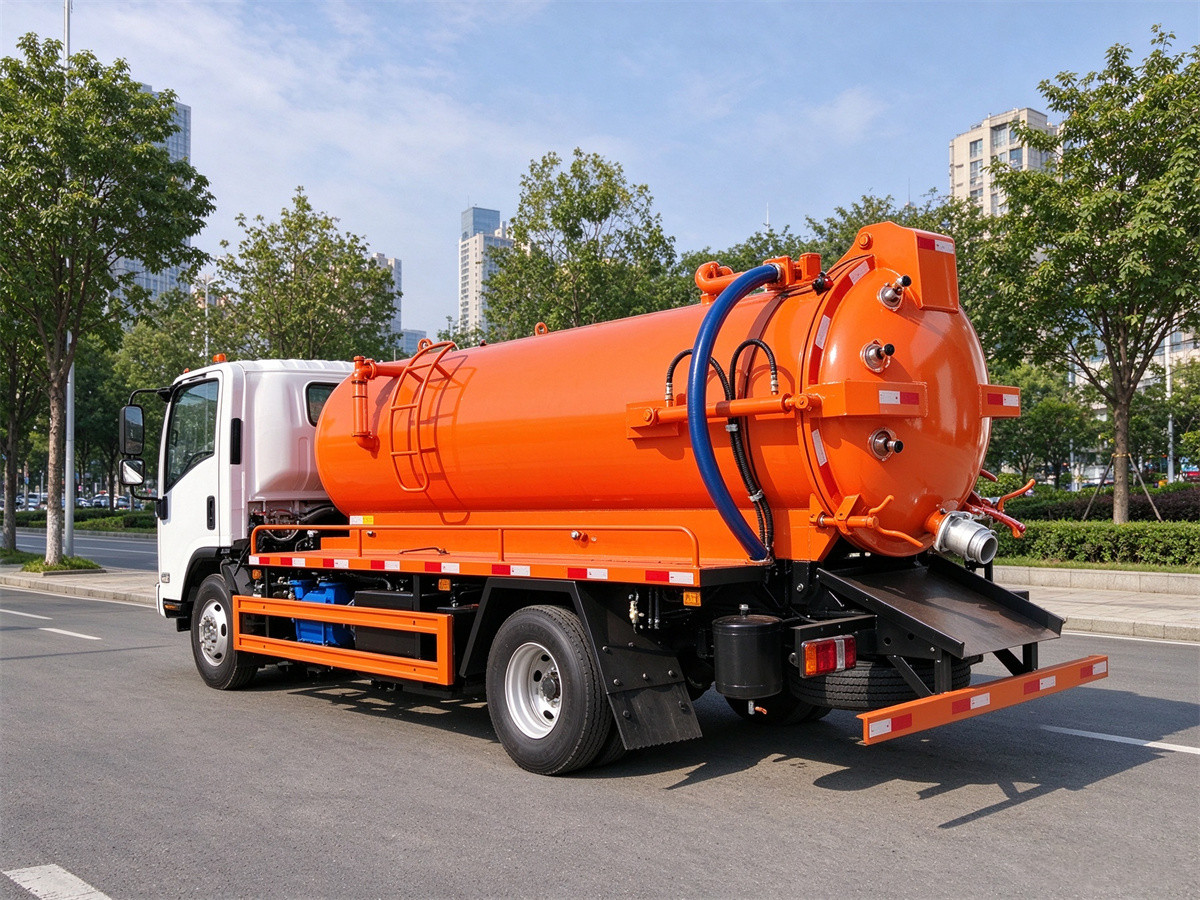

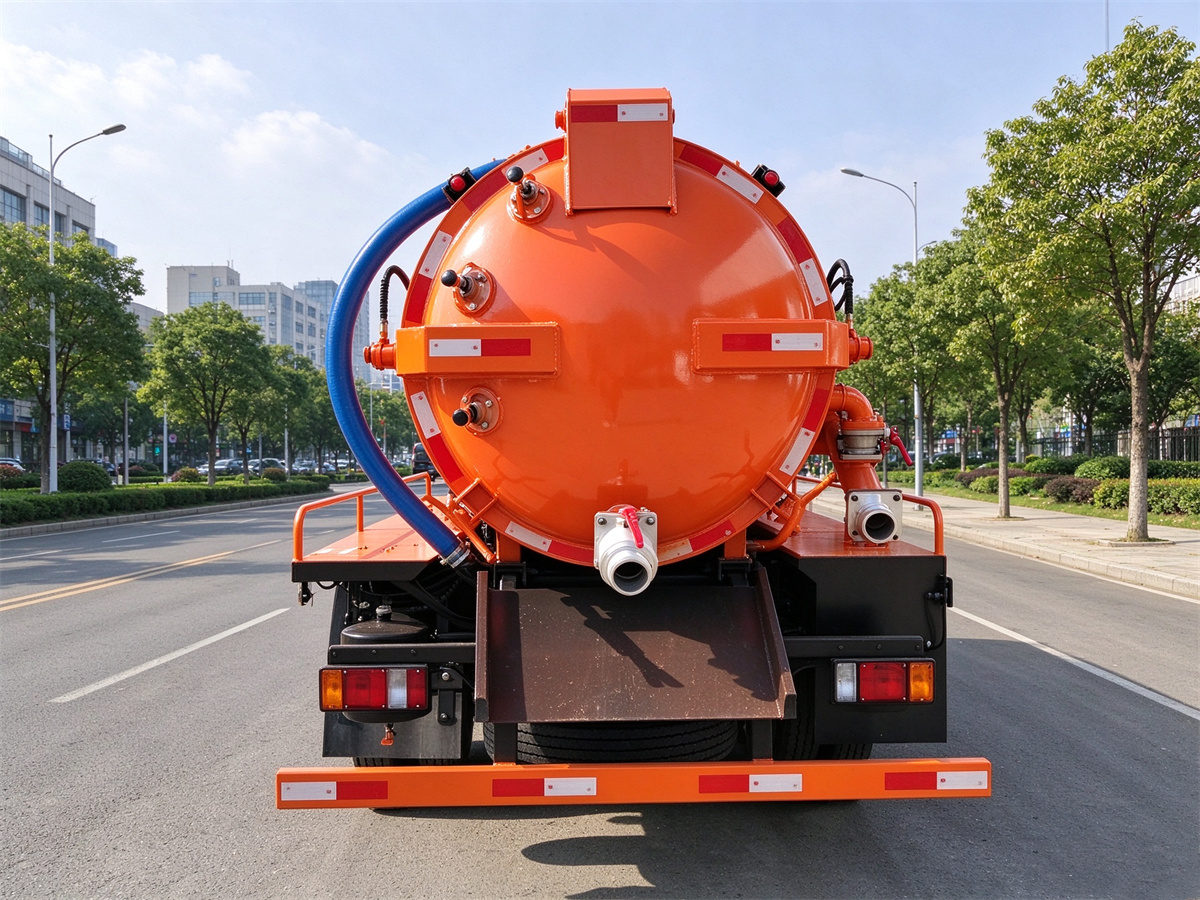

The ISUZU 8 Ton Vacuum Suction Truck is designed for sewage collection, septic tank emptying, sludge extraction, and liquid waste transportation in municipal, residential, commercial, and industrial environments. Built on a brand-new ISUZU KV600 chassis, this 4×2 left-hand-drive vehicle combines a compact truck configuration with a 5,000-liter cylindrical vacuum tank and a dedicated suction system, providing a practical solution for sanitation contractors and wastewater management teams that require reliable equipment for daily collection operations. With overall dimensions of 6720 × 2050 × 2500 mm and a wheelbase of 3815 mm, the truck is suitable for working in residential communities, urban streets, factory areas, and other locations where maneuverability is an important consideration.

The vehicle is powered by the ISUZU 4KH1CN6HB diesel engine, featuring an inline four-cylinder design, a displacement of 2,999 ml, and an output of 132 HP (97 kW). Matched with an ISUZU MLD manual transmission offering six forward gears and one reverse gear, the powertrain supports routine transportation between collection points and designated waste disposal facilities. The supplied configuration specifies Euro VI emissions, subject to confirmation of the applicable certification for the destination market. The ISUZU KV600 cab features two doors, seating for three people, and air conditioning, providing a functional working environment for the driver and crew during regular sanitation duties.

The truck has a gross vehicle weight of 8,000 kg and a listed curb weight of 3,050 kg, while the front and rear axle capacities are specified at 3,000 kg and 5,000 kg, respectively. Its 5,000-liter tank is made from Q235 carbon steel, with a specified thickness of 6 mm for the tank body and rear cover. The hydraulic tank-lifting system allows the tank to tilt up to 45 degrees, while the hydraulically operated rear door supports convenient discharge at suitable disposal facilities. Combined with the YIFENG SK-12 vacuum pump, an 8-meter suction hose, and integrated hydraulic equipment, this vehicle offers a practical configuration for operators handling routine sewage and liquid waste collection. For related equipment options, explore the vacuum suction truck range for different tank capacities and sanitation applications.

Features

1. ISUZU KV600 Chassis and Diesel Powertrain

The ISUZU KV600 chassis provides a solid foundation for the vacuum suction system, combining a 4×2 drive layout with a 3815 mm wheelbase and compact overall dimensions. The ISUZU 4KH1CN6HB engine delivers 132 HP (97 kW) from a 2,999 ml displacement, offering practical power for everyday driving between customer sites, drainage facilities, and wastewater treatment locations. Its inline four-cylinder diesel design is paired with an ISUZU MLD manual transmission, allowing the driver to select from six forward gears and one reverse gear according to road conditions and vehicle loading.

The truck is equipped with 7.50R16 tires, comprising six road tires and one spare tire, and a hydraulic oil braking system with a vacuum booster. The three-seat cab with air conditioning supports the daily needs of sanitation crews, while the brand-new chassis and customizable paintwork allow the vehicle to be configured according to fleet identification and customer requirements. Before operation, the final vehicle payload should be verified against the certified completed-vehicle weight and applicable axle-load limits.

2. Durable 5,000-Liter Vacuum Tank

The truck features a 5,000-liter vacuum tank manufactured from Q235 carbon steel, with a specified 6 mm thickness for the tank body and rear cover. Its cylindrical structure is designed for the collection and transportation of sewage, septic waste, sludge, and other compatible liquid or semi-liquid materials. Automatic machine welding and standard external rust-proof treatment help protect the tank structure during regular service, although suitable cleaning and maintenance remain essential when the vehicle handles different types of waste.

The hydraulic lifting mechanism raises the tank to an angle of up to 45 degrees to facilitate discharge and appropriate cleaning procedures. The rear door opens hydraulically and incorporates a hydraulic locking system with mechanical interlocking, helping operators manage the unloading process at authorized disposal sites. This arrangement is particularly useful for sanitation businesses that carry out multiple collection jobs during a working shift and need an efficient way to empty the tank between routes.

3. YIFENG SK-12 Vacuum Pumping System

The suction system is equipped with a YIFENG SK-12 vacuum pump, with a stated pumping rate of 12 m³/min, equivalent to 200 liters per second, and a maximum rotational speed of 970 rpm. The supplied specification lists a maximum vacuum pressure of 8,000 Pa; buyers should confirm with the manufacturer whether this value refers to absolute pressure or vacuum level to ensure the pump’s performance is correctly understood. The pump is specified for use with the 5,000-liter tank and provides the vacuum needed to draw compatible liquid waste through the suction hose.

An 8-meter suction hose is included as standard, allowing the operator to reach suitable collection points while keeping the truck positioned on stable ground. Actual suction speed depends on the material being collected, hose diameter and length, suction height, connection sealing, and operating conditions. Regular inspection of the pump, hose, seals, and associated valves helps maintain suction performance and supports reliable operation during demanding collection work.

4. Hydraulic Discharge and Tank Safety Equipment

The truck uses a power take-off (PTO) to supply power to the working equipment, while a hydraulic gear pump, multi-way valve, and four hydraulic cylinders operate the relevant hydraulic functions. These components support tank lifting and rear-door operation, allowing the operator to control discharge according to the manufacturer’s instructions. The rear door’s hydraulic opening and mechanical interlocking arrangement are designed to provide controlled access during unloading and maintenance.

Standard equipment includes a liquid-level viewing pipe, a liquid-level alarm device, an anti-overflow valve, and a drain valve. These components help the operator monitor the filling condition and reduce the risk of liquid entering the vacuum system beyond its intended operating limit. The truck should always be operated within the manufacturer’s specified tank capacity and pressure limits, and the tank must be positioned and secured correctly before the rear door is opened or the tank is raised.

5. Practical Applications for Sanitation and Waste Management

The ISUZU 8 Ton Vacuum Suction Truck is suitable for septic tank emptying, sewage collection, sludge removal, and routine sanitation work at residential communities, commercial properties, factories, and municipal facilities. Its 5,000-liter tank provides a practical capacity for regular collection routes, while the vacuum pump and hydraulic discharge system support the transfer and unloading of compatible waste materials. The relatively compact vehicle dimensions are useful for operators working in urban environments where access, turning space, and the positioning of suction hoses can influence productivity.

For fleets with broader municipal cleaning requirements, the road sweeping truck selection offers equipment for street cleaning and debris collection, while the water tanker truck lineup provides options for water transportation and related municipal services. Operators responsible for solid refuse collection can also review the municipal waste collection vehicles to identify equipment suited to their specific fleet requirements.

With its ISUZU diesel powertrain, carbon-steel vacuum tank, YIFENG SK-12 pump, and hydraulic unloading equipment, the ISUZU 8 Ton Vacuum Suction Truck provides a practical solution for companies and public-service departments managing everyday liquid waste collection. Before placing an order, buyers should confirm the certified payload, completed-vehicle weight, pump performance, emissions documentation, and suitability of the tank materials and accessories for the intended waste type and local operating conditions.

Specifications
