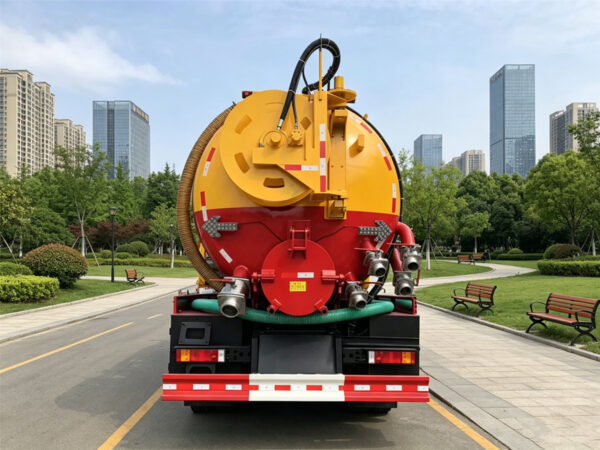

ISUZU 12 CBM Sewage Cleaner Truck
The ISUZU 12 CBM Sewage Cleaner Truck is a professionally engineered vacuum sewage suction truck designed for demanding municipal sanitation, industrial wastewater transportation, septic tank cleaning, underground drainage maintenance, and large-scale sludge collection operations, where strong suction capability, durable tank construction, and reliable chassis performance are essential for continuous daily service. Built on the dependable ISUZU FTR Series chassis, this vehicle combines heavy-duty carrying capacity, advanced vacuum suction technology, and efficient hydraulic systems to provide sanitation departments, environmental service companies, and industrial cleaning contractors with a highly efficient and long-lasting sewage transportation solution.
Powered by the reliable ISUZU 6HK1-TCG61 diesel engine delivering 240 horsepower, the truck provides stable power output, excellent fuel economy, and smooth driving performance under heavy operational loads while meeting modern Euro 5 emission standards, making it suitable for environmentally responsible urban and industrial applications. The vehicle adopts a 4×2 drive configuration and is equipped with an ISUZU MLD 6-speed manual transmission, ensuring responsive handling, stable road performance, and efficient operation during both highway transportation and confined urban working conditions.
With an overall dimension of 8450 × 2500 × 3380 mm and a 4500 mm wheelbase, the truck offers an excellent balance between maneuverability and load distribution, while the reinforced suspension system with heavy-duty leaf springs enhances chassis durability and operational stability when transporting heavy liquid waste loads. The vehicle’s gross weight reaches 18,000 kg, with a rated payload capacity of 8,450 kg, allowing it to efficiently manage large-scale sewage collection and transportation tasks.
The truck is equipped with an 11 CBM high-strength carbon steel vacuum tank, featuring a 6 mm thick cylindrical structure and professionally treated with an internal anti-corrosion epoxy coating, ensuring long-term resistance against chemical corrosion, sludge buildup, and moisture damage caused by continuous transportation of liquid waste materials. With an effective suction capacity of 10.5 CBM and a vacuum degree of ≥93%, the vehicle delivers highly efficient sewage suction performance for rapid operation in municipal and industrial environments.
Features
Powerful ISUZU Chassis and Heavy-Duty Driving Performance
The truck adopts the robust ISUZU heavy-duty chassis, engineered for high-load sanitation applications where long-term operational reliability and structural strength are critical. Combined with hydraulic power steering, air brake system with ABS, and reinforced front and rear leaf spring suspension, the vehicle maintains stable driving performance even under fully loaded conditions.
The truck is also equipped with durable 10.00R20 18PR or 275/80R22.5 18PR tires, providing excellent load-bearing capability, road grip, and operational safety across urban roads, industrial areas, and construction sites. Optional tire brands such as Double Coin, Triangle, and Bridgestone allow customers to select configurations according to operational preferences and regional requirements.
Large-Capacity Vacuum Tank with Corrosion Resistance
The 11 CBM sewage tank is manufactured using high-strength carbon steel materials to ensure excellent structural durability during continuous vacuum operations and heavy liquid transportation. Its cylindrical tank structure improves pressure distribution and vacuum stability, while the internal anti-corrosion epoxy coating effectively protects the tank against chemical erosion and rust formation.
The tank system includes:
- Effective suction capacity of 10.5 CBM
- Tank vacuum degree of ≥93%
- Hydraulic rear door opening system
- Rear door opening angle of ≥90°
- 500 mm maintenance manhole
- Sewage viewing window
- Water level indicator
- Safety anti-overflow valve
These configurations improve operational safety, maintenance convenience, and long-term durability during demanding sanitation operations.
High-Efficiency Vacuum Pump System
The vehicle is equipped with a premium oil circulating vacuum pump system, with optional internationally recognized brands such as MORO or JUROP, ensuring reliable suction performance and long service life under continuous heavy-duty operation.
The vacuum system delivers:
- Pump capacity of 12,000 L/min
- Maximum vacuum pressure of -0.09 MPa
- Maximum suction depth of 8 meters
- Fast suction time of ≤5 minutes
- PTO-driven power transmission system
- 4-inch suction hose with 8-meter hose length
This high-performance vacuum configuration allows the truck to rapidly collect sludge, sewage, septic waste, and industrial wastewater while reducing operational downtime and improving work efficiency.
Advanced Hydraulic and Control System
The truck features a durable hydraulic operating system designed to provide stable and smooth tank operation during loading and unloading procedures. The hydraulic system adopts a gear pump structure with a working pressure of 16 MPa, ensuring reliable hydraulic force during continuous operation.
Key hydraulic features include:
- Double-acting hydraulic cylinders
- Hydraulic rear door locking system
- Tank lifting angle of 45°
- Manual and pneumatic combined control operation
These systems improve unloading efficiency while ensuring safe and convenient operation for sanitation crews.
Reliable Pipeline and Discharge Configuration
The sewage cleaner truck is equipped with galvanized steel pipelines for improved corrosion resistance and long service life under harsh working environments. The discharge system includes a DN100 discharge valve, quick coupling connections, drain valve, overflow protection device, and secondary filtration system, ensuring smooth and environmentally safe discharge procedures.
The quick coupling system significantly improves operational efficiency by reducing hose connection time and simplifying field operations.
Intelligent Safety and Electrical Equipment
To enhance operational safety and nighttime working capability, the vehicle is equipped with a comprehensive electrical and safety system, including:
- 24V electrical operating system
- LED rotating warning beacon
- Reverse alarm system
- Rear working lamp
- Emergency stop switch
- Standard side and rear protection devices
- Fire extinguisher
These safety features help operators maintain safe working conditions during municipal sanitation and industrial cleaning operations.
Complete Standard Equipment for Municipal Operations
The ISUZU 12 CBM Sewage Cleaner Truck comes fully equipped with a wide range of practical operational accessories, including:
- Vacuum pump system
- PTO power transmission system
- Hydraulic rear door
- Anti-overflow protection system
- Suction hose assembly
- Tool box
- Mud guard
- Rear access ladder
- Safety guardrails
- Anti-corrosion tank treatment
This complete equipment package ensures that the truck is ready for immediate deployment in municipal sanitation departments, environmental protection projects, industrial wastewater management, and large-scale sewage transportation operations.
Specification
| Item | Specification |
|---|---|
| Vehicle Name | ISUZU 12 CBM Sewage Cleaner Truck |
| Vehicle Type | Vacuum Sewage Suction Truck |
| Drive Mode | 4×2 |
| Chassis Brand | ISUZU |
| Chassis Model | ISUZU FTR Series |
| Cab Type | Flat Roof Single Sleeper Cabin |
| Overall Dimensions | 8450 × 2500 × 3380 mm |
| Wheelbase | 4500 mm |
| Gross Vehicle Weight | 18,000 kg |
| Curb Weight | 9,350 kg |
| Rated Payload | 8,450 kg |
| Front/Rear Axle Load | 6500 / 11500 kg |
| Maximum Speed | 98 km/h |
| Minimum Turning Radius | 9.5 m |
| Passengers in Cab | 3 |
| Fuel Type | Diesel |
| Emission Standard | Euro 5 |
| Engine Model | ISUZU 6HK1-TCG61 |
| Engine Power | 240 HP |
| Engine Displacement | 7790 cc |
| Transmission | ISUZU MLD 6-Speed Manual |
| Steering Type | Hydraulic Power Steering |
| Braking System | Air Brake with ABS |
| Air Conditioner | Equipped |
| Number of Spring Leaves | 7/9+6, 8/10+8 |
| Front Suspension | Reinforced Leaf Spring |
| Rear Suspension | Heavy-Duty Leaf Spring |
| Number of Tires | 6 + 1 Spare Tire |
| Tire Specifications | 10.00R20 18PR / 275/80R22.5 18PR |
| Tire Brand | Double Coin / Triangle / Bridgestone Optional |
| Rim Material | Steel Rim |
| Tank Volume | 11 CBM |
| Effective Suction Capacity | 10.5 CBM |
| Tank Material | High-strength Carbon Steel |
| Tank Thickness | 6 mm |
| Tank Shape | Cylindrical |
| Internal Treatment | Anti-corrosion Epoxy Coating |
| Transport Medium | Liquid Waste |
| Medium Density | 0.8 tons/m³ |
| Tank Vacuum Degree | ≥93% |
| Hydraulic Rear Door | Equipped |
| Rear Door Opening Angle | ≥90° |
| Sewage Viewing Window | Equipped |
| Water Level Indicator | Equipped |
| Manhole Diameter | 500 mm |
| Tank Lifting Function | Equipped |
| Safety Anti-overflow Valve | Equipped |
| Vacuum Pump Brand | MORO / JUROP Optional |
| Pump Type | Oil Circulating Vacuum Pump |
| Pump Capacity | 12,000 L/min |
| Maximum Vacuum Pressure | -0.09 MPa |
| Rated Rotation Speed | 800 rpm |
| Pump Drive Method | PTO Driven |
| Suction Time | ≤5 min |
| Maximum Suction Depth | 8 m |
| Suction Hose Diameter | 4 inches |
| Suction Hose Length | 8 m |
| Hydraulic Pump Type | Gear Pump |
| Hydraulic Pressure | 16 MPa |
| Hydraulic Cylinder | Double Acting |
| Rear Door Locking Method | Hydraulic Locking |
| Tank Lifting Angle | 45° |
| Control Method | Manual + Pneumatic Control |
| Pipeline Material | Galvanized Steel |
| Discharge Valve Diameter | DN100 |
| Quick Coupling System | Equipped |
| Overflow Protection Device | Equipped |
| Secondary Filter System | Equipped |
| Drain Valve | Equipped |
| Operating Voltage | 24V |
| Warning Light | LED Rotating Beacon |
| Reverse Alarm | Equipped |
| Rear Working Lamp | Equipped |
| Emergency Stop Switch | Equipped |
| Side Protection | Standard |
| Rear Protection Device | Standard |
| Fire Extinguisher | Equipped |
| Vacuum Pump System | Equipped |
| PTO System | Equipped |
| Hydraulic Rear Door | Equipped |
| Anti-overflow Protection | Equipped |
| Suction Hose | Equipped |
| Tool Box | Equipped |
| Mud Guard | Equipped |
| Rear Ladder | Equipped |
| Safety Guardrail | Equipped |
| Anti-corrosion Tank Treatment | Equipped |
