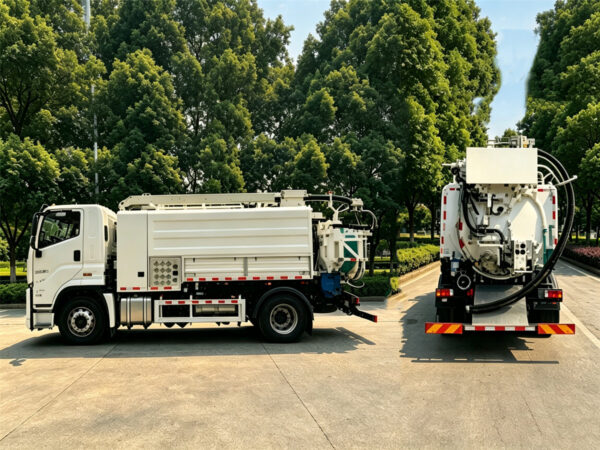

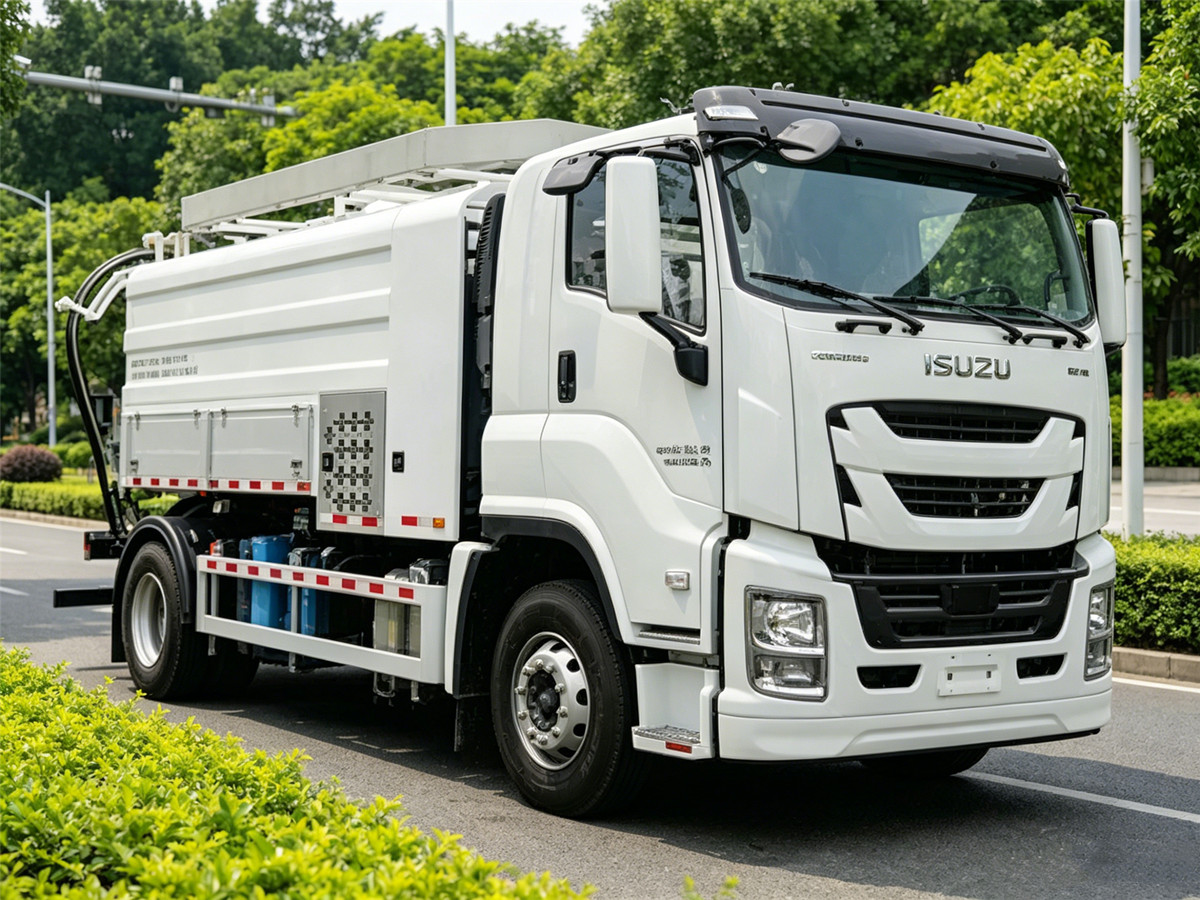

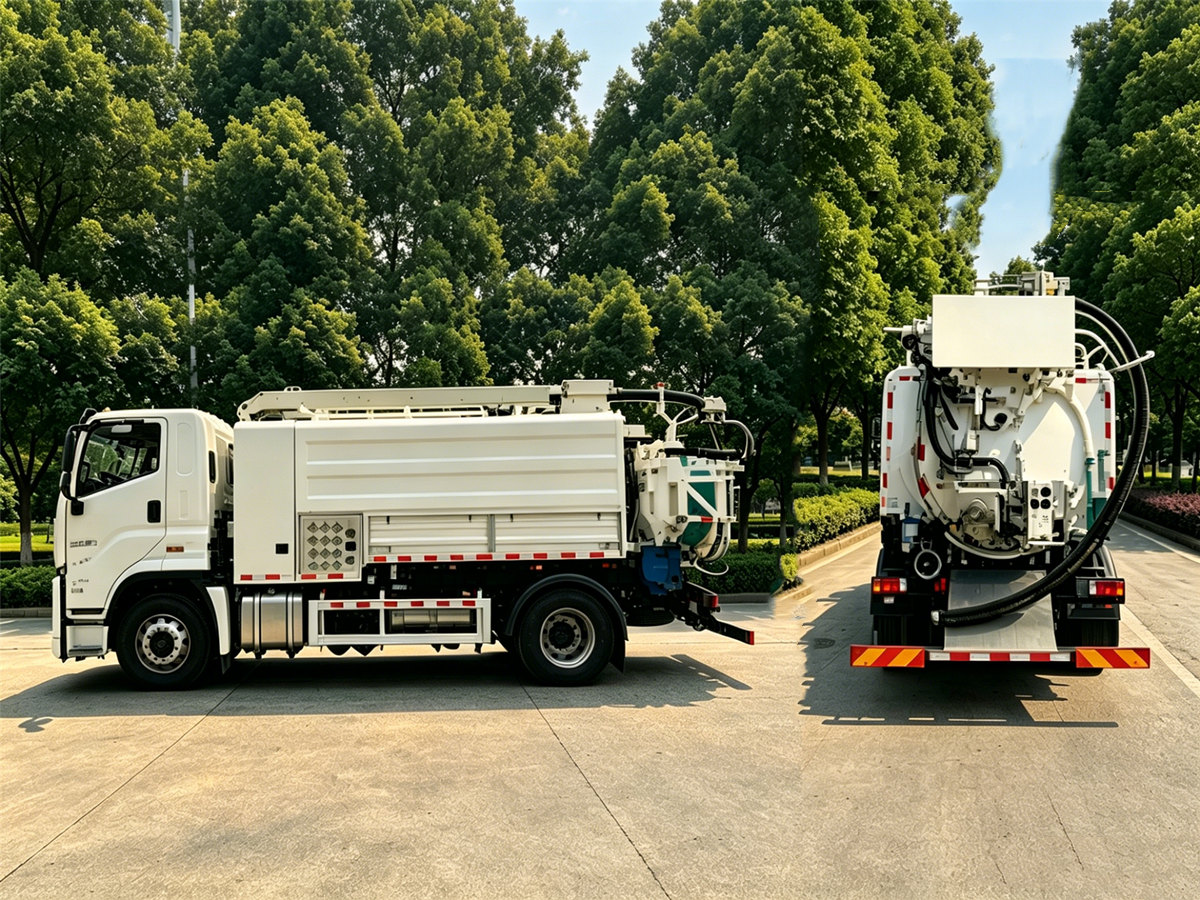

ISUZU 10000L Combined Sewer jetting Truck

ISUZU 10000L Combined Sewer jetting Truck

The ISUZU 10000L Combined Sewer Jetting Truck is a highly efficient and multifunctional sanitation vehicle designed for sewer cleaning, drain maintenance, sludge removal, septic tank servicing, and municipal wastewater management operations. Built on a durable ISUZU 4×2 heavy-duty chassis, this vehicle combines powerful vacuum suction capability with high-pressure water jetting performance, enabling operators to perform both blockage removal and sludge extraction using a single truck.

Featuring a total tank capacity of 10,000 liters, including a 7,000-liter sludge compartment and a 3,000-liter clean water compartment, the truck delivers excellent operational flexibility for demanding municipal and industrial cleaning applications. The combination tank design allows simultaneous jetting and vacuum operations, significantly improving cleaning efficiency while reducing operating costs.

Powered by the reliable ISUZU 4HK1-TCG60 diesel engine producing 205 HP, the vehicle provides dependable performance under both on-road and off-road working conditions. Designed to meet export heavy-duty specifications, the truck is capable of operating efficiently in tropical climates, urban environments, industrial facilities, and remote infrastructure maintenance projects.

Combining advanced Italian jetting and vacuum technologies with robust ISUZU engineering, this sewer jetting truck offers an ideal solution for municipalities, utility contractors, water authorities, and environmental service providers seeking professional sewer maintenance equipment.

---

Features

Combined 10,000L Tank System

The truck is equipped with a 10,000-liter combined tank manufactured from high-quality Q235 mild steel with a robust 6 mm tank thickness. The tank is divided into two independent compartments consisting of a 3,000-liter clean water tank and a 7,000-liter sludge tank, allowing simultaneous cleaning and waste collection operations.

The tank incorporates a circular cross-section design with reinforced dished end baffles, providing excellent structural strength during vacuum and pressure operations. A fully hydraulic rear door system with four hydraulic locking latches ensures safe discharge and easy tank cleaning after operation.

Powerful High-Pressure Jetting System

The vehicle utilizes the renowned Pratissoli KSGR36 high-pressure jetting pump from Italy, delivering professional-grade sewer cleaning performance. The heavy-duty triplex reciprocating pump provides a rated output power of 64 kW, operating pressure of 160 bar, and a water flow capacity of 210 liters per minute.

This powerful jetting system effectively removes grease, sediment, roots, sand, and stubborn blockages from sewer lines, stormwater drains, culverts, and pipelines. The system is protected by pressure relief valves, unloader valves, and filtration components to ensure long-term reliability and safe operation.

High-Efficiency Vacuum Suction Capability

For sludge extraction and waste recovery, the truck is equipped with a premium JUROP PN106D vacuum pump manufactured in Italy. The air-cooled vane compressor delivers an impressive suction capacity of 11,000 liters per minute and achieves a maximum vacuum level of 92%, allowing rapid removal of sludge, wastewater, slurry, and other liquid waste materials.

The vacuum system features forced lubrication technology and is designed for continuous heavy-duty operation, making it suitable for septic tanks, lift stations, catch basins, and industrial cleaning applications.

Advanced Hose Reel and Cleaning Accessories

The truck is fitted with a hydraulically operated hose reel capable of carrying 100 meters of 1-inch thermoplastic jetting hose. The reel rotates approximately ±160 degrees, allowing operators to clean pipelines from multiple positions without repositioning the vehicle.

The high-pressure hose is rated for 200 bar working pressure and 400 bar burst pressure, ensuring exceptional durability and operational safety. Multiple professional cleaning nozzles, including milling, torpedo, and sewer-cleaning nozzles, are supplied for different cleaning applications.

Heavy-Duty Suction System

The sludge collection system includes a 4-inch diameter, 15-meter heavy-duty PVC spiral suction hose equipped with aluminum quick couplings for rapid deployment. Full-length stainless steel hose trays mounted along both sides of the tank provide organized storage and easy access during operation.

Additional components such as suction filters, exhaust silencers, and vacuum protection devices help maintain stable performance while reducing maintenance requirements.

Reliable ISUZU Chassis Performance

The vehicle is powered by the proven ISUZU 4HK1-TCG60 turbocharged diesel engine, generating 205 HP (151 kW) and 647 N.m of torque. The engine is paired with the dependable ISUZU MLD-6Q six-speed manual transmission, delivering smooth power transfer and reliable performance under varying operating conditions.

With a wheelbase of 4,500 mm, gross vehicle weight of 18,000 kg, and a reinforced heavy-duty chassis structure, the truck provides excellent stability and load-carrying capability for demanding sanitation operations.

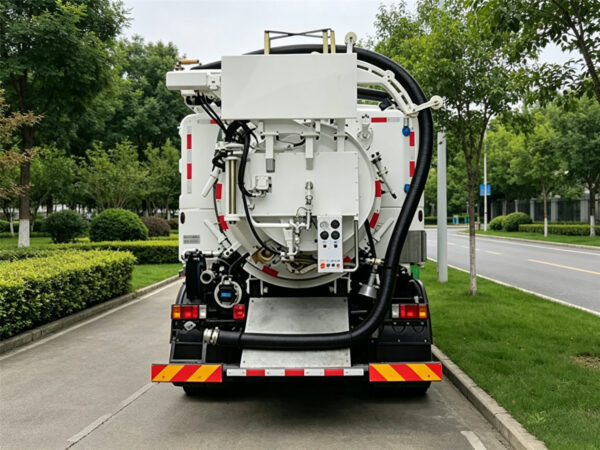

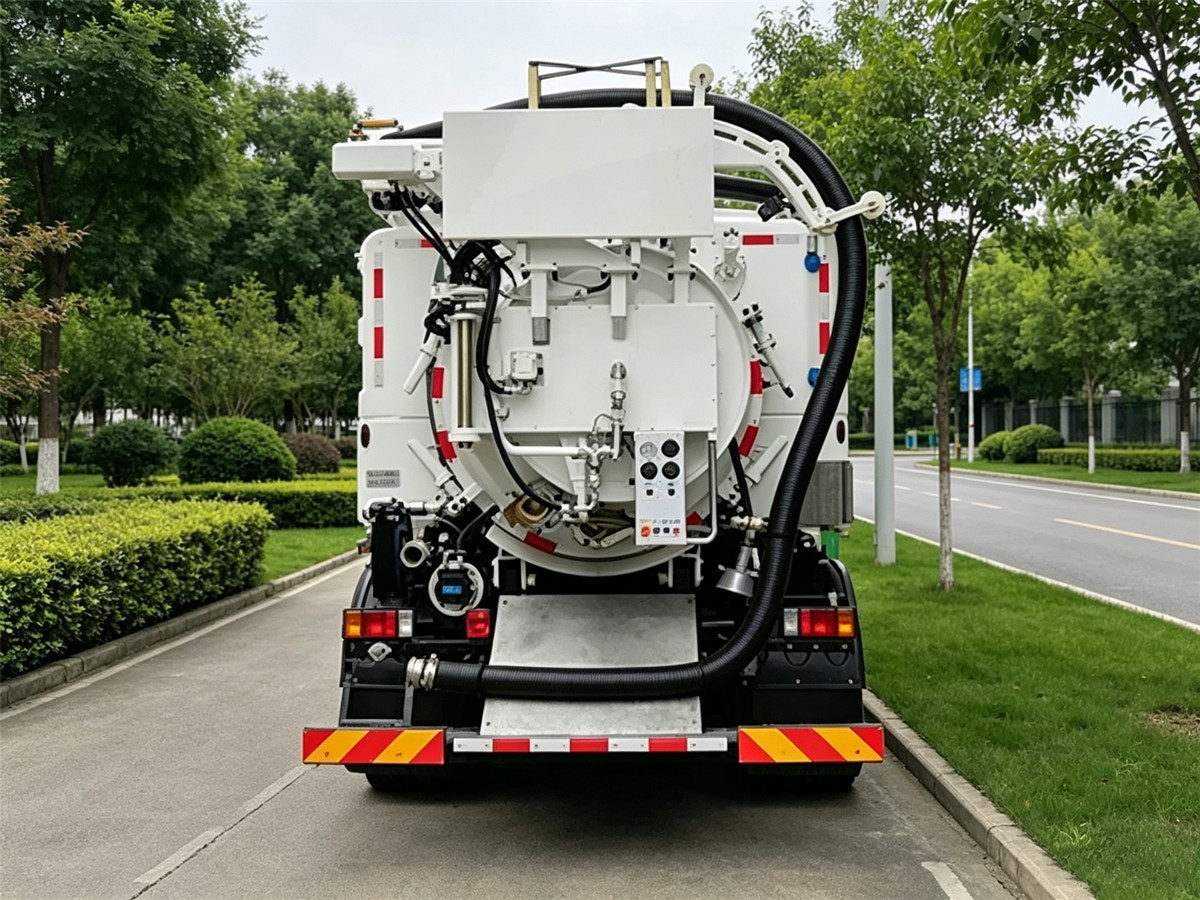

Operator-Friendly Control System

A lockable and illuminated rear control panel allows operators to manage all major cleaning and vacuum functions from a convenient location. Electric switches actuate pneumatic and hydraulic servos, providing smooth and precise operation with adjustable working speeds.

The system includes complete instrumentation, safety devices, tank level indicators, pressure gauges, and a rotating warning beacon mounted on the cab roof, ensuring safe and efficient operation in all working environments.

Durable Corrosion Protection

To ensure long service life, the tank undergoes extensive anti-corrosion treatment. Both interior and exterior surfaces are coated with high-quality protective finishes, while the sludge compartment receives a specialized epoxy coating to resist corrosion from sewage, sludge, and weak acidic substances.

The chassis underside is treated with anti-corrosion protection, and the exterior receives multiple coats of industrial-grade primer and enamel paint for superior resistance to harsh environmental conditions.

The ISUZU 10000L Combined Sewer Jetting Truck delivers an outstanding combination of high-pressure cleaning, powerful vacuum suction, large-capacity waste storage, and reliable ISUZU performance, making it an indispensable asset for modern sewer maintenance and environmental sanitation operations.

Specification

Category & Item	Description
1) General Information
1.1 Make & Model	CSJ10QL205L3
1.2 Date of Manufacturing	New
1.3 Country of Origin	China
1.4 Truck’s Capable of Operating	Capable of operating in Tunisian conditions
1.5 Most Suitable for Operating	On both “on and off” road conditions
1.6 Truck Unit’s Status	Brand new
1.7 Drive Type	4×2
1.8 Overall Dimension (L x W x H)	8,700 x 2,550 x 3,350mm
1.9 Gross Vehicle Weight	18,000kg
1.10 Curb Weight	10,000kg
1.11 Capacity Weight	7,900kg
1.12 Wheelbase	4,500mm
1.13 Max. Speed	89km/h
1.14 Fuel Tank Capacity	400L
1.15 Chassis Designed	Chassis is adequately designed and strengthened to accommodate the load body and all associated equipment, and is designed to heavy-duty export specs, capable of operating in tropical conditions over paved and unpaved roads
2) Engine
2.1 Make / Model	ISUZU/4HK1-TCG60
2.2 Country of Origin	China
2.4 Type	4 cylinders in line, 4 strokes common rail, water cooling, intercooler, turbocharged.
2.6 Fuel	Diesel
2.8 Displacement	5,193cc
2.9 Nominal Power	205HP (151kW) @ 2,600rpm
2.10 Peak Torque	647N.m@1,600rpm
2.11 Emission Standard	Euro 3
3) Clutch and Transmission
3.1 Operation of Transmission	Manual with synchromesh
3.2 Hydraulic, Clutch Actuation	Hydraulic operating with air assistance
3.3 Clutch Type	Single dry plate dry coil-spring clutch, Diameter: 430mm, diaphragm type clutch
3.4 Number of Speeds	6F,1R
3.5 Hydraulic Power Steering	Hydraulic power steering
3.6 Fuel Type of Transmission	Diesel
3.7 Model/Make of Transmission	ISUZU / MLD-6Q
4) Brakes and Tyres
4.1 Brakes	Hydraulic-pneumatic assisted, dual circuit, pressure-air, air dryer.
4.2 Brake Type	Drum brake with ABS
4.3 Tire Size	295/80R22.5
4.4 Total Number of Wheels with Spare	6 wheels and 1 spare
4.5 Service Brake	Dual circuit pressure-air brake acting on wheels of all axles.
4.6 Parking Brake	Spring type, acting on the wheels of the rear axles.
5) Suspension
5.1 Front Type	Heavy-duty leaf springs with telescopic shock absorbers at the front.
5.2 Rear Type	Heavy-duty leaf springs.
6) Cab
6.1 Type	ISUZU VC61 cab (with 1 sleeper, air-conditioner, and 2 new-style seats).
6.2 Installed	Air conditioned, audio system
6.3 Passengers Allowed	2 persons
6.4 Color	Based on the requirement
6.5 Safety Belts	Installed
7) Axles
7.1 Loading Capacity of Front	6,500kg
7.2 Loading Capacity of Rear	11,500kg
8) Electrical System on Chassis
8.1 Working Voltage	24V
9) Combined Sludge and Clean Tank
9.1 Tipping	The tank is mounted with an arrangement for rear tipping.
9.2 Total Internal Volume	10,000liters.
9.3 Material	High-quality mild steel model Q235 (equivalent to IS-2062 Grade A or ASTM a36).
9.4 Thickness	6mm
9.5 Division of Compartment	The tank is divided into 2 compartments. Cleaning water tank compartment: 3,000 liters; Sludge/sewage tank compartment: 7,000 liters
9.6 Level Indicators	Material: Transparent acrylic tubing with thick walls; Quantities: A Total of two units. One in each compartment.
9.7 Ladder	Location: On the tank to access the top of the tank. Designed to withstand the conditions prevailing from the operating vacuum and pressure conditions.
9.8 Hydraulic Connections	All hydraulic connections are a combination of high-pressure pipes and flexible hoses to facilitate easy replacements/repairs.
9.9 Rear Door	Fully openable type, reinforced for structural integrity, raised to an angle of 80°to the vertical, hydraulic locking & sealing with self-compensating seal and four hydraulic latches
9.10 Circular Cross & Baffles	Circular cross-section with dished end baffles based on the design of the tank.
9.11 Channels	Reinforcing the channel around the outer periphery when it is necessary.
9.12 Tank Testing	The tank is hydrostatically tested.
9.13 Sight Glass	The tank is provided with a 2-sight glass located at the end of the tank to measure the volume of sewage inside the tank. Sight glass is tempered glass and is easily replaced.
9.14 Automatic Detection Device	An automatic detecting device to prevent overfilling (sniffer valve releasing vacuum when the tank is full).
10) Painting / Finishing
10.1 Both Painted	The exterior and interior of the tank are painted with high-quality paint.
10.2 Exterior	Spray-painted with two coats of superior quality anti-corrosive primer and two coats of enamel metal paint of a reputed make.
10.3 Sludge Compartment Tank	Internally coated with 2 coats of epoxy paint to resist corrosion due to weak acids.
10.4 Under Chassis	Coated with anti-corrosion.
11) Cleaning Water Compartment
11.1 2″ Ball Valve	1No. 2″ ball valve at the forward end of the compartment to facilitate draining.
11.2 3″ Ball Valve	1No. 3″ ball valve to isolate the tank from the jetting system to facilitate maintenance, even with a water-filled tank.
11.3 Level Glass	Fitted in a suitable position to enable the operator to gauge the content’s level inside the tank.
11.4 Manhole	For tank filling and to allow man-entry in the tank for routine cleaning and inspection.
11.5 Breather	A tank breather is fitted on the tank top to allow the compartment to be constantly vented to the atmosphere during jetting operations.
12) Sludge Compartment
12.1 Knife Gate Valve	1No. 100mm knife gate valve located at the bottom-most position at the rear dished end for draining the tank’s contents.
12.2 Level Glass	Fitted in a suitable position to enable the operator to gauge the content’s level inside the tank.
12.3 Primary Shut-off	A ball float type, primary shut-off to prevent water from entering the pumping system due to an accidental overflow.
12.4 Vacuum Relief Valve	1No. installed
13) High Pressure Jetting Pump
13.1 Make	Pratissoli
13.2 Model	KSGR36
13.3 Country of Origin	Italy
13.4 Type	Heavy-duty positive displacement single-acting triplex reciprocating pump to be driven by a split shaft from the total power take-off unit.
13.5 System	The system is adequately protected by incorporating a suitable pressure relief valve & unloader valve, water filter, and pneumatically actuated.
13.6 Rated Power Output	64kW
13.7 Pressure Drive	160bar
13.8 Scavenging Capacity	210l/min
13.9 Suction Filter	Installed
13.10 Drive	Drive for the high-pressure jetting pump, as well as the vacuum pump, is tapped from a new generation total power take-off (split shaft P.T.O.).
14) Hose, Hose Reel, Nozzles, and Accessories
14.1 Make & Material	Equivalents Polyose/Parker/Aeroquip & Thermoplastic.
14.2 Hose Reel and Hose	Hose reel at tank rear for 100m 1″ jetting hose, hydraulic retraction, reel rotates ±160°
14.3 Hose	1″ diameter, 100m long thermoplastic hose, working pressure 200bar, burst pressure 400bar
14.4 Safety Valve	Installed
14.5 Pressure Regulator	Installed
14.6 Suction Strainer	Installed
14.7 High Pressure Jetting Nozzles	1″ female thread ENZ brand nozzles: milling, torpedo, sewer cleaning types
15) Vacuum Pump
15.1 Make	JUROP
15.2 Model	PN106D
15.3 Country of Origin	Italy
15.4 Pump Capacity	11,000 L/min
15.5 Cont. Duty Vacuum	60%
15.6 Maximum Vacuum	92%
15.7 Suction	Aspiration effluent, slurry and sludge via high vacuum inside sludge compartment
15.8 Type	Air cooled vane compressor vacuum pump, forced lubrication with adjustable oil-drippers
15.9 Max. Exhaust Power	13.6kw
15.10 Driven Method	Split shaft PTO drives both vacuum pump & jet pump, auxiliary engine optional
16) Suction Hose, Hose Connection, and Accessories
16.1 Heavy-Duty Spiral Suction Hoses	4″ diameter 15m PVC spiral suction hose with aluminum quick couplings
16.2 Suction Filter	Installed
16.3 Exhaust Silencer	Installed
16.4 Hose Trays	Full-length stainless steel hose trays on both tank sides
17) Controls
17.1 Control Panel	Lockable waterproof illuminated rear panel + remote boom control, moves with hose reel
17.2 Electrical Switches on Control Panel	Electric switches actuate pneumatic/hydraulic servos with variable adjustable speed
17.3 Servos and Valves	Easy-access splash-resistant servos and valves for maintenance
17.4 All Necessary Controls & Gauges	Full gauges, safety devices, orange rotating beacon light on cab top
18) Split Shaft P-T-O
18.1 Quantity	1pc
18.2 Origin	China
18.3 Type	New generation split shaft PTO drives jet pump & vacuum pump; alternative: PTO for jet pump, auxiliary engine for vacuum pump
