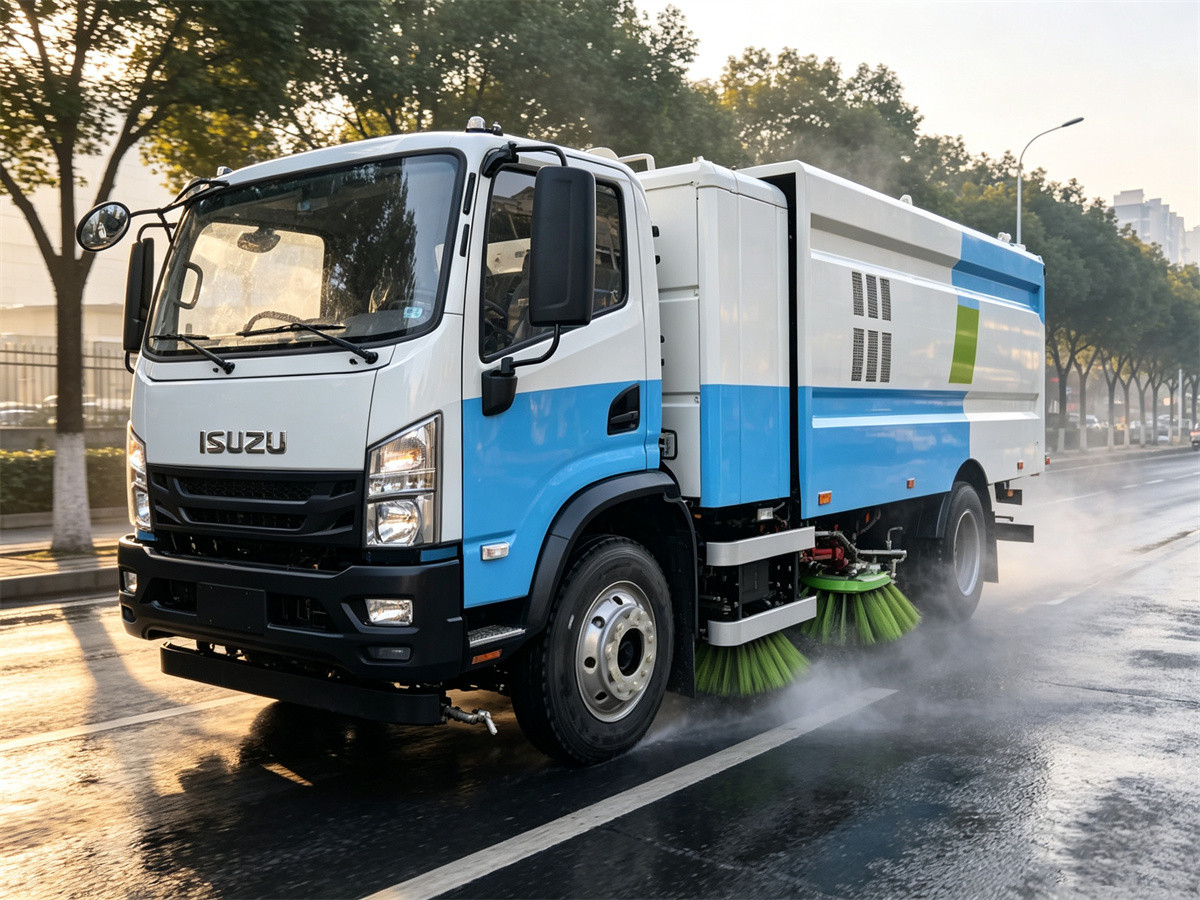

ISUZU 6 CBM Electric Road Sweeper Truck
The ISUZU 6 CBM Electric Road Sweeper Truck is an advanced environmental sanitation vehicle designed for efficient urban road cleaning, dust control, and municipal maintenance operations. Built on the reliable ISUZU QL1070BEV electric chassis, this fully electric sweeper truck combines zero-emission driving technology, powerful sweeping performance, and intelligent cleaning systems to provide an environmentally friendly solution for modern cities.
Powered by a high-capacity CATL lithium iron phosphate battery, the ISUZU electric sweeper truck delivers approximately 229 kWh of energy storage and supports a working range of around 200 km under practical operating conditions. The vehicle uses a permanent magnet synchronous motor with 80 kW rated power and 160 kW peak power, providing smooth electric drive performance, strong starting ability, and efficient energy utilization during continuous cleaning operations.
The vehicle adopts a 4×2 electric drive configuration with a gross vehicle weight of approximately 8,200 kg and a rated loading capacity of around 4,100 kg. The durable ISUZU EV chassis features a 4,200 mm wheelbase, strong axle capacity, and stable driving performance, allowing the truck to operate efficiently on urban roads, municipal streets, industrial areas, and asphalt surfaces.
Equipped with a 6 m³ stainless steel sweeper body, the truck integrates a 3,000-liter waste tank and a 3,000-liter water tank, providing balanced capacity for dust collection and road washing. The integrated tank structure helps optimize space utilization while improving cleaning efficiency during daily sanitation operations.
The ISUZU 6 CBM Electric Road Sweeper Truck features a professional sweeping system with four lifting and extendable vertical sweeping discs, a large-width floating suction nozzle, and a high-pressure spray system. The combination of mechanical sweeping, vacuum suction, and water spraying allows the vehicle to effectively remove dust, sand, leaves, and other road debris while reducing airborne particles.
With its quiet electric operation, strong cleaning capability, and low-maintenance design, this electric road sweeper truck is an ideal choice for cities and organizations seeking efficient, sustainable, and intelligent road cleaning solutions.
Features
Reliable ISUZU Electric Chassis with Zero-Emission Performance
The foundation of the ISUZU electric sweeper truck is the QL1070BEV chassis developed by Qingling ISUZU, providing excellent durability, stability, and adaptability for municipal cleaning applications. The ISUZU NKR/N-Series day cab offers comfortable operation for up to three people, making it suitable for long working shifts.
The electric chassis is equipped with a CATL LFP battery system, which provides high safety, long service life, and stable power output. The rear-mounted battery layout helps optimize vehicle balance while protecting the power system during operation.
Key chassis advantages include:
- 229 kWh lithium iron phosphate battery
- 80 kW rated motor power and 160 kW peak power
- Fast charging capability
- Rear electric drive system
- Energy recovery technology
- Maximum speed up to 85 km/h
The electric platform significantly reduces operating noise and eliminates exhaust emissions, making the truck especially suitable for residential areas, city centers, and environmentally sensitive locations.

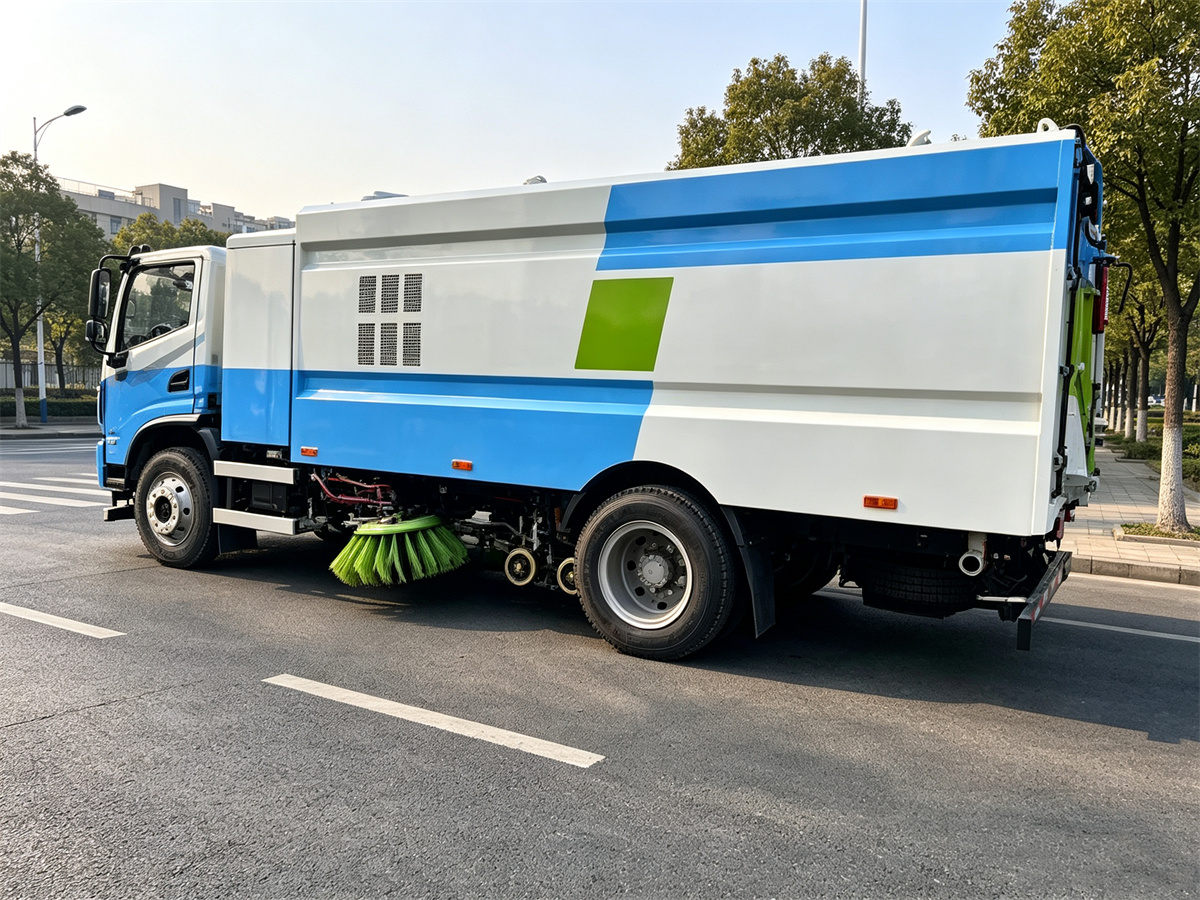

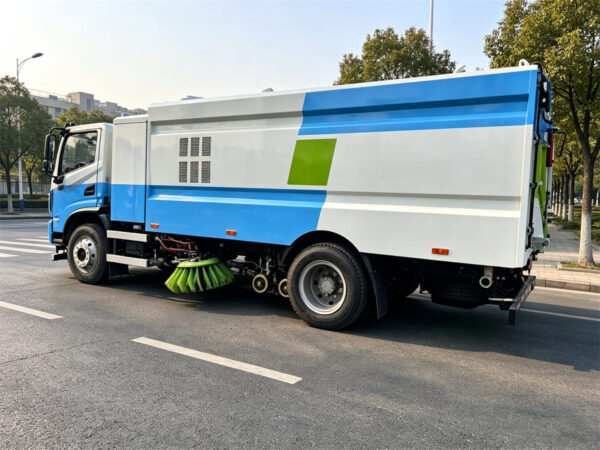

6 m³ Stainless Steel Sweeper Body Design
The truck body is designed for efficient road cleaning with a total capacity of 6 cubic meters, including a 3,000-liter waste collection compartment and a 3,000-liter water tank. The integrated structure combines garbage storage and water spraying functions, improving operational efficiency while reducing the need for additional support equipment.
The stainless steel construction provides excellent corrosion resistance and durability, allowing the sweeper truck to work reliably in wet cleaning environments and different weather conditions.
The professional tank design provides:
- Strong corrosion resistance
- Large waste storage capacity
- Efficient water spraying support
- Easy cleaning and maintenance
This configuration makes the ISUZU electric sweeper truck suitable for highways, urban streets, industrial parks, airports, and public facilities.
Advanced Four-Brush Sweeping System
The sweeping system uses four vertical sweeping discs arranged symmetrically on both sides of the vehicle frame. Each sweeping disc is driven by a hydraulic motor, allowing adjustable rotation speed according to different road conditions and cleaning requirements.
The lifting and extending brush design enables the truck to clean wider areas while maintaining excellent control around curbs, corners, and roadside areas.
The sweeping system features:
- Four extendable vertical brushes
- Hydraulic motor drive
- Adjustable brush speed
- Efficient debris collection
- Suitable for asphalt and municipal roads
The rotating brushes guide dust and debris toward the suction area, improving cleaning efficiency and reducing missed areas during operation.
Efficient Suction and Dust Suppression System
The ISUZU 6 CBM Electric Road Sweeper Truck is equipped with a full-floating suction nozzle system that automatically follows road surfaces through a spring suspension structure. This design helps maintain consistent contact with the ground and improves debris collection performance.
The large-width suction nozzle allows efficient collection of dust, sand, and waste materials during forward sweeping operations. Combined with the built-in high-pressure spray boom and water nozzles, the system effectively controls dust generation while cleaning.
The suction system provides:
- Automatic road-following capability
- Large cleaning width
- Floating suspension structure
- High-pressure dust suppression
- Improved cleaning consistency
Independent Electric Auxiliary Power System
Unlike traditional fuel-powered sweeper trucks, the ISUZU electric road sweeper uses an independent electric power unit to operate the main cleaning equipment. The electric motor directly drives the fan, high-pressure water pump, and hydraulic oil pump, reducing energy loss and improving overall efficiency.
The high-pressure centrifugal blower is specially designed for road sweeping applications and operates at 2,600–2,900 rpm, providing strong suction airflow for effective debris collection.
The independent electric system offers several benefits:
- Lower operating noise
- Reduced maintenance requirements
- Improved energy efficiency
- Stable cleaning performance
- Environmentally friendly operation
With the combination of ISUZU electric chassis, advanced sweeping technology, and professional sanitation equipment, the ISUZU 6 CBM Electric Road Sweeper Truck provides a reliable and sustainable solution for modern urban cleaning operations.
Specification
| Item | Specification |
|---|---|
| Section 1 – Chassis Specifications | |
| Product Model | ISUZU EV Sweeper Truck Chassis |
| Chassis Model | ISUZU QL1070BEV |
| Cabin Brand | Qingling ISUZU |
| Cab Type | ISUZU NKR/N-Series Day Cab |
| Cabin Capacity | 3 persons |
| Cabin Color | White (standard) |
| Drive Type | 4×2 Electric Drive |
| Axles | 2 Axles |
| Front Axle Load | Approx. 3,000 kg |
| Rear Axle Load | Approx. 5,200 kg |
| Gross Vehicle Weight (GVW) | Approx. 8,200 kg |
| Curb Weight | Approx. 4,100 kg |
| Rated Loading Capacity | Approx. 4,100 kg |
| Overall Dimension (L×W×H) | Approx. 7,400 × 2,370 × 2,680 mm |
| Wheelbase | 4,200 mm |
| Front / Rear Suspension | 1,100 / 2,060 mm |
| Max. Speed | 85 km/h |
| Driving Range | Approx. 200 km (working condition) |
| Section 2 – Electric Power System | |
| Battery Type | Lithium Iron Phosphate Battery (LFP) |
| Battery Manufacturer | CATL |
| Battery Origin | China |
| Battery Capacity | Approx. 229 kWh |
| Battery Location | Rear side of cab / chassis frame mounted |
| Motor Type | Permanent Magnet Synchronous Motor |
| Rated / Peak Motor Power | 80 kW / 160 kW |
| Motor Drive Type | Rear electric drive |
| Energy Recovery System | Equipped |
| Charging Type | Fast Charging |
| Charger Manufacturer | China CBT |
| Section 3 – Sweeper Truck Body Configuration | |
| Sweeper Tank Capacity | 6 m³ |
| Waste Tank Capacity | 3,000 L |
| Water Tank Capacity | 3,000 L |
| Tank Material | Stainless Steel |
| Tank Structure | Integrated garbage and water tank design |
| Section 4 – Sweeping System | |
| Sweeping Brush Type | Four lifting and extendable vertical sweeping discs |
| Brush Arrangement | Symmetrical layout on both sides of frame |
| Brush Drive | Hydraulic motor driven |
| Brush Speed Control | Adjustable |
| Working Principle | Rotating sweeping discs collect road dust and debris into suction system |
| Suitable Road Condition | Asphalt roads, urban roads, municipal roads |
| Section 5 – Suction System | |
| Suction Nozzle Type | Full-floating suction nozzle |
| Suction Design | Automatic road-following leveling system |
| Suspension System | Spring floating suspension |
| Nozzle Width | Large-width suction nozzle |
| Operation Mode | Independent forward sweeping operation |
| Spray System | Built-in long-row high-pressure spray boom |
| Nozzles | High-pressure water nozzles installed |
| Section 6 – Electric Auxiliary Power System | |
| Electric Power Unit | Independent electric motor power system |
| Driven Components | Fan, high-pressure water pump, hydraulic oil pump |
| Drive Method | Electric motor direct drive |
| Fan Type | High-pressure centrifugal blower |
| Blower Application | Dedicated road sweeper blower |
| Working Speed | 2,600–2,900 rpm |
