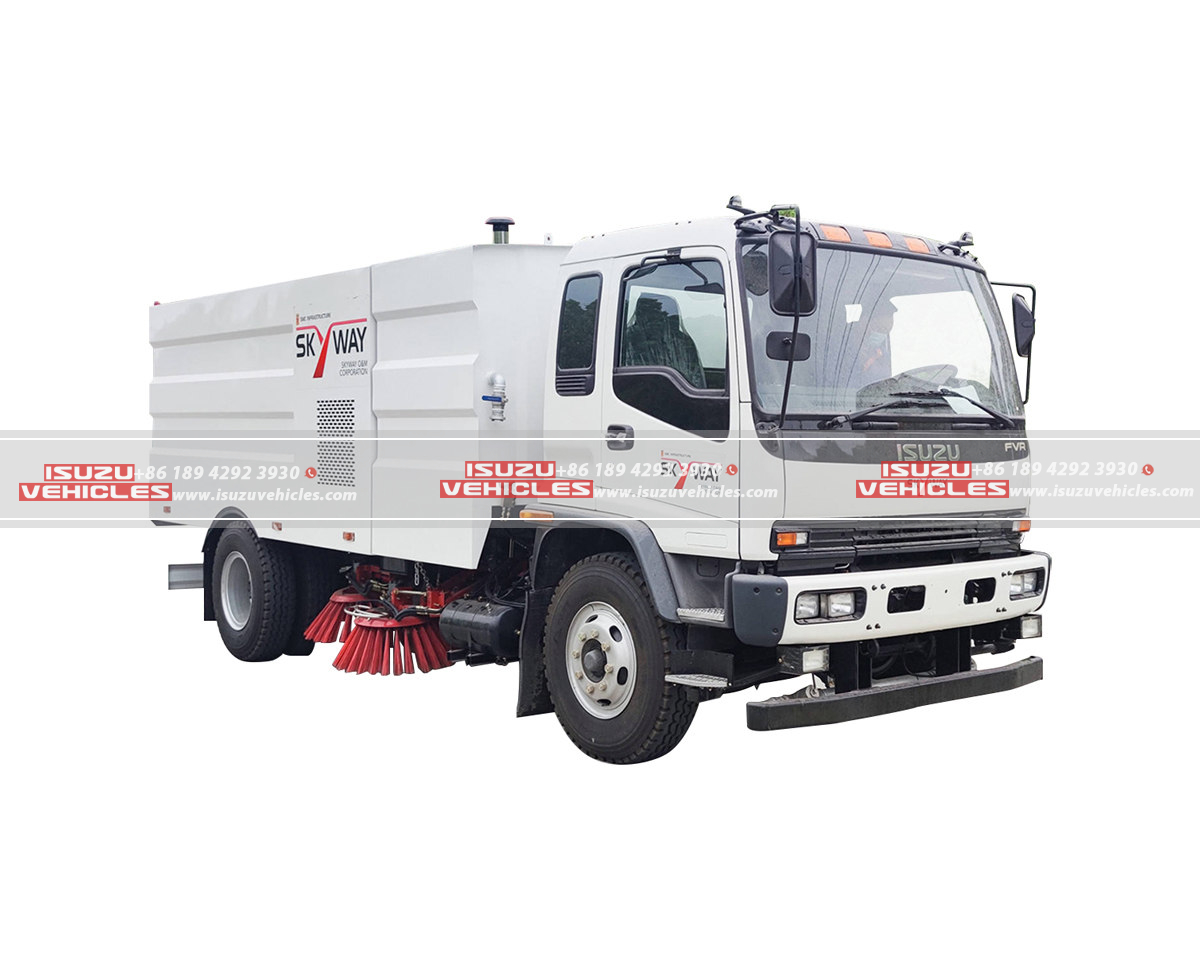

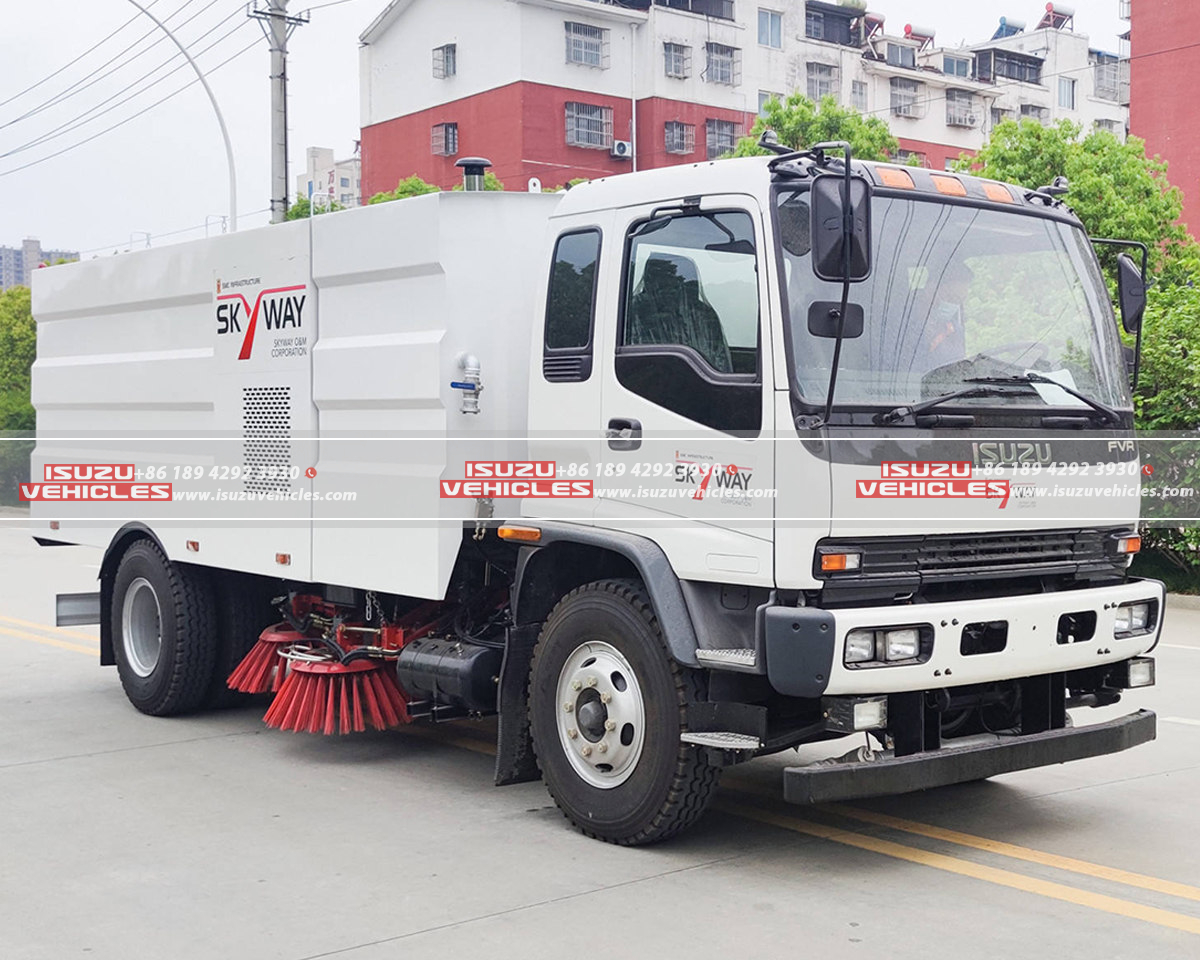

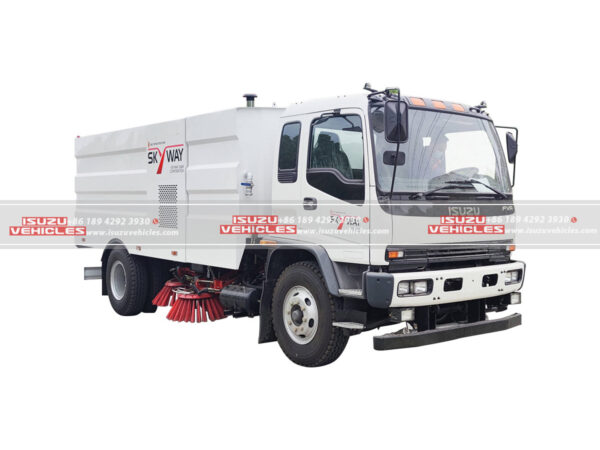

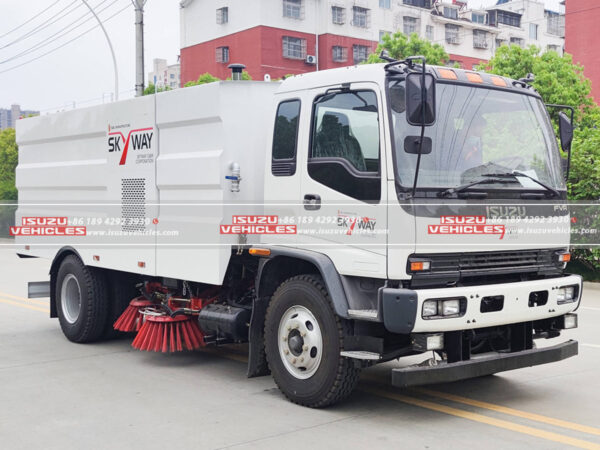

ISUZU 16CBM Forward Street Sweeper
FVR Chassis Heavy-Duty Platform
Built on the robust ISUZU FVR chassis, this ISUZU sweeper truck is engineered for high-capacity urban and industrial cleaning. With compact dimensions of 7,480×2,345×2,580mm and a 4,500mm wheelbase, it balances agility with a gross vehicle weight of 18,000kg and curb weight of 7,395kg, ensuring stability across diverse terrains. The 4+2 drive wheel configuration with 11.00R20 tires provides superior traction for heavy-load operations.
High-Torque Euro 5 Powertrain
Powered by the ISUZU 6HK1-TCL engine, the ISUZU 16CBM Forward Street Sweeper delivers 240HP (177kW) @ 2,400rpm and a peak torque of 760N·m @ 1,450rpm, optimized for sustained high-efficiency sweeping. The intercooled turbocharged 6-cylinder design paired with an ISUZU/MLD manual transmission (6F+1R) ensures seamless power delivery and fuel economy in demanding environments.

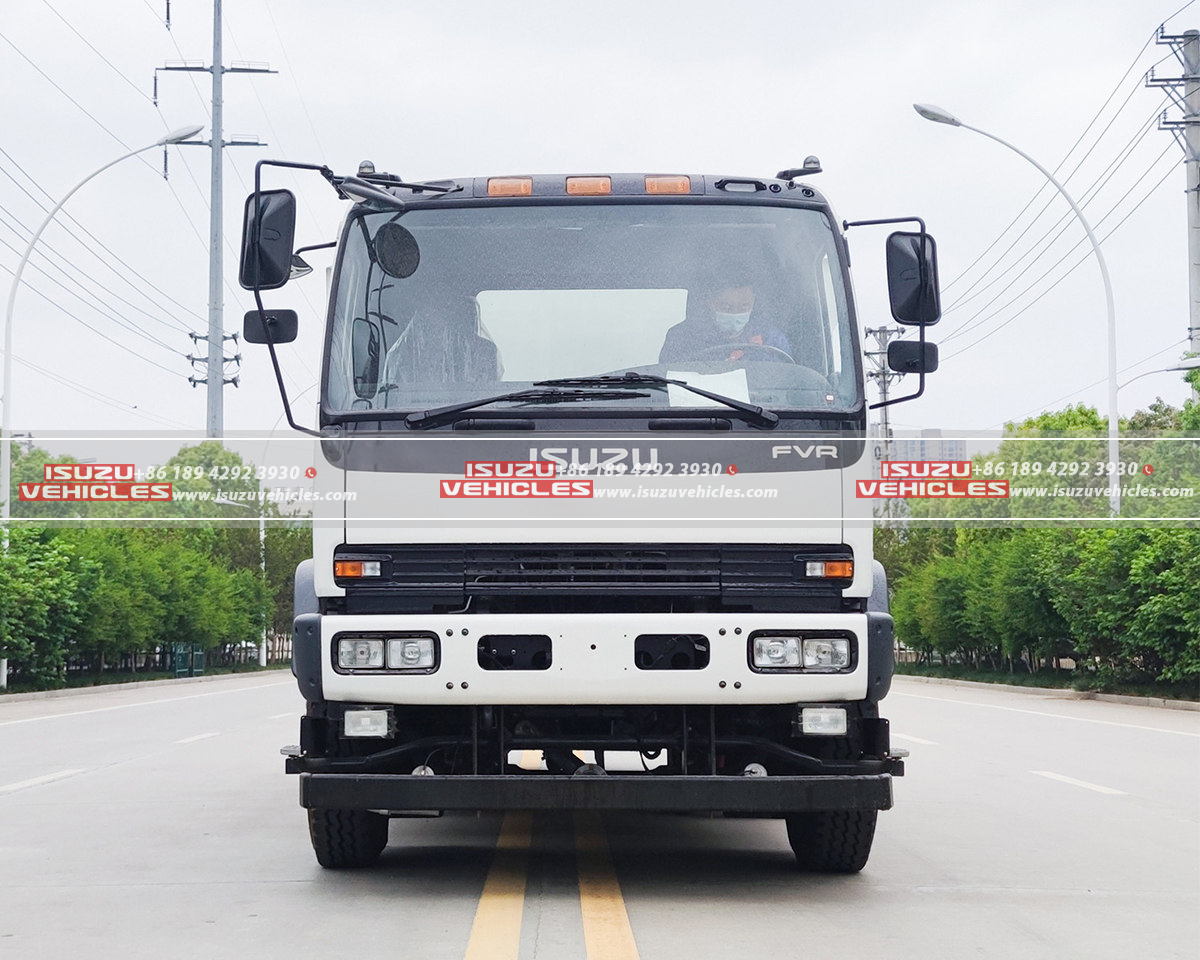

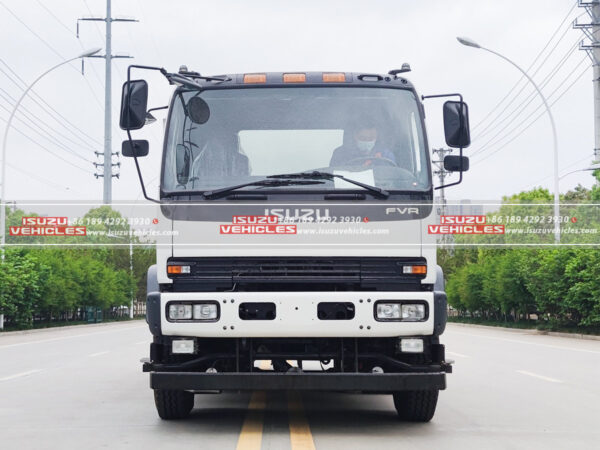

Ergonomic Operator Cabin
The hydraulic power-steered cabin accommodates 1 driver + 2 passengers, offering ergonomic controls and 360° visibility for precision handling in congested urban zones.
Features

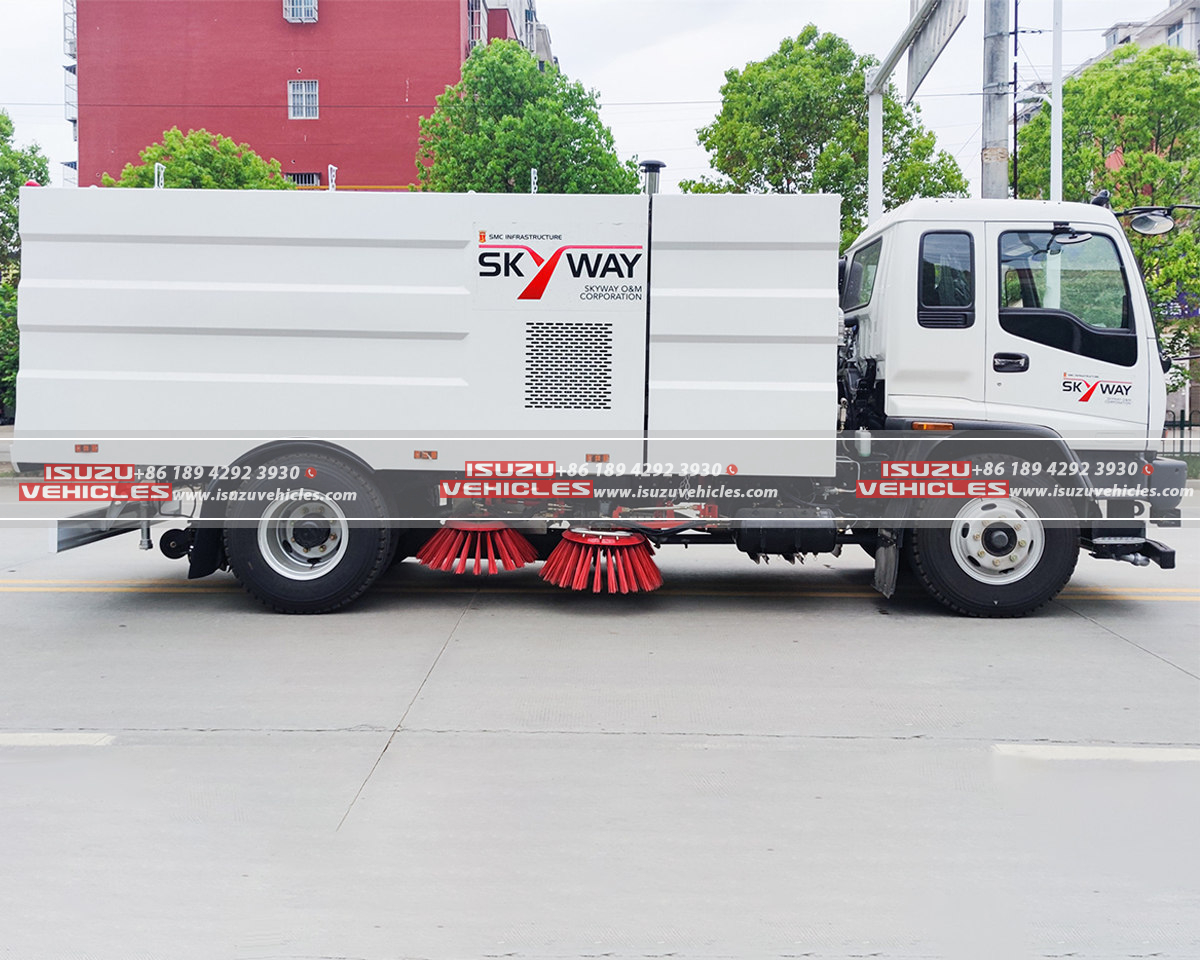

16CBM Dual-Purpose Tank System

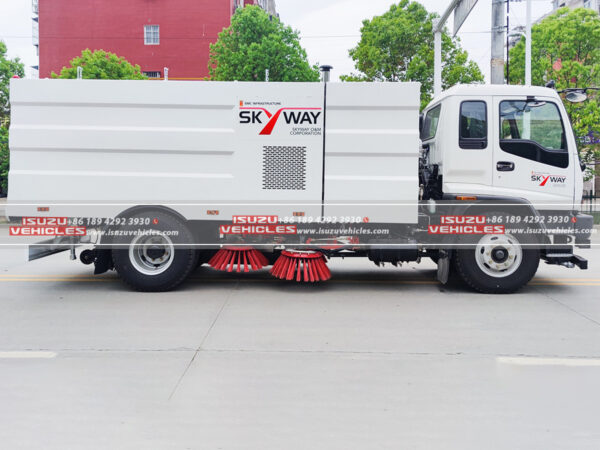

Equipped with a 16CBM stainless steel 304 tank, the system integrates a 12m³ garbage compartment and a 4,000L water reservoir for simultaneous debris collection and dust suppression. The corrosion-resistant construction ensures longevity in corrosive environments.
Advanced Sweeping & Suction Technology

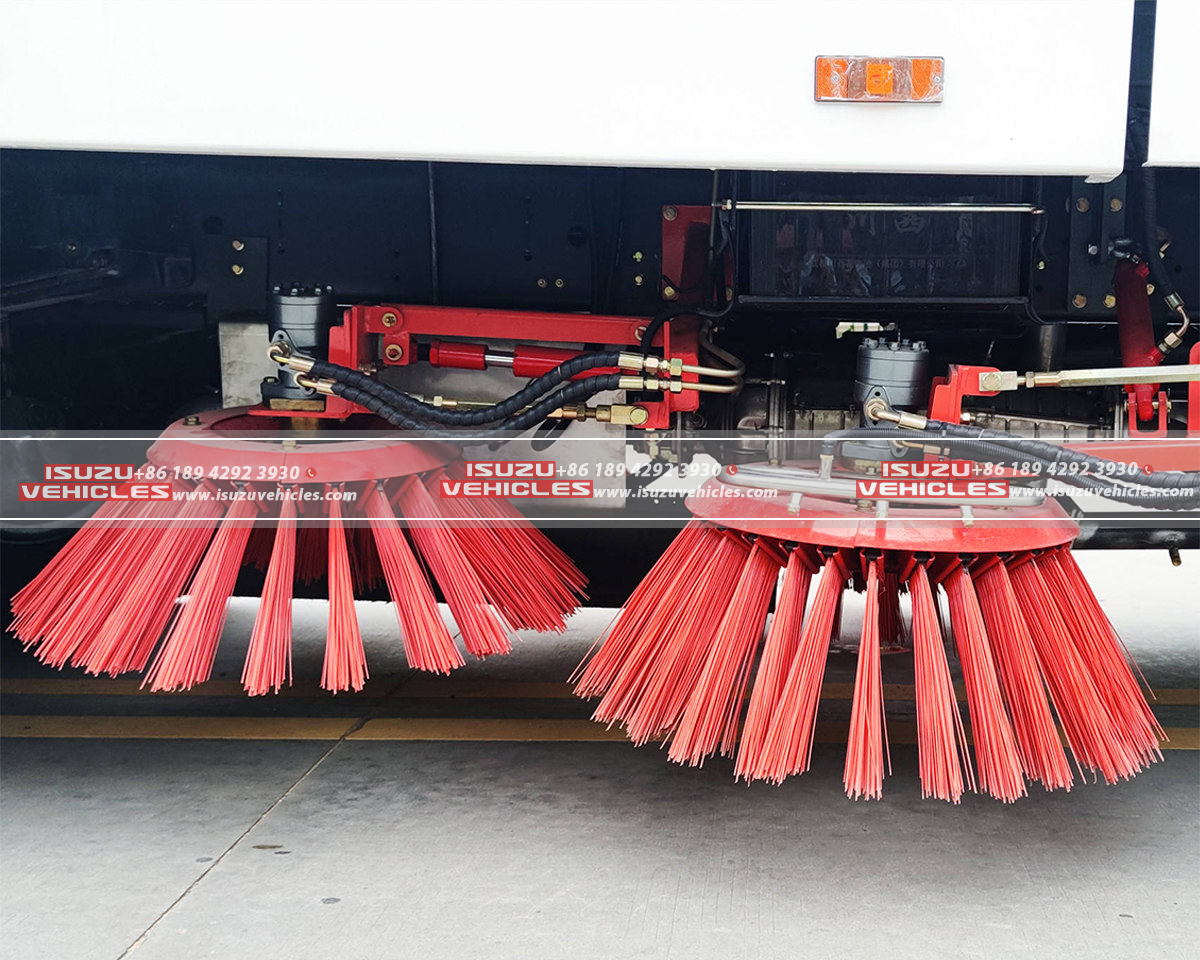

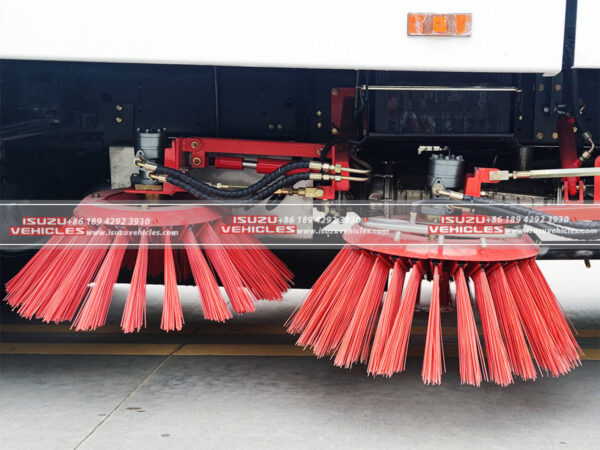

Four motor-driven disc brooms (900mm diameter) achieve a sweeping width of 2.6–3.2m and a max cleaning capacity of 60,000 m²/h. The full-floating suction nozzle with a 200mm hydraulic port captures debris ≥100mm in size, while the centrifugal blower (2,600–2,900r/min) ensures debris-free surfaces even at high speeds (3–20km/h).
CUMMINS-Powered Auxiliary Systems
A CUMMINS 140HP auxiliary engine drives critical subsystems, including the blower and hydraulic pumps, enabling uninterrupted operation during extended shifts.
Durability & Environmental Compliance

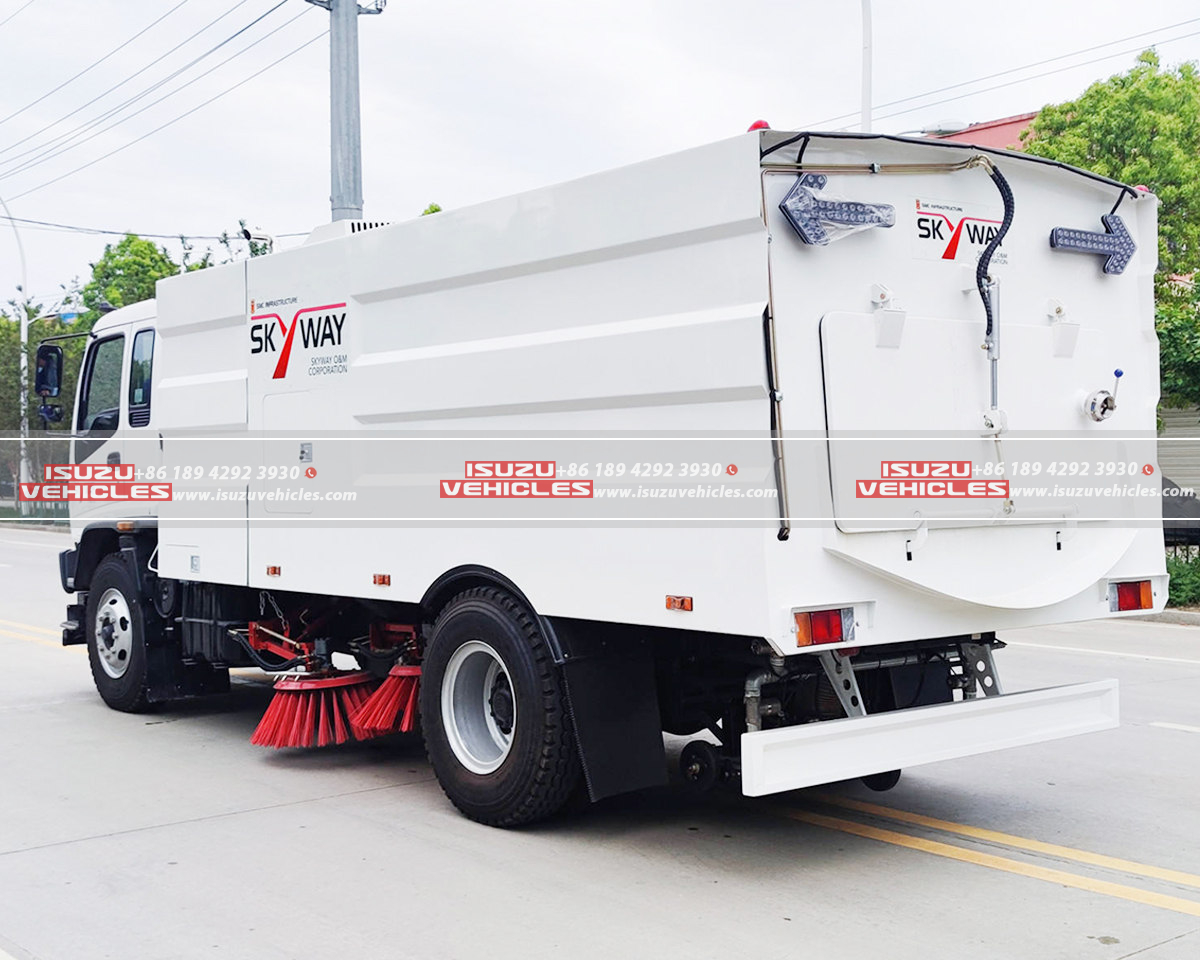

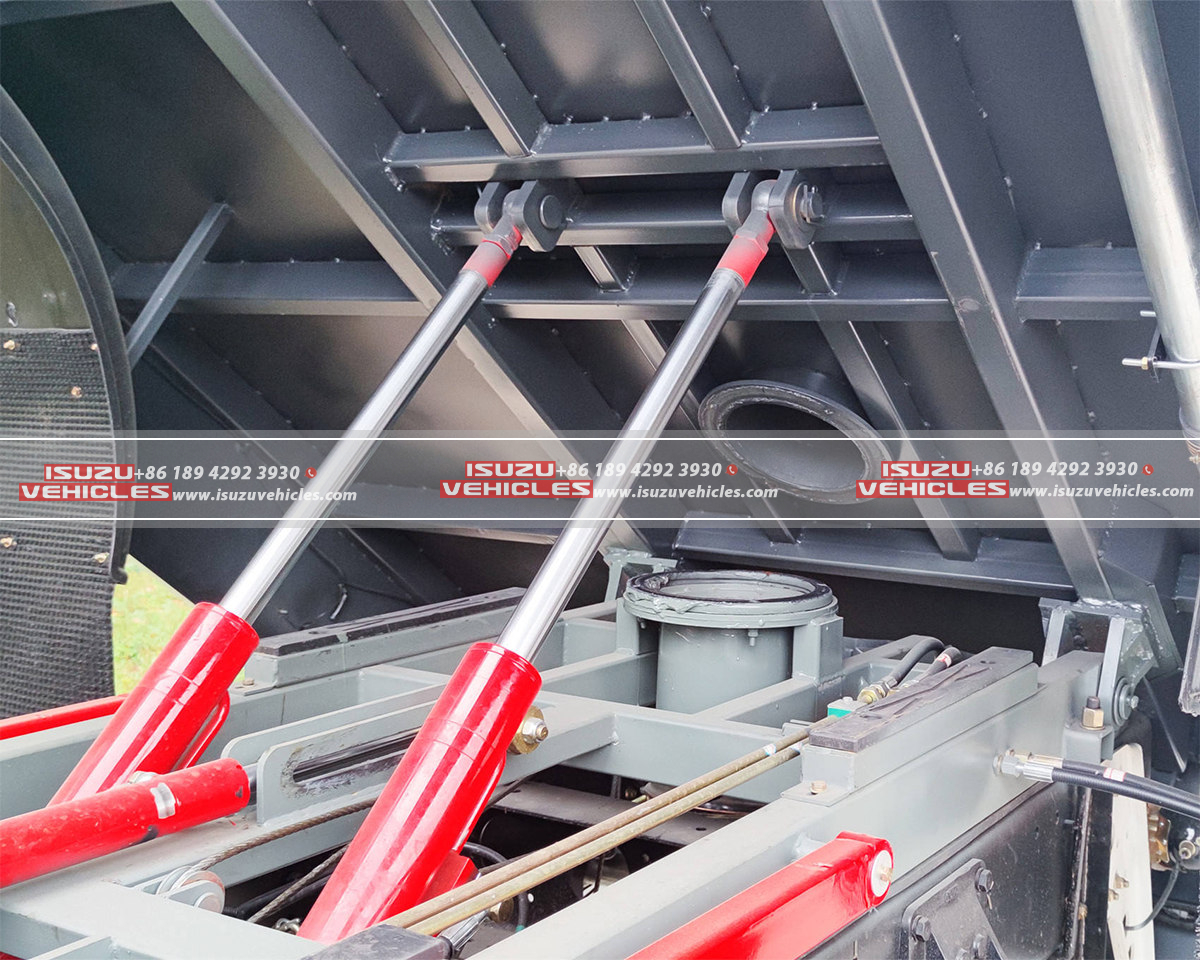

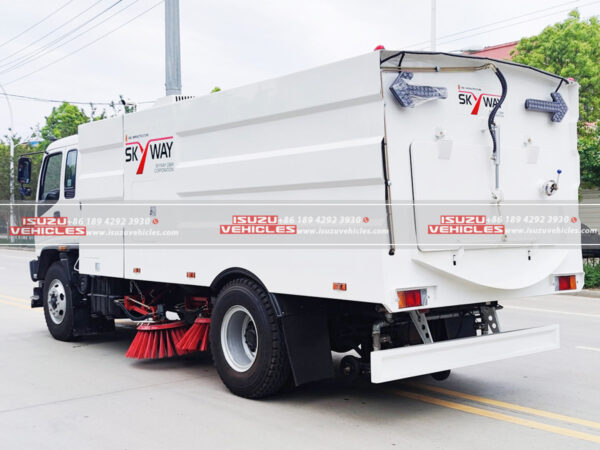

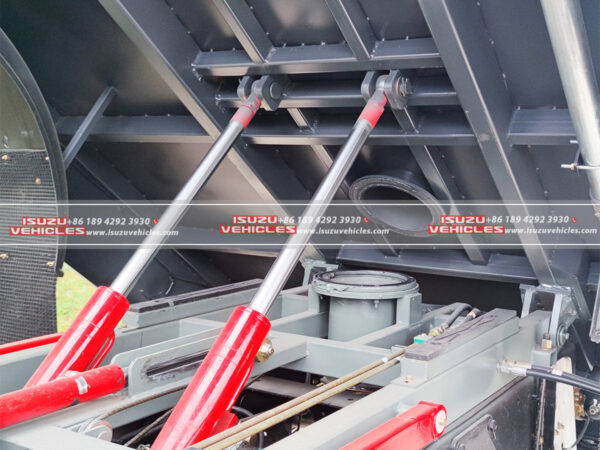

Euro 5 emission standards align with global sustainability goals, while the modular body design (quick-release panels, rear ejection system) simplifies maintenance and waste discharge.
Operational Safety
Reinforced tire configurations and anti-slip hydraulic controls enhance stability during high-speed sweeping and debris compaction.
SPECIFICATIONS
| GENERAL | |
| Make/Model | ISUZU / SL16QL240L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
7,480×2,345×2,580 (mm) |
| Gross Vehicle Weight | 18,000kg |
| Curb Weight | 7,395kg |
| Wheelbase | 4,500mm |
| Chassis Designed | ISUZU FVR |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spare (total 7 wheels) |
| Tire Size | 11.00R20 |
| ENGINE | |
| Make / Model | ISUZU / 6HK1-TCL |
| Type | 6 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 7.79 |
| Nominal Power | 240HP (177kw) @ 2400rpm |
| Peak Torque | 760N.m@1,450rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MLD |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 6F+1R |
| BODY SYSTEM | |
| Tanker Capacity | 16CBM(12m³ garbage tank+4,000L water tank) |
| Material | Stainless steel 304 |
| Auxiliary Engine | |
| Brand | CUMMINS |
| Power | 140HP |
| AIR BLOWER | |
| Type | High-pressure, centrifugal, sweeping truck-specific used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by an ancillary engine, automatic clutch, V belt powered |
| SWEEPING EQUIPMENT | |
| Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
| Sweep Width | 2.6~3.2m. |
| Sweep Diameter | 900mm |
| Sweep Speed | 3~20km/h |
| Max. Cleaning Capacity | 60000 m2/h |
| SUCTION EQUIPMENT | |
| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter suction port |
| Maximum Inhalation Particle Size | ≥100mm |
