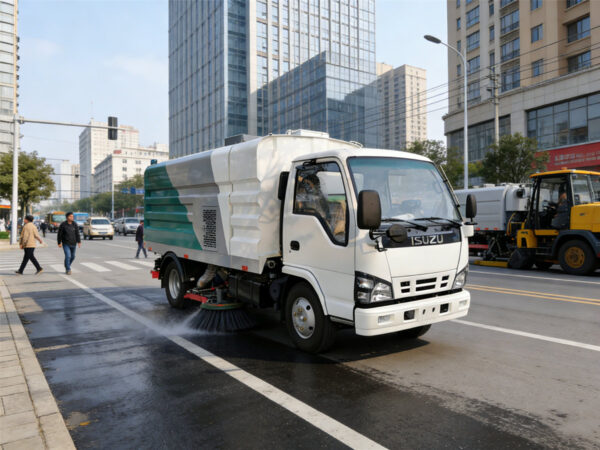

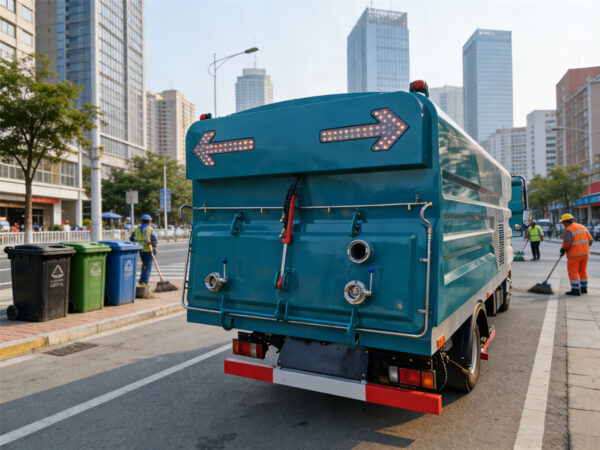

ISUZU 5 CBM Vacuum Sweeper Truck

The ISUZU 5 CBM Vacuum Sweeper Truck delivers robust, all-in-one street cleaning performance for demanding municipal and industrial applications. Built on the reliable ISUZU 600P 4×2 chassis with a steel construction, single-row flat day cab (left-hand drive) seating 3 passengers, this truck integrates a 5 cubic meter (CBM) stainless steel 304 debris/water tank with advanced mechanical sweeping and vacuum systems. Powered by a 130hp ISUZU Euro 5 diesel engine and supported by a dedicated 87HP ISUZU auxiliary engine, it excels in rapid debris collection, large-particle ingestion, and wide-area cleaning, making it ideal for urban roads, industrial parks, and event venues requiring high-throughput sanitation.

Features & Specifications

1. Chassis & Powertrain: Engineered for Reliability

• Sturdy Platform: Features a 5,925×2,000×2,580mm footprint with a 3,815mm wheelbase for optimal stability during operations. The 7,300kg GVW and 5,100kg curb weight are supported by a 2.58T front axle and 4.72T rear axle, riding on heavy-duty 9.00R20 6+1 tires.
• Emission-Compliant Power: Equipped with an ISUZU 4KH1CN5HS 130hp diesel engine meeting Euro 5 standards, paired with a rugged ISUZU/MSB manual transmission (5F+1R) for precise control in variable road conditions.

2. Tank & Body System: Durable Containment

• High-Capacity Storage: The 5 CBM tank (equivalent to 5,000L) is constructed from stainless steel 304 with a 6mm body thickness, ensuring corrosion resistance and structural integrity when handling abrasive debris, sludge, or de-icing solutions.

3. Cleaning Performance System: Precision Engineering

• Auxiliary Power Unit: A standalone 87HP ISUZU engine drives all cleaning systems independently, eliminating power drain from the main chassis and ensuring consistent performance.
• High-Pressure Debris Handling: Utilizes a specialized high-pressure centrifugal blower operating at 2,600–2,900 rpm, powered via V-belt drive with automatic clutch for seamless engagement.

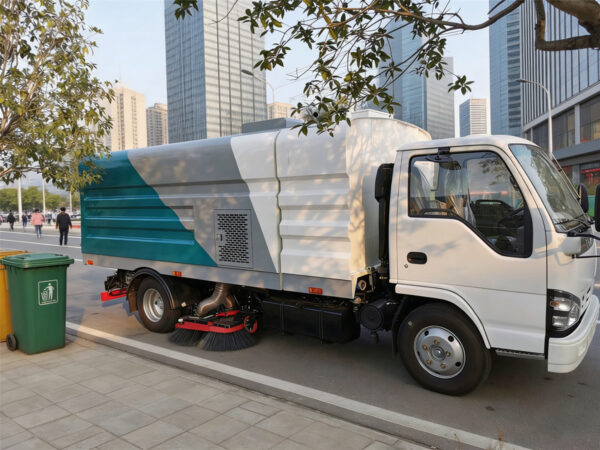

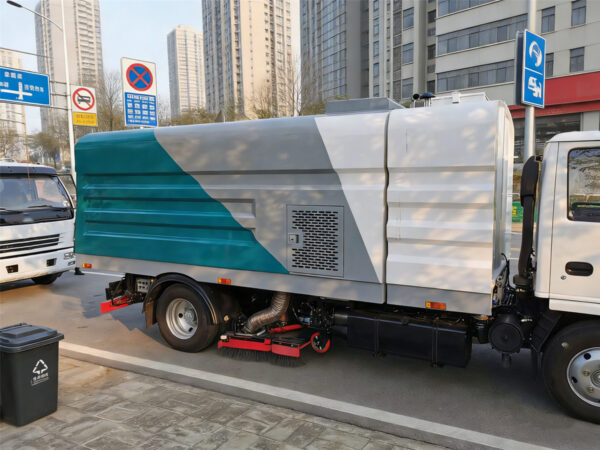

• Four-Disc Sweeping System: Features motor-driven brooms (symmetrically mounted between axles) covering a 2.6–3.2m sweep width, effectively dislodging debris from curbs, gutters, and uneven surfaces.
• Industrial-Grade Suction: Incorporates a full-floating hydraulic suction nozzle with 200mm diameter port, the sweeper truck is capable of ingesting particles ≥100mm (e.g., bottles, rubble). Its independent forward operation and 200mm vertical adjustment adapt to complex terrain.

4. Operational Efficiency: Designed for Productivity

• Dual-Function Capability: Simultaneously sweeps loose debris and vacuums heavy solids, reducing pass counts. The wide suction path and aggressive broom system enable rapid area coverage.
• Road Compliance: Compact dimensions and tight turning radius facilitate navigation in dense urban environments, while Euro 5 compliance ensures access to low-emission zones.
