BRIEFS:

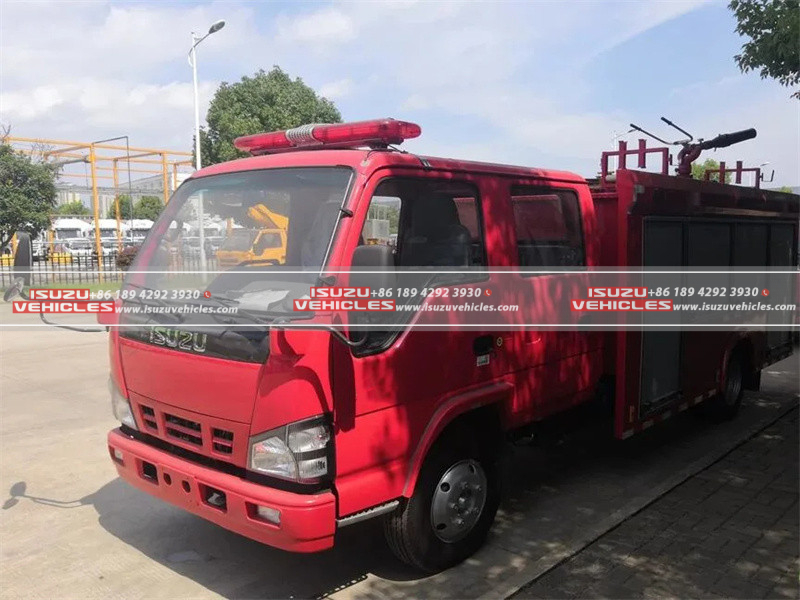

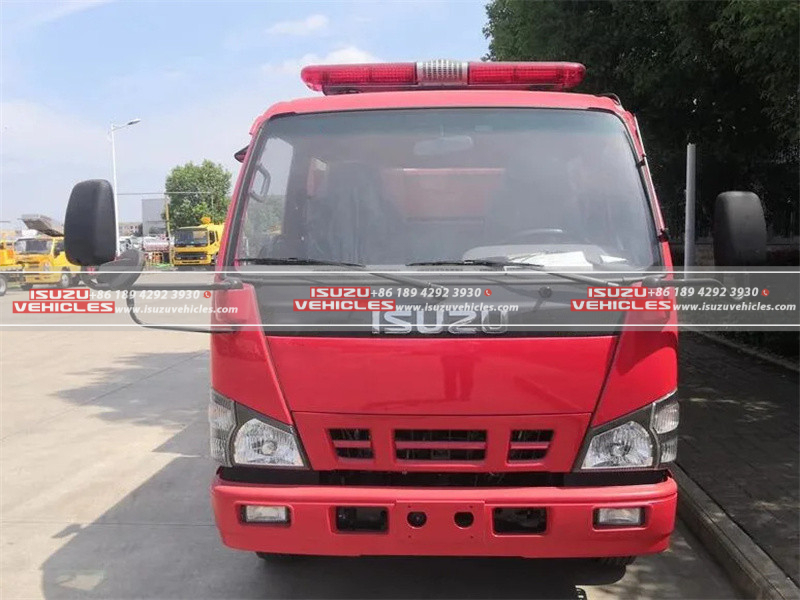

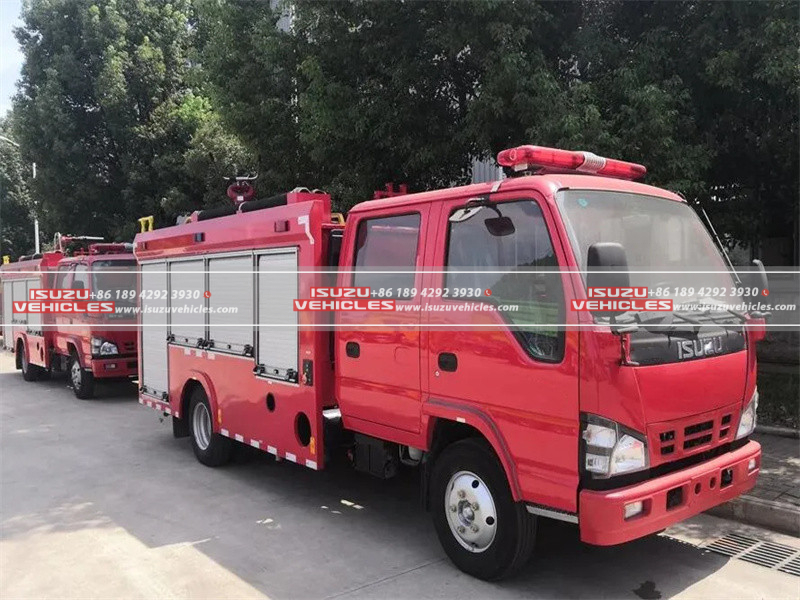

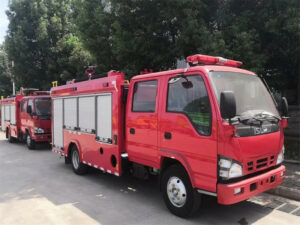

The ISUZU 8 Ton Water Tank Foam Fire Truck is a powerful and versatile firefighting vehicle designed to combat fires effectively. With its impressive specifications and advanced features, it provides a reliable solution for fire and rescue missions.
This ISUZU Fire Truck‘s advanced firefighting capabilities, precise control, and reliability make it an ideal choice for addressing various fire-related challenges and ensuring the safety of both firefighting teams and the community.
FEATURES:
Advanced Firefighting Equipment:
- Fire Pump Performance: The fire truck is equipped with a high-performance CB10/20 fire pump capable of delivering a rated flow of 20L/s at 1.0MPa. This powerful pump ensures an efficient water supply for firefighting operations.
- Vacuum Pump: A vacuum pump is integrated into the system, allowing for quick and reliable priming of water. This feature minimizes delays in responding to emergencies.
- Dual Fire Pump Outlets: With two fire pump water outlets, this vehicle provides flexibility in directing water or foam to different firefighting locations simultaneously, enhancing firefighting efficiency.
Precise Control and Monitoring: 4. Pressure and Vacuum Gauges: The fire truck is equipped with accurate pressure gauges (0-1.6MPa) and vacuum gauges (-0.1 to -1MPa). These gauges enable firefighters to monitor water pressure levels closely during firefighting operations.
- Water Monitor (PS20):
- Injection Pressure: The PS20 water monitor delivers high-pressure water with an injection pressure of Water: ≥45m at 1.0MPa, ensuring effective fire suppression.

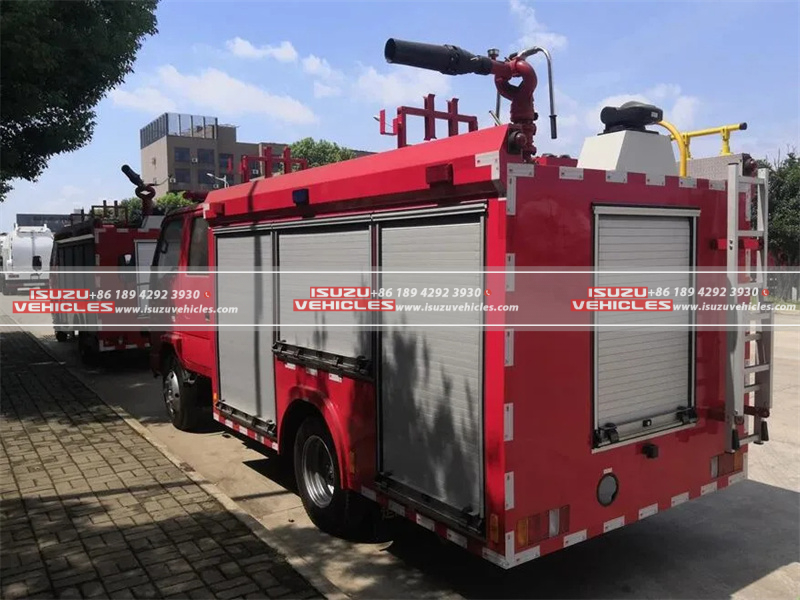

- 360° Turning Angle: The water monitor offers a full 360° turning angle, allowing firefighters to target flames from multiple angles without repositioning the vehicle.
- Wide Depression/Elevation Angle Range: The monitor’s depression/elevation angle range from -15° to +60° enables precise control when aiming the water or foam.

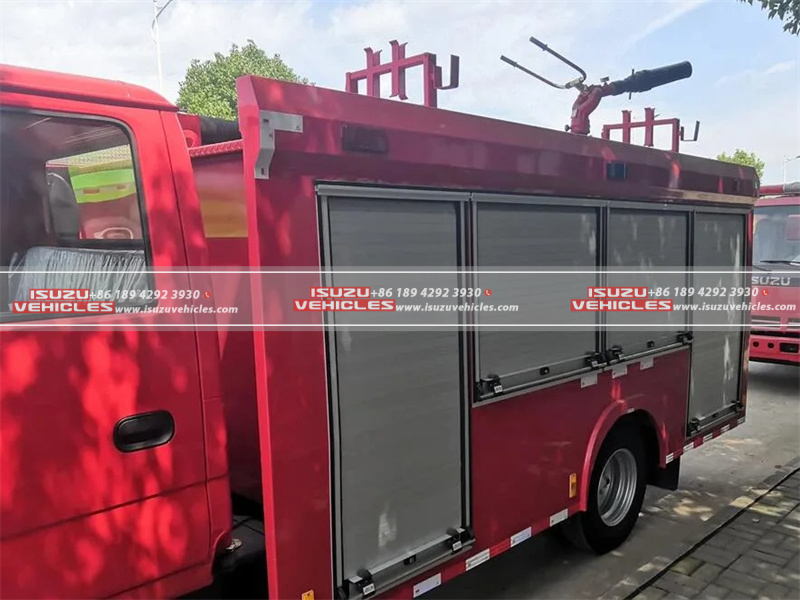

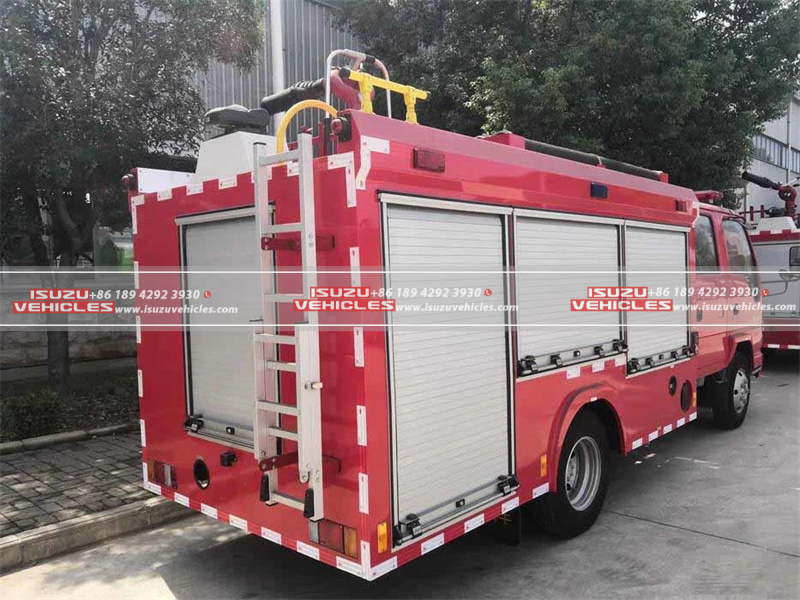

Built-In Water Tank: 6. Water Tank Capacity: The fire truck features a built-in water tank with a substantial capacity of 1000kg. This tank provides a consistent and reliable source of water during firefighting operations, reducing the need for external water sources.
Durable and Reliable Construction: 7. Chassis and Engine: The fire truck utilizes a sturdy ISUZU chassis and a powerful 88kW engine (4KH1-TCG40), ensuring durability, reliability, and efficient operation during emergencies.
Maneuverability and Accessibility: 8. Driving Type: Operating on a 4×2 driving system, the fire truck can access narrow or congested urban areas with ease.
Safety and Crew Comfort: 9. Passenger Capacity: The extended cab accommodates a total of 2+3 passengers, providing comfortable and safe seating for firefighting crews.
SPECIFICATIONS:
Model Parameters | Value | Others |
---|---|---|
Overall Dimension | 6185×2020×2750mm | |
GVW | 7300kg | |
Engine Model | 4KH1-TCG40 | |
Engine Power | 88kW | |
Wheelbase | 3815mm | |
Driving Type | 4×2 | |
Max. Speed | 105km/h | |
Emission Standard | 2999ml | Euro4 |
Passengers | 2+3 | |
Fire Pump Rated Flow | 20L/[email protected] | Vacuum pump |
Water Monitor Rated Flow | 20L/[email protected] | |
Water Monitor Range | Water range≥45m | |
Approach Angle | ≥21° | |
Departure Angle | ≥13° |
Fire Performance Parameters:
Item | Parameters | Others |
---|---|---|
Water Tank Capacity | Water: 1000kg | Built-in type |
Fire Pump Model | CB10/20 | |
Fire Pump Performance | 20L/[email protected] | Use a vacuum pump to prime the water |
Installation Site of Fire Pump | Rear | |
Quantity of Fire Pump Water Outlets | 2 | |
Pressure Gauge | 0-1.6 Mpa | 2.6 level |
Vacuum Gauge | -0.1- -1 MPa | 2.6 level |
Water Monitor (PS20) | Value | Others |
Injection Pressure | Water: ≥45m | 1.0Mpa |
Depression/Elevation Angle | -15°~+60° | |
Turning Angle | 360° | |
PTO Model | YTQ200 (12V), MOTOR |
