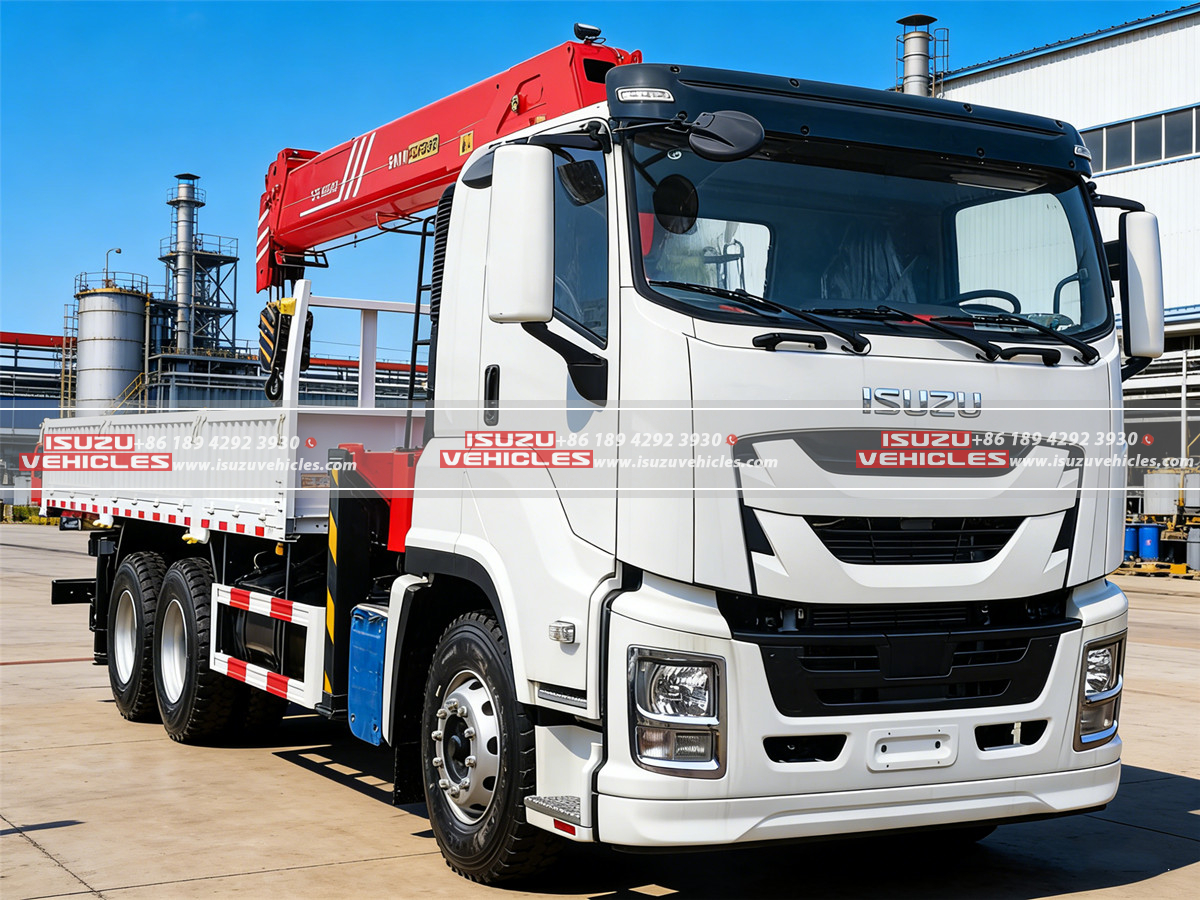

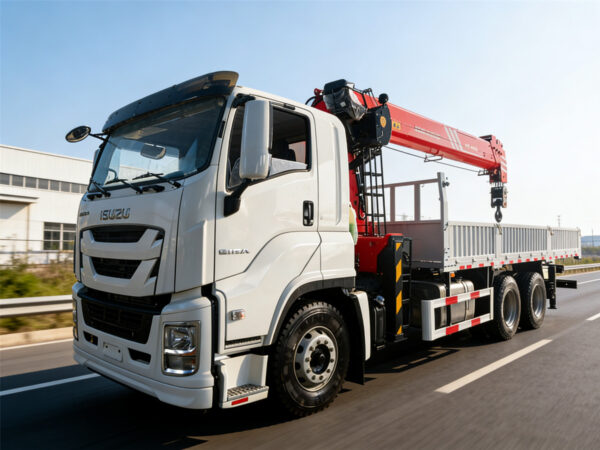

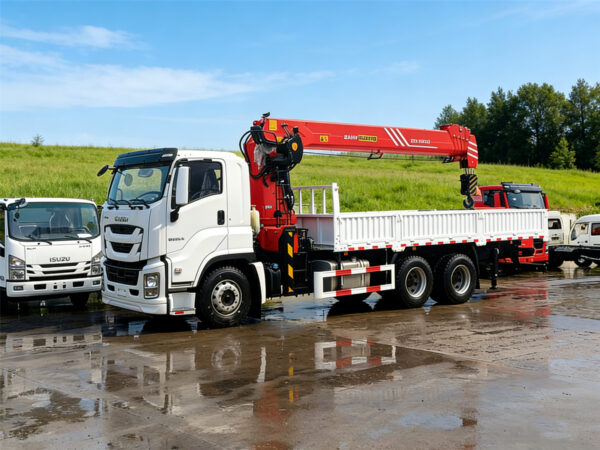

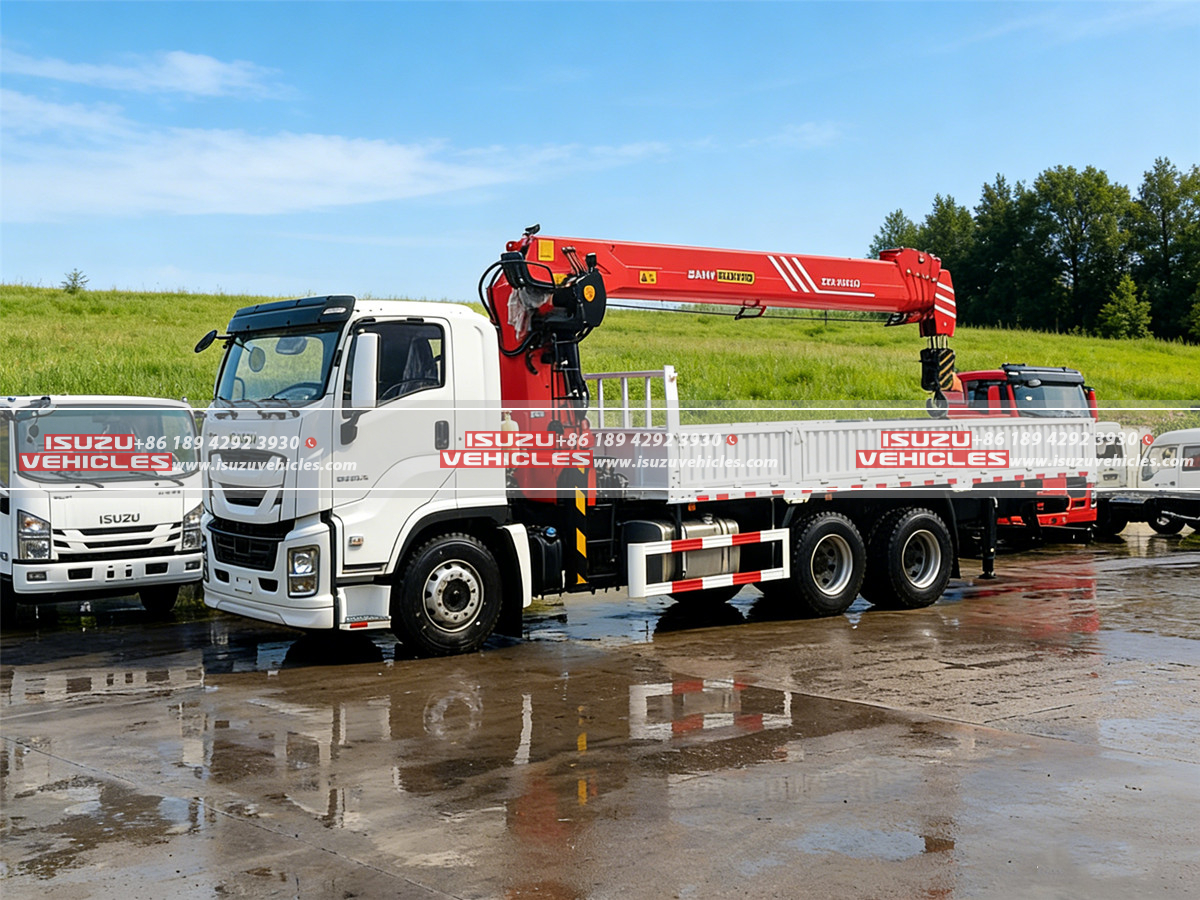

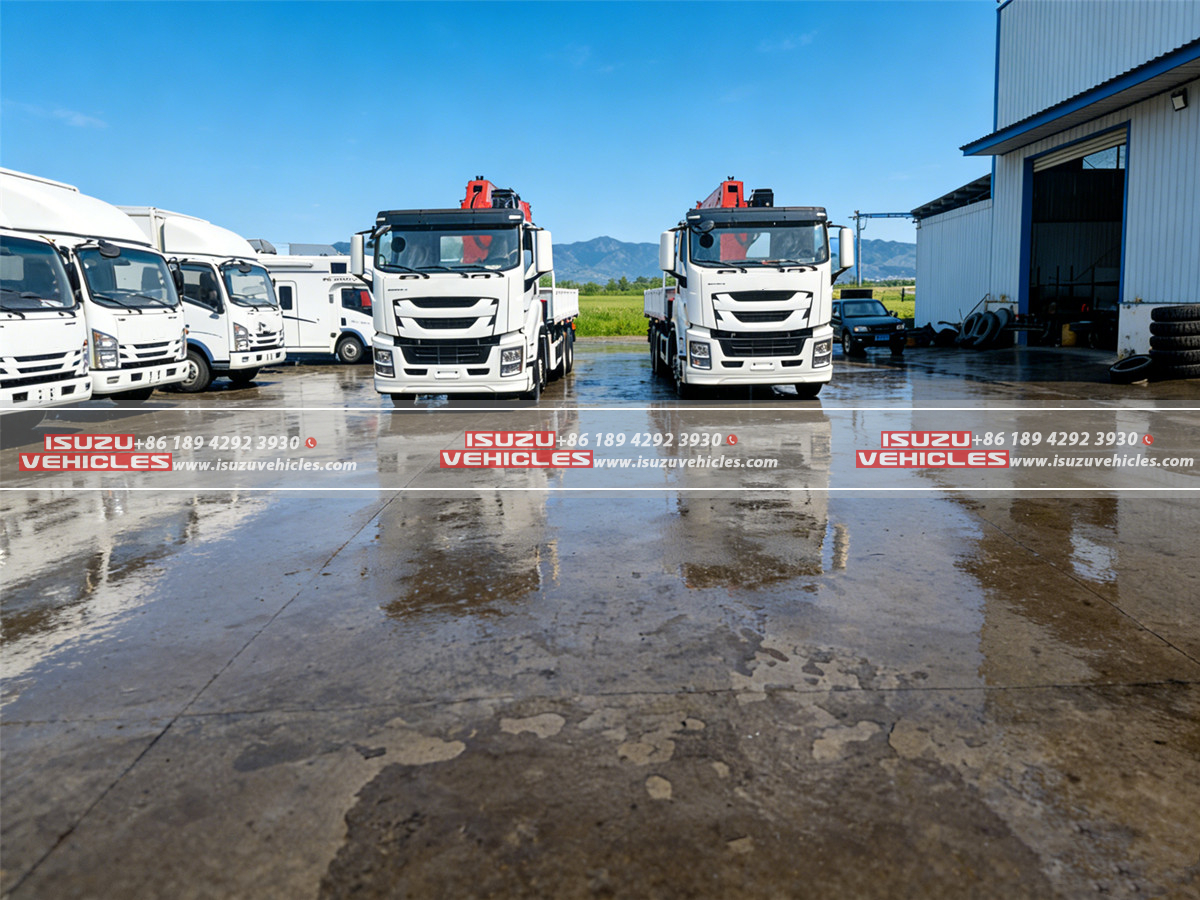

ISUZU 16T PALFINGER Heavy-Duty Telescopic Boom Truck
The ISUZU 16T PALFINGER Heavy-Duty Telescopic Boom Truck is a premium-grade lifting and transport solution engineered for high-intensity industrial applications, combining the strength of the ISUZU QL1251FTFZY 6×4 chassis with the advanced PALFINGER SPS40000C-F telescopic crane, delivering outstanding lifting performance, structural durability, and operational efficiency for construction, energy, and infrastructure projects.
At the core of this heavy-duty machine is the reliable Isuzu Motors 6HK1-TCG60 diesel engine, capable of producing 221 kW (300 HP) at 2400 rpm from a 7.79L turbocharged and intercooled inline 6-cylinder configuration, ensuring consistent torque delivery and fuel-efficient performance even under continuous heavy-load operations. This powertrain is paired with a FAST 9-speed manual transmission (9JS119TA), offering 9 forward gears and 1 reverse gear, enabling precise gear selection, improved drivability, and enhanced control across varied terrains and working conditions.
The 6×4 drive configuration ensures optimal traction and load distribution, while the extended wheelbase (5100+1370 mm) and reinforced multi-leaf spring suspension system (7/10) provide excellent structural stability and load-bearing capacity. With a gross vehicle weight of 27,000 kg, this truck is designed to handle both heavy cargo transportation and large-scale lifting operations efficiently.

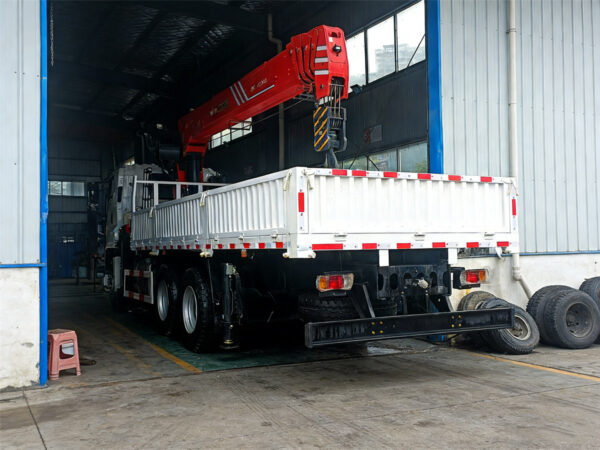

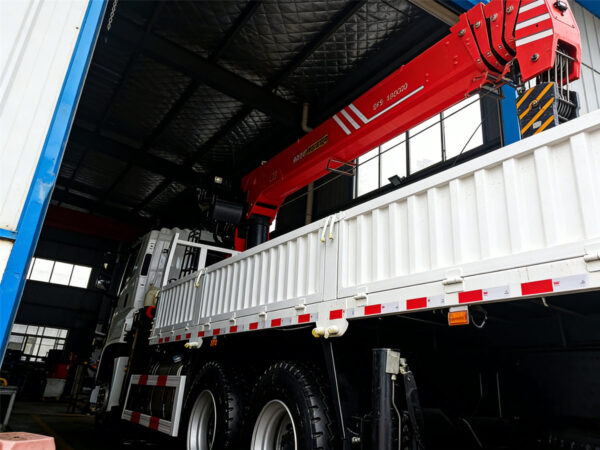

The ISUZU VC61 5X sleeper cabin, designed with operator comfort in mind, features air conditioning, central locking, and electric windows, creating a modern and ergonomic workspace for long operational hours. Complementing its lifting capabilities, the truck is equipped with a durable CSCTRUCK cargo box (6000 mm length), constructed with 5 mm floor plates and 3 mm side plates, enabling efficient material transport alongside crane operations.
Features
High-Capacity PALFINGER SPS40000C-F Crane System
The integrated PALFINGER SPS40000C-F telescopic crane delivers a rated lifting capacity of 16,000 kg at 2.5 meters and a powerful rated lifting moment of 40 mt, making it ideal for heavy industrial lifting tasks such as machinery installation, steel structure handling, and large-scale construction operations.
Extended Reach and Superior Working Coverage
With a maximum outreach of 18.6 meters and a maximum lifting height of 21.5 meters, the crane offers exceptional working range for both horizontal and vertical operations. The 5-section telescopic boom, extending from 6.23 meters to 19 meters, ensures flexibility and efficiency in complex and large-scale job environments.
Precision Operation and Advanced Control
The crane system features continuous 360° slewing, enabling smooth and uninterrupted rotation, while the boom raising angle from 0° to 75° allows for precise positioning across a wide range of lifting scenarios. The combination of floor control and remote control systems enhances operational flexibility, safety, and ease of use, allowing operators to manage lifting tasks from optimal positions.
High-Performance Hydraulic System
Engineered for demanding lifting operations, the crane is equipped with a high-efficiency hydraulic system, featuring:
- Recommended system flow: 80–110 L/min
- Operating pressure: 32 MPa
- Large oil tank capacity: 300 L
This configuration ensures fast response times, smooth operation, and reliable performance under continuous heavy workloads.
Enhanced Stability and Structural Strength
With fully extended outriggers spanning 7.25 meters and an additional rear outrigger span of 4.8 meters, the truck provides exceptional stability during lifting operations. The crane system delivers a dynamic lifting moment of 913.8 kNm (93.1 mt) and a torsional moment of 52.5 kNm, ensuring structural integrity and safe operation even under high dynamic loads.
Heavy-Duty Chassis and Road Performance
The ISUZU 6×4 chassis platform is designed for durability and long-term reliability, featuring:
- Front axle capacity of 7,000 kg and dual rear axles of 2×10,000 kg
- Durable tire configuration (295/80R22.5, 10+1 units)
- 400L fuel tank for extended operational range
- ABS braking system for enhanced driving safety
- Maximum speed up to 105 km/h
These features ensure stable performance across long-distance transport and demanding job-site conditions.
Integrated Lifting and Transport Solution
The combination of a 6000 mm cargo box, a high-capacity crane, and advanced hydraulic systems allows this vehicle to function as a comprehensive cargo truck with heavy-duty lifting capability, significantly reducing the need for additional machinery and improving operational efficiency in construction, logistics, and industrial sectors.
The ISUZU 16T PALFINGER Heavy-Duty Telescopic Boom Truck is engineered to deliver maximum lifting power, extended reach, and exceptional durability, making it an ideal solution for enterprises requiring reliable, high-performance equipment for complex and large-scale operations.
SPECIFICATIONS
| Item | Details |
|---|---|
| Chassis Model | QL1251FTFZY |
| Drive Type | 6×4, LHD |
| Engine | ISUZU/6HK1-TCG60 |
| Displacement | 7.79 L |
| Output Power | 221 kW (300 HP)/2400 rpm |
| Engine Type | 6-Cylinder in-line, Diesel engine, Turbocharged and intercooled |
| Cabin | ISUZU/VC61 5X, Sleeper cab, 2 seats |
| Cabin Features | AC, Central locking, Electric windows |
| Transmission | FAST/9JS119TA, 9F&1R, Manual |
| Front Axle | 7000 kg |
| Driving Axle | 2×10000 kg |
| Rim/Tire | 295/80R22.5 18PR, 10+1 nos |
| Wheel base | 5100+1370 mm |
| Overall dimension | 11000×2550×3750 mm |
| Gross weight | 27000 kg |
| Max. speed | 105/89 km/h |
| Color | White |
| Fuel tank | 400 L |
| ABS | Yes |
| Suspension | Front and rear reinforced multi-leaf springs 7/10 |
| Emissions | EURO 5 |
| Crane | PALFINGER/SPS40000C-F |
| Rated lifting moment | 40 mt |
| Rated lifting capacity | 16000 kg (2.5 m) |
| Max. outreach | 18.6 m |
| Max. lines of the hook | 6 |
| Slewing angle | Continuous |
| Boom raising angle | 0~75° |
| Max. lifting height | 21.5 m |
| Length of the basic boom | 6.23 m |
| Length of fully extended boom | 19 m |
| Boom sections | 5 |
| Outrigger span (fully extended) | 7.25 m |
| Recommended volume for system | 80~110 L/min |
| Operating pressure | 32 Mpa |
| Recommended oil tank capacity | 300 L |
| Crane moment (dynamic) | 913.8 kNm / 93.1 mt |
| Torsional moment (dynamic) | 52.5 kNm / 5.4 mt |
| Control | Floor control |
| Remote Control | Equipped |
| Rear Outrigger | 4.8 m span |
| Crane Weight | 5980 kg |
| Cargo Box | 06CB |
| Cargo Box Length | 6000 mm |
| Cargo Box Side plate | 3 mm |
| Cargo Box Floor plate | 5 mm |
