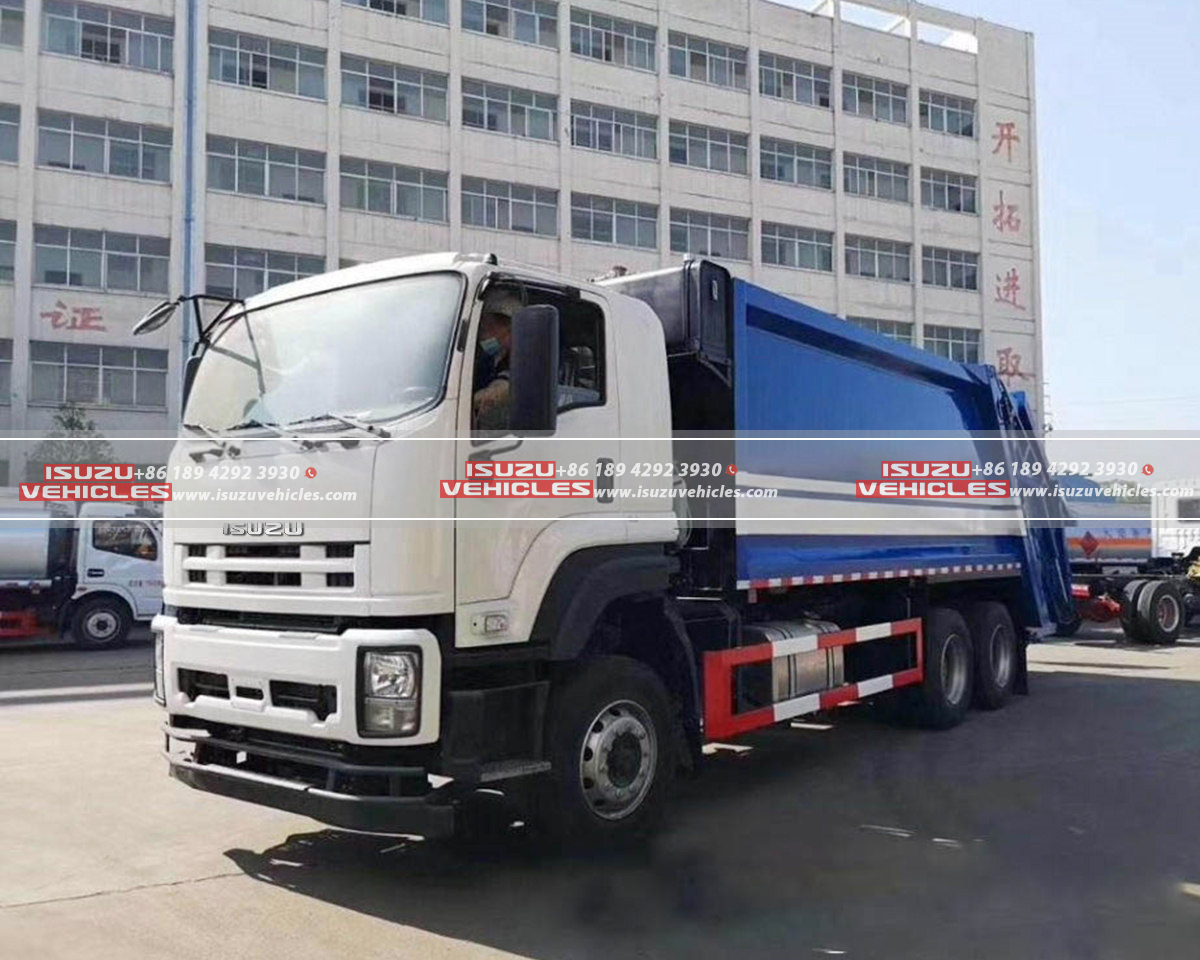

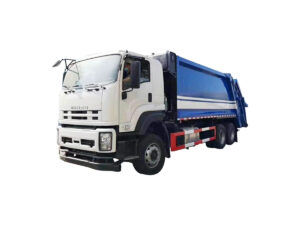

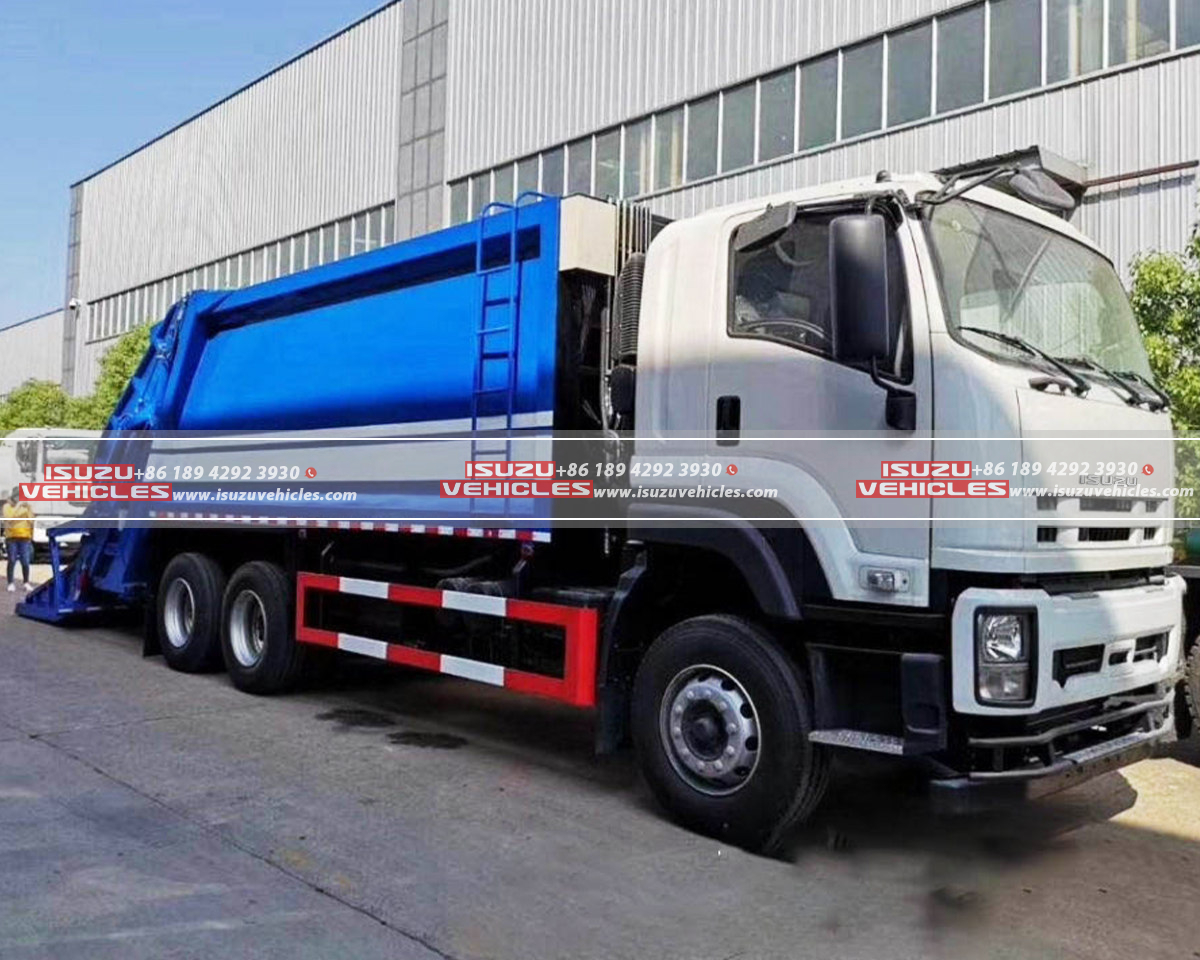

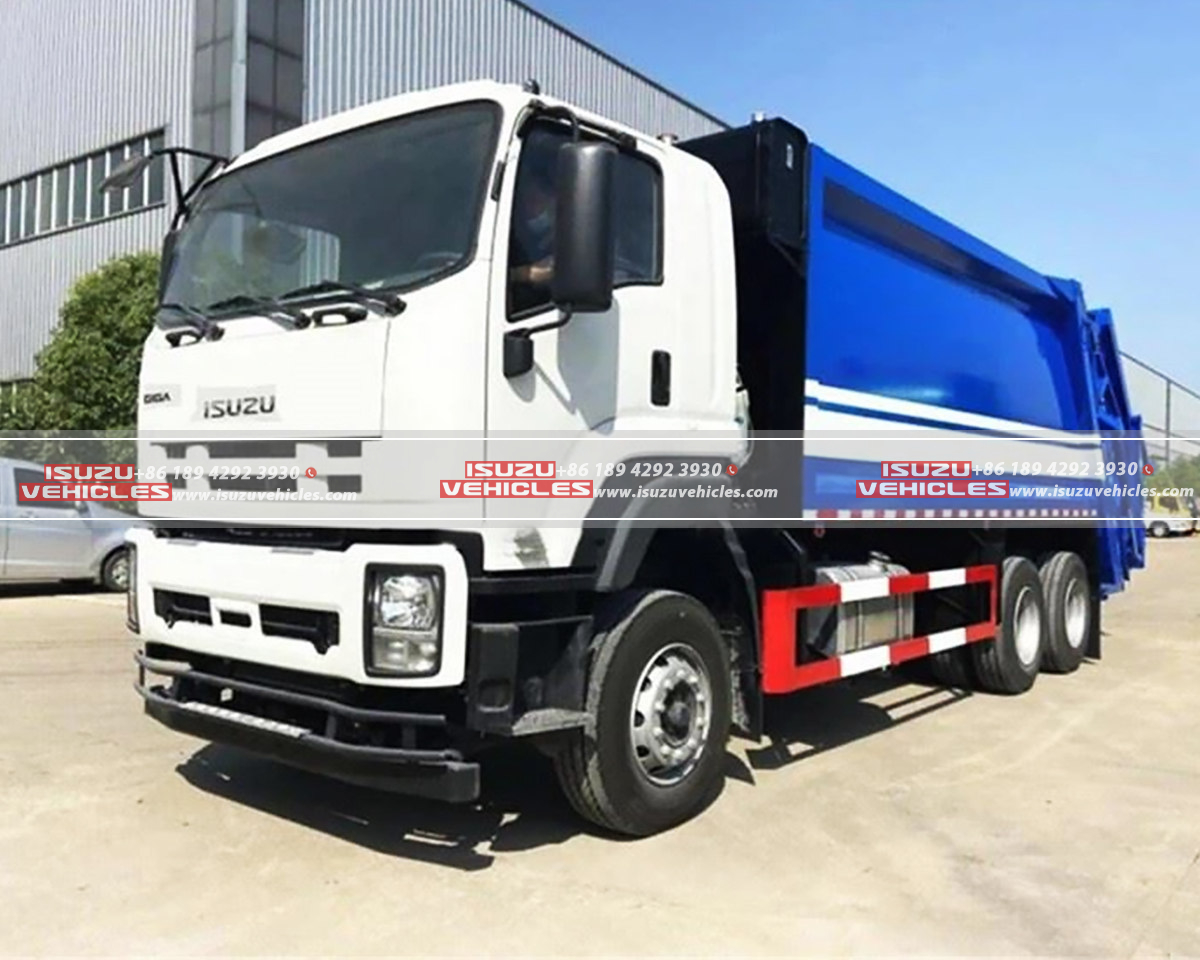

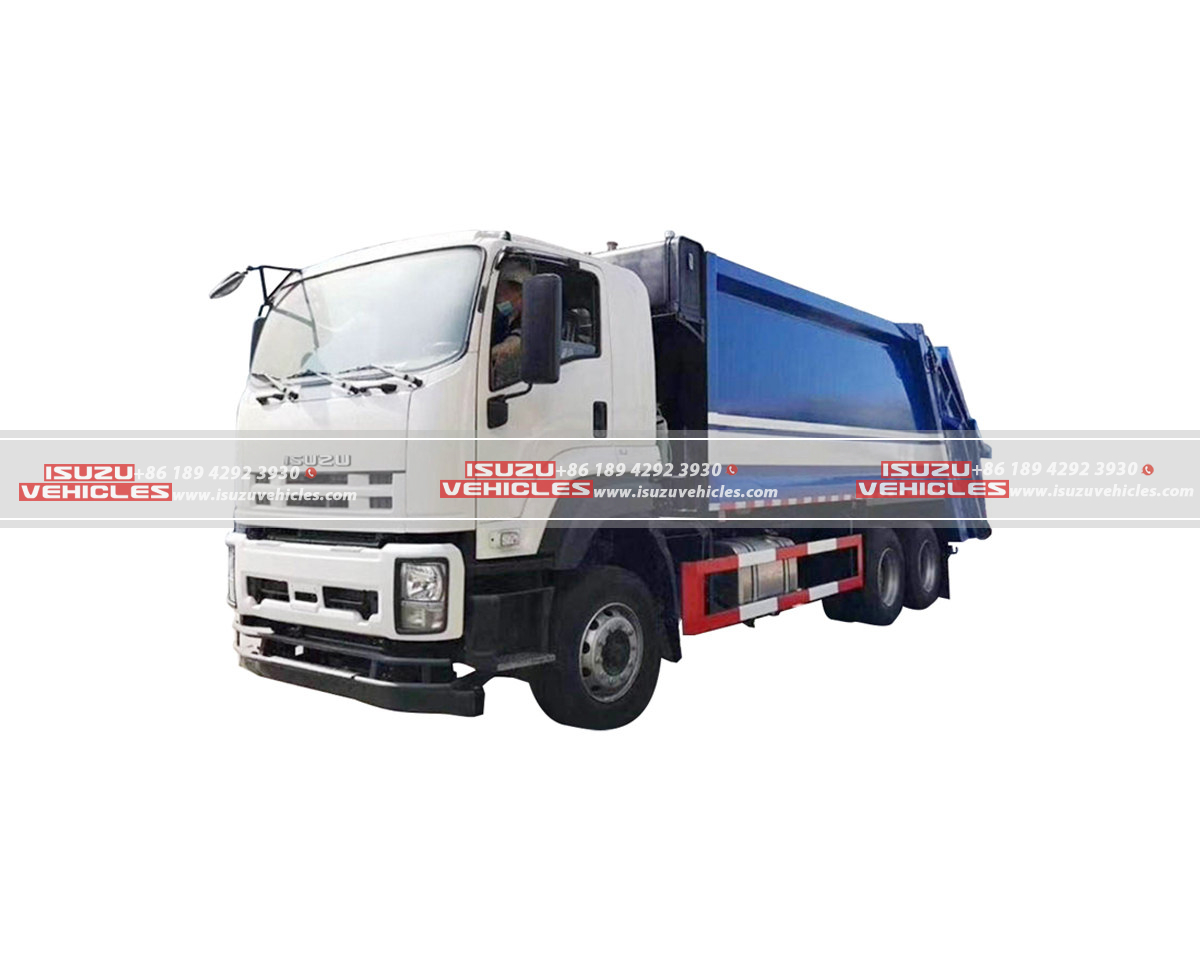

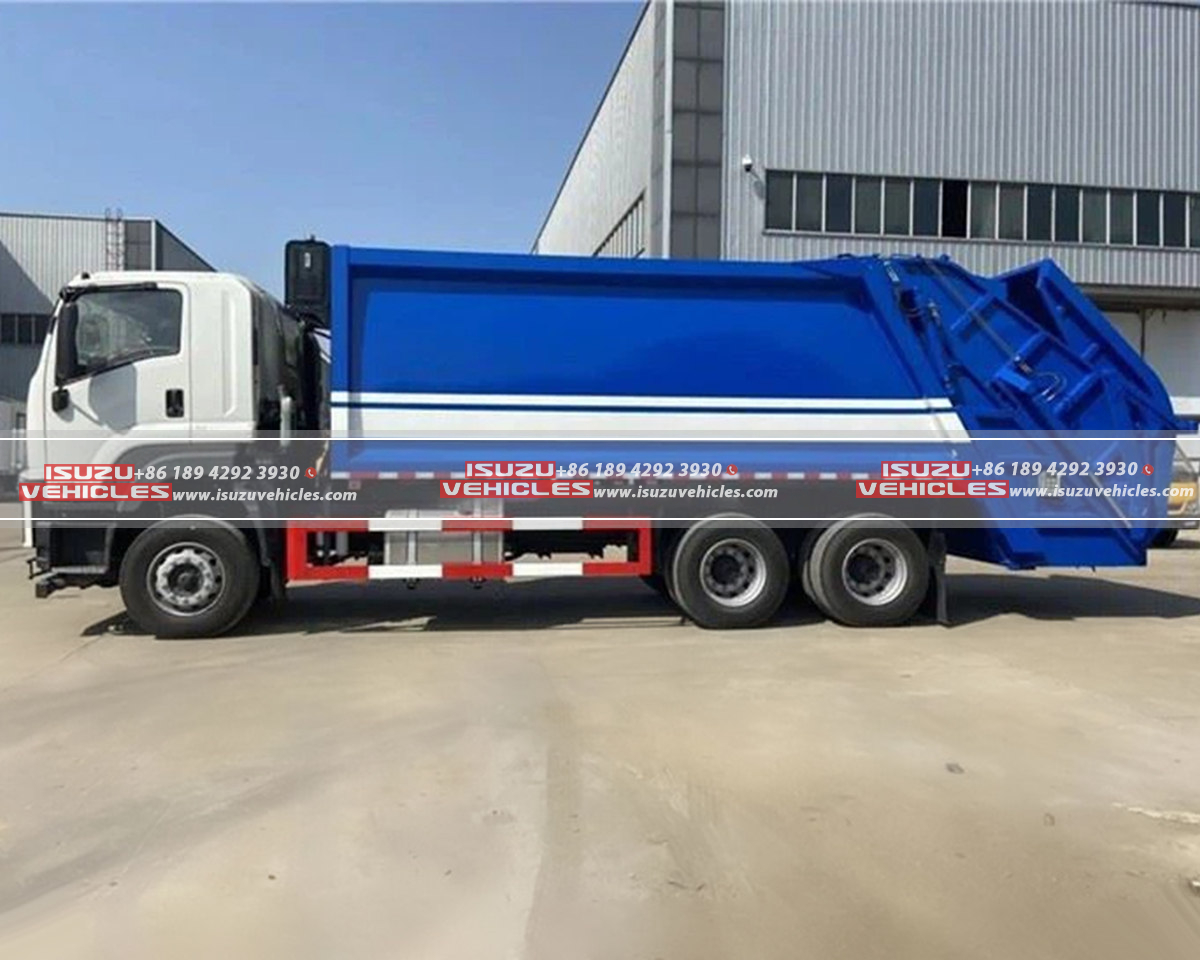

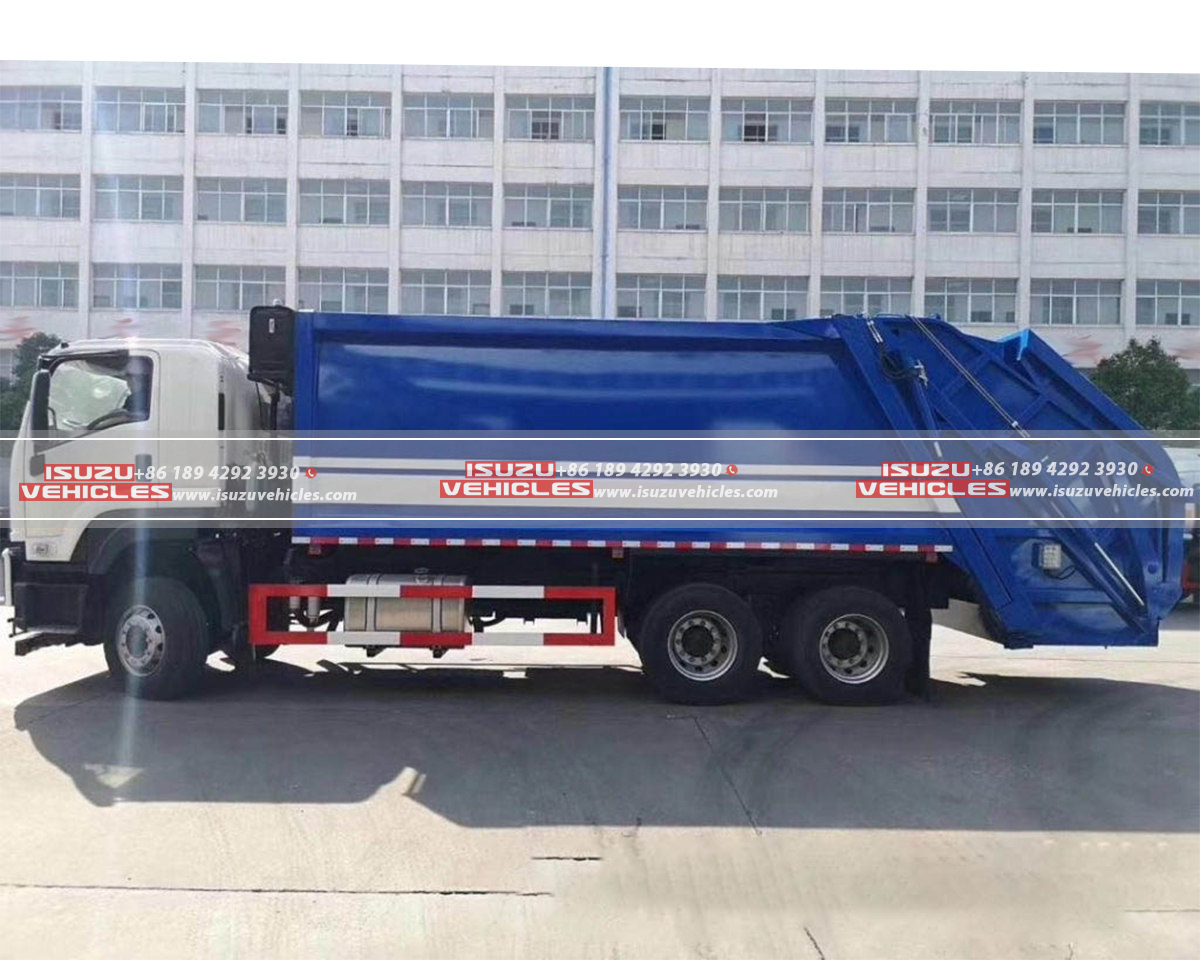

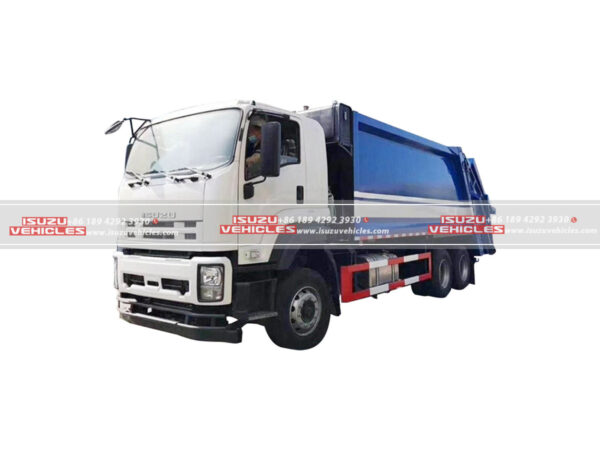

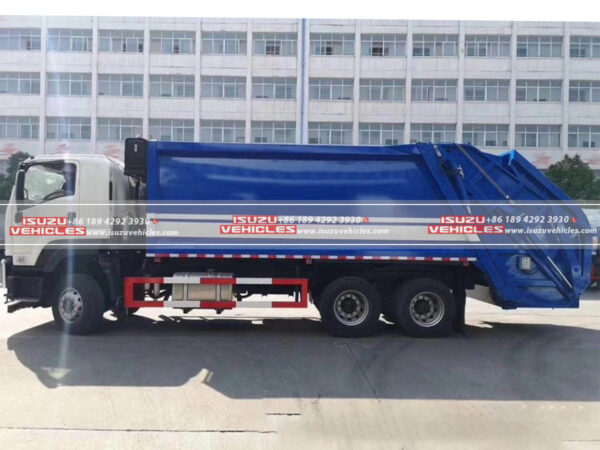

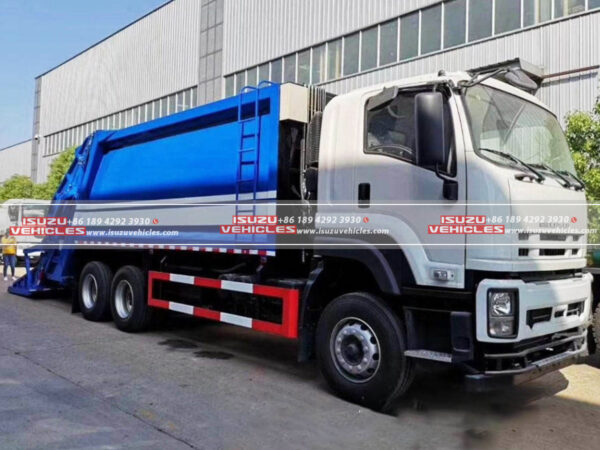

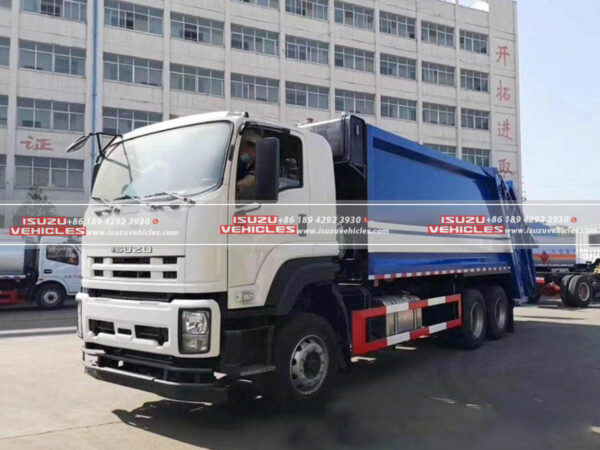

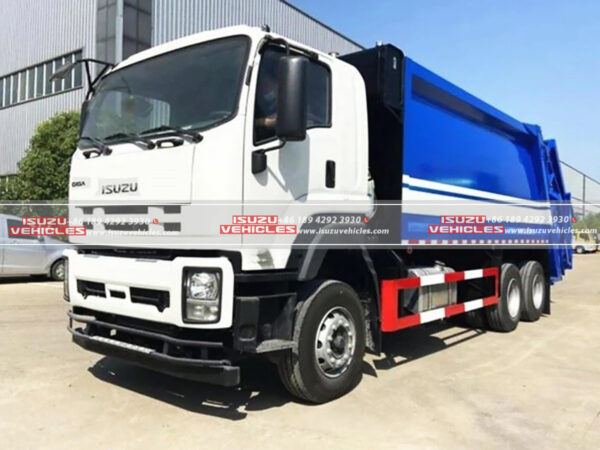

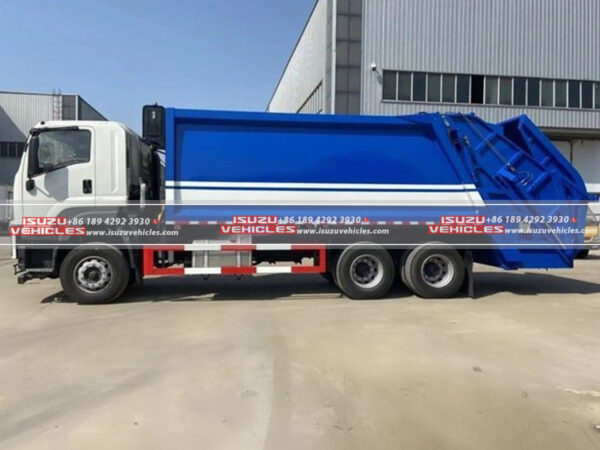

The ISUZU 18CBM garbage compressor truck is an ISUZU GIGA garbage truck designed for efficient waste management. It features a 4×2 left-hand drive, with an overall dimension of 10,270 x 2,545 x 3,380mm and a gross vehicle weight of 25,000kg. The truck is powered by an ISUZU 6UZI-TCG51 engine that produces 350HP @ 2,000rpm and a peak torque of 1,422N.m @ 1,400rpm, meeting Euro 5 emission standards. The transmission is a ZF 8S2030TO, with 8 forward speeds and 2 reverse. The body has a capacity of 18m3, made of high corrosion-resistant Q235 carbon steel with various thicknesses and high tensile steel sheets.
The tailgate has safety props and anti-dropping safety valves to prevent sudden falls. The compaction ratio varies between 3:1 to 6:1, and the garbage capacity of the loading hopper is around 2m3. The truck is equipped with hydraulic components and a PLC control box, enabling start, stop, 1-cycle, continuous cycles, and rescue activities.
GENERAL | |
Make/Model | ISUZU / GC18QL350L5 |
Drive Type | 4×2 Left-Hand Drive |
Overall Dimension
(L x W x H) |
10,270×2,545×3,380(mm) |
Gross Vehicle Weight | 25,000kg |
Curb Weight | 16,620kg |
Wheelbase | 4,565+1,370mm |

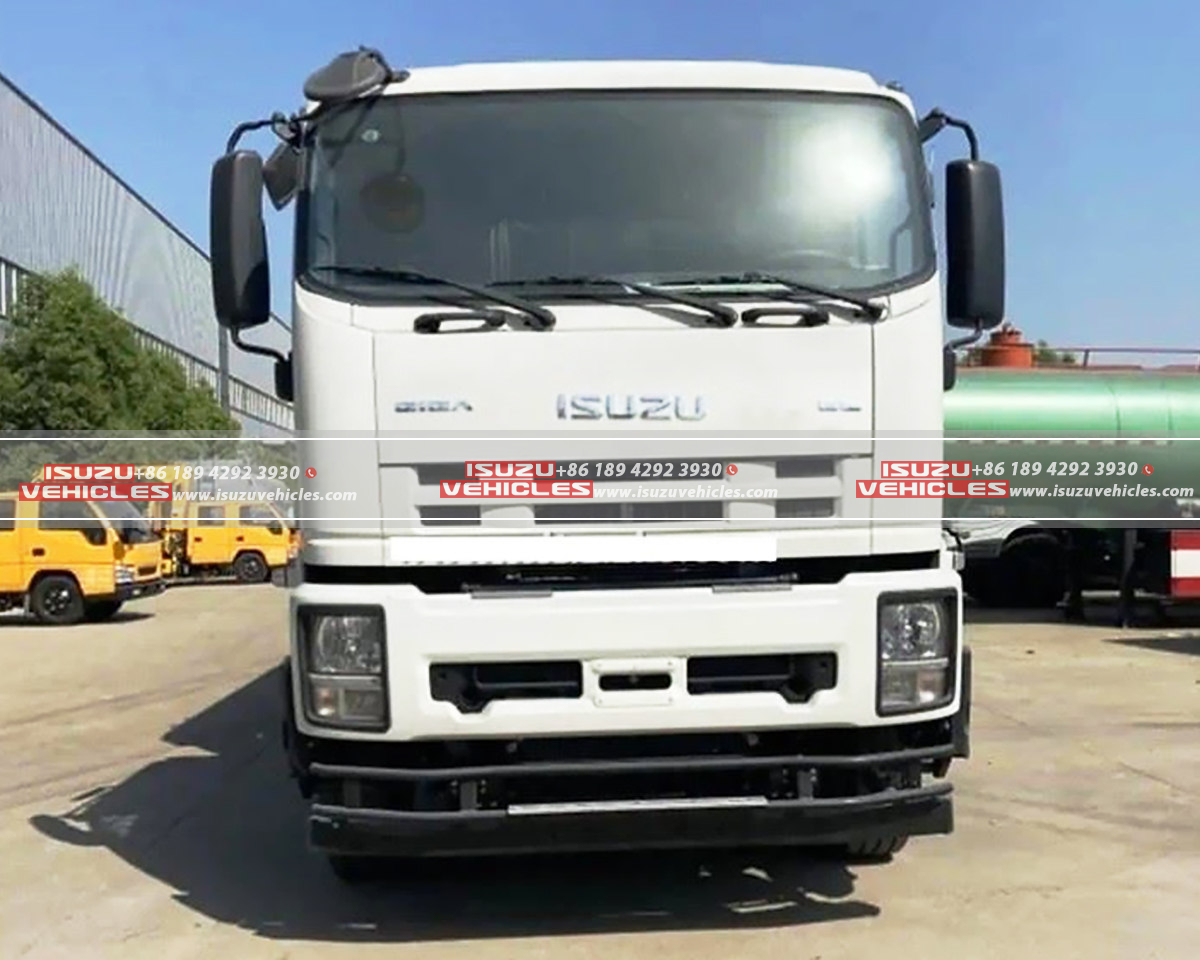

Chassis Designed | ISUZU GIGA |

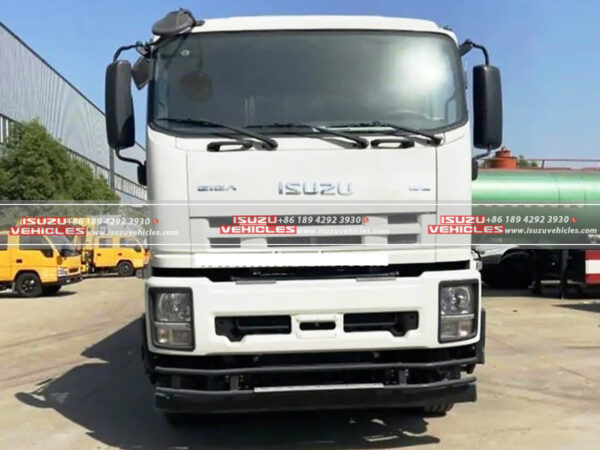

Cabin | Hydraulic power steering type.
1 driver+2 passengers |
Drive wheel(Tires ) | 6+4 and one spare (total of 11 wheels) |
Tire Size | 315/80R22.5 |
ENGINE | |
Make / Model | ISUZU / 6UZI-TCG51 |
Type | 6 cylinders in line, 4 strokes direct injection, water cooling, Intercooler Turbocharged |
Displacement | 9,839L |
Nominal Power | 350HP (257kW) @ 2,000rpm |
Peak Torque | 1,422N.m@1,400rpm |
Emission Standard | Euro 5 |
TRANSMISSION | |
Make / Model | ZF/ 8S2030TO |
Type | Diesel |
Operation | Manual |
Number of Speeds | 8F+2R |
CONSTRUCTION | ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate |
CAPACITY | 18m3 |
BODY STEEL | |
Garbage Container | High corrosion resistance Q235 carbon steel 5mm thickness of body floor, 4mm thickness of side and roof. (equivalent as IS-2062 Grade A or ASTM a36) |
Hopper Floor | NM450 (similar to HARDOX) wear-resistant, high tensile steel sheet. |
Tailgate Sheet | High tensile steel sheet 4 mm thickness |
Compaction Plate | High tensile steel sheet 5 mm thickness |

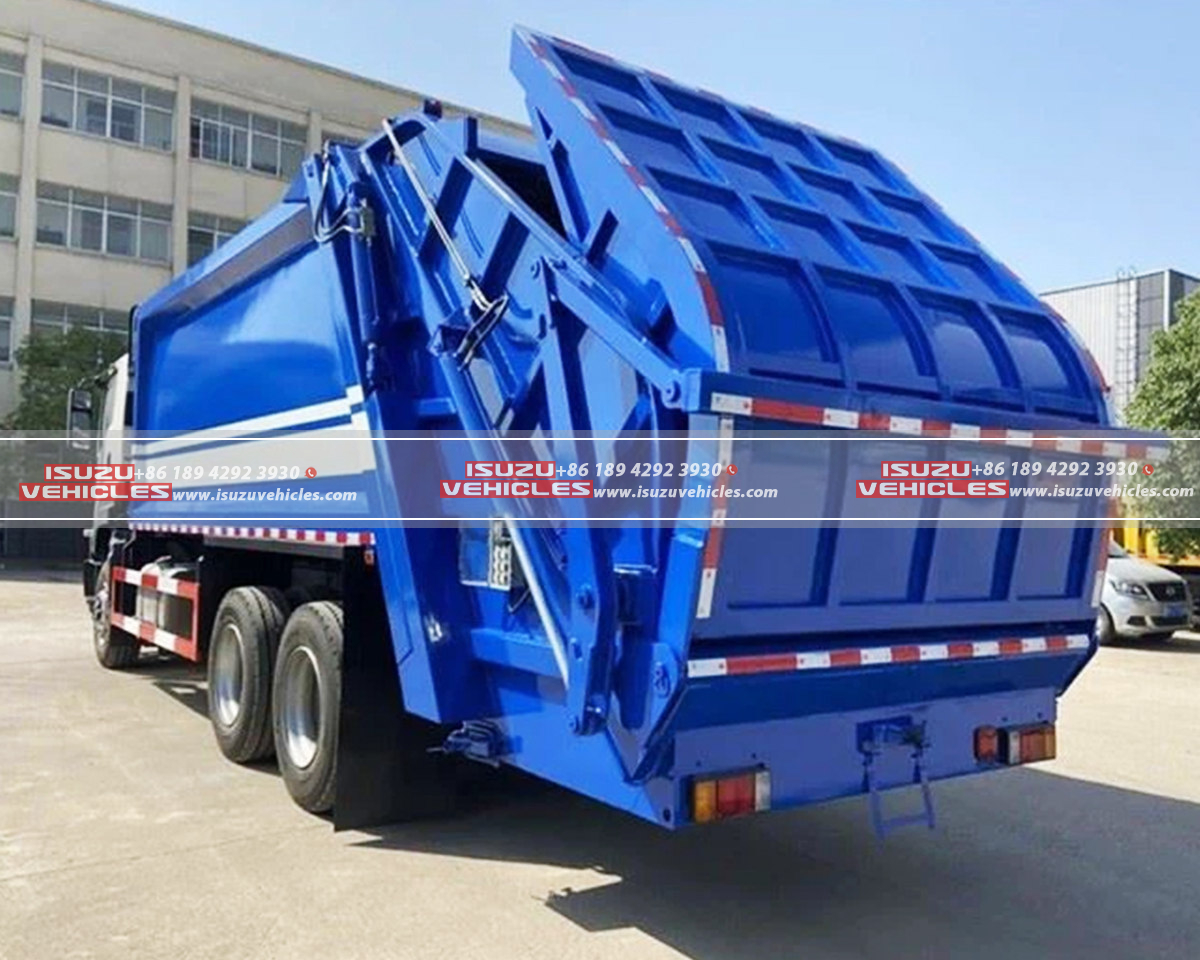

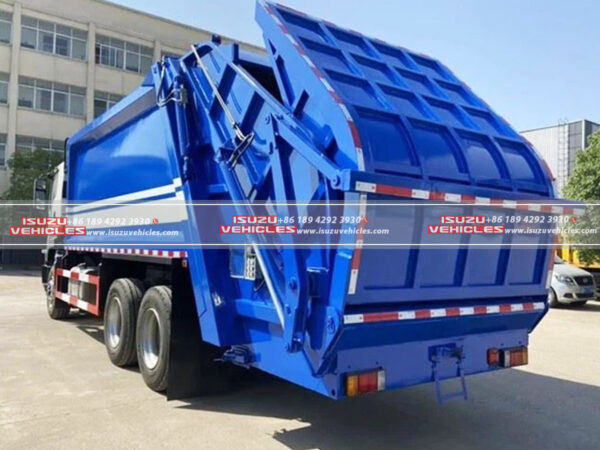

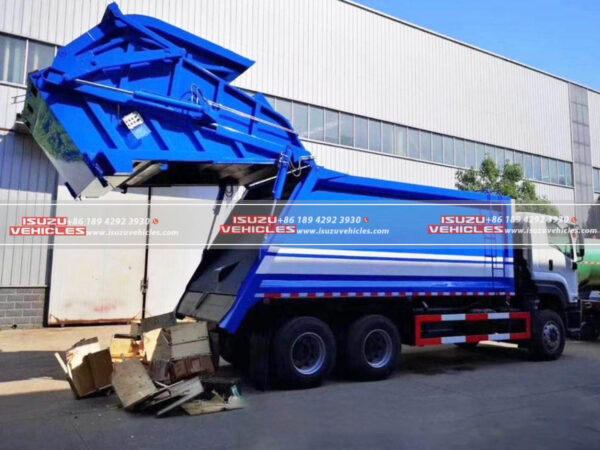

TAILGATE (REAR HOPPER) | Tailgate Floor, rear hopper floor extension inside body and side wall.
The tailgate is connected to the body with top hinges and opened upwards by means of two units double acting hydraulic cylinders |
COMPACTION RATIO | The compaction ratio (volumetric) varies between 3: I- 6: 1 according to the characteristic and density of the garbage used in the area (above mentioned parameter is valid for household garbage) |
HOPPER CAPACITY | The garbage capacity of the loading hopper is around 2m3 |
SEALING | With a special design leak-proof rubber sea between the tailgate and the body |
LOCKING | Hydraulic locking by means of reverse action of two hydraulic tailgate-lifting cylinders. |
SAFETY PROPS | The tailgate is provided with safety props (manual) between the body and tailgate for safety purposes during maintenance |
SAFETY VALVE | Equipped with an anti-dropping safety valve on the tailgate and hydraulic lines to prevent sudden falls. |
CONTROL | The system is controlled from the PLC control box, which enables, start, stop, 1-cycle, continuous cycles, and rescue activities. Tailgate and ejector controls are in front of the body. All devices for loading control are mounted on the tailgate right side, and all are manual control for safety purposes. Compaction is controlled electrically via push buttons, and manually in case |

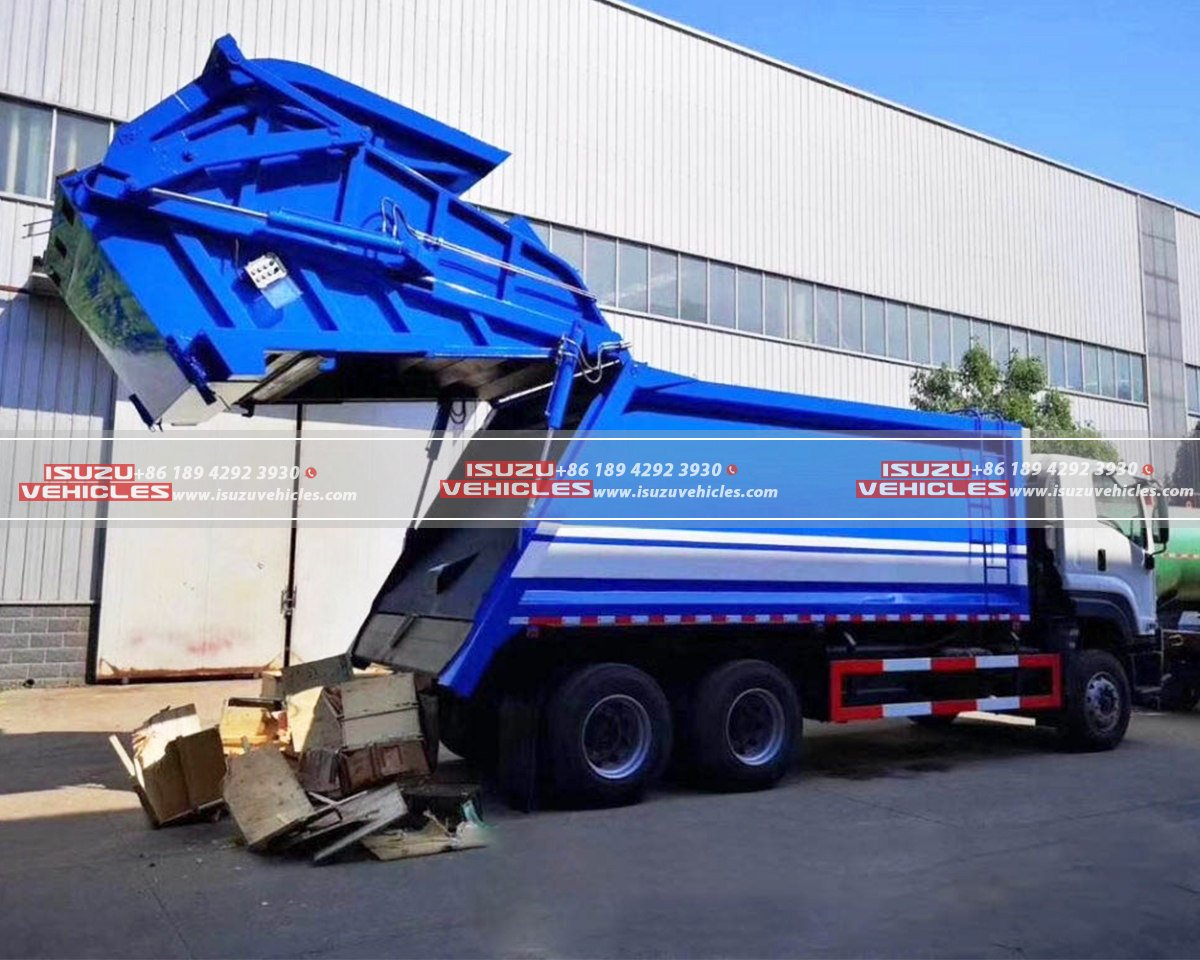

DISCHARGE OF GARBAGE | The unloading cycle will last a minimum of 4 minutes and 30 seconds.
Ejection Plate: The movement of discharging plate (panel) will be step by step in the progressive method (in stages). |
HYDRAULIC COMPONENTS | FRONT DIRECTION CONTROL VALVE (Front Distributor)
MAIN SAFETY VALVE. All arc hydraulic and double-acting. The dimensions of the cylinders’ arc are designed to accomplish the stipulated cycle times and compaction ratio. Hydraulic cylinder pipes & bores included. All high-pressure hydraulic oil hoses have an app. burst rating 4 times more than the specific system working pressure. |
