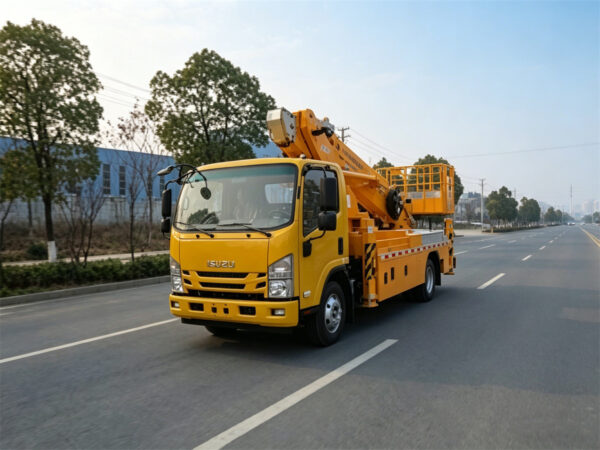

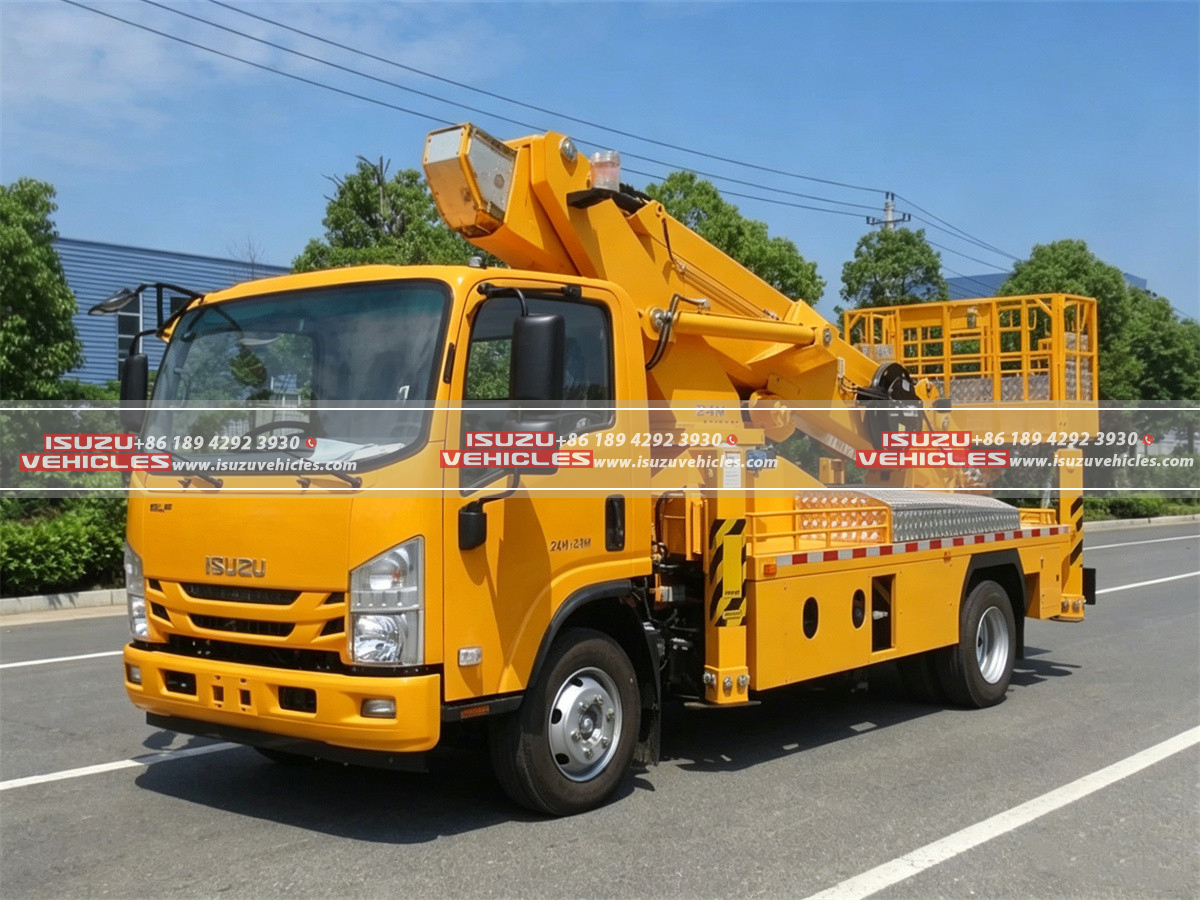

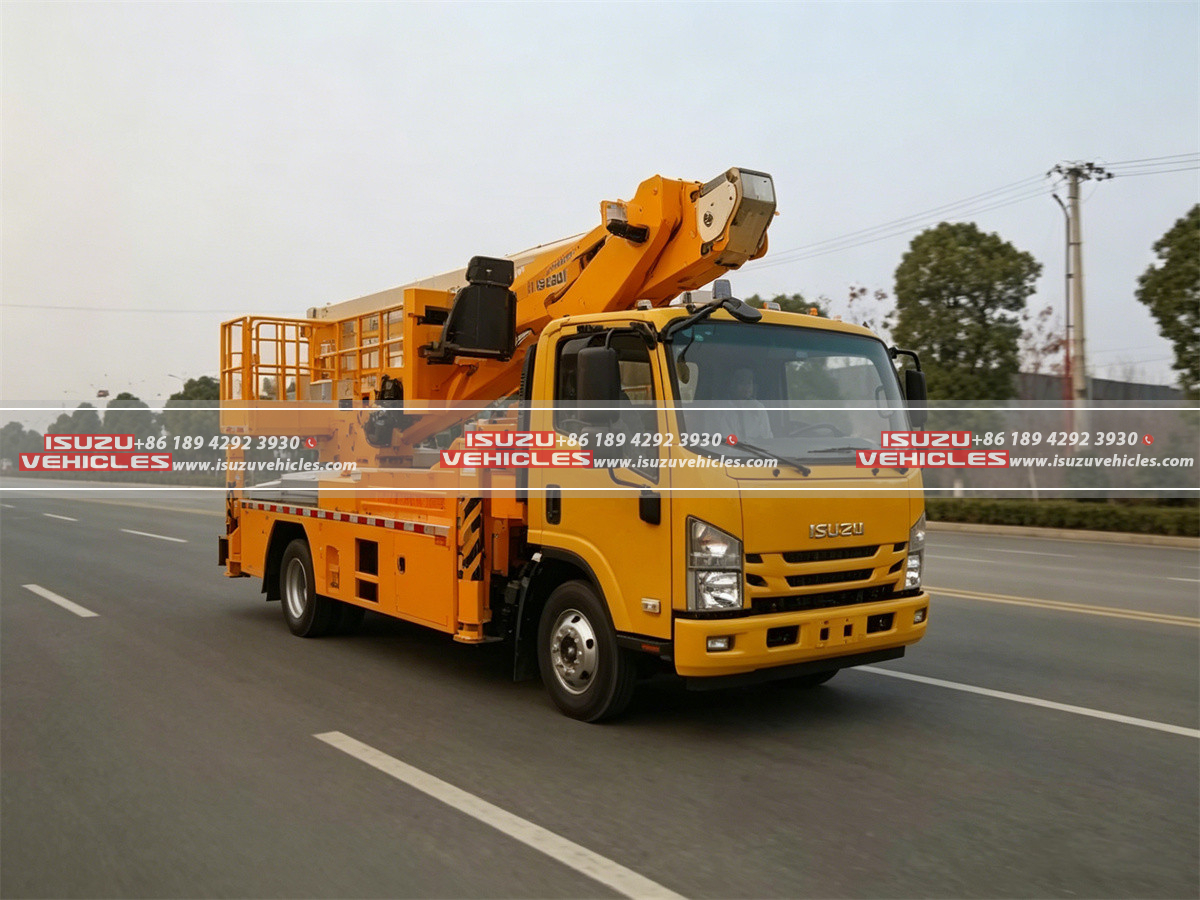

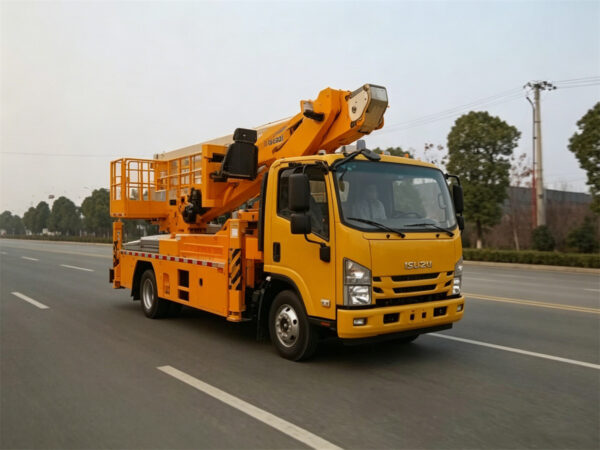

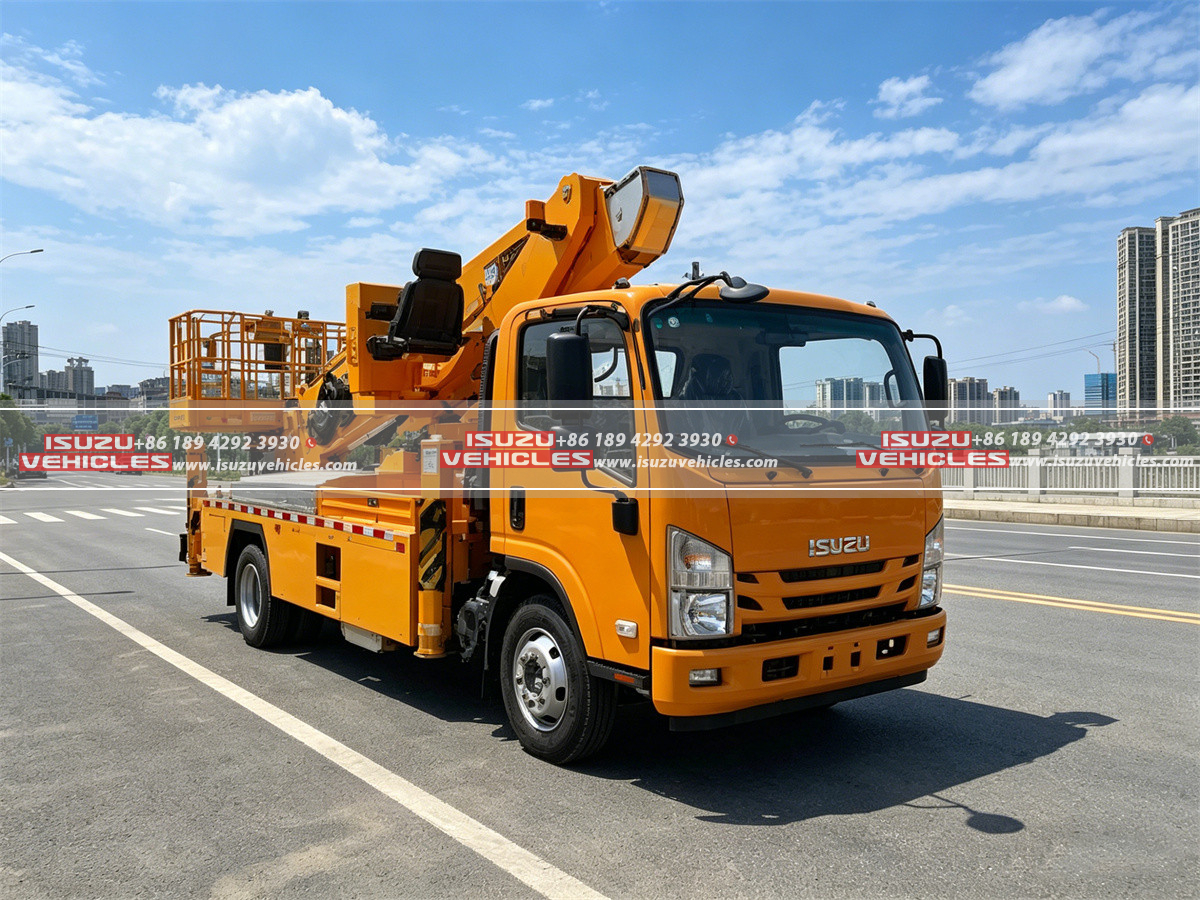

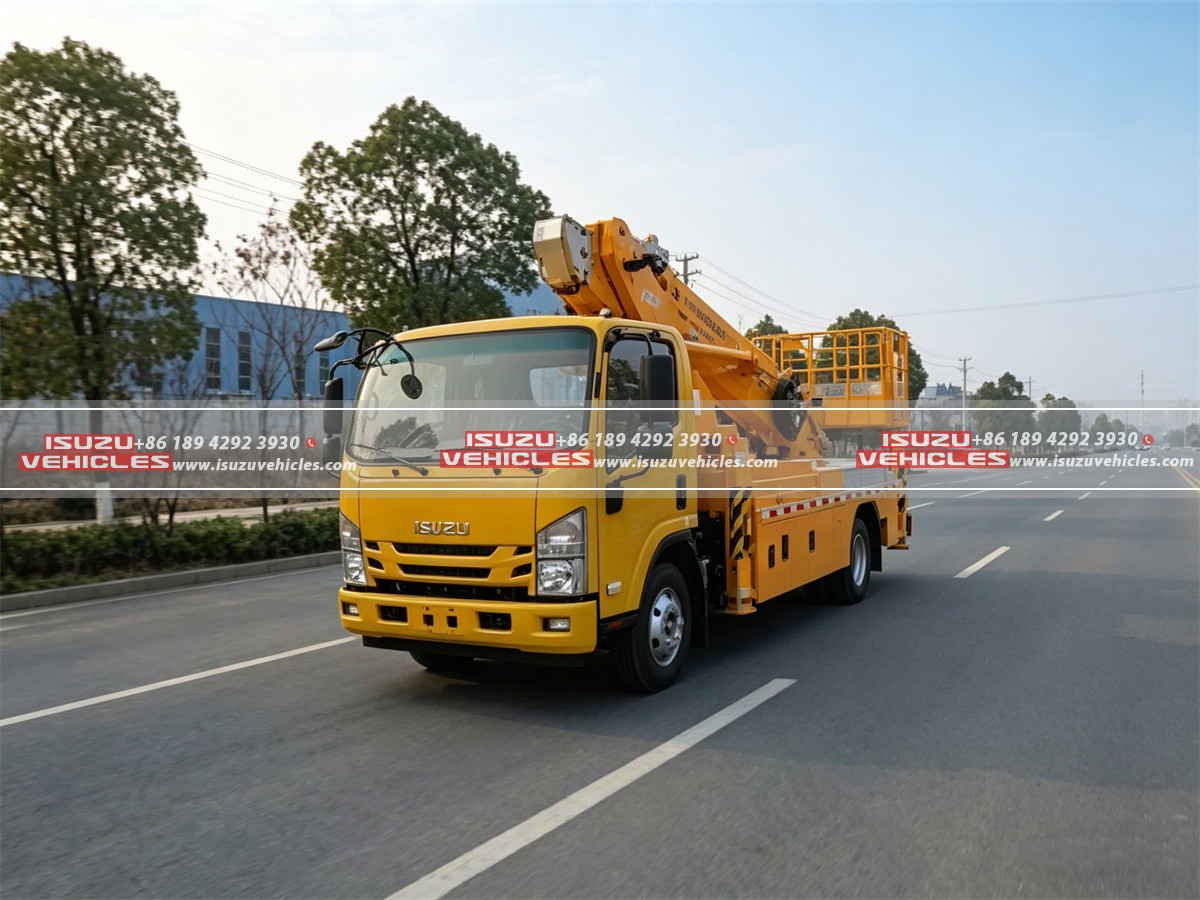

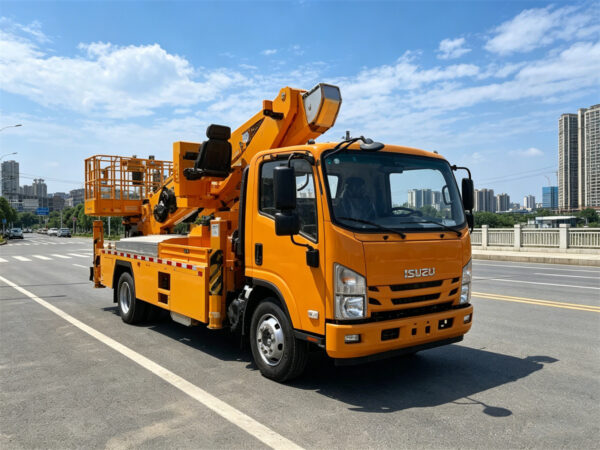

ISUZU 24M Telescopic Bucket Truck

ISUZU 24M Telescopic Bucket Truck

Built upon the dependable and widely recognized ISUZU KV600 chassis, this 24-meter telescopic bucket truck is engineered for demanding aerial work applications in diverse environments. Configured as a left-hand drive 4×2 vehicle, it boasts compact overall dimensions (approximately 5,998 × 2,050 × 2,900 mm) ensuring excellent maneuverability, particularly valuable in tight urban streets or confined workspaces. With a gross vehicle weight (GVW) of approximately 6,500 kg and a curb weight around 4,800 kg, it offers a substantial payload capacity for tools and personnel while maintaining road legality and drivability. The single-row cab accommodates 2–3 persons, facilitating crew transport to the job site. Power comes from the robust ISUZU 4KH1CN6LB engine, a 3.0L inline 4-cylinder turbocharged diesel delivering 120 HP and ≈ 290 N·m of torque, compliant with stringent Euro VI emission standards, paired with a reliable 5-speed manual gearbox. Designed for practicality and performance, this chassis provides the stable and mobile platform essential for the sophisticated aerial work system mounted upon it, capable of reaching a max driving speed of 100 km/h for efficient transit between locations.

Features: Advanced Capability and Operator Focus

Aerial Platform System: Reaching New Heights

• Performance Parameters: This unit delivers a maximum working height of 24 meters, enabling access to elevated work zones typical in street lighting, telecommunications infrastructure, and utility line maintenance. The maximum platform height reaches approximately 22 meters, while the system offers an impressive maximum working radius, achieving 5.0 meters at full height and extending up to 12–13 meters at lower elevations. Significant horizontal outreach allows work ≤ 13.0 meters to the left or right of the truck’s position, complemented by 360° continuous rotation for unparalleled positioning flexibility around obstacles.
• Boom Structure: The core lifting component is a telescopic straight boom, constructed from high-strength alloy steel for durability and rigidity. Utilizing 3–4 hydraulic telescopic sections extended via a chain synchronization system, it provides smooth and controlled reach. The boom operates across a wide raising angle range from -5° to +75°, allowing operators to position the platform effectively below or significantly above the truck base.

Work Platform & Stabilization: Safety and Precision

• Bucket (Work Platform): The work platform, sized approximately 1.36 × 0.76 × 1.20 meters, is fabricated from durable stainless steel (SUS). Rated for a load capacity of 200 kg, it comfortably supports two persons with their tools. An automatic hydraulic leveling system ensures the platform remains horizontal regardless of boom angle, enhancing operator comfort and safety. For specialized electrical tasks, an optional insulated boom and bucket configuration provides protection up to 10 kV.
• Stabilizer System: Ground stability is paramount and provided by rugged H-type hydraulic outriggers. These outriggers offer a substantial span ≥ 4,200 mm, creating a wide, stable footprint. Operators can utilize either manual control or an optional automatic leveling system for rapid and precise setup on uneven terrain.

Operational Systems: Power and Control

• Hydraulic System: All aerial functions are powered by a PTO-driven gear pump, generating a system pressure of 16–20 MPa. A hydraulic oil tank with a capacity of ≈ 80 liters ensures ample fluid supply. The system employs sophisticated electro-hydraulic proportional control, enabling smooth, precise, and responsive operation of boom lifting, extension, rotation, and bucket leveling.
• Electrical & Control System: Operating on a 24V electrical system, control is facilitated from two primary stations: an in-bucket control panel for the aerial operator and a ground control panel for setup and emergency functions. Key features include strategically placed emergency stop buttons, real-time operation indicators for system status, and a comprehensive interlock safety system to prevent unsafe operations.

Safety & Reliability: Core Design Principles

Safety is deeply integrated into the design. Key features include an overload protection system to prevent exceeding capacity, boom angle and limit protection to restrict movement beyond safe parameters, an emergency descent system for platform lowering during power loss, and a critical outrigger interlock system preventing aerial operation unless the truck is properly stabilized. Additional safeguards include anti-tilt protection, an emergency manual override for critical situations, and an optional wind speed warning system to alert operators to adverse conditions. The proven ISUZU powertrain and efficient hydraulic system contribute significantly to the truck’s long service life and low operating costs.

Optional Configurations: Tailored to Task

To meet specific job requirements, several options are available, including the aforementioned insulated boom and bucket for live-line electrical work, a wireless remote control system for enhanced positioning flexibility, a rear-view camera for improved jobsite awareness, additional tool storage compartments, powerful LED working lights for nighttime or low-light operations, and a GPS fleet management system for tracking and maintenance scheduling.
