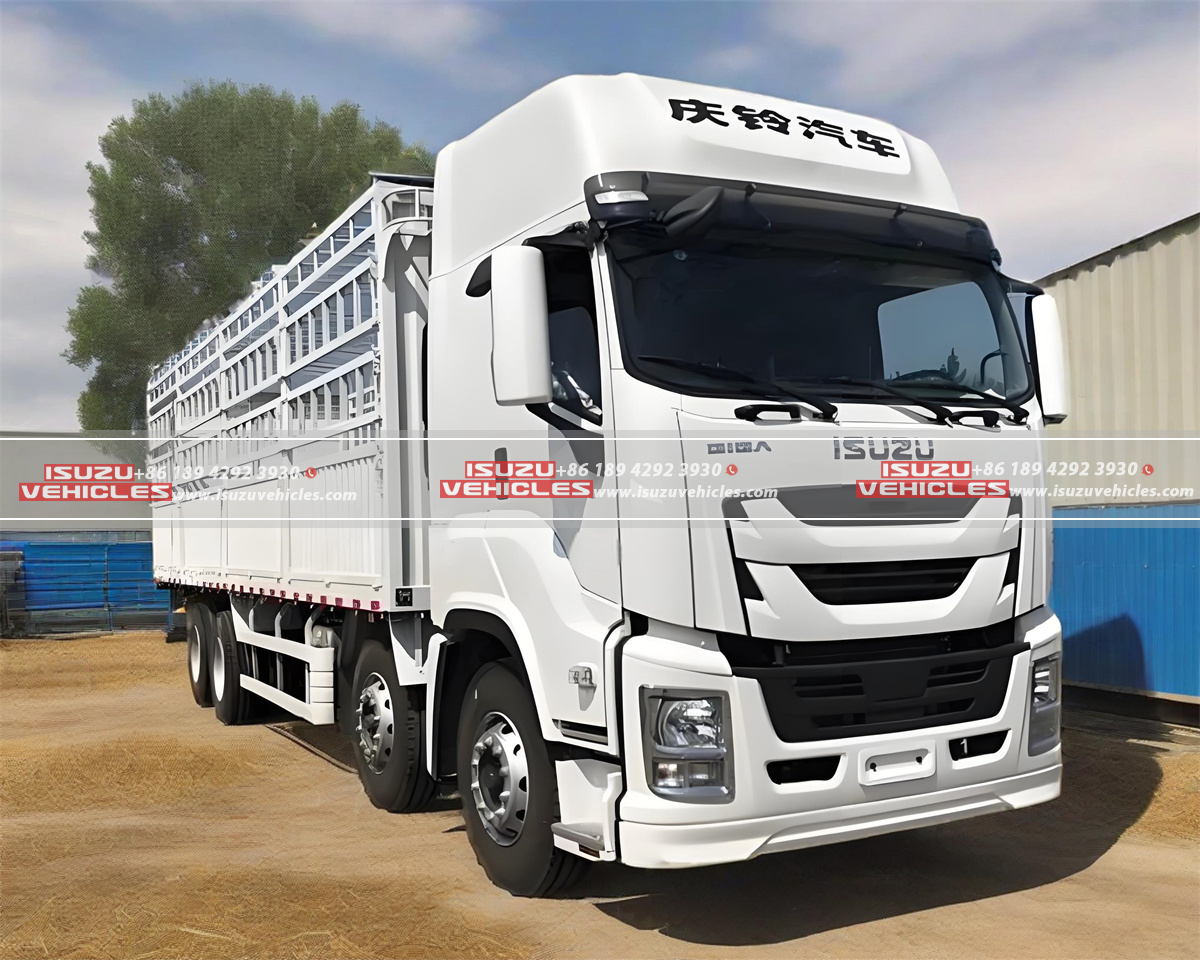

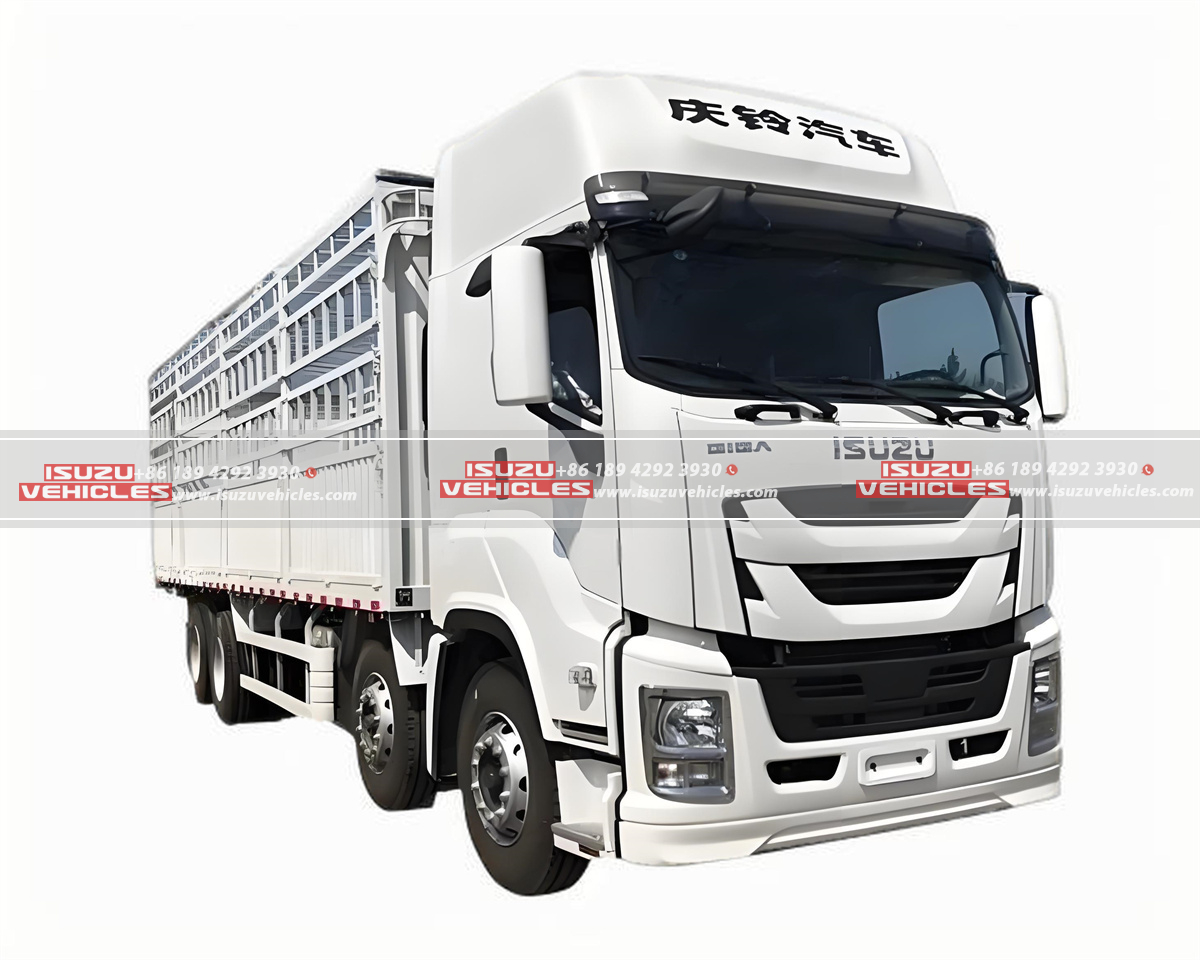

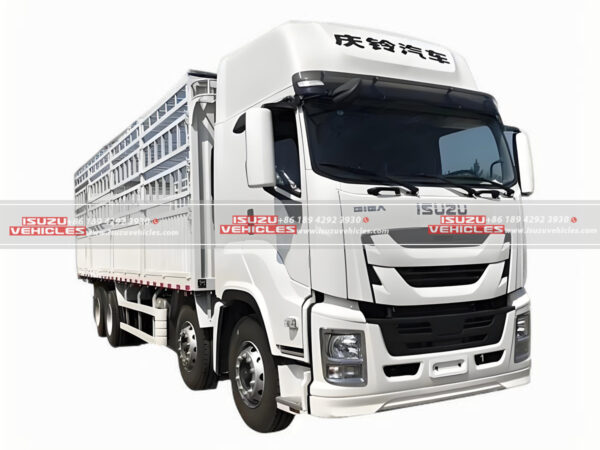

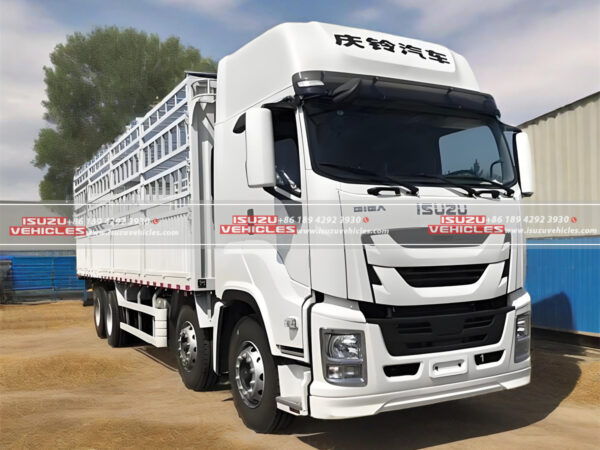

ISUZU 31 Ton Livestock Cargo Truck

ISUZU 31 Ton Livestock Cargo Truck

The ISUZU 31 Ton Livestock Cargo Truck is designed for demanding livestock transportation and combines heavy-duty engineering with animal welfare-focused features. This 8×4 left-hand drive model delivers exceptional payload efficiency, accommodating 31,000kg of livestock within a 40,000kg GVW framework. Its standard sleeper cab ensures driver comfort during long hauls, while the Euro 5-compliant engine balances power with environmental responsibility. Built for reliability across diverse terrains, this truck integrates advanced drivetrain components and optimized space utilization to secure livestock safety and operational efficiency.

Technical Features

1. Performance & Powertrain

• Engine: Equipped with the ISUZU 6UZ1-TCG50 9.839L diesel engine, generating 380 ps horsepower and 1,765 N.m max torque.
• Transmission: Features the ZF8S203TO 8-speed manual gearbox, ensuring smooth shifting under heavy loads.
• Efficiency: Adheres to Euro 5 emission standards, reducing environmental impact without compromising output.
• Fuel System: A 400L aluminum tank extends range for long-distance transport.

2. Chassis & Suspension

• Drivetrain: RT210 rear axle paired with a 4.555 main reduction ratio (3.909 optional) for optimal torque distribution.
• Suspension: Heavy-duty leaf spring suspension stabilizes cargo during transit, minimizing stress on livestock.
• Wheels: Aluminum rims with 315/80R22.5 16PR tires (or 12R22.5 16PR) enhance durability and load distribution.

3. Dimensions & Capacity

• Frame: 12,000mm length, 2,500mm width, and 3,720mm height create ample livestock space.
• Payload Design: 9,550mm cab-to-rear length and 1,850+4,575+1,370mm wheelbase ensure balanced weight allocation.
• Weight Metrics: 12,450kg tare weight maximizes the 31,000kg loading capacity within a 40,000kg GVW.

4. Cabin & Usability

• Operator Comfort: Standard sleeper cab includes ergonomic controls and rest facilities for extended operations.
• Visibility: Expansive windshield and mirrors provide 360° visibility for safe livestock monitoring.
• Durability: Corrosion-resistant materials withstand harsh farm and highway conditions.

This truck merges ISUZU’s engineering rigor with specialized livestock transport needs, offering farmers and logistics providers a dependable, high-capacity solution that prioritizes animal safety and driver efficiency.

SPECIFICATIONS

Note: All specifications are based on manufacturer data. Wheelbase measurement reflects the triple-axle configuration (front + tandem + rear axle distances).
