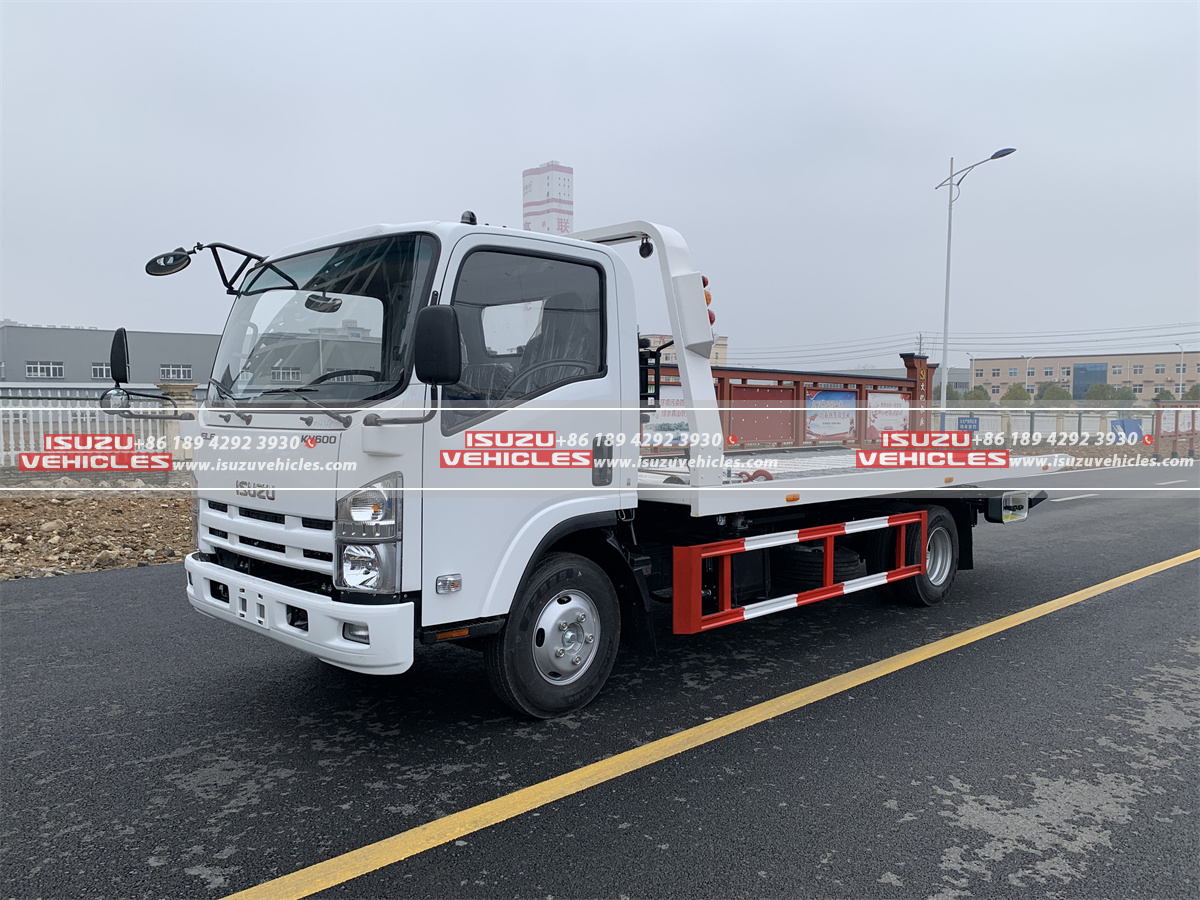

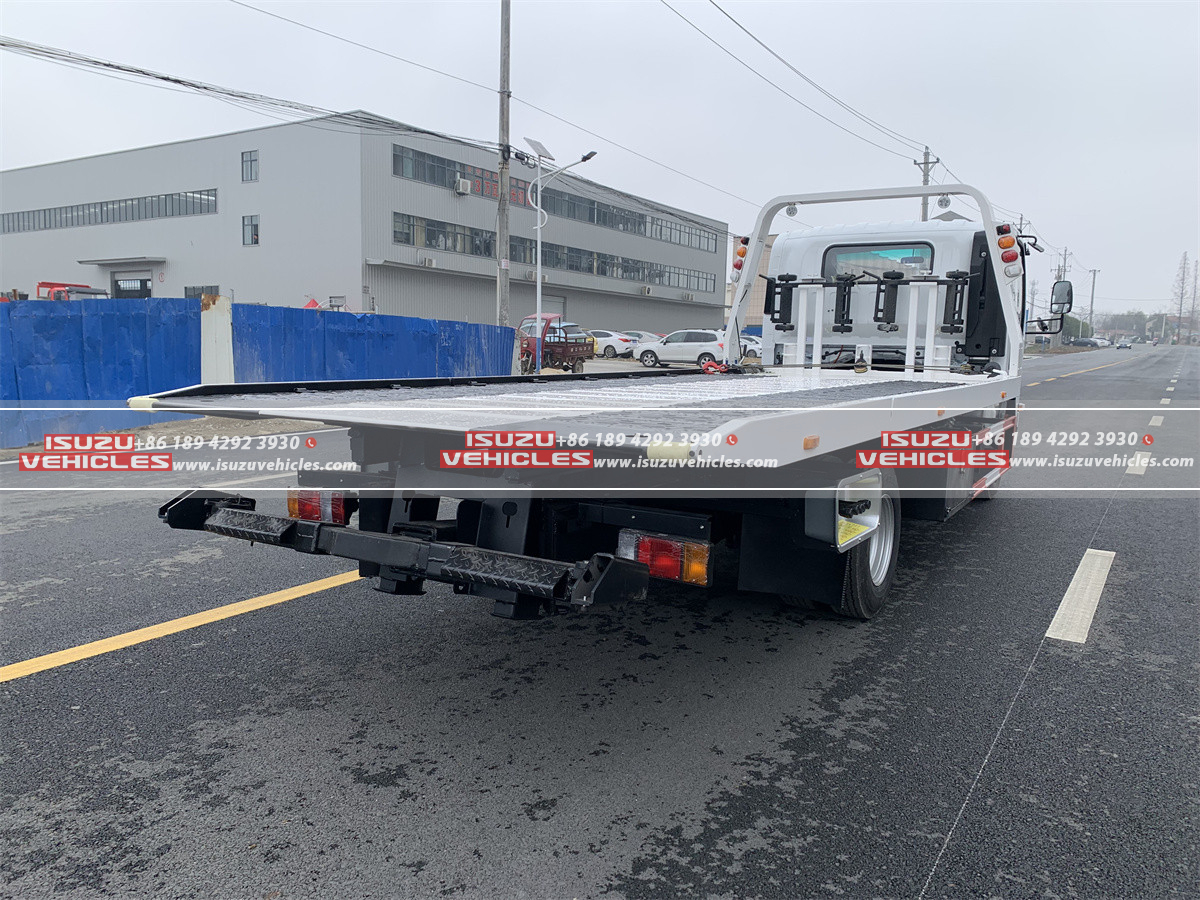

ISUZU 4 Ton Flatbed Rollback Tow Truck
The ISUZU 4 Ton Flatbed Rollback Tow Truck is engineered for efficient multi-vehicle transport with reliable power and compact design.
Built on the durable ISUZU QL5072XXYA5KAJ chassis, this ISUZU tow truck boasts a 7.3-ton gross vehicle weight and a robust platform rated for up to 4 tons. With overall dimensions of 7400×2400×2290mm and a wheelbase of 3815mm, it provides a stable yet maneuverable frame for demanding urban or roadside recovery tasks. The flatbed, measuring 5400×2220mm, allows for towing two vehicles simultaneously, optimizing roadside support efficiency.
Features
The 130-horsepower ISUZU engine ensures consistent power output and responsive towing capacity.
The 4KH1CN5HS diesel engine delivers 96kW at 3400 rpm, coupled with 290 N·m torque at 1500 rpm, and meets Tier III emissions standards. Mated with the ISUZU MSB-5SM 5-speed manual gearbox, it ensures solid performance and control during demanding recovery operations.
Functionality

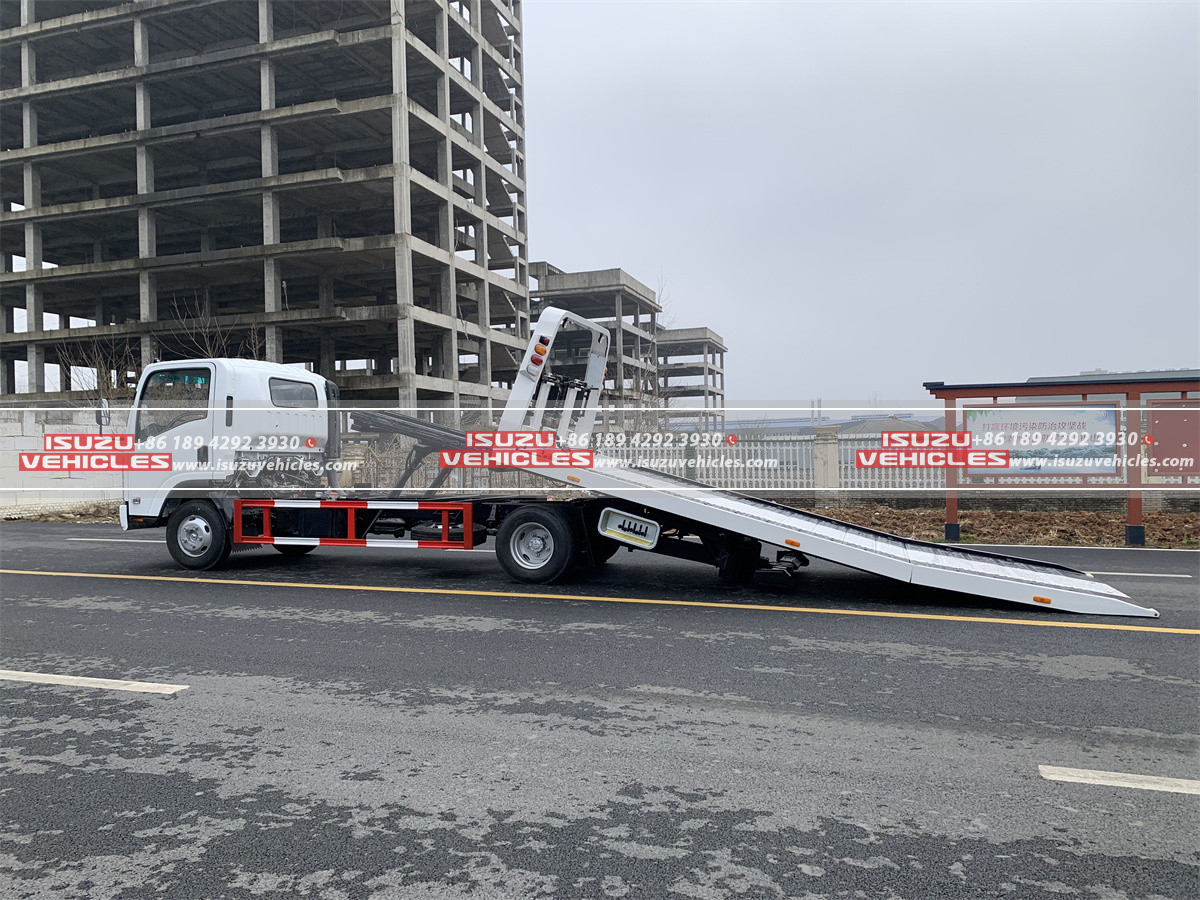

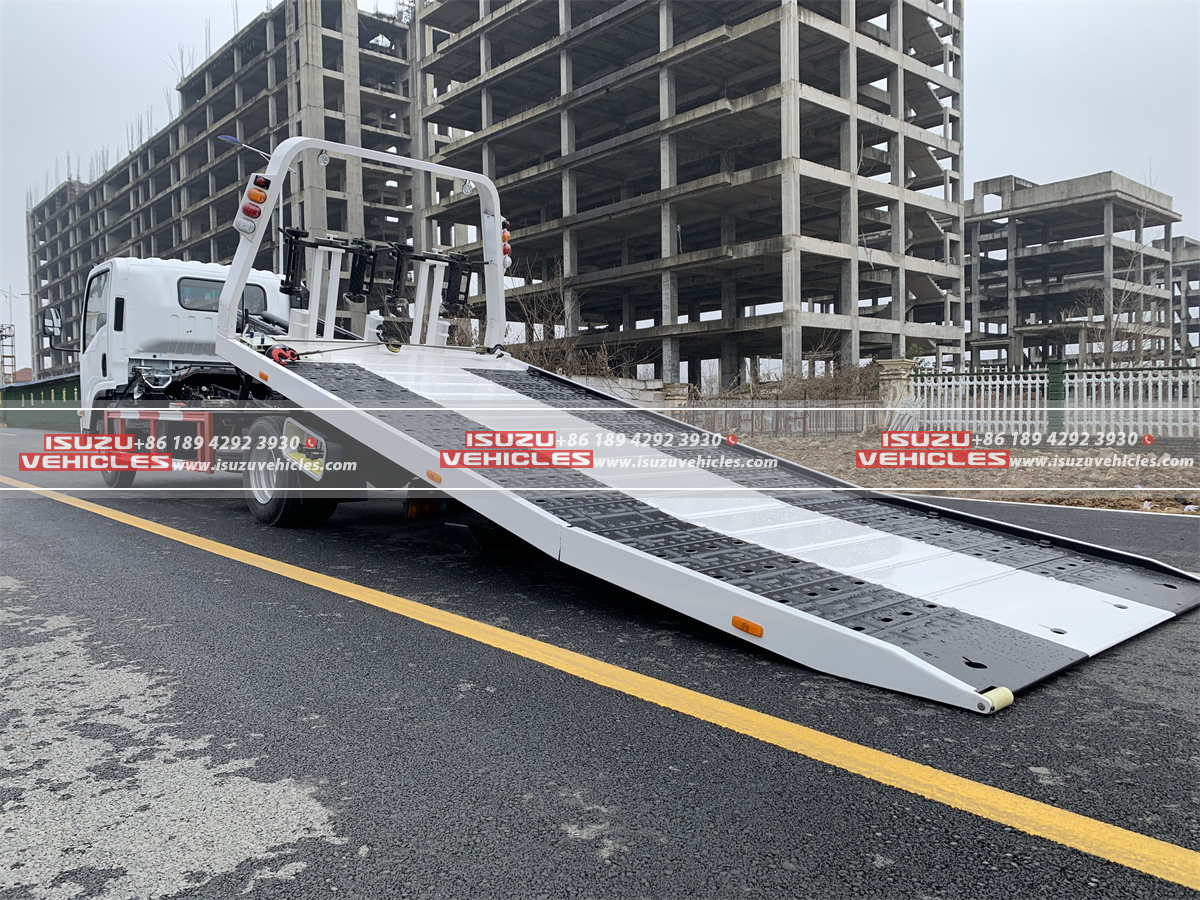

The rollback platform with 3° minimum tilt angle and 3100mm deck work distance allows for easy vehicle loading and unloading.
Made from sheet metal forming, the deck supports multiple car types with strong structural integrity. The winch, equipped with planetary gears and a 4-ton hydraulic system, offers 25m of 11mm cable to safely and efficiently handle disabled vehicles.
Control
Advanced hydraulic and winching systems provide precise operation through manual and wireless control.
The HAIZHANLI hydraulic cylinders and multi-way valves (Hyde/Turkish) offer responsive deck and wheel lift movement. A wheel lift system supports 1800kg fully retracted and 1330kg extended, enhancing its towing versatility.
Safety
Dual-circuit hydraulic brakes with vacuum booster and reliable suspension deliver stable and secure handling.
The semi-elliptical alloy leaf spring suspension with dual-action shock absorbers ensures durability and ride stability. The main brake system, together with the parking brake acting on the transmission output shaft, maximizes operator safety during load transitions.
Equipment
Complete with towing tools and optional enhancements, the truck is ready for diverse recovery challenges.

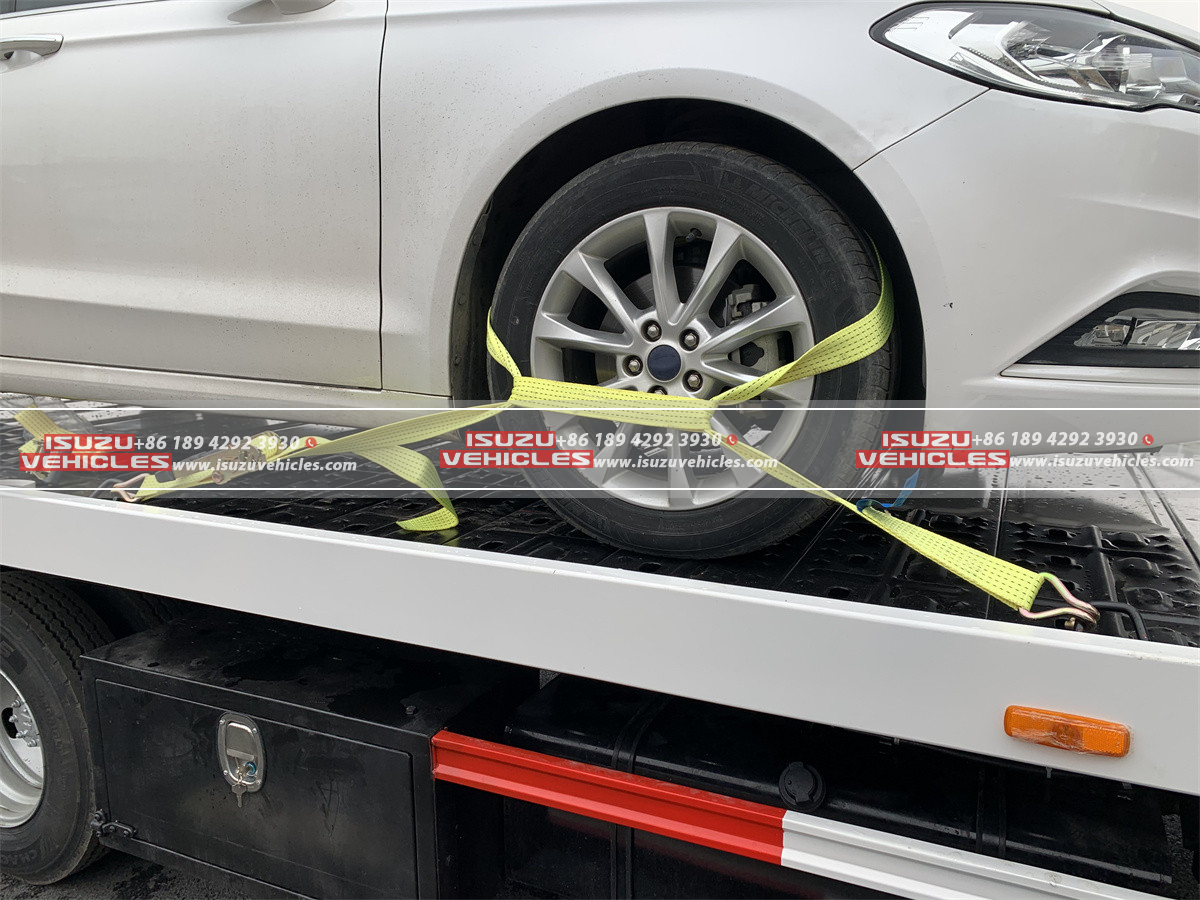

Standard equipment includes one set of slide-in L-arms, frame forks, fork receivers, chain hooks, auxiliary wheels, and four towing straps. Optional features such as opening deck, fifth-wheel plate, wireless control, and engineering warning lights offer additional customization for field use.
Comfort
A day cab with ergonomic design supports comfort and control for long operating hours.
Fitted with a 3-seat cabin (standard height, 1695–2080mm wide), it offers manual controls, clear visibility, and a recirculating ball steering system for ease of driving. Electrical components include a 12V system, dual batteries, 2.8kW starter, and a 60Ah alternator, supporting all onboard systems.
SPECIFICATIONS
| Category | Specification |
|---|---|
| Chassis Make/Model | ISUZU / QL5072XXYA5KAJ |
| Overall Dimensions | 7400 × 2400 × 2290 mm |
| Wheelbase | 3815 mm |
| G.V.W. | 7.3 Ton |
| Tare Weight | 5.12 Ton |
| Front/Rear Axle Rating | 2.5 Ton / 4.8 Ton |
| Cab Type | Day Cab |
| Cab Width | 1695–2080 mm |
| Cab Height | Standard (without Streamlined Dome) |
| No. of Passengers | 3 People |
| Engine Make/Model | ISUZU / 4KH1CN5HS |
| Engine Power/Speed | 96 kW (130 hp) / 3400 rpm |
| Output Torque/Speed | 290 N·m / 1500 rpm |
| Displacement | 2.999 L |
| Emission Standard | Tier Level III |
| Gearbox Make/Model | ISUZU / MSB-5SM |
| Transmission Type | Manual |
| Gear Numbers | Forward 5-Speed / Reverse 1-Speed |
| Clutch Type | Single, Dry, Diaphragm Spring |
| Clutch Diameter | φ250 mm |
| Clutch Pedal Travel | 12–22 mm |
| Steering Position | Left Hand Drive |
| Steering Type | Recirculating Ball |
| Steering Freeplay | 10–30 mm |
| Gearbox Oil Capacity | 0.54 L |
| Toe-in | 3–7 mm (Bias), 0–4 mm (Radial) |
| Camber Angle | 1°15′ ±30′ |
| Castor Angle | 1°30′ ±60′ |
| Kingpin Inclination | 7°15′ ±40′ |
| Brake System | Dual-Circuit Hydraulic with Vacuum Booster |
| Brake Pedal Travel | 4–7 mm |
| Parking Brake Type | Central Drum Brake (on Transmission Output Shaft) |
| Brake Lever Travel | 5–8 gears |
| Suspension Type | Semi-elliptical Alloy Leaf Spring + Hydraulic Shocks |
| Suspension Spec. | 3/3+2 |
| Electrical System | 12 Volt, Negative Ground |
| Battery | 12V / 17Ah (Two in Parallel) |
| Starter | 12V / 2.8 kW |
| Alternator | 12V / 60Ah |
| Tyre Size | 7.00R16 14PR, 7.00-16 14PR |
| Tyre Quantity | 6 + 1 (Spare) |
| Front/Rear Wheel Tread | 1685 / 1525 mm |
| Tool Box | 1 nos |
| Max Load Rating | 4 Ton, Rollback |
| Deck Size | 5400 × 2220 mm |
| Deck Construction | Sheet Metal Forming |

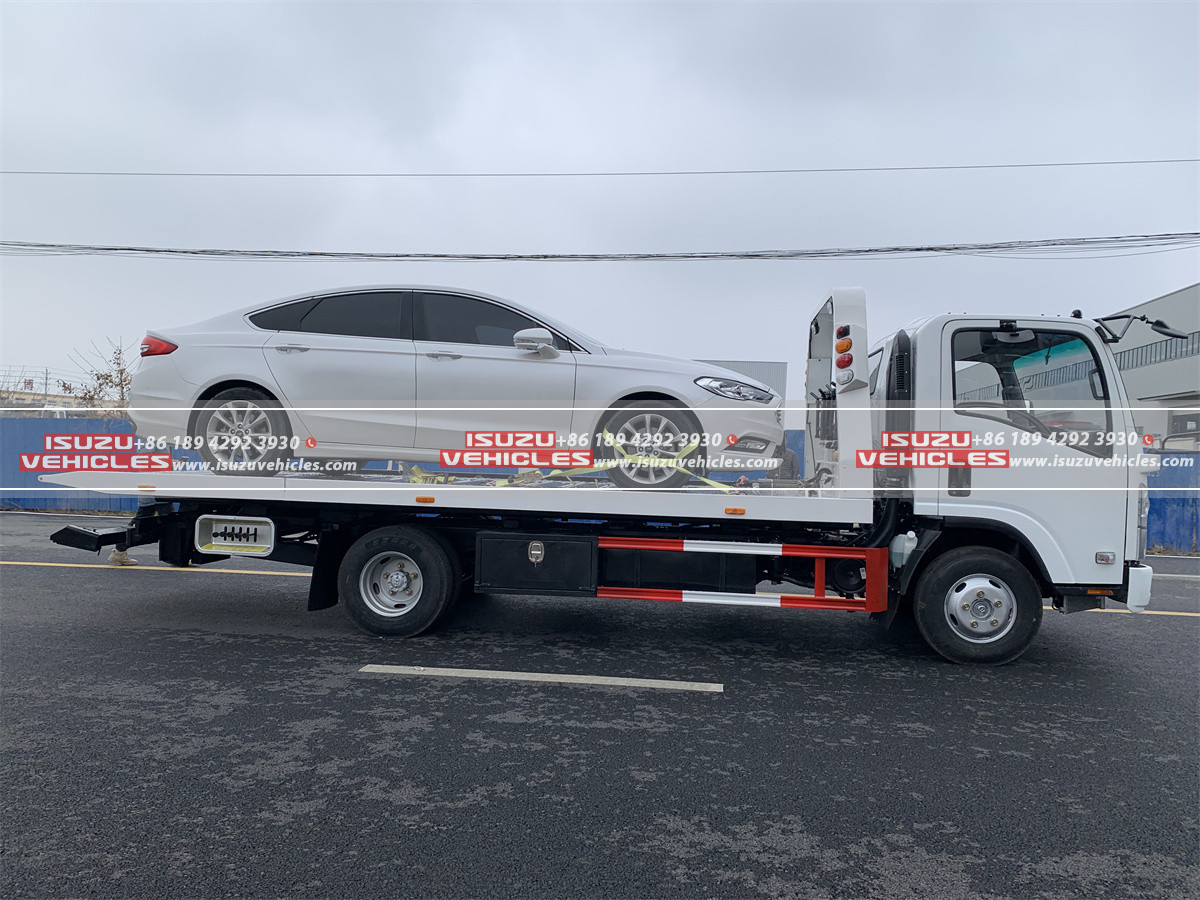

| Vehicles Towing | Two Cars |
| Deck Work Distance | 3100 mm |
| Deck Min Tilt Angle | 3° |
| Wheel Lift Capacity (Ret.) | 1800 kg |
| Wheel Lift Capacity (Ext.) | 1330 kg |
| Rear Towing Distance | 2540 mm |
| Arm Effective Length | 1640 mm |
| Telescopic Travel | 1340 mm |
| Tilt Angle (Positive) | 7° |
| Tilt Angle (Negative) | -9.5° |
| Winch Quantity | 1 |
| Winch Type | Planetary Gear |
| Winch Power Mode | Hydraulic |
| Winch Capacity | 4 Ton |
| Winch Cable Length | 25 m |
| Winch Cable Diameter | φ11 mm |
| Winch Drum Diameter | φ110 mm |
| Cable Min Line Speed | 5 m/min |
| Oil Cylinder Make | HAIZHANLI |
| Hydraulic Pump Make | Hefei Wany |
| Hydraulic Valve Make | Italy/Turkey Hyde |
| Power Take-off Make | Suizhou |
| Towing Accessories | 4 Straps, 1 Slide-in L-Arm, 1 Frame Fork, 1 Fork Receiver, 1 Chain Hook, 2 Auxiliary Wheels |
| Optional Features | Opening Deck, Counterweight, Tread Deck (4mm), Manual/Wireless Multi-Way Valve, Hard Fifthwheel Plate, Drawbar, Hebei Weiguo Oil Pump, Worm Gear Winch, Zhejiang Jiashan PTO, Strobe & Warning Lights |
