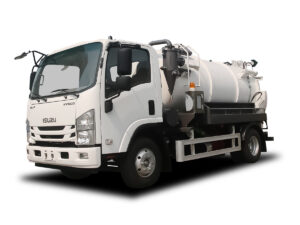

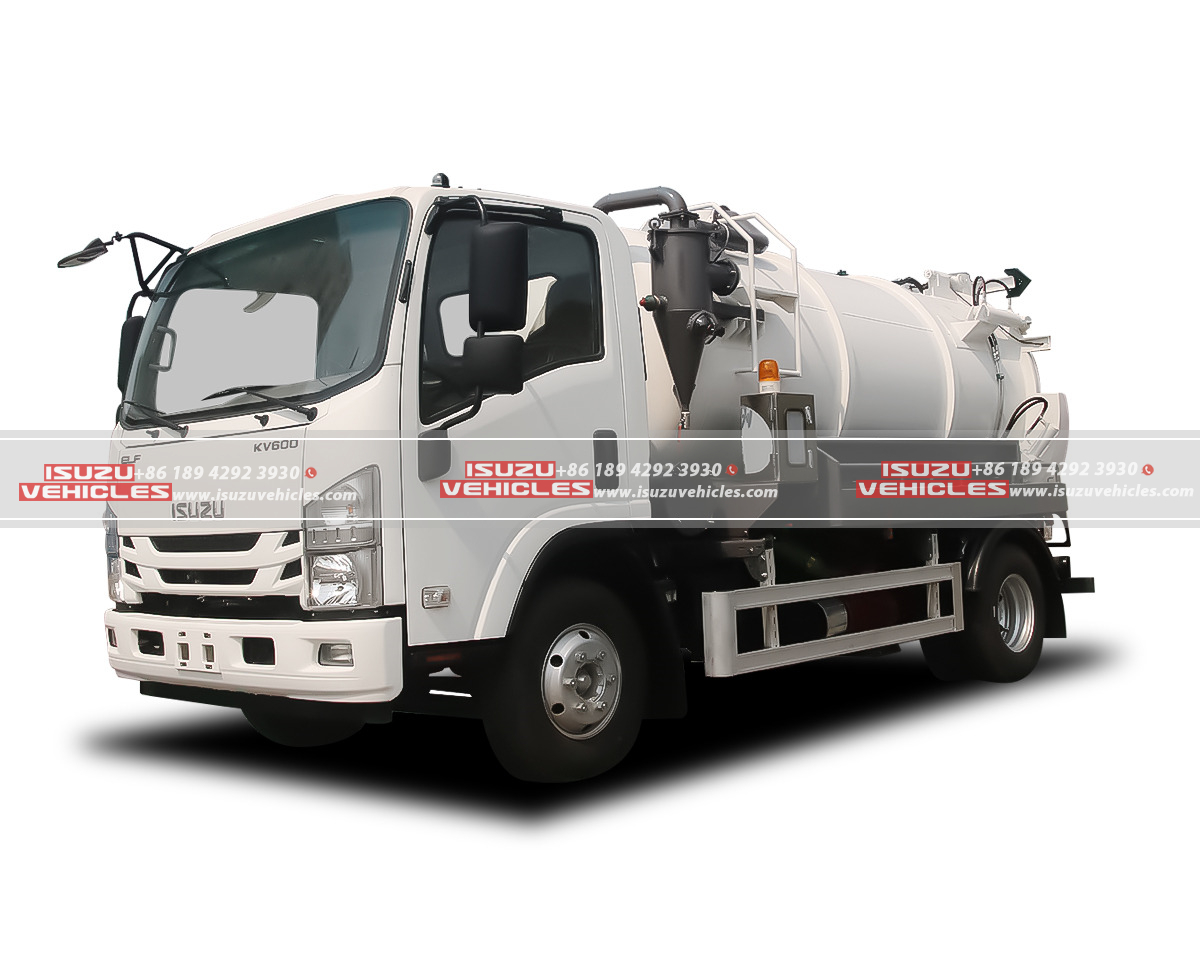

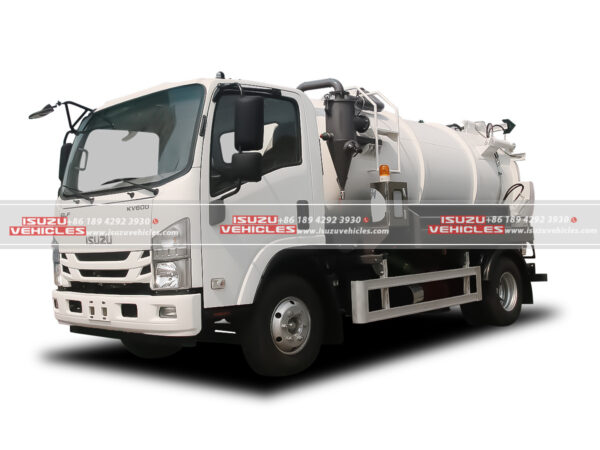

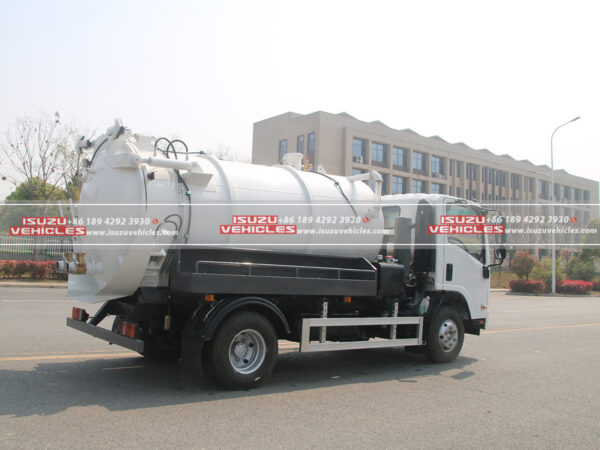

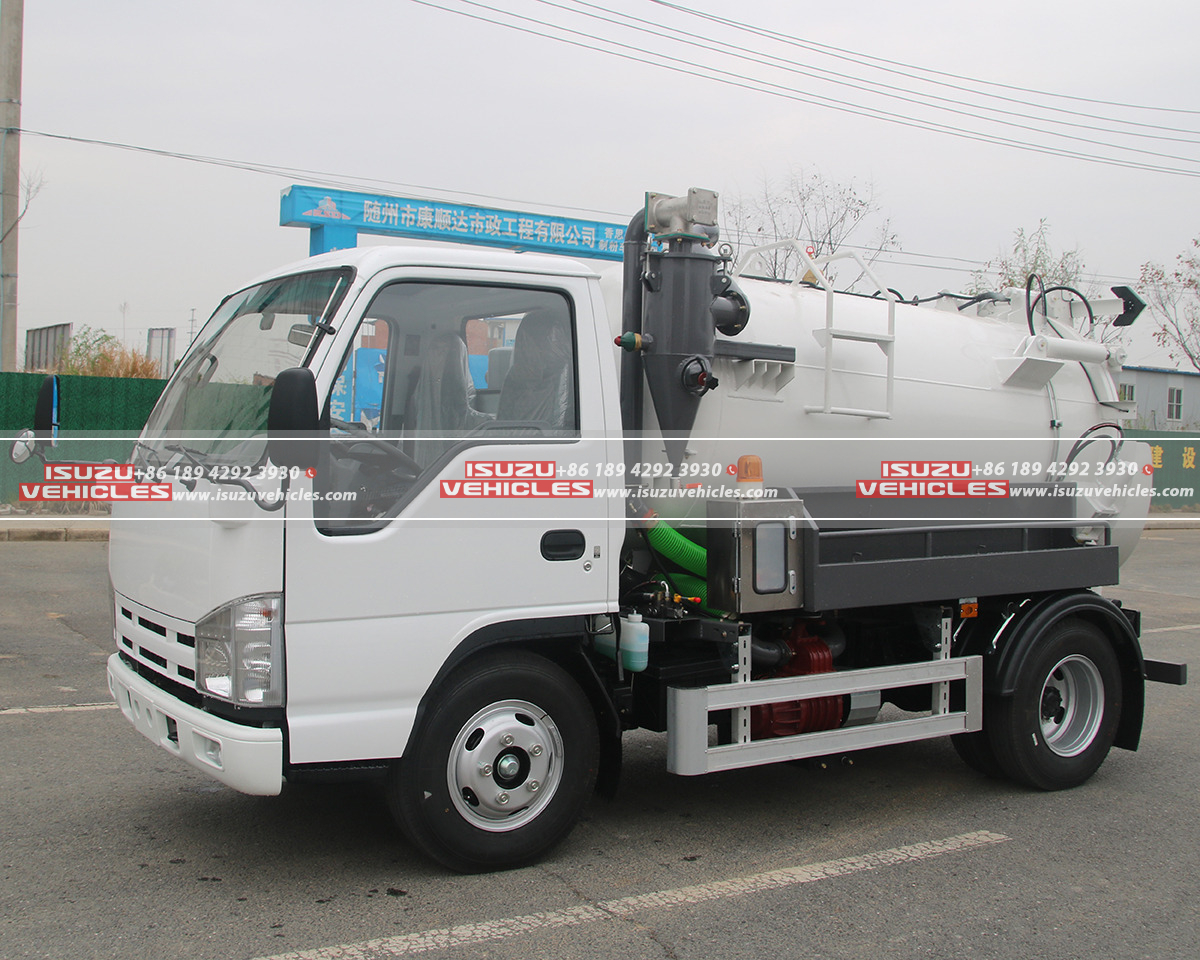

The ISUZU vacuum sewer truck is a powerful and efficient machine designed for sewage management. With its impressive features and specifications, it offers an innovative solution to the challenges of urban waste management. In this product description, we will delve into the various aspects of the ISUZU Vacuum Sewer Truck, including its design, engine, construction, capacity, and safety features.
Design:

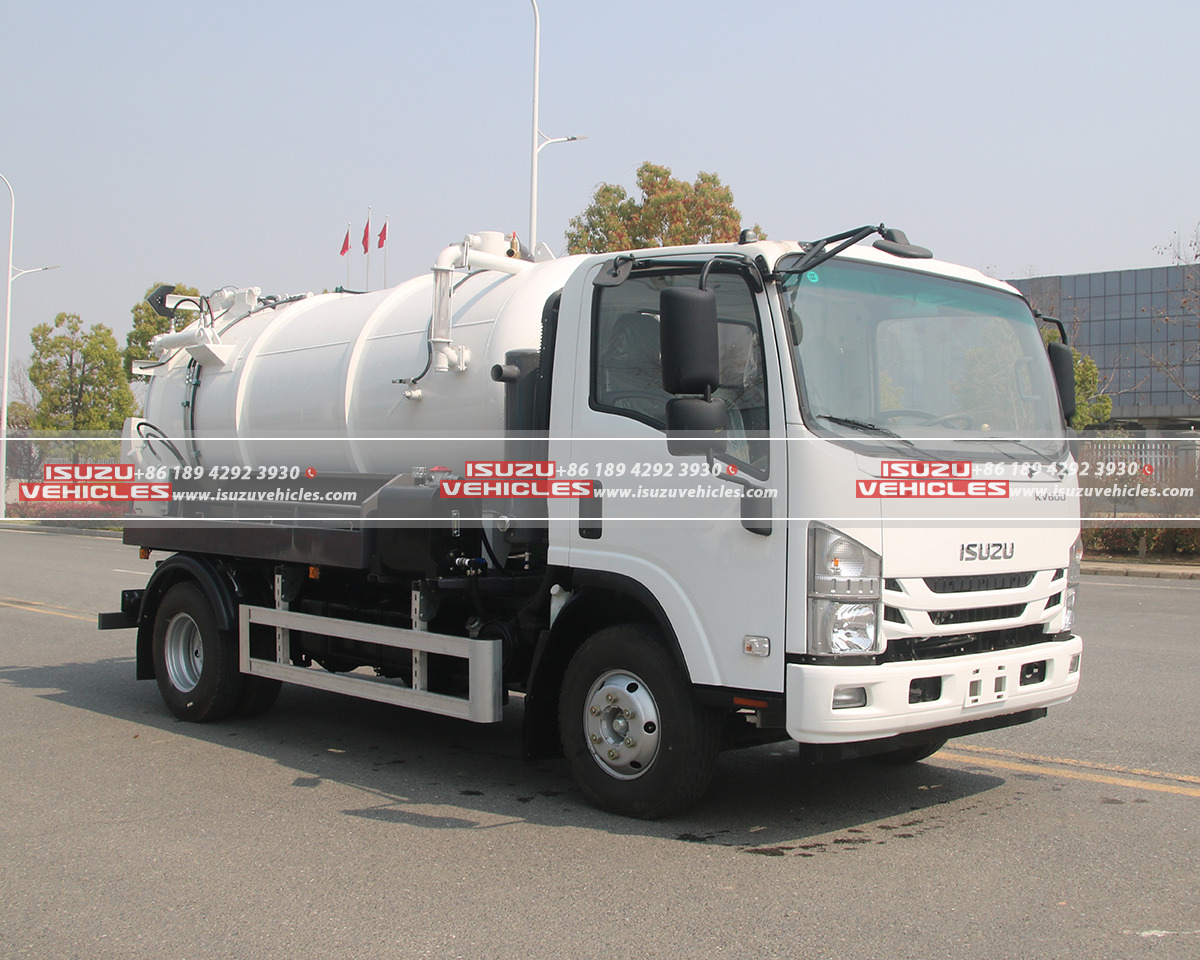

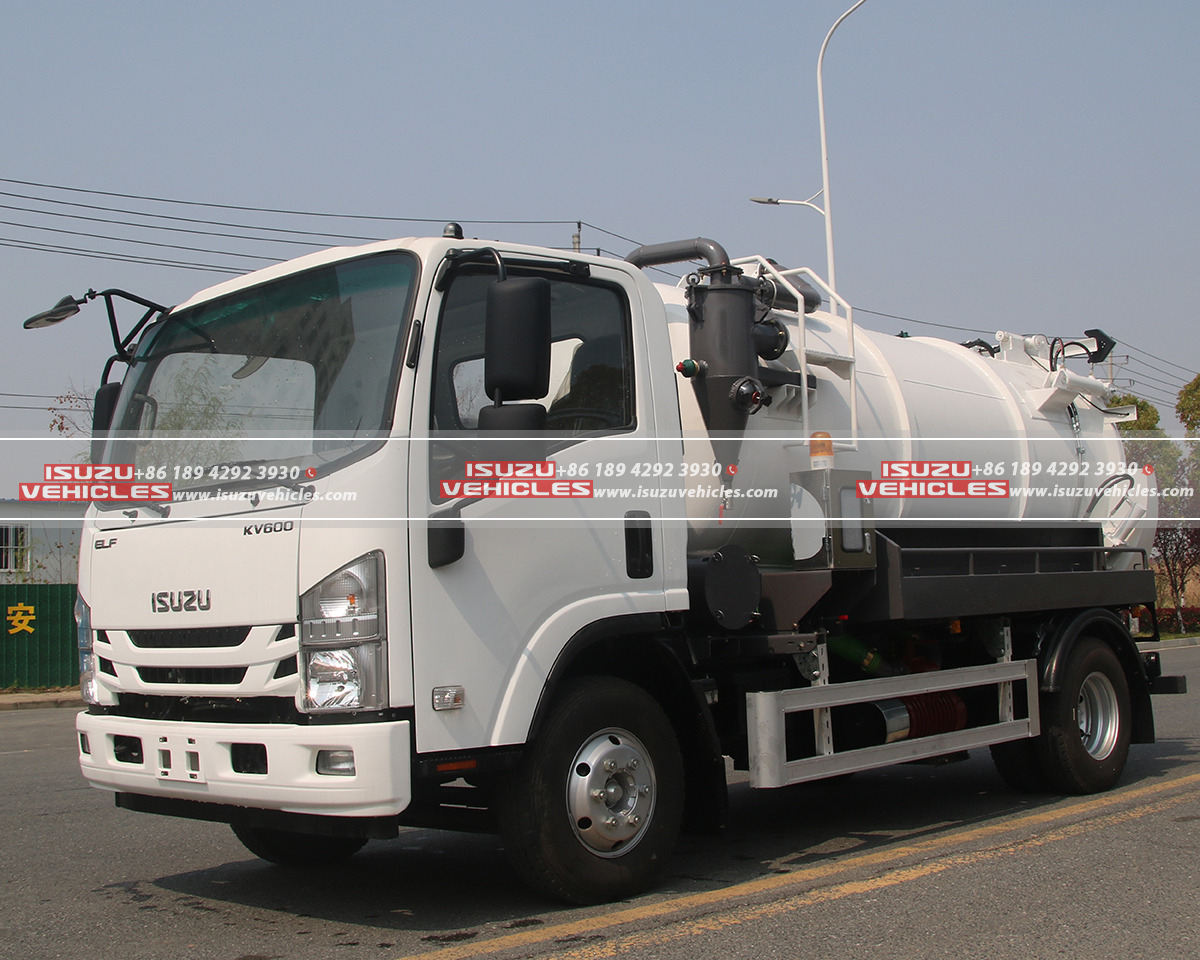

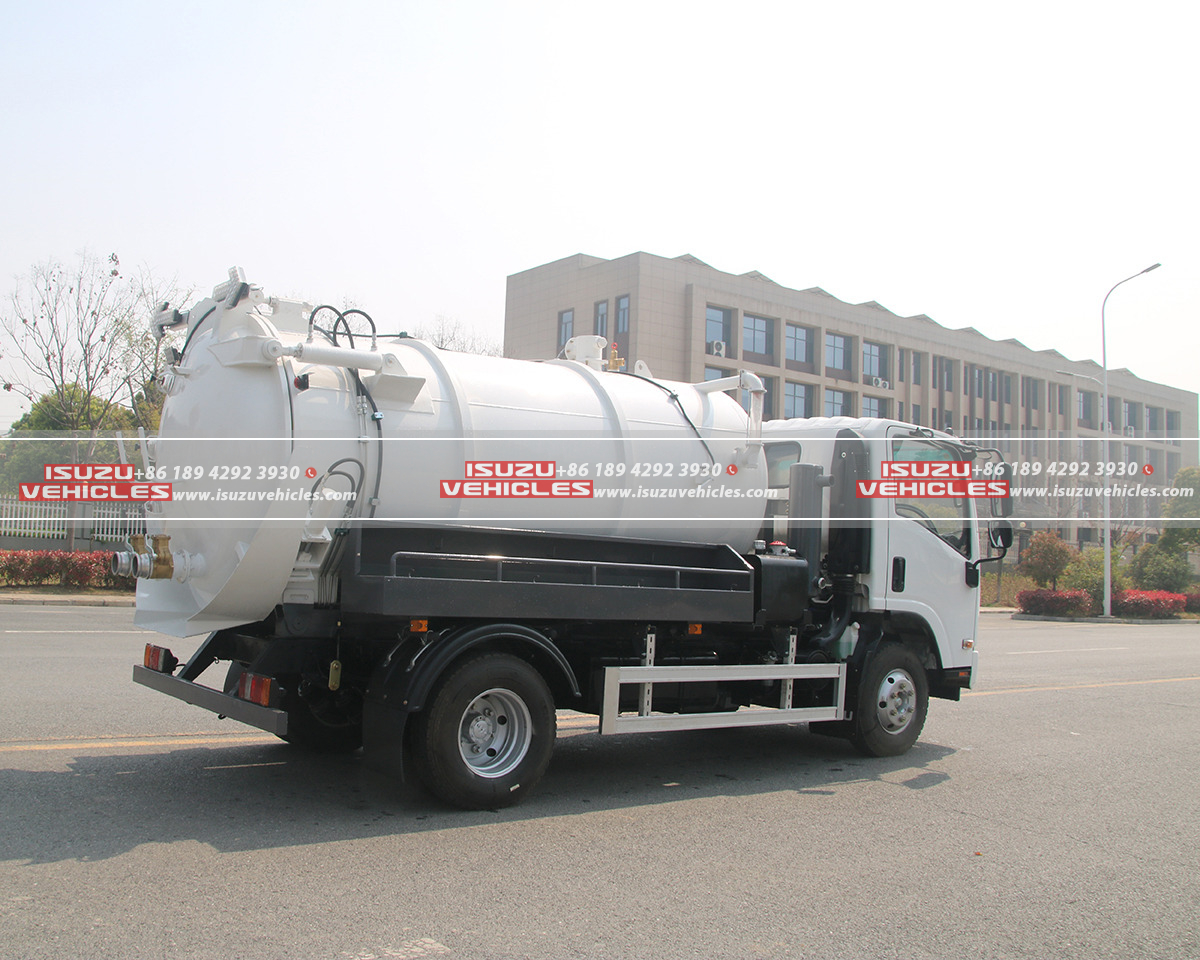

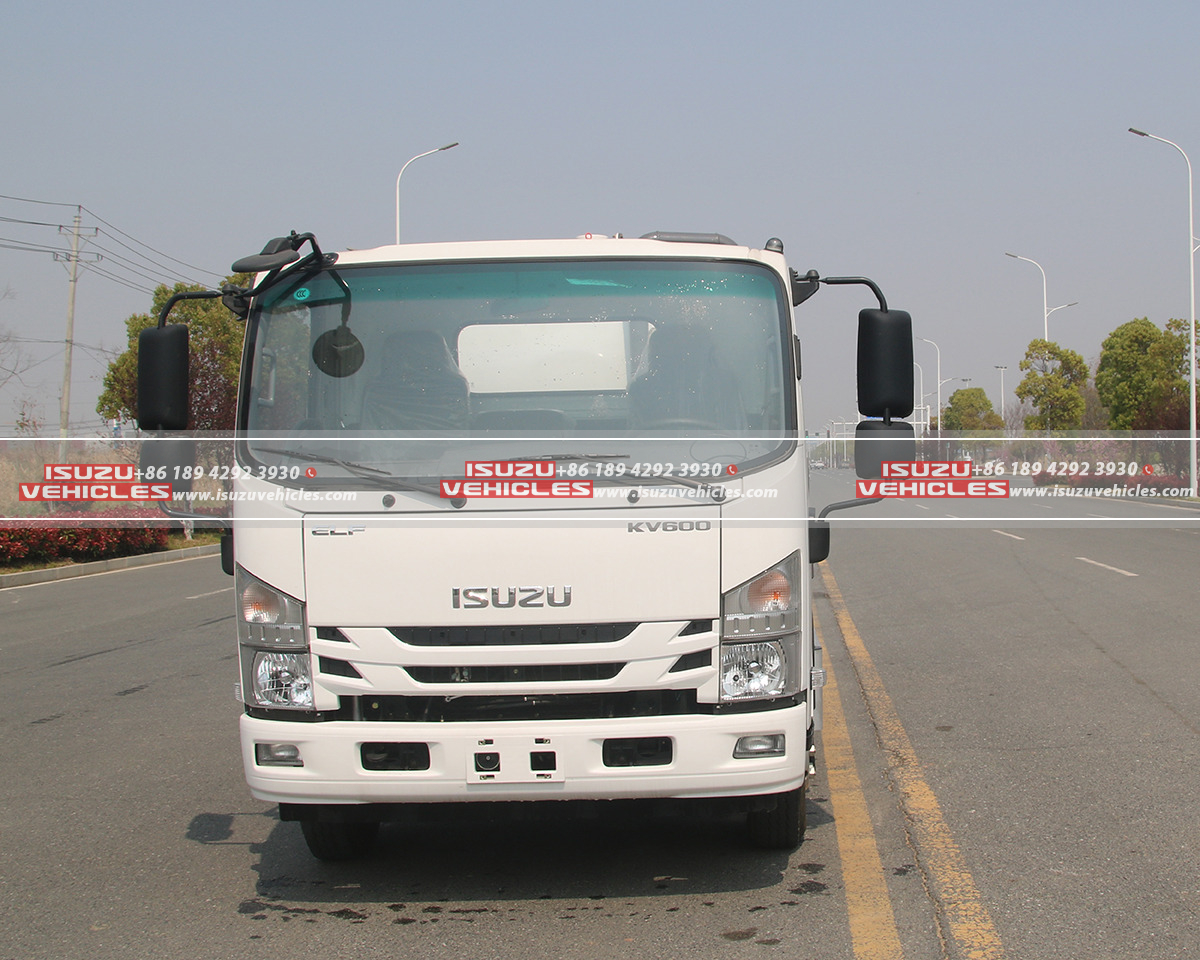

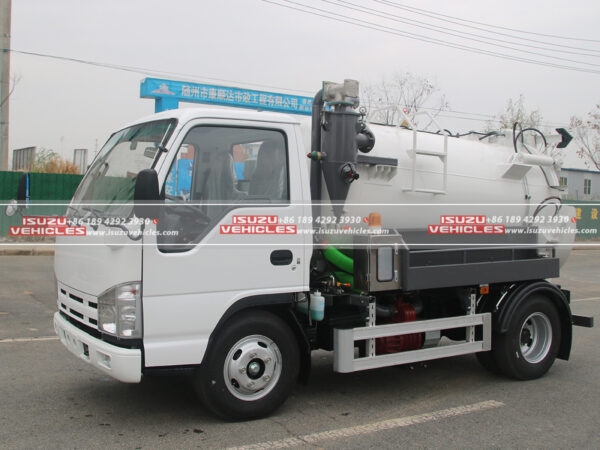

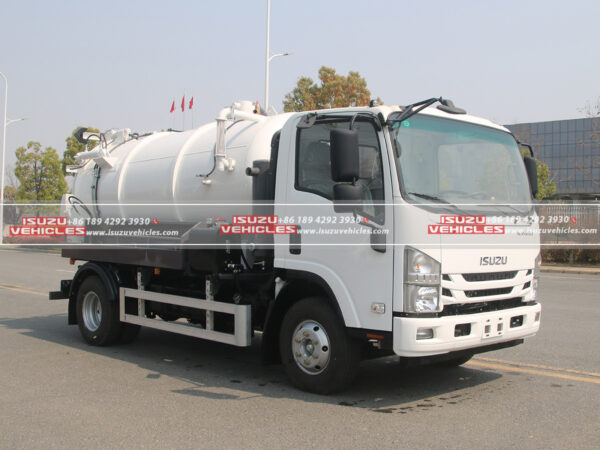

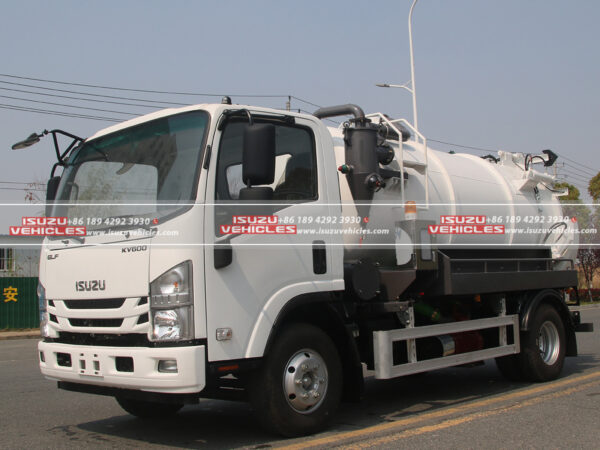

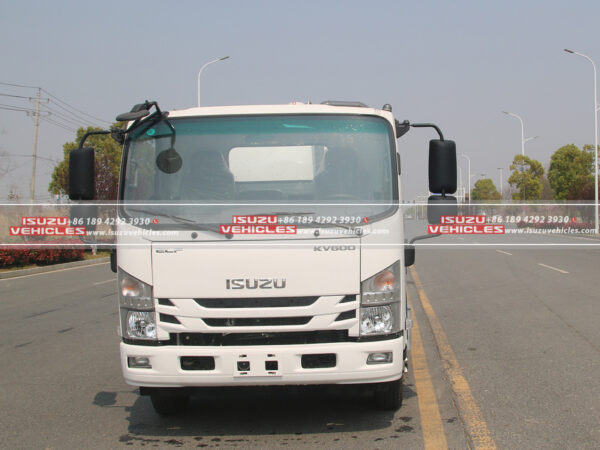

The ISUZU VST04QL130L5 model is a 4×2 left-hand drive truck with an overall dimension of 5,995×1,950×2,550 (mm). It has a gross vehicle weight of 7,300kg and a curb weight of 3,930kg. The chassis is designed with an ISUZU KV600 and comes with a hydraulic power steering type cabin that can accommodate one driver and two passengers. The truck has four drive wheels with two spare tires, and each tire is a 7.00R16 size.
Engine:
The ISUZU vacuum sewer truck is powered by a reliable ISUZU 4KH1CN5HS engine that boasts four cylinders in line, four strokes direct injection, water cooling, inter-cooled turbocharged, and has a displacement of 2.999L. The engine is capable of delivering a nominal power of 130HP (96kw) @ 3400rpm and a peak torque of 290N.m@1,500rpm. Additionally, it is Euro 5 compliant, ensuring that it meets the latest emission standards.
Transmission:
The transmission of the truck is a manual operation ISUZU/MSB with five forward speeds and one reverse speed.
Construction:
The truck is constructed with an ISUZU chassis, a body, a tailgate (rear hopper), an ejection/discharging plate, a compaction plate, and a slide plate. The sludge tank has a capacity of 4,000L and is mounted with an arrangement for the rear tipping. The thickness of the tank is 6mm, and the sludge/sewage tank compartment has a capacity of 5,000 liters.
Capacity:

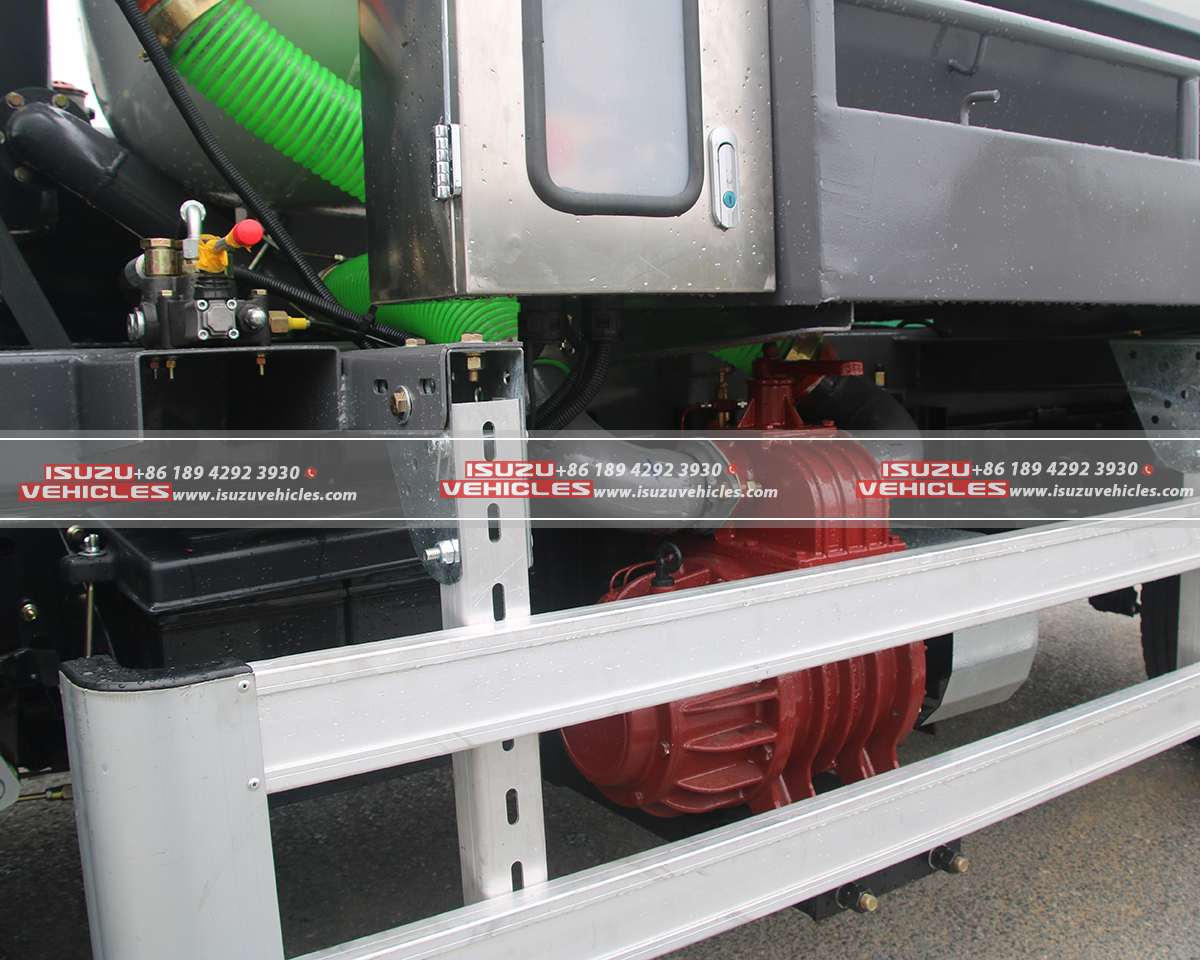

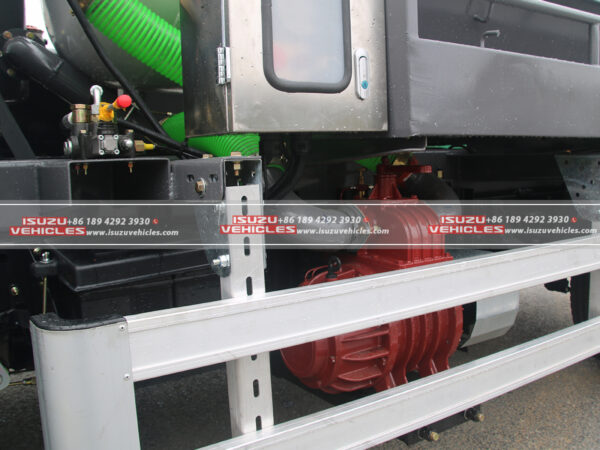

The ISUZU vacuum sewer truck has a vacuum pump with a capacity of 12,000 l/m and a maximum vacuum of 95%. The pump is a MORO/PM80W water-cooled vacuum pump that is heavy-duty/multi-cylinder type, strong high-pressure, and can perform continuous duty. The maximum exhaust power of the vacuum pump is 14kw. The truck comes equipped with five heavy-duty spiral suction hoses with a diameter of 4″. The hose is 3 meters in length, with aluminum or galvanized steel light and easy-to-handle PVC hose, along with quick-connect fittings on each end, and provided with male-female couplings for the suction application.
Safety Features:

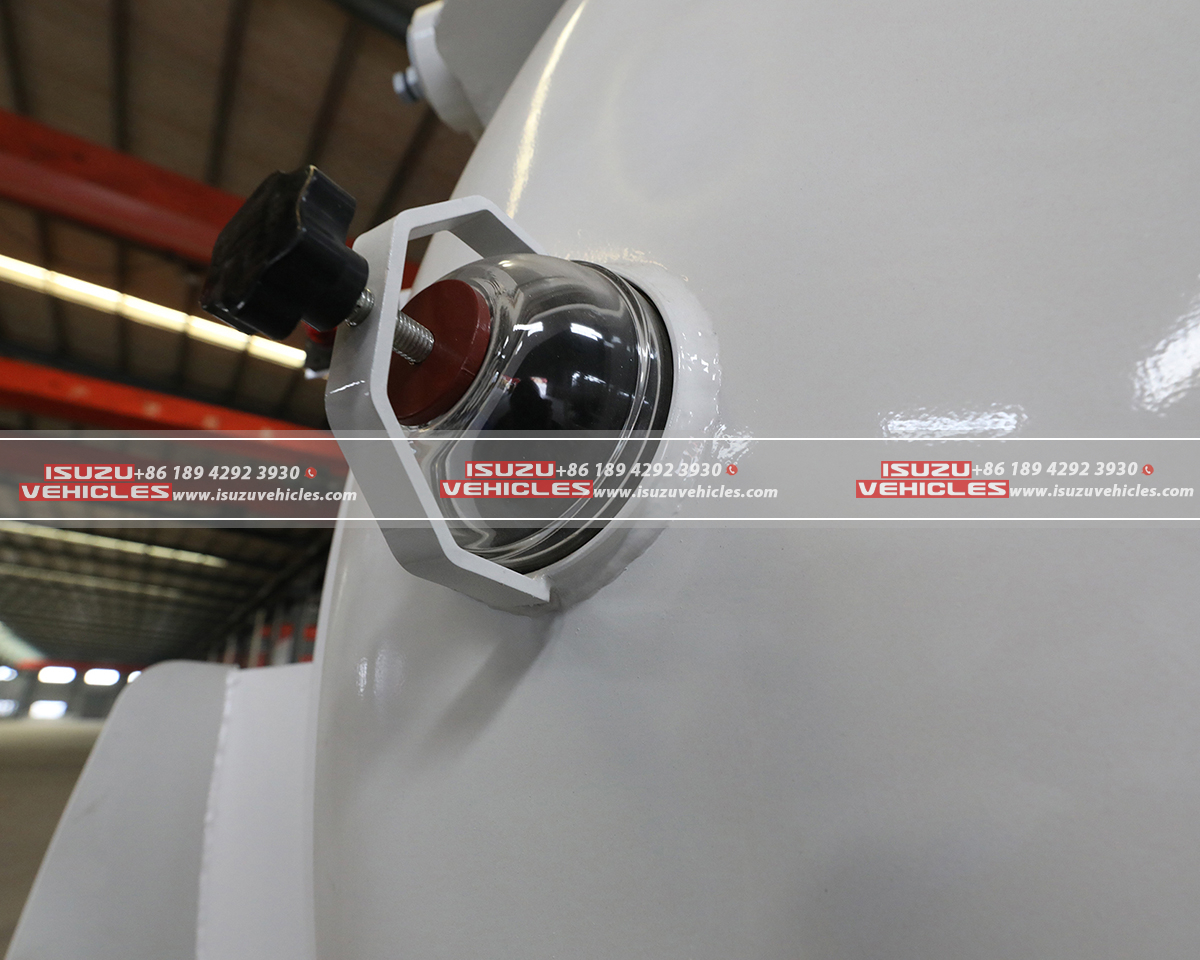

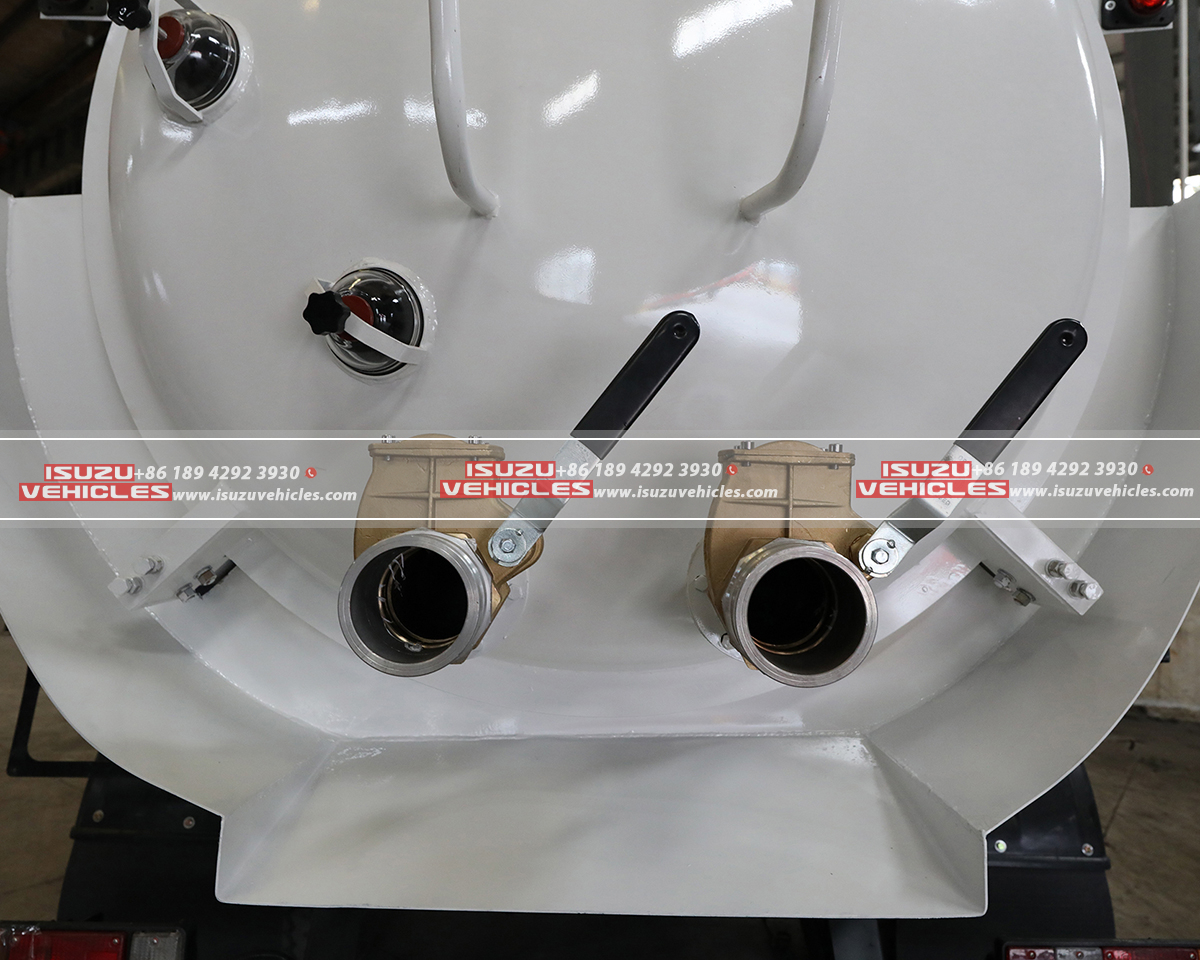

This ISUZU vacuum sewer truck is equipped with anti-flow devices, ensuring the safety of the machine and the operator during operation. The truck also has level indicators made of transparent acrylic tubing with a thick wall, with a total of two units, one on each compartment. The rear door is a fully open-able type, reinforced for structural integrity, and raised to the angle of 80° to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches.
In conclusion, this ISUZU vacuum sewer truck is a powerful and efficient machine designed to address the challenges of urban waste management. With its sturdy construction, impressive capacity, and safety features.
GENERAL | |
Make/Model | ISUZU / VST04QL130L5 |
Drive Type | 4×2 Left-Hand Drive |
Overall Dimension
(L x W x H) |
5,995×1,950×2,550 (mm) |
Gross Vehicle Weight | 7,300kg |
Curb Weight | 3,930kg |
Wheelbase | 3,360mm |
Chassis Designed | ISUZU KV600 |
Cabin | Hydraulic power steering type.
1 driver+2 passengers |
Drive wheel(Tires ) | 4+2 and one spares (total of 7 wheels) |
Tire Size | 7.00R16 |
ENGINE | |
Make / Model | ISUZU / 4KH1CN5HS |
Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
Displacement | 2.999L |
Nominal Power | 130HP (96kw) @ 3400rpm |
Peak Torque | 290N.m@1,500rpm |
Emission Standard | Euro 5 |
TRANSMISSION | |
Make / Model | ISUZU/MSB |
Type | Diesel |
Operation | Manual |
Number of Speeds | 5F+1R |
CONSTRUCTION | ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate |
CAPACITY | 4,000L |
Sludge Tank | |
Tipping | The tank is mounted with an arrangement for the rear tipping |
Thickness | 6mm |
Compartment | Sludge/sewage tank compartment: 5,000liters |

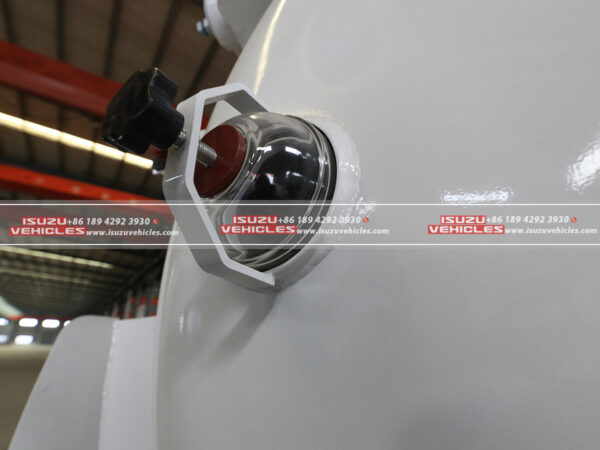

Level Indicators | Material: Transparent acrylic tubing with thick wall
Quantities: Total two units. One on each compartment. |

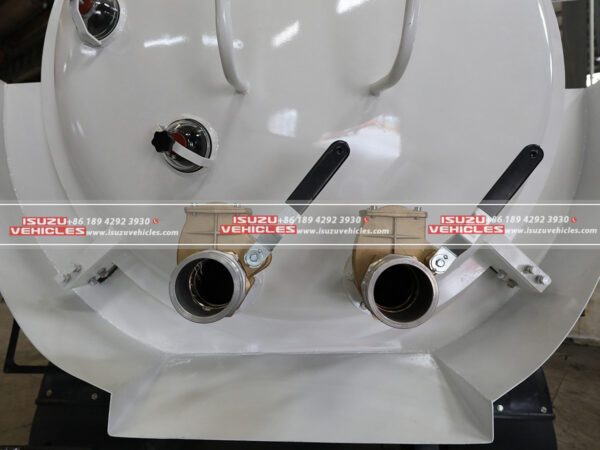

Rear Door | Fully open-able type
It is reinforced for structural integrity. Raised to the angle of 80°to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches. |
Vacuum Pump | |
Make/Model | MORO/PM80W |
Pump Capacity | 12,000l/m |
Speed | 1200r/min |
Maximum Vacuum | 95% |
Type | Water-cooled vacuum pump, heavy duty/multi-cylinder type, strong high-pressure, continuous duty. |
Max. Exhaust Power | 14kw |
Hose | |
Heavy Duty Spiral Suction Hoses | Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application |
Safety Device | Equipped with anti-flow devices |
