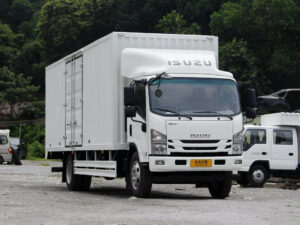

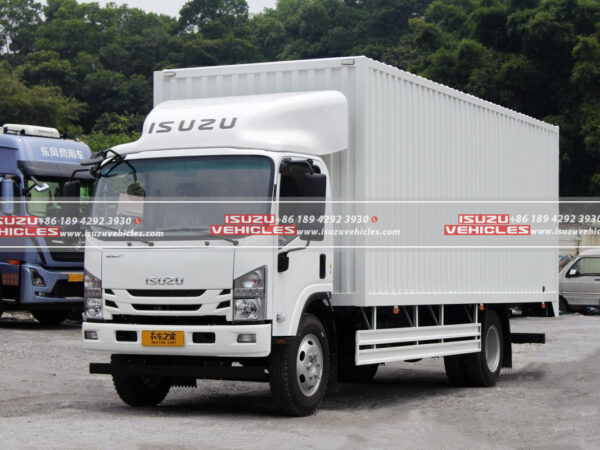

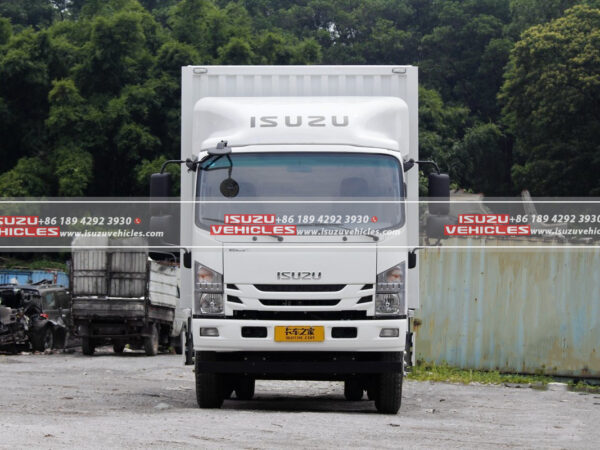

ISUZU 5-10 CBM Cube Van Caged Box Truck
The ISUZU 5-10 CBM Cube Van Caged Box Truck represents a meticulously engineered solution within the medium-duty truck segment, specifically designed to excel in high-volume, urban and regional distribution tasks. Built on ISUZU’s globally renowned reliability and durability platform at its Chongqing manufacturing facility, this cube van configuration maximizes volumetric efficiency essential for transporting lighter, bulkier goods common in sectors like building materials transport and agricultural produce distribution. Featuring a substantial 7-meter cargo box mounted on a robust 4×2 chassis with a strategic 5150mm wheelbase, it strikes an optimal balance between maneuverability in tight spaces and impressive load-carrying capability, evidenced by its 6.1-ton payload capacity within a Gross Vehicle Weight (GVW) of 11.995 tons. Powered by ISUZU’s advanced 4HK1-TCG60 diesel powerplant meeting stringent China VI emission standards, this truck delivers the dependable performance and operational economy required for intensive daily use, supported by a rugged manual transmission and a chassis engineered for resilience on varied road conditions. Its dimensions (8.935m L x 2.4m W x 3.54m H) ensure practicality within urban confines while maximizing cargo space utility.
Key Features & Specifications
I. Cargo Efficiency & Body Construction
- Volumetric Capacity: Offers a highly functional 5-10 cubic meter (CBM) cargo space, ideal for bulky items.

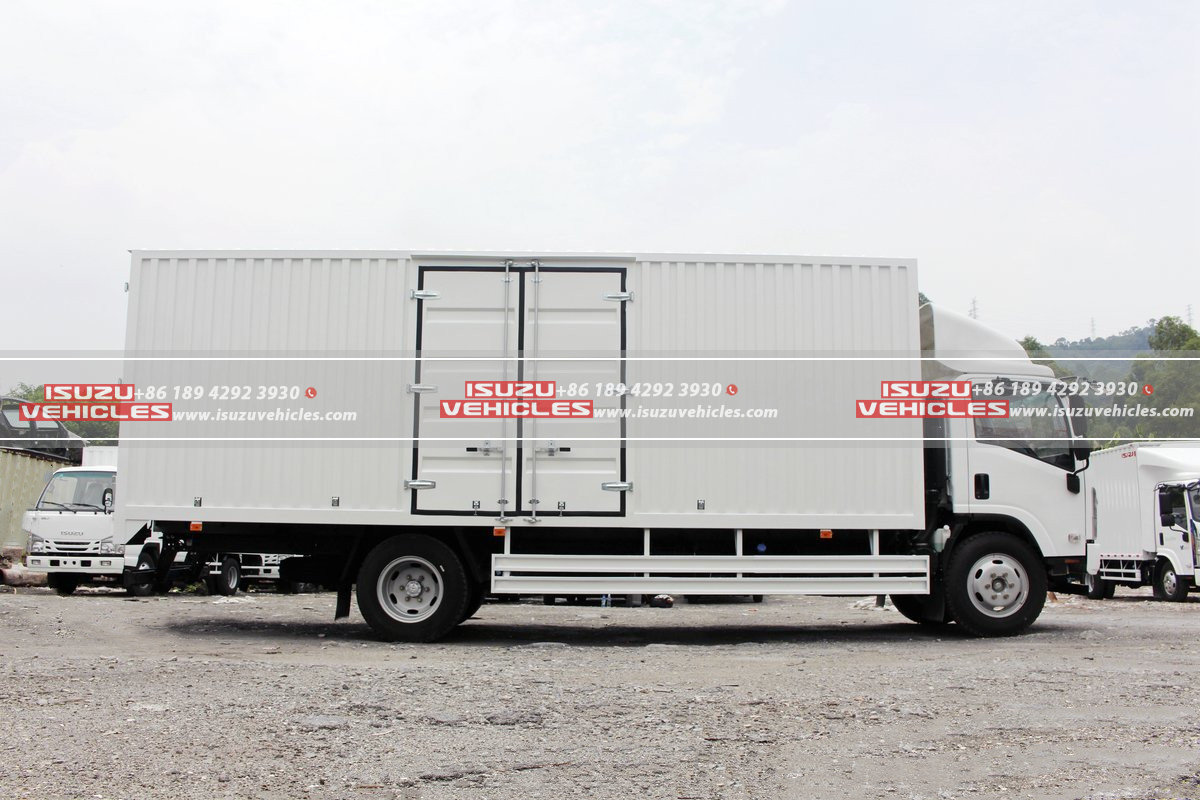

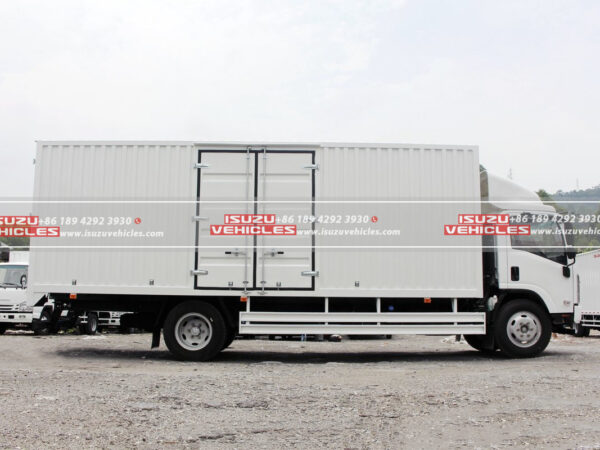

- Box Dimensions: Features a spacious, steel-paneled cargo box measuring 6.965 meters in length, 2.3 meters in width, and 2.3 meters in height, providing a near-rectangular and highly usable internal volume with an effective internal width of 2.3 meters.

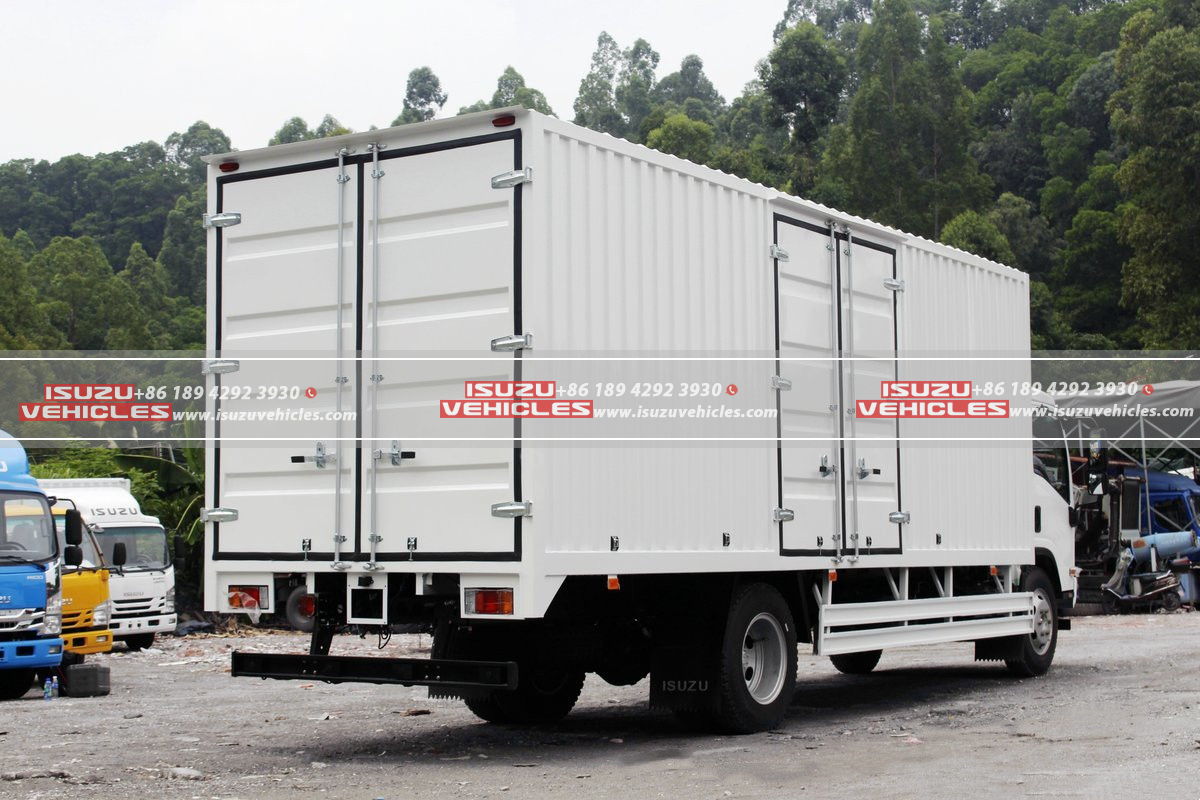

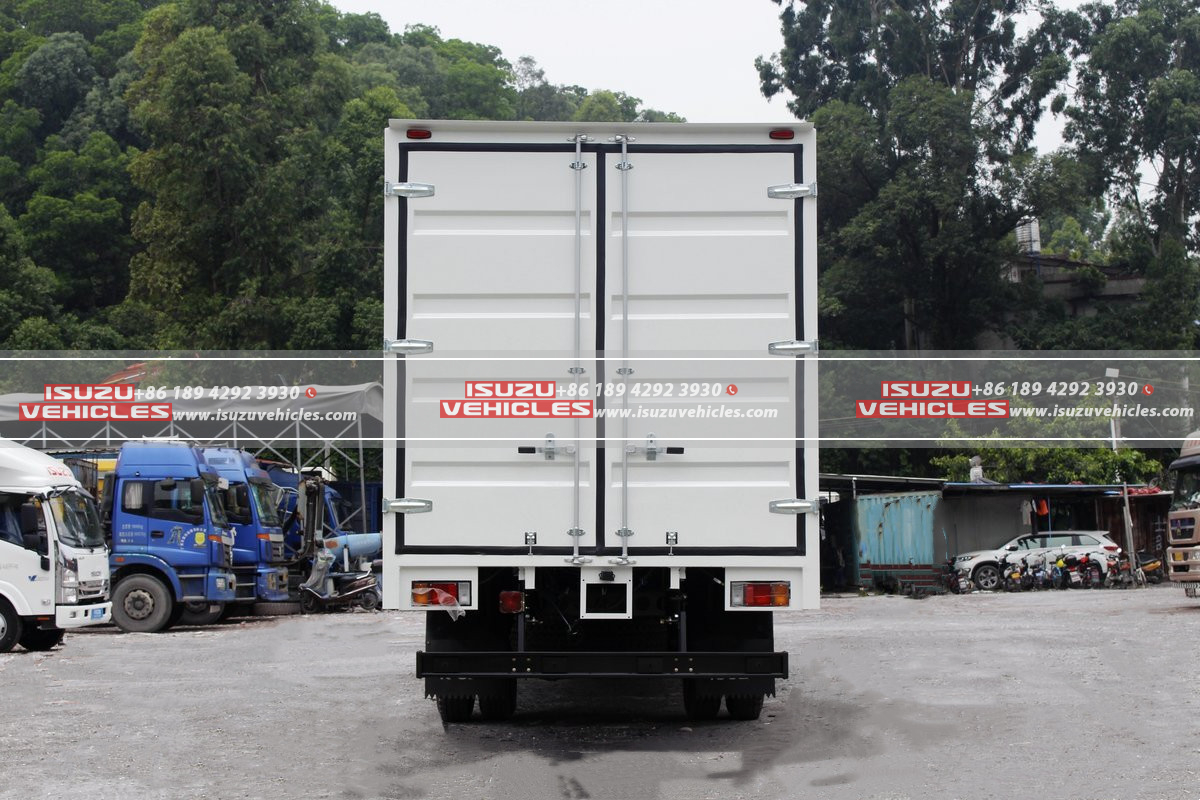

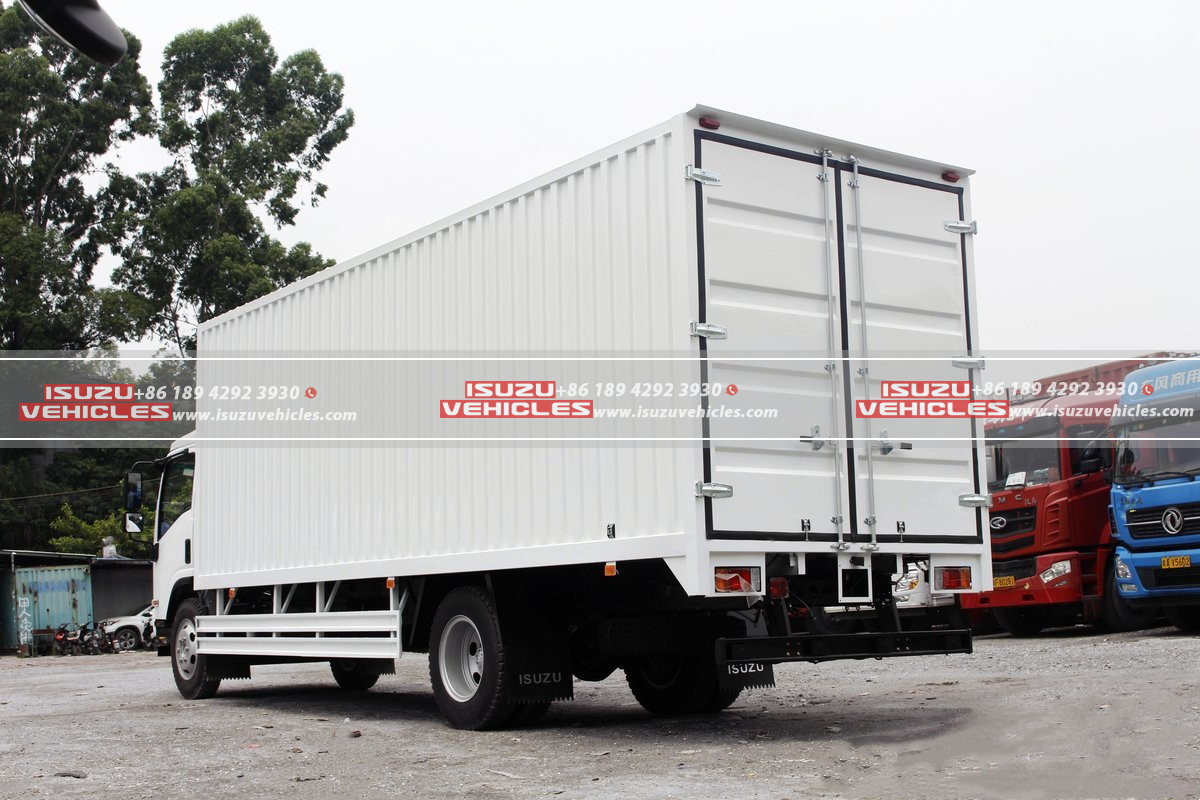

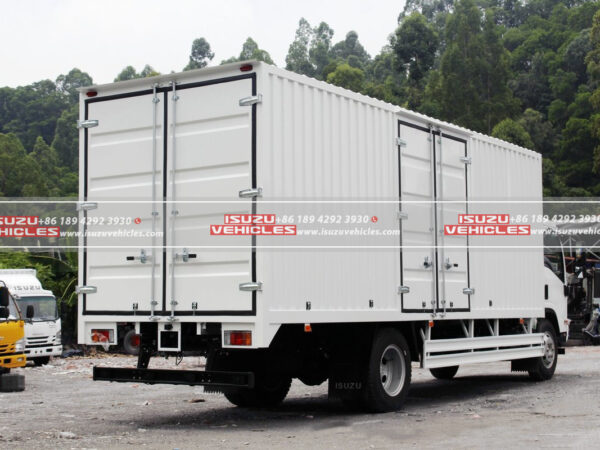

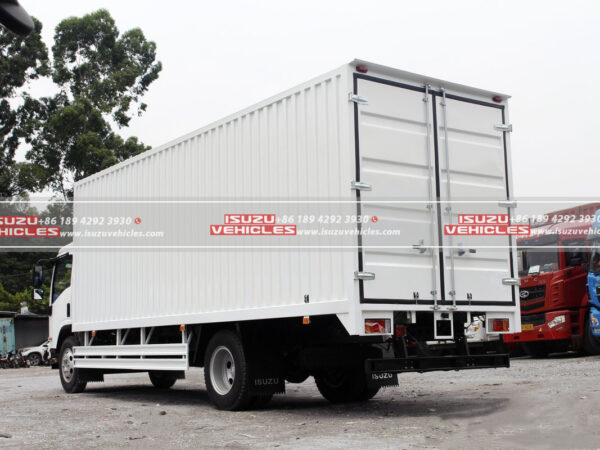

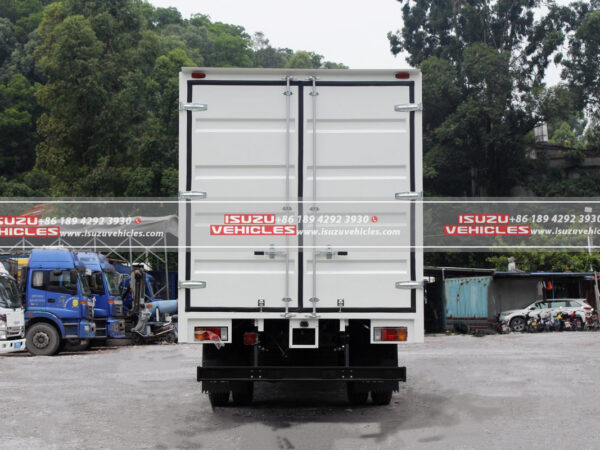

- Access & Security: Configured as a caged box truck (implying roll-up door/side access), facilitating efficient loading/unloading while ensuring cargo security.
II. Powertrain & Performance
- Engine: Equipped with the proven ISUZU 4HK1-TCG60 inline 4-cylinder diesel engine.
- Displacement: 5.193 liters.
- Power Output: Delivers a robust 151 kW (205 horsepower) at 2600 rpm, ensuring ample power for laden operation.
- Torque: Generates an impressive peak torque of 647 N·m at a low 1600 rpm, providing excellent pulling power and drivability from standstill and on inclines.
- Compliance: Fully compliant with the stringent EURO VI emission standards.
- Transmission: Mated to a reliable ISUZU MLD-6Q manual transmission, featuring 6 forward gears and 1 reverse gear, offering precise control and durability for demanding stop-start delivery cycles.
III. Chassis, Suspension & Braking
- Robust Frame: Built on a sturdy chassis designed for a 11.995-ton Gross Vehicle Weight (GVW).
- Axle Capacity: Features a 4,000 kg front axle capacity and a substantial 7,995 kg rear axle capacity.
- Heavy-Duty Suspension: Employs a 9-leaf spring front suspension and a robust 10+6-leaf spring rear suspension configuration, engineered to handle the 6.1-ton payload effectively while providing stability.
- Advanced Braking System: Incorporates a comprehensive dual-circuit air brake system for primary stopping power.
- Foundation Brakes: Utilizes drum brakes on both front and rear axles.
- Safety Features: Includes ABS (Anti-lock Braking System) as standard for enhanced control during braking.
- Auxiliary Braking: Features an exhaust brake assist and utilizes a reliable spring brake system for secure parking.
IV. Driver Environment & Operational Features
- Functional Cabin: Designed as a single-row cab comfortably seating 3 personnel.

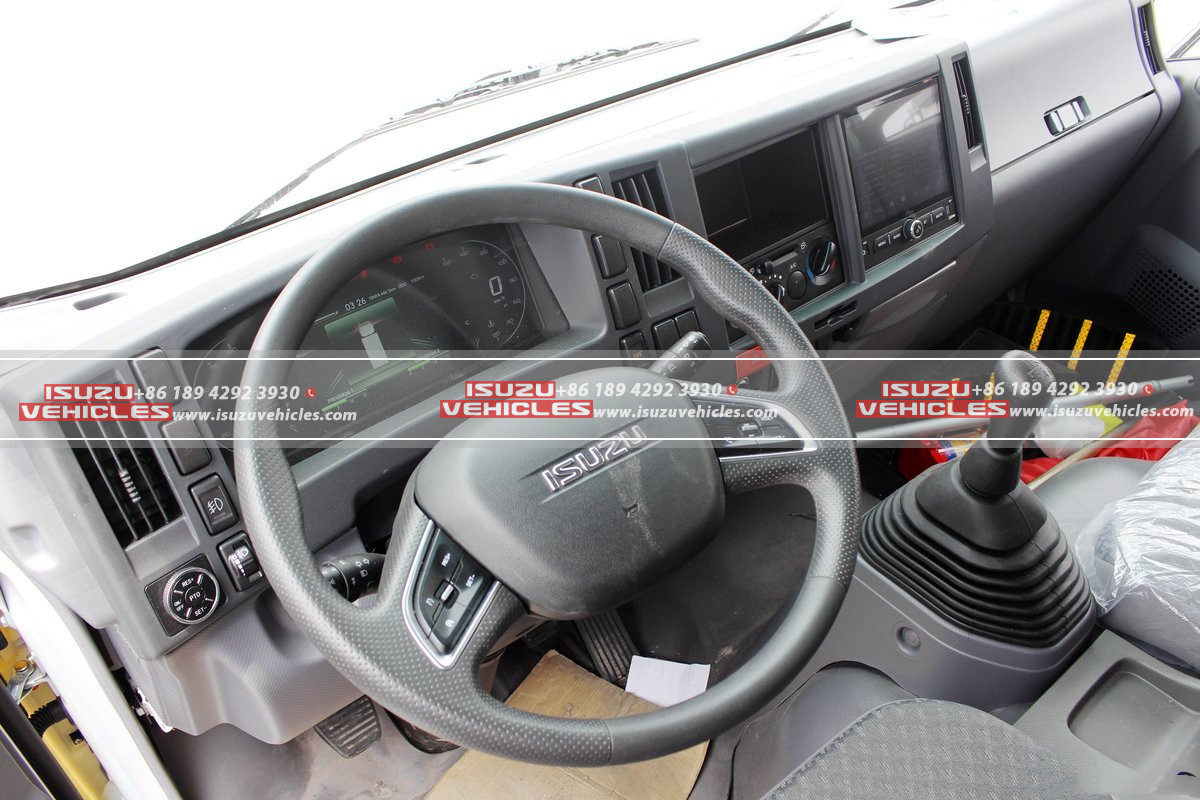

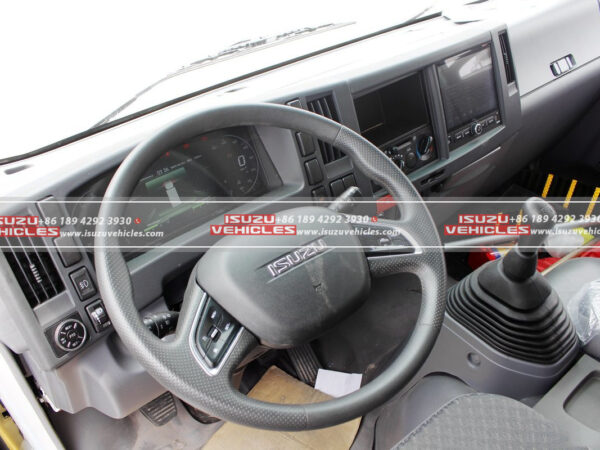

- Driver Comfort & Control: Equipped with essential amenities including power steering, clutch assist, manual air conditioning, power windows, central electronic locking, and remote keyless entry.
- Visibility & Safety: Standard features promote driver confidence and safety during operation.
- Mobility: Achieves a practical top speed of 110 km/h, suitable for highway transit between delivery points. Offers reasonable approach (19°) and departure (13°) angles for navigating typical urban and worksite terrain.
SPECIFICATIONS
| Category | Parameter | Value |
|---|---|---|
| General | Type | Van Truck |
| Drive Configuration | 4X2 | |
| Energy Type | Diesel | |
| Origin | Chongqing | |
| Tonnage Class | Medium Truck | |
| License Requirements | A1, A2, B2 | |
| Target Markets | Building Materials, Agricultural Products | |
| Dimensions & Angles | Overall Length | 8.935 m |
| Overall Width | 2.4 m | |
| Overall Height | 3.54 m | |
| Wheelbase | 5,150 mm | |
| Front Track | 1,680 mm | |
| Rear Track | 1,650 mm | |
| Approach Angle | 19° | |
| Departure Angle | 13° | |
| Front/Rear Overhang | 1.16 m / 2.625 m | |
| Cargo Box | Configuration | Enclosed Van |
| Internal Length | 6.965 m | |
| Internal Width | 2.3 m | |
| Internal Height | 2.3 m | |
| Material | Corrugated Steel | |
| Volume Capacity | 5-10 CBM | |
| Weights | Curb Weight | 5.7 tons |
| Payload Capacity | 6.1 tons | |
| Gross Vehicle Weight (GVW) | 11.995 tons | |
| Front Axle Load Capacity | 4,000 kg | |
| Rear Axle Load Capacity | 7,995 kg | |
| Performance | Top Speed | 110 km/h |
| Engine | Model | ISUZU 4HK1-TCG60 |
| Configuration | 4-cylinder Inline | |
| Displacement | 5.193L | |
| Max Power | 151 kW (205 HP) @ 2,600 rpm | |
| Max Torque | 647 N·m @ 1,600 rpm | |
| Emission Standard | China VI | |
| Transmission | Model | ISUZU MLD-6Q |
| Type | 6-speed Manual | |
| Reverse Gears | 1 | |
| Chassis & Suspension | Spring Leaf Configuration | Front: 9 / Rear: 10+6 |
| Tires | Specification | 8.25R20 16PR |
| Quantity | 6 | |
| Braking System | Primary Brake Type | Air Brake |
| Parking Brake | Spring Brake | |
| ABS | Standard | |
| Exhaust Brake | Included | |
| Front/Rear Brakes | Drum/Drum | |
| Cabin | Seating Capacity | 3 persons |
| Layout | Single Row | |
| Features | Power Steering | Standard |
| Clutch Assist | Standard | |
| Air Conditioning | Manual Control | |
| Power Windows | Standard | |
| Remote Keyless Entry | Standard | |
| Central Locking | Electronic | |
| Spoiler | Optional |
