BRIEF
FEATURES:
- Employs a robust air blower for powerful suction and displacement in the sewer truck.
- Specifically designed to withstand challenging industrial environments.
- Engineered and manufactured adhering to the highest safety standards.
- Utilizes a cyclone separator to redirect dirt particles from the outlet, channeling them into a hopper bin through gravity.
- Features a remote-controlled suction boom for convenient access, operation, and monitoring.
SPECIFICATIONS:
Chassis | |
Size | 10,700 x 2,500 x 3,140 (mm) |
GVW/Curb Weight | 18,000/10,000kg |
Wheelbase | 4,500mm |
Front/Rear Axle | 6.5T/11.5T |
Tire | 295/80R22.5 6+1 tires |
Engine | |
Type | Diesel |
Make/Model | ISUZU/6HK1-TCL/240hp/ Euro 5 |
Transmission | |
Model | ISUZU/MLD-6Q |
Gears | 6F+1R |
Operation | Manual |
Cabin | |
Driving | ISUZU FVR, Flat Roof Short Cab with Sleeper, Left Hand Drive |
Type | Steel construction, Single Row, Flat |
Passenger No. | 3 |
Dry Material Tank | |
Substance | Catalyst, (roof) gravel, powders, fly ash and sludge etc |
Total Volume | 10,000liters |
Material | High quality carbon steel Q235 (equivalent as IS-2062 Grade A or ASTM a36) |
Thickness | 6mm thickness |
Stiffening Channels | Reinforcing channel around outer periphery when it is necessary. |

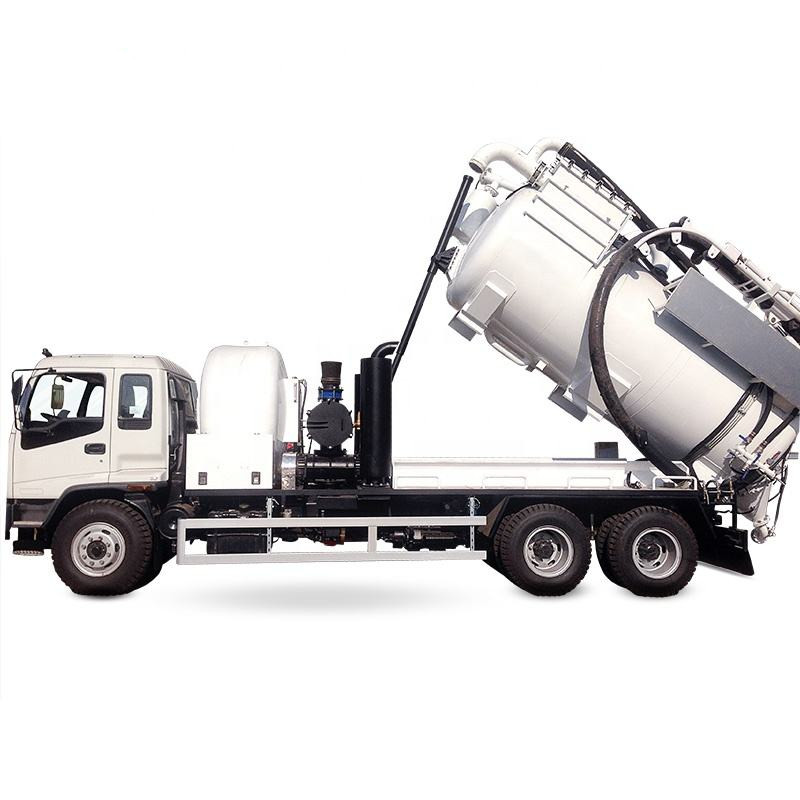

Tipping | The tank is mounted with an arrangement for rear tipping |
Safety Support | The tank is safety tested |
Rear Door | Fully hydraulically open and locking |
Silencer | Installed |

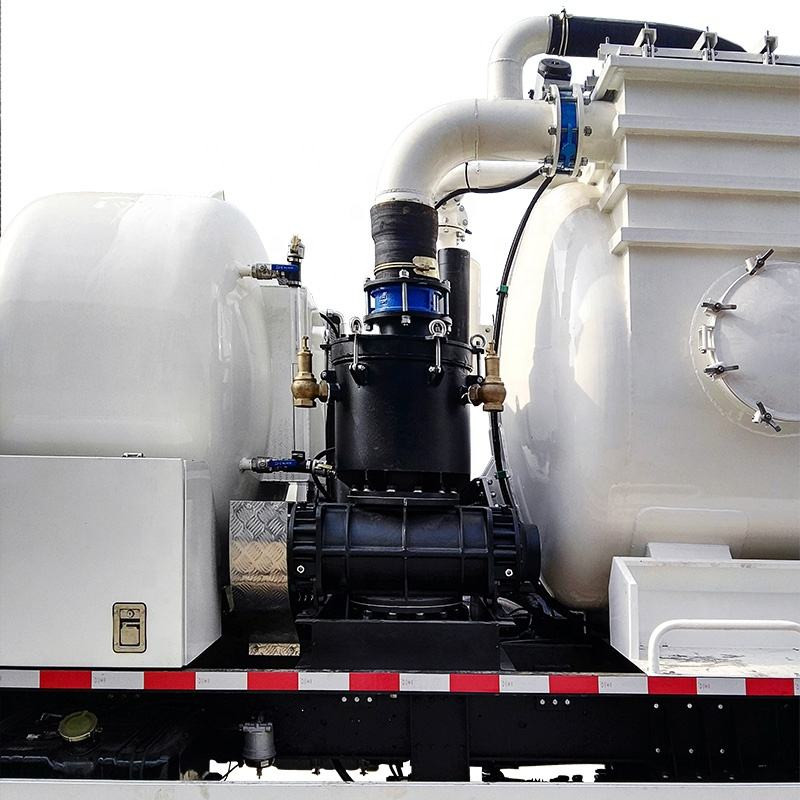

Blowing System | |
Make/Model | HIBON (France |
Air Flow | 5700 m³/hr |
Max Vacuum | 65% |
Power Requirement | 105 kW |
Speed | Max 3000 rpm |
Safety Protection | |
Dust Filtering | Primary cyclone separator and secondary filter bag |
Automatic Level Sensor | Automatic detection the dust level to prevent overfilling |
Vacuum Sniffer Valve | Sniffer valve releasing vacuum when the vacuum in the tank reaches the high threshold for safety protection. |
Filtering System | |
Cyclone separator | Centrifugal force created by air displacement, forces dust particles away from the outlet. Gravity then pushes dirt particles into a hopper bin. |
Bag Filter Unit | Heat-resistant and anti-corrosion. To flit the smaller particles to ensure clean air into the blower and silencer. |
Self Cleaning | Self-cleaning cyclone separation keeps the cyclones dust-free at all times (patented). |
Discharging | The separated industrial material will be easily dumped when lifting of the tank body. |

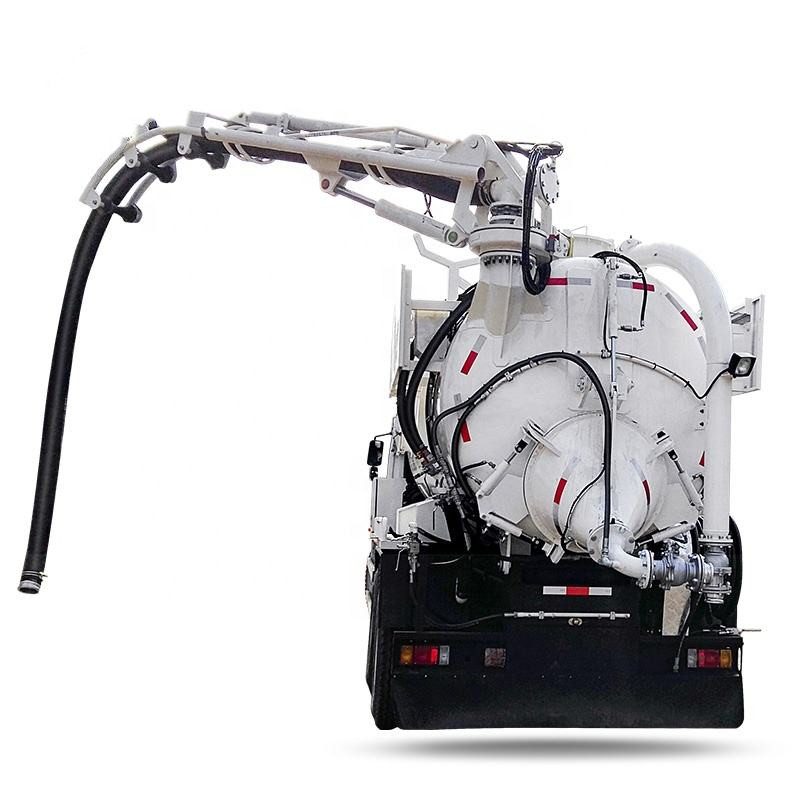

Suction Boom & Hose | |
Material | Carbon steel and imported rubber suction hose |
Suction arm | Extendable over a length of 1350 mm, 180 degrees left and right rotation. |
Control System | |
Electric Control Panel | At the side electric control panels are properly mounted. |
Remote control | Control the suction boom |
